USER MANUAL KITCHENminis 04.1241.0012 WMF

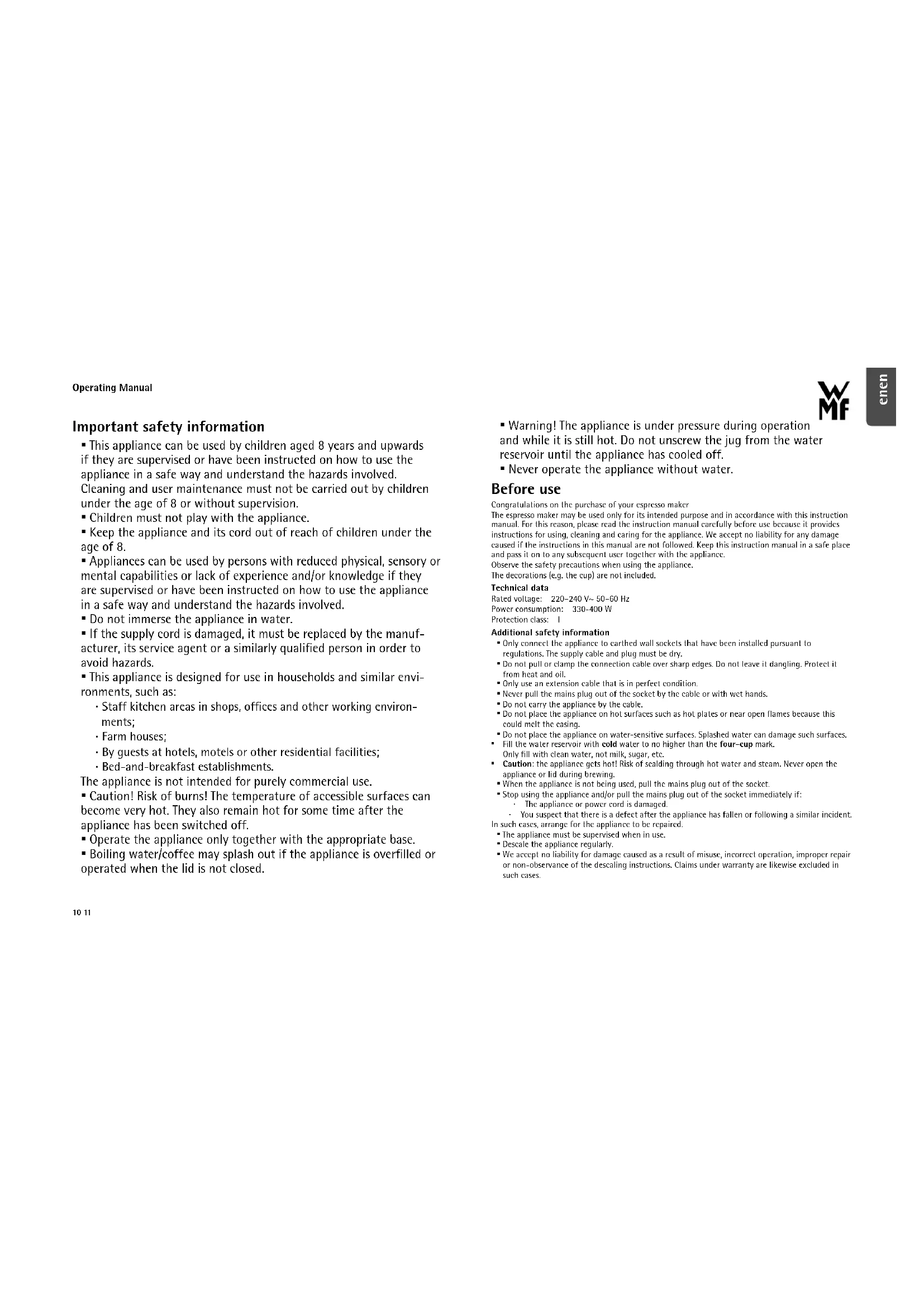

• This appliance can be used by children aged 8 years and upwards if they are supervised or have been instructed on how to use the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must not be carried out by children under the age of 8 or without supervision.

• Children must not play with the appliance.

• Keep the appliance and its cord out of reach of children under the age of 8.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised or have been instructed on how to use the appliance in a safe way and understand the hazards involved.

• Do not immerse the appliance in water.

• If the supply cord is damaged, it must be replaced by the manuf- acturer, its service agent or a similarly qualified person in order to avoid hazards.

• This appliance is designed for use in households and similar envi- ronments, such as: ⋅ Staff kitchen areas in shops, offices and other working environ- ments; ⋅ Farm houses; ⋅ By guests at hotels, motels or other residential facilities; ⋅ Bed-and-breakfast establishments. The appliance is not intended for purely commercial use.

• Caution! Risk of burns! The temperature of accessible surfaces can become very hot. They also remain hot for some time after the appliance has been switched off.

• Operate the appliance only together with the appropriate base.

• Boiling water/coffee may splash out if the appliance is overfilled or operated when the lid is not closed.

• Warning! The appliance is under pressure during operation and while it is still hot. Do not unscrew the jug from the water reservoir until the appliance has cooled off.

• Never operate the appliance without water. Before use Congratulations on the purchase of your espresso makerThe espresso maker may be used only for its intended purpose and in accordance with this instruction manual. For this reason, please read the instruction manual carefully before use because it provides instructions for using, cleaning and caring for the appliance. We accept no liability for any damage caused if the instructions in this manual are not followed. Keep this instruction manual in a safe place and pass it on to any subsequent user together with the appliance.Observe the safety precautions when using the appliance. The decorations (e.g. the cup) are not included. Technical data Rated voltage: 220–240 V~ 50–60 HzPower consumption: 330-400 WProtection class: I Additional safety information
• Only connect the appliance to earthed wall sockets that have been installed pursuant to regulations. The supply cable and plug must be dry. ▪ Do not pull or clamp the connection cable over sharp edges. Do not leave it dangling. Protect it from heat and oil. ▪ Only use an extension cable that is in perfect condition. ▪ Never pull the mains plug out of the socket by the cable or with wet hands. ▪ Do not carry the appliance by the cable. ▪ Do not place the appliance on hot surfaces such as hot plates or near open flames because this could melt the casing. ▪ Do not place the appliance on water-sensitive surfaces. Splashed water can damage such surfaces.
• Fill the water reservoir with cold water to no higher than the four-cup mark. Only fill with clean water, not milk, sugar, etc.
• Caution: the appliance gets hot! Risk of scalding through hot water and steam. Never open the appliance or lid during brewing. ▪ When the appliance is not being used, pull the mains plug out of the socket. ▪ Stop using the appliance and/or pull the mains plug out of the socket immediately if: ⋅ The appliance or power cord is damaged. ⋅ You suspect that there is a defect after the appliance has fallen or following a similar incident. In such cases, arrange for the appliance to be repaired. ▪ The appliance must be supervised when in use. ▪ Descale the appliance regularly. ▪ We accept no liability for damage caused as a result of misuse, incorrect operation, improper repair or non-observance of the descaling instructions. Claims under warranty are likewise excluded in such cases.12 13

Use The WMF KÜCHENminis® espresso maker is a space-saving and energy-effi cient kitchen appliance. It can be used to prepare two or four cups of freshly brewed aromatic espresso coffee. The espresso maker is simple to operate. For optimal results, we recommend using a medium-fi ne ground espresso powder. Before using for the fi rst time Set-up

1. Begin by cleaning all parts as described in the section entitled “Cleaning and care”.

2. Any length of non-required cable should be fed into the bottom of the base.

3. Place the appliance on a stable, water-resistant surface.

Starting up the appliance

1. Fill the reservoir with cold water to the two- or four-cup mark, as required.

Under no circumstances should you fi ll the reservoir beyond the four-cup mark.

2. Use the fi lter basket to prepare four cups.

If you want to make only two cups, place the adapter into the fi lter basket before fi lling it with espresso powder. Now pour espresso powder into the basket and smooth the surface without pressing it down. Note: if the espresso powder is pressed into the fi lter basket, the holes may become clogged. Use your fi nger to remove any powder on the edges. This ensures that the appliance can seal properly.

3. Insert the fi lter basket into the water reservoir.

4. Place the jug on top of the water reservoir and screw it closed by turning it in a clockwise

5. Place the appliance on the base and plug the mains plug into an earthed wall socket. Turn on the

appliance using the on/off switch. The indicator light glows white.

6. Once brewing has fi nished, the appliance switches off automatically and the indicator light turns

7. The coffee is served directly from the appliance. For an even strength and a balanced aroma, stir

the espresso in the jug or swirl the jug carefully. Safety system A safety valve protects the appliance against over-pressurising. For this reason, it must not be tampered with under any circumstances. The pressure valve is not guaranteed to work safely if the appliance is operated with too much water. If the appliance is accidentally operated without water, a thermostat switches the appliance off to protect it from overheating. The appliance is ready to use again once it has cooled down. Should the fi rst thermostat malfunction due to improper use, an additional temperature limiter provides reliable protection. Cleaning and care Cleaning Unplug the mains plug and allow the appliance to cool down. Do not immerse the appliance in water, but instead just use a damp cloth and a little washing-up liquid to clean its exterior. Do not use harsh or abrasive cleaning agents. Remove the fi lter and the sealing ring from underneath the jug by inserting a spoon handle under the sealing ring and levering it off. After cleaning, place the fi lter back in position, then reinsert the sealing ring. The jug, fi lter basket and adapter can be rinsed off under running water. In order to ensure the long-term functioning of the pressure relief valve, use your fi nger to push the plunger slightly outwards from the inside each time you clean the machine. Descaling Please descale your appliance regularly using a high-quality commercial descaling agent. Follow the manufacturer’s instructions, particularly with regard to the subsequent cleaning with clear water, which is essential! Suitable descaling agents contain inhibitors that protect appliances against damage to seals and surfaces, do not cause additional deposits and have no taste. Do not use descaling agents that are unsuitable for your appliance (such as substances based purely on vinegar or citric acid). Our warranty does not cover damage caused by using unsuitable descaling agents or failure to follow the descaling instructions. Please keep descaling agents out of reach of children and make sure you do not inhale any of the steam given off during descaling.14 15

Troubleshooting The following information should help you resolve problems with your appliance. If not, please contact our central customer service department. Note the warranty information. Problem Corrective action The appliance switches off prema- turely. Too much limescale has built up inside the water reservoir. Descale the reservoir. Steam comes out of the safety valve. The espresso powder is too finely ground or was pressed down too hard. Pour espresso powder into the filter basket without pressing it down. Steam comes out of the joint between the jug and the water reservoir. The jug and water reservoir aren't screwed together properly (crookedly) or tightly enough. Screw the jug and water reservoir together straight or a little more tightly. The espresso has too little aroma. Too little or too mild espresso powder was used. Fill the filter basket completely with espresso powder or use a stronger type of espresso. The espresso is too strong and/or tastes bitter. The espresso powder is too finely ground or was pressed down too hard. Too much or too strong espresso powder was used. Pour less espresso powder into the filter basket or use a milder type of espresso. For UK use only

• This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.

• The replacement of the plug at the mains lead has to be done according to the following instructions: Warning - This appliance must be earthed! Important: The wires in this mains lead are coloured in accordance with the following code: green/yellow Earth blue Neutral brown Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: ⋅ the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol , or coloured green or green and yellow, ⋅ the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black, ⋅ the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

• If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 5 A fuse either in the plug or adapter or at the distribution board. If in doubt - consult a qualified electrician.

• Never use the plug without closing the fuse cover. The appliance complies with European directives 2014/35/EC, 2014/30/EC and 2009/125/EC. At the end of its life, this product must not be disposed of in normal household waste but must instead be delivered to a collection point for recycling electric and electronic appliances. The materials are recyclable in accordance with their labelling. The reuse, recycling and or other use of old appliances makes an important contribution to protecting our environment. Please ask your local administration for the appropriate disposal point. Subject to alterations16 17 frfr Mode d’emploi Consignes de sécurité importantes
