USER MANUAL AM 880 MEDISANA

Please read carefully!

A litre attentivement s.v.p!.

1 Safety Information. 13
2 Useful Information 18
3 Operating 18
4 Miscellaneous 22
5 Warranty 24

FR Mode d'emploi

LC-Display
3 Connection plug
4 Buttons for intensity adjustment
Program selection button
Magnet fixation
Battery compartment lid
8 Extension belt
9 4 Contact electrodes

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use.

Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

Refer to instruction manual recommended.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation and operation.

LOT

LOT number

DC voltage

IP22

Ingress protection rating

Manufacturer

This product must not be disposed of together with domestic waste.

Do not dispose of old batteries with your household waste!

CE symbol (conformity symbol)

Do not use the device when it is folded or creased

Do not puncture the device

Do not wash

Do not bleach

Do not dry the device in a tumble drier

Do not iron the device

Do not dry clean

• The device is not suitable for medical use (e. g. in hospitals).
• Only use the device for the specific purpose described in the instruction manual. Any misuse will void the warranty.
• This device is intended for use by healthy adults only.

WARNING

Using the device near the chest can cause ventricular fibrillation or cardiac arrest!

• The device must not be used:

• in the area of the ribcage/back

• in the area of the head/neck
• in the genital area.

This may cause seizures, ventricular fibrillation/cardiac arrest and/or serious injury.

• Do not use if pregnant.
• Do not use if you have a pacemaker, other implants or prosthetic metals in your body, or if you suffer from cardiac arrhythmia, acute illness, epilepsy or cancer.
• Before using the device, remove jewellery and/or piercings from the area of application, otherwise burns and injuries may occur.
• In case of diabetes or other diseases you should consult your doctor before applying the device.
• Persons, whose sensitivity is disturbed or impaired may only apply the device according to the instructions of a physician.
• If you experience discomfort during the use, such as allergic reactions or other complaints, stop using the device immediately and contact your physician.
• Do not place the electrodes on areas with open skin.
• In case of skin irritation, stop the treatment and consult a physician.

• Never use the belt with the metal electrodes uncovered, as this may cause serious injury. The electrodes must always be covered. Replacement covers for the electrodes can be obtained from Medisana Service.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.
• Do not use the unit near any heat sources, highly flammable substances, gases or explosives.
• Do not fold or crease the device during use.
• Do not crease the device by placing items on top of it during storage.
• Never pull, twist or crease the cable.
• Neither pierce the device with, nor attach safety pins or other spiky or sharp objects to the device.
• Do not use the device if you notice wear, damage or signs of improper use.
• If a fault occurs, do not attempt to repair the unit yourself. Repairs must only be carried out by an authorized specialist dealer or other suitably qualified personnel.
• Do not modify or disassemble the device.
• Only use original accessory parts recommended by the manufacturer.
• Do not use the device at the same time as other devices which deliver electrical impulses to the body.
• Do not use the unit near to equipment emitting a strong electric or magnetic field, such as radios, microwaves or mobile phones. This may impair the correct functioning of the unit.

• Operating the device in close proximity (e.g. in 1 meter distance) to short- or microwave therapy equipment may result in failures or injuries.

• The error-free and safe operation is only ensured, if the device is stored and used within the surrounding parameters as described under "Specifications".

• Keep the device away from humidity and liquids!
• Never use a damp appliance.
• Never use the device while taking a bath or shower. Should liquids penetrate the device, immediately remove the storage battery and avoid further application. Contact your specialist shop or your servicecentre.
• Do not apply the device during the operation of a machine or while driving a car.
• Never use the device in rooms where aerosols (sprays) are used or pure oxygen is being administered.

2.1 Please check first of all that the device is complete and is not damaged in Scope of any way. In case of doubt, do not use the appliance and contact your sup delivery plier or your service centre.

and packaging

The following parts are included:

1 MEDISANA Abdominal muscle stimulation device AM 880
- 3 Batteries 1.5V (type AAA)
1 Extension belt
1 Instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

3 Operating

The MEDISANA AM 880 abdominal stimulation device works on the principle of electrical muscle stimulation (EMS). Gentle electrical impulses over the skin stimulate the body's abdominal muscles without placing strain on the joints. This causes small muscle contractions, which can stimulate the muscles in a "passive" manner (= without movement by the user). This can be helpful for strengthening flaccid abdominal muscles, working on uneven, poorly trained or tense abdominal muscles, or for warming up before exercise. Professional athletes, ambitious recreational athletes and rehab experts have used this type of muscle stimulation for many years in order to improve the body's performance, reduce the risk of injury and maintain mobility.

3.1 Remove the battery compartment lid 7 and insert the included batteries (3 x type AAA). Observe the proper polarity (+/-) of the batteries as indicated on the batteries itself and on the inside of the battery compartment. Replace the battery compartment lid 7. Follow the same procedure when replacing the batteries (when batteries are weak, the battery replacement symbol appears on the display 2). We recommend that you do not use rechargeable batteries. Remove the batteries from the unit if you do not plan on using it again anytime in the near future.

WARNING - BATTERY SAFETY INFORMATION

• Do not disassemble batteries!

• Clean the battery and device contacts if necessary before putting in the batteries!

• Remove discharged batteries from the device immediately!

• Increased risk of leakage, avoid contact with skin, eyes and mucous membranes! If battery acid comes in contact with any of these parts, rinse the affected area with copious amounts of fresh water and seek medical attention immediately!
• If a battery has been swallowed seek medical attention immediately!
• Replace all of the batteries simultaneously!
• Only replace with batteries of the same type, never use different types of batteries together or used batteries with new ones!
• Keep the battery compartment well sealed!
• Remove the batteries from the device if it is not going to be used for an extended period!
• Keep batteries out of children's reach!
• Do not attempt to recharge these batteries! Danger of explosion!
• Do not short circuit! Danger of explosion!
• Do not throw into a fire! Danger of explosion!
• Keep unused batteries in their packaging away from metal objects in order to prevent short circuiting!

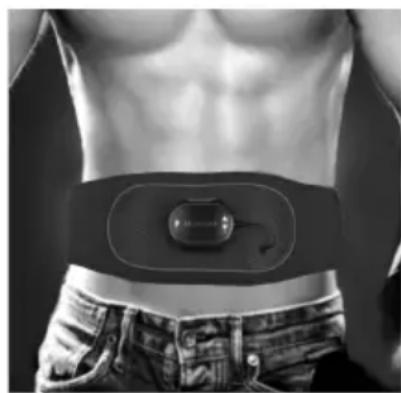

3.2 Prepare the device

Connect the plug 3 to the device and place the control unit in that way into the holder, that it is safely connected by the magnets 6. Put on the belt and make sure, the 4 electrodes 9 are in direct contact with your skin in the abdominal region. You may use the extension belt 8 to put on the device properly.

3.3 Switch on the device by pressing the on-/off-button 1.

Operating A beep sound will be emitted by the device. Select a program (A to F) with the program selection button 5. You may now adjust the intensity (from level 0 to 50) with the two buttons for intensity adjustment 4. The timer will start to countdown the time until 0 is reached. The device will be switched off automatically when the time has run up.

If you want to change the program during use, press the program selection button 5 again - this will cause an automatic reset of the intensity to 0. It will be set to the old intensity level again after the new program is running. You may stop this process by pressing the arrow-down-button 4 .

3.3

Operating

If the device is switched on, but the intensity level is set to 0, the device will automatically switch off after approx. 5 minutes. To switch off the appliance manually, press and hold the on-/off-button for approx. 2 seconds.

To pause a running program, press the on-/off-button ① shortly and press it again to continue the program.

The buttons of the control unit can be locked to prevent any accidental usage by pressind and holding the program selection button 5 for approx.

2 seconds. This button lock can be released in the same way.

WARNING

Only increase the intensity setting slowly. Not all settings are suitable for all users. If you feel uncomfortable during the use of the unit, adjust a lower intensity. Is it still feeling uncomfortable or if the skin is itching or aching, immediately stop the usage and consult a doctor.

3.4

The LCdisplay 2

Adjust

Intensity

Low Power

Remaining Time

Lock

Pause

Program

3.5

The programs

Program A (impulse width 200 s ), Duration: 25 minutes

Phase	Frequency (Hz)	Rise (sec.)	Drop (sec.)	Ongoing (sec.)	Pause time (sec.)	Duration (min.)
Warm-up	30	5	5	4	3	2
Phase 1	50	4	4	4	3	10
Phase 2	70	4	4	7	3	11
Cool-down	30	5	5	4	3	2

Program B (impulse width 200 s ), Duration: 25 minutes

Phase	Frequency (Hz)	Rise (sec.)	Drop (sec.)	Ongoing (sec.)	Pause time (sec.)	Duration (min.)
Warm-up	30	5	5	4	3	2
Phase 1	60	5	5	7	3	10
Phase 2	90	4	4	8	3	11
Cool-down	30	5	5	4	3	2

3.5

The programs

Program C (impulse width 250 s ), Duration: 25 minutes

Phase	Frequency (Hz)	Rise (sec.)	Drop (sec.)	Ongoing (sec.)	Pause time (sec.)	Duration (min.)
Warm-up	30	5	5	4	3	2
Phase 1	70	4	4	6	4	21
Cool-down	30	5	5	4	3	2

Program D (impulse width 250 s ), Duration: 30 minutes

Phase	Frequency (Hz)	Rise (sec.)	Drop (sec.)	Ongoing (sec.)	Pause time (sec.)	Duration (min.)
Warm-up	30	5	5	4	3	2
Phase 1	80	5	5	7	4	26
Cool-down	30	5	5	4	3	2

Program E (impulse width 250 s ), Duration: 30 minutes

Phase	Frequency (Hz)	Rise (sec.)	Drop (sec.)	Ongoing (sec.)	Pause time (sec.)	Duration (min.)
Warm-up	30	5	5	4	3	2
Phase 1	80	4	4	8	4	26
Cool-down	30	5	5	4	3	2

Program F (impulse width 250 s ), Duration: 30 minutes

Phase	Frequency (Hz)	Rise (sec.)	Drop (sec.)	Ongoing (sec.)	Pause time (sec.)	Duration (min.)
Warm-up	30	5	5	4	3	2
Phase 1	90	4	4	10	5	26
Cool-down	30	5	5	4	3	2

4.1

Cleaning and maintenance

• The unit is maintenance free. You may only clean the device yourself.
• Remove the batteries before you clean the unit.
• Never use strong detergents or hard brushes.
• Minor stains can be removed with a cloth or damp sponge with a little liquid mild detergent.
• The device cannot be tumble dried or ironed. The belt should dry on the open air while switched off. Only use it again when it is completely dry.
• Store the device folded out and without kinks in a dry room at room temperature. The belt should cool down before storage.

4.2

Troubleshooting

• No display: Replace all 3 batteries by new ones.
• Intensity cannot be adjusted: Check for proper contact of the electrodes to the skin and if the connection plug 3 has been correctly connected.

For further advice on use, help with problems or detailed technical descriptions for service personnel, please contact the manufacturer.

4.3

Disposal

This product must not be disposed of together with domestic waste.

All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Please remove the batteries before disposing of the device/unit. Do not dispose of old batteries with your household waste, but at a battery collection station at a recycling site or in a shop.

Consult your municipal authority or your dealer for information about disposal.

4.4 Specifi- cations	Name and model	: MEDISANA Abdominal muscle stimulation device AM 880
	Power supply	: 4,5 V==, 3 batteries (type AAA)
	Wave form	: Biphasic rectangular pulse, symmetric
	Pulse width	: 200 - 250 μs
	Pulse rate	: 30 - 90 Hz
	Pulse amplitude	: 0 - 70 mA
	Load impedance	: up to 500Ω
	Material	: Belt: Synthetic fibre Electrodes: Silicone rubber
	Operating conditions	: +5°C to +40°C, 15 - 90 % rel. humidity (non-condensing), atmospheric pressure 700 hPa to 1060 hPa
	Transport / storage conditions	: -25°C to +5°C / +5°C to +35°C at max. 90 % rel. humidity (non-condensing) / > +35°C to +70°C at a water vapor pressure up to 50 hPa
	Dimensions	: approx. 110 x 16 x 3 cm
	Weight	: approx. 310 g including batteries
	Lifespan	: The device is designed for a usage period of 5 years.
	Item number	: 88322
	EAN number	: 40 15588 88322 4
	Acessories	: Item no. 88323: Replacement covers (stickers) for electrodes, EAN 40 15588 88323 1

This device meets the requirements of the EU standard for nerve- and muscle stimulation devices. It is certified in accordance with EC Guidelines and carries the CE symbol (conformity symbol).

In accordance with our policy of continual product improvement, we reserve the right for technical and design changes without notice.

The current version of this instruction manual can be found under www.medisana.com

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

MEDISANA GmbH

Jagenbergstraße 19

41468 NEUSS

GERMANY

The service centre address is shown on the attached leaflet.
