Product type	Baby bottle warmer and food jar warmer
Brand	Philips
Model	SBC SC215 (also compatible with SBC SC205)
Mains power	230 V AC, 100 W
Car power	12 V DC, 80 W (via included car adapter)
Operating ambient temperature	+7 °C to +37 °C
Heating time (200 ml bottle)	Approximately 8 minutes to reach 37 °C
Heating time (food jar)	Approximately 12 to 15 minutes depending on consistency
Capacity	Suitable for all baby bottles and food jars
Main functions	Heating bottles, heating jars, keep warm (max 1 hour)
Temperature adjustment	Click selector with positions for bottle and jar, and keep warm
Safety	PTC temperature control system, built-in thermostat, automatic shut-off (indicator turns off)
Maintenance and cleaning	Clean exterior and interior with a damp cloth. Do not immerse.
Spare parts and repairability	Do not repair yourself. Contact Philips customer service.
Included accessories	Jar lifter, car adapter (for SC215), power cord
Use in car	Possible only for model SC215, do not use while driving
General information	Product from the Philips Babycare range, designed for fast and even heating

Frequently Asked Questions - SBCSC215 PHILIPS

How long does it take to heat a bottle of milk?

Approximately 8 minutes for 200 ml of milk from an initial temperature of 20 °C to 37 °C. The time may vary depending on the quantity and initial temperature.

Can I use the Philips SBC SC215 bottle warmer in a car?

Yes, the SBC SC215 model is designed for use in the car thanks to a car adapter (included) that plugs into the cigarette lighter socket (12 V). Do not use it while the vehicle is moving.

How to clean the bottle warmer?

Unplug the appliance and let it cool down. Clean the container and the exterior with a damp cloth. Never immerse the appliance in water and do not use harsh cleaning products.

Can I leave the bottle warmer on keep warm mode all day?

No, for microbiological and hygienic reasons, baby food should never be kept warm for more than one hour.

What should I do if water overflows from the bottle warmer?

This means you have put too much water. Fill up to about two centimeters from the rim of the container, or just above the milk level for small bottles.

How to check that the milk temperature is suitable for my baby?

Test a few drops on the back of your hand. The temperature should be lukewarm, neither too hot nor too cold.

Can I heat baby food jars directly without opening them?

No, remove the label and lid from the jar before placing it in the bottle warmer. Use the lifter to avoid burns and stir the contents during heating.

The indicator light sometimes blinks, is this normal?

Yes, it is normal. The thermostat turns on and off to maintain the temperature, causing the indicator to blink.

What to do if the temperature seems too low or too high?

Adjust the position of the click selector. If the temperature is too low, increase the setting slightly; if too high, reduce it. Wait a few seconds after adjustment.

Where can I find spare part numbers or customer service?

The rating plate is located at the base of the appliance. For any malfunction or repair, consult your dealer or Philips customer service. Any attempt at repair by yourself voids the warranty.

USER MANUAL SBCSC215 PHILIPS

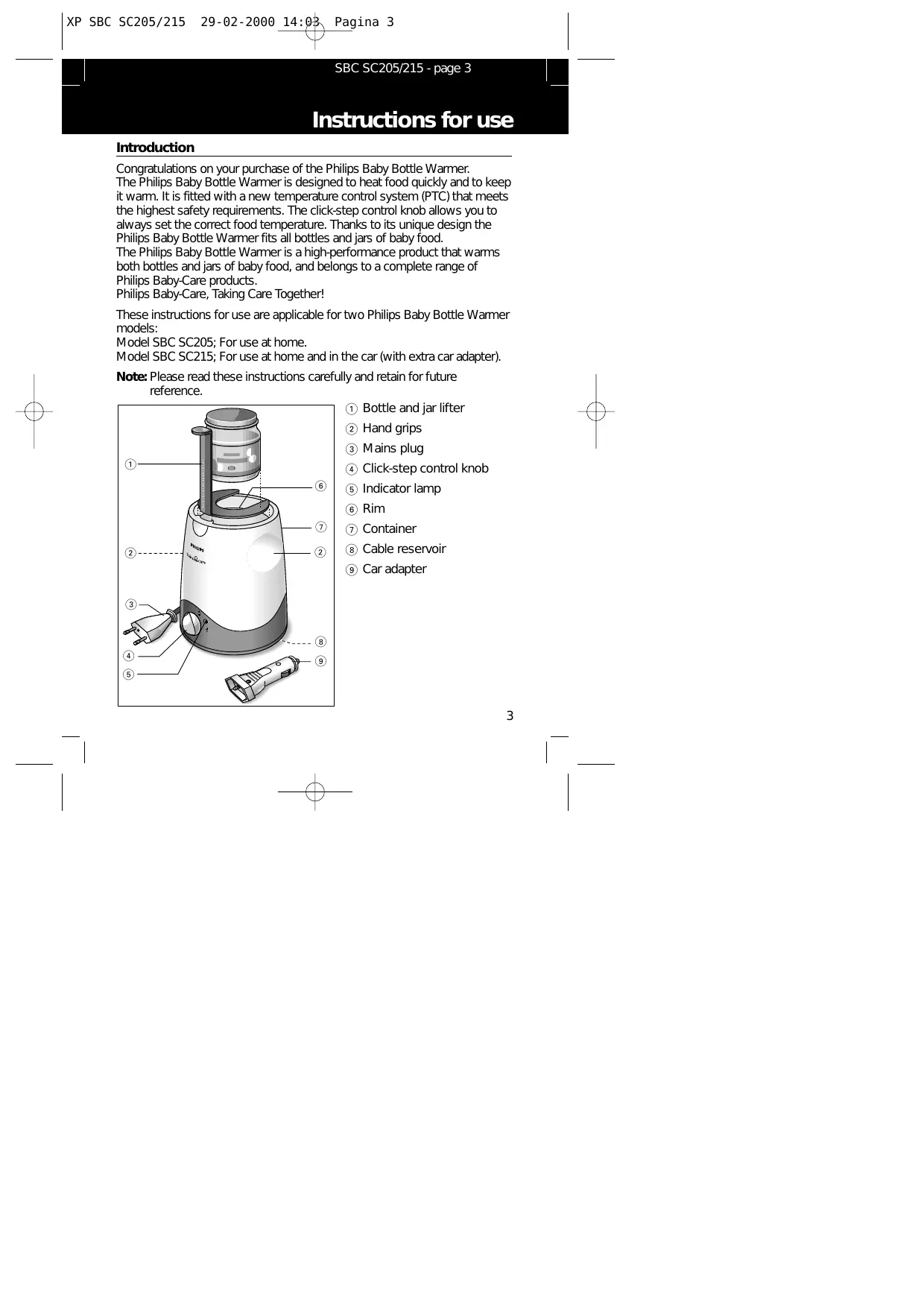

Congratulations on your purchase of the Philips Baby Bottle Warmer.

The Philips Baby Bottle Warmer is designed to heat food quickly and to keep it warm. It is fitted with a new temperature control system (PTC) that meets the highest safety requirements. The click-step control knob allows you to always set the correct food temperature. Thanks to its unique design the Philips Baby Bottle Warmer fits all bottles and jars of baby food.

The Philips Baby Bottle Warmer is a high-performance product that warms both bottles and jars of baby food, and belongs to a complete range of Philips Baby-Care products.

Philips Baby-Care, Taking Care Together!

These instructions for use are applicable for two Philips Baby Bottle Warmer models:

Model SBC SC205; For use at home.

Model SBC SC215; For use at home and in the car (with extra car adapter).

Note: Please read these instructions carefully and retain for future reference.

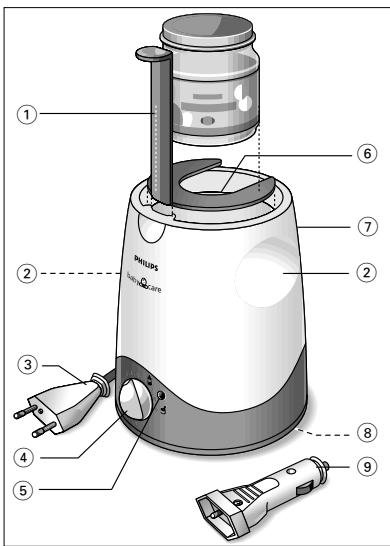

① Bottle and jar lifter
② Hand grips
③ Mains plug
④ Click-step control knob
⑤ Indicator lamp
⑥ Rim
⑦ Container
⑧ Cable reservoir
9 Car adapter

Installation

For use at home

Before connecting the Baby Bottle Warmer to the mains, check to ensure that the mains outlet is 230V AC.

1. Place the Baby Bottle Warmer out of the reach of children and on a dry, non-slip, horizontal surface.
2. Turn the click-step control knob 4 to the " " position.
3. Unreel the required cable length from the cable reservoir ⑧ and plug into the mains outlet.

For use in the car

1. Place the Baby Bottle Warmer out of the reach of children and on a dry, non-slip horizontal surface.
2. Turn the click-step control knob 4 to the " " position.
3. Connect the car adapter 9 to the mains plug ③.
4. Unreel the required length of cable from the cable reservoir ⑧ and connect the car adapter to the cigarette lighter socket of the car. (12V DC).

Notes:

• Never use the Baby Bottle Warmer when the car is in motion.
• Never use the Baby Bottle Warmer without water in it.
• Only use the Baby Bottle Warmer when the ambient temperature is between +7^ and +37^ .

Caution: Change the water in the bottle warmer often for hygienic reasons.

Operation

Warming of baby bottles

1. Turn the click-step control knob ④ to the "●" position.
2. Place the bottle in the container ⑦ and fill the space between the bottle and the inner container with water up to two centimetres from the rim ⑥. For smaller bottles fill up to just above the milk line in the bottle.
3. Set the required temperature using the click-step control knob.

4. The indicator lamp lights to indicate the heating operation.

5. After approximately 8 minutes the milk will have reached just the right temperature for your baby. The indicator lamp goes out. The indicator lamp then switches on and off intermittently to indicate the thermostat is controlling the temperature of the water.

6. Remove the bottle from the container and turn the control knob to the "●" position.
7. Shake the bottle a little to distribute the heat evenly before you allow your baby to drink.

Notes:

Always check that the contents of the bottle are at the correct temperature by pouring a few drops on the back of your hand.
- The heating of baby food depends not only on the temperature setting but also on the initial temperature of the food and water, the wall thickness of the glass and the amount and consistency of the food. The symbol "BOTTLE" is an indication for rapid warming up. After a short while you will find the best setting to obtain the ideal temperature for your baby's food. Our information is based on warming 200ml milk from 20^ up to 37^ .

Warming of baby food jars

1. Remove the label and lid from the jar.
2. Turn the click-step control knob ④ to the "●" position.
3. Place the jar in the container ⑦ using the lifter and fill the space between the jar and the inner container with water up to two centimetres from the rim ⑥. For small jars fill-up to just below the top of the jar.
4. Set the click-step control knob to the "jar" symbol.
5. The indicator lamp lights to indicate that the thermostat is working.
6. Use the lifter to stir the contents of the jar frequently for more rapid distribution of heat.
7. After approximately 12-15 minutes (depending on the consistency of food) the food will have reached just the right temperature for your baby. The indicator lamp goes out.
8. Remove the jar from the container and turn the control knob to the "●" position.

Note: Always check that the contents of the jar are at the correct temperature, by testing some on the back of your hand.

Keeping warm

• With the Baby Bottle Warmer you can also keep the bottles and jars warm for a short time. To do this set the control knob to position Nr. 4. The thermostat ensures that the set temperature is maintained. For microbiological and hygienic reasons baby food should never be kept warm for longer than one hour.

Operation in the car

• Follow the same instructions as mentioned above.

Note: For quickly warming up baby food in bottles and jars, adjust the click-step control knob to the "jar" symbol. Because the car battery is now being used instead of the mains supply, the time required for warming up may be slightly longer.

Warning: Prolonged use of the Baby Bottle Warmer (several hours) can weaken your car battery.

Maintenance

Cleaning

• Disconnect the Baby Bottle Warmer from the mains (or the cigarette lighter socket) and allow it to cool down. Clean the container and the outside of the Baby Bottle Warmer with a damp cloth.

Notes:

• Never immerse the Baby Bottle Warmer in water.
• Do not use cleaning or scouring agents.

The type plate is located at the bottom of the product.

Warning: If a fault occurs, consult your dealer or Philips' service centre. Under no circumstances should you try to repair the unit yourself, as this would invalidate the warranty.

Technical Specifications

Model SBC SC205
Model SBC SC215

Power supply (mains)	230V AC
Power consumption (mains)	100 Watts	90 Watts
Power supply (car battery)	-	12V DC
Power consumption (car battery)	-	80 Watts
Operational ambient temperature	between +7°C and +37°C

Trouble shooting

Comments	Solutions
Overflow of water	You have put too much water into the inner container
Temperature too low	Continue heating for a few seconds after the indicator light has switched off, or increase the adjustment setting
Temperature too high	Lower the adjustment setting
The jar has not heated correctly	Stir the contents from time to time while heating. Check that the click-step control knob is in the "jar" position
The indicator light switches on and off while keeping warm	This is normal; it may turn on or off while heating

Introduction

Specifications techniques

Model SBC SC205 Model SBC SC215

Model SBC SC205 Model SBC SC215

Strømforsyning (lysnet)	230V AC
Strømforsbrug (lysnet)	100 watt	90 watt
Strømforsyning (bilbatteri)	-	12V DC
Strømforsbrug (bilbatteri)	-	80 watt
Omgivelsestemperatur for brug	mellem +7°C og +37°C

Fejlfinding:
