2 5“ Memorystation - External hard drive INTENSO - Free user manual and instructions

Product type	External hard drive
Brand	Intenso
Model	Memorystation 2.5"
Interface	Hi-Speed USB 2.0
Capacity	Varies by version
Dimensions	13 × 78 × 127 mm
Weight	Approximately 150 g (estimated)
Power supply	Via USB port (Y-cable included)
Operating temperature	5 °C to 55 °C
Compatible operating systems	Windows 98 SE/ME/2000/XP/Vista/7, Linux 2.4.x, Mac OS 10.x
Maximum transfer rate	480 Mbits/s (USB 2.0)
Package contents	Hard drive, Y-USB 2.0 cable, instructions, warranty certificate
LED indicator	Flashes during read/write
Warning	Do not expose to shocks, electrostatic discharges, excessive heat
Warranty	Limited warranty, capacity sticker must not be damaged

Frequently Asked Questions - 2 5“ Memorystation INTENSO

How to install the Intenso Memorystation 2.5" hard drive?

Connect the supplied Y-USB cable to the hard drive (miniUSB connector) and the two USB plugs to your computer. The computer automatically detects the new hardware and installs the driver. For Windows 98 SE, first install the driver from www.intenso.de.

Which operating systems are compatible?

The drive is compatible with Windows 98 SE/ME/2000/XP/Vista/7, Linux 2.4.x and Mac OS 10.x. Hardware configuration may affect compatibility.

What to do if my computer does not detect the hard drive?

Check that the Y-USB cable is properly connected to both USB ports on the computer. Try another USB port. If the problem persists, test on another computer to rule out a hardware defect.

The LED does not light up, is this normal?

The LED flashes when the drive is operating (read/write). If it does not light up at all, check the USB connection. The drive may be powered but the LED remains off in standby on some models.

Can I use the hard drive on the go?

Yes, it is designed to be portable. However, avoid moving it during operation and protect it from shocks and electrostatic discharges.

What is the maximum transfer speed?

The maximum transfer rate is 480 Mbits/s via USB 2.0. Actual performance depends on the computer and the type of files transferred.

Is the hard drive compatible with game consoles?

The manual does not mention compatibility with consoles. It is mainly designed for computers. Some consoles may recognize it if they support USB storage, but without guarantee.

How to maintain my hard drive?

Avoid exposure to moisture, extreme temperatures, and magnetic fields. Clean the case with a dry cloth. Never open the case as this will void the warranty.

What does the warranty cover?

The warranty covers manufacturing defects, but not normal wear, damage caused by improper use, shocks, electrostatic discharges, or opening the case (damaged capacity sticker).

Can I recover data after a failure?

Intenso is not responsible for data loss. In case of failure, contact a data recovery service. The warranty does not cover data loss.

USER MANUAL 2 5“ Memorystation INTENSO

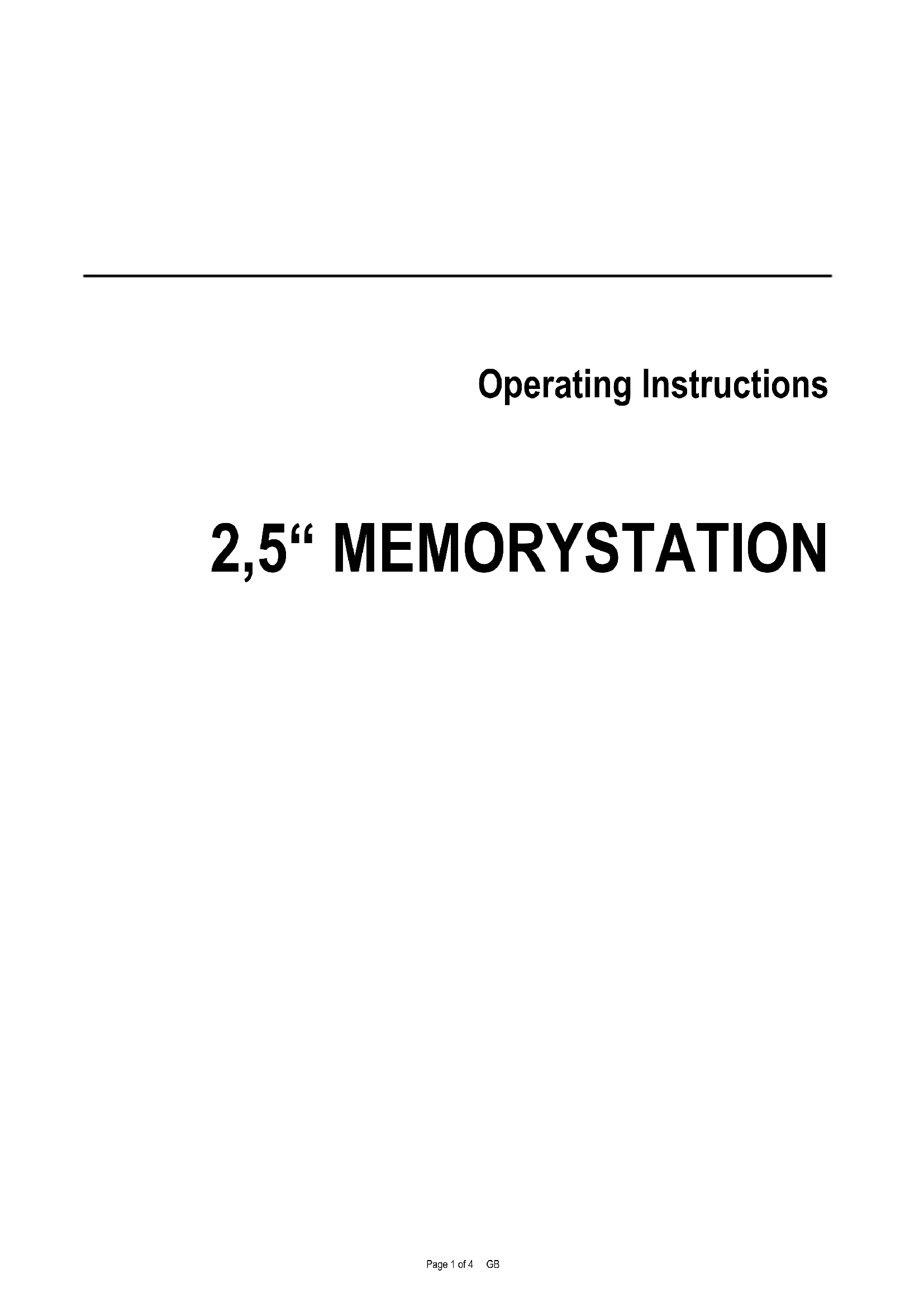

Operating Instructions

2,5“ MEMORYSTATION

Scope of Delivery

• Intenso Hi-Speed USB 2.0 hard drive
• Y-USB 2.0 cable
• Operating instructions
• Guarantee certificate

Technical Data

External hard disk 2,5" USB 2.0

Dimensions: 13 × 78 × 127 mm

Maximal transfer 480 MBit/sec (USB 2.0)

Capacity: 1MB = 1,000,000bytes / 1GB = 1,000,000,000 bytes

Instructions for use

Temperature:

In operation: 5° C to 55° C

Out of service: - 40 °C to 60 °C

Relative air humidity:

In operation, out of service: 8% - 90%

Crush, fall

Protect the device in every operation condition from crush and fall. Do not move the device during operation.

Electrostatic discharge

It is an electrostatic discharge sensitive device. Protect the device from every kind of electrostatic discharge.

Disposal of WEEE (Waste Electrical and Electronic Equipment)

Devices marked with the WEEE logo are subject to the European Community Directive 2002/96/EC.

Waste Electrical and Electronic Equipment must be separated from household rubbish and disposed at sites that collect WEEE.

By orderly disposing WEEE you will avoid damage caused to the environment.

Installation Instructions

System Requirements:

This hard drive is compatible with the operating systems MS Windows 98 SE/ ME/ 2000/ XP/Vista/ Windows 7, Linux 2.4.x and Mac OS 10.x.

Windows 98 SE: At first please install the Win98 driver from our homepage: www.intenso.de

Please note: Your PC's hardware configuration as well as the operating system employed can influence the compatibility of the hard drive.

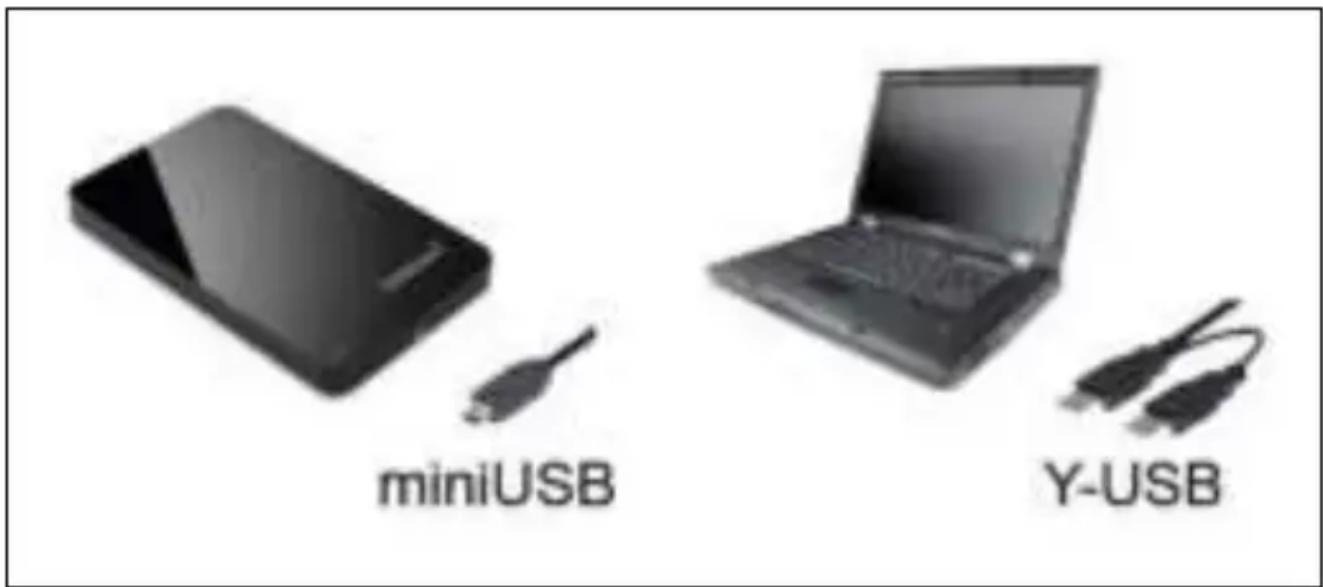

Hard Drive Connection:

To connect an external hard drive to your computer, please use the USB cable provided. Connect the miniUSB plug with the Intenso hard drive and the two plugs of the Y-USB cable ending with your computer.

The computer automatically detects the "New Device" and installs the driver. Please wait until driver installation is completed. Your computer now shows an additional drive named "Intenso".

As soon as the hard drive is connected to your computer, the LED flashes. The LED flashes, when writing or reading procedure is carried out.

Trademark: Windows 98 / XP / Vista / Windows 7 are registered trademarks of the Microsoft Corporation. Macintosh and MAC are registered trademarks of Apple Computer. All trademarks and names of third parties are property of the respective user.

Limited guarantee conditions

The guarantee only covers the use of this Intenso product. The guarantee does not cover normal wear resulting from faulty, improper use, negligence, accidents, incompatibility or poor functionality of certain computer hardware or computer software.

Claim under guarantee does not exist in the case of noncompliance with the Intenso user manual as well as in case of improper assembly, use or defects of other devices.

Claim under guarantee does not exist in the case that the device is exposed to shock, electro-static discharge, heat or humidity beyond the product specifications.

Intenso is not liable for data loss or any other occurring indirect damages or secondary damages, for the violation of the guarantee conditions or any other damages, no matter what the reason is.

Important information:

Please note that any claim under guarantee expires, if the capacity label (= guarantee sealing) on the rear side is damaged and if the housing of the hard disk is opened.

This product is not intended for commercial use, for medical or special applications, where a failure of the product can cause injuries, fatalities or substantial property damage.

Istruzioni d'uso

2,5“ MEMORYSTATION

Volume di segna

Capacité: 1MB = 1,000,000 bytes / 1GB = 1,000,000,000 bytes

Hors service: - 40 °C to 60 °C

Humidité ambiente relative:

En service, hors service: 8% - 90%

Ecrasement, chute

Yka3aHnI NOJIb3OBaTeJIa

Temnepatypa:

Bpa6oeymcoTOnHn:5°Cdo 55°C
BHepa6ooyemcoctOaHn: -40 ° C 60 ° C

OTHOCHTeJIbHaB BnaXHOCTb:

B pa6o7em co6ToHn, B hepa6o7em co6ToHn: 8% - 90%

yap, naeHne

3aunuTe np6op B IIObOM pa6oem COCTOHN OT ydaHn I naeHn. He nepeBnraTe np6op B pa6oem COCTOHN.

3neKtpocTaTnueckn pa3pI

ДанныnpибороуньчвстпеленКэлкtpиескOMу pa3рду. 3aшицайтpe npиборOT BCЯкxэлкtpиескx pa3рдOB.

Yttnn3aunr cTapbIX 3JleKtpoPnp6OpOB

Obo3haueHHbIe daHbIM CmBOLOM np6Opbl DOJXHbI COOTBeTCTBOBaTb EBponecko dIpeKtNbE 2002/96/EC. BCE 3JeKtpopn6Opbl n CTapbl EJIeKtpopnp6Opbl DOJXHbI yTIN3nPOBaTbCRA OTdJIbHO OT DOMaUHeRo MycopaYepe3 PpeDyCMOTpeHHbIE DnIg 3TOrO rOcydApCTBOM NYHKtbl. HadNeJaAaay TInJN3aunr 3JeKtpopnp6OpOB n CTapblx 3JeKtpopnp6OpOB cIyXnT PpeDOrBpaueHnHO HAnCeHnR BpeDa OKpykaIOuSeI cpeIe.

HctpyKzno HcTaJlaZn

Tpe6obHnK cnCTeMe:

3TOT JECTKI INCK COBMECTIM C ONepaUNHbIMN CNCTeMaMMS Windows 98 SE/ ME/2000/XP/Vista/Windows7,Linux2.4.xnMac OS10.x.

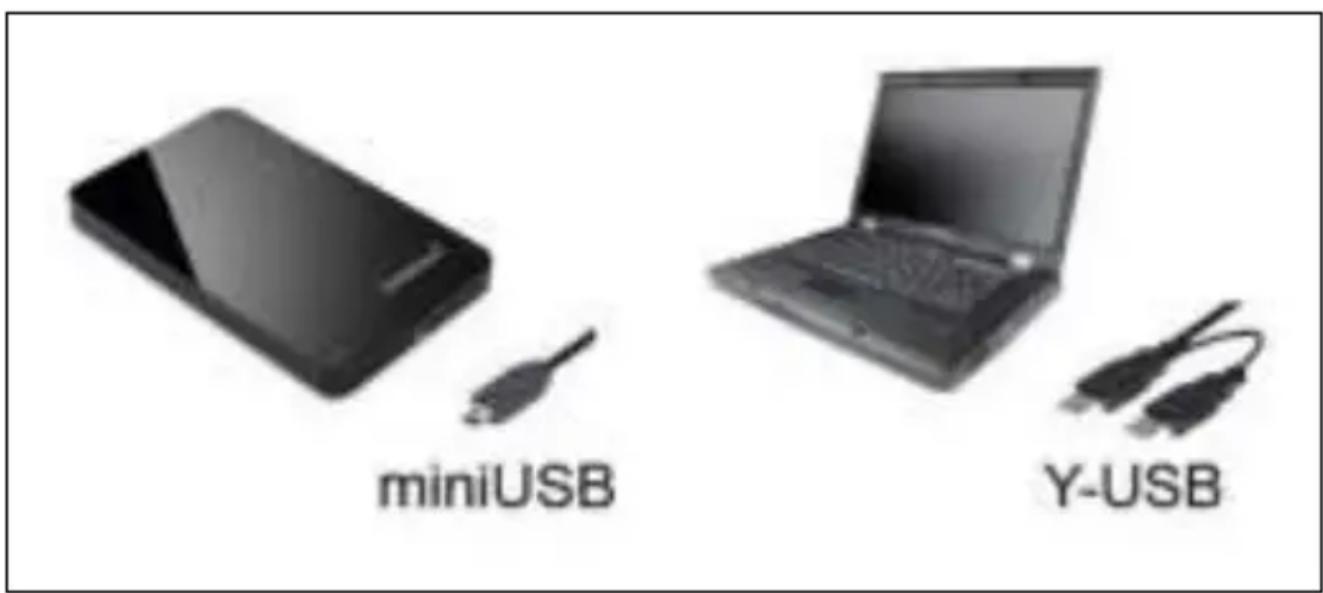

CoeHHeHne XeCTKOrO nCKa:
