USER MANUAL FPF30EUH SHARP

Abstract pattern of white dots arranged in a triangular formation on a dark background (no text or symbols)

Air Purifier

on Plasmacluster

"Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation.

High-Density 7000

EN Operation manual

*The number in this technology mark indicates an approximate number of ions supplied into air of 1cm^3 , which is measured around the center of a room with the "high-density plasmcluster 7000" applicable floor area (at 1.2m height above the floor) at the medium wind volume in air purifying mode, when an air purifier using the high-density plasmcluster ion evolving device is placed close to a wall. This product is equipped with a device corresponding to this capacity.

Iconic representation of a music device with musical notes and dotted pattern (no text or symbols)

Air Purifier

FP-F30EU-H

Please read before operating your new Air Purifier

The air purifier draws in room air from the air intake, passes the air through a pre-Filter, a HEPA Filter inside of the unit, then discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the filter.

Some odours absorbed by the filter may break down over time, resulting in additional odours. Depending on the usage environment, especially when the product is used in extreme environments (significantly more severe than normal household use), this odours may become strong in a shorter period than expected. If the odours persists, the filter should be replaced.

NOTE

- The air purifier is designed to remove air-suspended dust, but not harmful gases (for example, carbon monoxide contained in cigarette smoke).

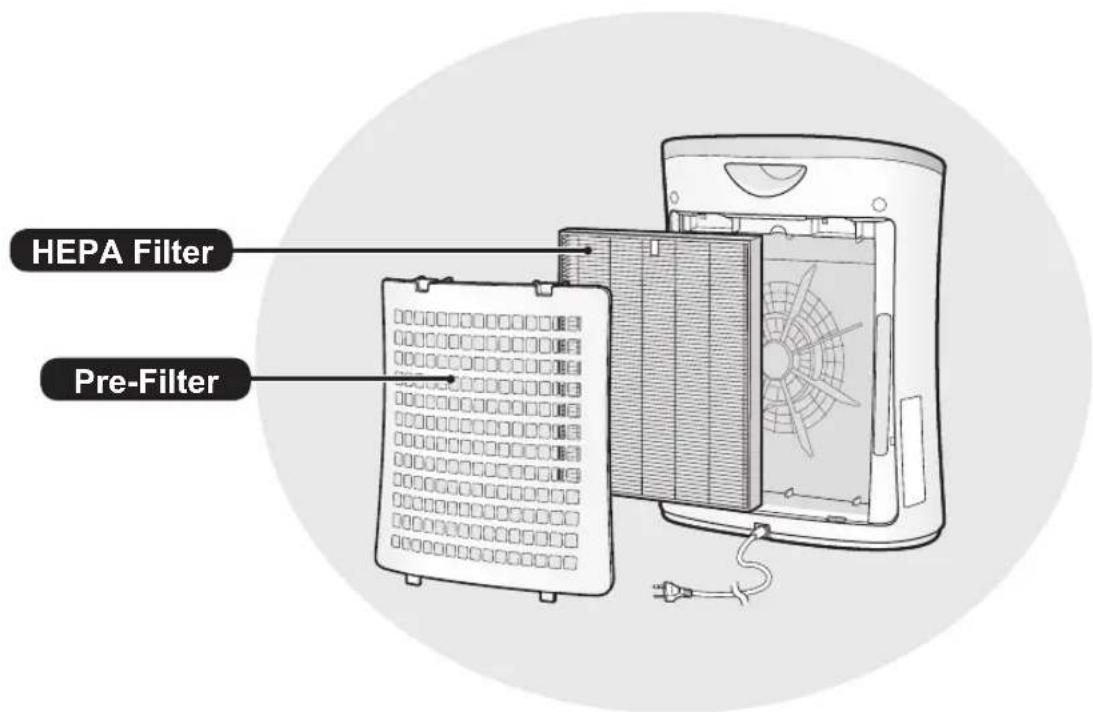

HEPA Filter Pre-Filter

FEATURES

Unique Combination of Air Treatment Technologies

Filtration System + Plasmacluster

TRAPS DUST*

Pre-Filter traps dust and other large airborne particles.

REDUCES POLLEN & MOLD*

HEPA Filter traps 99.97% of particles as small as 0.3 microns.

FRESHENS

Plasmacluster treats the air similar to the way nature cleans the environment by emitting a balance of positive and negative ions.

* When air is drawn through the filter system.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .....E-2

PART NAMES.....E-4

FILTER INSTALLATION......E-5

OPERATION E-6

CARE AND MAINTENANCE ...... E-8

TROUBLESHOOTING ......E-10

SPECIFICATIONS.....E-10

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of electrical shock, fire or injury to persons:

• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert fingers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.

Electrical shock and/or fire from short circuit may occur as a result.

- Be careful not to damage the power cord, it may cause electric shock, excess heat or fires.

- Do not remove the plug when your hands are wet.

- Do not use this unit near gas appliances or fireplaces.

- Remove the power plug from the wall outlet before cleaning the unit and when not using the unit.

Electrical shock from bad insulation and/or fire from short circuit may occur as a result.

- When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical shock and/or fire from a short circuit may result.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp Approved Service Centre or similarly qualified person in order to avoid a hazard.

- Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity conditions, such as a bathroom.

- Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.

- Only a Sharp Authorized Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

NOTE - Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV/wave-clock receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam.
• Do not lay the unit down when using.
  • Always hold the handle on the back of the unit when moving it.
• Do not use without the filter inside the unit.
• Do not wash and reuse the HEPA Filter.

Not only does it not improve filter performance, it may cause electric shock or malfunction.

INSTALLATION GUIDELINES

• When using the unit, place it away from equipment utilizing electric waves such as televisions or radios to avoid electrical interference.
• Avoid use in locations where furniture, fabrics or other items may come in contact with and restrict the air intake and/or air outlet.
• Avoid use in locations where the unit is exposed to condensation or drastic temperature changes. Appropriate conditions are when room temperature is between 0 – 35 °C.
• Place on a stable surface with sufficient air circulation.
  When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
• Avoid locations where grease or oily smoke is generated.

The unit surface may crack as a result.

- Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper airflow.

The dust collecting performance will be the same even if using the unit 3cm away from the wall, but place it as far as possible(30cm away recommended) because it may dirty the wall or floor around.

FILTER GUIDELINES

- Follow the instructions in this manual for correct care and maintenance of the filter.

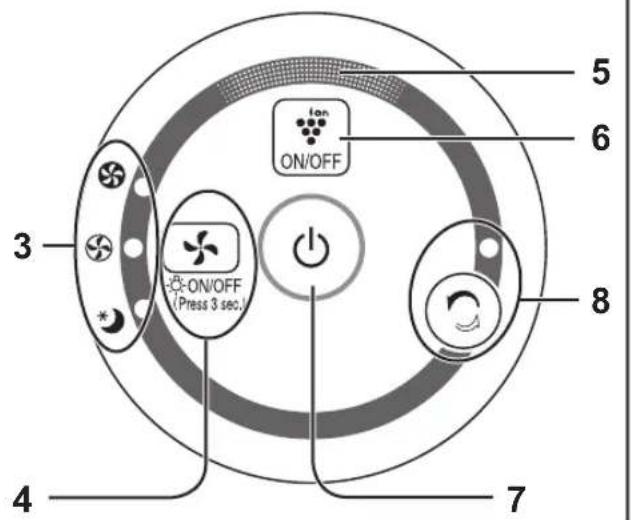

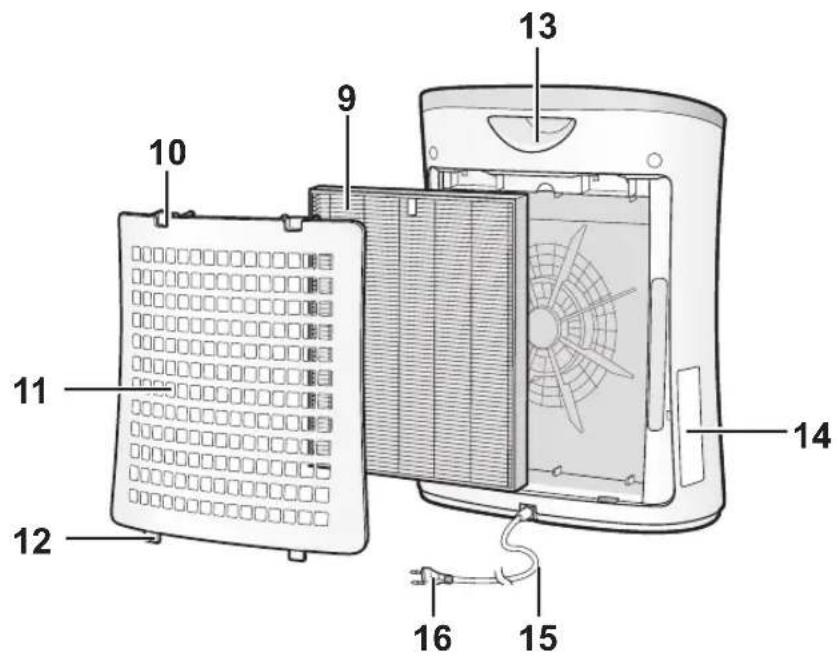

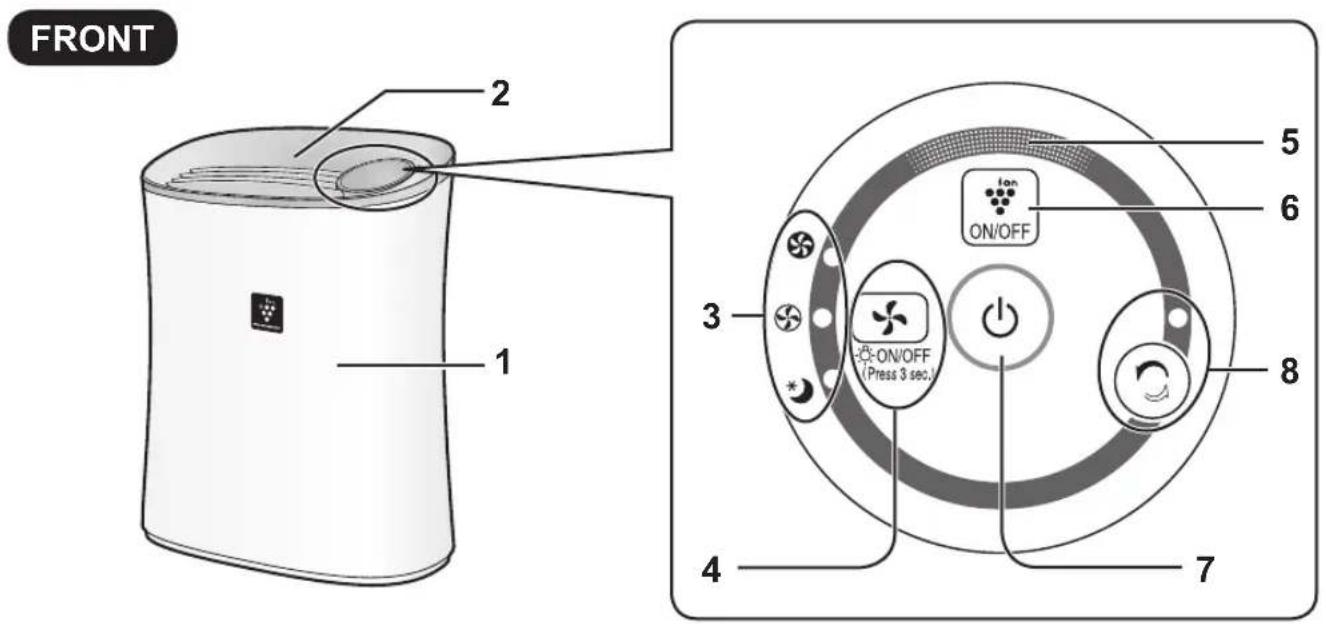

PART NAMES

FRONT 1 2 3 4 5 6 7 ON/OFF ON/OFF (Press 3 sec.) ON/OFF (Press 3 sec.)

BACK

Diagram of a portable air conditioner with numbered parts labeled for identification.

1	Main Unit	9	HEPA Filter
2	Air Outlet	10	Upper Tabs
3	Fan Speed Indicator Lights (green)	11	Back Panel (Pre-Filter)
4	MODE Button / LIGHT ON/OFF Button(Press 3 sec.)	12	Bottom Tabs
5	Plasmacluster Ion Indicator Light (blue)	13	Handle
6	Plasmacluster Ion ON/OFF Button	14	Date Label
7	POWER ON/OFF Button	15	Power Cord
8	CLEAN ION SHOWER Button / CLEAN IONSHOWER indicator Light (green)	16	Plug

FILTER INSTALLATION

Be sure to remove the power plug from the wall outlet.

To maintain the quality of the filter, it is installed in the main unit and packed in plastic bag. Be sure to remove the filter from the plastic bag before using the unit.

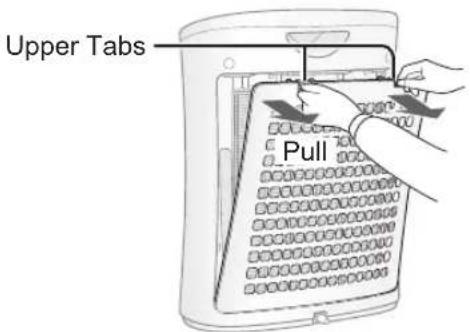

1 Remove the Back Panel.

Upper Tabs Pull

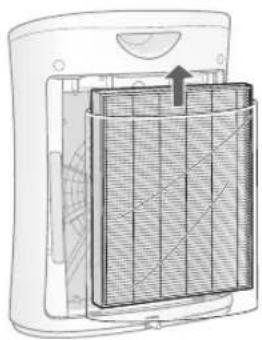

2 Remove the filter from the plastic bag.

Diagram of a device's internal structure showing a grid-like partition with an arrow indicating direction (no text or symbols present)

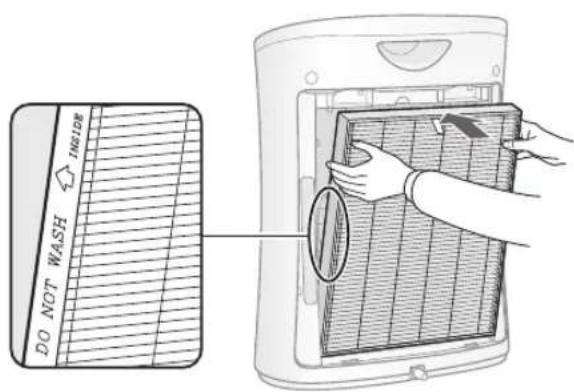

3 Place the filter within the main unit.

Do not install the filter backwards or the unit will not operate properly.

DO NOT WASH

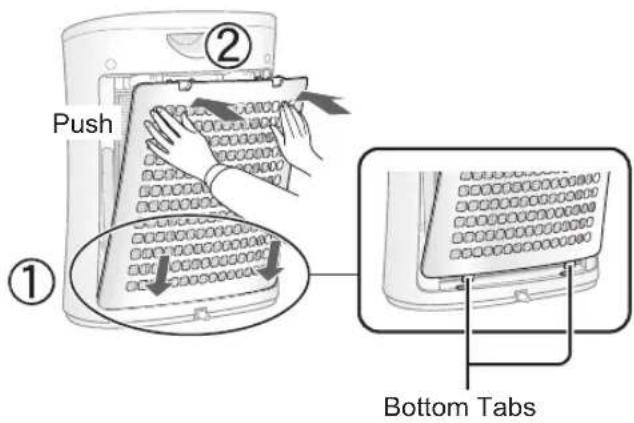

4 Replace the Back Panel to the main unit.

Push ① ② Bottom Tabs

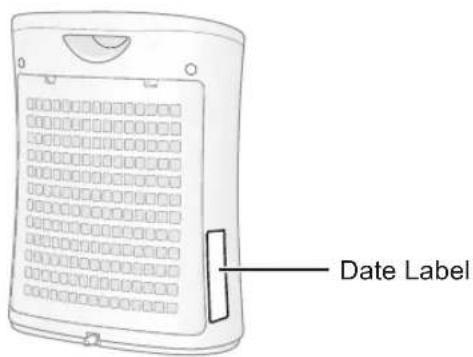

5 Fill in the usage start date on the Date Label.

Use the date as a guide for the filter replacement schedule.

Date Label

Starting date of use
. .	. .
. .	. .
. .	. .

- Do not operate the unit without the filter.

OPERATION

CLEAN AIR

START

STOP

• Select the desired fan speed.
• Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in.

CLEAN ION SHOWER

Releases high-density Plasmacluster ions and discharges strong air flow for 60 minutes.

START

Simple line drawing of a hand pointing at a smiling face with a sun symbol above (no text or symbols)

NOTE

• If Plasmacluster lon is OFF, Plasmacluster lon will not be released.
• When the operation finishes, the unit will return to the prior operation mode.
  It is able to change the other mode and ⏻ during this mode.

FAN SPEED

NOTE

SLEEP

The unit will operate very quietly with low fan speed. Plasmacluster Ion Indicator goes off automatically. Even though the indicator is off, Plasmacluster Ion is dispersed into air unless Plasmacluster Ion is turned off by pressing .

Light Control

You can set the Plasmacluster Ion Indicator to OFF when the Plasmacluster Ion Indicator is bright.

ON

ON/OFF (Press 3 sec.) more than 3 sec.

OFF

ON/OFF (Press 3 sec.) more ON/OFF

NOTE

• When the unit starts operation, the Plasmacluster Ion Indicator always lights.
• In SLEEP mode, Light Control button doesn't operate.

Plasmacluster Ion ON/OFF

When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light will turn on. (blue)

ON OFF

ON/OFF ←→ ON/OFF

NOTE

When Indicator is off,

• If Plasmacluster Ion is ON,

Flashing ON/OFF 3 sec. OFF ON/OFF

- If Plasmacluster Ion is OFF,

Lighting ON/OFF 3 sec. OFF ON/OFF

Auto RESTART

If the unit is unplugged or if there is a power failure, the unit will resume operation with the previous settings after power is restored.

ON OFF

(with the unit OFF)

more than 3 sec.

Six black-and-white symbolic icons including a fan, sunburst, and crescent moon (no text or labels)

(with the unit OFF)

more than 3 sec.

If the 📂, lamp lights up for 10 seconds, the setting is completed.

To maintain optimum performance of this air purifier, please clean the unit including the filter periodically. Be sure to disconnect the power cord from the wall outlet before performing any maintenance.

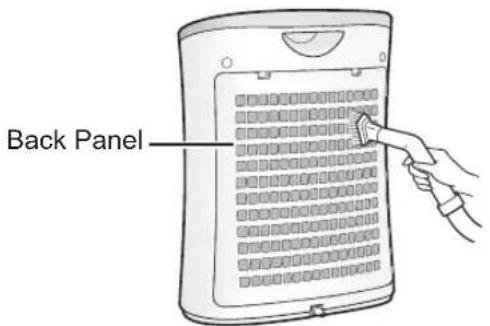

BACK PANEL (Pre-Filter)

Back Panel

Gently remove dust from the back panel, using a vacuum cleaner attachment or similar tool.

CAUTION

Do not apply excessive pressure, when scrubbing the back panel.

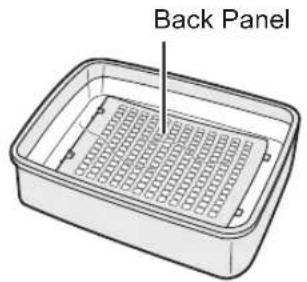

NOTE How to clean stubborn dirt

Back Panel

1. Add a small amount of kitchen detergent to water and soak for about 10 minutes.

2. Rinse off the kitchen detergent with clean water.

3. Completely dry the filter in a well-ventilated area.

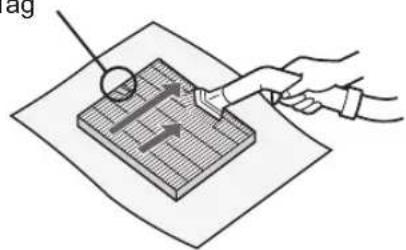

HEPA Filter

Tag

ag

Gently remove dust from the HEPA Filter with a vacuum cleaner attachment or similar tool.

CAUTION

- Do not WASH in water and DRY in the sun.

- Apply the maintenance only on the side with the tag.

Do not clean the opposite side; otherwise, the filter will be damaged.

The filter is fragile, be careful not to apply too much force.

UNIT

Illustration of a hand holding a small object next to a cylindrical device with a label (no text or symbols on the device itself)

Wipe with a dry, soft cloth

For stubborn stains or dirt, use a soft cloth dampened with warm water.

CAUTION

- Do not use volatile fluids Benzine, paint thinner, polishing powder, etc., may damage the surface.

- Do not use detergents Detergent ingredients may damage the unit.

FILTER REPLACEMENT GUIDELINES

Replacement timing About 2 years after operating

Do not wash and reuse the filter

The filter life and replacement period are based on the condition of smoking 5 cigarettes per day and the dust collection power is reduced by half compared with that of new filter. Filter life varies depending on the room environment, usage, and location of the unit. We recommend to replace the filter more frequently if the product is used in a condition significantly severer than normal household use.

REPLACING THE FILTER

Replacement Filter

Model : FZ-F30HFE

• HEPA Filter : 1 unit

Pure diagram of a grid-patterned panel or panel with no text, numbers, or symbols

See page E-5 for directions on how to install the filter when replacing.

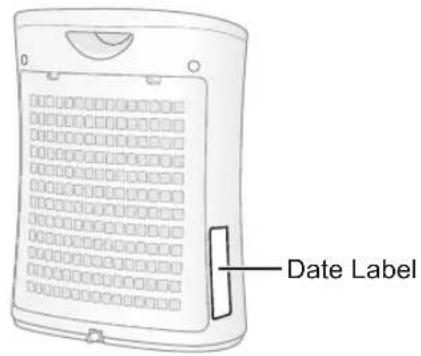

Date Label

• Please consult your dealer for purchase of replacement filter.
• Use only filter designed for this product.

Disposal of Filter

Please dispose of the replaced filter according to the local disposal laws and regulations. Filter materials:

-Filter: Polypropylene
•Frame : Polyester

TROUBLESHOOTING

Before calling for repair, please review the list below, since the problem may not be a unit malfunction.

SYMPTOM REMEDY (not a malfunction)
Dust and smoke are not removed.	Clean or replace the filter if they appear to be heavily soiled.(Refer to E-8,E-9)
A clicking or ticking sound is heard from the unit.	Clicking or ticking sound may be audible when the unit is generating ions.
The discharged air has an odour.	Check to see if the filter are heavily soiled.Replace the filter.Plasmacluster Air Purifiers emit small traces of ozone which may produce an odour. These ozone emissions are well below safety levels.
The Plasmacluster Ion Indicator doesn’t Light on.	Check to see if the SLEEP mode is selected. The Plasmacluster Ion Indicator Light is turned off 3 seconds after the SLEEP mode is selected.Check to see if the Plasmacluster Ion OFF is selected.Press ON/OFF to light on.Check to see if the Light Control is selected.Press for 3 seconds to light On.

SPECIFICATIONS

Power supply 220-240V 50-60Hz
Fan Speed Operation	Fan Speed Adjustment MAX MED	SLEEP
	Rated Power 51W 30W	13W
	Fan Speed	180m3/hour	120m3/hour	60m3/hour
Recommended Room Size		~21m2 *1
High density Plasmacluster ion recommended room size		~16m2 *2
Cord Length		2.0m
Dimensions		400mm(W)x182mm(D)x463mm(H)
Weight		4.0kg

*1 Size of a room which is appropriate for operating the unit at maximum fan speed.

- It indicates the space where a certain amount of dust particles can be removed in 30 minutes (JEM1467).

*2 Size of a room in which approximately 7000 ions can be measured per cubic centimetre in the centre of the room (at a height of approximately 1.2 meters from the floor) when the product is placed next to a wall and run at the MED operation position.

Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this product consumes about 0.7W of standby power.

For energy saving, unplug the power cord when the unit is not in use.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

IF YOU WISH TO DISPOSE OF THIS EQUIPMENT, DO NOT USE THE ORDINARY WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!

Used electrical and electronic equipment should always be collected and treated SEPARATELY in accordance with local law.

Separate collection promotes an environment-friendly treatment, recycling of materials, and minimizing final disposal of waste. IMPROPER DISPOSAL can be harmful to human health and the environment due to certain substances! Take USED EQUIPMENT to a local, usually municipal, collection facility, where available.

If in doubt about disposal, contact your local authorities or dealer and ask for the correct method of disposal.

ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES; FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection is requested by law.

The symbol shown above appears on electrical and electronic equipment (or the packaging) to remind the users of this.

Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equipment. Return is free of charge.

If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Diagram of a portable air conditioner with numbered parts labeled for identification.

Diagram of a device with a grid-like panel and directional arrow, no visible text or symbols

Simple line drawing of a hand pointing at a smiling face with a sun symbol above (no text or symbols)

HINWEIS

HINWEIS

SCHLAF

Line drawing of a rectangular tray with a grid pattern inside, no text or symbols present

Illustration of a hand using a tool to apply a grid-based instruction on a flat surface (no text or symbols present)

Illustration of a hand pressing down on a white cylindrical device with a small icon on the lid (no text or symbols)

Pure diagram of a grid-patterned panel or cover with no text, numbers, or symbols

AVANT 1 2 3 4 5 6 7 ON/OFF ON/OFF (Press 3 sec.) ON/OFF (Press 3 sec.)

ARRIÈRE

Diagram of a portable air conditioner with numbered parts labeled for identification.

Diagram of a device with a grid-like internal structure and an arrow indicating direction (no text or symbols)

Diagram showing a hand pressing a power button next to an arrow, indicating leftward navigation or bidirectional action.

ARRÊT

Simple line drawing of a hand pointing at a circular icon with an arrow, under a sunburst (no text or symbols)

REMARQUE

IONS PLASMACLUSTER MARCHE/ARRÊT

Line drawing of a rectangular tray with a grid pattern inside, no text or symbols present

Illustration of a hand using a tool to interact with a grid-based device (no text or symbols visible)

Illustration of a hand holding a small object next to a white cylindrical device with a label (no text or symbols on the device itself)

Pure diagram of a grid-patterned panel or panel with no text, numbers, or symbols

PROBLEEMOPLOSSING.... NL-10

SPECIFICATIES.... NL-10

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Diagram of a device with numbered parts labeled for identification

Diagram of a device with a grid-like panel and an arrow indicating direction (no text or symbols)

DO NOT WASH 100x128

Simple line drawing of a hand pointing at a circular icon with an arrow, under a sun (no text or symbols)

OPMERKING

• Als plasmaclusterion UIT is,

Licht op ON/OFF 3 sec. UIT ON/OFF

Six black-and-white symbolic icons including a fan, sunburst, and crescent moon (no text or labels)

Illustration of a hand holding a small object next to a white cylindrical device with a circular top (no text or symbols)

Pure diagram of a grid-patterned panel or panel with no text, numbers, or symbols

ROZWIĄZYWANIE PROBLEMÓW......PL-10

DANE TECHNICZNE....PL-10

WIDOK OD PRZODU 1 2 3 4 5 6 7 ON/OFF ON/OFF (Press 3 sec.) ON/OFF (Press 3 sec.) 8

WIDOK OD TYŁU

Diagram of a device with numbered parts labeled for identification

Diagram of a device with a grid-like internal structure and an arrow indicating direction (no text or symbols)

DO NOT WASH 100x128

Diagram showing a hand pressing a power button next to an arrow, indicating leftward navigation or press function.

ZATRZYMANIE

Simple line drawing of a hand pointing at a smiling face with a sun symbol above (no text or symbols)

UWAGA

ON/OFF (Press 3 sec.) wiec

UWAGA

Four abstract symbols: fan, fan blade, sunburst, crescent moon, and starburst (no text or labels)

Illustration of a hand using a tool to interact with a grid-patterned surface, no text or symbols present

Illustration of a hand holding a small object next to a white cylindrical device with a label (no text or symbols on the device itself)

Pure diagram of a grid-patterned panel or panel with no text, numbers, or symbols

Diagram of a cylindrical device with labeled parts 1 and 2, showing internal structure and components.

5 6 3 ON/OFF ON/OFF (Press 3 sec.) 4 7 8

DETRÁS

Labeled diagram of a portable air conditioner unit with numbered components

Diagram of a device with a grid-like internal structure and an arrow indicating direction (no text or symbols)

DO NOT WASH 100x128

Simple line drawing of a hand pointing at a circular icon with an arrow, under a sunburst (no text or symbols)

NOTA

NOTA

EN ESPERA

Panel trasero

Line drawing of a rectangular tray with a grid pattern inside, no text or symbols present

Illustration of a hand using a tool to interact with a grid-based device (no text or symbols visible)

Illustration of a hand holding a small object next to a white cylindrical device with a label (no text or symbols on the device itself)

Pure diagram of a grid-patterned panel or panel with no text, numbers, or symbols

Diagram of a cylindrical device with labeled parts 1 and 2, showing internal structure and components.

ON/OFF 3 ON/OFF (Press 3 sec.) 4 5 6 7 8

BAKSIDA

Diagram of a device with numbered parts labeled for identification

Diagram of a device with a grid-like internal structure and an arrow indicating direction (no text or symbols)

DO NOT WASH 100x128

Simple line drawing of a hand pointing at a smiling face with a sun symbol above (no text or symbols)

OBS

Bakre panel

Bakre panel

Illustration of a hand holding a small electronic device next to a white cylindrical device with a label (no text or symbols on the device itself)

Diagram of a grid-patterned panel or panel with vertical divisions and a small square marker on the top (no text or symbols)

Diagram of a device with numbered parts labeled for identification

1	Hovedenhed	9	HEPA-filter
2	Luftudtag	10	∅verste flige
3	Indikatorlamper for ventilatorhastighed (grøn)	11	Bagpanel (Forfilter)
4	TILSTANDS-knappen / LYS TÆNDT/SLUKKET-knappen (Tryk i 3 sek.)	12	Nederste flige
5	Plasmacluster Ion Indikatorlampe (blå)	13	Håndtag
6	Knappen Plasmacluster Ion TÆNDT/SLUKKET	14	Datomærkat
7	TÆND/SLUK-knap	15	Strømledning
8	REN ION BYGE Knap / REN ION BYGE indikatorlampe (grøn)	16	Stik

FILTERINSTALLATION

Sørg for at tage strømstikket ud af stikkontakten.

Diagram of a device with a grid-like structure and an arrow indicating direction (no text or symbols)

3 Anbring filteret i hovedenhe- den.

DO NOT WASH 100x128

Simple line drawing of a hand pointing at a smiling face with a sun symbol above (no text or symbols)

BEMÆRK

BEMÆRK

SLUMRE \*

PLASMACLUSTER ION TÆND/SLUK

Når Plasmacluster Ion er TÆNDT, lyser Plasmacluster Ion-indikatorlampen (blå).

TÆNDT SLUKKET

ON/OFF ←→ ON/OFF

BEMÆRK

Illustration of a hand using a tool to interact with a grid-based device (no text or symbols present)

Illustration of a hand holding a small object next to a white cylindrical device with a label (no text or symbols on the device itself)

Pure diagram of a grid-patterned panel or panel with no text, numbers, or symbols

www.sharphomeappliances.com

Or contact us:

YouTube

Printed in Thailand
