USER MANUAL DAB150WE Soundmaster

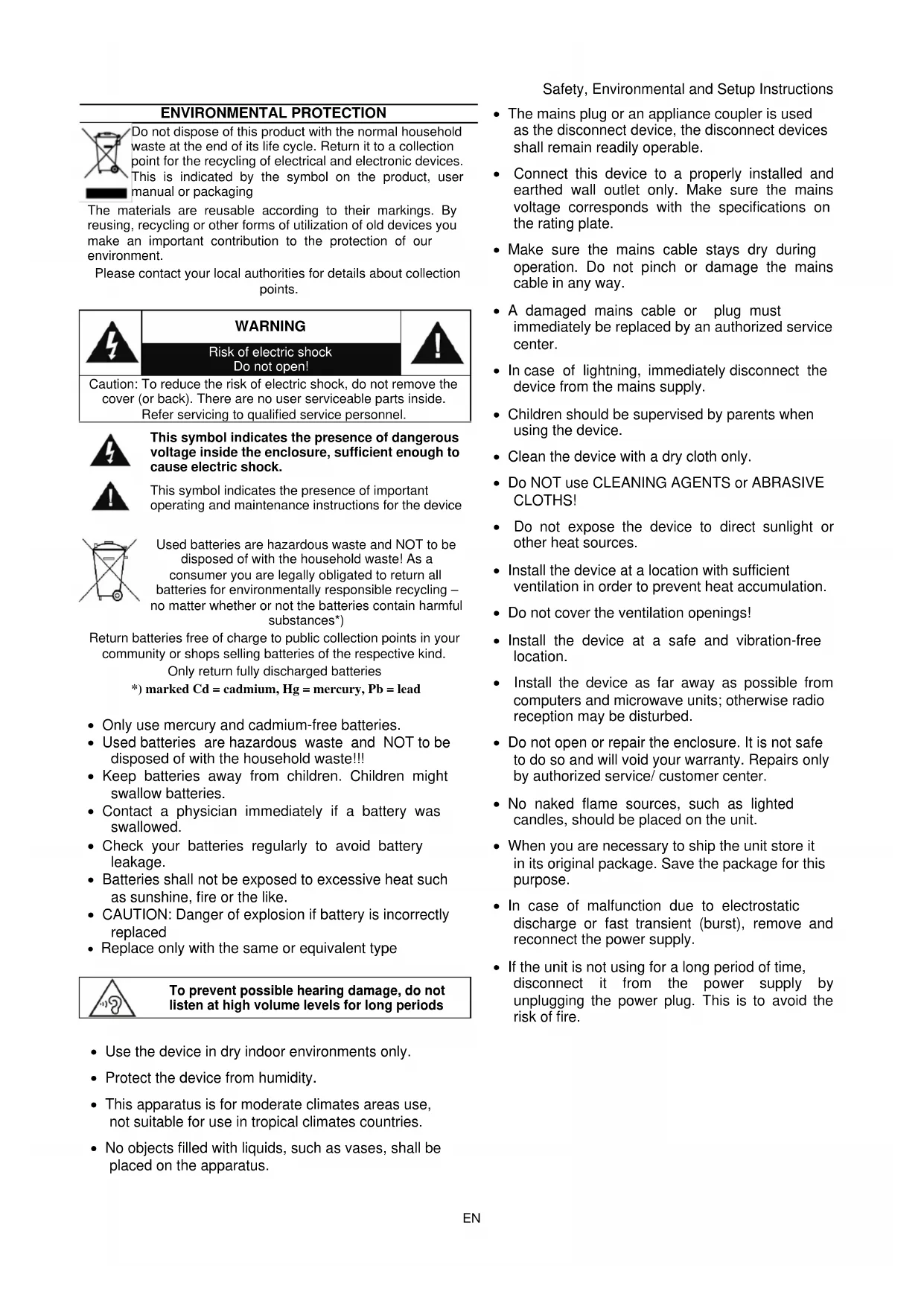

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

警告	WARNING	!
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device.

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

Safety, Environmental and Setup Instructions

• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

LOCATION OF CONTROLS

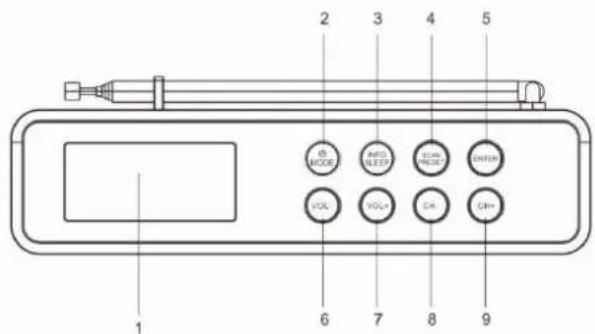

TOP VIEW

1 Display
2 MODE
3 INFO/SLEEP
4 SCAN/PRESET
5 ENTER
6 VOL-
7 VOL +
8 CH-
9 CH+

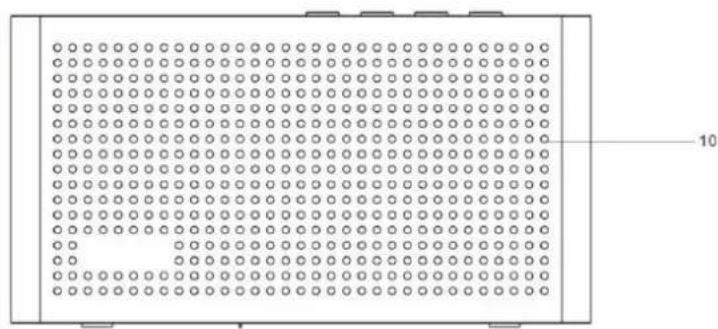

FRONT VIEW

10 Speaker

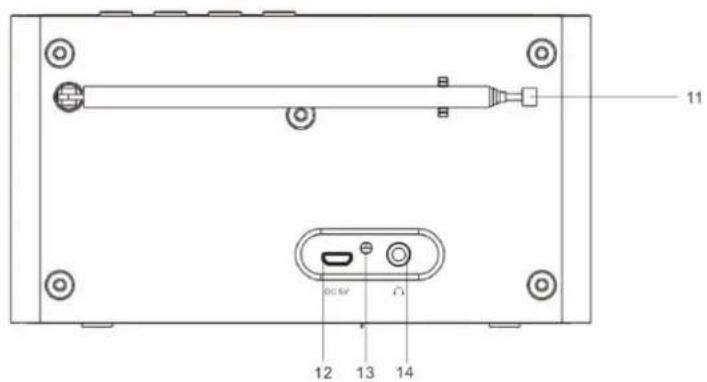

REAR VIEW

11 Antenna
12 USB Port
13 LED Indicator
14 Earphone socket

Precautions

• The radio should not be used in a high temperature or high humidity environment over prolonged periods
• Keep the radio away from liquids as it may get damaged. Please switch off the radio immediately if water or liquids is spilled into the radio. Consult with the shop where you bought this radio for any question.
• Avoid using or storing the unit in dusty or sandy environment.
• Do not open and repair the radio by yourself.
• Use only the specified power input voltage to charge the battery. Connecting a power supply with a different rating will cause permanent damage to the radio and may be hazardous.
  Clean only with dry cloth.

BASIC OPERATION

The radio is powered by the built-in lithium battery. A USB cable is supplied in the product package.

Charging battery

You can check the level of battery power remains on the radio. When the radio is playing, press the "INFO/SLEEP" button repeatedly until you see the battery indicator on the bottom right of the display

Getting started

Press the "O /MODE" button to power on the unit.

To power off the radio, press and hold the same button.

Volume Control

Press the VOL- or VOL+ button to decrease or increase the volume.

RADIO MODE

Change radio mode

When the radio is power on, press the “ /MODE” button to select the mode between DAB and FM.

DAB station scan

The first time you power on the radio, it will scan the DAB radio stations automatically. It will display and play the first station after the scan is done.

In case it displays "No DAB Service", press and hold the "SCAN/PRESET" button until the unit starts scanning.

Tune DAB station

Press the CH- or CH+ button to choose other radio channels. Release the button when it displays the station you want to play and it will start playing automatically.

FM scan

Change to FM mode by pressing the "MODE" button. Press and hold the "SCAN/PRESET" button and the unit will start the scan. It will scan to the next available station.

To manual scan, use the CH- or CH+ button. And it will fine tune the frequency in a step of 50kHz .

Preset

Press the "SCAN/PRESET" button and it will display "Preset 1 upset". Choose the number of preset by CH- or CH+ button where you want to save the station. Then press and hold the "ENTER" button until the unit shows "Saved".

To recall the preset station, press the "SCAN/PRESET" button shortly and use the CH- or CH+ button to navigate. At least press "ENTER" button to confirm.

Information (Info)

When the radio station is playing, press the "INFO/SLEEP" button repeatedly to cycle through the information broadcasted by the radio as follow:

Under DAB

• DLS (Dynamic Label Segmenting): Radio text broadcasted from DAB station such as the news, songs being played, etc)
• PTY (Programme Type): shows which type of program are you listening (Music, Talk, News etc). If there are no information, it will display "Programme Type".
• Channel/Frequency: The frequency of DAB-Station is displayed such as "11C 220.352MHz".
• Audio info: The display shows the digital audio bit rate of the current reception.
• Signal error: The signal strength is displayed graphically.
• Time/Date: The time and date are set automatically.
• Software version

Under FM

• RT (Radio text): Text broadcasted from the FM station
• Signal error: The signal strength is displayed graphically
• Time/Date: The time and date are set automatically.
• Frequency: The FM frequency for the radio station is playing.
• Auto / Stereo: Automatic switching between mono and stereo reception.

SLEEP TIMER

The sleep timer switches the radio off automatically after an adjustable time.

1. Press and hold the "INFO/SLEEP" button to enter the sleep timer setting
2. Press the CH- or CH+ button to choose the timer options 15/30/45/60/90/off.
3. Press "ENTER" to confirm the setting.

To cancel the sleep timer, select "OFF" from the timer options and press "ENTER" to confirm.

FACTORY RESET

Turn the radio off. Press and hold the "O/MODE" and "SCAN/PRESET" buttons together until the display show "RESET System". The radio will reboot and starts a new scan on DAB-Mode.

TECHNICAL SPECIFICATION

DAB frequency range : 174.928MHz - 239.200MHz

FM frequency range : 87.5MHz - 108.00MHz

Power input : 5V

Battery power : Lithium battery 1200mAh

Audio socket : 3.5mm earphone jack
