USER MANUAL SBCRU631 PHILIPS

Let's make things better.

PHILIPS

Instructions for use

You just made a great choice by buying this Philips universal remote control! It takes the place of as many as four separate remote controls and can operate the most-used functions of almost any brand of TV, VCR and satellite tuner/cable decoder.

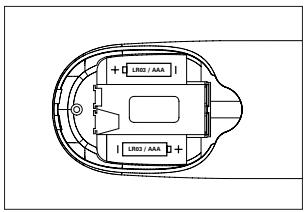

Installing the batteries

Your SBC RU631 needs two 1.5V batteries, type R03, UM4 or AAA.

Put them in like this:

+ LR00 / AAA + LR00 / AAA +

T i p

• Remember to replace the batteries at least once a year.
• Don't leave the batteries out for longer than one hour, otherwise you will need to set-up the SBC RU631 again.
• While the remote control is actively being moved about, the back-lighting stays on. This consumes more power than normal and may require you to change your batteries more frequently. You can easily turn the back-lighting function off to conserve power. To do this please follow the instructions in the backlighting section.

KEYS & FUNCTIONS

TV VCR SAT

Power: to switch TV/VCR/SAT on and off.

Mode Selector: to select TV, VCR, or Satellite mode.

Mute: to switch the TV sound on and off.

Channel Up/Down: to select next / previous channel.

Volume Up/Down: to control the TV volume.

Number Keys: for direct channel selection and other functions.

To switch between one and two-digit channel selection and display.

To switch to the last selected channel.

Instructions for use

SHIFT: to get access to additional functions (press together with other function keys). Depending on the age of your equipment, the result is for example:

SHIFT + PROG+: increases brightness or menu up function
SHIFT + PROG-: decreases brightness or menu down function
SHIFT + VOL+: increases colour or menu right function
SHIFT + VOL-: decreases colour or menu left function

Try other shift/key combinations on your equipment to discover which functions are available.

Remember that you can't get access to additional functions if these functions were not available on the original remote control of your equipment!

To operate menu control.

To confirm your selection.

SLEEP: to activate and vary the sleep timer (if available on your equipment).

To switch on teletext.

To stop changing teletext pages.

To enlarge the teletext display on screen.

To put subtitling on your screen (if available on your equipment), or to switch teletext off.

If you use the memory out key (⇐) to access the next teletext page on your Philips TV, you can use the subtitle key to access. For more details see Memory Out section under Troubleshooting.

Fasttext	VCR
Red	Rewind

Record

Green Stop

Play

Blue Forward

Yellow Pause

To switch between the external inputs of your equipment.

Instructions for use

SET-UP FOR USE

A d v i c e

Carefully read the complete procedure before starting!

[NO TEXT]

Your equipment is a Philips brand:

1 Press the mode selector key for the device you want to operate.
2 Press the power key to test.
- The green indicator LED under each device (TV, VCR or SAT) lights up to confirm the mode you're in.

Check

Press a few keys to check correct response.

13
1 - 9

Your equipment is of another brand, or your equipment is a Philips brand, but not all keys respond correctly:

1 Press the mode selector key to select the device (TV, VCR or SAT) you want to operate.
2 Look up the brand name of the device you want to operate in the code list (centre of this manual).
Make sure you choose the correct code list for your device!
3 Make sure the device is switched on.
4 Press and hold keys 1 and 3 simultaneously - for about three seconds- until the green LED lights up. (Release the keys: the green LED should stay on)
5 Enter your 4-digit code using the number keys, within 30 seconds.
- The green LED flashes twice.

Check

That's it! Press a few keys to check correct response. If response is not correct, repeat procedure beginning at step 1.

Note

• If the LED displays one long flash, the code was not recognised. Please go back to step 1 and repeat the procedure, using the next 4-digit code in the list.
• If no key is pressed within 30 seconds, you have to start again at step 1.

A d v i c e

Carefully read the complete procedure before starting!

13

You do not know the brand of your equipment/you can not find the right code in the code list » auto search:

1 Press the mode selector key to select the device (TV, VCR or SAT) you want to operate.
2 Make sure the device is switched on (if the device is a VCR, please insert a tape and start playback).
3 Press and hold keys 1 and 3 simultaneously -for about three seconds- until the green LED lights up. (Release the keys: the green LED should stay on)

Instructions for use

4 Press the power key to start the search. Make sure that you keep the remote control pointed at your equipment.
- Each time the green LED flashes, another code is sent. When the right code is found, the equipment switches off. Immediately press the power key to stop the search. If the green LED flashed again after the equipment switched off, this means you missed the correct code! If you missed the code, follow the next procedure, starting at step 5. If the LED did not flash again after the equipment switched off, go to step 7.

5 Switch the equipment manually back on.

6 Press 'PROG-' (down only!) repeatedly to send previous codes until the equipment switches off again.

7 Press the power key to lock the correct code in the SBC RU631's memory.

- The green LED flashes twice.

Check

Switch equipment on manually. Press a few keys to check correct response. If response is not correct, repeat procedure beginning at step 1.

Note

• The search time averages about 90 seconds. (Maximum search time is 5 minutes for TV, 2 minutes for VCR and 4 minutes for SAT).
• Autosearch stops automatically after all codes have been tested.

MAKE A NOTE OF YOUR CODE!

A d v i c e

Carefully read the complete procedure before starting!

Note the code inside the battery case and in the codelist in the centre of this booklet. This may be useful if you ever need to set up the SBC RU631 again. You used the auto search procedure or you forgot to note the code after set up? No problem! You can still 'read out' the code from the remote:

1 Make sure you've selected the right mode with the mode selector key.
2 Press and release keys 1 and 6 simultaneously. Important: after pressing the keys, you have to release them immediately!
- The green LED lights up.
3 Press the two digits key.
- The green LED goes out.
4 Press key 1 and count the number of times the green LED flashes. This is the first digit of the 4-digit code. (No flashes means the digit is zero.)
5 Press key 2 and count the number of flashes for the second digit.
6 Press key 3 and count the number of flashes for the third digit.

Instructions for use

7 Press key 4 and count the number of flashes for the forth digit.

8 Note the code.

ADVANCED TIPS AND TRICKS

A d v i c e

Carefully read the complete procedure before starting!

Changing the device keys

With the mode selector it is possible to select 4 categories of devices you want to operate. Each category (TV, VCR, SAT and DVD) is meant to operate a specific group of equipment:

TV	VCR	SAT
tv	vcr	sat
		cable

Once you have programmed the functions of a device in one of the categories, it is not possible to program another device in the same category. There is, however, a solution in case you want to program two devices in the same category (2 TV's, VCR's, etc.). The following example explains how.

EXAMPLE:

The SAT mode on this remote control is factory preset to control many Philips satellite receivers. You can change the SAT mode (or any mode) to operate another type of device. The following example shows you how to use the SAT mode to operate a second TV:

9 9 2 TV VCR SAT 1

1 Press the mode selector key to select SAT and make sure the second TV is switched on.
2 Press and hold keys 1 and 6 simultaneously -for about 3 seconds- until the green LED lights up.
3 On the keypad, press keys 9, 9 and 2.
4 Press the mode selector key to select TV mode.
5 Press key 1.

- The LED flashes twice to indicate successful set up. That's it!

Don't forget to set up the SBC RU631 to operate this second TV. See the section Set-up for use.

Instructions for use

Punch-Through Sound

Punch-through sound enables you to control the audio level of your first or second TV, regardless of what device mode the remote control is in.

EXAMPLE:

You have installed a second TV under SAT mode. You can control that TV's volume when you are in VCR mode. This feature is installed as a default setting for a first TV.

To install this feature for a second TV:

9 9 3 TV VCR SAT Power

1 Press the mode selector key to select VCR.
2 Press and hold keys 1 and 6 simultaneously -for about 3 seconds- until the green LED lights up.
3 On the keypad, press keys 9, 9, and 3.
4 Press the mode selector key to select SAT (second TV).
5 Press the power key.

- That's it! The LED flashes twice to indicate successful set up.

The Volume up/down keys now control the volume of your second (SAT) TV when you're in VCR mode.

Functional back-lighting

When you pick up the SBC RU631 and tilt it over about 60 degrees, the main keys for the device you want to operate are automatically back-lit.

In VCR mode for example, only the main keys that are needed to operate the VCR are back-lit.

You can choose to have all of the keys back-lit, or you can switch off the functional back-lighting feature completely.

To back-light all of the keys:

• Press keys 1 and 9 simultaneously -for about 3 seconds until the green LED flashes twice.
• The functional back-lighting is now de-activated and all keys light up when you pick up the remote control.

Pressing keys 1 and 9 simultaneously again -for about 3 seconds- will return the back-lighting to its preset functional setting.

Note

The back-lighting turns off if you don't move the remote control or if you don't press a key within 4 seconds.

Instructions for use

T i p

The automatic back-lighting provides you with unparalleled ease of use, even in the most dimly-lit of rooms. While the remote control is actively being moved about the back-lighting stays on. This consumes more power than normal and may require you to change your batteries more frequently. You can easily turn the back-lighting function off to conserve power. To do this please follow the instructions below.

To remove the back-lighting completely:

• Press keys 7 and 9 simultaneously -for about 3 seconds—until the green LED flashes twice.
• The back-lighting is now de-activated.

Pressing keys 7 and 9 simultaneously again -for about 3 seconds- will return the back-lighting to its preset functional setting.

TROUBLESHOOTING GUIDE

• Problem:
• Solution:

- Device is not responding and the green light does not flash when you press a button.

• Replace batteries with two new 1.5 volt, type R03, UM4 or AAA batteries.
• Device is not responding, but the green light does flash when you press a button.
• Aim the SBC RU631 at the device and be sure that there are no obstructions between the SBC RU631 and the device.
• The SBC RU631 is not performing commands properly.
• You may be using the wrong code. Try repeating Set up using another code, listed under your brand, or start the Autosearch Set-up over again to locate the proper code. If the device still doesn't respond, call the help-line and we'll put you back on track.
• The SBC RU631 drains batteries more frequently.

- While the remote control is actively being moved around the back-lighting stays on. This consumes more power than normal and may require you to change your batteries more frequently. You can easily turn the back-lighting function off to conserve power. To do this please follow the instructions in the backlighting section.

• You can't access teletext pages and you were used to use this (⇨) button to access teletext.
• Follow Set up procedure and at step 5 of section "Your equipment is of another brand, or your equipment is a Philips brand, but not all keys respond correctly" press keys 0, 0, 6 and 4. To enter teletext pages, press the subtitle button.

Instructions for use

• The teletext buttons do not work.
• Be sure your TV has teletext capabilities. The SBC RU631 does not extend the capabilities of your TV!
• You can't turn teletext off.
• Press the subtitle key to turn teletext off.
• Having problems operating all the functions on your device.
• The SBC RU631 may just need customising for your model type. Just call our help-line and we'll put you back on track.

- Your brand is not listed in the code list.

– Try the hands-free Autosearch method.

- You want to reset the remote control to its factory preset.

- 1 Press and hold keys 1 and 6 simultaneously -for about 3 seconds- until the green LED lights up.

2 On the keypad, press keys 9, 8, and 1. The LED flashes twice to indicate a successful reset.

NEED HELP?

If you have any questions about the SBC RU631, please call our help-line for assistance! You can find the number in the code list section of this booklet.

Before you call, please read this manual carefully. You will be able to solve most of your problems. If you don't find an answer to your questions, make a note of your equipment in the table at the back of the code list section of this booklet. This makes it easier and faster for our operators to help you. Look for the model numbers in the equipment instruction manual, or on the back of your equipment. When calling our help-line please have your equipment close by, so our operators can help you verify the functionality of your remote control.

The model number of your Philips universal remote control is: SBC RU631

Date of purchase: ____/____/____

day/month/year

Mode d'emploi

1 Appuyez sur la touche Sélection du mode to select SAT and make sure the second TV is switched on.

TV	VCR	SAT
TV	VCR	SATKabel-TV

9 9 2 TV VCR SAT 1

9 9 3 TV VCR SAT Power

Anitech....0036, 0103

Arc En Ciel....0528

Arcam....0244

Asberg 0103

Asuka 0245

Atlantic 0233

Autovox.....0233, 0264, 0114, 0571, .....0103, 0313, 0322, 0363

BPL 0309

BSR 0321

BTC....0245

Baird 0584

Bang & Olufsen 0114

Barco....0579

Basic Line....0036, 0245

Baur..0037, 0064, 0376, 0388, 0539, 0571, 0581

Beko....0513, 0397

Beon 0064

Binatone....0244

Blaupunkt ..0218, 0227, 0240, 0354, ....0355, 0581

Blue Sky 0245

Blue Star 0309

Bondstec....0274

Boots 0244

Brandt.....0136, 0223, 0225, 0360, .....0362,

Brandt Electronic....0528

Brionvega 0114, 0389

Bruns 0114

Bush .0036, 0063, 0064, 0245, 0299, 0309, 0321, 0376, 0390, 0398, 0401, ....0579

CGE....0101, 0103, 0111, 0274, 0579

CTC....0274

Carrefour 0063

Cascade 0036

Cathay 0064

Centurion....0064

Century......0114, 0240

Cimline....0036

Clarivox 0064

Clatronic ....0103, 0274, 0397

Condor....0347, 0397

Contec 0036, 0063

Continental Edison .....0223, 0225, .....0360, 0426, 0528

Crosley.....0101, 0103, 0111, 0114, .....0240, 0374

Crown .....0397, 0036, 0064, 0103, .....0445

Crystal....0458

Cybertron....0245

Daewoo .....0036, 0064, 0401, 0526

Dainichi....0242, 0245

Dansai 0064

Dayton....0036

De Graaf......0235, 0390, 0575

Decca.0064, 0099, 0276, 0299, 0543

Dixi 0036, 0064

Dual 0363, 0379, 0571

Dual Tec....0244

Dumont......0114, 0097, 0322, 0374

Elbe 0286

Elin 0064, 0575

Elite 0245, 0347

Elta 0036

Emerson....0114, 0240, 0388

Erres....0039, 0064

Europhon 0543

Expert 0233

Ferguson ....0064, 0100, 0136, 0217, ....0265, 0314, 0362

Fidelity....0388, 0390, 0571

Finlandia.....0373, 0386, 0235, 0390

Finlux ....0064, 0097, 0099, 0114, 0131, 0132, 0206, 0322, 0373, 0374, ....0438, 0543

Firstline .....0348, 0036, 0243, 0244, .....0274, 0321, 0558

Fisher .....0131, 0235, 0244, 0397, .....0571, 0582

Flint....0482

Formenti ....0347, 0064, 0374, 0579, ....0114, 0240

Frontech.....0190, 0274, 0390, 0458, .....0475

Fujitsu....0099, 0233

Funai....0206, 0321

GBC 0579

GEC...0070, 0099, 0064, 0244, 0543, 0584

GPM....0245

Galaxi....0327

Geloso 0036, 0240, 0374

Genexxa 0190, 0245

GoldStar.....0064, 0136, 0244, 0317, ....0390, 0404

Goodmans ..0063, 0064, 0099, 0206, 0244, 0262, 0344, 0398, 0401, 0526

Gorenje....0397

Graetz......0388, 0584, 0374, 0190

Granada.....0386, 0064, 0099, 0235, .0378, 0390, 0543, 0072, 0244, 0366

Grandin....0309, 0637

Codes

1

Grundig.....0097, 0218, 0264, 0514, .....0581, 0583, 0614

HCM....0036, 0309, 0439

Hanseatic...0388, 0064, 0347, 0455, 0571, 0583

Hantarex....0543

Harwood 0284

Hifivox 0528

Hinari .....0036, 0063, 0064, 0206, .....0245

Hisawa....0309, 0427, 0482

Hitachi.....0059, 0063, 0070, 0071, 0132, 0136, 0190, 0223, 0225, 0244, 0252, 0374, 0376, 0383, 0390, 0575, ....0584

Huanyu....0401

Hypson 0064, 0309

ICE 0244, 0398

ICeS 0245

ITC 0579

ITS 0398

ITT....0584, 0374, 0388, 0378, 0190, ....0034, 0405, 0571, 0575

Imperial.....0101, 0103, 0111, 0274, ....0397, 0445, 0579

Indesit 0264

Indiana......0064

Ingelen....0584, 0190

Magnafon ...0129, 0543, 0103, 0240, ....0341

Manesth....0244, 0262, 0347

Marantz 0064, 0583

Marelli....0114

Mark....0064

Matsui .....0036, 0038, 0062, 0063, 0064, 0099, 0204, 0235, 0244, 0262, 0299, 0321, 0381, 0390, 0398, 0470, .....0514, 0543, 0571

McMichael....0070

Mediator 0039, 0064

Memorex....0036

Memphis....0364

Metz ..0114, 0240, 0266, 0302, 0394

Minerva......0097, 0264, 0514, 0581

Minoka 0396, 0439

Mitsubishi ..0063, 0114, 0135, 0264, ....0381, 0539

Mivar ......0317, 0318, 0319, 0543

Motion....0103

Multitech ....0036, 0103, 0129, 0390

Myryad 0583

NEC 0197

NEI....0064, 0364, 0458

National 0264

Neckermann .....0064, 0114, 0218, .....0240, 0376, 0390, 0581, 0583

Nesco 0206

Nicam....0571

Nikkai.....0059, 0062, 0064, 0099, .....0245, 0364

Nobliko....0103, 0129

Nogamatic 0528

Nokia....0388, 0500, 0507, 0575, ....0633, 0658

Nordmende....0136, 0223, 0225, ....0240, 0314, 0528

Oceanic......0388, 0242, 0374, 0190

Onwa 0460

Orion 0064, 0204, 0262, 0321, 0347, 0348, 0543, 0571

Osaki .0059, 0099, 0244, 0245, 0439

0so 0245

Osume 0059, 0099

Otake 0344

Otto Versand .....0037, 0063, 0064, 0218, 0240, 0244, 0347, 0374, 0376, .....0539, 0579, 0581, 0583

Palladium ....0397, 0390, 0456, 0445

Panama....0244

Panasonic...0153, 0190, 0240, 0253, 0264, 0367, 0374, 0394, 0584, 0677

Pathe Cinema .....0240, 0265, 0347, .....0579

Pathe Marconi.....0223, 0225, 0360 .....0528

Pausa 0036

Perdio....0347

Phase 0059

Philco .....0101, 0103, 0111, 0114, .....0240, 0274, 0579

Philex....0378

Philips....0039, 0064, 0070, 0114, 0350, 0359, 0401, 0581, 0583, 0632, ....0883

Phoenix 0114

Phonola 0039, 0064, 0114

Pioneer .....0136, 0190, 0193, 0314

Prandoni Prince....0543

Profex......0036, 0103, 0388, 0390

Proline 0348

Protech .....0036, 0064, 0129, 0244, .....0274, 0364, 0445, 0458, 0579

Pye....0039

Quelle....0037, 0038, 0064, 0097, 0101, 0111, 0131, 0227, 0240, 0279, 0322, 0354, 0355, 0388, 0539, 0571, ....0579, 0581

Questa....0063

R-Line 0064

RBM 0097

RFT....0114, 0455

Radiola 0064, 0350, 0039

Radiomarelli....0114, 0543

Rank Arena 0063

Rediffusion 0388, 0378

Revox 0064

Rex......0190, 0233, 0286, 0332

Roadstar 0036, 0245, 0445

SBR 0039, 0064, 0070

SEG......0063, 0103, 0244, 0579

SEI....0037, 0114, 0129, 0204, 0240, ....0321, 0374, 0543, 0571

Saba .0102, 0114, 0136, 0190, 0223, 0225, 0240, 0314, 0362, 0374, 0528, ....0584

Saccs 0265

Sagem 0637

Saisho......0036, 0038, 0204, 0262, ......0381, 0458, 0543, 0571

Salora .....0190, 0221, 0376, 0383, .....0386, 0388, 0390, 0575

Sambers .....0129, 0103, 0543, 0240

Samsung ....0036, 0064, 0244, 0317, ....0397, 0515, 0583, 0614, 0671

Sanyo......0038, 0063, 0099, 0131, ......0235, 0240, 0366

Schaub Lorenz .....0388, 0374, 0584

Schneider...0064, 0245, 0274, 0350, ....0363, 0379, 0398, 0421, 0571

Seleco....0233, 0286, 0190, 0332, ....0389, 0438

Sentra 0062

Sharp....0120, 0063

Shorai....0321

Siarem .....0114, 0543, 0129, 0240, .....0374

Siemens .....0064, 0218, 0227, 0240, ....0354, 0355, 0374, 0581

Silver....0063

Singer....0114

Sinudyne....0571, 0543, 0129, 0037, 0114, 0204, 0240, 0262, 0321, 0374

Skantic 0384, 0383

Solavox 0059, 0190, 0378

Sonitron 0235

Sonoko 0036, 0064

Sonolor 0190, 0235, 0242

Sontec 0064

Sony ......0037, 0038, 0063, 0256

Soundwave 0064, 0445

Standard 0244, 0245, 0036

Stern ......0233, 0190, 0286, 0332

Sunkai 0321, 0348

Susumu 0245

Sysline 0064

Tandberg....0322

Tandy......0099, 0190, 0244, 0245

Tashiko .....0063, 0070, 0244, 0386, .....0390

Tatung......0064, 0099, 0244, 0276, 0543

Tec 0579, 0244, 0274

Technema....0347

Technics....0677

Technol Ace....0206

Teleavia ......0360, 0517, 0528

Telefunken .0101, 0111, 0128, 0136, 0240, 0279, 0289, 0362, 0498, 0528, 0593

Telemeister 0347

Teletech....0036

Teleton.....0233, 0063, 0244, 0376, .....0390

Tensai ......0245, 0321, 0344, 0347

Texet 0245

Thomson ....0136, 0223, 0225, 0264, 0314, 0360, 0376, 0426, 0517, 0528

Thorn....0062, 0064, 0099, 0101, 0111, 0131, 0217, 0388, 0526, 0539, ....0580

Tomashi 0309

Toshiba .....0062, 0063, 0097, 0270, .....0472, 0580

Towada 0579

Triumph ......0204, 0270, 0543

Uher....0233, 0347

Ultra 0219

Ultravox....0129, 0378

Universum..0064, 0131, 0132, 0373, ....0397, 0448, 0519, 0579

Vestel....0064

Videosat 0274

Videotechnic 0244

Vision....0347

Voxson....0114, 0190

Waltham 0383, 0244

Watson 0347, 0064

Watt Radio ......0129, 0571, 0579

Wega 0114, 0063

White Westinghouse .....0064, 0347

Yoko 0064, 0244, 0458

Zanussi......0332, 0233, 0390

Codes

SETUP CODES FOR VCR

ASA 0108, 0064

Aiwa ......0334, 0027, 0375, 0379

Akai..0068, 0080, 0133, 0308, 0312, 0342

Akiba 0099

Alba..0047, 0305, 0379, 0099, 0236, ....0320, 0322, 0342, 0360, 0361

Ambassador 0047

Amstrad .....0027, 0352, 0359, 0305

Anitech....0099

Asuka 0064

Baird......0131, 0027, 0068, 0134

Basic Line ......0305, 0047, 0099

Blaupunkt ..0030, 0033, 0061, 0181, ....0189, 0222, 0253, 0254, 0430

Blue Sky 0305

Tensai....0027, 0349

Thomson ....0068, 0347, 0411, 0520, ....0521

Thorn......0063, 0068, 0131

Toshiba .....0068, 0070, 0072, 0108, .....0411

Towada 0349

Triumph....0235

Uher....0267

Universum..0027, 0033, 0064, 0108, ....0133, 0222, 0267, 0352

Yamishi 0099

Yokan 0099

Yoko 0267, 0047

SETUP CODES FOR SATELLITE

ABsat 0150, 0859

AST....0348, 0378

Akai 0542

Alba...0389, 0448, 0482, 0542, 0640

Aldes....0315

Allantide 0360

Amstrad .....0107, 0240, 0279, 0365, 0372, 0488, 0528, 0702, 0716, 0874

Ankaro0315, 0244, 0247, 0396, 0546

Anttron....0210, 0448

Arcon 0395

Armstrong....0270

Asat 0400

Astra......0135, 0400, 0545, 0566

Astro .....0200, 0385, 0528, 0547

AudioTon 0391

Avalon 0423

Axis......0393, 0396, 0557, 0861

BT 0695, 0542, 0737

Barcom 0244

Best 0396, 0244

Blaupunkt......0200

Boca 0270, 0540, 0856

Brain Wave....0359

British Sky Broadcasting .....0874

Bush....0094

CNT 0547

Cambridge 0542

Canal Digital 0880

Canal Satellite....0880

Canal+ 0880

Channel Master 0389

CityCom ....0142, 0421, 0845

Commlink 0315

Connexions ......0423, 0485

Conrad 0142, 0634

Contec 0393

Crown 0270

Cyrus 0227

DDC....0389

DNT 0423, 0227, 0485

Daewoo....0400

Diskxpress 0244

Distratel 0111, 0912

EIF 0444

Codes

Echostar.....0194, 0423, 0740, 0880, .....0898

Elta 0391

Emanon 0448

Eurodec 0551

Eurostar....1052, 1053

Eutra 0825

FTE 0358, 0438, 0890

Ferguson .....0363, 0210, 0094, 0641

Fidelity....0279, 0702

Finlux ......0135, 0424, 0441, 0482

Fracarro 0898

Freecom 0362, 0448, 0761

Fuba .0199, 0244, 0396, 0423, 0441, 0444, 0448

G-Sat....0210

Galaxis......0310, 0315, 0391, 0393, 0683, 0840, 0860, 0861, 0890, 1138

Galaxisat 0348

Gardiner 0845

Gold Box....0880

GoldStar 0362

Gooding....0598

Grandin 0872

Grundig.....0166, 0167, 0200, 0355, .....0598, 0777, 0832, 0874

Intervision......0619

JOK 0737

JSR....0391

JVC....0542, 0598

Johansson....0359

Kathrein.....0119, 0150, 0227, 0358, 0385, 0421, 0469, 0507, 0531, 0649, .... 0685, 1084, 1085

KeyWest....0821

Kosmos....0358, 0362

Kreiselmeyer 0200

Kyostar 0448

La Sat....0540, 0547, 0634

Lemon 0147

Lenco......0362, 0400, 0438, 0448

Lennox 0619

Lupus 0396

Luxor....0135, 0199, 0600

Macab 0551, 0878, 0908

Manhattan...0482, 0547, 0619, 1110

Marantz 0227

Maspro .....0119, 0777, 0522, 0355, .....0363

Matsui 0598

MediaSat....0880

Mediamarkt......0270

Memphis....0393

Metronic 0111

Micro Technology ......0360, 0566

Micronik 1030

Minerva 0598

Morgan's ....0159, 0270, 0540, 0710, ....0856, 1130

Multichoice 0669, 0906

Multistar....0358

Muratto 0362

Myryad 0227

Navex 0359

Neuhaus 0247, 0528

Neusat....0719, 0861

Next Wave....0759

Nikko 0740

Nokia......0135, 0199, 0355, 0424, 0482, 0600, 0778, 0848, 0900, 1050

Nordmende 0641, 0389

Orbitech 0528

Ondigital......0160, 0161, 0268

PTT Telecom 0240

Pace..0094, 0210, 0266, 0268, 0355, 0363, 0482, 0524, 0747, 0818, 0822, ....0874, 0914

Palladium 0598

Palsat 0528

Panasat....0642, 0906

Panasonic 0874

Panda 0482

Patriot....0542

Philips .....0126, 0160, 0161, 0227, 0319, 0355, 0482, 0598, 0694, 0737, .....0777, 0832, 0880, 0925, 1145

Phoenix 0393

Phonotrend ......0315, 0619, 0815

Pioneer....0880

Polytron....0421

Promax 0482

Prosat....0315

Pyxis 0858

Quadral....0389, 0546, 0655

RFT......0568, 0227, 0247, 0315

Radiola 0227

Radix....0423, 0909

SAT 0348, 0378, 0488

SEG ....0396, 0448, 0545, 0566, 0769

SKY 0883

SM Electronic 0740

Saba .0363, 0547, 0717, 0737, 0761, 0912

Sabre 0482

Sagem 0847

Sakura 0393

Salora 0135, 0199

Samsung 0314

SatPartner ..0359, 0362, 0448, 0529, ....0547, 0719, 0761

Satcom....0240, 0373, 0632

Satec 0355, 0210

Satmaster 0373

Satstation....1110

Schneider....0832

Schwaiger......0210, 0421, 0531

Seemann....0423, 0557

Siemens....0200, 0710

Skymaster ..0315, 0546, 0632, 0655, 0740, 0907

Sony 0731, 0874

Strong......0152, 0899, 0906, 1132

STVI 0444

Sunstar 0821, 0540

TPS....0847

Tantec....0363, 0482

TechniSat ....0289, 0485, 0528, 0568

Techniland 0373

Teco 0400

Telefunken 0448

Teleka....0270, 0640, 0825

Telesat....0632

Thomson 0482, 0880, 1073

Thorens 0613

Tonna 0373, 0695

Toshiba....0164

Triad......0348, 0360, 0362, 0378

Triasat 0528, 0441

Twinner 0163

Uniden......0221, 0819, 0858

Unisat 0393

Unitor....0244, 0359

Universum....0200, 0598

VTech....0378, 0717

Vector....0360, 0545

Ventana 0227

Vortec....0448

Wevasat 0360

Winersat....0359

Wisi..0200, 0348, 0378, 0399, 0423, 0482, 0665, 0717

XSat 0150, 0916

Xcom Multimedia....0916

Zehnder .....0141, 0348, 0358, 0547, .....0579, 0845

Zenith 0883

Zwergnase....0821

SETUP CODES FOR CABLE

Birgmingham Cable Communications 0303

British Telecom ......0030, 0132

Cabletime 0298

Decsat 0450

Filmnet....0470

France Telecom....0478

HyperVision 0646

Jerrold....0303, 0030

MNet 0470

Nokia 0708

PVP Stereo Visual Matrix......0030

Philips....0646

Sagem 0844

Scientific Atlanta ......0035, 0304

Tele+1 0470

United Cable 0030

Westminster....0132

Note your codes!

TV

Equipment

Brand

Model number

Number of original remote

Code

VCR

Equipment

Brand

Model number

Number of original remote

Code

SAT

Equipment

Brand

Model number

Number of original remote

Code

Helpline

France 03 87 17 00 87

9 9 2 TV VCR SAT 1

9 9 3 TV VCR SAT Power

NÄPPÄIMET & TOIMINNOT

Dealer's name, address and signature
