USER MANUAL PBSG 95 B1 PARKSIDE

BOHRERSCHÄRFGERÄT PBSG 95 B1

DE AT CH

BOHRERSCHÄRFGERÄT

Operation and Safety Notes

Translation of the original instructions

IAN 108189

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 29

Einleitung

Directive Machines (2006/42/EC)

Directive CE Basse tension (2006/95/EC)

RoHS Directive (2011/65/EU)

Semi Uguzlu - Responsible qualite -

Description of parts and features.. Page 30

Scope of delivery.. Page 30

Technical data.. Page 30

General safety advice

Working safely.

Device-specific safety instructions for drill sharpeners.. Page 32

Original accessories/Attachments.. Page 33

Use

Sharpening a drill . Page 33

Replacing the sharpening stone. Page 33

Maintenance and cleaning.. Page 34

Service

Warranty

Disposal

Translation of the original declaration of conformity / Manufacturer

Drill sharpening machine PBSG 95 B1

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The device is designed to sharpen steel drill bits according to DIN 338, DIN 340, DIN 345, DIN 1869 and DIN 1897 (MODEL Type N). Carbide drill bits must not be milled with this device. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use. The device is not intended for commercial use.

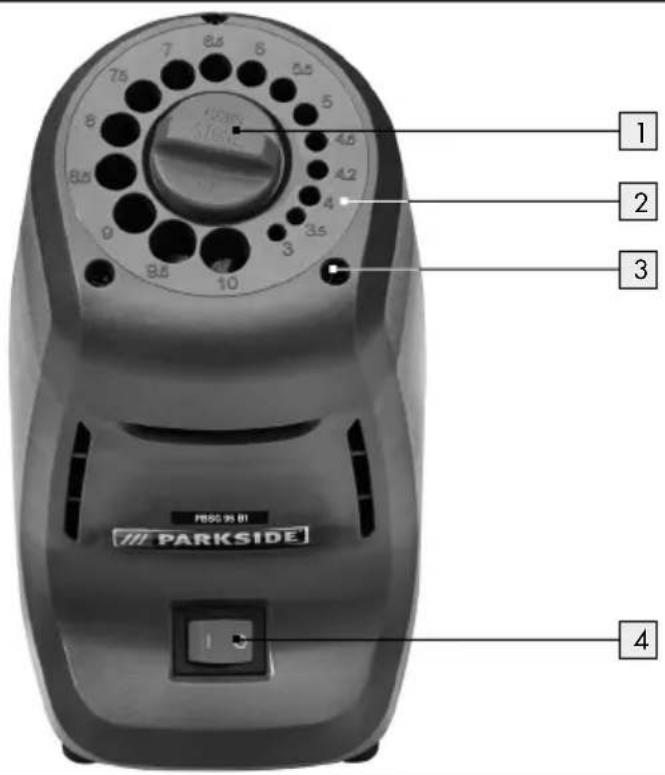

Description of parts and features

1 Rotary switch ("STONE" = Sharpening stone)
2 Sharpening stone cover
3 Sharpening stone cover screw
4 ON/OFF switch
5 Sharpening stone
Spring
7 Threaded connection
8 Metal washer
9 Sharpening stone holder
10 Ventilation slots
11 Drill guide

- Scope of delivery

1 drill sharpening machine PBSG 95 B1
1 carrying case

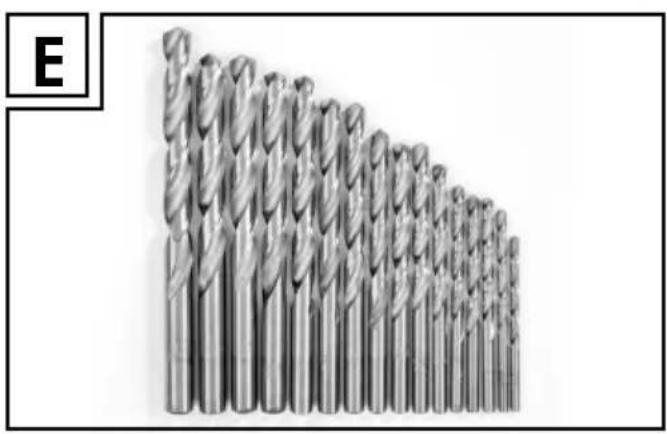

16 titanium-coated HSS drills (see Fig. E)

2 spare sharpening stones
1 set of operating instructions

- Technical data

Dimensions: 221 × 174 × 103 ~mm

$$ (w \times h \times d) $$

Weight: 950 g

Nominal voltage: 230-240V \~50Hz

Rated Input: 95W

Nominal rotation speed: 1350 rpm

For drill bits of diameter: 3-10 mm

Protection class: II/

Noise data:

Refers to A-weighted sound level.

No-load

Sound pressure level: L_pA 70.0 dB (A)

Sound power level: LwA 83.0 dB (A)

Uncertainty K: 3 dB

Load (Grinding)

Sound pressure level: L_pA72.8dB(A)

Sound power level: L_WA85.8dB(A)

Uncertainty K: 3 dB

Values determined in accordance with EN ISO 11201, EN ISO 4871.

Vibration emission value: ≤ 2,5m / s

Value determined in accordance with

EN ISO 5349-1, EN ISO 5349-2.

Note: The vibration emission value specified in these instructions was measured in accordance with a standardised testing method and can be used to compare power tools. The vibration emission value specified can also be used to assess the vibration load.

WARNING! The vibration emission value

during actual use of the power tool may differ from

the value specified depending on how the power tool is used.

If you wish to make an accurate assessment of the vibration loads experienced during a particular period of work, you should also take into account the periods when the tool is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

- General safety advice

CAUTION! In order to protect yourself from the danger of electric shock, injury or fire when using electrical power tools,

please observe the following basic safety precautions. Read all these requirements before you use the electrical power tool, and keep the safety advice in a safe place.

- Working safely

1. Keep your working area clean and tidy.
   A disorderly working area can lead to accidents.
2. Be aware of the effects of the environment.
   Do not leave electrical power tools out in the rain.

3. Do not use electrical power tools in moist or wet surroundings.
   Ensure that your working area is well lit.
   Do not use electrical power tools in areas where there is risk of fire or explosion.

4. Protect yourself from electric shock.

5. Avoid touching earthed objects such as pipes, heating radiators, ovens or refrigerators with parts of your body.

6. Keep other people at a safe distance.
   Do not allow other people, in particular children, to touch the electrical power tool or the mains lead. Keep them away from your working area.

7. Store currently unused electrical power tools in a safe place.
   When not being used electrical power tools should be stored in dry conditions in a high or enclosed place, out of reach of children.

8. Do not overload your electrical power tool.

By keeping within the specified working range of the tool you will work more safely and achieve a better result.
7. Use the right electrical power tool for the task.

Do not use low-output devices for heavy tasks.
- Do not use an electrical power tool for purposes for which it was not intended. For example, do not use a hand operated circular saw for trimming tree branches or cutting logs.
8. Wear suitable clothing.

Do not wear loose-fitting clothing or jewellery. They could become caught on moving parts.
We recommend that you wear anti-slip footwear when working outdoors.

If you have long hair, wear a hair net.
9. Use personal protective equipment.

Wear protective glasses.

Wear a dust mask if your work generates dust.

1. Attaching the vacuum dust extraction device.
   Where there are connection points provided for vacuum dust extraction please ensure that the connections are made and used properly.

2. Do not use the mains lead for purposes for which it was not intended.

Do not use the mains lead to pull the plug out of the mains socket. Protect the mains lead from heat, oil and sharp edges.
12. Securely support the workpiece.
Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it with your hand.

1. Avoid placing your body in an unnatural position.

Keep proper footing and balance at all times.
14. Look after your tools carefully.
- Keep cutting tools sharp and clean. This way you will work more safely and achieve better results.
Follow the advice on tool lubrication and consumables replacement.
Check the condition of the mains lead on your electrical power tool regularly and have any damage repaired by a competent specialist.

Check the condition of extension leads regularly and replace them if they are damaged.
- Keep handles and hand grips clean, dry and free of oil and grease.

1. Pull the mains plug out of the mains socket.
   Do this if the electrical power tool is not being used, before carrying out maintenance tasks on the electrical power tool and whenever you are changing inserted tools, e.g. saw blades, drills or router bits.
2. Make sure that no spanners, keys etc. are left attached.
   Check before switching on that all spanners, keys and setting tools have been removed.
3. Avoid unintentionally starting up the device.
   Check that the switch is set to OFF on the device when the mains plug is inserted into the mains socket.
4. Using an extension lead for working outdoors.
   When working outside, always use an approved and appropriately labelled extension lead.
5. Remain alert.
   Watch what you are doing. Proceed with caution. Do not use electrical power tools if you cannot concentrate.
6. Check the electrical power tool for damage.
   Before the electrical power tool is used, carefully check the safety equipment and any slightly damaged parts to see that they are still working properly.
   Check that all moving parts on the tool are working properly, can move freely and are not damaged. All parts must be correctly attached and fulfil all the requirements necessary to allow the electrical power tool to operate properly.
   Damaged safety equipment and components must be properly repaired or replaced at a competent electrical equipment repair centre unless otherwise indicated in the operating instructions.
   Damaged switches must be replaced at a Customer Service Centre.
   Never use an electrical power tool that cannot be switched on and off properly.

21. CAUTION!

The use of inserted tools and accessories other than those recommended by the manufacturer could lead to you being injured.
22. Have your electrical power tool repaired at an electrical equipment repair specialist.
This electrical power tool complies with the relevant safety regulations. Repairs may only be carried out by a specialist electrical repair centre using original spare parts, otherwise injury could occur to the user.
Device-specific safety instructions for drill sharpeners
Make sure that the device is switched off before inserting the mains plug into the socket.
Always pull the mains plug out before carry out cleaning or maintenance work. This is to prevent the device starting up by accident.

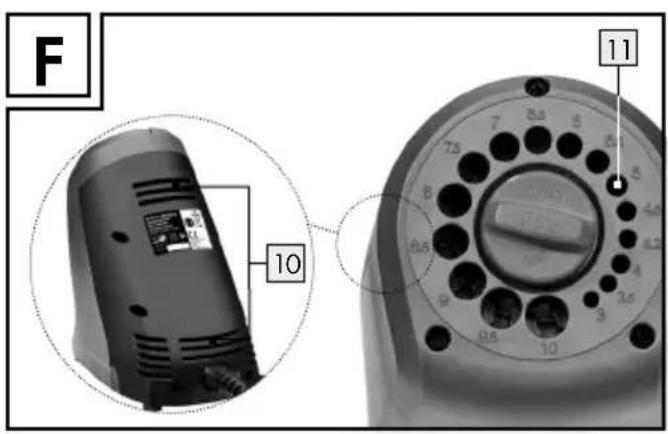

The ventilation openings 10 of the motor unit must always be kept clear. Otherwise there is a risk of the device overheating.
When carrying out work on the device as well as transporting or storing it, move the ON/OFF switch4 to the "0" position (off) in order to prevent it switching itself on by accident.
■ FIRE HAZARD DUE TO FLYNG SPARKS! Grinding metal will cause sparks to fly. That is why you should always make sure that no-one is at risk from them and that no combustible materials are located in the proximity of the area of work.

A WARNING! RISK OF INJURY! Use the

ON/OFF switch 4 to switch the grinder off in the event of a power failure or when pulling out the mains plug. This prevents the grinder restarting by accident, which could cause injury to you.

• Never operate the grinder if the power cable or mains plug is damaged.
  Grinding stones must be carefully stored and handled according to the manufacturer's instructions.

Make sure that the grinding tools are appropriate in line with the instructions of the manufacturer.
Check the grinding stone before using it; do not use any broken, cracked or otherwise damaged goods.
Make sure that a grinding tool is correctly fitted and fastened before using it.

Place the grinder in a safe place and allow it to run idly for 30 seconds. Stop it immediately if considerable oscillations occur or if defects are observed. If this occurs, check the machine to find out the cause.

- Original accessories/ Attachments

Use only the accessories and attachments detailed in the operating instructions.

The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.

Use

- Sharpening a drill

NOTE: Badly damaged drills should first be coarsely sharpened on a sharpening block.

Fully lower the sharpening stone. To do this turn the rotary switch 1 in the DOWN direction as far as it will go.
Insert the drill into the smallest suitable drill guide 11 on the drill sharpener. The exact size (0) of each drill guide 11 is shown by the adjacent lettering (3 to 10).
Press the ON/OFF switch 4 into position "I" to switch on the device.
Turn the rotary switch 1 in the UP direction until you hear a grinding noise.

NOTE: The rotary switch 1 controls the position of the sharpening stone in the sharpening head housing and therefore the pressure of the sharpening stone against the drill. The further you turn the rotary switch 1 in the UP direction, the greater the pressure. Ensure that you do not

turn the sharpening stone too far up. Otherwise the sharpening stone could strike the housing.

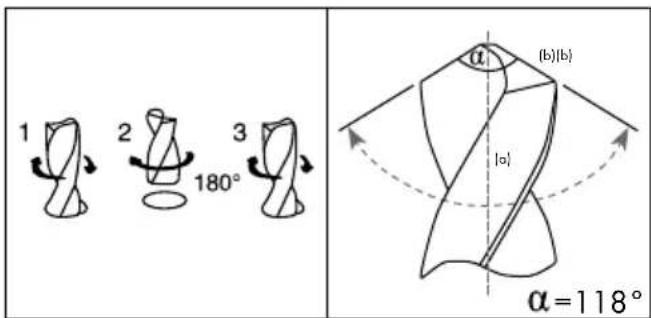

Turn the drill under slight pressure loosely and quickly to and fro between the left and right stops about 10 times (with small drills about 5 times).
Pull the drill out, turn it through 180^ (horizon tally) and insert it again until it meets the sharpening stone.
If necessary repeat whole process until both cutting edges of the drill are sharp. Polish so the angle (a) between the two cutting edges (b) is 118^ . The two cutting edges (b) must have the same angle to the drilling axle (a) and have the same length so the drill runs centred (see figures below).

Press the ON/OFF switch 4 into position "0" to switch off the device.

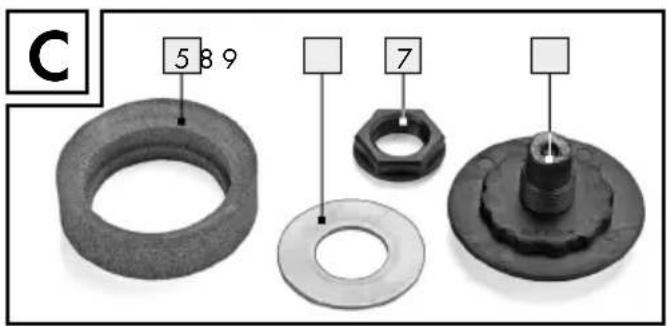

- Replacing the sharpening stone

WARNING! RISK OF INJURY! Before you carry out any work on the device, always pull the mains plug out of the mains socket. Replace the sharpening stone if it is worn out or damaged (deteriorating, irregular sharpening performance, broken stone). A Phillips screwdriver is required for this step.

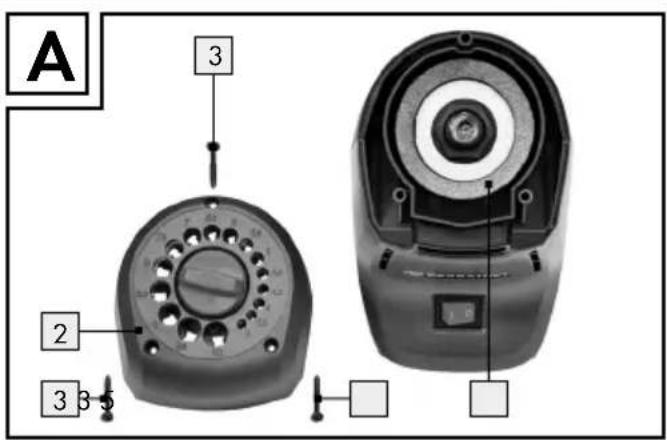

Screw the three screws 3 out of the sharpening head cover 2 and remove the cover 2, refer to Fig. A.
Take out the sharpening stone 5.

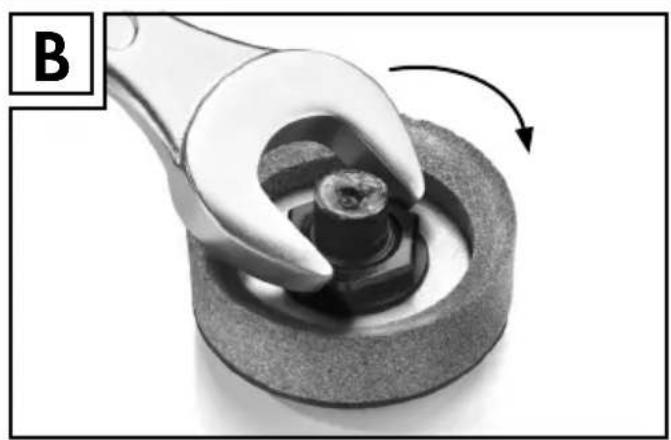

Clamp the sharpening stone 5 in a vice. Release the threaded connection 7, which holds the sharpening stone 5 on to the sharpening stone holder 9, using a 23 mm open spanner or a wrench socket, see Fig. B.

NOTE! LEFT-HAND THREAD - TO RELEASE TURN IT CLOCKWISE!

Remove the metal washer 8.

Mount the new sharpening stone, with its flattened edge facing downwards, on to the sharpening holder 9 and reinsert the metal washer 8.
- Clamp the sharpening stone 5 again in a vice and tighten the threaded connection 7 using a 23mm open spanner.

NOTE! LEFT-HAND THREAD - TO TIGHTEN TURN IT ANTICLOCKWISE!

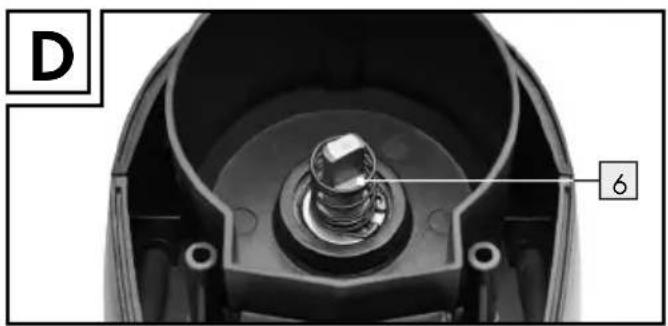

Ensure that the spring 6 is inserted into the device in accordance with Fig. D and insert the sharpening stone back into the device. Turn the sharpening stone until it goes precisely back into place, as shown in Fig. A, otherwise the sharpening stone cover 2 cannot be fitted.
Place the sharpening stone cover 2 back in position and screw it in place with the three screws 3.

- Maintenance and cleaning

Apart from replacing the sharpening stone, the drill sharpener is maintenance-free.

Regularly clean the device straight after using it.
To clean the casing, use a dry cloth; on no account should you use any petrol, solvents or cleaning agents.

WARNING! Never open the devices. Any repairs or replacements should only be carried out by the service centre or an electrician.

Service

AWARNING! Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING! If the plug or lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain Tel.: [phone] (0.10 GBP/Min.)

e-mail: [e-mail]

IAN 108189

Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2012 / 19 / E (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Translation of the original declaration of conformity / Manufacturer (€

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG-STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EU Low Voltage Directive (2006/95/EC)

Electromagnetic Compatibility (2004/108/EC)

RoHS Directive (2011/65/EU)

Applicable harmonized standards

EN 61029-1:2009+A11

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 61000-3-2:2006+A1+A2

EN 61000-3-3:2013

Type/Device description:

Drill sharpening machine PBSG 95 B1

Date of manufacture (DOM): 02-2015 Serial number: IAN 108189

Bochum, 28.02.2015

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical modifications in the course of further development.

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

DEUTSCHLAND
