USER MANUAL Aqua Clean DD301 DIRT DEVIL

Overview Thank you ... for purchasing the Aquaclean universal steam cleaner and for your trust. Scope of supply (Fig. 1) Technical data We reserve the right to make changes to technical and design specifications in the interest of continuous product improvement. © Royal Appliance International GmbH1 Steam button2 Clip to secure power cord3 Release catch for the handle4 Cord winding tab5 Release catch for the base6 Jet nozzle for steam boost7 Carpet glider base8 Steam base9 Steam/brush base10 Steam boost button11 Power cord with plug12 Dual tank, contains:- Water tank- Detergent tank13 Shaft14 Handle15 Steam controller16 Min position: Steam jet for sealed wooden floors17 Steam jet for tiles18 Steam jet for vinyl floors19 Max position: Steam jet for carpets20 On/Off button for the steam jet21 Steam ready indicator22 Mains control light23 Microfibre cleaning cloth (2 x, 90% polyester, 10 % polyamide)not shown/hidden:- Water filter cartridge (underneath the dual tank (12))- Operating manualType of appliance : Steam mopModel name : Aquaclean universal steam cleaner Model number : DD301-0Voltage : 220–240 V~, 50 HzPower : 1400-1600 WMax. operating time per tank filling: approx. 30 minutes (depending on steam use)Steam availability : approx. 20 secondsWater tank : approx. 0.5 lDetergent tank : approx. 0.3 lPower cord length : approx. 9 mWeight (without accessories and with the tanks empty): approx. 3.5 kg IPX4 02_DD301_gb.book Seite 28 Donnerstag, 16. April 2015 5:34 1729 List of contents

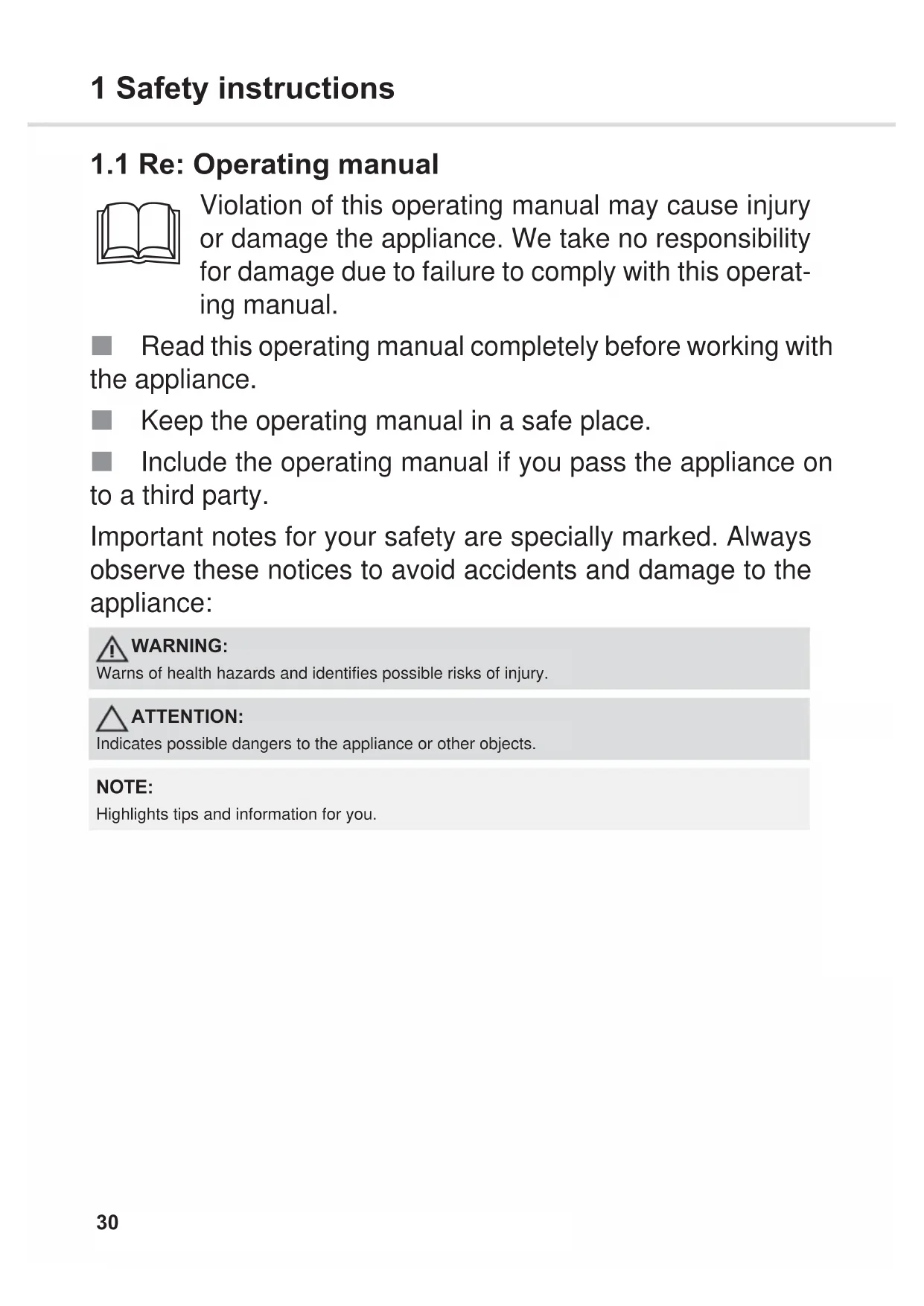

Violation of this operating manual may cause injury or damage the appliance. We take no responsibility for damage due to failure to comply with this operat- ing manual. Read this operating manual completely before working with the appliance. Keep the operating manual in a safe place. Include the operating manual if you pass the appliance on to a third party. Important notes for your safety are specially marked. Always observe these notices to avoid accidents and damage to the appliance:

Warns of health hazards and identifies possible risks of injury. ATTENTION: Indicates possible dangers to the appliance or other objects. NOTE: Highlights tips and information for you.

1.2 Re: certain groups of people

This appliance can be used by people with impaired physical, sensory or mental abilities or insufficient experience or knowledge if suitable supervision or clear instruction for use of the appliance is assured, and they understand the associated dangers. Children must not play with the appliance. Children must not perform cleaning or user maintenance tasks without supervision. Keep the appliance away from children when it is switched on or is cooling down. Packaging material must not be used for playing. There is risk of asphyxiation. If you also use a detergent with the steam, keep it out of the reach of children. If swallowed there is a risk of poisoning! People with sensory problems, especially with reduced sensitivity to temperature differences, must use great caution when working with this appliance. 02_DD301_gb.book Seite 31 Donnerstag, 16. April 2015 5:34 1732 1 Safety instructions

1.3 Re: Hot steam and hot parts of the appliance

WARNING – Risk of scalding Never direct the steam base at people, animals, or plants. Always point the steam base downwards to- wards the surface to be cleaned. Even then, make sure that parts of your body never get un- der the steam base. Never operate the appliance without wearing shoes. There is a risk of scalding. Never lay the appliance on its side during operation. Never use the appliance in a horizontal position or upside down. Do not leave the appliance unsupervised whilst it is connected to a socket. Never leave the appliance on and unsupervised. There is a risk of scalding. Do not point the steam base at electrical appliances or de- vices which contain electrical components, sockets, cables, etc. or inside ovens. Take particular care of sockets (or simi- lar) embedded in the floor. There is a risk of electric shock. Do not use the appliance to clean pressure containers or containers where you are unsure of the content. There is a risk of rupture and explosion. Make sure that you do not clean one spot for too long. Oth- erwise, the surface may become damaged. Provide adequate ventilation during and after work. 02_DD301_gb.book Seite 32 Donnerstag, 16. April 2015 5:34 1733 1 Safety instructions

CAUTION – hot surface Allow hot appliances and accessories, especially the micro-fibre cleaning cloth, too cool down before touching them. Only carry the appliance by its han- dle.

1.4 Re: Power supply

The appliance is operated with electrical power, which means there is always a risk of electric shock. You must therefore observe the following: Make sure that the steam base always rests on the surface to be cleaned during operation. Never lay the appliance on its side or operate it in the air. Otherwise, liquid may flow into the motor and cause a short circuit. Keep the steam base away from the power cord when in operation. Power cords must not come into contact with any sources of heat or moisture. Otherwise there is a risk of dam- age to the power cord which may lead to an electric shock. Always take hold of the plug when you wish to disconnect the plug from the mains socket. Never pull on the power cord. Never carry the appliance by its power cord. It may become damaged. Always completely uncoil the power cord before use. Make sure that the power cord is not kinked, pinched, or rolled over and make sure it does not come into contact with heat sourc- es. 02_DD301_gb.book Seite 33 Donnerstag, 16. April 2015 5:34 1734 1 Safety instructions Never immerse the appliance in water or other liquids; keep it away from rain and moisture. Never touch the plug with wet hands. Only operate the appliance if your mains voltage matches that indicated on the appliance’s type plate. The wrong volt- age can destroy the appliance. Only connect the appliance to sockets with an earth con- tact. If possible, do not use extension cords. If you must use an extension cord, use only single extension cords (no multiple- outlet power strips) with safety certification and protection from spray water which are designed for the power consump- tion of the appliance. Always check the power cord for possible damage before using the appliance. The appliance must not be used if it has fallen, if there is visible damage or if it is not leak tight. Pull the plug from the socket immediately after use. Pull the mains plug from the mains socket before you carry out clean- ing or maintenance work on the appliance. 02_DD301_gb.book Seite 34 Donnerstag, 16. April 2015 5:34 1735 1 Safety instructions

Detergent is a health hazard. Keep them away from the eyes and mucous membranes. Carefully pour it into the detergent tank. Keep the detergent out of the reach of children. If swal- lowed there is a risk of poisoning! Do not clean surfaces which come into contact with food with the steam mop or the detergent. Please comply with the instructions for use on the deter- gent packaging. Only use detergents which are not combustible or explosive. Otherwise there is a risk of fire or explo- sion! The detergent used has to be explicitly suited for use in a steam cleaner. Never use cleaners which contain alcohol, sol- vents (thinners, benzene, acetone), strong acids or alkalis or any other aggressive detergents including waxes, polishes or scouring agents. If you have any questions, contact a specialist dealer or the detergent manufacturer. If you are in any way unsure, do not use the detergent and clean using pure steam. 02_DD301_gb.book Seite 35 Donnerstag, 16. April 2015 5:34 1736 1 Safety instructions

This appliance must only be used for domestic use. It is not suitable for industrial or commercial use. Only use the steam mop domestically for cleaning normally dirty, flat hard floors (e.g. tiles, stone floors, linoleum, and oth- er smooth, sealed surfaces) which can withstand the high temperature, pressure and moisture of hot steam. If you use the steam/brush base with its collar brush, for in- stance, to remove stubborn soiling, the floors and the surfac- es must also be scratch resistant. When the carpet glider base is fitted, the steam mop can also be used to freshen up short-pile carpets, rugs etc. Any other use is considered improper use and is prohib- ited. In particular, the following is prohibited: Cleaning: - People, animals or plants, including clothing which is still being worn. - Surfaces which are soiled with substances which are a potential health hazard. The hot steam may dissolve and release these substances. - Textiles, leather, furniture, walls, window panes, non- sealed, lacquered, oiled or waxed wood or parquet floor- ing, or surfaces made of soft or shiny plastic material. They may become damaged. 02_DD301_gb.book Seite 36 Donnerstag, 16. April 2015 5:34 1737 1 Safety instructions

The following is also prohibited: Use: - in the proximity of explosive and flammable materials, at pressure containers or containers where you are unsure of the content. - as a humidifier or as a room heater. - if not fully assembled or with accessories other than those cited in these instructions. - on surfaces which come into contact with food. - without the tanks inserted or with an empty water tank. - in a horizontal position or upside down. - without a clean cleaning cloth. - outdoors. Filling the water tank with liquids other than cold water. Ad- ditives in the water tank, such as the detergent, make using the appliance unsafe. Filling the detergent tank with liquids other than mild deter- gent. Other products make using the appliance unsafe. 02_DD301_gb.book Seite 37 Donnerstag, 16. April 2015 5:34 1738 2 Assembly 2Assembly

1. Unpack the appliance and all its accessories. 2. Check the contents for completeness and possibledamage. Information regarding scope of supply ZPage28, “Overview”.

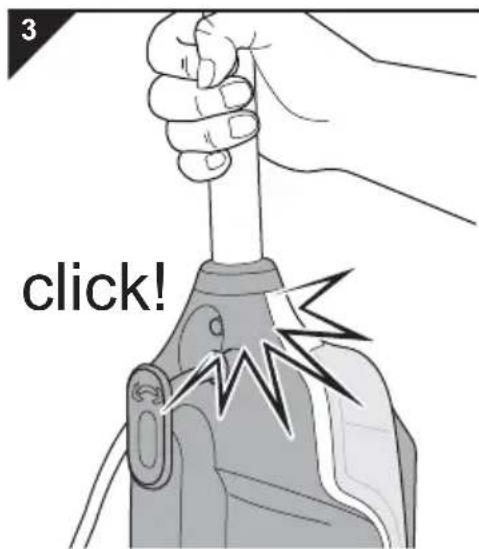

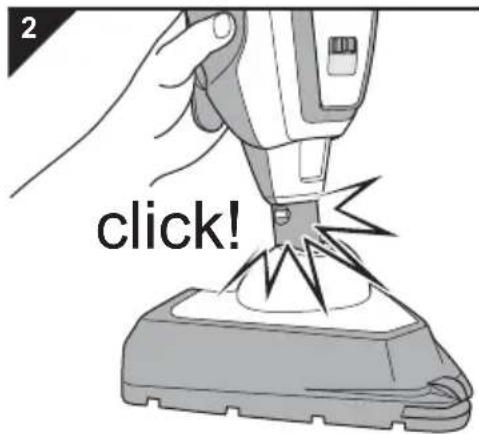

1. Slide the connection piece into the base (Fig. 2) so thatthe release catch audibly and visibly clicks into place.2. Firmly insert the shaft into the intake opening (Fig. 3) sothat the release catch audibly and visibly clicks intoplace. ATTENTION: Always dispatch the appliance in its original packaging toavoid transport damage. Keep the packaging for this pur-pose. Dispose of any packaging material no longerrequired in accordance with the applicable regulations ofyour country. NOTE: Immediately contact your dealer if you have found anytransport damage. NOTE: If you wish to release the shaft again, firmly press in therelease catch and pull the shaft upwards out of the appli-ance at the same time. click!

3 Filling the water tank

1. Set the appliance to the neutral position by aligning the

shaft so that it is positioned approximately at a right an- gle to the base, you can feel it click into place and the appliance can stand up without support.

2. Hold the appliance firmly by the shaft.

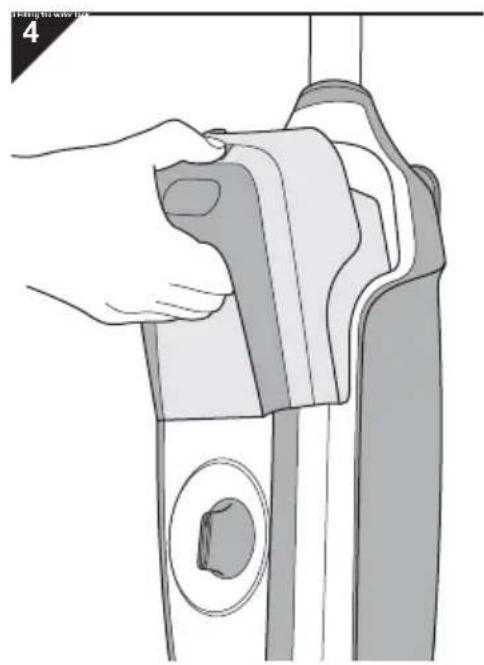

3. Press the release catch (" ") for the dual tank and re-

move it from its console at the same time (Fig. 4).

4. Screw the tank cap anti-clockwise and completely re-

move it from the water tank ("H

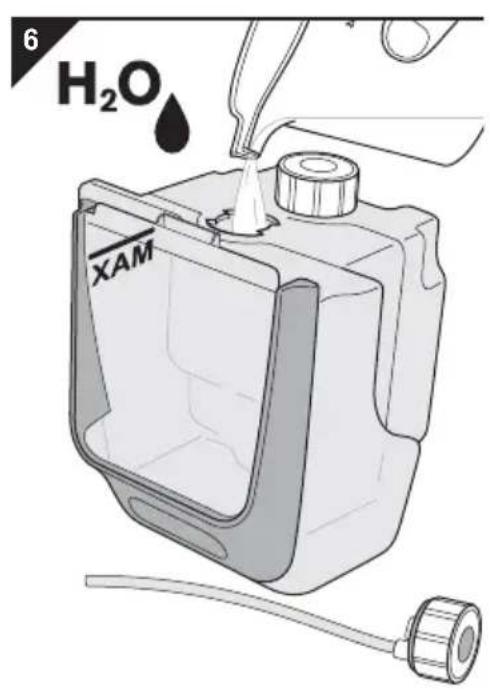

5. Fill the water tank ("H

O") with clear, cold tap water no higher than the MAX mark (Fig. 6).

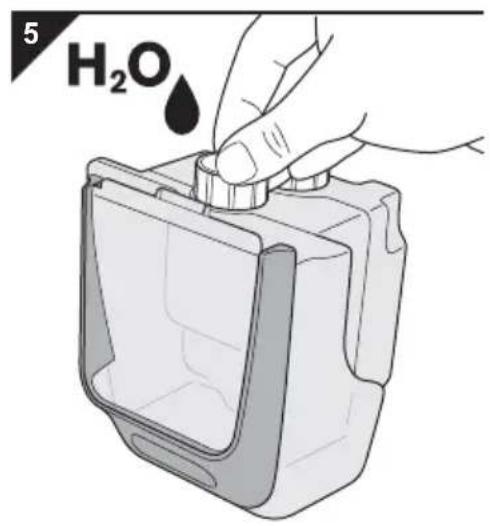

6. Turn the tank cap clockwise to screw it back onto the

water tank (Fig. 5).

7. Firmly push the dual tank back into the console (Fig. 4).

8. Check that it is firmly in place.

ATTENTION: First, pull the plug from the mains socket. Otherwise, the appliance may run without water and become damaged.

Risk of injury! Do not place any additives, such as deter- gent, alcohol, perfumes or chemicals, in the water tank. These make the use of the appliance unsafe. NOTE: Do not overfill the water tank. Remember that the hose on the lid also takes up some space after it has been screwed on.

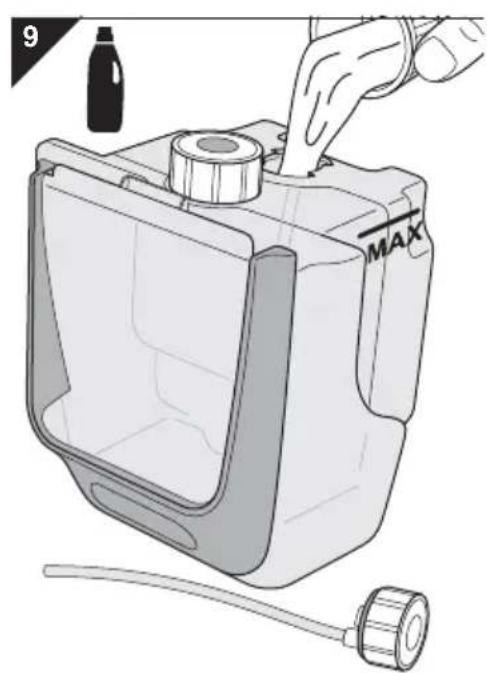

Risk of fire or explosion! Only use a mild detergent which is not combustible or explosive. The detergent has to be explicitly suited for use in a steam cleaner. Other products make using the appliance unsafe. Never use cleaners which contain alcohol, solvents (thinners, benzene, acetone), strong acids or alkalis or any other aggressive detergents including waxes, polish- es or scouring agents. Please comply with the instructions for use on the de- tergent packaging. If you have any questions, contact a specialist dealer or the detergent manufacturer. If you are in any way unsure, do not use the detergent and clean using pure steam. ATTENTION: The detergent should not foam too much. Foam creates air in the steam channels and in the pump. This reduces the performance of the pump and the production of steam. 02_DD301_gb.book Seite 40 Donnerstag, 16. April 2015 5:34 1741 4 If you use detergents

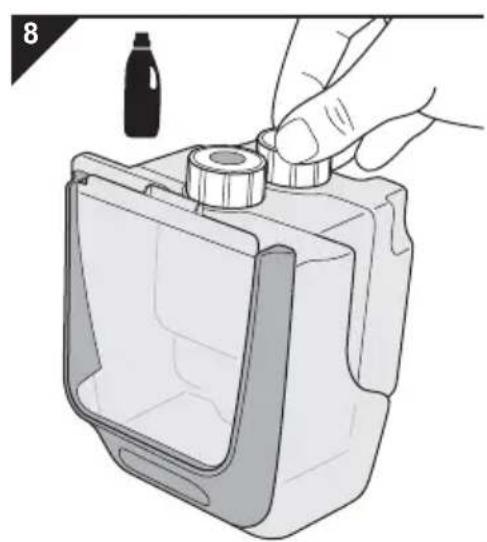

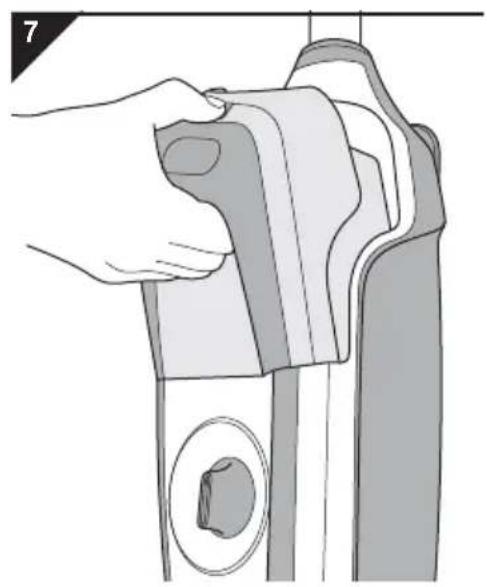

1. Set the appliance to the neutral position by aligning theshaft so that it is positioned approximately at a right an-gle to the base, you can feel it click into place and theappliance can stand up without support.2. Hold the appliance firmly by the shaft.3. Press the release catch (" ") for the dual tank and re-move it from its console at the same time (Fig. 7).4. Screw the tank cap anti-clockwise and completely re-move it from the detergent tank (" ") of the dual tank(Fig. 8).5. Carefully fill the detergent tank no higher than the MAXmark with undiluted detergent. 6. Screw the tank lid all the way back onto the detergenttank (Fig. 8).7. Firmly push the dual tank back into the console (Fig. 9).

Health hazard for your children! Always make sure youstore the detergent in a place which is inaccessible tochildren, particularly after filling the detergent tank andbefore steam cleaning. NOTE: If you do not have any detergent, simply leave the deter-gent tank of the dual tank empty. ATTENTION: Please comply with the instructions for use on the deter-gent packaging. If you have any questions, contact aspecialist dealer or the detergent manufacturer.

5.1 Before starting steam

2. Remove all the cable windings from the upper and the

lower cord winding tabs.

3. Secure the cable in the clip for securing the power cord

(Fig. 1/2) so that you do not run over it during operation.

Risk of injury! Check the appliance and power cord before each use. Never use a damaged appliance. ATTENTION: Before starting cleaning, check whether the surface to be cleaned is suitable for steam cleaning. Always follow the cleaning instructions of the manufacturer. The steam mop is definitely not suita- ble for use on non-sealed wooden floors, soft plastics or furniture. Even sealed wooden floors must only be steamed lightly (steam controller [Fig. 1/15] in the Min position, [Fig. 1/16]) and never steam the same spot for too long. Cold glass surfaces may shatter as a result of heat shock. ATTENTION: Only ever operate the appliance with a filled water tank. Even if the appliance is fitted with over- heating protection, running it without water would shorten the appliance's service life. NOTE: The steam mop has overheating protection. It switches off automatically if it overheats (e.g. due to an empty water tank). If this happens, pull the mains plug and refill the water tank ZChapter 3, “Filling the water tank”. Wait for about 45 minutes. You can put the steam mop back into operation once it has cooled down. NOTE: We recommend that you first sweep or vacuum-clean floors to remove coarse soiling before using the steam cleaner on them. NOTE: Provide adequate ventilation during and after work.

Risk of electric shock! Always completely uncoil the power cord. Otherwise there is a risk of underestimating the reach of the appliance, subjecting the power cord to excessive strain and possible damage.

5.3 Steam cleaning and

regulating the steam jet

1. Check that the water tank has been filled. If not, fill it ZChapter 3, “Filling the water tank”.

2. If you wish to add detergent to the steam, you must also check whether the detergent tank has

been filled. If not, fill it ZChapter 4, “If you use detergents”.

3. Fully unwind the power cord (ZChapter 5.2, “Uncoiling the power cord quickly”) and secure it in

the clip for securing the power cord (Fig. 1/2).4. Place a clean cleaning cloth on the floor so that its lightside is facing upwards.5. Now place the steam base exactly on the cleaning cloth.The cloth is thus attached to the appliance.6. Plug the mains plug into a socket with an earth contact.7. Switch the On/Off button for the steam jet (Fig. 11) tothe "ON" position.- The appliance now heats up. The mains control light(" ") lights up. 8. Wait for about 20 seconds.- The steam ready indicator (" ") lights up. 9. Select the steam controller position which you think issuitable for the surface you wish to clean (Fig. 12):- : for sealed wooden floors and laminate- : for tiled floors- : for PVC and vinyl floors- : for short-pile carpets and rugs

Risk of scalding! Never lay the appliance on its side dur-ing operation. The appliance must not be used in a hori-zontal position or upside down. ATTENTION: Only use mains sockets with an electrical voltage which matches the voltage on the appliance'stype plate. Given the high power consumption of the appliance, only use mains sockets with anearth contact and do not use extension cables or multiple-outlet power strips. NOTE: We recommend that you begin with the lowest level(" ") and slowly increase the steam jet with the steamcontroller as required.

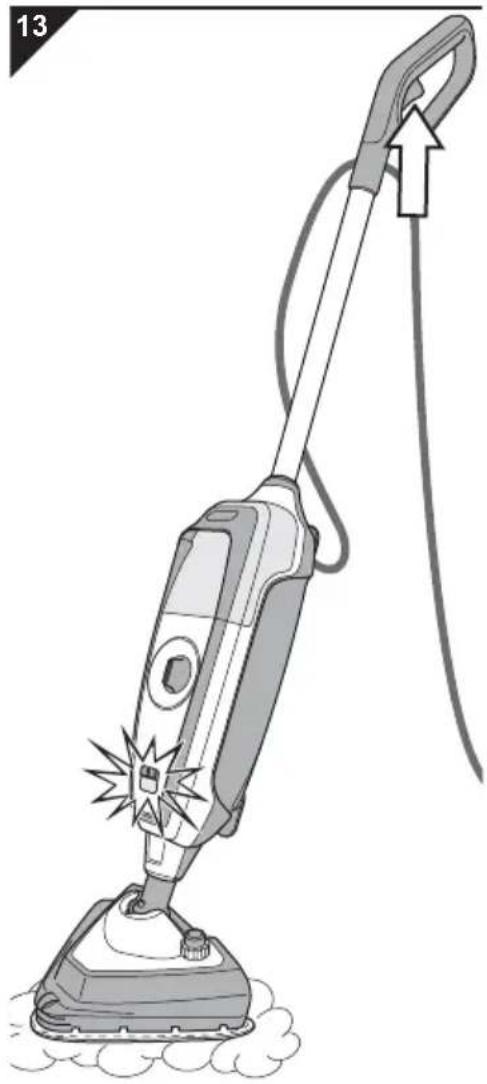

10. Press the steam button (Fig. 13/arrow) on the handle

and hold it as long as you require a steam jet.

11. To steam-clean, move the appliance back and forth

slowly. If you are using detergent, repeat each passage several times (at least 3 times) so that a closed film of detergent can form.

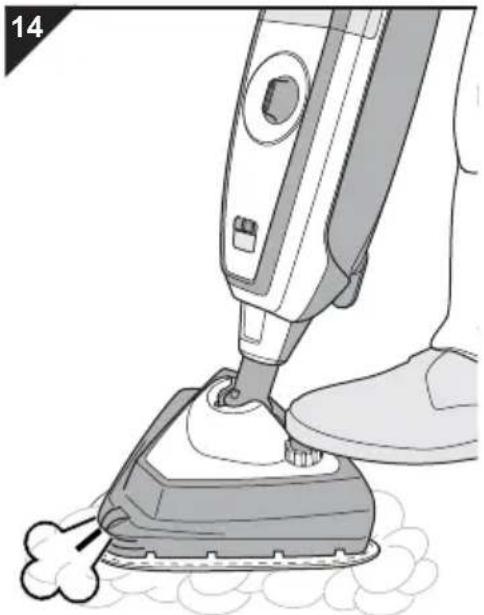

5.4 Using the steam boost

Press the steam boost button (Fig. 14/arrow) to remove dried soiling with a concentrated jet of steam. The steam is then expelled from the jet nozzle on the steam base in concentrated form (Fig. 14/ ).

Risk of falling! Always be especially careful when clean- ing smooth floors, steps and stairs. Only work with mod- erate amounts of steam when cleaning smooth floors, otherwise a film of moisture will be left on the floor. Using less steam also ensures quicker drying and reduces the risk of slipping. ATTENTION: Do not leave the appliance standing in one spot when in operation. Keep it moving continuously. Otherwise there is an increased risk of damage to the surface. NOTE: If the steam ready indicator goes out, you can continue working. You only need to release the steam button (Fig. 1/1) and wait until the steam ready indicator (Fig. 1/

21) lights up again if the steam produced is no longer

Risk of scalding! Never direct the steam at people, ani- mals, or plants. Always point the steam downwards towards the surface to be cleaned. Even then, make sure that parts of your body are never allowed to into the jet of steam. Never operate the appliance without wearing shoes.

5.5 Freshening up carpets

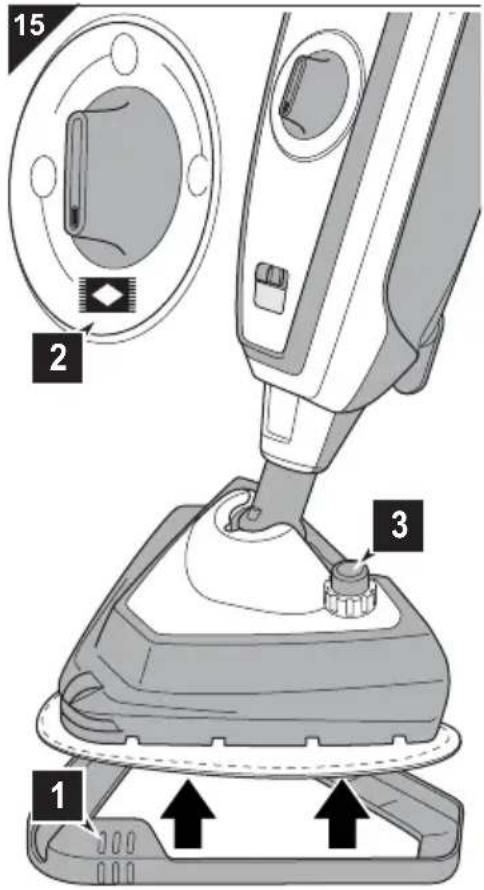

1. Place the carpet glider base (Fig. 15/1) under the steambase with a cleaning cloth attached. Otherwise you willnot be able to move back and forth effectively on this sur-face.2. Turn the steam controller to the " " position (Fig. 15/ 2).

3. If necessary, use the steam boost button (Fig. 15/3).

4. Proceed as described in ZChapter 5.3, “Steam clean-

ing and regulating the steam jet”.

5.6 Removing stubborn

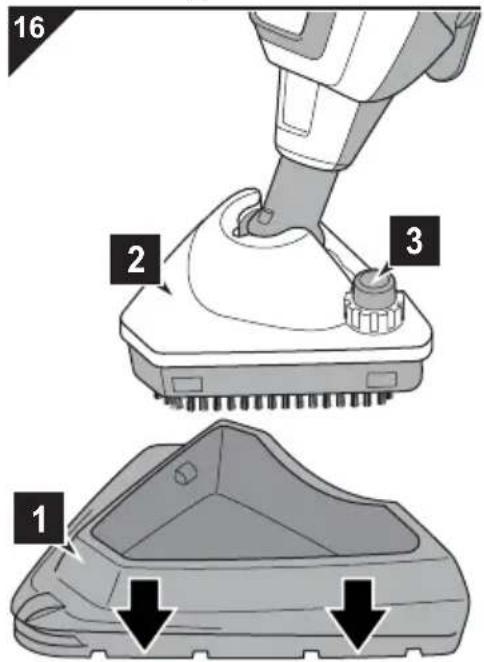

soiling 1. Disconnect the steam base (Fig. 16/1) from the steam/brush base (Fig. 16/2). The collar brush is now ex-posed.2. Check that the detergent tank is full. If not, fill itZChapter 4, “If you use detergents”.3. Turn the steam controller to the " " position (Fig. 15/ 2).

4. If necessary, use the steam boost button (Fig. 16/3).

5. Proceed as described in ZChapter 5.3, “Steam clean-

ing and regulating the steam jet”. ATTENTION: Always comply with the cleaning instructions of the man-ufacturer of the carpet. Before starting cleaning, checkwhether the particular floor surface is suitable for steamcleaning. NOTE: You steam mop is not suitable for thorough cleaning ofcarpet. Even adding detergent cannot change this. Toremove ingrained stains, we recommend that you apply acommercially available detergent to the soiling beforeusing the steam cleaner, as long as this is suitable for therespective surface.

ATTENTION: Not all floors suitable for steam cleaning also withstandthe powerful bristles of the collar brush. If you areunsure, consult the manufacturer of your flooring. Thentest to see whether the floor can withstand this treatmentwithout damage on a hidden part of the floor.

02_DD301_gb.book Seite 45 Donnerstag, 16. April 2015 5:34 1746 6 After use 6 After use

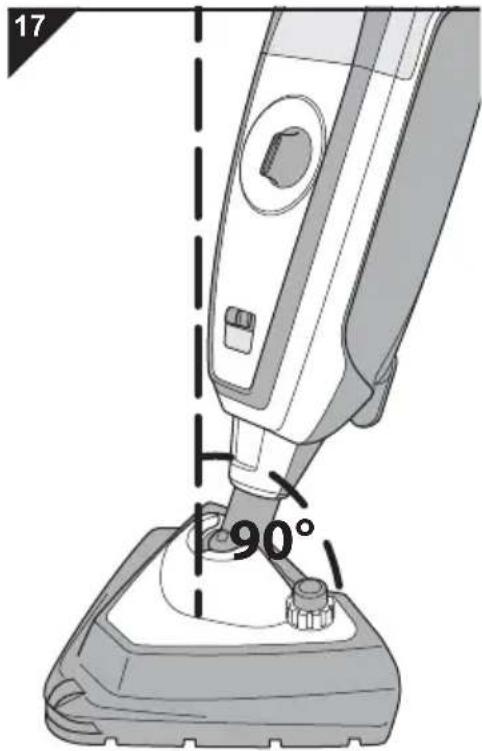

6.1 Setting the appliance

to the neutral position 1. Set the appliance to the neutral position by aligning theshaft so that it is positioned approximately at a right an-gle to the base (Fig. 17), you can feel it click into placeand the appliance can stand up without support.

2. Wind up the power cord, ZChapter 6.2, “Winding up the

6.2 Winding up the power

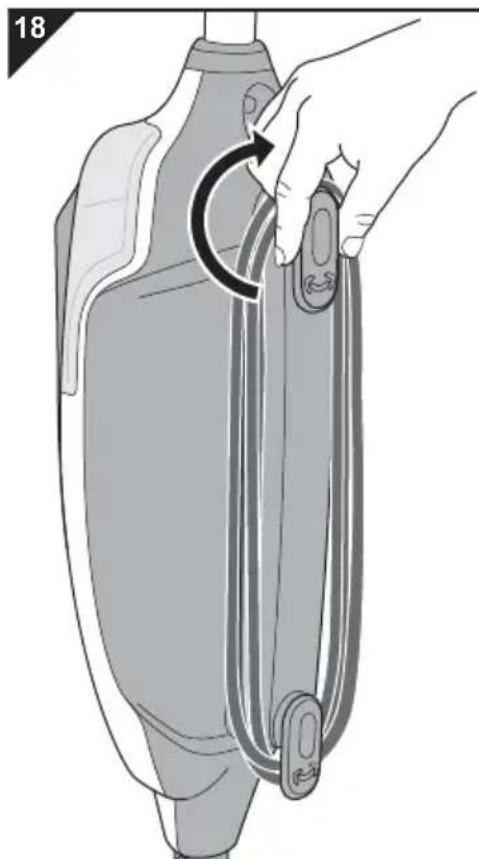

cord 1. If this has not yet been done, turn the upper cord wind-ing tab 180° clockwise all the way to the end.2. Now wind the power cord around the lower and uppercord winding tabs as shown (Fig. 18).3. Remove the cleaning cloth and allow to dry or wash itas necessary, ZChapter 6.3, “Caring for cleaningcloths”.

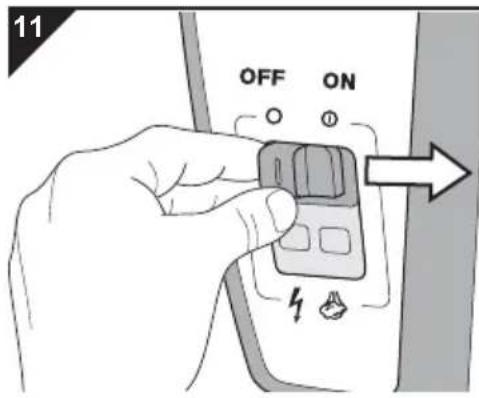

Risk of injury! To avoid risk, keep to the followingsequence at the end of the cleaning process:1. Switch of the On/Off button for the steam jet ("OFF" position).2. Pull the plug.3. Use up the steam reserves completely.4. Set the appliance to the neutral position.5. Allow the appliance to cool for 5 minutes.6. Wind up the power cord.7. Remove the cleaning cloth.8. Dry the cleaning cloth or wash it as necessary. 90°

Tripping hazard! Wind up the power cord as soon as youhave finished cleaning. Otherwise the power cord repre-sents a tripping hazard.

6.3 Caring for cleaning

cloths Care for the cleaning cloths as follows: Wash normally at a maximum of 60 degrees. Do not bleach. Do not put in a dryer. Do not iron. Do not clean with chemicals.

6.4 Transporting the appli-

ance Before dispatching, empty the tanks and allow them todry completely.

6.5 Storing the appliance

Always keep the appliance away from sources of heator moisture and keep it out of the reach of children. Alsomake sure that the appliance is never exposed to cold orfrost. Before storage for a longer period, empty the tanks andallow them to dry completely.

Risk of scalding! The appliance continues to run. Evenafter you have pulled the mains plug from the socket, hotsteam is still available for some time. ATTENTION: Remove the cleaning cloth from the steam base immedi-ately after it has cooled down. Otherwise there is a risk ofbacteria and mould. ATTENTION: It is best to wash the cleaning cloth after each cleaningsession. Follow the following care instructions in the pro-cess. ATTENTION: Only ever carry the appliance by its handle (Fig. 1/14). ATTENTION: Never put away the appliance with a damp cleaningcloth. Otherwise the surface underneath may becomedamaged. 02_DD301_gb.book Seite 47 Donnerstag, 16. April 2015 5:34 1748 7 Maintenance 7 Maintenance

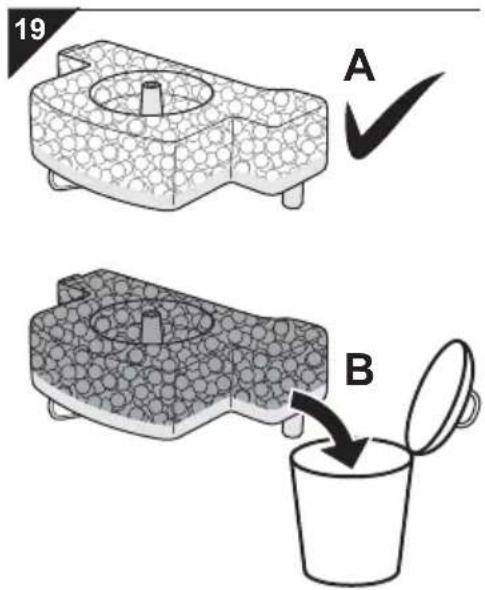

7.1 Checking/replacing the

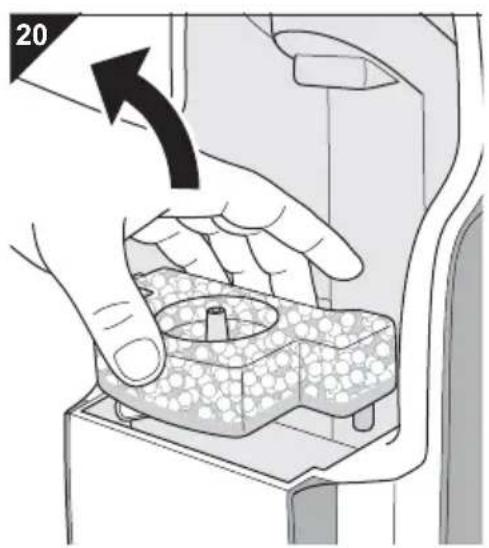

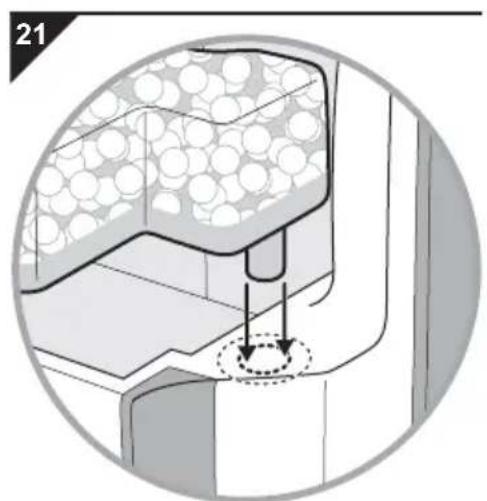

water filter cartridge There is always a small quantity of lime in your domestic tapwater. For this reason we have installed a water filter car-tridge which is designed to remove the lime particles beforethe water passes through the appliance. Check the water filter cartridge (Fig. 19) every time you fill the water tank, ZChapter 3, “Filling the water tank”. When first supplied, the filter medium on the inside ofthe cartridge is a very light colour (Fig. 19/A). If, when youcheck it, you discover that the filter medium on the inside ofthe cartridge has significantly changed colour (Fig. 19/B)compared to its condition on delivery or less steam is beingemitted, replace the cartridge as follows:1. Switch off the appliance, set it to the neutral positionand pull the plug from the socket, ZChapter 6, “Afteruse”.

2. Remove the dual tank ZChapter 3, “Filling the water

tank”. 3. Check the colour of the cartridge. If the inside of the car-tridge has changed colour considerably compared to itscondition on delivery (Fig. 19/B), the cartridge has to bereplaced.4. If the water filter cartridge has to be replaced, pull it firm-ly upwards to remove it from the console (Fig. 20).5. Then replace the water filter cartridge with a new one(article number: ZChapter 8.2, “List of accessories andspare parts”). 6. Firmly push the new cartridge into the console (Fig. 21).

7. Re-insert the dual tank ZChapter 3, “Filling the water

tank”.8. Check it and make sure that it is firmly secured in posi-tion. NOTE: You can dispose of the used water filter cartridge with thedomestic waste.

7.2 Cleaning the housing

Only ever clean the outside of the housing using aslightly damp cloth.

Risk of injury! Before you clean the appliance, switch offthe appliance and unplug the mains plug, ZChapter 6,“After use”. ATTENTION: Do not use detergents, scouring agents or alcohol, asthese may damage the housing. 02_DD301_gb.book Seite 49 Donnerstag, 16. April 2015 5:34 1750 8 Troubleshooting 8 Troubleshooting

8.1 Before you return the appliance

Before contacting your authorised Dirt Devil dealer, Dirt Devil service partner or appliance market, first check the following table to determine whether you can solve the problem yourself.

Risk of injury! Never use a faulty appliance! Always switch off the appliance, set it to the neutral position, and disconnect it from the mains before starting troubleshooting ZChapter 6, “After use”. Problem Possible cause Solution The appliance does not switch to ready for op- eration or sud- denly stops pro- ducing steam. The dual tank has not be installed correctly. Install the dual tank again, ZChapter 3, “Filling the water tank”. The water tank is empty. 1. Switch off the appliance, ZChapter 6, “After use”.

2. Fill the water tank, ZChapter 3, “Filling the water

3. If the overheating protection has been triggered,

wait about 45 minutes before connecting the appli- ance again. The overheating protec- tion device has been triggered due to an emp- ty water tank. The appliance pump can be heard to be run- ning but the ap- pliance does not produce any steam. The water filter cartridge is too dry.

1. Remove the water filter cartridge.

2. Place it in water for a few minutes.

3. Then reinsert the water filter cartridge, ZChapter

7.1, “Checking/replacing the water filter cartridge”. Air in the pump. 1. Remove the water filter cartridge.

2. Press the steam button and let the appliance run

3. Then reinsert the water filter cartridge, ZChapter

7.1, “Checking/replacing the water filter cartridge”. Cleaning per- formance is not satisfactory even though the appliance is working fine. The floor has not been cleaned beforehand with a vacuum cleaner or brush. Make sure that the floor has been cleared of loose dirt before cleaning with the steam mop. Stubborn soiling. Use the brush/steam base with collar brush, ZChapter 5.6, “Removing stubborn soiling”. The cleaning cloth is dirty.

1. Switch off the appliance, ZChapter 6, “After use”.

2. Wait for about 5 minutes. You can now remove the

cleaning cloth once it has cooled down and re- place it with a fresh one, ZChapter 8.2, “List of ac- cessories and spare parts”. The water filter cartridge is worn out. Replace the water filter cartridge, Z

“Checking/replacing the water filter cartridge”. NOTE: If you were unable to solve the problem following this table, contact the customer service depart- ment (ZPage 174, “International Service”). 02_DD301_gb.book Seite 50 Donnerstag, 16. April 2015 5:34 1751 8 Troubleshooting

8.2 List of accessories and

spare parts You can order accessories and spare parts: ZPage 174, “International Service”

8.3 If the appliance is

faulty Never use a faulty appliance or operate an appliance with a faulty power cord. If the power cord of the appliance is dam- aged, it will need to be replaced by the manufacturer, their authorised service representative, or a similarly qualified person to avoid danger. Hand over a faulty appliance or an appliance with a faulty power cord to a specialist dealer or the Dirt Devil customer service department for repairs, ZPage 174, “International Service”.

Dispose of the appliance in compliance with the environ- mental protection laws of your country. Electrical waste must not be disposed of together with domestic waste. Use local collection points for used appliances instead. The water filter cartridge is made from environmentally compatible material and can be disposed of with domestic waste.

The respective implementation of EU Directive 1999/44/EC into national law applies as the minimum warranty stand- ard, providing you acquired the appliance as a consumer within the European Union. Item number Content 0301001 Water filter cartridge 0301002 Microfibre cleaning cloth set (contains 2 microfibre cleaning cloths) 0301003 Fringed cloth set (contains 2 fringed microfibre cloths) 0301004 Carpet glider base 02_DD301_gb.book Seite 51 Donnerstag, 16. April 2015 5:34 1752 Vue d’ensemble
