USER MANUAL Series 5 5160s BRAUN

Black BRAN LEAM Series 5 electric shaver with blue buttons and a 'S5' button (no text or symbols on the device body)

5160s

5147s

5145s

5140s

Type 5769

www.braun.com

Deutsch 6

English 11

Français 16

Español 21

Português 27

Italiano 33

Nederlands 39

Dansk 44

Norsk 49

Svenska 54

Suomi 59

Polski 64

Český 70

Slovenský 75

Magyar 80

Hrvatski 85

Slovenski 90

Türkçe 95

Română (RO/MD) 102

Ελληνικά 108

Български 114

Русский 119

Українська 126

Braun GmbH

(Sharecall charged at local rates)

1 Series 5 2 3 4 5 S5 wet&dry 5a 5b 5c Downloaded from www.vandenborre.be 6 7 8 9 BRAun

5160s 10 11

5160s 5147s 5140s 12 5145s 13

B

B Warning No. 1

Three-step illustration showing a hand pressing down on a device, then adjusting the interior panel with a blue arrow indicating action (no text or symbols present)

C

C

Deutsch

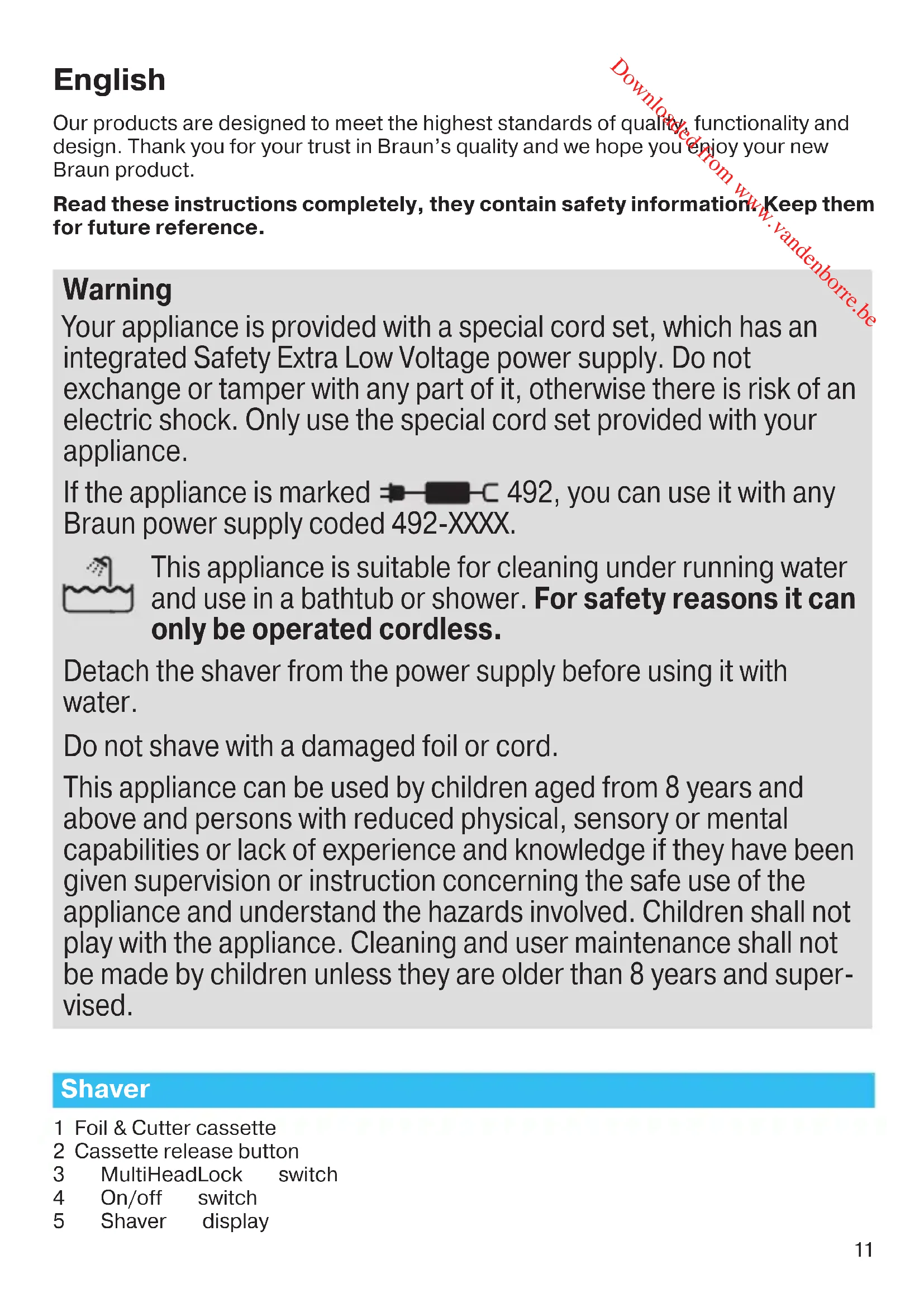

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality and we hope you enjoy your new Braun product.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked ➡—C 492, you can use it with any Braun power supply coded 492-XXXX.

This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless.

Detach the shaver from the power supply before using it with water.

Do not shave with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

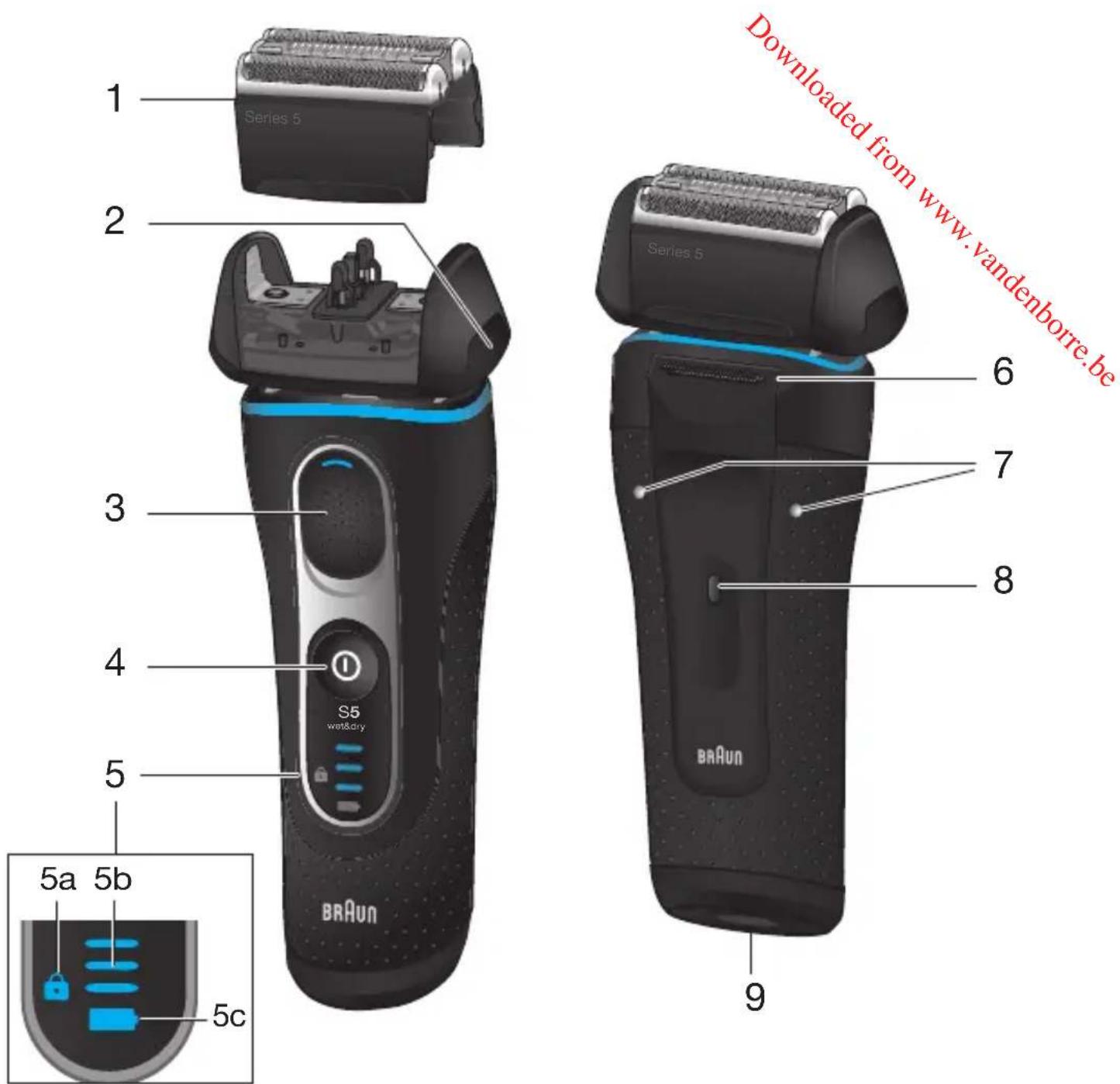

Shaver

1 Foil & Cutter cassette
2 Cassette release button
3 MultiHeadLock switch
4 On/off switch
5 Shaver display

5a Lock symbol (travel lock)
5b Charging segments
5c Battery symbol
6 Long hair trimmer
7 Shaver-to-station contacts
8 Release button for long hair trimmer
9 Shaver power socket
10 Special cord set (design can differ)
11 Charging stand*

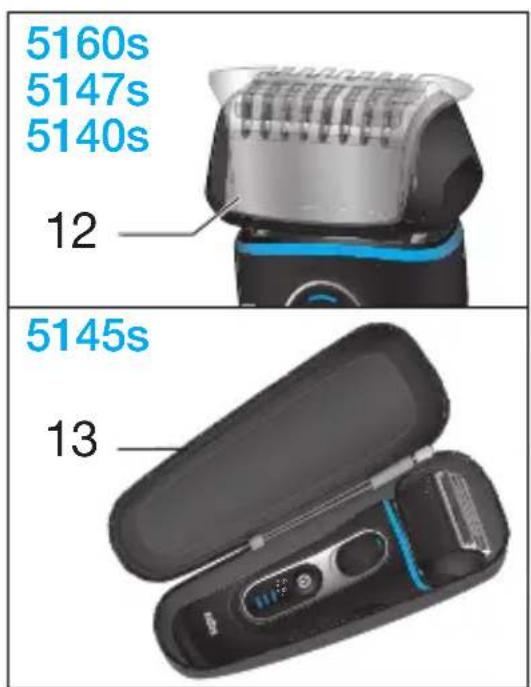

12 Protection cap*
13 Travel case*

* not with all models

Downloaded from www.vandenborre.be

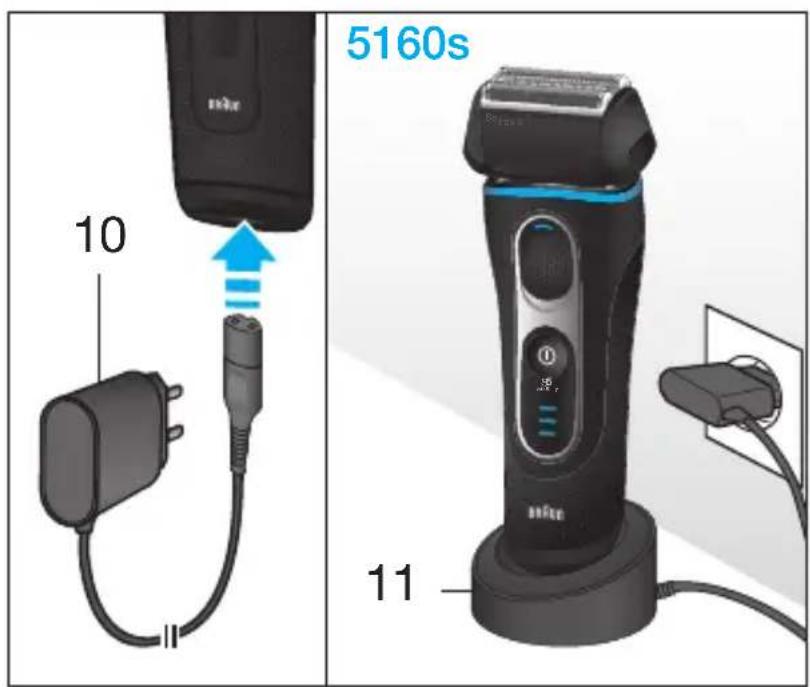

First use and Charging

Connect the appliance to an electrical outlet by snapping the special cord set (10) into the power socket of the shaver (9) or the charging stand (11).

Basic operating information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for storage and shaving is 15 °C to 35 °C.
• Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.
• When the shaver will be connected to an electrical outlet, it may take some minutes until the display illuminates.

Charging / low charge

The charge status is shown in the shaver display (5).

• During charging the respective charging segment (5b) will blink.
• When the shaver is fully charged and connected to an electrical outlet, all 3 charging segments will light up for a few seconds. Then the display turns off.
• The battery symbol (5c) will flash red, when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status.

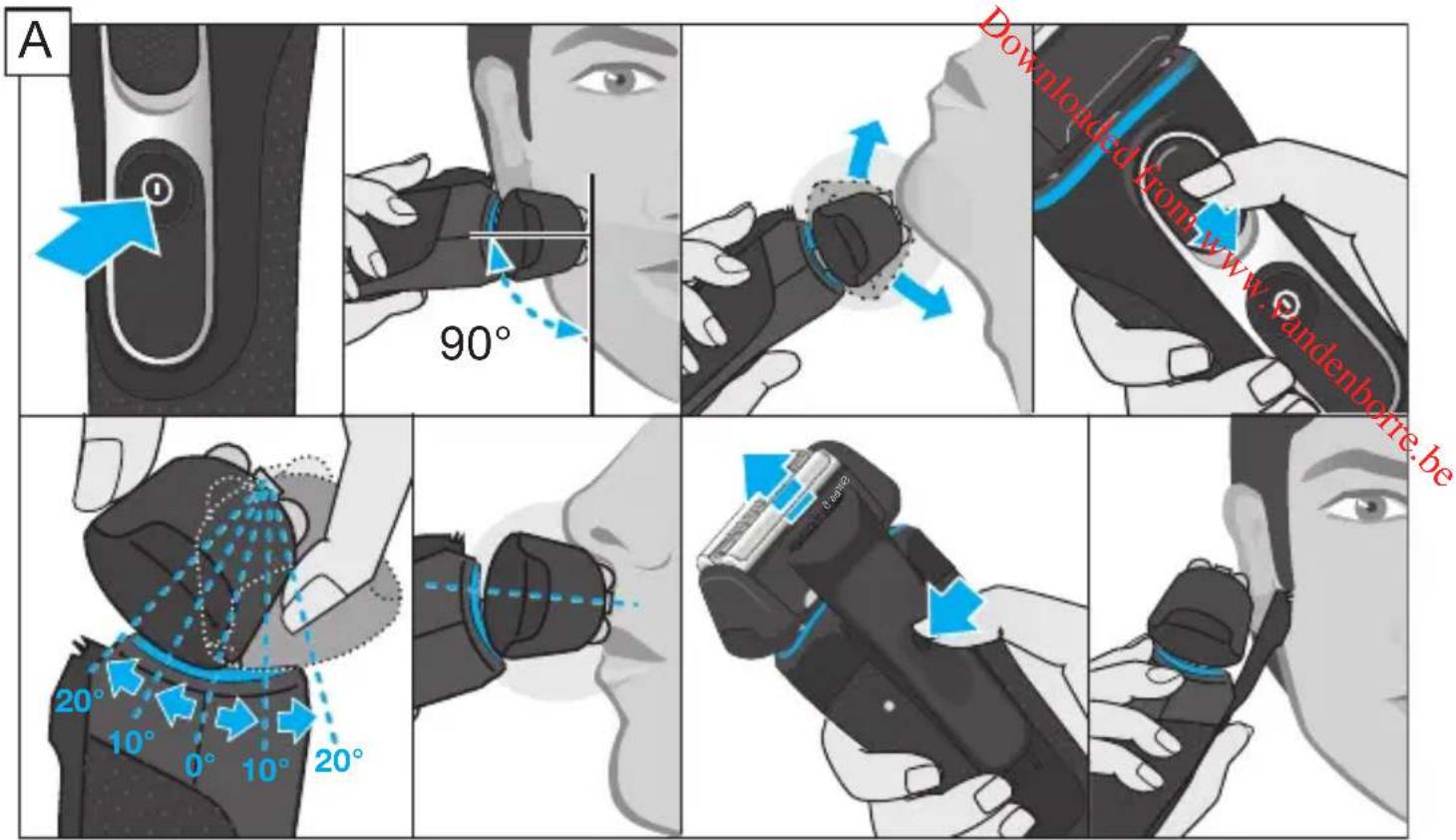

Using the shaver

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

For best results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at the right angle (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

MultiHeadLock switch (head lock)

• To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head.
• The shaver head can be locked in five positions.
• To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.

Long hair trimmer

To trim sideburns, moustache or beard press the release button (8) and slide the long hair trimmer (6) upwards.

Travel lock

The lock symbol (5a) lights up in the shaver display when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing it in a suitcase).

- Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.

- Deactivation: By pressing the on/off switch for 3 seconds again the shaver is unlocked.

Cleaning

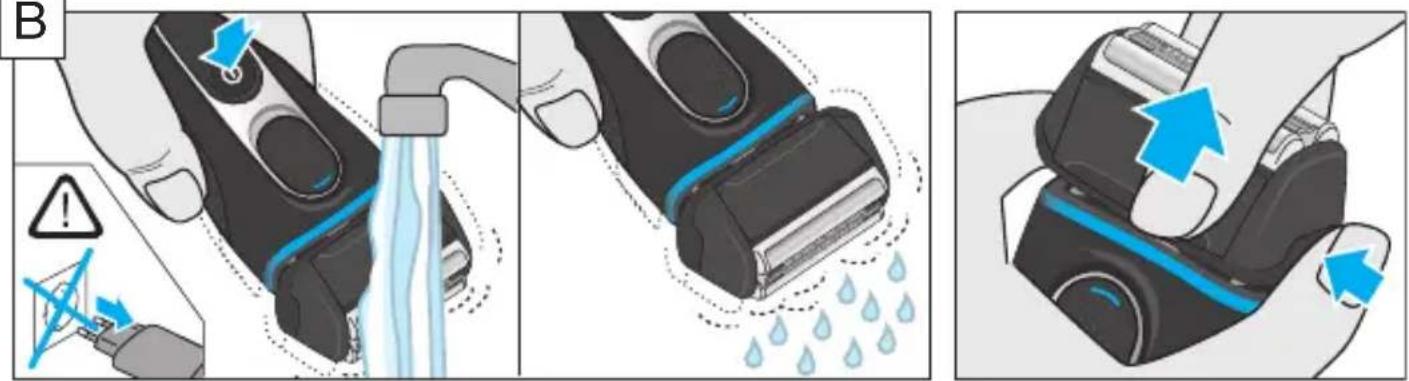

Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the release button (2) to remove the Foil & Cutter cassette (1) and let it dry.

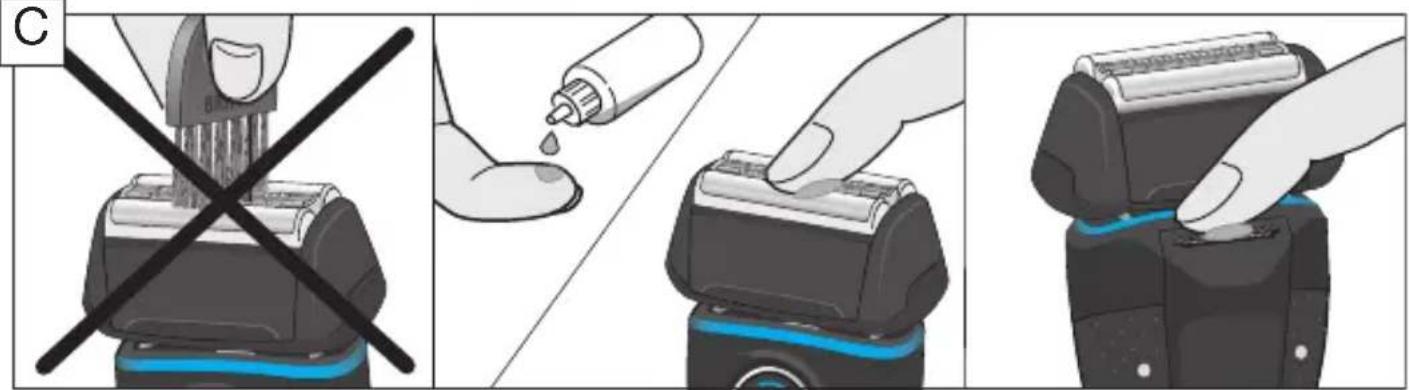

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the Foil & Cutter cassette.

The shaver should be cleaned after each foam usage.

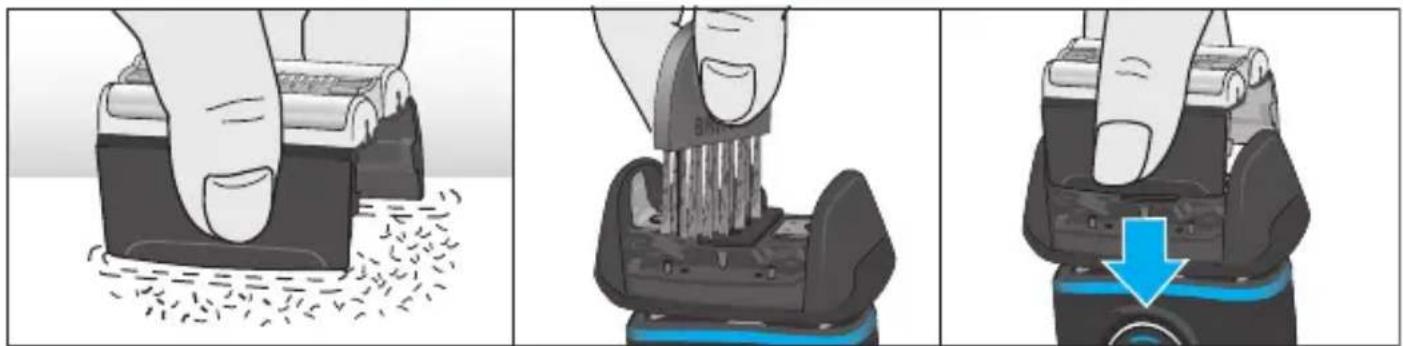

Cleaning with a brush

Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centres:

- Foil & Cutter cassette: 52S/52B

- Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Trouble-Shooting

Problem	Possible reason	Remedy
Shaver does not charge completely and keeps blinking.	Ambient temperature is out of valid range.	Recommended ambient temperature for charging is 5 °C to 35 °C.
Charging does not start when connected to power socket.	1. Sometimes charging could start delayed (e.g. after long storage).2. Ambient temperature is out of valid range.3. Special cord set is not plugged in properly.	1. Wait a few minutes, if charging will start automatically.2. Recommended ambient temperature for charging is 5 °C to 35 °C.3. Special cord set needs to snap into place.
Unpleasant smell from the shaver head.	Shaver head is cleaned with water.	When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.
Battery performance dropped significantly.	1. Foil and cutter are worn which requires more power for each shave.2. Shaver head is regularly cleaned with water but not lubricated.	1. Renew Foil & Cutter cassette.2. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication.
Shaving performance dropped significantly.	1.Foil and cutter are worn.2.Shaving system is clogged.	1.Renew Foil & Cutter cassette.2.Soak the Foil & Cutter cassette into hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out.Once dry apply a drop of light machine oil on the foil.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase.

Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Downloaded from www.vandenborre.be

Primer uso y carga

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

Prva uporaba i punjenje

Downloaded from www.vandenborre.be

Prva uporaba in polnjenje

Downloaded from www.vandenborre.be

Blocare la transport

Country of origin: Germany

Year of manufacture

To determine the year of manufacture, refer to the 4-digit production code starting with PC located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next three digits refer to the day in the year of manufacture. Example: “PC6059” – The product was manufactured on day 059 of 2016.

بلد المنشأ: ألمانيا

تاريخ الصنع

Close-up of a Series 5 electric shaver with blue handle and control panel (no visible text or symbols)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

52S/52B
