To ensure you get the best performance from your FM wireless stereo sound system please read this manual carefully.

IMPORTANT

Read these instructions. All the safety and operating instructions should be read before using the wireless headphone system.

Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply.

Remove the batteries from the headphone's battery compartment and disconnect the adapter from the mains if the system is not in use for a long period.

Prevent fire or shock hazard: do not expose this equipment to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

Radio equipment for wireless audio applications is not protected against disturbance from other radio services.

IMPORTANT

Before using the FM headphone for the first time, please ensure that the batteries are fully charged for about 16 hours. This will guarantee a longer operating lifetime of the batteries.

Multiple headphones with one transmitter

An additional number of headphones and/or wireless speakers can be used with a single transmitter if they:

• operate in the 864 MHz band
• can detect a 19 kHz pilot tone.

Please consult the appliance's electrical specification sheets for confirmation on compatibility.

Kit contents

This FM headphone system consists of the following accessories:

1×SBC HC8352 FM transmitter

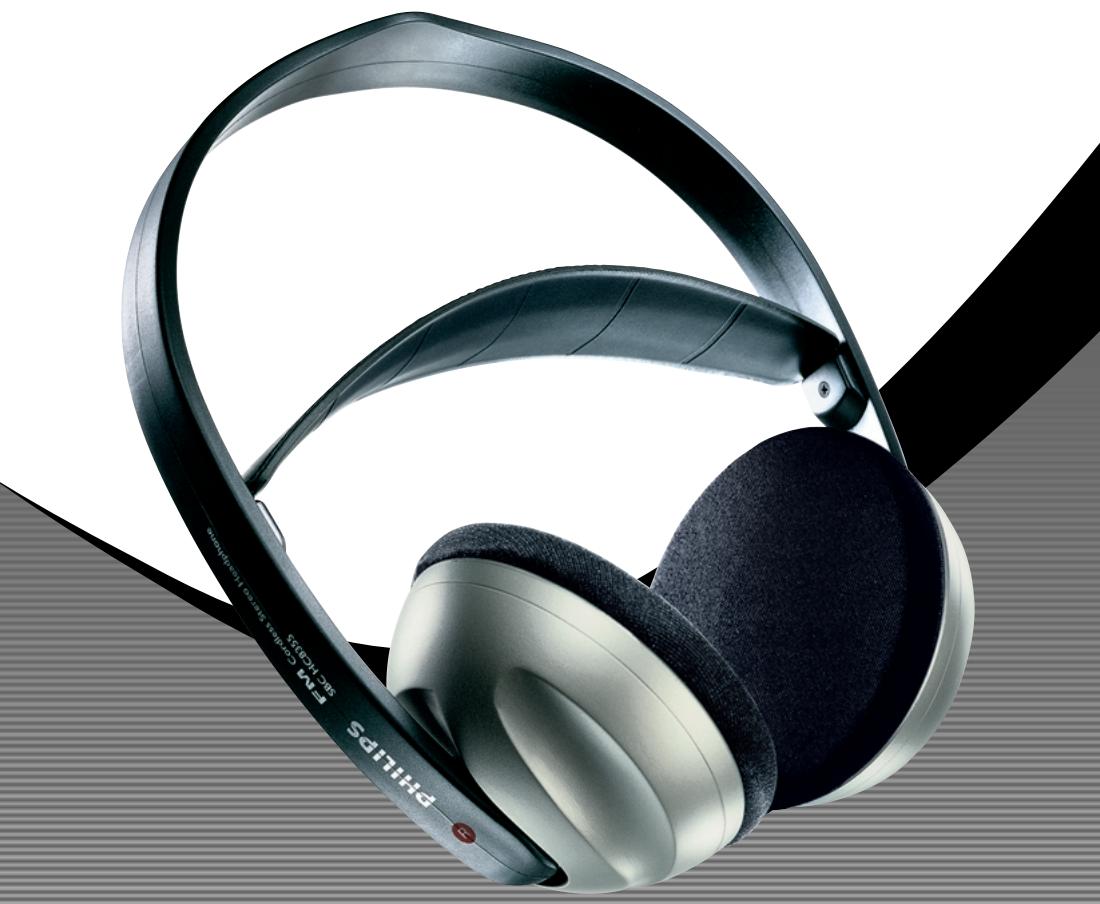

1×SBC HC8355 FM headphone
1 × SBC CS030/00 12Volt / 200mA AC/DC adapter
2 × rechargeable batteries LR03/AAA (NiCd), 220 mAh
1 x antenna tube

Transmitter (figure 1)

1 Recharging indicator - the green LED lights up during recharging. Completely flat batteries will be fully charged after about 16 hours.
2 Power indicator - lights up when audio signals are detected at the audio input.
3 Recharging compartment - just place the batteries in the transmitter's battery compartment. The green LED lights up during recharging.
4 DC power - connect to the 12 Volt/ 200 mA AC/DC adapter
5 3.5 mm stereo headphone audio input - connects your FM transmitter to an audio source
6 Channel switch - select one of 2 channels for best reception. We advise you to select channel 1 as a first option.
7 Controls plate

Headphone (figure 2)

8 Power indication - lights up when in use.
9 Power On/Off - slide the switch to the on or off position to switch the headphone on/off.
10 Battery compartment - remove the earmcushion, take out the batteries and put them in the transmitter's recharging compartment for recharging.
11 Volume - adjust volume to your desired listening level.
12 Tuning - turn the tuning wheel until the signal is at its clearest.

Transmitter power supply

IMPORTANT

Use only Philips SBC CS030/00 12 Volt/200 mA AC/DC adapter.

1 Make sure the adapter's rated voltage corresponds to the mains socket voltage.
2 Connect the DC connector of the AC/DC adapter to the 12 Volt DC power input connector located at the rear of the transmitter.
3 Connect the 12 Volt/200 mA AC/DC adapter to the mains socket. Always disconnect the AC/DC adapter if the transmitter is not to be used for a long period of time.

4 Insert the antenna tube in the hole, located on the top of the transmitter. Ensure that the wire which is hanging out of that hole, is guided in the antenna tube.

• Installing the antenna tube correctly, will improve the transmission range.

Headphone power supply

IMPORTANT

Use only rechargeable LR03/AAA NiCd batteries (preferably Philips).

Do not use NiMH batteries or alkaline batteries as these may damage your FM wireless system!

1 Check if the power button of the FM headphone is in the on position.
2 To recharge the headphone's built-in rechargeable LR03/AAA NiCd batteries, open the headphone's battery compartment. Take out the batteries and put them in the transmitter's recharging compartment for recharging.

Notes:

Completely flat batteries need approximately 16 hours to recharge.

Always remove the batteries if the headphone is not to be used for a long period of time.

Batteries contain chemical substances, so they should be disposed of properly.

Environmental Information

All redundant packing material has been omitted. We have done our best to make the packaging easily separable into two materials: cardboard and polyethylene

Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Headphone battery replacement (figure 3)

IMPORTANT

Use only rechargeable LR03/AAA NiCd batteries (preferably Philips).

Do not use NiMH batteries or alkaline batteries as these may damage your FM wireless system!

1 Remove the earcushions.
2 Take out the batteries and dispose of them properly.
3 Insert new batteries. Only use LR03/AAA NiCd batteries (preferably Philips).
4 Make sure the batteries are correctly inserted as indicated by the engraved symbols in the battery compartment.
5 Put the earcushions back on the earshell.

IMPORTANT

Before using the FM headphone for the first time, please ensure that the batteries are fully charged for about 16 hours. This will guarantee a longer operating lifetime of the batteries.

Connecting the FM transmitter to a headache output of an audio source (figure 4)

1 Connect the 3.5mm stereo plug of the stereo audio cable to the headphone output of an audio source, such as TV, HiFi or PC.

2 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
3 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.
4 To tune, turn the tuning wheel until the signal is at its clearest.
5 Adjust the volume to the desired level with the headphone volume control.

Basic operation

When the FM transmitter is connected to a headphone output of an audio source.

1 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
2 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.
3 To tune, turn the tuning wheel until the signal is at its clearest.
4 Adjust the volume to the desired level with the headphone volume control.

System:	Radio Frequency (RF)
Carrier Frequency: (Transmitter HC8352)	Channel 1: 863.5 MHz Channel 2: 864.5 MHz
Carrier Frequency: (Headphone HC8355)	863.2 to 864.7 MHz (Manual tuning)
Modulation:	Frequency Modulation (FM)
Radiated Output Power:	<10m Watt
Effective Transmission Range:	up to100 meters, omni directional (360°)
Input level:	200 mVrms (1 kHz sine wave)
Power supply – transmitter:	12Volt / 200 mA DC, centre positive
Power supply – headphone:	2 × LR03 (AAA) batteries (NiCd)
Frequency range (Headphone):	10 – 19,000 Hz
Signal/Noise ratio:	>55 dB (1 kHz sine wave ,A-weighted)
Distortion:	< 0.5% THD
Channel separation:	>30 dB

Hearing Safety! Continuous use at a high volume may permanently damage your hearing.

European Regulations

This product has been designed, tested and manufactured according the European R&TTE Directive 1999/5/EC.

Following this Directive, this product can be brought into service in the following states:

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

This product complies with class 3 requirements as set down in ETS 300 445.

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓
