USER MANUAL CC 624.4 OLYMPIA
Service Center Hattingen
Zum Kraftwerk 1
45527 Hattingen
Please read the following information thoroughly, observe the information contained and keep the operating manual for future reference!

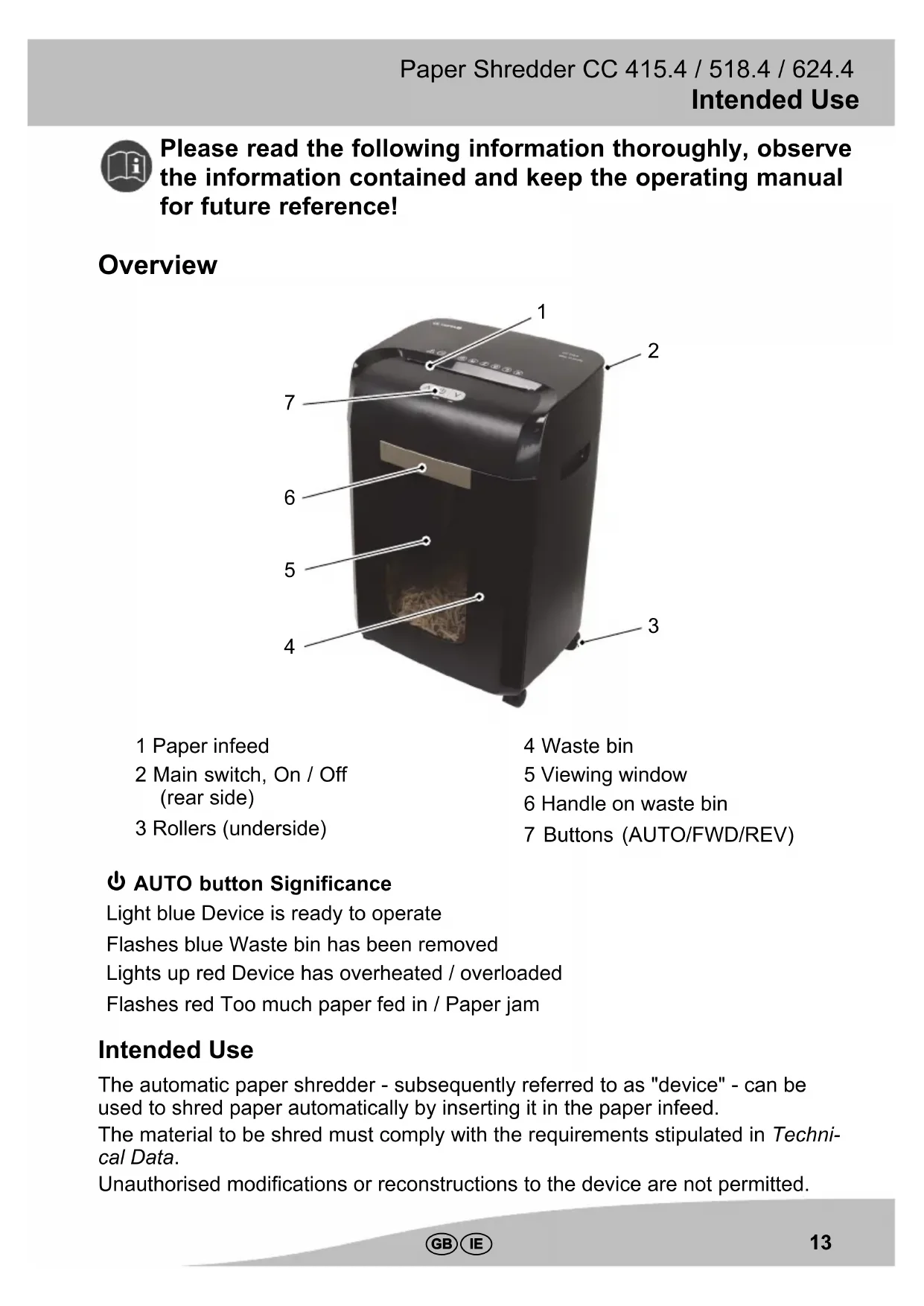

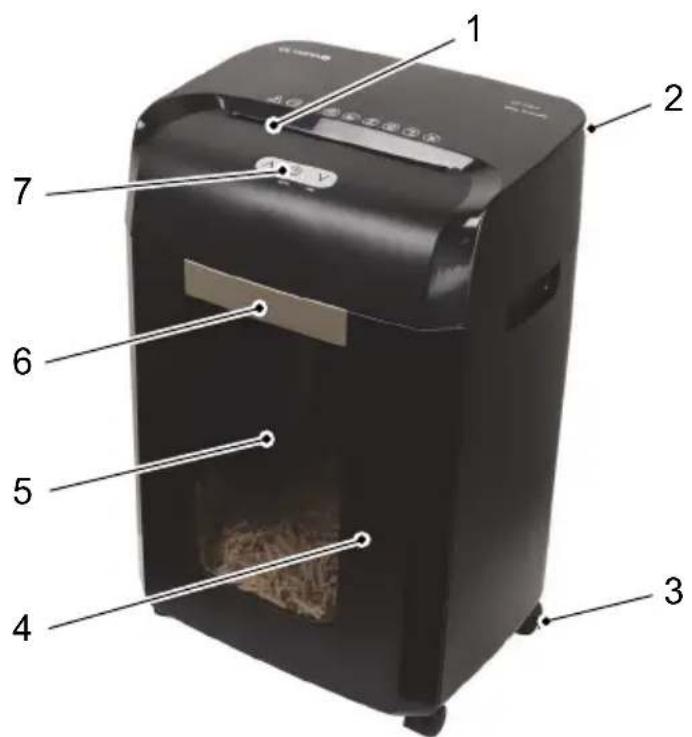

Overview
1 Paper infeed
2 Main switch, On / Off (rear side)
3 Rollers (underside)
4 Waste bin
5 Viewing window
6 Handle on waste bin
7 Buttons (AUTO/FWD/REV)
AUTO button Significance
Light blue Device is ready to operate
Flashes blue Waste bin has been removed
Lights up red Device has overheated / overloaded
Flashes red Too much paper fed in / Paper jam
Intended Use
The automatic paper shredder - subsequently referred to as "device" - can be used to shred paper automatically by inserting it in the paper infeed.
The material to be shred must comply with the requirements stipulated in Technical Data.
Unauthorised modifications or reconstructions to the device are not permitted.
Never open the device or attempt to complete repairs yourself.
Unintended Use
The automatic paper shredder is not intended for shredding material which does not comply with the requirements stipulated in Technical Data (e.g. cardboard). Any use, other than that described in Intended Use, is considered unintended use.
Safety Information
The following safety information applies to the entire document. Read and observe all the safety information to protect yourself and the environment from any harm.
WARNING!
- Electric shock through dangerous mains voltage. Handling the device improperly could lead to an electric shock.
Check that the power outlet complies with the specifications on the device's rating plate (refer to Technical Data).
Ensure that the power plug is easy to access.
Never take hold of the device if your hands are wet.
Always prevent the device coming into contact with water.
Only use the device in dry rooms indoors.
WARNING!
- Risk of suffocation through small parts, packaging materials or protective foils.
Children can swallow small parts, packaging materials and protective foils.
Keep children away from the device and its packaging.
CAUTION!
- Risk due to infeed mechanism!
Keep fingers, hair, scarves, ties, jewellery etc. away from the infeed slot.
Never reach into the cutting mechanism.
ATTENTION!
- Property damage!
Foreign bodies attached to the material to be shredded could damage the device.
Remove any foreign bodies, such as paper clips or rubber bands, before shredding the material.
ATTENTION!
- Risk of tripping due to improperly laid cable!
Lay cables so that they do not represent a risk of tripping.
Helpful Information and Tips
The following information and tips will ensure the material is always shredded optimally and prevent damage to the device.
Read this information thoroughly and observe it when operating the device.
Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the device.
Before starting to use the shredder, remove any staples, paper clips, rubber bands or other foreign bodies from the material concerned.
Oil the cutting mechanism regularly to ensure a longer service life for the device (refer to Lubricating the Cutting Mechanism).
Positioning the Paper Shredder Safely
Pay attention to the information on the power supply in the Technical Data or on the rear cover of the device.
Before putting the device into operation, lock the brakes on the rollers. This prevents the device from moving while in operation.
- Remove the device carefully from the packaging.
CAUTION!
-
Risk of injury through the sharp edges of the cutting mechanism!
Never reach into the cutting mechanism.
Keep fingers and hands away from the paper infeed. -
Place the device on a level surface.
- Lock the brakes on the corresponding rollers.
The device is now standing securely in its working location and is safe to use.
Release the brakes. The machine can now be moved on its rollers.
Operating the Paper Shredder
Switching On
- Insert the power plug in a properly installed power socket.
- Use the main switch to switch the machine on.
Switching Off
- Use the main switch to switch the device off.
- Disconnect the power plug from the power socket.
Automatic Shredding
The paper infeed is equipped with sensors so that it can start up automatically when material is inserted. The device draws the material in and automatically stops when shredding is completed and no further material is fed in.
- Press the AUTO button. The device's Automatic function is activated.
The AUTO button lights up blue and the device is ready to operate.
ATTENTION!
- Risk of property damage through material jam!
Pay attention to the maximum capacity of the paper infeed (refer to Technical Data).
In the event of a material jam, the device stops and the AUTO button flashes red until the material has been removed from the infeed (refer to Reverse Running and Clearing Residual Material).
Forward Running
The cutting mechanism runs forwards for a few seconds and shreds the material fed in.
- Press the FWD button.
Reverse Running
Reverse operation is necessary to clear material which jams. The AUTO button flashes red in the event of a material jam.
- Press the REV button and keep it pressed.
- The cutting mechanism runs in reverse continuously and the (jammed) material is released.
CAUTION!
-
Risk of injury through the sharp edges of the cutting mechanism!
Never reach into the cutting mechanism.
Keep fingers and hands away from the paper infeed. -
Pull the material out of the cutting mechanism.
- If reverse running does not clear the material jam completely, please follow the instructions in Chapter Clearing Residual Material.
Clearing Residual Material
- Use the main switch to switch the device off.
- Disconnect the power plug from the power socket.
CAUTION!
-
Risk of injury through the sharp edges of the cutting mechanism!
Never reach into the cutting mechanism.
Keep fingers and hands away from the paper infeed. -
Remove the residual material carefully from the cutting mechanism using an appropriate pointed object.
Emptying the Waste Bin
The waste bin must be emptied regularly in order to prevent material jams.
The AUTO button flashes blue when the waste bin has been removed.
- Use the main switch to switch the device off.
- Pull the waste bin out of the device by the handle.
- Empty the waste bin.
- Install the waste bin back in the device.
Lubricating the Cutting Mechanism
To ensure a long service life for the device, it is essential to oil the cutting mechanism at regular intervals.
ATTENTION!
-
Property damage!
Do not use spray oils.
Only use a special oil intended for shredders. -
Apply the special oil for shredders in several lines square to the sheet of paper.
- Insert the oiled sheet of paper in the paper infeed.
Olympia Business Systems Vertriebs GmbH offers a special paper oil for shredders. Please contact the Service hotline (refer to Guarantee).
Overheating Protection
In the event of overheating or overloading, the motor switches off automatically and the AUTO button lights up red. Allow the motor to cool down for approx. 9 minutes before resuming operation.
The device is equipped with an active ventilation system. Do not disconnect the device from the power supply during the cool down phase.
After cooling down, the full performance of the device is available again.
Pay attention to the permissible operating cycle (refer to Technical Data).
Appendix
Regular Maintenance and Service
Switch the device off and disconnect the power plug from the power socket prior to cleaning it.
Clean any dust from the device with a clean, soft brush or a soft, lint-free cloth.
Do not use any solvents or cleaning agents.
Oil the shredder's cutting mechanism at regular intervals (refer to Lubricating the Cutting Mechanism).
Technical Data
CC 415.4
Cutting capacity Max. 15 sheets of A4 (80 g/m2)
Cutting method Cross-cut 4 × 35 ~mm
Security level P-4
Cutting speed 1.8m / min
Operating cycle Approx. 30 min. continuous operation, 9 min. cool down phase
Noise level Approx. 65 dB
Dimensions (L x W x H) 348 x 250 x 502 mm
Weight 8,7 kg
Waste bin Approx. 16 litres
Range of operations Automatic start/stop, reverse/forward running
Power supply 220 - 240 V, 50 Hz, 1.5 A
Power consumption max. 320 W
CC 518.4
Cutting capacity Max. 18 sheets of A4 (80 g/m2)
Cutting method Cross-cut 4 × 35 ~mm
Security level P-4
Cutting speed 1.6m / min
Operating cycle Approx. 30 min. continuous operation, 9 min. cool down phase
Noise level Approx. 65 dB
Dimensions (L × W × H) 368 × 283 × 572 ~mm
Weight 10,8 kg
Waste bin Approx. 23 litres
Range of operations Automatic start / stop, reverse / forward running
Power supply 220 - 240 V, 50 Hz, 1.75 A
Power consumption max. 320 W
CC 624.4
Cutting capacity Max. 24 sheets of A4 (80 g/m2)
Cutting method Cross-cut 4 × 35 ~mm
Security level P-4
Cutting speed 1.5m / min
Operating cycle Approx. 30 min. continuous operation, 9 min. cool down phase
Noise level Approx. 65 dB
Dimensions (L x W x H) 410 x 320 x 622 mm
Weight 15,1 kg
Waste bin Approx. 30 litres
Range of operations Automatic start / stop, reverse / forward running
Power supply 220 - 240 V, 50 Hz, 3 A
Power consumption Max. 600 W
Troubleshooting
| Device does not work Is the power plug con- nected properly in the power socket? | Insert the power plug in a properly installed pow- er socket. |
| Is the material not drawn in automatically or does the cutting mechanism not start up? The AUTO button flashes blue. | Feed the material in so that the sensor, posi- tioned in the centre of the infeed, detects the material. Insert the waste bin properly. |
| Device no longer func- tions after a longer period out of service or stops during operation. (The AUTO button lights up red). | Has the permissible operating cycle been exceed? Pay attention to the per- missible operating cy- cle (refer to Technical Data). |
| Material jams Has the maximum ca- pacity of the infeed been exceeded? The AUTO button flashes red. | Pay attention to the max- imum capacity of the in- feed (refer to Technical Data). Clear the material jam (refer to Reverse Run- ning and Clearing Resid- ual Material) |
| Was the paper drawn into the infeed straight? | Ensure the material is straight when fed into the infeed. Clear the material jam (refer to Reverse Run- ning and Clearing Resid- ual Material) |
Appendix
CE Mark
The CE Mark on the device confirms conformity. The Declaration of Conformity can be viewed at www.olympia-vertrieb.de.
Information on Disposal
If you want to dispose of your device, bring it to a collection point provided by your local public waste authorities. According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent
symbol indicates that the device must not be disposed of in normal domestic waste! Packaging materials must be disposed of according to local regulations.
Guarantee
Dear Customer,
we are pleased that you have chosen this equipment.
In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.
LED bleue clignote Corbeille retiree
LED rouge allumée Appareil surchauffé / surcharge
