USER MANUAL IWME 127 INDESIT

Consumo in off-mode: 0,5 W Consumo in Left-on: 8 W

Spie

Spia ACCENSIONE/OBLO BLOCCATO:

Installation, 16-17-18-19

Unpacking and levelling

Electric and water connections

The first wash cycle

Technical details

Instructions for the fitter

Care and maintenance, 20

Cutting off the water or electricity supply

Cleaning your appliance

Cleaning the detergent dispenser

Caring for your appliance door and drum

Cleaning the pump

Checking the water inlet hose

IWME 127

Precautions and advice, 21

General safety

Disposal

Saving energy and respecting the environment

Washing machine description, 22-23

Control panel

Leds

Starting and Programmes, 24

Briefly: how to start a programme

Programme table

Personalisations, 25

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 26

Detergent dispenser

Bleach cycle

Preparing your laundry

Special items

Troubleshooting, 27

Service, 28

Before calling for Assistance

INDESIT

GB

This instruction manual should be kept in a safe place for future reference. If the washer dryer is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/ herself with its operation and features.

!Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washer dryer from its packaging.
2. Make sure that the washer dryer has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

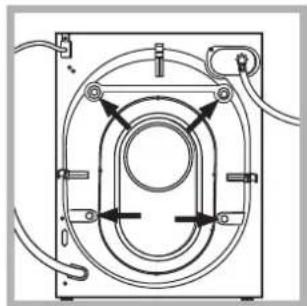

1. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washer dryer needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washer dryer on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washer dryer.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the supply pipe by screwing it to a cold water tab using a 3 / 4 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

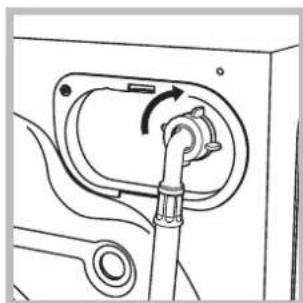

1. Connect the inlet hose to the washer dryer by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

The water pressure at the tap must fall within the values indicated in the Technical details table (see next page).
If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100cm from the floor;

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite
• the socket is compatible with the plug of the washer dryer. If this is not the case, replace the socket or the plug.

! The washer dryer must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washer dryer has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets

The cable should not be bent or compressed.

The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ programme without a pre-wash cycle.

Technical details
Model	IWME 127
Dimensions	59,5 cm wide 81,5 cm high 54,5 cm deep
Capacity	from 1 to 7 kg
Electric connections	Please refer to the technical data plate fixed to the machine.
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 52 litres
Spin speed	up to 1200 rpm
Test wash cycles in accordance with directives 1061/2010 and 1015/2010.	Programme<60°C Cotton standard 60°C; Programme<60°C Cotton standard 40°C. This appliance is compliant with the following European Community Directives: - 2004/108/CEE (Electromagnetic Compatibility) - 2006/95/CE (Low Voltage) - 2012/19/EU

GB

Instructions for the fitter

Mounting the wooden panel onto the door and inserting the machine into cabinets:

In the case where the machine must be shipped for final installation after the wooden panel has been mounted, we suggest leaving it in its original packaging. The packaging was designed to make it possible to mount the wooden panel onto the machine without removing it completely (see figures below).

The wooden panel that covers the face of the machine must not be less than 18 mm in thickness and can be hinged on either the right or left. For the sake of practicality when using the machine, we recommend that the panel be hinged on the same side as the door for the machine itself - the left.

A

B

C

D

E

Door Mounting Accessories (Fig. 1-2-3-4-5).

Fig. 1

Fig. 2

• No. 6 type A self-threading screws, l = 13 mm.
• No. 2 type B metric, countersunk screws, I =25; for fastening the magnet plate to the cabinet.
• No. 4 type C metric screws, I = 15 mm; for mounting the hinge supports to the cabinet.
• No. 4 type D metric screws, l = 7 mm; for mounting the hinges on the supports.

Mounting the Parts onto the Face of the Machine.

• Fit the hinge supports to the appliance front panel, positioning the hole marked with an arrow in fig. 1 so that it is on the inner side of the front panel. Fit a spacer (fig. 4/B) between the surfaces using type C screws.

• Fit the magnet plate at the top of the opposite side, using type B screws to fix two spacers (fig. 4/B) between the plate and the surface.

Using the Drilling Template.

• To trace the positions of the holes on the left-hand side of the panel, align the drilling template to the top left side of the panel using the lines traced on the extremities as a reference.
• To trace the positions of the holes on the right-hand side of the panel, align the drilling template to the top right side of the panel.
• Use an appropriately sized router to mill the holes for the two hinges, the rubber plug and the magnet

GB

Mounding the Parts onto the Wooden Panel (Door).

• Insert the hinges into the holes (the movable part the hinge must be positioned facing away from the panel) and fasten them with the 4 type A screws.

• Insert the magnet into the top hole on the opposite side of the hinges and fasten it with the two type B screws.

• Insert the rubber plug into the bottom hole.

The panel is now ready to be mounted onto the machine.

Mounting the Panel into the machine.

Insert the nib of the hinge (indicated by the arrow in fig. 2) into the hole for the hinge and push the panel towards the front of the machine. Fasten the two hinges with the type D screws.

Fastening the plinth guide.

If the machine is installed at the end of a set of modular cabinets, mount either one or both of the guides for the base molding (as shown in fig. 8). Adjust them for depth based on the position of the base molding, and, if necessary, fasten the base to the guides (fig. 9).

This is how to assemble the plinth guide (fig. 8): Fasten angle P using screw R, insert plinth guide Q into the special slot and once it is in the desire position, lock it in place using angle P and screw R.

Inserting the machine into the Cabinet.

• Push the machine into the opening, aligning it with the cabinets (fig. 6).

Regulate the adjustable feet to raise the machine to the appropriate height.

• To adjust the position of the wooden panel in both the vertical and horizontal directions, use the C and D screws, as shown in fig. 7.

Important: close the lower part of the appliance front by ensuring that the plinth rests against the floor.

Fig. 6 Fig. 7

Fig. 8 Fig. 9

Accessories provided for the height adjustment.

The following can be found inside the polystyrene lid (fig. 10): 2 crossbars (G), 1 strip (M).

the following can be found inside the appliance drum: 4 additional feet (H),
4 screws (I)
4 screws (R),
4 nuts (L),
2 plinth guides (Q)

Adjusting the appliance height.

The height of the appliance can be adjusted (from 815 mm to 835 mm), by turning the 4 feet. Should you require the appliance to be placed higher than the above height, you need to use the following accessories to raise it to up to 870 mm: The two crossbars (G); the 4 feet (H); the 4 screws (I); the 4 nuts (L) then perform the following operations (fig. 11): remove the 4 original feet, place a crossbar G at the front of the appliance, fastening it in place using screws I (screwing them in where the original feet were) then insert the new feet H. Repeat the same operation at the back of the appliance. Now adjust feet H to raise or lower the appliance from 835 mm to 870 mm. Once you have reached the desired height, lock nuts L onto crossbar G.

To adjust the appliance to a height between 870 mm and 900 mm, you need to mount strip M, adjusting feet H to the required height. Insert the strip as follows:

Open the three screws N situated at the front of the Top cover of the appliance, insert strip M as shown in fig. 12, then fasten screws N.

Fig. 10

Fig. 11 Fig. 12

Care and maintenance

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

1. clean the interior thoroughly;
2. screw the lid back on.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

Cleaning the detergent dispenser

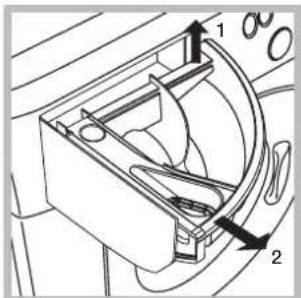

Remove the dispenser by pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum

Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

1. unscrew the lid rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for nonprofessional, household use and its functions must not be changed.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
  Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.
• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be

disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60^ instead of 90^ or one at 40^ instead of 60^ will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Washing machine description

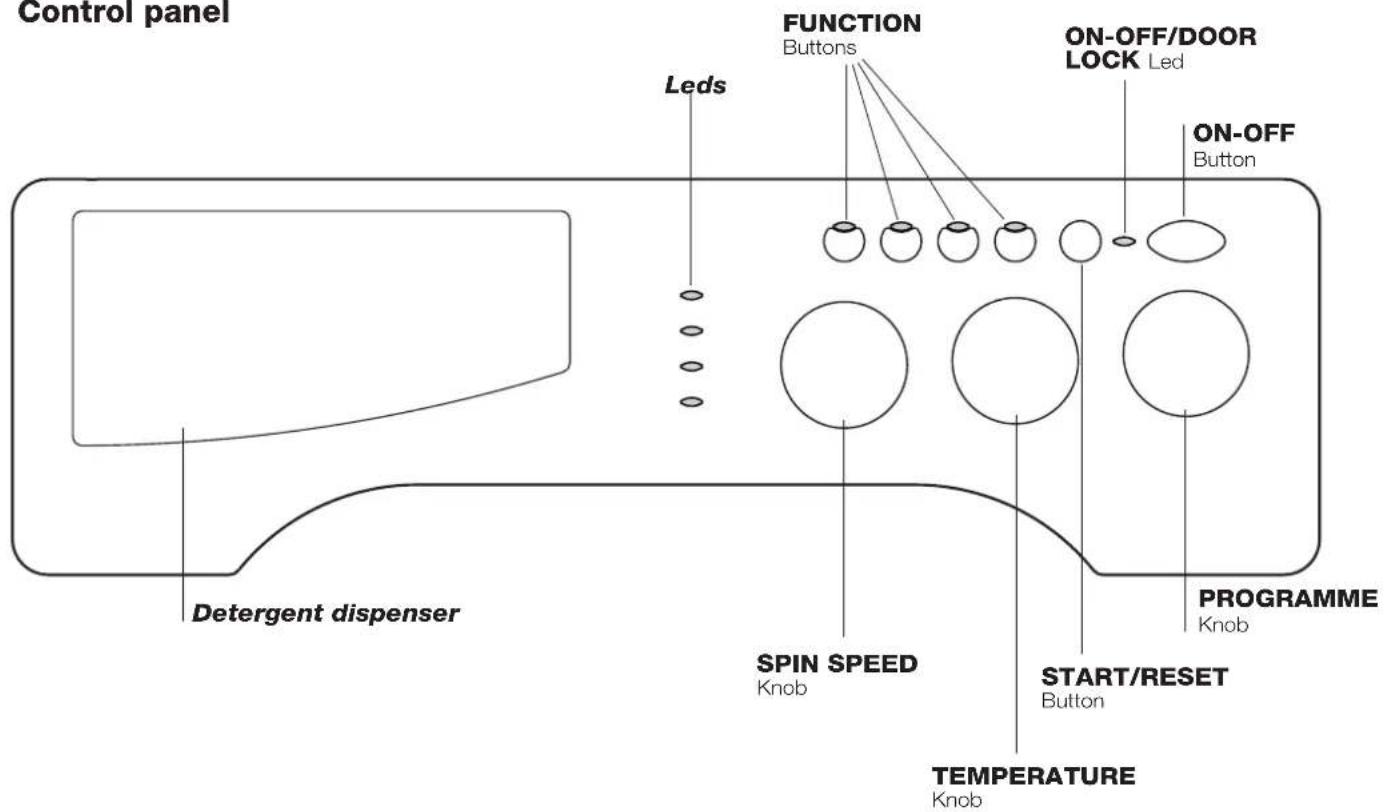

Control panel

Detergent dispenser: to add detergent and fabric softener.

LEDS: to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated.

SPIN SPEED knob: to set the spin speed or exclude the spin cycle completely.

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

TEMPERATURE knob: to set the temperature or the cold wash cycle.

START/RESET button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened.

ON/OFF button: to turn the washing machine on and off.

PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Consumption in off-mode: 0,5W

Consumption in Left-on: 8 W

Leds

The LEDs provide important information. This is what they can tell you:

Delay set:

If the Delay Timer function has been enabled, once you have started the programme, the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

Function buttons

The FUNCTION BUTTONS also act like LEDs.

When a function is selected, the corresponding button is illuminated.

If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

ON-OFF/DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door (wait approximately 3 minutes).

The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality.

Starting and Programmes

GB

Briefly: starting a programme

1. Switch the washing machine on by pressing button . All the LEDs will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.
4. Set the wash temperature.

5. Set the spin speed.

6. Add the detergent and any fabric softener.

7. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.
8. When the programme is finished, the ON-OFF/DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button (1)

Programme table

Wash cycles	Description of the wash cycle	Max.temp.(°C)	Max.speed(rpm)	Detergents				Max. load (kg)	Residual dampness %	Energy consumption kWh	Total water ht	Cycle duration
				Prewash	Wash	Fabric softener	Bleach
Standard
1	Cotton with prewash: extremely soiled whites. 90° 1200			●	●	●	-7	53 2,21	78	170'
2	Cotton: extremely soiled whites.	90°	1200	-	●	●	●	7 53	2,16	72	160'
3	Coloured Cottons: lightly soiled whites and delicate colours.	40°	1200	-	●	●	●	7 53	0,66	54	90'
4	Synthetics: heavily soiled resistant colours.	60°	800	-	●	●	●	3,5	44	0,93	47	115'
4	Synthetics (3): lightly soiled resistant colours.	40°	800	-	●	●	●	3,5	44	0,57	46	100'
<60°C	Cotton Standard 60°C (1): heavily soiled whites and resistant colours.	60°	1200	-	●	●	●	7	53	1,13	52,5	180'
<40°C	Cotton Standard 40°C (2): lightly soiled whites and delicate colours.	40°	1200	-	●	●	●	7	53	1,00	75	170'
7	Wool: for wool, cashmere, etc.	40° 800	-		●	●	-	1,5	-	-	-	70'
8	Cotton Standard 20°C: lightly soiled whites and delicate colours.	20°	1200	-	●	●	●	7	-	-	-	170'
Time 4 you
9	Cotton: Heavily soiled whites and fast colours	60°	1200	-	●	●	-	3,5	53	0,81	40	60'
10	Cotton: Lightly soiled whites and delicate colours (shirts, jumpers, etc.)	40°	1200	-	●	●	-	3,5	-	-	-	50'
11	Synthetics: Delicious colours (all types of slightly soiled garments)	40°	800	-	●	●	-	2,5	-	-	-	40'
12	Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	-	●	●	-	3	71	0,15	35	30'
Sport
13	Special Shoes	30°	600	-	●	●	-	Max. 2 pairs	-	-	-	60'
14	Sport Intensive	30°	600	-	●	●	-	2,5	-	-	-	85'
Partial programmes
Rinse		-	1200	--		●	●	7	-	-	-	36'
Spin + Drain		-	1200	-	-	-	-	7	-	-	-	16'

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 60^ with a temperature of 60^

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60^ . The actual washing temperature may differ from the indicated value.
2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 40^ with a temperature of 40^ .
This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40^ . The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 40^ with a temperature of 40^ .
3) Long wash cycle for synthetics: set wash cycle 4; with a temperature of 40^ .

Notes

-For programmes 9 and 10, we advise against exceeding a wash load of 3.5kg

-For programme 14 we advise against exceeding a wash load of 2,5kg

Cotton Standard 20^ (wash cycle 8) ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40^ , are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks.

Express (wash cycle 12) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (12 at 30^ ), it is possible to wash different fabrics together (except for wool items), with a maximum load of 3kg .

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table).

The temperature can be lowered, or even set to a cold wash

GB

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

Cottone 1200 rpm

Synthetics 800 rpm

Wool 800 rpm

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol

The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed.

When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency.

If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning.

The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Option Effect	Comments Enabled with		programmes:
Delay Timer	Delays the start of the wash by up to 9 hours.	Pess the button repeatedly until the LED corresponding to the desired delay is turned on. The fifth time the button is pressed, the function will be disabled. N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.	All
Bleaching	Bleaching cycle de-signed to remove the toughest stains.	Please remember to pour the bleach into extra compartment 4 (see page 26). This option is incompatible with the EASY IRON option.	2,3,4,60°C,40°C8 and Rinse cycle.
Easy iron	By selecting this function the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum.	To drain the water so that the laundry may be removed, press the START/PAUSE button. This option is incompatible with the BLEACHING option.	1,2,3,4,60°C,40°C8,9,10,11.
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1,2,3,4,60°C,40°C7,8,9,10,11,13,14, and Rinse cycle.

Detergents and laundry

GB

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Do not use hand washing detergents because these create too much foam.
Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60^ .
! Follow the instructions given on the detergent packaging.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3:Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid. extra compartment 4: Bleach

Do not use hand wash detergent because it may form too much foam.

Bleach cycle

! Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

Place extra compartment 4, provided, into compartment 1.

When pouring in the bleach, be careful not to exceed the "max" level indicated on the central pivot (see figure).

To run the bleach cycle alone, pour the bleach into extra compartment 4, set the Rinse programme and enable the Stain removal option. To bleach during a wash cycle, pour in the detergent and fabric softener, set the desired programme and enable the Stain removal option.

The use of extra compartment 4 excludes the possibility of using the pre-wash cycle.

Preparing your laundry

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
• Empty all pockets and check for loose buttons.
• Do not exceed the values listed in the "Table of wash cycles", which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

Special items

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1,5kg

Your washing machine could fail to work. Before calling for Assistance, make sure the problem can't easily be solved by consulting the following list.

GB

Problem

Possible causes/Solution:

The washing machine won't start.

• The appliance is not plugged into the socket, or not enough to make contact.
• There has been a power failure.

The wash cycle won't start.

• The appliance door is not shut properly.
• The button has not been pressed.
• The START/RESET button has not been pressed.
• The water tap is not turned on.
• A delayed start has been set (using the Delay Timer).

The washing machine fails to load water.

• The water inlet hose is not connected to the tap.
  The hose is bent.
  The water tap is not turned on.
• There is a water shortage.
• The water pressure is insufficient.
• The START/RESET button has not been pressed.

The washing machine continuously loads and unloads water.

• The drain hose is not fitted between 65 and 100 cm from the floor.
• The free end of the hose is underwater.
• The wall drainage system doesn't have a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

The washing machine does not drain or spin.

• The programme does not foresee the draining: some programmes require enabling the draining manually.
• The "Easy iron" function is enabled: to complete the programme, press the START/RESET button.
  The drain hose is bent.
• The drain duct is clogged.

The washing machine vibrates too much during the spin cycle.

• The drum was not unblocked correctly during installation.
• The washing machine is not level.
• The washing machine is closed in between furniture cabinets and the wall.

The washing machine leaks.

• The water inlet hose is not screwed on correctly.
• The detergent dispenser is obstructed.
• The drain hose is not secured properly.

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

• Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again. If the problem persists, contact Assistance.

There is too much foam.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).
• You used too much detergent.

GB

Before calling for Assistance:

• Check whether you can solve the problem on your own;
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised servicemen.

Notify the operator of:

the type of problem;
the appliance model (Mod.):
the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

COMMISSION DELEGATED REGULATION (EU) No 1061/2010

Brand	INDESIT
Model	IWME 127 EU
Rated capacity in kg of cotton	7.0
Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption)	A+
Energy consumption per year in kWh1)	201.0
Energy consumption of the standard 60 °C cotton programme at full load in kWh2)	1.133
Energy consumption of the standard 60 °C cotton programme at partial load in kWh2)	0.712
Energy consumption of the standard 40 °C cotton programme at partial load in kWh2)	0.677
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	8.0
Water consumption per year in litres3)	10623
Spin-drying efficacy class on a scale from G (minimum efficacy) to A (maximum efficacy)	B
Maximum spin speed attained4)	1200
Remaining moisture content5)	53%
Programme time of the "standard 60 °C cotton" at full load in minutes	180
Programme time of the "standard 60 °C cotton" at partial load in minutes	150
Programme time of the "standard 40°C cotton" at partial load in minutes	145
Duration of the left-on mode in minutes	30
Noise in dB(A) re 1 pW washing6)	50
Noise in dB(A) re 1 pW spinning6)	72

1) The "standard 60^ cotton" at full and partial load and the "standard 40^ cotton" at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60^ cotton and standard 40^ cotton are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load.
2) Based on 220 standard washing cycles for cotton programmes at 60^ and 40^ at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3) Based on 220 standard washing cycles for cotton programmes at 60^ and 40^ at full and partial load. Actual water consumption will depend on how the appliance is used.
4) For the standard 60^ at full and partial load or the 40^ at partial whichever is lower.
5) Attained for 60^ cotton at full and partial load or the 40^ at partial whichever is higher.
6) Based on washing and spinning phases for the standard 60^ cotton programme at full load.

ES

Espanol

Sumario

La lavadora企业提供 a boa发展机遇 for the development of new and innovative technologies.

Installation, 58-59-60-61

Causes / Solutions possibles:
