USER MANUAL A 2020 OLYMPIA

Read this manual thoroughly and observe the instructions and inform ation in it when operating the unit.

Keep the operating instruction manual available for future refer- ence

Prevent damage to the power plug and power cable. Never twist the powe r cable. Do not operate the unit if the power cable or power plug is damaged.

Do not use the unit in the vicinity of hot surfaces or in damp environments and protect it from direct sunlight and dusty condi- tions.

Disconnect the power plug before starting to clean the unit. Never use any solvents or aggressive cleaning agents.

Metallic objects cannot be laminated. 7 Children must not be allowed in the vicinity of the equipment when i t is ready to operate. 8 Disconnect the power plug when the unit is not in use.

Always switch the unit off immediately if it emits a strong smell or it is not in op eration.

Do not touch the power plug with moist hands.

Ensure that the On/Off switch is in the "OFF" position before con-

ecting the laminator to the mains power supply.

Only insert recommended foil pockets, as specified in the Sec- tion "Features", i n the unit. Using foil pockets which are too large could lead to the unit jamming.

Do not laminate heat-sensitive materials, such as thermal paper, in the un it.

Lamination of moist documents produces poor results.

Do not use foil pockets, intended for cold lamination, for hot lamination. This could dam age the machine, foil pockets and document. 16 Do not cut foil pockets to size. The resulting cut edges could cause the foil pockets to jam. 17 Keep loose clothing, ties, jewellery, long hair and other loose objects away from the infeed opening. Risk of injury!

The socket and the mains connection of the device must be freely accessible for safety reasons so that the power supply can be dis- connected in emergencies.

The device may only be used indoors in dry rooms.12 Recommendation If very soft materials (such as serviettes) or small formats are to be lami- nated, then we recommend placing these within a folded piece of paper to avoid possible jamming. The piece of paper has to be placed in the lamina- tion device with the folded edge first. Identification papers and documents can lose their validity if they are lami- nated, because they can then no longer be checked. In case you wish to let another person use this product, please include these instructions. Exemption From Liability We cannot guarantee that the information on the technical properties and that contained in this document is correct. The product and, where applica- ble, its accessories, described in this document are subject to constant im- provement and further development. For this reason, we reserve the right to modify components, accessories, technical specifications and related docu- mentation of the product at any time without notification. Intended Use This laminator has been conceived for use processing hot and cold laminat- ing foil. It is possible to laminate pictures, maps, documents, paper etc. up to a total thickness of 0.8 mm. Any other use is considered unintended use. Unauthorised modifications or reconstructions are not permitted.13 Features Protection and refinement of your documents. Laminate photographs, documents, graphics, identity cards etc. up to A3 size (A 3040, A 3020) and A4 size (A 2040, A 2020) respective. The unit operates using 2 heating rollers (A 3020, A 2020) / 4 heating rollers (A 3040, A 2040), has a quick warm-up phase and laminates without a carrier. 2 LED lamps indicate the operating states Automatic switch-off in the event of overheating High quality heating system prevents smudging and blistering Warm-up phase only about 3-5 minutes Cool down phase to room temperature, approx. 30 minutes Foil thickness, minimum 75 m and maximum 150 m Laminating sy stem: Hot roller technology, 4 transport rollers (A 3040, A 2040), 2 transport rollers (A 3020, A 2020) Laminating temperature: 100 °C – 180 °C Maximum laminating width: 338 mm (A 3020, A 3040) 240 mm (A 2020, A 2040) Maximum lamination thickness: 0.6 mm Laminating speed: 0.4 m/min Power supply: 220 - 240 Volt, 50 Hz Power consumption: A 2020, A 2040: 1.87 A; A 3020, A 3040: 2.0 A Dimensions (LxWxH): 474 x 182 x 100 mm (A 3020, A 3040) 395 x 190 x 90 mm (A 2020, A 2040) Weight: Approx. 2880 kg (A 3020), Approx. 3490 kg (A 3040) Approx. 2360 kg (A 2020), Approx. 2760 kg (A 2040)14 Hot Laminating 1 Connect the power cable to an easily accessible, standard electrical socket. Caution: Check that the voltage specifications of the unit correspond to that of your power supply network (220 - 240 V, 50 Hz). 2 Switch on the On/Off switch on the top, right-hand side of the unit (I). 3 The drive motor for the transport rollers starts up, the red indicator lamp (POWER) lights up and the warm-up phase begins. The correct operating temperature is reached after about 3 minutes (75 m); 3 ¾

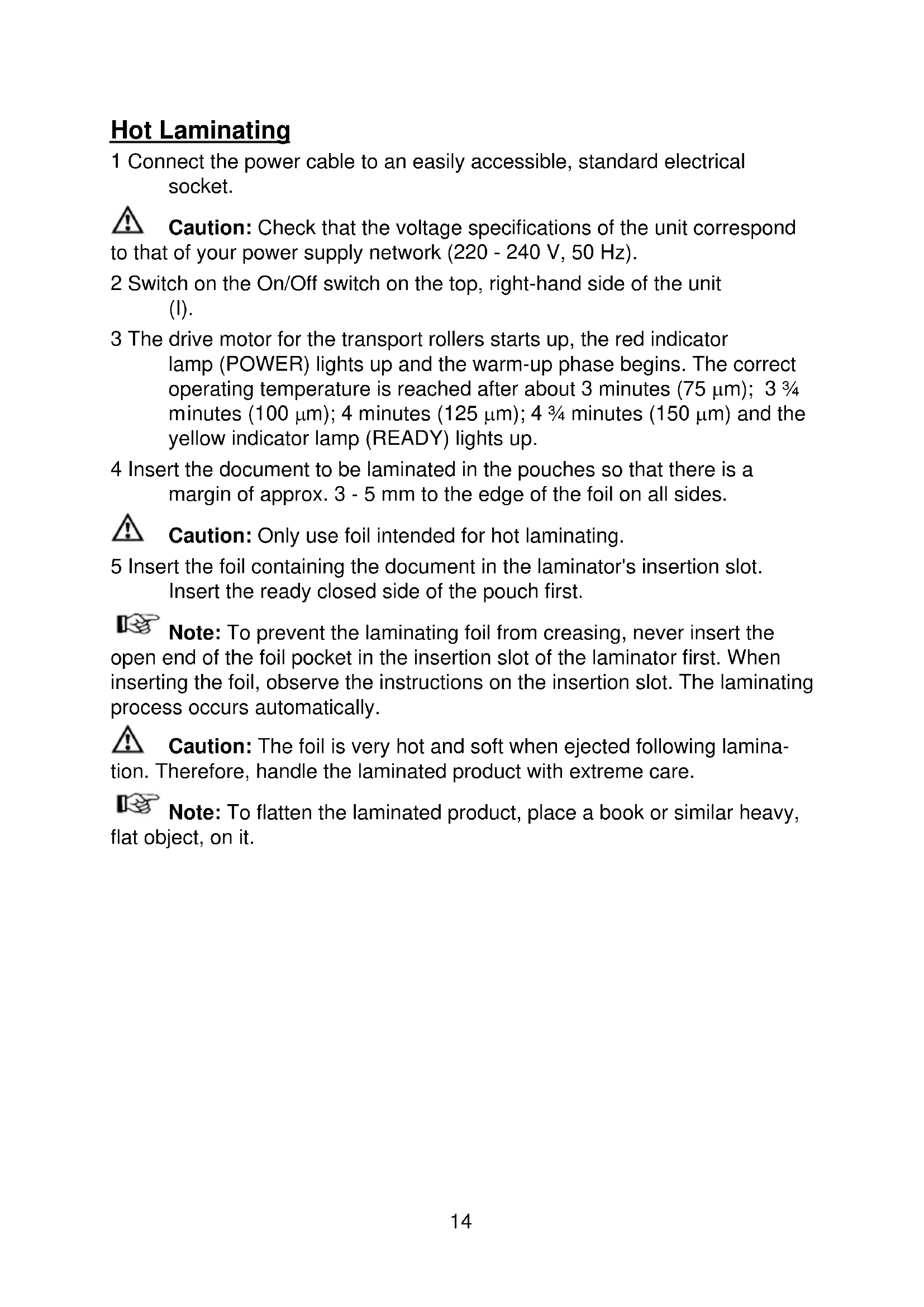

ellow indicator lamp (READY) lights up. 4 Insert the document to be laminated in the pouches so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides. Caution: Only use foil intended for hot laminating. 5 Insert the foil containing the document in the laminator's insertion slot. Insert the ready closed side of the pouch first. Note: To prevent the laminating foil from creasing, never insert the open end of the foil pocket in the insertion slot of the laminator first. When inserting the foil, observe the instructions on the insertion slot. The laminating process occurs automatically. Caution: The foil is very hot and soft when ejected following lamina- tion. Therefore, handle the laminated product with extreme care. Note: To flatten the laminated product, place a book or similar heavy, flat object, on it.15 Cold Laminating 1 Connect the power cable to an easily accessible, standard electrical socket. Caution: Check that the voltage specifications of the unit correspond to that of your power supply network (220 - 240 V, 50 Hz). 2 Switch on the On/Off switch on the top, right-hand side of the unit (I). 3 The drive motor for the transport rollers starts up, the red and yellow indicator lamps (POWER and READY, respectively) light up. Caution: If the laminator was switched to hot laminating shortly before, allow it to cool down. The equipment takes about 30 minutes to cool down. 4 Remove the protective foil from the pouch. 5 Insert the document to be laminated in the pouch so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides. 6 Insert the foil containing the document in the laminator's insertion slot. Insert the ready closed side of the foil first. Note: To prevent the laminating foil from creasing, never insert the open end of the pouch in the insertion slot of the laminator first. When insert- ing the foil, observe the instructions on the insertion slot. The laminating process occurs automatically. Clearing Foil Jams The laminator is provided with a "Jam Release" function in order to clear foil jams quickly. 1 If the foil jams, switch the equipment off and set the switch on the left side of the unit to its "Jam Release" position. 2 Hold the laminator firmly and pull the foil together with the document to be laminated out of the laminator's insertion slot. 3 Set the switch on the left side of the unit to its "Normal Operation" po- sition. 4 It will probably be necessary to then clean the unit several times as described in the Section "Cleaning and Servicing". 5 If foil jams occur repeatedly or jammed foil cannot be removed from the laminator, please contact our hotline.16 Cleaning and Servicing Deposits and residual adhesive on the transport rollers can influence the re- sults of the laminating process. Therefore, the transport rollers must be cleaned periodically after use: To do this, insert a folded piece of paper in the insertion slot. Residual adhe- sive is removed and taken up by the paper when ejected. Repeat the proc- ess several times. Disconnect the power plug before starting to clean the unit with a damp cloth. If necessary, the housing can be cleaned using a cloth moistened with clean water with a little mild soap applied. Never use any solvents or aggressive cleaning agents. Troubleshooting Fault Corrective measures Red LED (POWER) does not light

Unit does not respond Check that the power plug has been properly connected to the power socket. If the fault cannot be cleared, con- tact our hotline. Foil jam Check the foil pockets being used are the correct size. Only use pouches of the size speci- fied. Ensure that the pouch has been in- serted correctly i n the unit. To clear the fault, follow the instruc- tions in the S ection "Clearing Foil Jams". Laminated foil is not completely transparent Laminate the same foil again to im- prove the lamination result. Conformity of the equipment to the EU directives is confirmed by the CE symbol.17 Disposal Notes This symbol [the crossed-out wheeled bin/PICTURE] means that the product should be brought to the return and or separate collection systems available to end-users, when the product has reached the end of its lifetime. This symbol applies only to the countries within the EEA. EEA = European Economic Area, which comprises the EU Member States plus Norway, Iceland, and Liechtenstein. Warranty In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.18 Consignes importantes de sécurité Afin de garantir un travail fiable avec la machine à plastifier, veuillez tenir compte des points suivants :

The manufacturer hereby declares that the equipment complies with the stipulations defined in the following guidelines and standards:
