USER MANUAL Laminator A 260 Combo OLYMPIA

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The laminator is used for laminating films with a thickness of 80 mic or 125 mic as well as for cutting and punching holes in paper and laminating films. Any other use is considered improper use. Unauthorised modifications or conversions that are not described in these operating instructions are not permitted and will result in damage to this product. Proper installation and observance of and compliance with the instructions in this operating manual are prerequisites for the intended use of the device.

Table of contents

Warranty 11

Intended use. 11

Important safety instructions. 11

Instructions for use 12

Installation site 12

Scope of delivery 12

Product overview 13

Functions 13

Notes on the material 14

Notes on laminating film 14

Notes on the laminating process 14

Release jammed laminating film. 16

Cutting 16

Punch 17

Emptying the hole punch 17

Corner rounder 17

Cleaning 17

Troubleshooting 18

Notes on disposal. 18

Technical data. 19

Technical changes 19

GS mark. 19

Declaration of Conformity. 19

Manufacturer 19

Important safety instructions

Danger! Danger of electric shock! Never open or repair the appliance yourself. Never touch bare contacts with metal objects. Never handle the product with wet hands. Do not operate the product if it is damaged.

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Warning! Risk of tripping due to improperly laid cable! Lay cables so that nobody can trip over them. Lay cables in such a way that no damage can occur to the cable/accessories.

Warning! Danger from harmful vapours! Harmful vapours may be produced during operation (lamination). Ensure adequate ventilation.

Warning! Risk of injury due to automatic retraction! Do not reach into the automatic feeder! Keep loose objects (e.g. hair, ties, scarves, jewellery, etc.) away from the automatic feeder.

Warning! Danger due to unexpected start-up! Make sure that the appliance is switched off before connecting it to the mains.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns from hot laminating film! The laminating film is very hot immediately after lamination. When removing the laminating film, only touch the cooled end.

Caution! Risk of burns due to hot residues! The paper used for cleaning may contain hot residues. The paper is very hot immediately after cleaning. When removing the paper, only touch the cooled end.

Attention! Material damage due to improper operation! Remove all staples and paper clips before laminating or cutting.

Attention! Material damage due to improper operation! Only use paper and laminating films that fulfil the requirements under Technical data.

Attention! Material damage possible! If the product exhibits unusual characteristics such as noise, odour or smoke, disconnect the power supply immediately.

Instructions for use

Please read these operating instructions before connecting and using the product. Keep these operating instructions for future reference. Hand over all documents when passing the product on to third parties.

• Protect the product from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• Do not cover the product during operation.
• The product is not intended for commercial use.
• The product may only be used indoors.
• Only connect the appliance to a professionally installed socket. Observe the information under Technical data.
• Only use accessories that fulfil the requirements under Technical data.
• Disconnect the appliance from the power supply when not in use to prevent accidental operation.
• Do not leave the appliance unattended during operation.
• Ensure that the appliance is not used unsupervised by children or persons with reduced physical, sensory or mental capabilities.
• The appliance is not suitable for continuous operation.
• The appliance does not have an automatic switch-off function. Switch off the appliance after the laminating process, disconnect the mains plug from the socket and allow the appliance to cool down.

Installation site

Place the appliance on a stable, level surface near a power socket.

Scope of delivery

1 Laminator A 260 Combo 5in1 1 corner rounder (enclosed)
5 laminating films (A4, 80 micron) 1 Operating instructions

Product overview

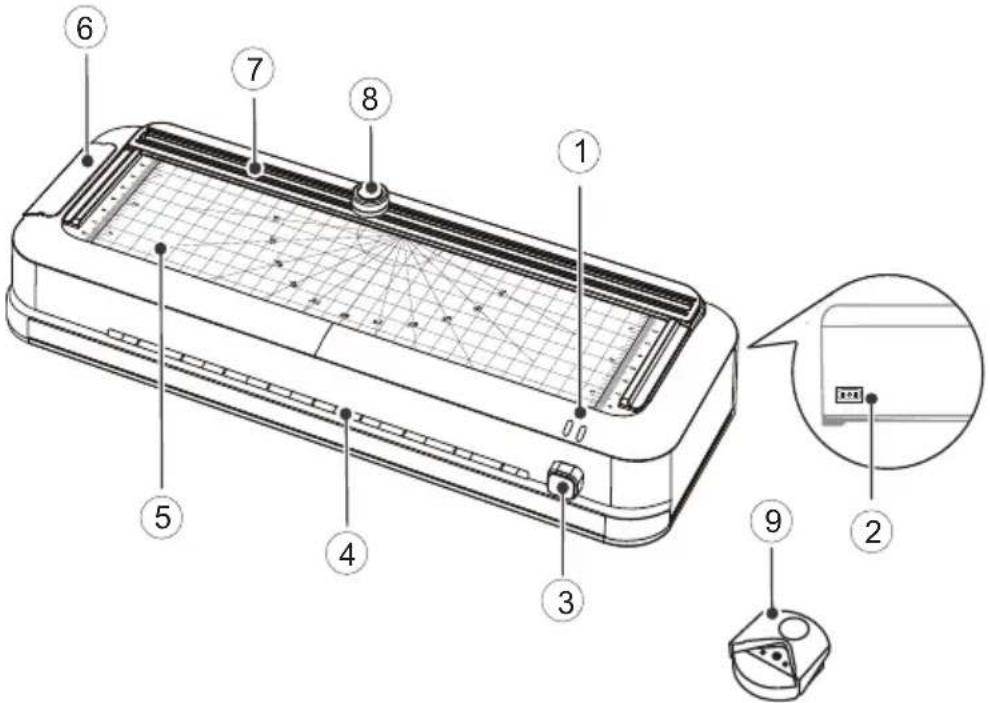

1 LED indicators (red/green) 6 Punch
2 Two-stage on/off switch (125 Mic / OFF / 80 Mic) 7 Guide rail
3 Anti-lock button (ABS) 8 Cutting head
4 Catchment area for laminating 9 Corner rounder
5 Guide lines in cm, degrees and inches

Functions

Hot lamination (80 mic or 125 mic)

Use the desired function to laminate paper, craft cardboard or photo paper with a maximum thickness of 0.3mm . During hot lamination, a permanent bond is created between the material inserted in the laminating film and the laminating film. The laminating film is fed through a double roller system by the integrated transport rollers at a speed of 300~mm / min . During this process, the laminating film is heated up to 120^ .

Cutting

Use the integrated cutting rail to cut paper, film, craft cardboard or photo paper with a maximum thickness of 0.3mm . If necessary, use the guide lines for cm, degrees or inches.

Punch

Use the integrated hole punch (hole spacing 80~mm ) to punch holes in paper, film, craft card or photocopaper with a maximum thickness of 0.3mm .

Corner rounder

Use the enclosed corner rounder to round the corners of paper, foils, craft cardboard or photo paper with a maximum thickness of 0.3mm .

Note: Observe the information under Technical data for all functions.

Notes on the material

• Do not laminate metallic, wet or uneven materials.
  The material to be laminated together with the laminating film must not be thicker than 0.3mm
• Laminate thin and soft materials with thicker laminating film (125 micron).
• Do not use several small pieces of material per film.

Notes on laminating film

• Only use film types intended for lamination.
• Other types of film, such as transparent film, are expressly not suitable for lamination.
• Select the size of the laminating film to suit the material to be laminated.

Notes on the laminating process

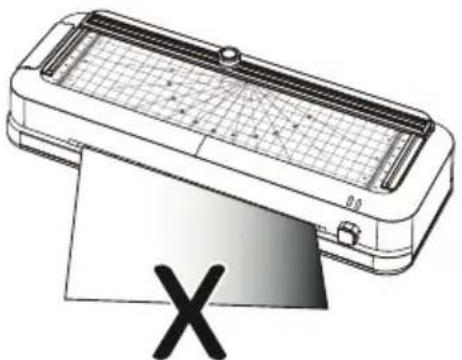

• Do not insert laminating film without contents into the feed area (front) of the laminator.
• Do not insert the laminating film rolled up into the feed area (front) of the laminator.
• Do not insert the laminating film on one side into the feed area (front) of the laminator.
• Always insert the laminating film with the closed side first - centred and in a straight line - into the feed area (front) of the ready-to-use laminator.
• Do not pull the laminating film out of the output side (reverse side) during lamination.

Laminating

Warning! Danger due to unexpected start-up! Make sure that the appliance is switched off before connecting it to the mains.

1 Connect the power plug to a properly installed socket.

Note: Select the 80 Mic function for laminating a laminating film with a thickness of 80 microns or select the 125 Mic function for laminating a laminating film with a thickness of 125 microns.

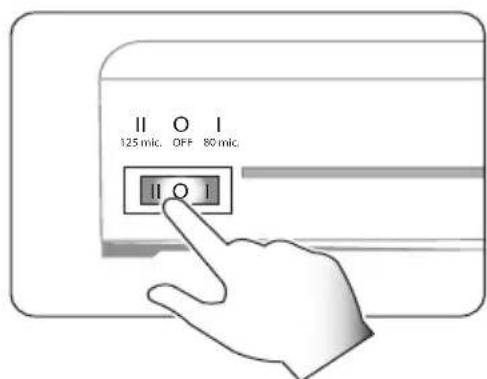

2 Set the two-stage on/off switch to the desired function.

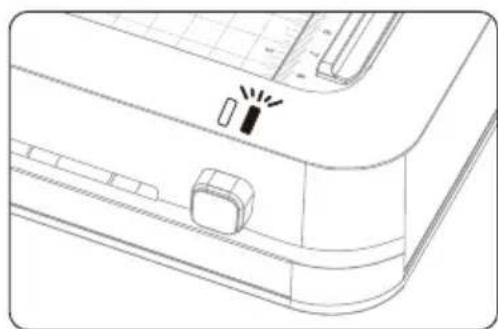

3 The LED indicators light up red (Power and Ready). The device is not yet ready for operation! The appliance heats up.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Note: Wait until the appliance is fully heated up. Do not insert the laminating film beforehand, as this will prevent it from fusing properly.

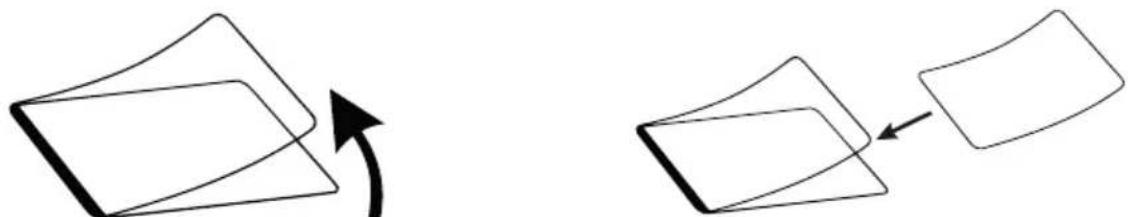

4 Place the document to be laminated in the laminating film.

Note: Make sure that there is a gap of approx. 3 - 5 mm to the edge of the film on all sides.

Attention! Material damage possible! Only use laminating films that are suitable for hot lamination.

5 After approx. 4 minutes, the LED display lights up green (Ready) and the appliance is ready for operation.

Attention! Material damage possible! Never insert the foil pouch into the feed area at an angle.

Attention! Material damage possible! Always insert the closed end of the film pouch into the feed area of the laminator first.

Note: Make sure that the laminating film can be dispensed from the back of the device.

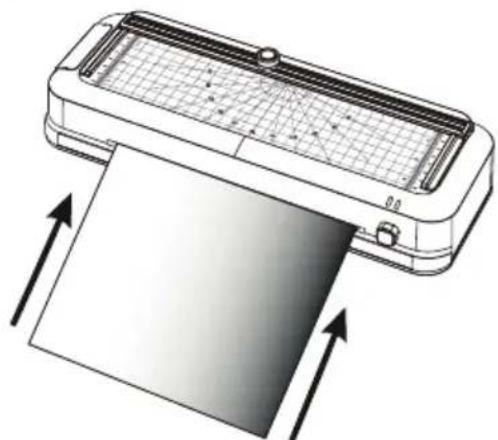

6 Guide the laminating film with the closed side straight into the feed area until the laminating film is caught by the transport rollers.

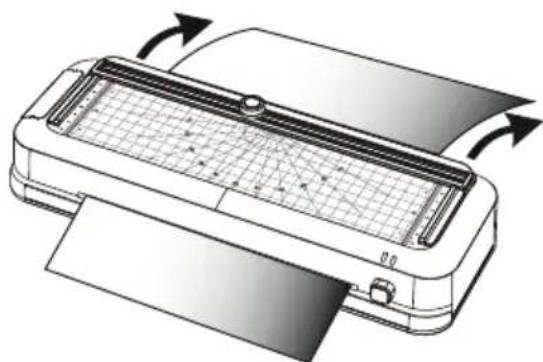

7 The laminating film is automatically pulled through the device.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns from hot laminating film! The laminating film is very hot immediately after lamination. When removing the laminating film, only touch the cooled end.

8 Remove the laminating film at the cooled end.

Tip: To flatten the laminated document, place a book or similar heavy, flat object on top of it.

9 Switch the device off (OFF).

Note: Allow the laminating film to cool before further use.

Release jammed laminating film

You can use the anti-jamming button (ABS) to release jammed or incorrectly inserted film.

1 Switch off the appliance (OFF) and disconnect the mains plug from the socket.

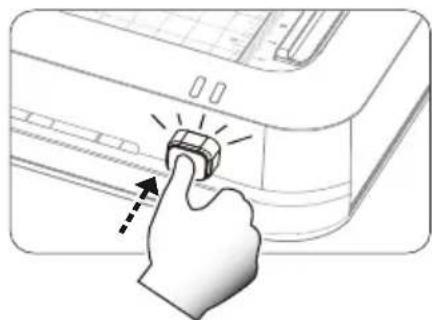

2 Press and hold the ABS button.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns from hot laminating film! The laminating film is very hot immediately after lamination. When removing the laminating film, only touch the cooled end.

3 Hold the laminator in a suitable position and pull the laminating film out of the feed area.
4 Release the ABS button.
5 Then clean the transport rollers. Follow the instructions under Cleaning.

Cutting

Use the cutter for a straight cut of paper, cardboard, photo paper or laminating film.

Note: Please note the maximum capacity of 0.3mm . This corresponds to about 3 sheets of paper (80g / m^2 each).

1 Slide the cutting head onto either side of the guide rail.

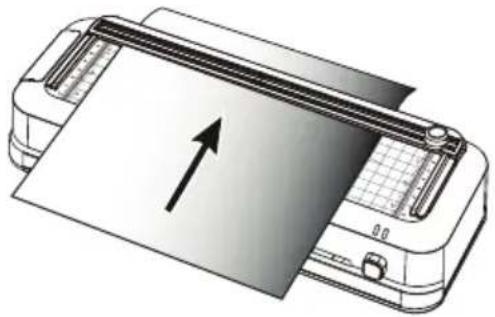

2 Slide the material to be cut to the desired position under the guide rail.

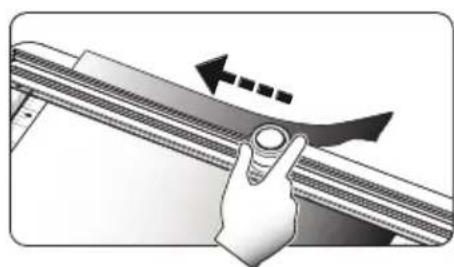

3 Hold the cutting button down and push the cutting head on the guide rail to the other side.

Note: Remove the cut material immediately after completing the cut. Do not push the cutting head back again once the material has been inserted in order to avoid a faulty cutting edge.

Punch

Use the hole punch to punch holes in paper, card, photo paper or laminating film.

Note: Please note the maximum capacity of 0.3mm This corresponds to about 3 sheets of paper (80~g / m^2 each).

1 Place the material in the hole punch.
2 Press the hole punch down.

Emptying the hole punch

Open the cover on the underside of the appliance and empty the compartment.

Corner rounder

Use the enclosed corner rounder to punch the corners of paper, card, photo paper or laminating film.

Note: Please note the maximum capacity of 0.3mm . This corresponds to about 3 sheets of paper (80g / m^2 each).

1 Slide the material into the corner rounder. Ensure that the edge of the material is correctly aligned.
2 Press the corner rounder downwards.
3 Repeat the process at each corner that is to be rounded.

Cleaning

Housing

Clean the outside of the appliance with a soft, dry, lint-free cloth. Do not use any cleaning agents or solvents.

Transport rollers

Clean the transport rollers if you have removed a jammed laminating film or if the output laminating film contains adhesive residue.

1 Switch the appliance to 80 Mic using the on/off switch.
2 Feed a sheet of paper straight into the feed area until the paper is caught by the transport rollers.
3 The paper is automatically pulled through the device. Adhesive residue on the transport rollers is absorbed by the paper.

4 Remove the paper at the cooled end.
5 Repeat the process with a clean sheet of paper until there are no more adhesive residues on it.

Troubleshooting

Malfunction Solution

The device does not start Check that the mains plug is plugged in correctly.

The appliance does not heat (any more) If the temperature is too high, the overheating protection function switches on automatically. Allow the appliance to cool down sufficiently.

The device does not laminate or does Check whether you are using the correct function depend- not laminate correctly ing on the laminating film used (80 mic or 125 mic). Clean the transport rollers.

The blade of the cutting head does not check the material to be cut and the maximum capacity. cut or does not cut properly Check whether there is any material residue under the guide rail.

The hole punch does not punch correctly. Check whether the compartment on the underside of the appliance needs to be emptied.

The corner rounder does not punch Check whether there are any material residues in the correctly corner rounding.

Notes on disposal

Find out about the options for taking back old appliances free of charge from your dealer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1-7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

The adjacent symbol means that old electrical and electronic appliances must be disposed of separately from household waste in accordance with legal regulations. Dispose of your appliance at the collection point of your municipal waste disposal organisation.

Technical data

Input voltage 220 - 240 VAC 60 Hz

Performance 100 W

Weight 1.01 kg

Dimensions (W× H× D) 380× 75× 140mm

Laminating max. 230~mm wide

Laminating film 80 / 125 micron

Laminating speed 300 mm/min.

Maximum capacity for all functions

0.3 mm (corresponds to approx. 3 sheets of paper (A4 80 g/m² each) or 1 laminating film (80 micron) incl. 1 sheet of paper (A4 100 g/m² each)

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

GS mark

中

The «Geprüfte Sicherheit» mark (GS tested safety mark) certifies that the product satisfies the requirements defined by the German Product Safety Act (ProdSG). The GS tested safety mark indicates that when implemented for its intended use and in the event of foreseeable misuse the identified product will not endanger the safety and health of the user. It concerns a voluntary safety mark which was issued by an authorized testing institute.

Declaration of Conformity

We, GO Europe GmbH, Zum Kraftwerk 1, 45527 Hattingen, GERMANY, declare under our sole responsibility that the product complies with EU directives: 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity can be found at the following Internet address or by scanning the QR code.

The CE mark on the device confirms conformity. The declaration of conformity can be found at: http://productip.com/?f=2c8bdd

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen, Germany

www.go-europe.de

[e-mail]
