Feature	Details
Product type	Rowing machine
Dimensions	Length: 210 cm, Width: 60 cm, Height: 80 cm
Maximum user weight	150 kg
Resistance system	Air resistance
Display	LCD screen with tracking of time, distance, calories, and stroke count
Materials	Steel frame, sturdy plastic seats
Usage	Suitable for home training, improves endurance and muscle strength
Maintenance	Regularly check bolts and screws, lubricate rails
Safety	Use on a flat surface, do not exceed maximum weight
Warranty	2 years on parts
Included accessories	User manual, assembly tools

Frequently Asked Questions - Motalla Skandika

How do I assemble the Skandika Motalla rowing machine?

To assemble the rowing machine, follow the instruction manual provided in the box. Make sure you have all the necessary tools and follow each step in the indicated order.

What is the maximum weight supported by the Skandika Motalla?

The Skandika Motalla rowing machine can support a maximum weight of 120 kg.

How do I adjust the resistance of the rowing machine?

The resistance can be adjusted using the adjustment knob located on the control panel. Turn the knob clockwise to increase resistance and counterclockwise to decrease it.

How do I maintain the Skandika Motalla?

To maintain the rowing machine, regularly clean the rail and handles with a damp cloth. Also check the screws and bolts to ensure they are tight.

What should I do if the display screen is not working?

First check that the display batteries are in good condition. If the problem persists, try unplugging and plugging back in the power cable or resetting the device.

Is the Skandika Motalla suitable for beginners?

Yes, the Skandika Motalla is designed to suit all skill levels, including beginners. You can adjust the resistance to match your training level.

Can I use the Skandika Motalla on an uneven floor?

It is recommended to use the rowing machine on a flat and stable surface to avoid imbalance. If the floor is uneven, consider using shims to stabilize the device.

How do I store the Skandika Motalla?

The rowing machine can be folded to facilitate storage. Make sure to store it in a dry and cool place, away from moisture.

USER MANUAL Motalla Skandika

skandika.com/service

A	B	C
D	E	F
G	H	I
J	K	L

20 Safety precautions
21 Checklist
22 Set-up instructions
25 How to fill/empty the tank
26 Transportation & Storage
27 Computer instructions
29 Connecting to Kinomap app
30 Using a chest belt
31 Parts list
32 Explosion drawing
33 Warm-up and cool-down
33 Exercise instructions
35 Cleaning & care
35 Guarantee conditions

skandika.com/service

Please visit the Skandika Service portal on our website for setup & help videos, FAQs and downloadable instructions. For more information about Skandika, simply visit our main page www.skandika.com

WARNING

To reduce risk of injury, read and understand this instruction manual before using the device! This machine is intended for home use only in accordance with the instructions provided in this manual. Read the instruction manual carefully before using this device and keep the instruction manual for future use.

SAFETY PRECAUTIONS

1. Only use the unit in enclosed spaces!
2. Place the device on a solid and level and surface only. Use a floor protection to avoid traces through the device's feet.
3. Only assemble the unit as specified in these instructions. The unit must not be modified.
4. Wipe off any sweat with a soft, absorbent cloth at the end of training. Do not use aggressive solvents or hard brushes.
5. Only use in cool, dry environments. Do not store in extreme cold, hot or damp places.
6. Cleaning and user maintenance may not be carried out by children without supervision.
7. Before starting any exercise program, consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician's advice is essential if you are taking any medication that may affect your heart rate, blood pressure or cholesterol level.
8. Your health can be affected by incorrect or excessive training. Consult a doctor before beginning a training program. If you experience dizziness, nausea, chest pain or any other abnormal symptoms, STOP the workout immediately. CONSULT A PHYSICIAN IMMEDIATELY.
9. Keep children and pets away from the appliance. This device is suitable for adult use only.
10. Do not leave children unattended in the same room with the machine.
11. Before using the equipment, check if all nuts and bolts are securely tightened. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
12. Never use the unit if it is damaged.

13. Do not place fingers or objects in the range of moving parts of the device.

14. Before using the machine to exercise, always do stretching exercises to properly warm up.

15. Increase speed intensity and duration gradually.
16. The HB class unit may only be used by one person at a time (max. weight load = 150kg ).
17. Do not use this device directly after meals or drinks. Never use the device under the influence of drugs, alcohol or medication that causes disorientation.
18. This device is not suitable for therapeutically or commercial use. Only use this unit according to the intended purpose and as directed in the instruction manual.
19. Set aside any jewelry, watches, or other items such as cell phone, keys, or knives before exercising on this unit. There is a risk of accident or injury!

20. Please do not attempt to repair the unit yourself in the event of malfunctions, since this will void all warranty claims. Only have repairs carried out by authorised service centres. Only original spare parts may be used.

21. Please only exercise with a minimum clearance area of 2 meters around the device.

22. Always wear appropriate clothing and shoes which are suitable for your workout on the device. The clothes must

be designed in a way so that they will not get caught in any part of the device during the work-out due to their form (for example, length). Be sure to wear appropriate shoes which are suitable for the work-out, firmly support the feet and which are provided with a non-slip sole.

Be sure to consult a physician before you start any device program. He may give you proper hints and advice with respect to the individual intensity of stress for you, your workout and sensible eating habits. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

A	B	C
D	E	F
G	H	I
J	K	L

Fig. Description Q'ty
A Base unit 1
B Rail 1
C Front stand 1
D Rear stand 1
E Seat unit 1
F Console 1
G Console fixing 1
H Stopper 2
I Siphon pump 1
J Component bag		1 set
K Manual		1
L Footrest		1 set

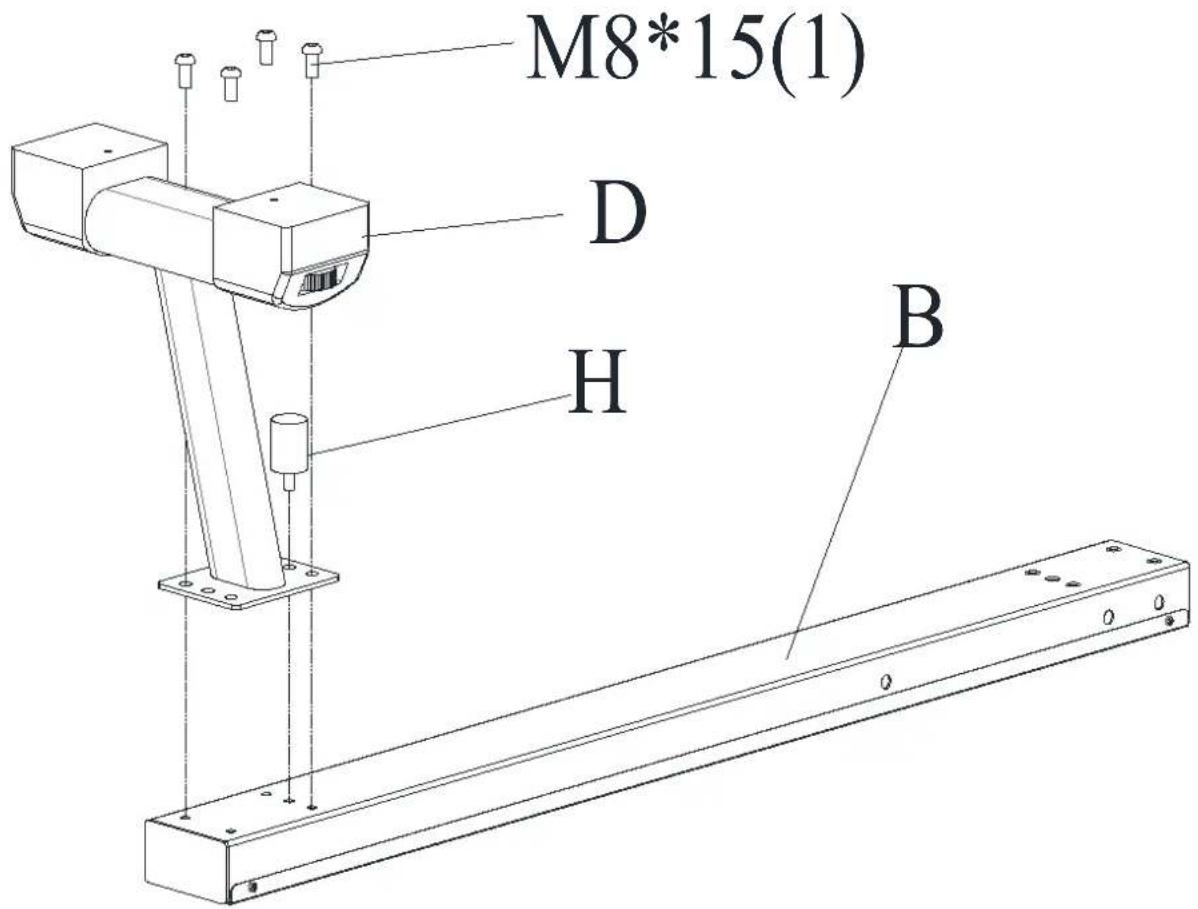

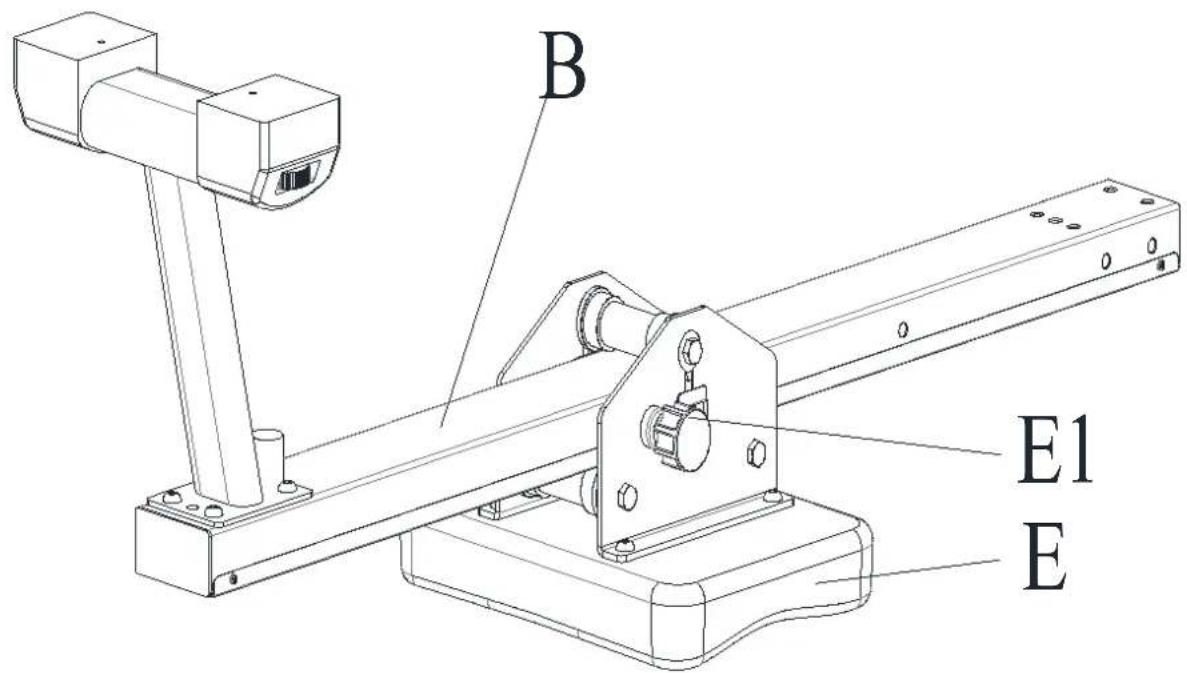

STEP1

1. Remove the appliance from the box and put all parts on the floor.
2. Attach the rear stand (D) to the rail (B) with 4 screws M8×15 (1).
3. Screw a stopper (H) into the rail (B) as shown.
4. Slide the seat (E) onto the rail (B). Note: Pull out the locking pin (E1) and turn it to the UNLOCK position before sliding the seat onto the rail (B). This allows the seat to slide freely. When assembling the seat, make sure that the arrow on the seat points forward in the direction of the water tank.

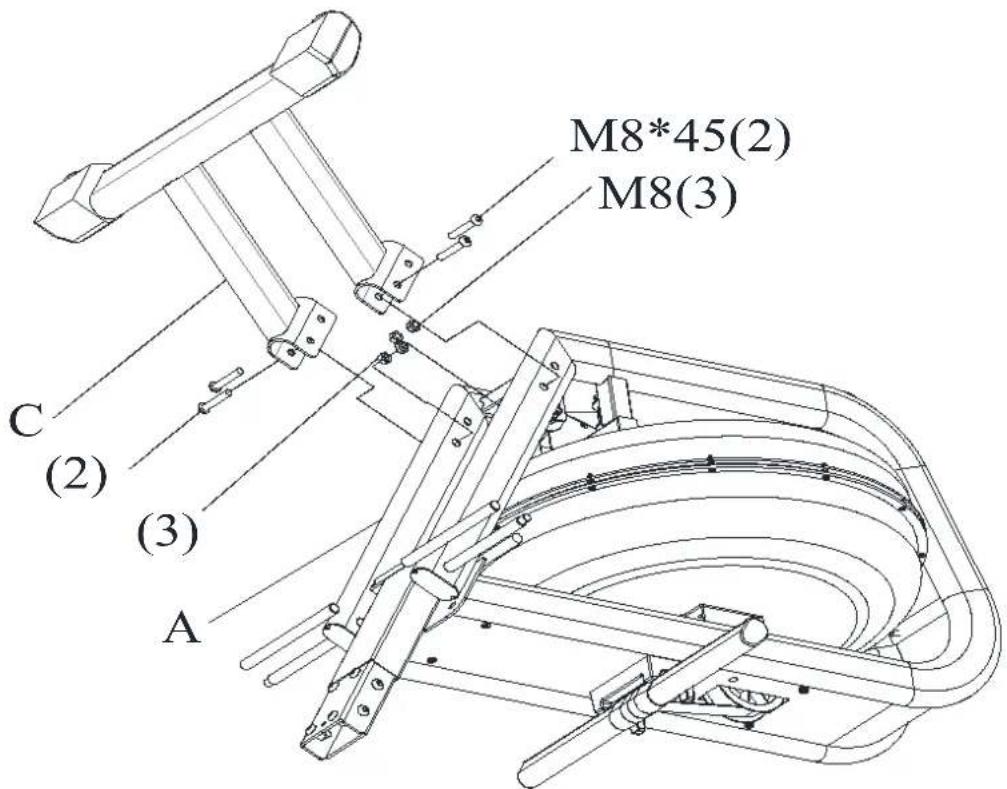

STEP2

Secure the front stand (C) to the unit base (A) with 4 screws M8 × 45 (2) and 4 nuts M8 (3).

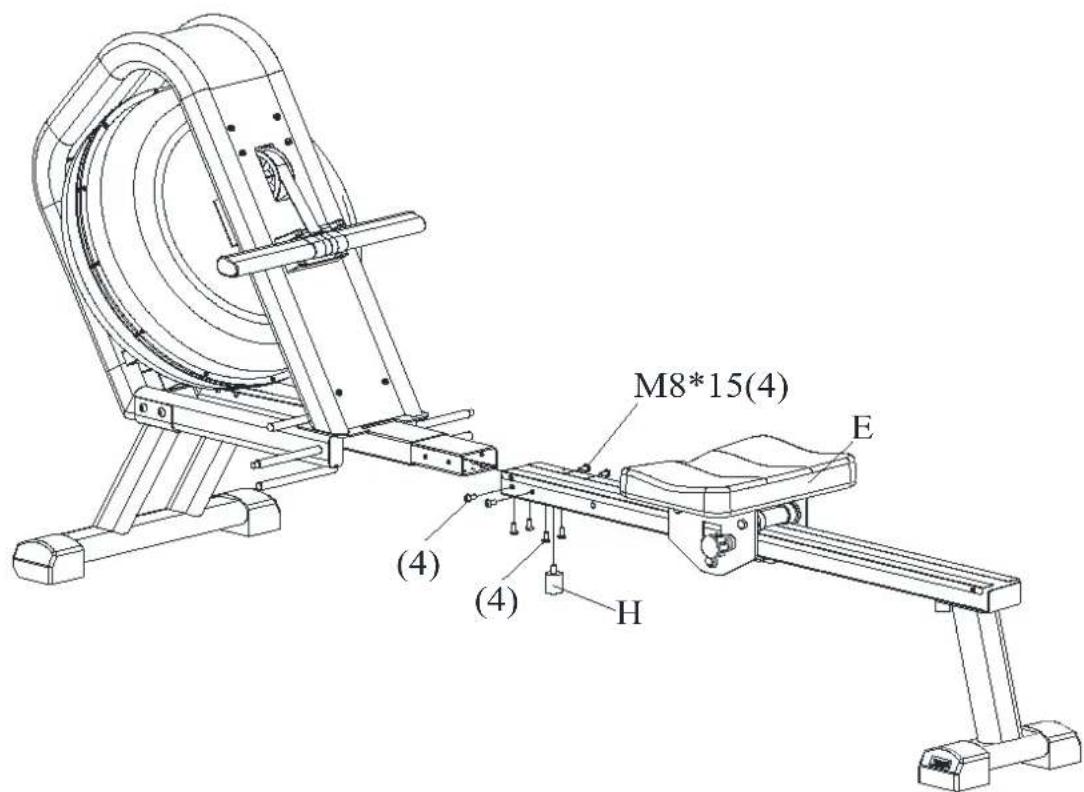

STEP3

Connect the two parts of the device with the M8 x15 screws (4) as shown and fix the second stopper (H) to the rail.

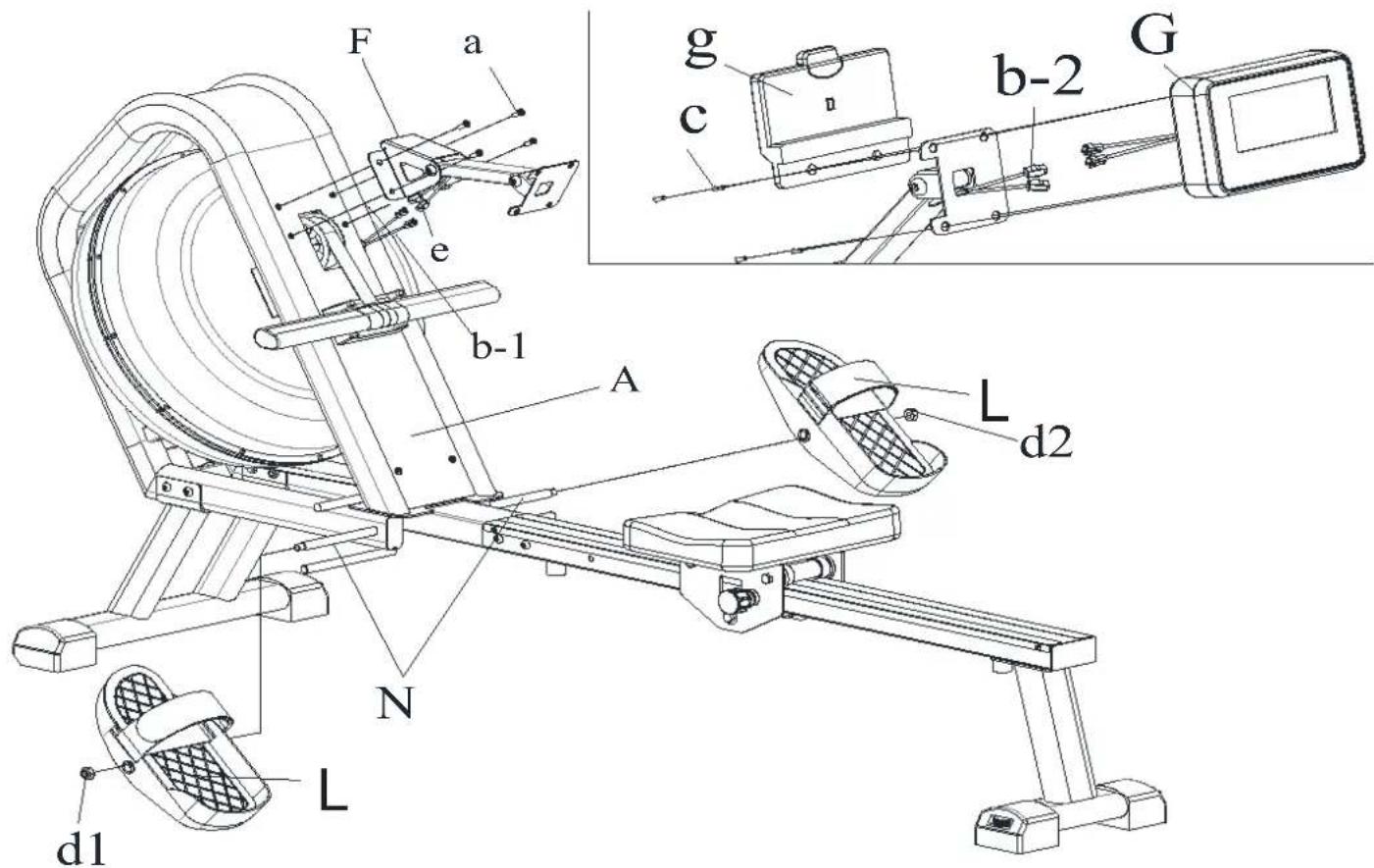

STEP4

1. Connect the cables (b-2) to console (G) and carefully attach the console bracket (F) to the unit with the screws (a).
2. Fix console (G) and tablet holder (g) with the screws (c).
3. Connect the cable ends (b-1) and (b-2).
4. Mount the two footrests (L) with the nuts (d1 / d2) on both sides of the bar (N).

Note: The tablet holder (g) has a cord with a retaining clip in which you can fix your tablet or smartphone. The holder supports devices with display sizes up to approx. 10 inches (25.4 cm).

Make sure that all connections are correctly tightened before using the unit.

HOW TO FILL / EMPTY THE TANK

1. Remove the plug (M) from upper tank.

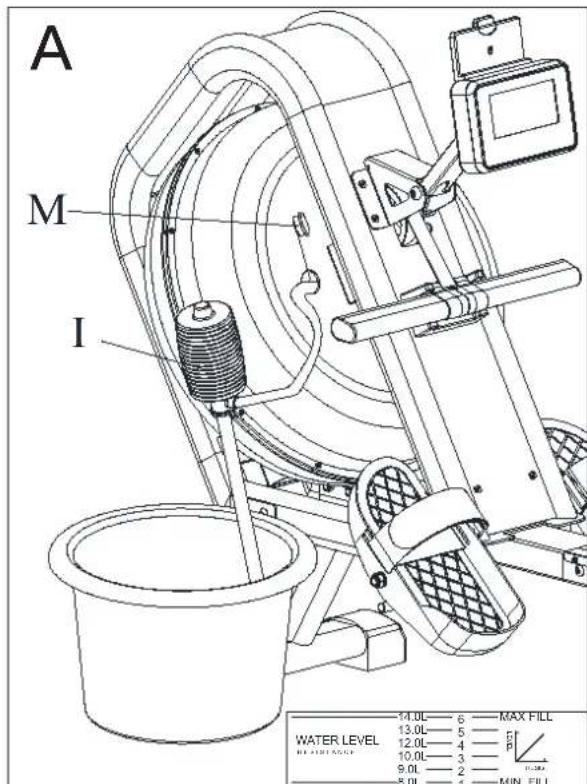

2. Fig. A shows how to fill the tank with water. Use the supplied siphon pump (l) and a bucket of water to fill the tank. The pump is placed in the bucket of water and the flexible hose must go into the water tank. Ideally, the bucket of water should be higher than the water tank of the appliance. Pay attention to the filling quantity, which is indicated on the side wall of the tank by the level indicator.

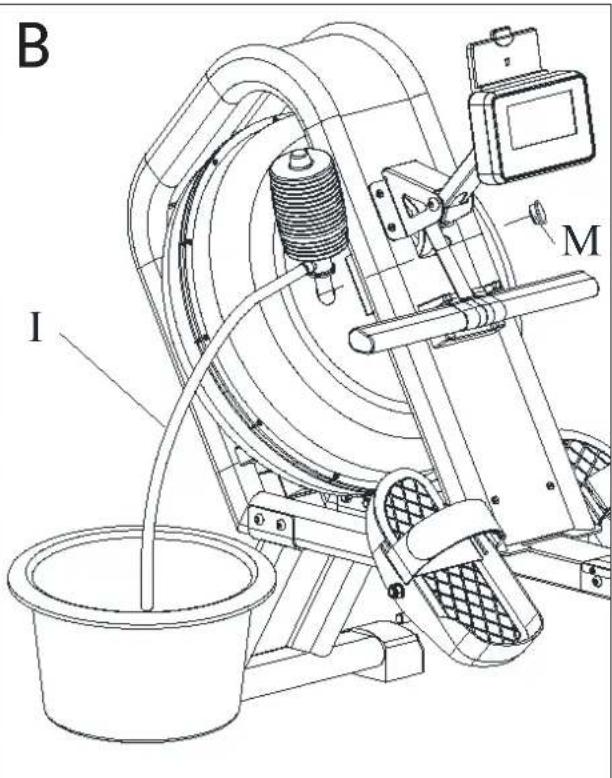

3. Illustration B shows how to empty the tank. Place a bucket next to the device. Use the syphon pump (I) to pump out the water from the tank into the bucket.
4. Once completed, re-insert plug (M) into the upper tank. Wipe away excess water from the frame.

NOTES:

• The tank may be filled with tap water or distilled water. Add a water purification tablet if necessary. Never use chlorine or chlorine bleach - this could damage the tank and lead to cancellation of the warranty.
  Depending on the environment of the installation site and the frequency of use, the water should be changed regularly, but at the latest every 6 months or if there are signs of discolouration, bacteria or algae, etc. Use distilled water if possible!
• Never expose the tank to direct sunlight and empty it if it is not going to be used for a long time.
  Water purification tablets (enclosed) are suitable for keeping the water clean. One tablet is sufficient for the maximum filled water tank. Stir the water well after adding one tablet. Add one tablet to the tank about every 2-3 months.
• The water from the tank is not suitable for consumption. After emptying, pour the water away.

The water level

• Fig. A shows the fill level indicator. You may fill the tank to a maximum of filling level 6 (approx. 14 litres). Never overfill the tank beyond this! This will invalidate the warranty.
• The resistance when rowing depends on the level of the tank. Level 1 means the lowest resistance when rowing, level 6 is the highest resistance.

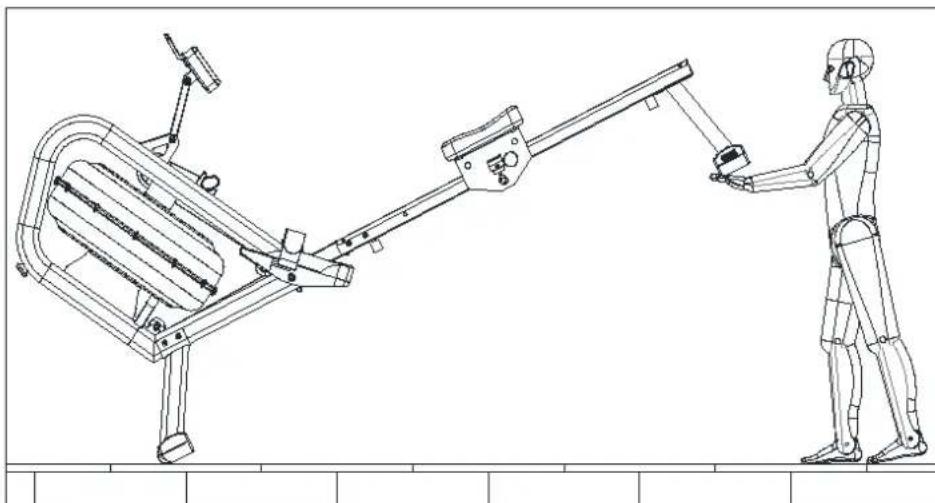

TRANSPORTATION & STORAGE

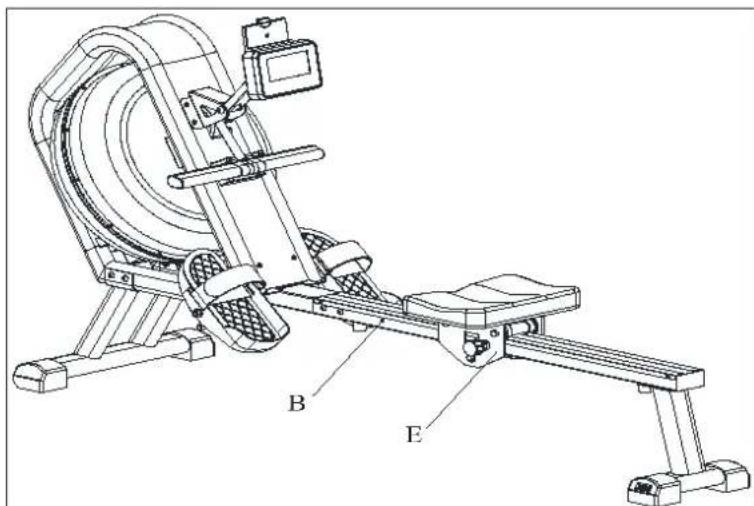

To move the unit, slide the seat (E) forward and lift the rear stand as shown until the transport wheels at the front touch the floor. This allows you to easily roll the unit from place to place.

ATTENTION! Moving parts such as the seat (E) could cause injury by slipping.

Do not touch the running rail (B) when moving or exercising on the unit!

The unit should only be stored in a clean, dry and temperature-controlled environment. Empty the tank and remove the batteries if you do not use the unit for 1 month or longer.

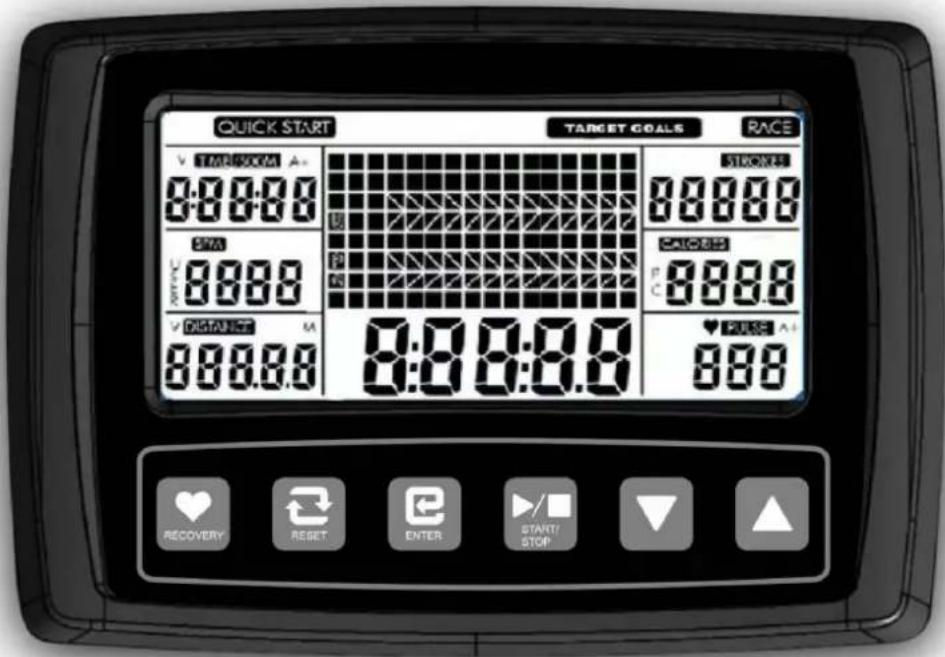

COMPUTER INSTRUCTIONS

BATTERIES:

The computer requires 2 AA batteries (supplied). If the batteries are changed, all settings will be lost. If there is a display problem, change the batteries first. Always change both batteries at the same time and do not mix different types of batteries. Only use new batteries and do not use an old and new battery together. Always dispose of batteries in accordance with the applicable legal regulations.

Function keys:

RECOVERY: Activates the RECOVERY PROGRAM that will automatically evaluate your fitness immediately after your work out.

RESET: Press to return to main menu or to set the value to 0 during an input procedure. Press and hold for approx. 3 seconds to set all values to 0.

START / STOP: Starts or stops a workout.

ENTER: Confirms a selection or a set value. During workout this buttons switches to another function to display.

Arrow keys: Press these two buttons to scroll through available selections. You can also adjust function values with these buttons.

FUNCTIONS

TIME: Exercise time. You can use the arrow keys to set a default time in 1-minute increments (1min ~ 99 min).

TIME / 500M: Display of the average time for 500 metres of rowing.

SPM: Rowing strokes per minute (stroke frequency).

DISTANCE: Rudder distance. You can use the arrow keys to set a default distance in 100-metre increments (0 ~ 99,900 m).

STROKES: Display of the number of strokes.

CALORIES: Displays the approx. calorie consumption. You can use the arrow keys to set a default calorie count in increments of 50 (~5,000 kcal).

PULSE: The computer displays the user's pulse rate during training (a suitable SKANDIKA chest belt must be worn for this - this is included in the scope of delivery). A pulse setting of 90 to 200 heartbeats per minute is possible (H.R.C.) - when the set heart rate is reached, the computer will emit a corresponding, acoustic signal.

A+: Shows the average values of time, calories and heart rate.

COMPUTER OPERATION

After inserting the batteries, all indicators on the display light up for approx. 2 seconds. Then the computer automatically switches to the mode selection where you can choose between "QUICK START" (manual mode), "TARGET GOALS" (target value training) or "RACE" (race mode). Select the desired mode with the arrow keys and confirm with ENTER. If you want to select a new mode later, press and hold the RESET button for approx. 3 seconds, then you can select a new mode with the arrow buttons.

QUICK START (manual mode)

You can start training directly in manual mode (.,START"). The function values change as the training progresses. If you want to stop the training, press ,STOP".

TARGET GOALS

Here you can set target values for certain functions (time / distance / calories / pulse) before the training. After selecting the mode, the training time (TIME) flashes. You can set a preset time with the arrow keys and ENTER or simply press ENTER to move to the next preset option. This allows you to preset either the time, distance, calories or heart rate. Press START to start the training. After the preset time has elapsed or when STOP is pressed, the training stops.

RACE

After selecting the mode, please use the arrow keys to select a race variant (see the following table) from L1... to L15. Then press ENTER to set a distance. Finally, press START/STOP to start the race. The display now shows the user and a virtual opponent (U = user; PC = computer) - depending on who reaches the finish first causes the programme to stop. With ENTER you can switch through various displays during the race. In the race programme, only the distance can be preset, the time/500m is preset depending on the level selected:

L1 8	00
L2 7	30
L3 7	00
L4 6	30
L5 6	00

At the end PC WIN" (computer has won the race) or "USER WIN" (user has won) is displayed. By pressing START you can run through the race again. RESET ends the race mode.

RECOVERY (PULSE RECOVERY):

With this special function, you can check your hearts recovery rate after a training session. This is a very important indication for the physical condition of your body. Try to improve your recovery rate with regular training sessions. The aim is, to calm down to a normal pulse frequency (frequency, when you are not in motion) as quickly as possible.

To use this function, you must wear an additional chest belt. The computer is equipped with a built-in receiver for wireless pulse frequency transmission using the SKANDIKA chest belt (frequency: 5.3 kHz, chest belt included in scope of delivery). Recommended range: 100 - 150 cm. Follow the instructions for the chest belt.

After you have completed the training, please keep the chest belt on and press "RECOVERY".

The computer will start to countdown 60 seconds. During this period the computer will constantly measure your heart rate through the hand sensors. After this minute, your recovery rate will be displayed on the display. The range is F1.0 to F6.0, whereby F1.0 is very good and F6.0 is insufficient. Improve your value by intense and regular training! Press "RECOVERY" again to exit the heart rate measurement.

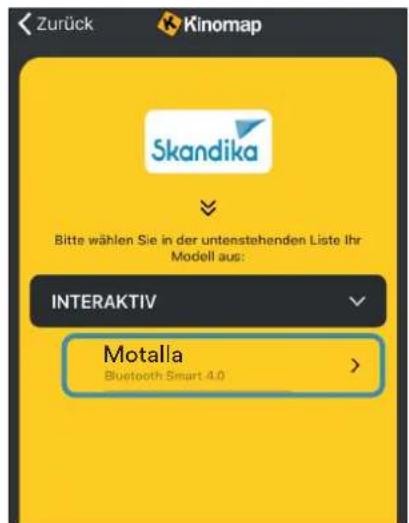

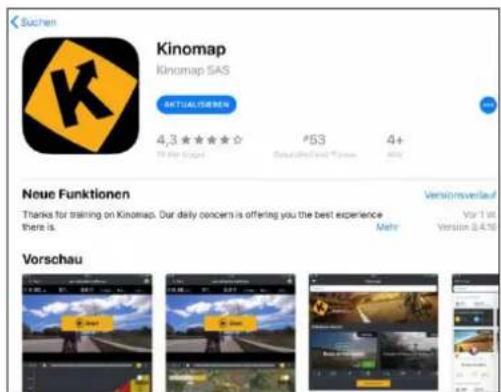

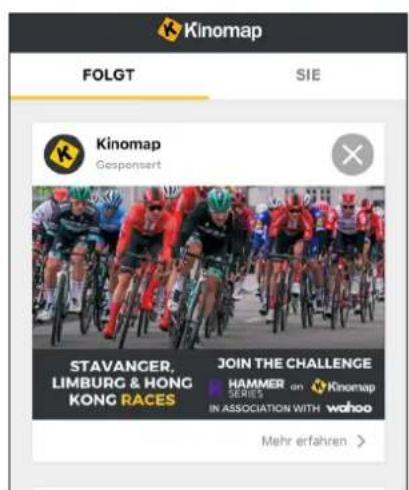

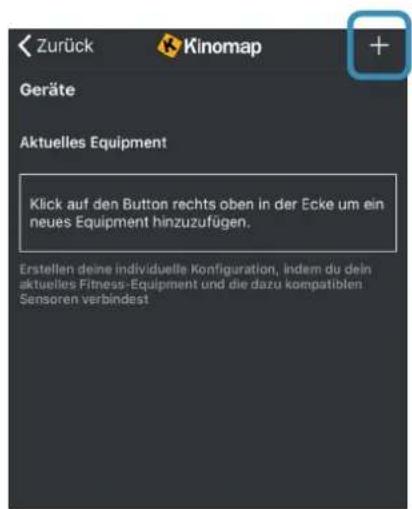

KINOMAP

The free KinoMap app turns your device into a powerful and fun fitness product! Choose from the geotagged video on Kinomap and go! Your position is shown in the video and as icon on the map. Download the Kinomap Fitness app in the app or play store by searching for 'Kinomap Fitness' or follow one of the links below.

Install and open the app and register resp. log in. Activate Bluetooth. Now add the training device as follows:

1.

2. Tap on _3^ +

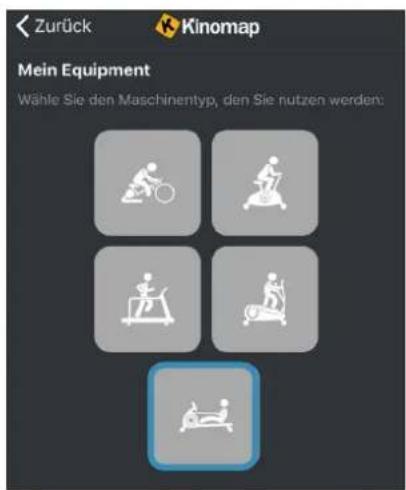

3. Rower

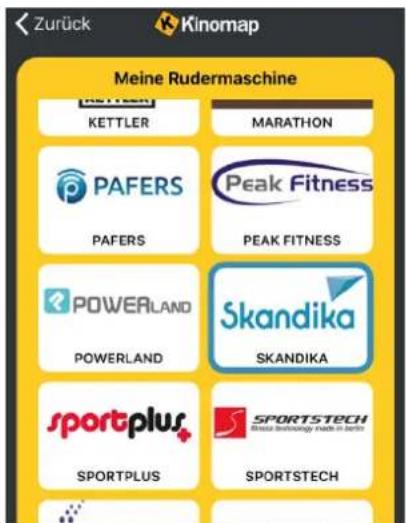

4. Select Skandika

5. Tap on the device

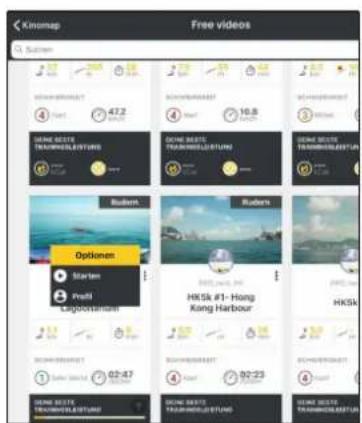

Now tap on OK and return to main menu. You can now choose a course for your exercise (depending on your type of KinoMap account maybe only some free courses). Press Start and begin to exercise!

Using a chest-belt

The computer is equipped with a built-in receiver for the wireless receipt of the pulse frequency with a compatible SKANDIKA chest-belt (frequency: 5.3 kHz, chest belt included in scope of delivery). Recommended range: 100 - 150 cm.

If you want to transmit your pulse frequency via chest-belt, follow these instructions:

1. Make sure, the correct battery is inserted into the chest belt (button cell of type CR-2032, 3 volts). Battery replacement: Open the battery case cover on the back side of your transmitter (you may use a coin for easier handling) and replace the old battery by a fitting new one. The "+" symbol should point upwards. Make sure, the sealing ring ist correctly placed. Close the case cover properly.
2. The transmitter needs to be attached to the belt with the 2 buttons. Moisten the electrodes slightly before wearing the belt. This increases the contact sensibility and enables a better wireless signal transmitting.
3. Put on the chest belt and make sure the electrodes are touching your breast directly. You may adjust the belt to a comfortable length. However, the electrodes must have contact with your skin in order to measure your heart rate correctly.
4. The 5.3 kHz-chest-belt communicates with the computer via the built-in receiver. It may last up to one minute before a correct display can be seen.

Safety hint:

Do not use the chest-belt if you have a pacemaker, unless you double-checked with the producer of the pacemaker and with your doctor!

Battery-Disposal:

Batteries should not be considered as regular garbage. As consumer you are obliged to return finished batteries. The finished batteries can be returned to a collection base at your residential area or at places, where batteries can be bought.

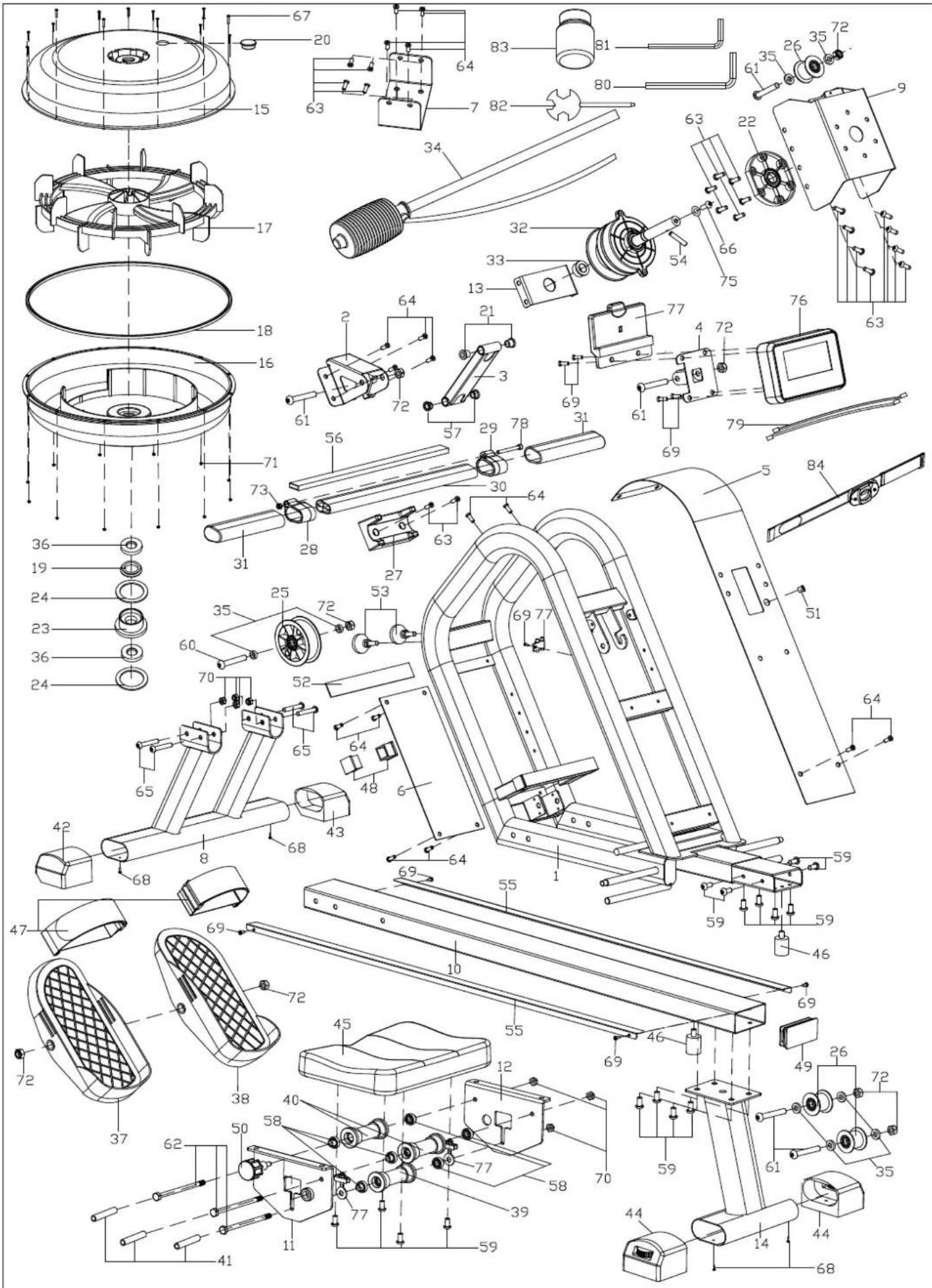

Part no.	Description Specification	Q'ty
1 Main Frame 1
2 Console post 1
3 Console bracket 1
4 Console fixing 1
5 Front cover plate 282.5*129*ø1.5 1
6 Rear cover plate 861*129*ø1.5 1
7 Water tank fixing plate 277.5*129*ø1.5		1
8 Front stabilizer		1
9 Tank fixing		1
10 Rail Tube		40*80*1050	1
11 Left side saddle fixing			1
12 Saddle post		Assembly	1
13 Upper fixing seat		ø1.5	1
14 Rear stabilizer		ø3	2
15 Tank top cover		ø518*100	1
16 Tank bottom cover		ø518*100	1
17 Blade		ø462*124	1
18 Seal ring		ø501*7	1
19 Rubber		ø40*7	1
20 Plug		ø31.3*10.4	1
21 Shaft		ø18*ø10.2*13	2
22 Shaft 2		110*98*12	1
23 Rubber washer2		ø60*ø45*30	1
24 Rubber sealing gasket		ø60*ø45*Ø2 2
25 wheel		ø95*ø82*32	1
26 Little wheel		ø51*ø38*32	2
27 Left webbing fixing seat		108*60*50	1
28 Right webbing fixing seat		54*39*35	1
29 Handle bar fixing		54*39*35	2
30 Handle tube		40*25*390	2
31 PVC grip sleeve		ø29*ø23*187	2
32 Pullback device		ø110*220	1
33 Top bearing cover		ø20.5*3	1
34 Siphon pump		570	2
35 PVC casing 5		ø16*ø10.2*4.5	1
36 TC frame oil seal		ø20*ø40*8	2
37 Left pedal		305*125*85	2
38 Right pedal		305*125*85	1
39 Roller		ø42*ø33*91.4*80.8	1
40 Roller 2		ø38*ø33*91.4*82	1
41 Roller sleeve		ø12*ø8.2*77	1
42 Front foot sleeve (left)		40*80	2
43 Front foot pad (right)		40*80	1
44 Rear adjustable foot sleeve		40*80	2
45 Seat		PU320*260*52	1
46 Cushion		ø25*32*M8	2
47 Strip		50*500	2
48 End cap		25*25*1.5	2
49 End cap		40*80	1

Part no.	Description Specification	Q'ty
50	Bolt	ø38*67*M16*1.5	1
51	Wire plug 12	ø14.5*ø12*12 1
52	EVA pad	90*25*ø2	1
53	Foot pad	ø52*43*M8	2
54	Fixing pin	ø8*40	1
55	Edge strip	1046*38.7*Ø2	2
56	Reinforcing tube	20*10*1.5*370	1
57	Shaft sleeve	ø18*ø14*ø10*10	2
58	Bearing	608	6
59	Screw	M8x15xS5	16
60	Screw	M10x60x15xS6	1
61	Screw	M10x65x15xS6	5
62	Screw	M8x125x20xS14	3
63	Screw	M8x120x20xS14	20
64	Screw	M6x15xS5	10
65	Screw	M6x15xS5	4
66	Screw	M8x20xS5	1
67	Screw	M3x17xØ6	12
68	Screw	ST4.2x16xØ7	7
69	Screw	M4x6xØ7	9
70	Nylon nut	M8	7
71	Nylon nut	M3	12
72	Nylon nut	M10	8
73	Nylon nut	M6	1
74	Flat washer	d8xØ16x1.5	1
75	Component	M6*25	2
76	Console	TZ-8139	1
77	Console table		1
78	Console wire		1
79	Sensor wire	400	1
80	Allen wrench S5	S5	1
81	Allen wrench S4	S4	1
82	Allen	13 14 17	1
83	Water purification		1
84	Chest belt	5.3 kHz	1

WARM-UP and COOL-DOWN

A successful exercise program consists of a warm-up, aerobic exercise and a cool-down. Exercise for at least two or preferably three times a week, resting for a day between workouts. After several months, you may increase the frequency to four or five times per week.

WARM-UP

This stage helps to improve the blood circulation and prepares the muscles for your workout. It additionally helps to reduce the risk of injury or cramps. It is recommended to do some stretching exercises as shown here below. Hold each stretching position for approximately 30 seconds. Never force or jerk yourself into a stretching position – if you feel pain, STOP immediately. Warm-up exercises may also include brisk walking, jogging, jumping jacks, jump rope exercises or running in place.

STRETCHING

Muscles can be stretched more easily when these are warm. This reduces the risk of injury. DO NOT BOUNCE.

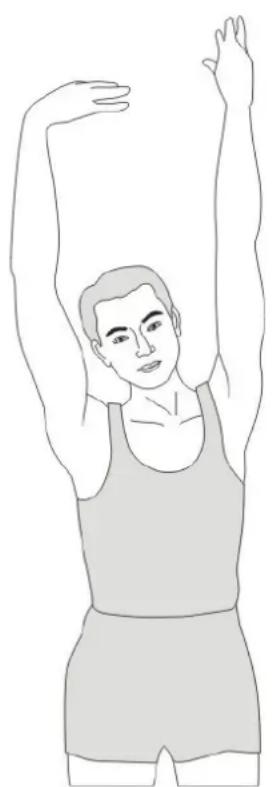

Side Stretch

Toe Touch

Inner Thigh Stretch

Hamstring Stretch

Remember always to check with your physician before starting any exercise program.

COOL-DOWN

This stage helps to soothe your muscles and your cardiovascular system after your workout. At the end of your workout, reduce the speed and exercise for approximately 5 minutes at this lower speed level. Afterwards, repeat the warm-up exercises as described above.

Exercise instructions

Rowing is a very effective form of exercise. It strengthens the heart and circulation as well as all the major muscle groups: The back, abdomen, arms, shoulders, buttocks and legs. To prolong the life of the band, return the handles to the starting position after each use.

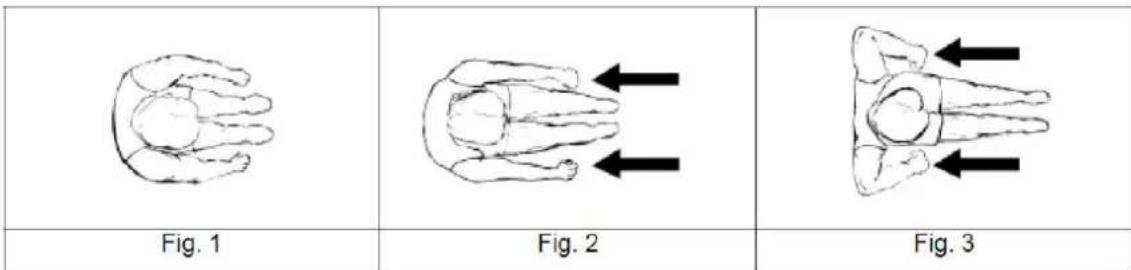

Rowing essential moves

1. Seat on the seat and place your feet on the pedals. Use the Velcro to secure your feet and grasp the rowing handles.
2. For the starting position, lean forward with arms outstretched and bend your knees as shown in figure 1.
3. Move your arms backwards while stretching your back and legs (see figure 2).
4. Continue this movement until you are in a lean-back position. Your elbows should point outwards (figure 3). Now continue as described under point 2 to repeat the movement.

Exercise time

Rowing is relatively exhausting - we therefore recommend starting with a short and easy workout program. You should increase the challenges for further workouts. Start with a 5-minute workout for your first training session and increase the time slowly with further workouts until you reach 15 to 20 minutes. Take your time to increase and try to do a workout every second day or three times a week. Your muscles should get enough time to relax between different workouts.

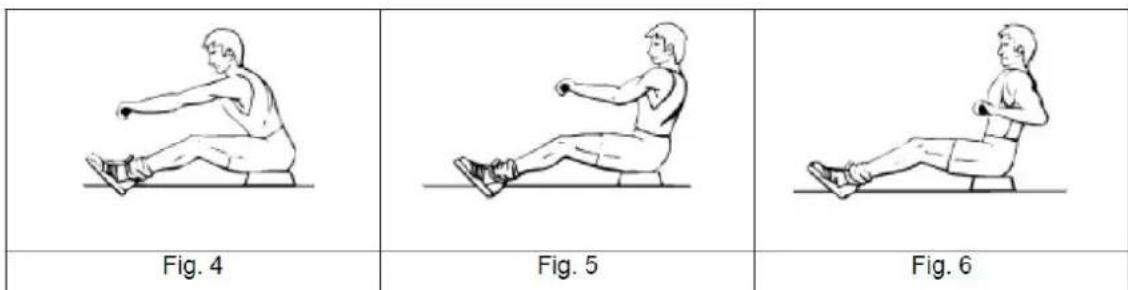

Rowing with the arms only

With this exercise, you can improve your arm and shoulder muscles, as well as the back and abdominal muscles. Start the movement with legs straight as shown in figure 4, lean forward and grasp the handles. Move your upper body slowly to the rear side until you reach a position as shown in figure 6, while pulling the handles in direction of your upper body. Repeat this movement.

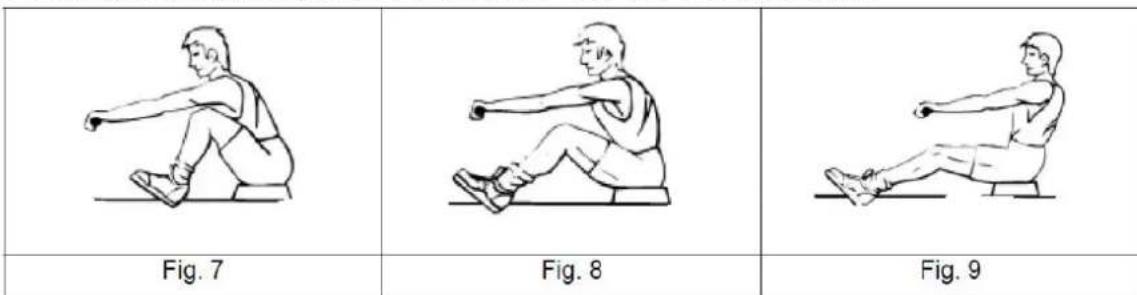

Rowing with the legs only

With this exercise, you can improve your leg and back muscles. With straight back and extended legs, bend your knees until you reach the handles as shown in figure 7. Now stretch your legs, what moves your body backwards. Arms and Back stay straight. Repeat this movement.

Using your rower will provide you with several benefits, e.g. it will improve your physical fitness, tone your muscles and - in conjunction with a calorie-controlled diet - help you to reduce weight.

Cleaning & Care

• Before cleaning the unit, make sure that the unit is switched off.
• Clean the unit only with a slightly damp cloth. Never use brushes, strong detergents, petrol, thinner or alcohol. Wipe the unit dry with a clean, soft cloth.
• Do not use the unit again until it is completely dry.

GUARANTEE CONDITIONS

For our devices we provide a warranty as defined below.

1. In accordance with the following conditions (numbers 2-5) we repair defect or damage to the device free of charge, if the cause is a manufacturing defect. Therefore, these defects / damages need to be reported to us without delay after appearance and within the warranty period of 24 months after delivery to the end user. The warranty does not cover parts, which easily break (e.g. glass or plastic). The warranty does not cover slight deviations of the product, which are insignificant for usability and value of the device and damage caused by chemical or electrochemical effects and damages caused by penetration of water or generally force majeure damage.
2. The warranty achievement is the replacement or repair of defective parts, depending on our decision. The cost of material and labor will be borne by us. Repairs at customer site cannot be demanded. The proof of purchase along with the date of purchase and / or delivery is required. Replaced parts become our property.
3. The warranty is void if repairs or adjustments are made,

which are not authorized by us or if our devices are equipped with additional parts or accessories that are not adapted to our devices. Furthermore, the warranty is void if the device is damaged or destroyed by force majeure or due to environmental influences and in case of improper handling / maintenance (e.g. due to non-observation of the instruction manual) or mechanical damages. The customer service may authorize you to replace or repair defective parts after telephone consultation. In this case, the warranty is not void.

1. Warranty services do not extend the warranty period nor do they initiate a new warranty period.
2. Further demands, especially claims for damages which occurred outside the device, are excluded as long as a liability is not obligatory legal.
3. Our warranty terms - which cover the requirements and scope of our warranty conditions - do not affect the contractual warranty obligations of the seller.
4. Parts of wear and tear are not included in the warranty.
5. The warranty is void if not used properly or if used in gyms, rehabilitation centers and hotels. Even if most of our units are suitable for a professional use, this requires a separate agreement.

ENVIRONMENTAL PROTECTION

The symbol of the crossed-out dustbin on batteries or accumulators indicates that they must not be disposed of in household waste at the end of their life. If batteries or accumulators contain mercury (Hg), cadmium (Cd) or lead (Pb), you will find the respective chemical symbol below the symbol of the crossed-out dustbin. You are legally obliged to return old batteries and accumulators after use. You can do this free of charge at a retail outlet or at another collection point near you. You can obtain addresses of suitable collection points from your city or local government. Batteries may contain substances that are harmful to the environment and human health. Particular care should be taken when handling batteries containing lithium because of the special risks involved. The separate collection and recycling of old batteries and accumulators is intended to avoid negative impacts on the environment and human health. Please avoid the generation of waste from old batteries as far as possible, e.g. by giving preference to batteries with a longer life or rechargeable batteries. Please avoid littering public spaces by not carelessly leaving batteries or electrical and electronic equipment containing

batteries. Please consider ways to reuse a battery instead of disposing of it, for example by reconditioning or repairing the battery.

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

For spare parts please contact: [e-mail]
Service centre: MAX Trader GmbH, Wilhelm-Beckmann-Straße 19, 45307 Essen, Germany

Contenu

skandika.com/service

A	B	C
D	E	F
G	H	I
J	K	G

L1 8	00
L2 7	30
L3 7	00
L4 6	30
L5 6	00
