Product Type	Pedestal Fan
Brand	Ufesa
Model	Tallin
Power Supply	220-240V, 50/60Hz (standard plug)
Speeds	3 (Low, Medium, High)
Ventilation Modes	Normal, Natural (NAT), Sleep (SLE)
Oscillation	Yes, maximum angle 86°
Timer	From 0.5 to 7.5 hours (in 0.5 hour increments)
Remote Control	Yes, included
Maximum Airflow	22.68 m³/min
Power Consumption	31.80 W
Service Value	0.71 (m³/min)/W
Standby Consumption	0.23 W
Sound Level	55.77 dB(A)
Maximum Air Speed	2.73 m/s
Maximum Operating Altitude	2000 m
Materials	Plastic, metal (motor)
Weight	Not specified in the manual
Dimensions (H x W x D)	Not specified in the manual
Safety	Child protection (8 years+), automatic shutdown, protective grille
Cleaning	Soft damp cloth, do not immerse
Cable Storage	Wrap around base with clip
Warranty	Compliant with current legislation (spare parts under conditions)
Measurement Standard	IEC 60879:2019
Disposal	Do not throw away, recycle according to WEEE (2012/19/EU)

Frequently Asked Questions - Tallin UFESA

How to assemble the Ufesa Tallin fan?

First place base 1 (D) then base 2 (E) on the body, locking with the 4 screws provided (F). Make sure the lugs on the seat pass through the 2 holes in the base (see figure 2). Do not plug in the device until assembly is complete.

How to use the remote control?

The remote control (A) allows you to control all functions: on/off, speed, mode, oscillation and timer. It is included in the packaging. No specific battery is mentioned, check the battery compartment.

How to set the timer?

Press the TIMER button (Ⓧ) to set the automatic shut-off delay from 0.5 to 7.5 hours, in 0.5 hour steps. The corresponding indicator lights up on the cover (C).

What do Natural or Sleep mode mean?

Natural mode (NAT) simulates a variable breeze, while Sleep mode (SLE) gradually reduces speed for nighttime comfort. Select them with the MODE button.

How to activate oscillation?

Press the OSC button () for the fan to oscillate laterally (max angle 86°). Press again to stop oscillation.

The fan makes noise, is this normal?

The maximum sound level is 55.77 dB(A), which corresponds to moderate noise. Make sure the blades are not obstructed and that the device is on a stable surface. If the noise is excessive, contact a technical service.

How to clean the fan?

Always unplug the appliance before cleaning. Use a slightly damp soft cloth. Do not use abrasive products. Do not immerse any part in water. The motor ventilation holes must be free of dust.

What to do if the fan does not turn on?

Check that the plug is properly inserted and that the outlet works. Make sure the voltage values match. If the problem persists, the device may be damaged: do not use it and consult a qualified professional.

Can I leave the fan on all night?

Yes, thanks to the adjustable timer up to 7.5 hours and Sleep mode, you can use it at night. However, do not leave it unattended near curtains or children.

How to store the fan in winter?

Unplug it and clean it. Wrap the cord around the base and secure the end with the clip. Protect it from dust and moisture, ideally in its original packaging.

USER MANUAL Tallin UFESA

Black industrial fan tower with ventilation grille and 'ufesa' branding (no text on main body)

Black industrial fan tower with ventilation grilles and a 'ufesa' brand logo on top (no text-heavy elements)

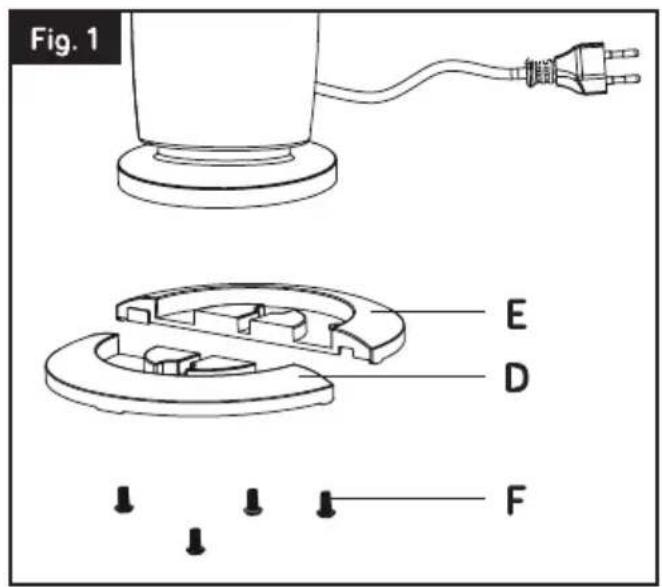

Fig. 1 E D F

Technical line drawing of two circular mechanical components with internal blades and mounting holes (no text or symbols)

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

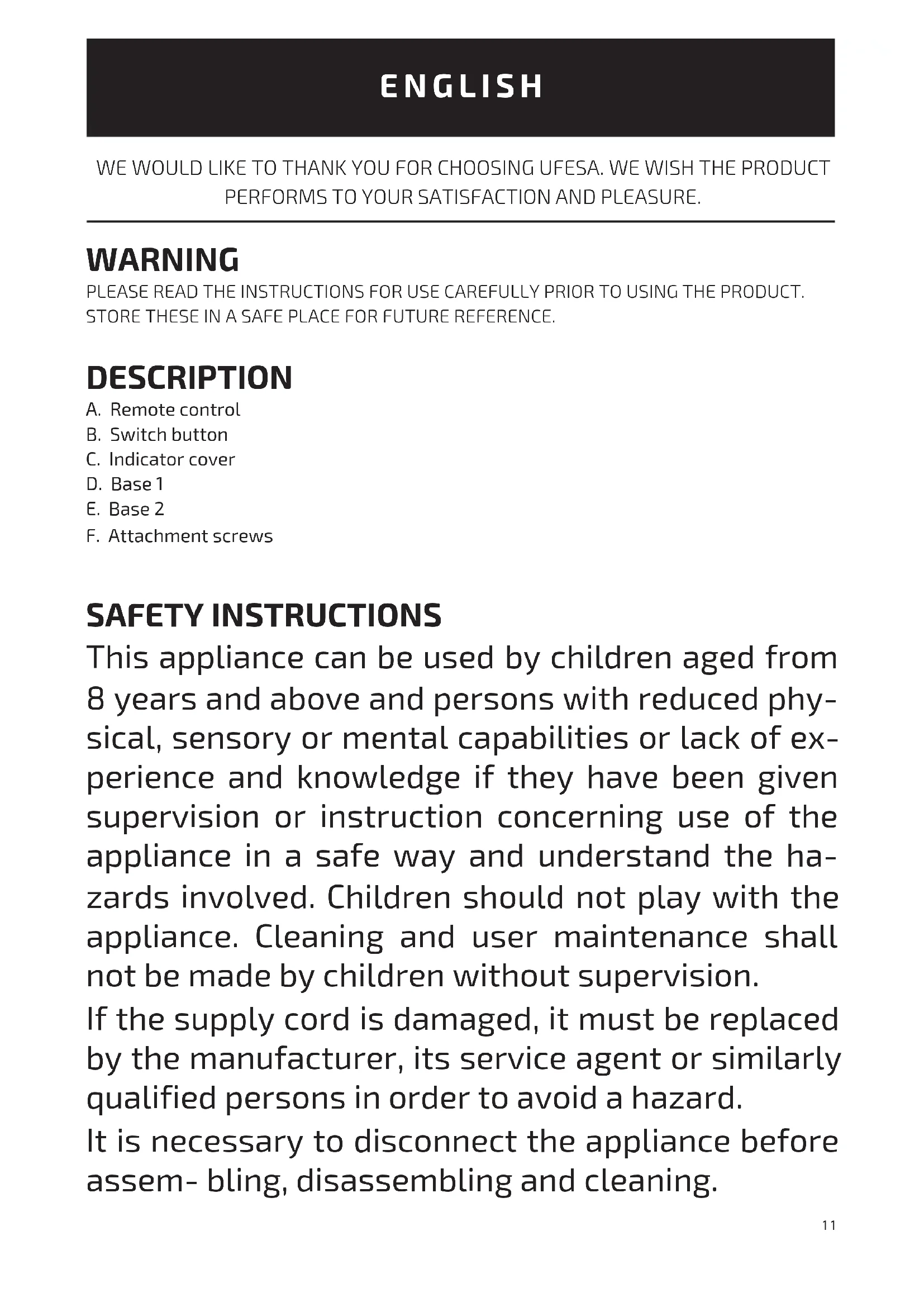

WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT

PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT.

STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

A. Remote control

B. Switch button

C. Indicator cover

D. Base 1

E. Base 2

F. Attachment screws

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

It is necessary to disconnect the appliance before assem- bling, disassembling and cleaning.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is intended exclusively for domestic use for the ventilation of rooms: do not use it for other purposes. Any other use should be considered improper and dangerous.

The manufacturer shall not be held responsible for any damage resulting from improper, incorrect and irresponsible use and/or for repairs made by unqualified technicians.

Do not insert fingers or any other objects through the fan's protector grille. The appliance must be kept out of the reach of children.

Do not use the appliance if it is not working properly, or if it appears to be damaged; if in doubt, take it to a professional, qualified technician.

Do not move the appliance while it is operating.

When the appliance is not being used, remove the plug from the mains socket. Do not touch the appliance with wet hands or feet.

Do not drag the appliance by the cable to move it.

Do not pull the cable or the appliance itself to remove the plug from the mains socket.

To clean the appliance, follow the instructions in the manual in the section dedicated to cleaning and maintenance.

B&B TRENDS, S.L. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTALLATION

After removing the packing materials, check the integrity of the fan; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger. Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less that the maximum of the appliance.

The power socket must be easy to reach so the plug can be removed quickly in case of emergency. To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.

Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).

Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance. Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).

In the event of a breakdown or poor operation, turn the fan off and ask for professionally qualified help.

ASSEMBLY

CAUTION: Ensure the product is fully assembled before plugging it into an electrical outlet. To assemble it, refer to figure: positioning first the base1 (D) then the base 2 (E) on the body, making sure to lock with 4 screws supplied (F).

REMINDING (Fig.2): there are 2 corresponding holes at the base, the 2 pillars at the seat need to pass through these 2 holes when assembly the base onto the fans.

USE

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

Operation: The fan can be operated by the control panel located on the top of the fan(B) or by remote controller(A).

1. Plug the fan into the standard domestic socket.
2. Press the ON/OFF button, the fan will start running at LOW speed
3. Press the SPEED button to select the desired level, Low, Medium, High, the indicator of speed level is lighted at indicator cover(C).
4. Press the MODE button to set the fan as Natural or Sleep mode, the mode is lighted on the indicator cover(C) as NAT ,SLE.
5. Press the OSC button ⏻ to allow the fan oscillate the wind direction, to stop the oscillation, press the OSC button again, the maximum angle is 86 degree.
6. Press the TIMER button to set the desired auto power off time, the timer is from 0,5 to 7.5 hours, the interval is 0.5 hour.

When not in use for long periods, the plug must always be removed from the socket.

MANITENANCE AND CLEANING

Warning: before carrying out regular cleaning operations, disconnect the plug from the mains socket.

To clean the appliance, use a soft, slightly damp cloth; do not use abrasive or corrosive products.

Do not immerse any part of the fan in water or any other liquid: if this should happen, under no circumstances should hands be put into the liquid; first disconnect the plug from the mains socket. Then dry the appliance carefully and check that all the electrical parts are dry: if in doubt, check with professional qualified technician.

It is essential that the motor ventilation holes are free of dust and fibres.

In case of long periods of non-use store the fan, protecting it from dust and moisture; we recommend using the original packaging.

CABLE STORAGE

When the fan is not going to be used for a long period of time, the power cord can be wrapped around the base, the end of the cord can be fixed by a clip on the back.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home. The product may contain batteries. Remove them before disposing of the product and dispose in special containers approved for this purpose.

Description Symbol Value Unit
Maximum fan flow rate F 22,68 m			^3 /min
Fan power input P 31,80 W
Service value S	V	0,71 (m	^3 /min)/W
Standby power consumption P	SB	0,23 W
Fan sound power level L	WA	55,77 dB(A)
Maximum air velocity C 2,73 m/sec
Measurement standard for service value	IEC 60879:2019

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA. NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET QUE VOUS AYEZ PLAISIR À L'UTILISER.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTIONS D'UTILISATION AVANT D'UTILISER CE PRODUIT ET VEUILLEZ LES CONSERVER DANS UN ENDROIT SÛR AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
