USER MANUAL Helsinki UFESA

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

GENERAL WARNING

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• It is necessary to disconnect the appliance before assembling, disassembling and cleaning.
• This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT INFORMATION

This appliance is intended exclusively for domestic use for the ventilation of rooms: do not use it for other purposes. Any other use should be considered improper and dangerous. The manufacturer shall not be held responsible for any damage resulting from improper, incorrect and irresponsible use and/or for repairs made by unqualified technicians.

Do not insert fingers or any other objects through the fan's protector grille. The appliance must be kept out of the reach of children.

Do not use the appliance if it is not working properly, or if it appears to be damaged; if in doubt, take it to a professional, qualified technician.

Do not move the appliance while it is operating.

When the appliance is not being used, remove the plug from the mains socket. Do not touch the appliance with wet hands or feet.

Do not drag the appliance by the cable to move it.

Do not pull the cable or the appliance itself to remove the plug from the mains socket.

To clean the appliance, follow the instructions in the manual in the section dedicated to cleaning and maintenance.

B&B TRENDS, S.L. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTALLATION

• After removing the packing materials, check the integrity of the fan; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.
• Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
• In the event of a breakdown or poor operation, turn the fan off and ask for professionally qualified help.

ASSEMBLY

Attention: the fan can only be used if complete with the support base (base1 and base 2).

Attention: always unplug the appliance before you assemble.

To assemble it, refer to figure: positioning first the base1 (D) then the base 2 (E) on the body, making sure to lock with 4 screws supplied (F);

D.Base 1
E.Base 2
F. Attachment screws

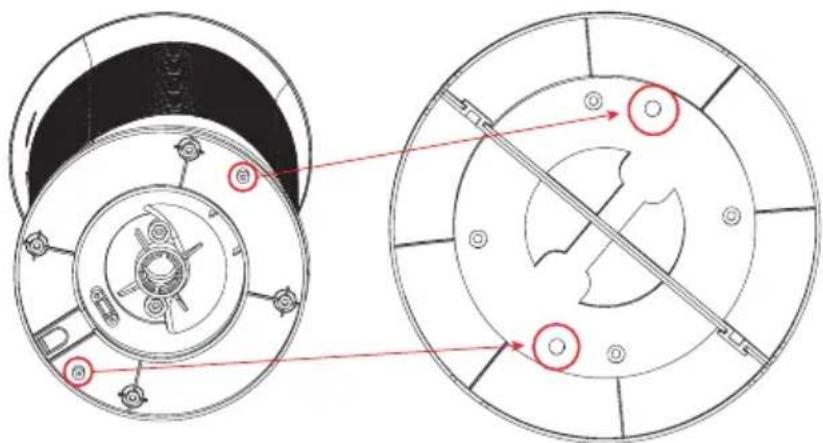

REMARKING: there are 2 corresponding holes at the base, the 2 pillars at the seat need to pass through these 2 holes when assembly the base onto the fans.

OPERATION

0

DSC

G

Time

Power

Mode

Speed

CONTROL PANEL

8.8

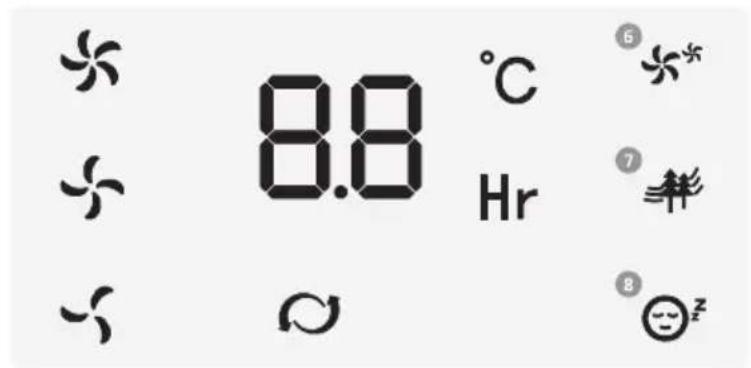

LED DISPLAY

The fan can be operated by the control panel located on the top of the fan or by remote controller.

1. Plug the fan into the standard domestic socket, the LED screen will display the current room temperature.
2. Press the ON/OFF button (1), the fan will start running at Medium speed.
3. Press the SPEED button (2) to select the desired level, Low, Medium, High, the speed level is displayed on the LED screen.
4. Press the MODE button (3) to set the fan as Normal (6), Natural (7), or Sleep mode (8), the mode is displayed on the LED screen.
5. Press the OSC button (4), to allow the fan oscillate the wind direction, to stop the oscillation, press the OSC button again, the maximum angle is 70 degree.
6. Press the TIMER button (5) to set the desired auto power off time, the timer is from 1 to 12 hours, the interval is 1 hour.

Note 1: The display becomes dark after switch on 5 minutes, then press any button, it will resume to bright as before.

Note 2: When press the button each time, it will sound buzzing.

Note 3: On the OSLO WiFi model the display icon 6 changes to the WiFi symbol.

Remote controller

1. Before using the remote controller, remove the plastic protection from the battery.
2. The remote controller battery is CR2025 type.

WARNING: When not in use for long periods, the plug must always be removed from the socket.

How to use fan with WIFI (ONLY FOR MODEL OSLO WIFI)

Fan with integrated Wi-Fi, usable via mobile phone through application with Android or iOS operating system.

--Electronic board with integrated Wi-Fi allowing for communication between mobile phone and fan through APP.

--The APP (application) allows to remotely control the all functions of the fan.

1. Install the "Ufesa Connect" application searching for it on Google Play( android) or from the AppStore (iOS). The free-of-charge application "Ufesa Connect" is compatible with devices that support iOS 8.0 or higher or Android 4.4 or higher.
2. Register by entering your phone number or email address, to get the confirmation code to complete the registration of your account.
3. Insert the plug of the fan into the outlet, press the "power" button to run the fan.
4. Open the APP on your mobile phone: search for the device by clicking the" ^+ "button .

5. Then select "Fan" item.

6. Enter PASSWORD (enter password of your wifi network) and click on "confirm" button to start the connection.

7. If the procedure is done correctly, the screen of the control panel to use the fan appears. Congratulations you are ready to use the fan.

CLEANING AND MAINTENANCE

Warning: before carrying out regular cleaning operations, disconnect the plug from the mains socket.

• To clean the appliance, use a soft, slightly damp cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or any other liquid: if this should happen, under no circumstances should hands be put into the liquid; first disconnect the plug from the mains socket. Then dry the appliance carefully and check that all the electrical parts are dry: if in doubt, check with professional qualified technician.
• It is essential that the motor ventilation holes are free of dust and fibres.
• In case of long periods of non-use store the fan, protecting it from dust and moisture; we recommend using the original packaging.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment, known as WEEE, which establishes the legal framework applicable in the European Union for the disposal and recycling of electrical and electronic appliances. Do not throw this product into the bin. Take it to the nearest electrical and electronic waste treatment plant. The product may

contain batteries. Remove them before disposing of the product and dispose in special containers approved for this purpose.

We hope you are satisfied with this product.

Description Symbol Value Unit
Maximum fan flow rate F 22,68 m			3/min
Fan Power Input P 31,80 W
Service Value S	V	0,71 (m	3/min)/W
Standby power consumption	PSB	0,23	W
Off mode power consumption	Poff	void	W
Fan sound power level L	WA	55,77	dB(A)
Maximum air velocity	C	2,73	meters/sec
Seasonal electricity consumption	Q 10,43	kWh/a
Measurment standard for service value	IEC 60879:2019

FRANÇAIS

NOUS VOUS REMERCIONS D'AVoir ACHETÉ UN PRODUIT UFESA. NOUS ESPÉRONS QUE LE PRODUIT REPONDRA À VOS ATTENTES.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTIONS D'UTILISATION AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CES INSTRUCTIONS DANS UN ENDROIT SÜR POUR UN USAGE ULTERIEUR.

AVERTISSEMENT GÉNÉRAL

DISPONIBLE EN Google play

ÉLIMINATION DU PRODUIT

m = 311

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

1. gulal jjibl uabsl 40g2b1 uogy p3

aiaia aas jaoell aggbl gng ON/OFF 2. jj lc bcl

（）ab 1s gssggsggsggsggsggsgbs.

.SLE NAT JcJie) (jolb jde gdo! oLo! pao Sleep jNatural 0g mode 4.

68 OSC 68 OSC 5. 68 OSC 5.

a_0 > 0

5.0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

A

LED

JU 1 J UJU. UFESA J J J J

Lg 1000

aoy

8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

J 1 J 1 J 1 J 1 J 1

. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
. 1 2000 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

aogo oIoglo

y. jbsg zoo yjplssuul s jll jcls .s r jolr ldoosuys y: jzbl gglj jzbl pladw w jao jlaa Jaa

14p 1

x÷x÷

jLoo.

JabI Jgluua jy jy jy y. a gbl g k w y g

Joofoofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofofo

alaii elil jglll yjaiy

alaii eullj o jll uuiy.

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE
