Elio ECH 9766 X​ - Basket Elba - Free user manual and instructions

Product type	Extractor or recirculating hood
Brand	Elba
Model	Elio ECH 9766 X
Width	90 cm (approximate)
Minimum height above cooking surface	65 cm
Power supply	220-240 V ~ 50/60 Hz
Motor power	Variable by model, approx 200-300 W
Number of speeds	3 speeds + intensive
Lighting type	LED or halogen depending on version
Grease filters	Dishwasher safe, clean every 2 months
Charcoal filters	Non-regenerable or regenerable, replace or wash depending on type
Timer function	Automatic shut-off after 15 minutes
Clean Air function	Automatic operation 10 min/h at speed 1
Filter saturation indicator	Yes, by flashing keys or display
Insulation class	Class I or II depending on version (check rating plate)
Air outlet diameter	150 mm (approximate)
Material	Stainless steel
Dimensions (approx.)	W 90 x D 50 x H (adjustable) cm
Weight	Approximately 15-20 kg
Accessories	Optional remote control
Repairability	Spare parts available (filters, bulbs)
Noise level	Variable by speed, max approx 65 dB(A)

Frequently Asked Questions - Elio ECH 9766 X​ Elba

How to install the Elio ECH 9766 X hood in extractor mode?

For extractor installation, connect the flexible hose to the connection flange and to the external exhaust duct. Make sure the hose diameter matches the air outlet diameter (approx. 150 mm) to avoid performance loss.

What minimum distance should I maintain between the hood and a gas hob?

The minimum safety distance between the lowest point of the hood and the cooking surface is 65 cm for electric, gas or induction hobs.

How to clean the grease filters?

Grease filters should be washed at most every 2 months. You can wash them by hand with neutral liquid detergent or in the dishwasher at low temperature and short cycle. After several washes, the color may change, this is normal.

When should I replace the charcoal filters?

Non-regenerable charcoal filters must be replaced every 4 months. Regenerable (washable) filters should be cleaned every 2 months and replaced at most every 3 years or if the pad is damaged.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, reset the electronic memory by pressing the A button (or the corresponding button depending on the model) for about 5 seconds until the indicator stops flashing.

What to do if the hood does not turn on?

First check the power supply (socket, fuse). If the cord is damaged, it must be replaced by a professional. Also ensure the hood is properly plugged in and the main switch is in the on position.

How to use the Clean Air function?

With the hood off, press the E button (or F depending on model) for 2 seconds. The motor will automatically turn on for 10 minutes every hour at first speed to renew the ambient air.

Can I install the hood without external exhaust?

Yes, in recirculation version. Use the activated charcoal filters (supplied or optional) and the deflector to recirculate the purified air into the room. Follow the assembly instructions for the filtration kit (Fig.17 or 18).

How to replace a halogen bulb?

Unplug the hood. Remove the defective bulb by prying with a small flat screwdriver in the slots provided. Replace it with a bulb of the same type and wattage. Do not touch the bulb with bare hands.

Why is the hood noisy?

The noise may come from a dirty grease filter, incorrect installation, or an obstacle in the exhaust duct. Clean the filters and check that the duct is not blocked. If the problem persists, contact a professional.

USER MANUAL Elio ECH 9766 X​ Elba

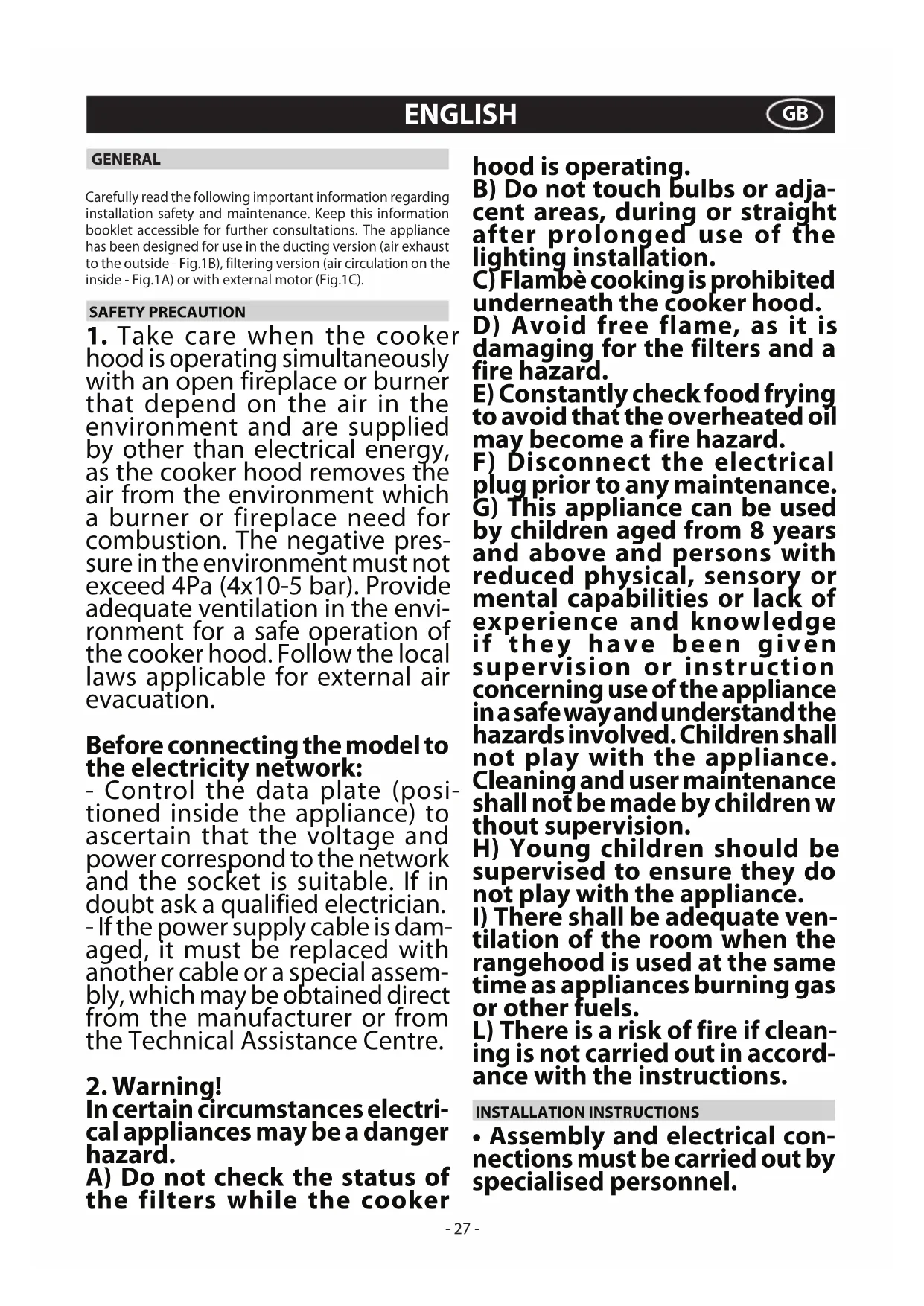

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air circulation on the inside - Fig.1A) or with external motor (Fig.1C).

SAFETY PRECAUTION

1. Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

• Control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.

2. Warning!

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the filters while the cooker

hood is operating.
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flamè cooking is prohibited underneath the cooker hood.
D) Avoid free flame, as it is damaging for the filters and a fire hazard.
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard.
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safeway and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
H) Young children should be supervised to ensure they do not play with the appliance.
I) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions.

INSTALLATION INSTRUCTIONS

Assembly and electrical connections must be carried out by specialised personnel.

- Wear protective gloves before proceeding with the installation.

Electric Connection:

Note! Verify the data label placed inside the appliance:

• If the symbol appears on the plate, it means that no earth connection must be made on the appliance, therefore follow the instructions concerning insulation class II.
• If the symbol DOES NOT appear on the plate, follow the instructions concerning insulation class I.

Insulation class II

• The appliance has been manufactured as a class II, therefore no earth cable is necessary. The plug must be easily accessible after the installation of the appliance. If the appliance is equipped with power cord without plug, a suitably dimensional omnipolar switch with 3mm minimum opening between contacts must be fitted between the appliance and the electricity supply in compliance with the load and current regulations.

• The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral.

Insulation class I

This is a class I, appliance and must therefore be connected to an efficient earthing system.
- The appliance must be connected to the electricity supply as follows:

BROWN = L line

BLUE = N neutral

YELLOW/GREEN = ① earth.

The neutral wire must be connected to the terminal with the N symbol while the YELLOW/GREEN, wire must be connected to the terminal by the earth symbol 日

When connecting the appliance to the electricity supply, make sure that the mains socket has an earth connection. After fitting the ducted cooker hood, make sure that the electrical plug is in a position where it can be accessed easily. If the appliance is connected directly to the electricity supply, an omnipolar switch with a minimum contact opening of 3mm must be placed in between the two; its size must be suitable for the load required and it must comply with current legislation.

• If the hob is electric, gas, or induction, the minimum distance between the same and the lower part of the hood must be at least 65~cm . If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.16) so that the unit is easier to handle.
• In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.
• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

Hood assembly:

• Remove the structure from the packaging and remove the 2 screws A to separate the upper part from the lower part (Fig.2).
• Position hole template on the ceiling paying attention that

the arrow is positioned on the same side as the appliance controls (Fig.3). Make 4, 08 holes in the ceiling and drive in 3 screws without completely tightening them. Pay attention not to insert the screw into the hole marked with an X on the hole template (the screws and expansion plugs must be suitable for the type of wall).

• Take the upper part of the structure B (Fig.4) and insert the 3 slots onto the 3 screws that are not completely tightened. Rotate slightly to fit (Fig.4). Drive in the fourth screw X and tighten the remaining 3 to allow definitive blocking of the upper part of structure B.

• Take the lower part of the telescopic structure C and insert it into the upper structure B (Fig.5). Adjust the height by referring to the amounts indicated in (Fig.15) and block it using the 8 screws G that are supplied (Fig.6).

• Suction version: fix the flexible pipe to the prepared air evacuation hole (Fig.7).

• Filtering version: we have two different types of Kit, one with extractable carbon filters (Fig.17) and the other one with re-usable carbon filters (washable) (Fig.18).
  -Fix the flexible pipe to the deflector M and fix screw I as indicated in Fig.8, the active carbon filters must be applied to the suction unit positioned inside the hood (Fig.17).
• If your product is fitted with a connector flange, perform the assembly steps indicated in fig. 9 before fixing the cooker hood to the structure. Take connector flange F and fit it to the upper part of the cooker hood suction assembly using the 2 screws E (Fig.9).
• Take the upper chimney piece and fix it to the structure using the 2 screws A (Fig.10). Join the lower chimney piece with the upper one and fix it carefully using adhesive tape L (Fig.11A).
• Unscrew the 2 screws O , max 3mm (Fig.11A). Insert the suction unit inside the structure paying attention that the previously unscrewed screws O , hook into the slots in the lower part as indicated in (Fig.11B). Drive in the 3 screws N (supplied) and tighten the 2 screws O (Fig.11B).
  -Fix the air evacuation pipe H (not supplied) onto the connection flange F (Fig.12).
• Remove adhesive tape L and rest the lower chimney piece above the cooker hood (Fig.13).
• If the cooker hood is supplied with a lower chimney piece that must be fixed to the hood body with screws, remove the anti-grease filters from the hood by acting on the relevant handles (Fig.16).
• If necessary, fix the lower duct to the hood from the inside, using the screws P (Fig.14). Re-locate the filters in their seat.

USE AND MAINTENANCE

• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance; the anti-grease filter and the active carbon filter both require special attention.

• The anti-grease filter is responsible retaining the grease particles suspended in the air, therefore it is subject to clogging with variable frequency according to the use of the appliance.

• To prevent the danger of possible fires, at least every 2 months one must wash the anti-grease filters by hand using non-abrasive neutral liquid detergents or in the dishwasher at low temperatures and on short cycles.
• After a few washes, colour alterations may occur. This does not give the right to claim their replacement.
• The active carbon filters are used to purify the air that is sent back into the room and its function is to mitigate the

unpleasant odours produced by cooking.

• The non-regenerable active carbon filters must be replaced at least every 4 months. The saturation of the active charcoal depends on the more or less prolonged use of the appliance, on the type of kitchen and on the frequency with which anti- grease filter is cleaned.
• Regenerable active charcoal filters must be washed by hand, with non-abrasive neutral detergents, or in the dishwasher at a maximum temperature of 65^ (the washing cycle must be complete without dishware). Remove excess water without damaging the filter, remove the plastic parts, and let the mat dry in the oven for at least 15 minutes approximately at a maximum temperature of 100^ . To keep the regenerable charcoal filter functioning efficient this operation must be repeated every 2 months. These must be replaced at least every 3 years or when the mat is damaged.
• Before remounting the anti-grease filters and the regenerable active charcoal filters it is important that they are completely dry.
• Clean the hood frequently, both internally and externally, using a cloth dampened with denatured alcohol or neutral liquid detergents that are non abrasive.
• The lighting system is designed for use during cooking and not for the prolonged general lighting of the room. The prolonged use of the lighting system significantly decreases the average duration of the bulbs.
• If the appliance is equipped with courtesy lights, it is possible to use them for general room lighting for a prolonged amount of time.
• Attention: the non compliance with the hood cleaning warnings and with the replacement and cleaning of the filters entails risk of fires. One therefore recommends keeping to the suggested instructions.

- Replacing halogen light bulbs (Fig.19):

In order to replace the dichroic lamps, carefully remove the lamp from the lamp holder with the help of a small flat screwdriver or a similar tool.

PLEASE NOTE! In doing this operation, please take care not to scratch the hood.

Replace the bulbs with new ones of the same type.

- Replacing halogen light bulbs (Fig.20):

To replace the halogen light bulbs B, remove the glass pane

C using a lever action on the relevant cracks.

Replace the bulbs with new ones of the same type.

Caution: do not touch the light bulb with bare hands.

- Replacing LED lamps (Fig.21):

If the appliance version is with LED lamps, the intervention of a specialised technician is necessary to replace them.

-Commands(Fig.22):

Push-button A = On/off lights switch.

Push-button B = On/off cooker hood switch. The appliance switches on at speed level 1, If the cooker hood is on depress the push-button for 2 sec. to switch off the cooker hood. If the cooker hood is at speed level 1 it will not be necessary to depress the push-button to switch the cooker hood off. Decreases the motor speed.

Display C = Indicates the motor speed level selected and activates the timer.

Push-button D = Switches on the cooker hood. Increases the motor speed. Touching the key at 3rd speed, the intensive function runs for 6' , then the appliance goes back to work at the original speed. During this function the display blinks.

Key E = The Timer times the functions on activation for 15

minutes, after which they are switched off. The Timer is deactivated by re-pressing Key E.

When the Timer is activated the decimal point must flash on the display. The Timer cannot be activated if the intensive speed is functioning.

The "clean air" function is activated by pressing key E for 2 seconds when the appliance is switched off. This switches the motor on for 10 minutes every hour at the first speed. During functioning a rotary movement of the peripheral segments must be visualised on the display. When this time has passed the motor switches off and the fixed letter "C" must be visualised on the display until the motor re-starts after 50 minutes for another 10 minutes and so on. Press any key apart from the light keys to return to normal functioning. Press key E to deactivate the function.

- Anti-grease/active charcoal filters saturation:

• When display item C flashes, at a speed where it alternates with the letter F (e.g. 1 and F), the anti-grease filters must be washed.
• When display item C flashes, at a speed where it alternates with the letter A (e.g. 1 and A), the active carbon filters must be replaced or washed depending on the type of filter.

After the clean filter has been positioned correctly, the electronic memory must be reset by pressing button A for approximately 5 seconds, until the indication F or A shown on the display C stops flashing.

• Commands mechanical (Fig.23.A.B) the key symbols are explained below:

A=LIGHT
B=OFF
C=SPPEEDI
D=SPPEEDI
E = SPEED III
G = MOTOR WORKING indicator.

• Commands luminous (Fig.24.A.B) the key symbols are explained below:

A=LIGHT

B=OFF

C=SPPEED1

D=SPEEDII

E = SPEED III

F = AUTOMATIC STOP TIMER - 15 minutes (*)

If your appliance has the INTENSIVE speed function, from speed THREE, press key E for 2 seconds and it will be activated for 6 minutes after which it will return to the previously set speed. When the function is active the LED flashes.

To interrupt it before the 6 minutes have elapsed, press key E again.

Some models allow activating this function even with speed one and two.

By pressing key F for two seconds (with the hood switched off) the "clean air" function is activated. This function switches the appliance on for ten minutes every hour at the first speed. As soon as this function is activated the motor starts up at the first speed for ten minutes. During this time key F and key C must flash at the same time. After ten minutes the motor switches off and the LED of key F remains switched on with a fixed light until the motor starts up again at the first speed after fifty minutes and keys F and C start to flash again for ten minutes and so on. By pressing any key for the exclusion of the hood light the hood will return immediately to its normal

functioning (e.g. if key D is pressed the "clean air" function is deactivated and the motor moves to the 2nd speed straight away. By pressing key B the function is deactivated).

(*) The "AUTOMATIC STOP TIMER" delays stopping of the hood, which will continue functioning for 15 minutes at the operating speed set at the time this function is activated.

- Anti-grease/active charcoal filters saturation:

• When the A key flashes with a 2 second frequency the anti-grease filters must be washed.
• When the A key flashes with a 0.5 second frequency the active carbon filters must be replaced or washed depending on the type of filter.

Once the clean filter has been put back one must reset the electronic memory by pressing the A key for approximately 5 seconds until it stops flashing.

Controls (Fig.25):

NOTE: with this command the appliance can also be controlled with a remote control to be requested as an accessory.

Power key (A) = If the appliance is set up to support other functions such as automatic openings, room lights, etc., this key enables these functions.

Attention! In some models this key does not enable any function and if pressed it turns on the corresponding LED for approximately 15 sec.

-OFF key (B) = Key for reducing speed and switching off.

+ON key (C) = From the OFF position, by pressing the C key once, the motor goes to 1st speed, twice for 2nd speed, three times for 3rd speed; at each speed change, the LED changes colour.

By pressing the B key, the speed reduces and the LED turns to the typical colour of the speed.

Intensive key (D) = With the motor running and at any speed, pressing the D key inserts the INTENSIVE speed (4th speed) for 6 minutes. During this function the LED flashes, and the speed LED previously set turns out.

After 6 minutes, the hood returns for the last set speed with the relative LED indication.

• If you wish to deactivate the function before the 6 minutes are up, press the B key.
• The INTENSIVE speed function will not activate when the hood is off.

Light key (E) = Pressing this key adjusts light intensity.

• There are three light intensity levels: high, medium, low.
  From the off position, press once for the high level, twice for the medium level, three times for the low level, and four times to turn the lights off.
  Light intensity is cyclical: high, medium, low, off.

Timer key (F) = With any speed inserted (except for intensive speed) pressing this key activates the Timer function. The LED of the Timer key flashes and the speed LED remains on.

• 15 minutes after the count is over, the hood turns off (motor and lights).

• By pressing the B key for 2 seconds (with the hood up) the "clean air" function is activated.

This function activates the motor for 10 minutes everyr hour at 1st speed, during which the LED corresponding to the B key remains on.

During the remaining 50 minutes, the LED of the C key flashes with the motor off, while the B key LED remains on, indicating that the function is still active.

In order to deactivate the "clean air" function, press any key except for the LIGHTS.

• Anti-grease/active charcoal filter saturation:

• After 30h of operation, the LED of the B key begins to flash; this means that the anti-grease filters must be washed.

-After 120 h of operation the LED of the E key begins to flash; this means that the charcoal filter must be washed or replaced.

Once the clean filter has been put back in place, the electronic memory must be reset by pressing the C key for approximately 4 sec. until it stops flashing and the 30h / 120h setting restarts from zero.

Control(Fig.26):

NOTE: with this command it is also possible to control the appliance using a remote control, to be requested as an accessory.

A Button = Switches the hood on/off. The equipment switches on at the 1st speed.

B Button = Decreases motor speed.

C Display = Shows the selected motor speed and timer activation/intense speed/filter warning.

D Button = Increases motor speed.

Pressing the 4th speed button engages the intense function for 6 minutes, then the equipment goes back to working at the speed at which it was activated. During this function, the number 4 flashes on the display.

• If you wish to deactivate the function before the 6 minutes, press the B button.

Attention! Some models only work up to the 3rd speed and, therefore, do not have the intense function.

E Button = Pressing this button activates the Timer function even with any of the 1-2-3 speeds engaged (except the Intense function speed). When the Timer function is active, the set speed must flash on the display when the timer is activated.

After 15 minutes, at the end of the countdown, the hood switches off (motor and lights remain on).

If the intense speed is engaged, the Timer cannot be activated.

• If you wish to deactivate the function before the 15 minutes, press the E button.

F Button = Switches the lights on/off.

- Anti-grease/active charcoal filters saturation:

• After 30 h of operation, when the C display flashes, alternating the working speed with the letter F (i.e. 2 and F), this means that you need to wash the anti grease filters.

• After 120 h of operation, when the C display flashes, alternating the working speed with the letters C/F (i.e. 2 and C/F), this means that you need to wash or replace the charcoal filters.

• Once you have repositioned the clean filter, you need to reset the electronic memory with the hood on, pressing the B button for about 3 seconds.

After that time, the letter E appears on the display (reset confirmed) and the hood switches off.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.

ALGEMEEN

INSTALLATIE INSTRUCTIES

BLAUW = N neutrallaal

GEEL/GROEN = aarde.

C = Knop EERSTE SNELHEID

D = KnopTWEEDW DERDESNELHEID

E = Knop DERDE SNELHEID

G=Controlelampje WERKENDE MOTOR.

C = Knop EERSTE SNELHEID

D=KnopTWEEDWERDESNELHEID

E = Knop DERDE SNELHEID

F = Knop TIMER AUTOMATISCHE ONDERBREKING na 15 minuten (^*)

Tecla F = Acende/desliga as luzes.
