USER MANUAL WTP 30X Lavor

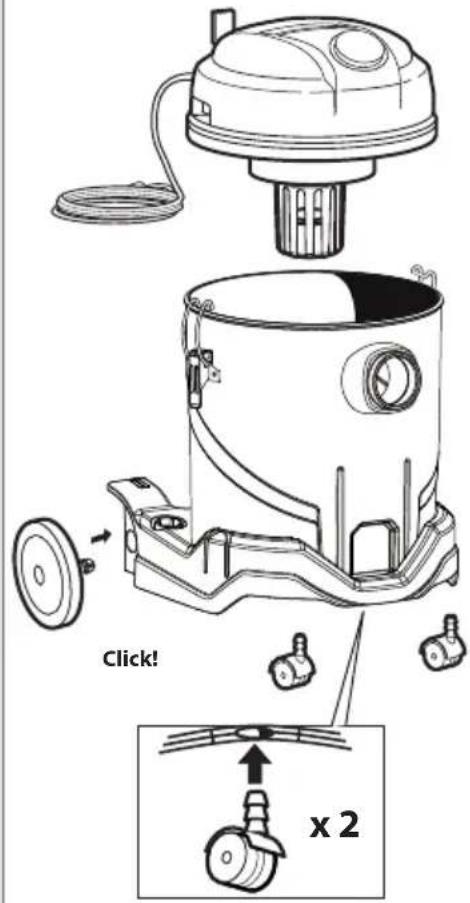

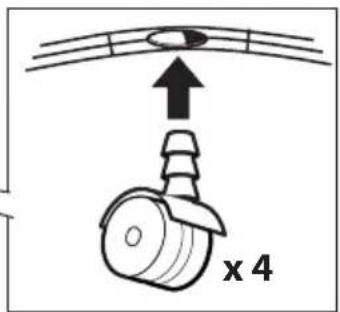

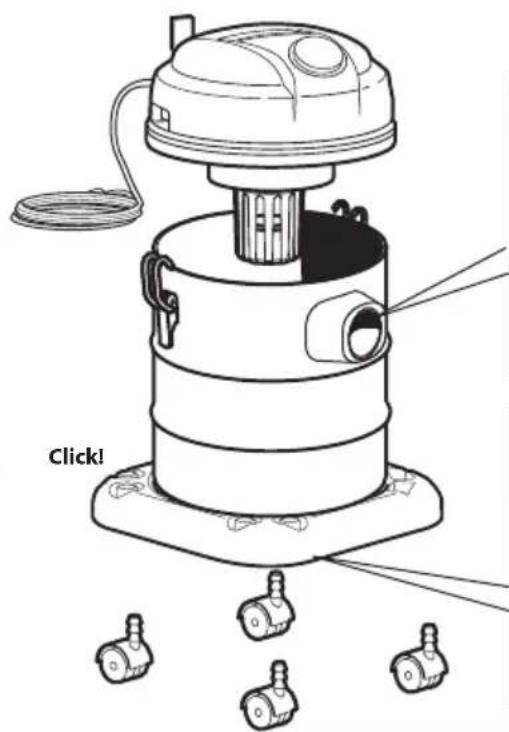

Technical data plate WTPClick!Click! Click!

• Components used in packaging (if pla- stic bags) can be dangerous keep away from children and animals.

• Operators shall be adequately instructed on the use of these machines.

• The use of this machine for anything not specied in this manual may be dangerous and must be avoided.

• Only use the socket outlet on the appliance for purposes specied in the instruction ma- nual. (note: this is only for appliances provided with socket outlet).

• Before emptying the tank, switch o the machine and disconnect the plug from the po- wer outlet.

• Always check the appliance before use.

• The suction nozzle should be kept away from the body, especially delicate areas such as eyes, ears and mouth.

• The appliance is not intended for use by per- sons (including children) with reduced physical, sensory or mental capabilities, or lack of expe- rience and knowledge, unless they have been given instruction concerning use of the pro- duct by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are supervised. Children shall not play with the appliance.

• The equipment should be correctly assembled before use.

• Ensure that power sockets used are correct for the machine.

• Never grasp the power cord with wet

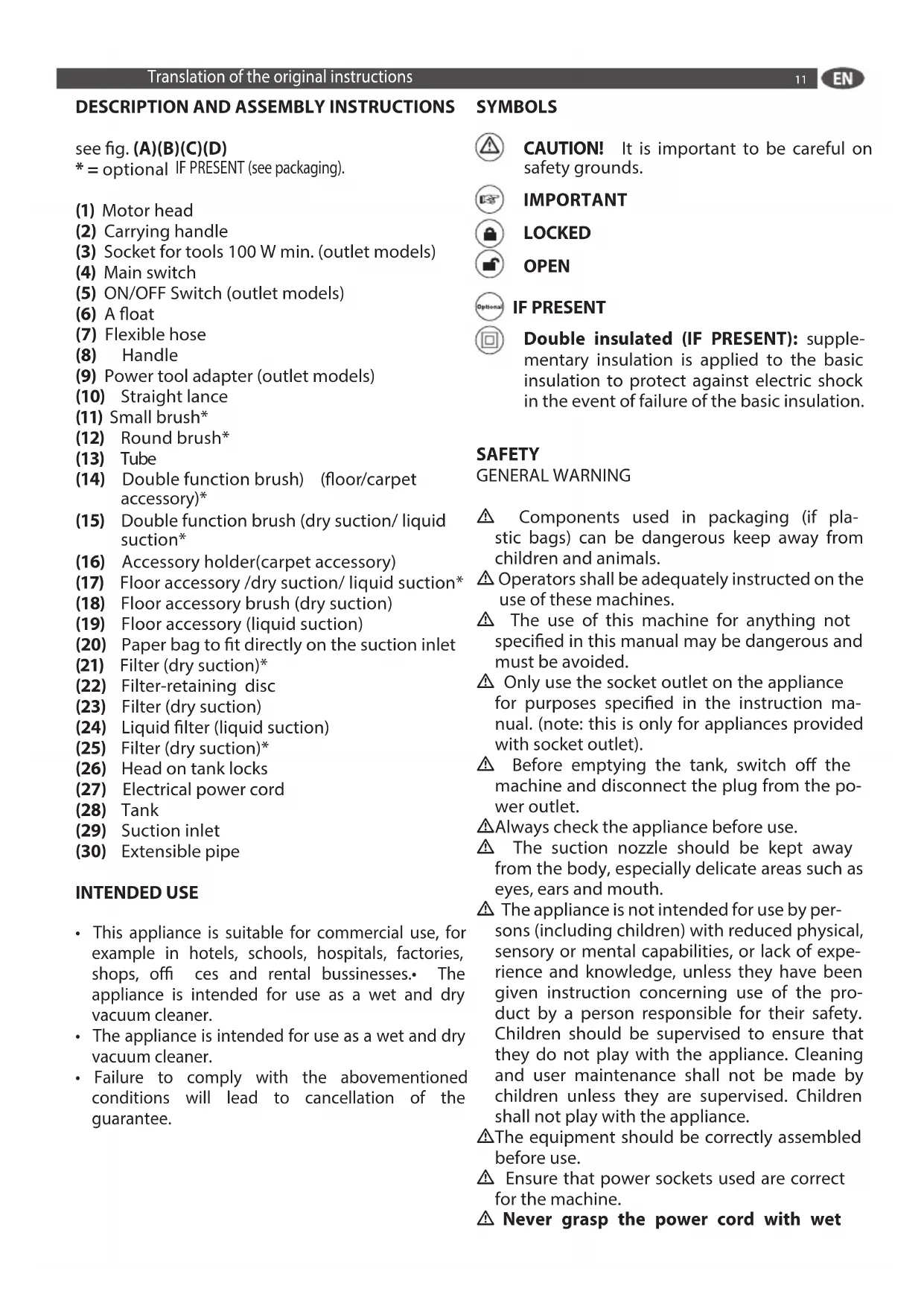

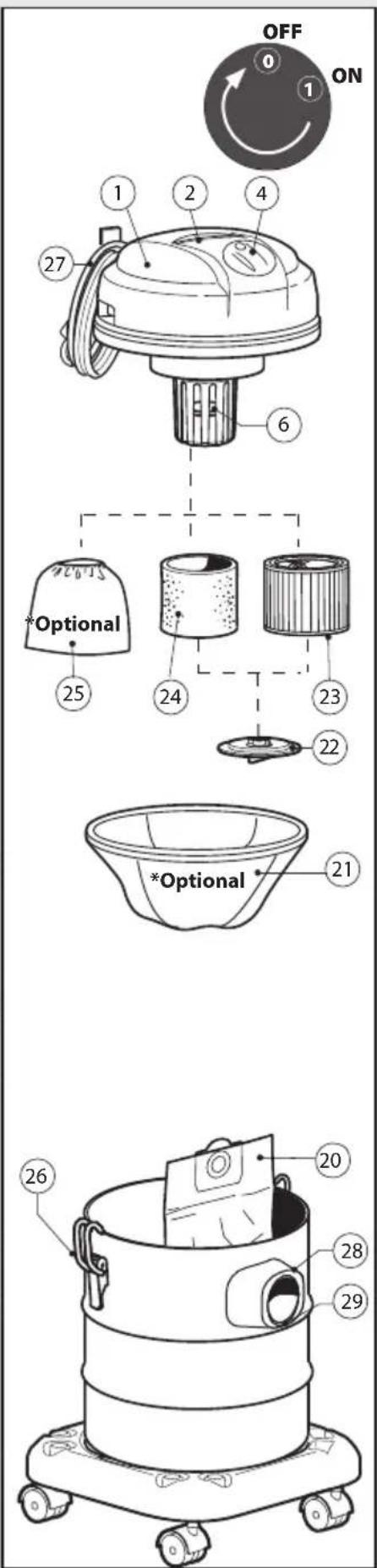

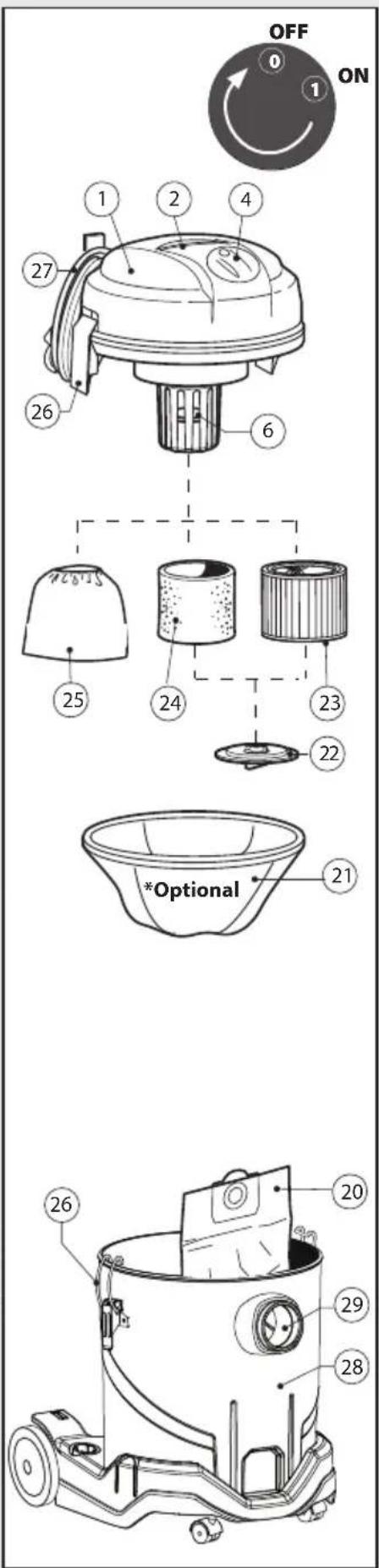

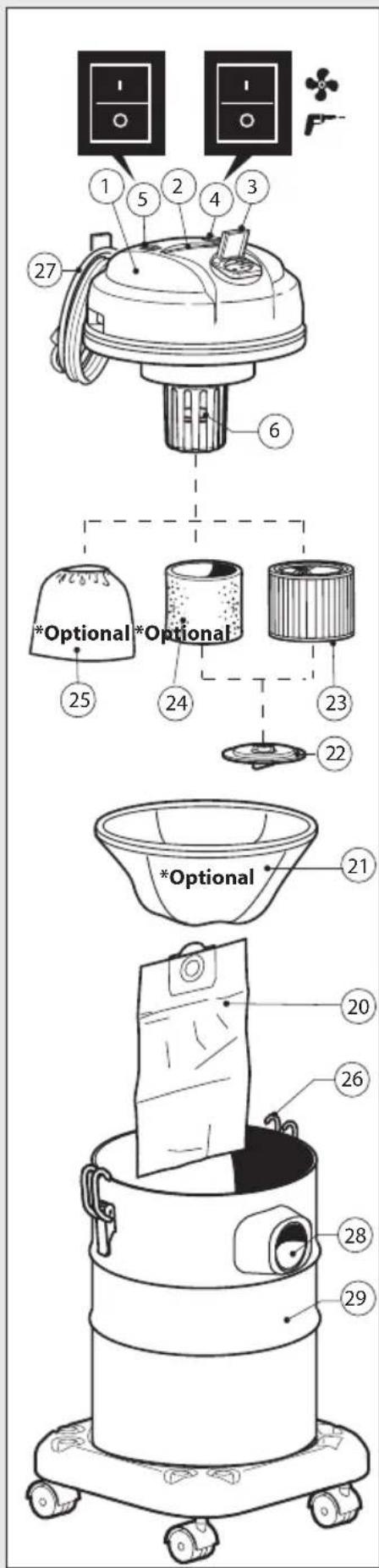

• = optional IF PRESENT (see packaging). (1) Motor head (2) Carrying handle (3) Socket for tools 100 W min. (outlet models) (4) Main switch (5) ON/OFF Switch (outlet models) (6) A oat (7) Flexible hose (8) Handle (9) Power tool adapter (outlet models) (10) Straight lance (11) Small brush* (12) Round brush* (13) Tube (14) Double function brush) (oor/carpet accessory)* (15) Double function brush (dry suction/ liquid suction* (16) Accessory holder(carpet accessory) (17) Floor accessory /dry suction/ liquid suction* (18) Floor accessory brush (dry suction) (19) Floor accessory (liquid suction) (20) Paper bag to t directly on the suction inlet (21) Filter (dry suction)* (22) Filter-retaining disc (23) Filter (dry suction) (24) Liquid lter (liquid suction) (25) Filter (dry suction)* (26) Head on tank locks (27) Electrical power cord (28) Tank (29) Suction inlet (30) Extensible pipe INTENDED USE

• This appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, o ces and rental bussinesses.• The appliance is intended for use as a wet and dry vacuum cleaner.

• The appliance is intended for use as a wet and dry vacuum cleaner.

• Failure to comply with the abovementioned conditions will lead to cancellation of the guarantee. Translation of the original instructions 11hands.

• Check that voltage indicated on the rating plate is the same as the supply voltage.

• These machines are not suitable for vacuu- ming health endangering dusts or inamma- ble/explosive substances (like ash and soot).

• Never leave the equipment unattended whilst in use.

• Never carry out any maintenance on the machine without rst disconnecting from the mains supply or when it is left unattended or reachable by children or disables..

• The power cord should not be used to pull or lift the machine.

• The machine should never be immersed and never use water jet against the appliance to cle- an it.

• When using the machine in wet rooms (e.g. in the bathroom) only connect it to so- ckets which are connected in series with a ground fault circuit interrupter. In case of doubt, consult an electrician.

• Periodically examine the power cord and machine for damage. If any damage is found, do not use the appliance but contact your service centre for repair.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service centres or similarly qualied people in order to avoid a hazard.

• If an extension cord is used, the plug and so- cket must be of watertight construction.

• Before vacuuming liquids, check the oat functions correctly. When vacuuming liquids, and when the tank is full, a oat closes the suc- tion opening, and the vacuum operation is inter- rupted. Then switch o the machine, disconnect the plug and empty the tank. Regularly clean the water level limiting device (oat) and examine it for signs of damages.

• If the machine overturns, it would be recom- mended to stand it up before switching o.

• If foam or liquid escape from the appliance, switch o immediately..

• The equipment should not be used to va- cuum water from containers lavatories, tubs, etc.

• Aggressive solvents or detergents should not be used.

• Service and repairs must be carried out by quali- ed personnel only. Only use manufacturer ori- ginal spare parts for service repair.

• The manufacturer cannot be held responsible for any damage/injury caused to persons, ani- mals or property caused by misuse of the ap- pliance, USE

• Be sure that switch is in o position (0) OFF and connect the machine to a suitable socket.

• The machine must be always kept on horizontal bases, in a safe and stable way.

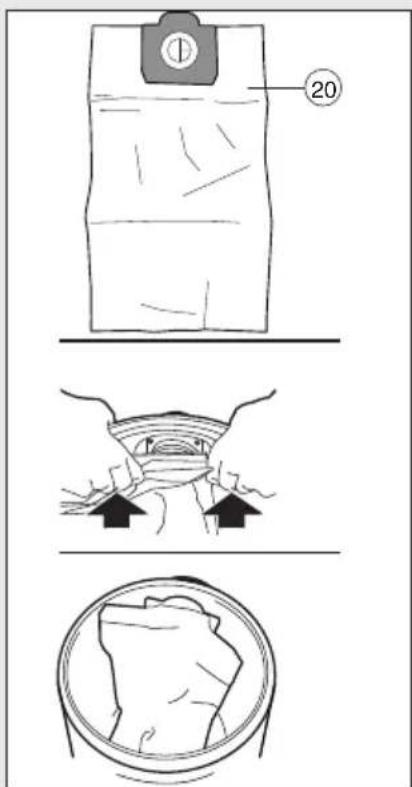

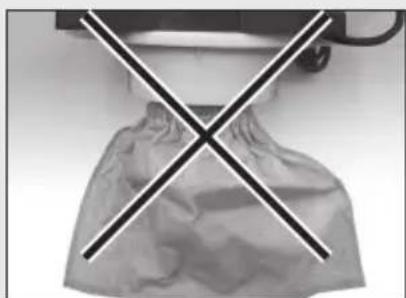

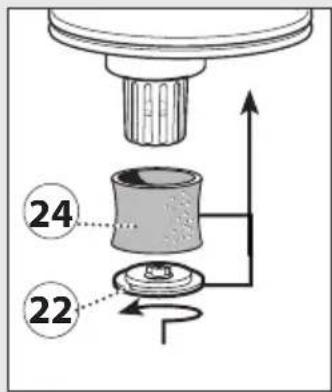

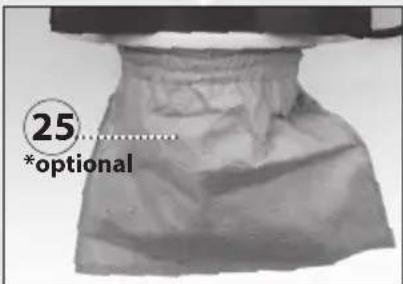

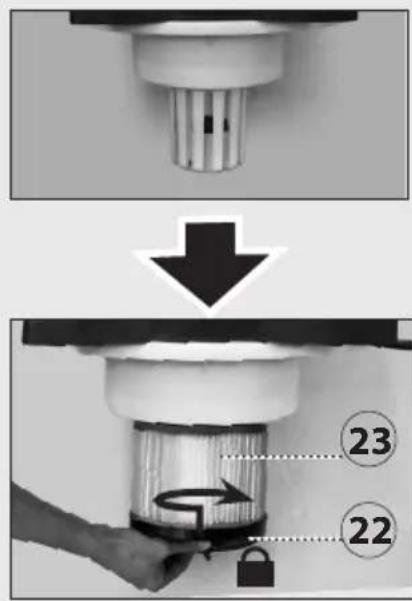

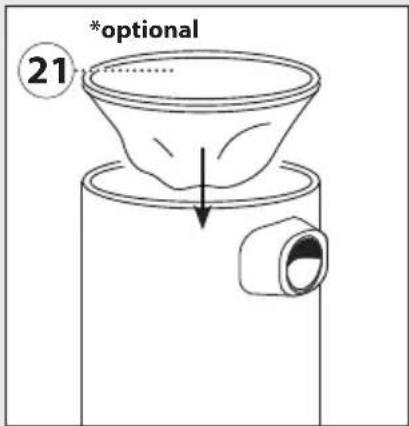

• Insert the suitable lters for the proper use. See g. (H)(L)(M)(N)(P).

• Never use the appliance without lters .

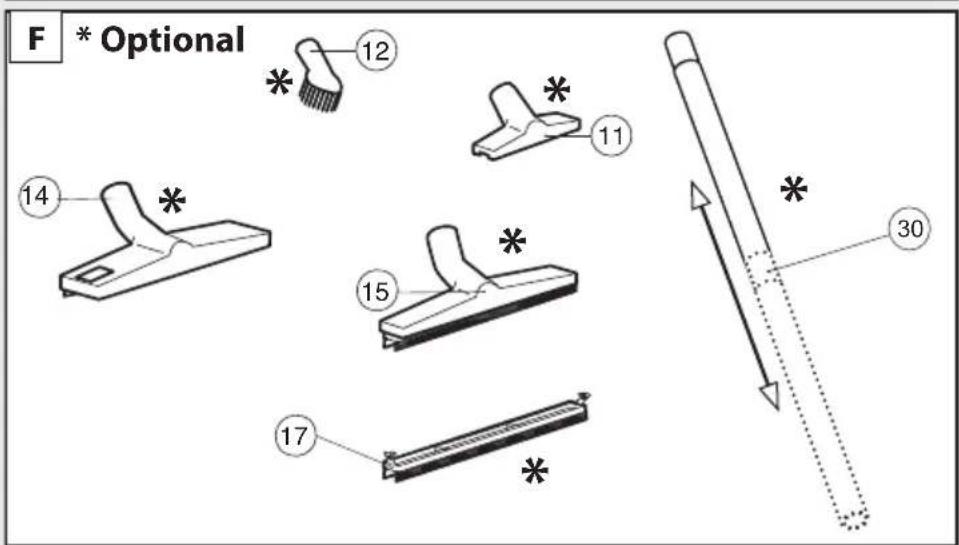

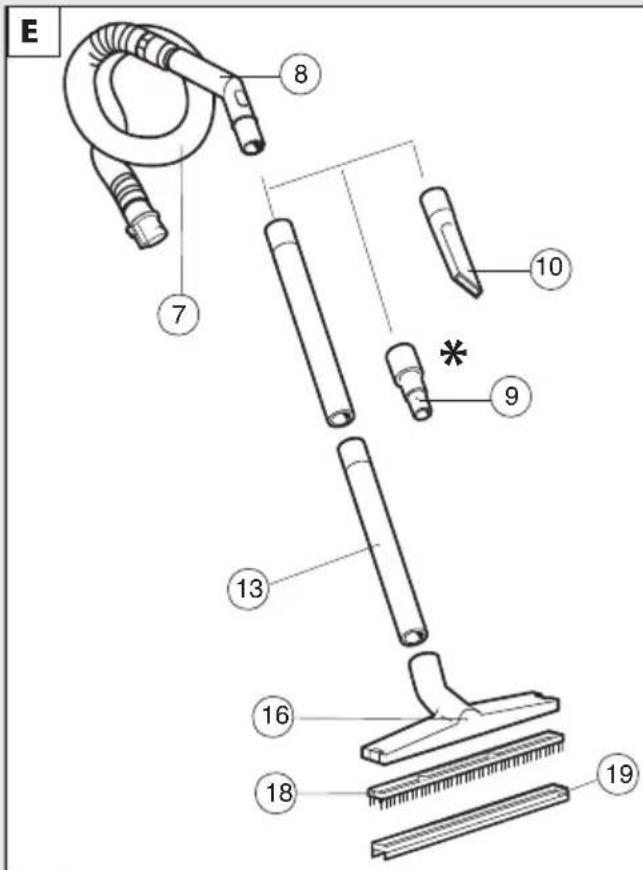

• Use the most suitable accessories for the reque- sted usage (E)(F).

• Put switch on (|) ON position in order to start the machine.

• When job is over, switch o (0) OFF and keep away the plug from the socket.

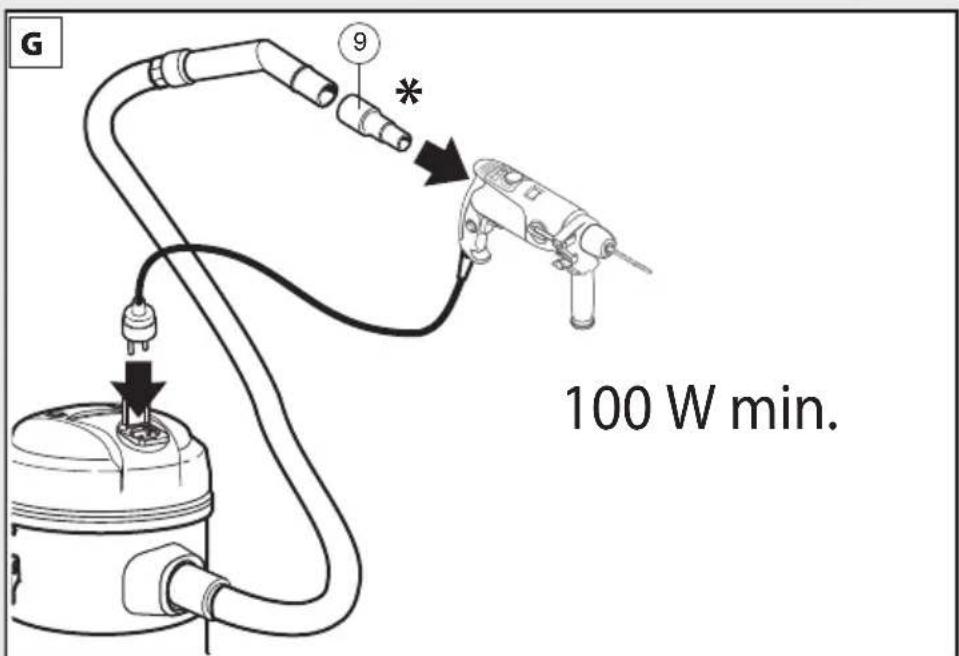

• If the appliance is used with especially ne dust (size below 0.3 µm) the lter supplied will requi- re cleaning more frequently. For especially de- manding applications, the use of specic lters supplied as an optional (Hepa) may be necessa- ry. Outlet Models see g. (G) To activate the socket-electric tool function, put switch (4) on (|)ON and switch (5) on (0) OFF. When a tool is connected the vacuum will automatically start as the tool is started. The suction hose will suck directly dust and wood shavings.

• Even when switches (4) and (5) are (|) ON , the electric tool socket is live. Not suitable for any hot items.

CARE AND MAINTENANCE

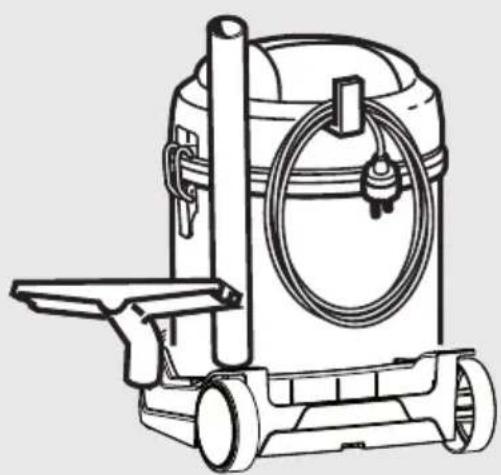

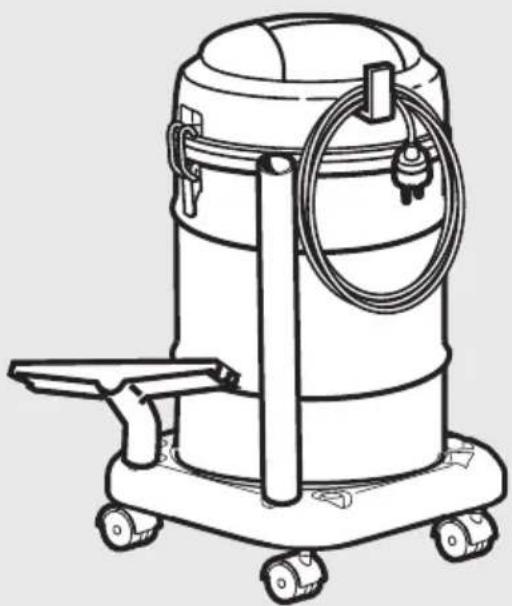

see g. (Q)(R) The unit is maintenance-free.

• The machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance

• Clean the exterior part of the machine with a dry cloth.

• Move the appliance only by catching the carrying handle located on the motor head.

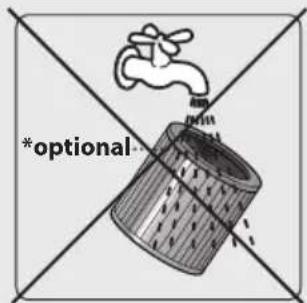

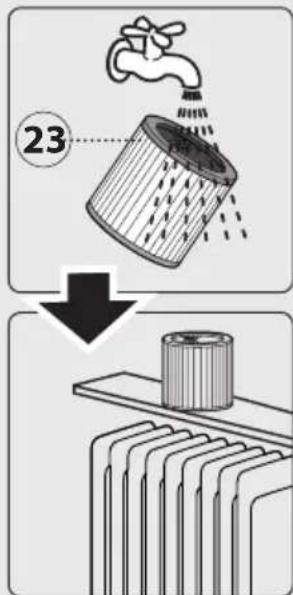

• Store the appliance and the accessories in a dry safe place, out of the reach of children. FILTER CLEANING (see g. (Q)

The machine shall be disconnected from its power source, by removing the plug from the socket- 12outlet, during cleaning or maintenance

4- Let the lter (23) drying very well ,befor reassem-

Once the lter has been cleaned, check whether it is suitable for further use. If it has been damaged or broken, replace it with an original lter. WARRANTY CONDITIONS All our machines are subjected to strict tests and are covered against manufacturing defects in ac- cordance with applicable regulations. The warran- ty is eective from the date of purchase. The following are not included in the warranty: - Parts subject to normal wear. - Rubber parts, char- coal, lters and the accessories and optional acces- sories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or im- proper use and installation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clogged nozzles and lter blocked due to lime- stones. This machine is intended to be used for domestic and hobby work: the warranty does not cover any other dierent kind of use. DISPOSAL (WEEE)

As the owner of electrical or electronic equipment, the law (in accordance with the EU Directive 2012/19/EU on waste from electrical and electronic equipment and the national laws of the EU Member States that have implemented this Directive) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of. Disposing of the product in the envi- ronment can cause great harm to the environment itself and human health. The symbol in the gure indicates the urban waste containers and it is strictly prohibited to dispose of the equipment in these containers. Non-complian- ce with the regulationtis spulated in the Directive 2012/19/EU and the decrees implemented in the various EU Member States is administratively pu- nishable. sound pressure level : LpA = 75 dB (A)
