USER MANUAL PG 8554 SEVERIN

1 About this manual 16
General information 16
Relevant documents. 16
Warning notices 16
2 Scope of supply 17
3 Before the first use. 18
Unpacking 18
Cleaning. 18
Assembly 18
Installation. 19
Filling the grill pan 19
First use. 20
4Grilling 21
Preparing. 21
Setting the temperature. 21
Grilling 22
Switching off 22
5 Cleaning 23
6 Recommendations for use 24
7 Disposal 24
8 Technical Data. 25
9 FAQ 26

1 About this manual

General information

These instructions are an integral part of the appliance.

• Read them carefully before setting up, installing and using the appliance and keep them for future reference.
  Pass them on to any subsequent owner or user of the product.

The appliance must only be used by those familiar with the instructions below.

Relevant documents

• Quick start guide
• Safety manual (Safety]
  Warranty declaration (Warranty)

Warning notices

Signal word

Type, source and consequences of the hazard

Measures to avoid the hazard.

Signal word Description

Danger Imminently	hazardous situation which, if not avoided, will result in death or serious injury.
Warning Potentially	hazardous situation which, if not avoided, could result in death or serious injury.
Caution Potentially	hazardous situation which, if not avoided, could result in minor injury.
Note Potentially hazardous situation which, if not avoided, can result in property damage.

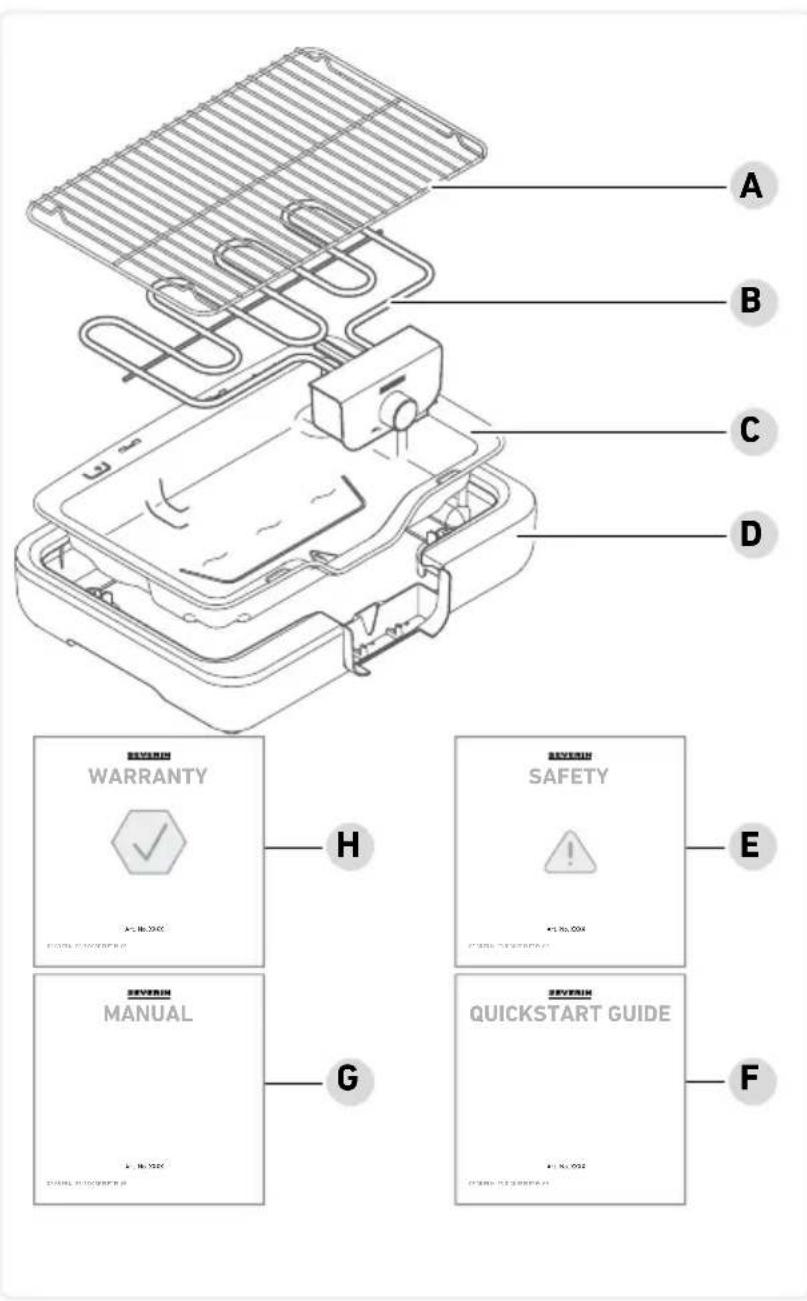

2 Scope of supply

A Grill rack
B Heating element
C Grill pan
D Casing
E Safety instructions
F Quick start guide
G Instruction manual
H Warranty declaration

www.severin.com

3 Before the first use

Unpacking

1. Remove all parts from the packaging.
2. Remove all packaging material, protective film and stickers.
3. Never remove the rating labels; they must remain on the appliance.
4. Check that the scope of supply is complete.

Cleaning

1. Clean the grill rack and grill pan with warm rinsing water.
2. Wipe the casing with a damp cloth.

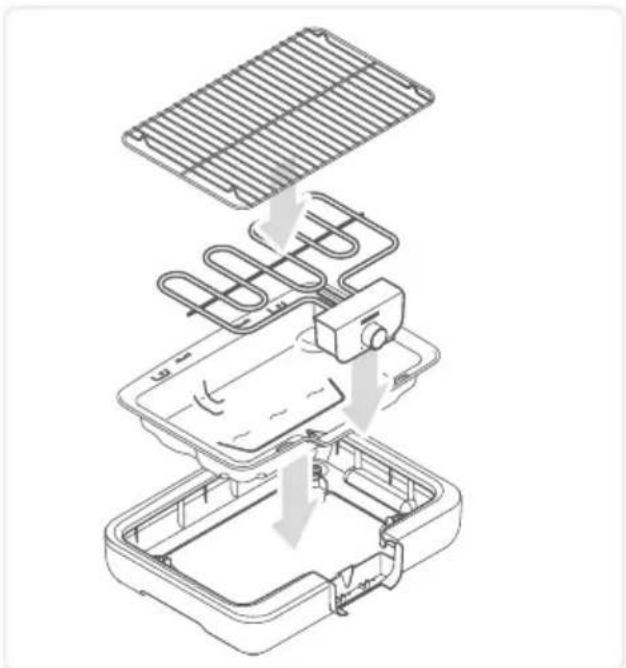

Assembly

1. Insert the grill pan into the casing.
2. Insert the heating element into the grill pan.
3. Place the grill rack on top.

Installation

This appliance is approved for indoor and outdoor use.

• Place the appliance on a level, dry, heat-resistant surface impervious to splashes and stains.
• Do not place the appliance against a wall or edge.
• Keep the appliance at a safe distance from flammable objects.

Filling the grill pan

1. Pull the mains plug out of the socket.
2. Remove the grill rack.

Warning!

Risk of injury from electric shock.

Disconnect the appliance from the mains before adding water.

Warning!

Risk of scalding from evaporating water.

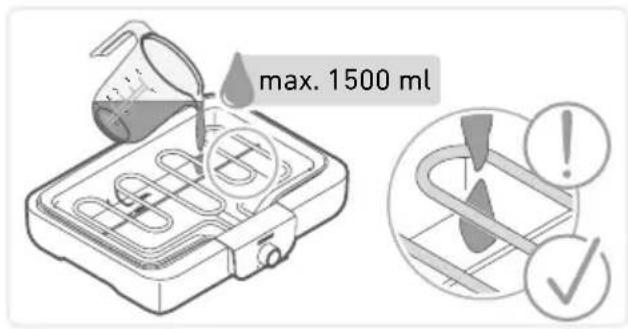

1. Fill the grill pan with a maximum of 1500ml of water up to the "Max" mark.

First use

1. Place the grill rack on top.
2. Plug the appliance into the socket.

Caution!

Risk of injury from slight build-up of smoke. Inhalation of harmful vapours can cause damage to health.

Open the windows or doors.

1. Let the grill heat up for approx. 10 minutes without any food on the rack to allow the unpleasant smell to dissipate.

To do this, turn the temperature control clockwise as far as it will go.

1. Allow the appliance to cool down and clean again.

4 Grilling

Preparing

1. Set up the appliance in a suitable place (see page 19, Installation).

Warning!

Risk of injury from electric shock.

Disconnect the appliance from the mains before adding water.

Warning!

Risk of scalding from evaporating water.

1. Fill the grill pan with a maximum of 1500ml of water up to the "Max" mark.
2. Place the grill rack on top.
3. Insert the mains plug into a suitable earthed power outlet.

Setting the temperature

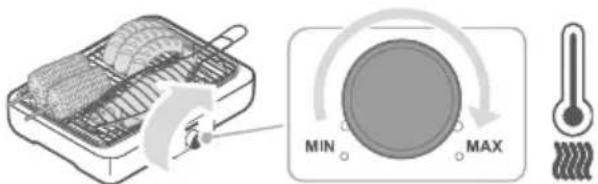

1. Turn the temperature control clockwise as far as it will go.

The operating temperature is reached after 10 minutes.

Grilling

Instructions for grilling with this appliance (see page 24, Recommendations for use).

Attention!

Do not place aluminium foil or grillware between the food and the heating element to prevent a build-up of heat and subsequent damage to the appliance.

Place the food directly on the grill rack.

The water in the grill pan evaporates during grilling.

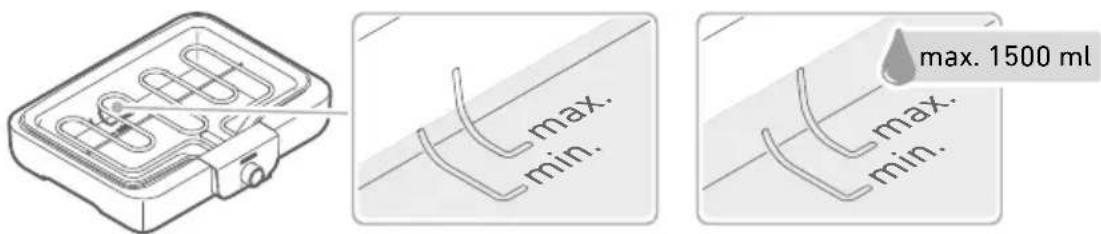

Water should be added (see page 19, Filling the grill pan) in good time and kept above the minimum level.

Warning!

Risk of burns from hot parts of the appliance and accessories.

Do not touch hot parts of the appliance or its accessories.

Switching off

Once the grilling process is finished:

1. Set the temperature control back to "MIN".
2. Pull out the mains plug and allow the grill to cool down.

5 Cleaning

The grill rack is dishwasher-safe, and all other appliance parts are not!

1. Clean the grill after use.
2. Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
3. Remove the grill rack, heating element and grill pan.
4. Remove heavy soiling from the grill rack and grill pan by soaking. Clean the grill pan with rinsing water and the grill rack in the dishwasher or with rinsing water. Use a soft cloth or sponge and water with a mild detergent. Do not use metal sponges or abrasive cleaning agents.
5. Clean the heating element and junction box with a damp cloth. They must not be immersed in liquids or even allowed to come into contact with them.
6. Wipe other accessories with a damp cloth.
7. Dry all parts.

6 Recommendations for use

Choose a windless location.

Remove the food from the fridge 30 minutes before grilling.

Set the control to "MAX" for grilling.

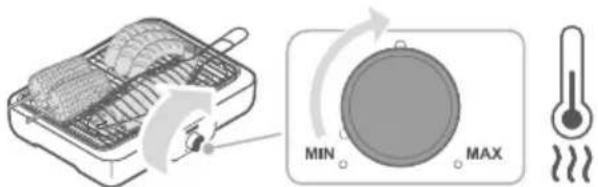

To keep warm, set the control between "MIN" and "MAX".

7 Disposal

Appliances marked with this symbol must be disposed of separately from household waste. These appliances contain valuable raw materials that can be recycled. Proper disposal of these items protects the environment and public health. Your local authority or retailer can provide detailed information on proper disposal.

8 Technical Data

Article number PG 8554
Power 2,300 W
Voltage/Frequency 220-240 V~, 50-60 Hz
Type of grill surface Stainless steel grill rack
On/off switch Control knob
Temperature control Thermostat-controlled
Grill surface 37 x 25 cm (900 cm	2)
Weight approx. 1.9 kg
Appliance dimensions 42 x 33 x 8.5 cm

Warning!

Risk of injury from operating a faulty appliance. Operating a faulty appliance can lead to electric shock.

Never use a faulty appliance.
Do not attempt to repair the appliance yourself.
Contact our customer service in the event of a defect.

Before contacting our customer service, check the table below to see if you can rectify the problem yourself.

Question / Solution problem

Appliance does not heat up	• Insert the heating element correctly (see page 18, Assembly). • Turn the control further to the right (see page 21, Setting the temperature).
Build-up of smoke	• Refill water (see page 19, Filling the grill pan).
Water tray heavily soiled	• Top up with water in good time (see page 19, Filling the grill pan). • Clean the water tray after use (see page 23, Cleaning).
