| Product type | Built-in oven |
| Brand | Bauknecht |
| Model | BIK7 CPC8TS PT |
| Power supply | Electric, 230 V~, 50/60 Hz |
| Maximum power | 3 kW (adjustable to 16 A high or 13 A low) |
| Cooking functions | My Menu, Forced Air, Multiflow Menu, Grill, Turbo Grill, Frozen Food, Defrost, Keep Warm, Dough Rising, Large Pieces, Eco Fan Heat, Slow Cooking, Rapid Preheat, Fan Heat, Natural Convection |
| Cleaning | Pyrolysis (full and eco cycle), manual cleaning |
| Safety | Key lock, door lock during pyrolysis, stop if door opened |
| Connectivity | Wi-Fi b/g/n 2.4 GHz, Bauknecht Home Net app, remote control, automatic software update |
| Lighting | Halogen bulb G9, 20-40 W, 230 V~, T300 °C |
| Supplied accessories | Metal grill, drip tray, baking tray |
| Available options | Sliding grills, removable grill supports |
| Installation type | Built-in under worktop or in column |
| Exterior maintenance | Damp microfiber cloth, mild detergent |
| Interior maintenance | Clean after each use, removable door for easy cleaning |
| Display | Screen with touch controls and navigation buttons |
| Controls | ON/OFF, direct function access, navigation +/-, back, confirm, favorites, start |
| Timer | Independent, can work without cooking |
| Special modes | Eco mode (reduced brightness), demo mode (no heating) |
| Repairability | Replaceable bulb, detachable grill supports, parts available via after-sales service |
Frequently Asked Questions - BIK7 CPC8TS PT BAUKNECHT
User questions about BIK7 CPC8TS PT BAUKNECHT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual BIK7 CPC8TS PT - BAUKNECHT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BIK7 CPC8TS PT by BAUKNECHT.

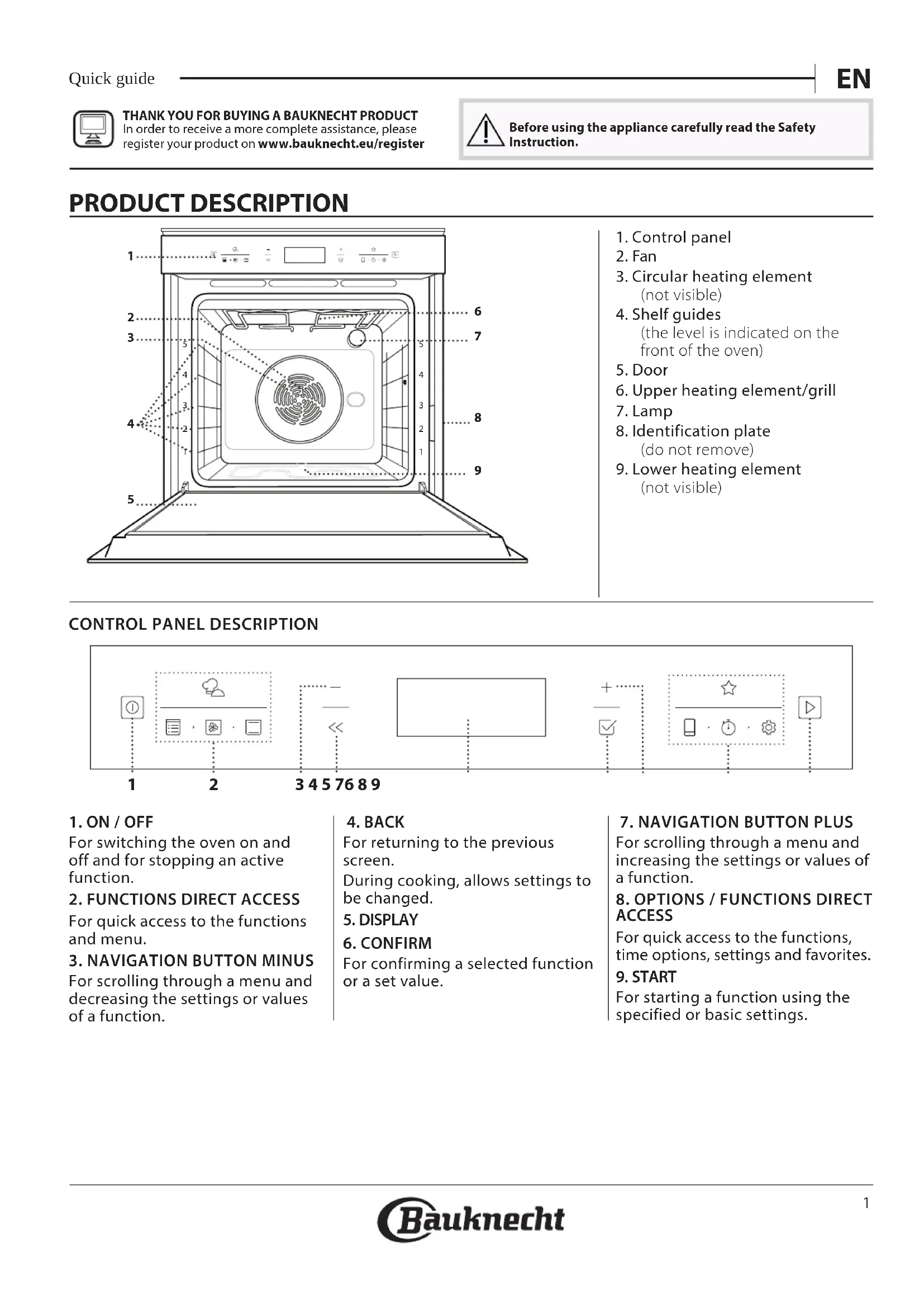

USER MANUAL BIK7 CPC8TS PT BAUKNECHT
- Control panel
2.Fan - Circular heating element (not visible)
- Shelf guides (the level is indicated on the front of the oven)
- Door
- Upper heating element/grill
- Lamp
- Identification plate (do not remove)
- Lower heating element (not visible)
CONTROL PANEL DESCRIPTION
1.ON/OFF
For switching the oven on and off and for stopping an active function.
2. FUNCTIONS DIRECT ACCESS
For quick access to the functions and menu.
3. NAVIGATION BUTTON MINUS
For scrolling through a menu and decreasing the settings or values of a function.
4. BACK
For returning to the previous screen.
During cooking, allows settings to be changed.
5. DISPLAY
6. CONFIRM
For confirming a selected function or a set value.
7. NAVIGATION BUTTON PLUS
For scrolling through a menu and increasing the settings or values of a function.
8 OPTIONS / FUNCTIONS DIRECT ACCESS
For quick access to the functions, time options, settings and favorites.
9. START
For starting a function using the specified or basic settings.
ACCESSIONS
Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.
Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.
Use for cooking all bread and pastry products, but also for roasts, fish en papillote, etc.
To facilitate inserting or removing accessories.
- Available only on certain models
The number and the type of accessories may vary depending on which model is purchased.
Other accessories can be purchased separately from the After-sales Service.
INSERTING THE WIRE SHELF AND OTHER ACCESSORIES
Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards.
Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.
REMOVING AND REFITTING THE SHELF GUIDES
- To remove the shelf guides, remove the fixing screws (if present) on both sides with the aid of a coin of a tool. Lift the guides up and pull the lower parts out of their seatings: The shelf guides can now be removed.
- To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating. Refit the fixing screws.
FITTING THE SLIDING RUNNERS (IF PRESENT)
Remove the shelf guides from the oven and remove the protective plastic from the sliding runners.
Fasten the upper clip of the runner to the shelf guide and slide it along as far as it will go. Lower the other clip into position.
To secure the guide, press the lower portion of the clip firmly against the shelf guide. Make sure that the runners can move freely. Repeat these steps on the other shelf guide on the same level.
Please note: The sliding runners can be fitted on any level.
FUNCTIONS
MY MENU
These allow a fully automatic cooking for all types of food (Lasagna, Meat, Fish, Vegetables, Cakes & Pastries, Salty cakes, Bread, Pizza). To use at best this function, follow the indications on the relative cooking table.
MANUAL FUNCTIONS
- CONVECT BAKE
For cooking meat, baking cakes with fillings on one shelf only.
-MULTIFLOW MENU
For cooking different foods that require the same cooking temperature on four levels at the same time. This function can be used to cook cookies, cakes, round pizzas (also frozen) and to prepare a complete meal. Follow the cooking table to obtain the best results.
GRILL FUNCTIONS
GRILL
For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the tray on any of the levels below the wire shelf and add 500ml of drinking water.
TURBO GRILL
For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500ml of drinking water.
MY FROZEN FOOD
The function automatically selects the ideal cooking temperature and mode for 5 different types of ready frozen food. The oven does not have to be preheated.
SPECIALS
DEFROSTING
To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging to prevent it from drying out on the outside.
> KEEP WARM
For keeping just-cooked food hot and crisp.
RISING
For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.
》MAXI COOKING
For cooking large joints of meat (above 2.5kg ). It is advisable to turn the meat over during cooking, to obtain even browning on both sides. It is best to baste the meat every now and again to prevent it from drying out.
ECO FORCED AIR
For cooking stuffed roasting joints and filletsof meat on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When
this ECO function is in use, the light will remain switched off during cooking. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.
SLOW COOKING
To gently cook meat and fish. This function cooks food slowly to keep it tender and succulent. Due to the low temperature, the food does not brown on the outside and the end result is similar to steam cooking. We recommend searing roast meat in a pan first to brown the meat and help seal in its natural juices. For best results, keep the oven door closed during cooking in order to avoid heat dispersion. Suggested cooking times ranges for fish (300g - 3kg) are between 2-5 hours, for meat (1 - 3kg) between 4-7 hours.
- CLEANING - PYRO
For eliminating cooking spatters using a cycle at very high temperature. Two selfcleaning cycles are available: A complete cycle (Pyro) and a shorter cycle (Pyro Eco). We recommend using the quicker cycle at regular intervals and the complete cycle only when the oven is heavily soiled.
- FAST PREHEAT
For preheating the oven quickly.
FORCED AIR
For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.
CONVENTIONAL
For cooking any kind of dish on one shelf only.
MY FAVORITES
For retrieving up the list of 10 favorite functions.
To enable use of the connectivity features switching on and off the control of your appliance through the Bauknecht Home Net App.
See the chapter below to know the procedure for connecting to your home network and configuring the product.
MINUTEMINDER
For keeping time without activating a function.
For adjust the oven settings.
When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute. It will be reactivated automatically whenever any of the buttons are pressed.
When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this mode, exceed "DEMO" from " SETTINGS" menu and select "Off". By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.
FIRST TIME USE
1. SELECT THE LANGUAGE
You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.
1. English
Press to scroll through the list of available languages and select the one you require. Press to confirm your selection.
Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu, available by pressing 念
2. SET THE POWER CONSUMPTION
The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3kW (16): If your household uses a lower power, you will need to decrease this value (13).
Press or to select 16 "High" or 13 "Low" and press to confirm.
3. SET THE TIME
After selecting the power, you will need to set the current time: The two digits for the hour will flash on the display.
DAILYUSE
1. SELECT A FUNCTION
Press to switch on the oven: the display will show the last running main function or the main menu. The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu: To select an item from a menu (the display will show the first available item), press + or to select the desired one, then press × to confirm.
2. SET THE FUNCTION
After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing allows you to change the previous setting again.
Press to set the current hour and press: The two digits for the minutes will flash on the display. Press + or to set the minutes and press to confirm.
Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in "SETTINGS" menu, available by pressing
3.1 SET THE TIME ON A CONNECTED APPLIANCE
On a connected appliance the Clock time could be automatically updated from the Cloud.
In the event the user wants to change the clock time received from the Cloud, going to the Settings Menu enter the "CLOCK" item and manually set the time; in this case any further automatic clock update sent from the Cloud will be ignored.
4. HEAT THE OVEN
A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200^ for around one hour, ideally using a function with air circulation (e.g. "Forced Air" or "Convection Bake").
Please note: It is advisable to air the room after using the appliance for the first time.
TEMPERATURE / GRILL LEVEL
When the value flashes on the display, press to change it, then press to confirm and continue with the settings that follow (if possible).
In the same way, it is possible to set the grill level: There are three defined power levels for grilling: 3 (high), 2 (mid), 1 (low).
Please note: Once the function has been activated, the temperature/grill level can be changed using + or -
DURATION
When the 品 on flashes on the display, press or ^+ to set the cooking time you require and then press
to confirm. You do not have to set the cooking time if you want to manage cooking manually (untimed): Press or to confirm and start the function. By selecting this mode, you cannot program a delayed start.
Please note: You can adjust the cooking time that has been set during cooking by pressing <<: press to amend it and then press l to confirm.
END TIME (START DELAY)
In many functions, once you have set a cooking time you can delay starting the function by programming its end time. The display shows the end time while the icon flashes.
Press or to set the time you want cooking to end, then press to confirm and activate the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.
Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table. During the waiting time, you can press + or to amend the programmed end time or press << to change other settings. By pressing <<, in order to visualize information, it is possible to switch between end time and duration.
.MY MENU
These functions automatically select the best cooking mode, temperature and duration to cook, roast or bake all the dishes available.
When required, simply indicate the characteristic of food to obtain an optimal result.
WEIGHT / HEIGHT (ROUND-TRAY-LAYERS)
To set the function correctly, follow the indications on the display, when prompted, and press + or to set the required value then press to confirm.
DONENESS/BROWNING
In some My Menu functions it is possible to adjust the doneness level.
When prompted, press to select the desired level between rare (-1) and well done (+1). Press l or to confirm and start the function.
In the same way, where allowed, in some My Menu functions, it's possible to adjust the browning level
between low (-1) and high (+1).
3. START THE FUNCTION
At any time, if the default values are those desired or once you have applied the settings you require, press to activate the function.
During the delay phase, press to skip this phase and start the function immediately.
Please note: Once a function has been selected, the display will recommend the most suitable level for each function. At any time you can stop the function that has been activated by pressing 10 .
If the oven is hot and the function requires a specific maximum temperature, a message will shown on the display. Press to return to previous screen and select a different function or wait for a complete cooling.
4. PREHEATING
Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.
Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature, requiring to "ADD FOOD". At this point, open the door, place the food in the oven, close the door and start cooking.
Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it.
The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using +or .
5. PAUSE COOKING / TURN OR CHECK FOOD
By opening the door, the cooking will be temporarily paused through deactivating heating elements. To resume the cooking, close the door.
Some My Menu functions will require the food to be turned during cooking.
An audible signal will sound and the display shows the action to be done. Open the door, do the action prompted by the display and close the door and resume cooking.
In the same way, at 10% of time before the end of cooking, the oven prompts you to check the food.
An audible signal will sound and the display shows
the action to be done. Check the food, close the door and resume cooking.
Please note: Press skip these actions. Otherwise, if no action is done after a certain time the oven will continue the cooking.
6.END OF COOKING
An audible signal will sound and the display will indicate that cooking is complete.
Press to continue cooking in manual mode (untimed) or press + to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.
BROWNING
Some functions of the oven enable you to brown the surface of the food by activating the grill once cooking is complete.
When the display shows the relevant message, if required press to start a five-minute browning cycle. You can stop the function at any time by pressing to switch the oven off.
. FAVORITES
Once cooking is complete the display will prompt you to save the function in a number between 1 and 10 on your list of favorites.
If you would like to save a function as a favorite and store the current settings for future use, press × otherwise, to ignore the request press.
Once has been pressed, press the or to select the number position, then press to confirm.
Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.
To call up the functions you have saved at a later time, press ☆ : The display will show your list of favorite functions.
Press to select the function, confirm by pressing , and then press to activate.
AUTOMATIC CLEANING - PYRO
Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after (until the room has finished airing) running the Pyro cycle.
Remove all accessories - including shelf guides - from the oven before activating the function. If the oven is installed below a hob, make sure that all the burners or electric hotplates are switched off while running the selfcleaning cycle. For optimum cleaning results, remove excessive residuals inside the cavity and clean the inner door glass before using the Pyro function. We recommend only running the Pyro function if the appliance contains heavy soiling or gives off bad odours during cooking.
Press to access the "Specials" menu, and select the Cleaning function. "Pyro" will appear on the display.
Press or to select the desired cycle, then press + to confirm.
The display will prompt you to do all actions needed to obtain the best cleaning results.
Once a cycle has been selected, if desired, press + or - to set end time (start delay), then press to confirm.
Once you have done all steps, when required press to activate the cleaning cycle.
The oven will begin the self-cleaning cycle, while the door locks automatically: a warning message appears on the display, along with a countdown indicating the status of the cycle in progress.
Once the cycle has been completed, the door remains locked until the temperature inside the oven has returned to a safe level.
. MINUTEMINDER
When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and press + or :The icon will flash on the display.
Press + or to set the length of time you require and then press to activate the timer.
An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time.
Please note: The minuteminder does not activate any of the cooking cycles. Press + or to change the time set on the timer.
Once the minuteminder has been activated, you can also select and activate a function.
Press to switch on the oven and then select the function you require.
Once the function has started, the timer will continue to count down independently without interfering with the function itself.
Please note: During this phase, it isn't possible to see the minuteminder (only the icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press to stop the function that is currently active.
. KEYLOCK
To lock the keypad, press and hold for at least five seconds. Do this again to unlock the keypad.
Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing ⑨
Thanks to the Bauknecht Home Net feature, your appliance can be connected to the internet. Using the Bauknecht Home Net App on your smartphone/ tablet, you can:
- monitor the status of the appliance
- set and start a cooking cycle
- change, modify, or stop a running cooking cycle
- access additional contents
- get automatic updates of the appliance software To enable the connectivity, you have to successfully complete the process to connect the appliance to your home network router and App. The setup procedure has to be carried out only once.
You will have to carry it out again only if you change your home network properties (network name and password).
MINIMUM REQUIREMENTS
Mobile device: Android with a 1280x720 (or higher) screen or iOS. See on App store the App compatibility with Android or iOS versions.
Wireless router: 2.4Ghz WiFi b/g/n.
HOW TO SETUP
To use this feature you need to own: a mobile device (smartphone or tablet) and a wireless router connected to internet. Please verify with your mobile device that the signal strength of your home wireless network close to the appliance is good. During the setup procedure, the appliance and your mobile device must be connected to the same wireless network.
Download the Bauknecht Home Net App for your mobile device. You can download the App by visiting either iTunes or Google Play.
Once downloaded, please follow the instructions from App to create an account. Once you have your account, open the App and press + on the bottom left of the screen to add a new appliance to your account.
Scan the QR-code on the label you can find on your appliance, then the Bauknecht Home Net App will be your guide to walk through all of the steps needed to complete the process.
Note: In some circumstances, the App may require you to enter the type of appliance: in this case, select Oven.
During the Connection process, you will see several messages appearing on the display and the icons blinking with different patterns; to know the operations performed in background by the appliance, see the descriptions in the following table.
WHAT YOU SEE ON THE DISPLAY MEANING
| 2000 FOLLOW INSTRUCTI | Displayed message: Follow instructions on the App. During this twenty minutes countdown, the appliance tries to connect to your home network (router). WiFi icon blinks quickly. |
| PLEASE WAIT | Displayed message: Please wait. If the router connection is completed, the appliance will try to reach the App automatically, and it will ask to wait. WiFi icon blinks slowly. |
| APPLIANCE CONNEC | Displayed message: Appliance connected. All the process has been successful: your appliance is now connected. WiFi icon stops blinking. |
| USE THE APP TO R | Displayed message: Use the App to register the product. Follow the last instructions on the App to complete the registration, giving a name to the appliance. Then you will find it quickly on the App's homepage. |
| CONNECTION ERROR | Displayed message: Connection error. This message could be displayed for a few seconds if the appliance has not been able to complete setup procedure in a certain time. After that the appliance goes Standby and the WiFi icon turns off. |
REMOTE CONTROL
If your appliance is properly connected, it's possible to press the icon , to activate Remote Control.
Through your mobile device, you will be allowed to remotely control the oven, to send inputs and supervise cooking cycles.
When a cooking cycle is sent from the App, the display shows the information 'Cycle received' for some seconds, then the cycle starts.
RESET CONNECTION
This function could be useful in the event that your home network properties has changed (network name or password).
Before resetting the connection, please check if it is possible to restore the network name and password that you used when you connected the appliance to your home network. In this case it would not be necessary to reset the connection.
CONNECTIVITY FAQ
Which WiFi protocols are supported?
The WiFi adapter installed supports WiFi b/g/n for European countries.
The following router settings are required: 2.4 GHz enabled, WiFi b/g/n, DHCP and NAT activated.
Are there any differences between using a smartphone (or tablet) with Android or iOS?
You can use whichever operating system you prefer, it makes no difference.
Can I use mobile 3G tethering instead of a router?
Yes, but cloud services are designed for permanently connected devices.
How can I check whether my home internet connection is working and wireless functionality is enabled?
You can search for your network on your smart device. Disable any other data connections before trying.
How can I check whether the appliance is connected to my home wireless network?
Access your router configuration (see router manual) and check whether the appliance's MAC address is listed on wireless connected devices page.
Where can I find the appliance's MAC address and the SAID code?
There is a sticker on your appliance with a QR-code: Close to the QR-code you should find the SAID code and the MAC address.
It is also possible to retrieve the SAID code and the MAC address pressing SETTINGS on the Control Panel, then entering the Connectivity menu and selecting the voices "MAC address" or "SAID code".
To reset the connection, please follow this path: SETTINGS > CONNECTIVITY MENU > RESET CONNECTION > YES. The display will ask "Are you sure?" By pressing , the connection will be reset. You can now connect again your appliance (see "How to Setup" paragraph).
SOFTWARE UPDATE
While in Standby, an appliance already configured for connection, with WiFi reception enabled, can automatically update the software when a new version is available.
When the update is in progress, the percentage of completion will be shown on the display.
Note: Make sure that the appliance power source is always engaged during this software update process.
During the update process it is impossible to interact with the control panel.
How can I check whether the appliance is properly connected to the App?
Open the Bauknecht Home Net App on your mobile device, and check if your appliance is visible.
Is there anything that can prevent the signal reaching the appliance?
Check that the devices you have connected are not using up all the available bandwidth. Make sure that your WiFi-enabled devices do not exceed the maximum number permitted by the router.
How far should the router be from the appliance?
Normally the WiFi signal is strong enough to cover a couple of rooms, but this very much depends on the material the walls are made of. You can check the signal strength by placing your smart device (connected to the same home network) next to the appliance.
How can I find out the name and password for my wireless network?
See the router documentation. There is usually a sticker on the router showing the information you need to reach the device setup page using a connected device.
What can I do if my router is using the neighbourhood WiFi channel?
Force the router to use your home WiFi channel.
How can I check the WiFi status of my appliance? Is it possible to turn off the reception of WiFi?
The WiFi module is ON by default in this appliance. It's possible to change or confirm the WiFi status by entering the Connectivity Menu, selecting 'WiFi Status'. The display will show the current Status value, that could be ON or OFF.
Note: When the power is retrieved after a power loss, the WiFi Module will keep its settings (links to router and App), and the Remote control status is always restored.
How can I change my Bauknecht account but keep my appliances connected?
You can create a new account, but remember to remove your appliances from your old account before moving them to your new one.
I changed my router: what do I need to do?
If you can keep the previous network name and password in the new router, then you have nothing to do, the appliance will reconnect automatically.
Otherwise, to reconnect the appliance to the new WiFi network, just press + in the App home page, as you should add again the appliance to your account.
Note: you do NOT have to previously remove the appliance from your account. The App will guide you through the re-connection process.
| FOOD CATEGORIES SUGGESTED QUANTITY | TURN OR STIR (OF COOK TIME) | LEVEL AND ACCESSORIES | ||
| BAKED | MAIN DISHES | Lasagna 0.5 - 3 kg- | 2 | |
| Salty cakes 0.8 - 1.2 kg- | 2 | |||
| Vegetables-stuffed 0.1 - 0.5 kg each- | 3 | |||
| PIZZA & BREAD | Rolls 60 - 150 g each- | 3 | ||
| Sandwich Loaf in tin 400 - 600 g each- | 2 | |||
| Big bread 0.7 - 2.0 kg- | 2 | |||
| Baguettes | 200 - 300 g each | 3 | ||
| Thin pizza | round - tray- | 2 | ||
| Thick pizza | round - tray- | 2 | ||
| Pizza-frozen | 1 - 4 layers- | 2 | ||
| 4 1 | ||||
| 5 3 1 | ||||
| 5 4 2 1 | ||||
| CAKES & PASTRIES | Sponge Cake in tin | 0.5 - 1.2 kg- | 2 | |
| Cookies | 0.2 - 0.6 kg- | 3 | ||
| Choux pastry 1 tray | - | 3 | ||
| Tart in tin | 0.4 - 1.6 kg- | 3 | ||
| Strudel | 0.4 - 1.6 kg- | 3 | ||
| Fruit filled pie | 0.5 - 2 kg- | 2 | ||
| ROASTED | MEAT | Beef-roasted | 0.6 - 2 kg- | 3 |
| Pork-roasted | 0.6 - 2.5 kg- | 3 | ||
| Chicken-roasted | 0.6 - 3 kg- | 2 | ||
| SIDE DISH | Vegetables-roasted | 0.5 - 1.5 kg- | 3 | |
| Potatoes | 0.5 - 1.5 kg- | 3 | ||
| GRILLED | MEAT | Hamburgers | 1.5 - 3 cm | 3/5 |
| Sausages & wurstel | 1.5 - 4 cm | 2/3 | ||
| Kebabs | 1 grid | 1/2 | ||
| Fillet & breast | 1 - 5 cm 2/3 | |||
| FISH & SEAFOOD | Filletts | 0.5 - 3 cm | 3 | |
| Filletts-frozen | 0.5 - 3 cm | 3 | ||
| SIDE DISH | Tomatoes 1 tray | - | 3 | |
| Peppers | 1 tray | 3 | ||
| Broccoli gratin | 1 tray | 3 | ||
| Cauliflower gratin | 1 tray | 3 | ||
| Vegetables gratin | 1 tray | 3 | ||
| ACCESSORIES | ...... Wire shelf | Oven tray or cake tin on wire shelf | Drip tray / Baking tray or oven tray on wire shelf | Drip tray / Baking tray | Drip tray with 500 ml of water |
COOKING TABLE
| RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (MIN.) | SHELF AND ACCESSORIES | ||||
| Leavened cakes / Sponge cakes | Yes 170 30 - 50 | 2 | |||
| Yes | 160 | 30 - 50 | 2 | ||
| Yes | 160 | 30 - 50 | 4 1 | ||
| Filled cakes(chesecake, strudel, apple pie) | Yes | 160 - 200 | 30 - 85 | 3 | |
| Yes | 160 - 200 | 35 - 90 | 4 1 | ||
| Cookies / Shortbread | Yes | 150 20 - 40 | 3 | ||
| Yes | 140 | 30 - 50 | 4 | ||
| Yes | 140 | 30 - 50 | 4 1 | ||
| Yes 135 | 40 - 60 | 5 3 1 | |||
| Small cakes / Muffin | Yes 170 20 - 40 | 3 | |||
| Yes | 150 30 - 50 | 4 | |||
| Yes | 150 30 - 50 | 4 1 | |||
| Yes | 150 40 - 60 | 5 3 1 | |||
| Choux buns | Yes | 180 - 200 | 30 - 40 | 3 | |
| Yes | 180 - 190 | 35 - 45 | 4 1 | ||
| Yes | 180 - 190 | 35 - 45* | 5 3 1 | ||
| Meringues | Yes | 90 | 110 - 150 | 3 | |
| Yes | 90 | 130 - 150 | 4 1 | ||
| Yes | 90 | 140 - 160* | 5 3 1 | ||
| Pizza / Bread / Focaccia | Yes | 190 - 250 | 15 - 50 | 2 | |
| Yes | 190 - 230 | 20 - 50 | 4 1 | ||
| Pizza (Thin, thick, focaccia) | Yes | 220 - 240 | 25 - 50* | 5 3 1 | |
| Frozen pizza | Yes | 250 | 10 - 15 | 3 | |
| Yes | 250 | 10 - 20 | 4 1 | ||
| Yes | 220 - 240 | 15 - 30 | 5 3 1 | ||
| Savoury pies(vegetable pie, quiche) | Yes | 180 - 190 | 45 - 55 | 3 | |
| Yes | 180 - 190 | 45 - 60 | 4 1 | ||
| Yes | 180 - 190 | 45 - 70* | 5 3 1 | ||
| Vols-au-vent / Puff pastry crackers | Yes | 190 - 200 | 20 - 30 | 3 | |
| Yes | 180 - 190 | 20 - 40 | 4 1 | ||
| Yes | 180 - 190 | 20 - 40* | 5 3 1 | ||
| Lasagna / Flans / Baked pasta/Cannelloni | Yes | 190 - 200 | 45 - 65 | 3 | |
| Lamb / Veal / Beef / Pork 1 kg | Yes | 190 - 200 | 80 - 110 | 3 | |
| FUNCTIONS | Conventional | Forced air | Convect bake | Grill | TurboGrill | Maxi Cooking | Multiflow Menu | Eco Forced air |
| RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (MIN.) | SHELF AND ACCESSORIES | ||||
| Roast pork with crackling 2 kg - 170 110 | 150 | 2 | |||
| Chicken / Rabbit / Duck 1 kg Yes 200 - 230 | 50 - 00 | 3 | |||
| Turkey / Goose 3 kg Yes 190 - 200 80 - 130 | 2 | ||||
| Baked fish / en papillote (fillets, whole) | Yes 180 | 200 | 40 - 60 | 3 | |
| Stuffed vegetables (tomatoes, courgettes, aubergines) | Yes 180 | 200 | 50 - 60 | 2 | |
| Toast | - | 3 (High) | 3 - 6 | 5 | |
| Fish fillets / Steaks | - | 2 (Mid) | 20 - 30 ** | 4 3 | |
| Sausages / Kebabs / Spare ribs / Hamburgers | - | 2 - 3 (Mid - High) | 15 - 30 ** | 5 4 | |
| Roast chicken 1-1.3 kg | - | 2 (Mid) | 55 - 70 *** | 2 1 | |
| Leg of lamb / Shanks | - | 2 (Mid) | 60 - 90 *** | 3 | |
| Roast potatoes | - | 2 (Mid) | 35 - 55 *** | 3 | |
| Vegetable gratin | - | 3 (High) | 10 - 25 | 3 | |
| Cookies | Cookies | Yes | 135 | 50 - 70 | 5 4 3 1 |
| Tarts | Tarts | Yes | 170 | 50 - 70 | 5 4 3 1 |
| Round pizzas | Round pizza | Yes | 210 | 40 - 60 | 5 4 2 1 |
| Complete meal: Fruit tart (level 5) / lasagna (level 3) / meat (level 1) | Yes | 190 | 40 - 120 * | 5 3 1 | |
| Complete meal: Fruit tart (level 5) / roasted vegetables (level 4) / lasagna (level 2) / cuts of meat (level 1) | Full meal | Yes | 190 | 40 - 120 * | 5 4 2 1 |
| Lasagna & Meat | Full meal | Yes | 200 | 50 - 100 * | 4 1 |
| Meat & Potatoes | Full meal | Yes | 200 | 45 - 100 * | 4 1 |
| Fish & Vegetables | Full meal | Yes | 180 | 30 - 50 * | 4 1 |
| Stuffed roasting joints | Full meal | - | 200 | 80 - 120 * | 3 |
| Cuts of meat (rabbit, chicken, lamb) | Full meal | - | 200 | 50 - 100 * | 3 |
- Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.
Turn food halfway through cooking.
* Turn food two thirds of the way through cooking (if necessary).
HOW TO READ THE COOKING TABLE
The table lists the best function, accessories and level to use to cook different types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably darkcoloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer.
| ACCESSIONS | Wire shelf | Oven tray or cake tin on wire shelf | Drip tray / Baking tray or oven tray on wire shelf | Drip tray / Baking tray | Drip tray with 500 ml of water |
CLEANING AND MAINTENANCE
Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.
Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.
Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.
EXTERIOR SURFACES
- Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
- Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.
INTERIOR SURFACES
After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge.
- Clean the glass in the door with a suitable liquid detergent.
- The oven door can be removed to facilitate cleaning.
ACCESSIONS
Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.
REMOVING AND REFITTING THE DOOR
- To remove the door, open it fully and lower the catches until they are in the unlock position.
- Close the door as much as you can. Take a firm hold of the door with both hands - do not hold it by the handle.
Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.
- Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

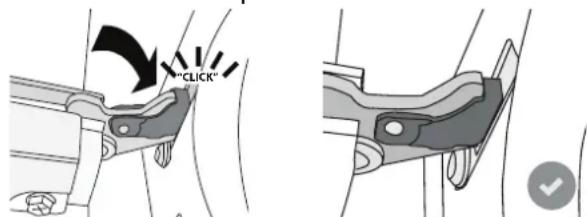

- Lower the door and then open it fully. Lower the catches into their original position: Make sure that you lower them down completely.
Apply gentle pressure to check that the catches are in the correct position.
- Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.
REPLACING THE LAMP
- Disconnect the oven from the power supply.
- Remove the cover from the light, replace the bulb and put the cover back on the light.
- Reconnect the oven to the power supply.
Please note: Only use 20-40 W/230 ~ V type G9, T300°C halogen bulbs. The bulb used in the product is speci cally designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service.
- If using halogen bulbs, do not handle them with your bare hands as your ngerprints could cause damage. Do not use the oven until the light cover has been re tted.
TROUBLESHOOTING
| PROBLEM POSSIBLE CAUSE SOLUTION | ||
| The oven is not working. | Power cut.Disconnection from the mains. | Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists. |
| The display shows the letter "F" followed by a number or letter. | Oven failure. | Turn off the oven and restart it to see if the problem persists.Try to perform the "FACTORY RESET" from, selectable from "SETTINGS".Contact you nearest Client After-sales Service Centre and state the number following the letter "F". |
| The oven does not heat up. | When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up.DEMO appears on display every 60 seconds. | Access "DEMO" from "SETTINGS" and select "Off". |
| The light switches off. "ECO" mode is "On". | Acced "ECO" from "SETTINGS" and | Select "Off". |
| The door will not open. Cleaning cycle in progress. | Wait for the function to finish and for the oven to cool down. | |
| The home power goes off. Power setting wrong. | Verify if your domestic network has at least a rating of more than 3 kW. If no, decrease the power to 13 Ampere. Access "POWER" from "SETTINGS" and select "LOW". | |
| The App fails to recognize the appliance.The appliance is unable to establish a stable connection to my home router. | Missing connection to the router or to the App.Appliance not connected Internal error.Wifi off.(See the Connection Status Value, pressing ☑ and entering the Connectivity Menu) | Check that the WiFi router is connected to the Internet. Check that the WiFi signal close to the appliance is strong. Try to restart the router.See the "Connectivity FAQs" section.If your home wireless network settings have changed, connect to the network again following the steps on the App. The setup procedure has to carry out again only if you change your home network properties (name and password).Router settings: NAT must be on, firewall and DHCP must be properly configured. Password encryption supported: WEP, WPA, WPA2. To try a different encryption type, please refer to the router manual.Carrier settings: if your internet service provider has fixed the number of MAC addresses able to connect to the internet, you may not be able to connect your appliance to the cloud. The MAC address of a device is its unique identifier. Please ask your internet service provider how to connect devices other than computers to the internet. |
| The icon blinks on the display. | Connection attempts are running in background.Connection unavailable. | It's a normal behaviour during the setup procedure; you just have to wait for the automatic configuration to finish the procedure (it may take a few minutes).Once the connection is established, the icon will stop to blink.Check that the home network is working correctly and its properties have not changed (name and password) |
| The appliance is connected but I cannot dialogue with it through the App. | Remote Control could be OFF. | Tap the Remote control key ☐on the Control Panel to activate the Remote Control |
Policies, standard documentation and additional product information can be found by: - Visiting our website docs.bauknecht.eu
-Using QR Code
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
PRODUKTBESKRIVELSE
ISÄTNING AF RIST OG ANDET TILBEHØR
8. VALINNAT / SUORA PÄASY TOIMINTOIHIN
6. KYPSENNYKSEN PAATTYMINEN
8. ACCÉS DIRECT AUX OPTIONS / FONCTIONS
CONDITIONS REQUISES MINIMALES
MISE A JOUR LOGICIELLE
3. NAVIGATIETOETS MIN
SETTE INN GLIDESKINNENE (HVIS AKTUELT)
SLUTFID (UTSATT START)
For mange funksjoner, nár du Först har stilt inn steketiden kan du utsette start av funksjonen ved Å programmere tidspunktet for slutt. Display viser sluttiden mens ⑦ ikonet blinker.
