USER MANUAL BIK7 CH8TS PT BAUKNECHT

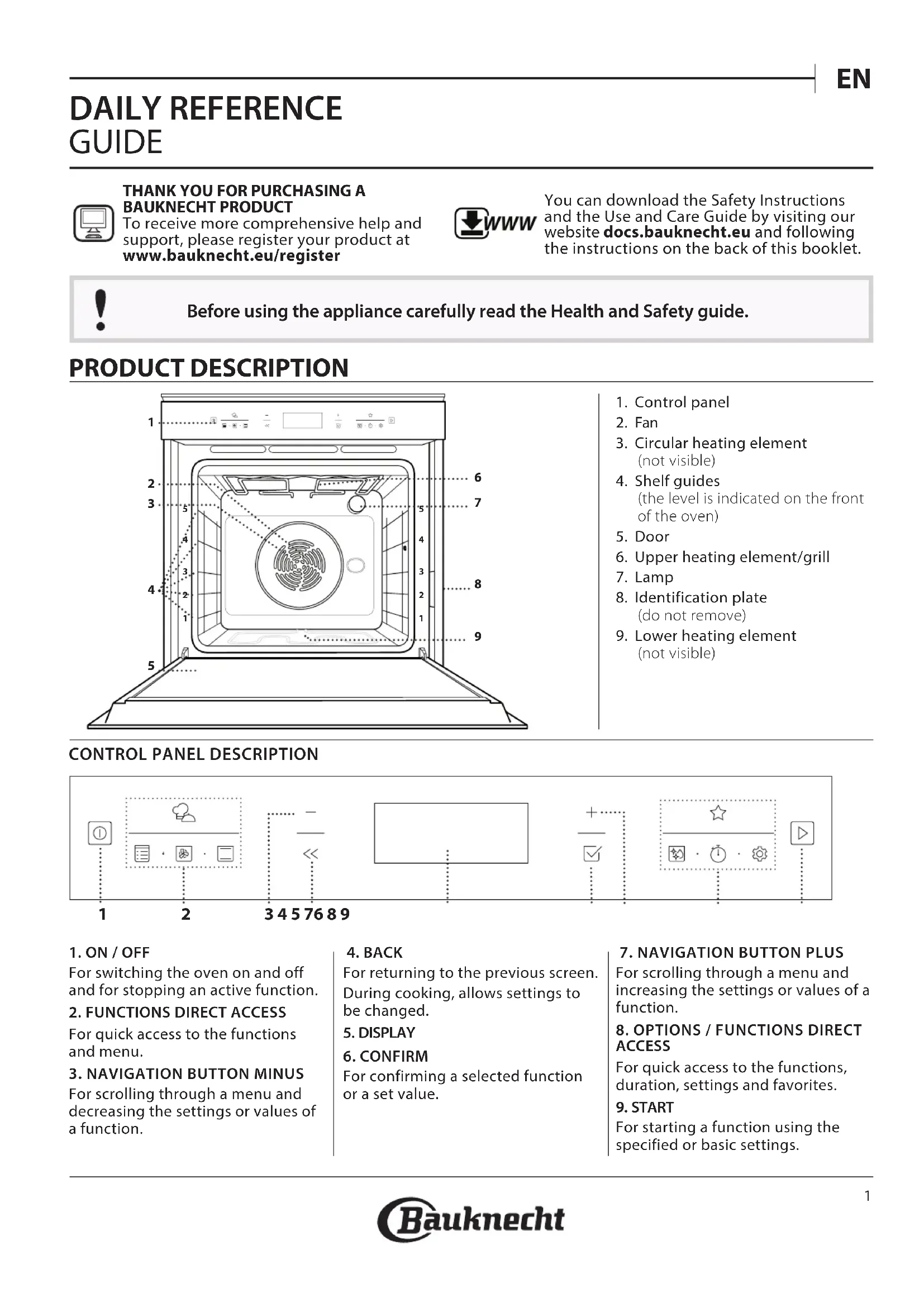

DAILY REFERENCE GUIDE THANK YOU FOR PURCHASING A BAUKNECHT PRODUCTTo receive more comprehensive help and support, please register your product at www . bauknecht . eu/ register WWW You can download the Safety Instructions and the Use and Care Guide by visiting our website docs . bauknecht . eu and following the instructions on the back of this booklet. Before using the appliance carefully read the Health and Safety guide. PRODUCT DESCRIPTION 1. Control panel2. Fan3. Circular heating element (not visible)4. Shelf guides (the level is indicated on the front of the oven)5. Door6. Upper heating element/grill7. Lamp8. Identification plate (do not remove)9. Lower heating element (not visible)CONTROL PANEL DESCRIPTION

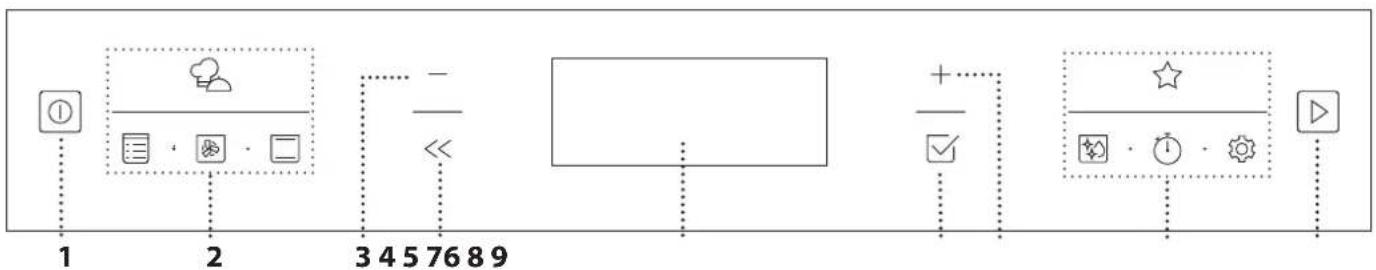

3 4 5 76 8 91. ON / OFFFor switching the oven on and off and for stopping an active function.2. FUNCTIONS DIRECT ACCESSFor quick access to the functions and menu.3. NAVIGATION BUTTON MINUSFor scrolling through a menu and decreasing the settings or values of a function. 4. BACKFor returning to the previous screen.During cooking, allows settings to be changed.5. DISPLAY6. CONFIRMFor confirming a selected function or a set value. 7. NAVIGATION BUTTON PLUSFor scrolling through a menu and increasing the settings or values of a function.8. OPTIONS / FUNCTIONS DIRECT ACCESS For quick access to the functions, duration, settings and favorites.9. STARTFor starting a function using the specified or basic settings.

ACCESSORIES WIRE SHELF DRIP TRAY BAKING TRAY SLIDING RUNNERS * Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware Use as an oven tray for cooking meat, sh, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices. Use for cooking all bread and pastry products, but also for roasts, sh en papillotte, etc. To facilitate inserting or removing accessories.

• Available only on certain models The number and the type of accessories may vary depending on which model is purchased. Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER

ACCESSORIES Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards. Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.

REMOVING AND REFITTING THE SHELF GUIDES

• To remove the shelf guides, remove the fixing screws (if present) on both sides with the aid of a coin of a tool. Lift the guides up and pull the lower parts out of their seatings: The shelf guides can now be removed.

• To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating. Refit the fixing screws.

FITTING THE SLIDING RUNNERS (IF PRESENT) Remove the shelf guides from the oven and remove the protective plastic from the sliding runners. Fasten the upper clip of the runner to the shelf guide and slide it along as far as it will go. Lower the other clip into position. To secure the guide, press the lower portion of the clip firmly against the shelf guide. Make sure that the runners can move freely. Repeat these steps on the other shelf guide on the same level. Please note: The sliding runners can be tted on any level.3

FUNCTIONS MY MENU These allow a fully automatic cooking for all types of food (Lasagna, Meat, Fish, Vegetables, Cakes & Pastries, Salty cakes, Bread, Pizza). To use at best this function, follow the indications on the relative cooking table. MANUAL FUNCTIONS

• CONVECT BAKE For cooking meat, baking cakes with fillings on one shelf only.

• MULTIFLOW MENU For cooking different foods that require the same cooking temperature on four levels at the same time. This function can be used to cook cookies, cakes, round pizzas (also frozen) and to prepare a complete meal. Follow the cooking table to obtain the best results.

• GRILL FUNCTIONS » GRILL For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the tray on any of the levels below the wire shelf and add 500 ml of drinking water. » TURBO GRILL For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500 ml of drinking water.

• MY FROZEN FOOD The function automatically selects the ideal cooking temperature and mode for 5 different types of ready frozen food. The oven does not have to be preheated.

• SPECIALS » DEFROSTING To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging to prevent it from drying out on the outside. » KEEP WARM For keeping just-cooked food hot and crisp. » RISING For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle. » MAXI COOKING For cooking large joints of meat (above 2.5 kg). It is advisable to turn the meat over during cooking, to obtain even browning on both sides. It is best to baste the meat every now and again to prevent it from drying out.

For cooking stuffed roasting joints and filletsof meat on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this ECO function is in use, the light will remain switched off during cooking. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked. » SLOW COOKING To gently cook meat and fish. This function cooks food slowly to keep it tender and succulent. Due to the low temperature, the food does not brown on the outside and the end result is similar to steam cooking. We recommend searing roast meat in a pan first to brown the meat and help seal in its natural juices. For best results, keep the oven door closed during cooking in order to avoid heat dispersion.Suggested cooking times ranges for fish (300 g - 3 kg) are between 2-5 hours, for meat (1-3 kg) between 4-7 hours.

• FAST PREHEAT For preheating the oven quickly. FORCED AIR For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another. CONVENTIONAL For cooking any kind of dish on one shelf only. MY FAVORITES For retrieving up the list of 10 favorite functions. DIAMOND CLEAN The action of water vapor released during this special cycle of cleaning by means of a low temperature, facilitates removal of grime. Place 200 ml of drinking water on the bottom of the cavity and activate the function when the oven is cold. MINUTEMINDER For keeping time without activating a function. SETTINGS For adjust the oven settings. When “ECO” mode is active the brightness of the display will be reduced to save energy and lamp switches o after 1 minute. It will be reactivated automatically whenever any of the buttons are pressed. When “DEMO” is “On” all commands are active and menues available but the oven doesn’t heat up. To deactivate this mode, acceed “DEMO” from “SETTINGS” menu and select “O”. By selecting “FACTORY RESET”, the product switches o and then it returns to rst switch on. All settings will be deleted.4

You will need to set the language and the time when you switch on the appliance for the first time: “English” will show on the display. 1.English Press or to scroll through the list of available languages and select the one you require. Press to confirm your selection. Please note: The language can subsequently be changed by selecting “LANGUAGE” in “SETTINGS” menu, available by pressing

The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3 kW (16): If your household uses a lower power, you will need to decrease this value (13). POWER Press or to select 16 “High” or 13 “Low” and press to confirm.

After selecting the power, you will need to set the current time: The two digits for the hour will flash on the display. CLOCK Press or to set the current hour and press : The two digits for the minutes will flash on the display. Press or to set the minutes and press to confirm. Please note: You may need to set the time again following lengthy power outages. Select “CLOCK” in “SETTINGS” menu, available by pressing

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200 °C for around one hour, ideally using a function with air circulation (e.g. “Forced Air” or “Convection Bake”). Please note: It is advisable to air the room after using the appliance for the rst time. DAILY USE

1. SELECT A FUNCTION

Press to switch on the oven: the display will show the last running main function or the main menu. The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu: To select an item from a menu (the display will show the first available item), press or to select the desired one, then press to confirm.

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing allows you to change the previous setting again.

TEMPERATURE / GRILL LEVEL

TEMPERATURE When the value flashes on the display, press or to change it, then press to confirm and continue with the settings that follow (if possible). In the same way, it is possible to set the grill level: There are three defined power levels for grilling: 3 (high), 2 (mid), 1 (low). Please note: Once the function has been activated, the temperature/grill level can be changed using or . DURATION DURATION When the icon flashes on the display, press or to set the cooking time you require and then press to confirm. You do not have to set the cooking time if you want to manage cooking manually (untimed): Press or to confirm and start the function. By selecting this mode, you cannot program a delayed start. Please note: You can adjust the cooking time that has been set during cooking by pressing : press or to amend it and then press to conrm.5

END TIME (START DELAY) In many functions, once you have set a cooking time you can delay starting the function by programming its end time. The display shows the end time while the icon flashes. END TIME Press or to set the time you want cooking to end, then press to confirm and activate the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set. Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table. During the waiting time, you can press or to amend the programmed end time or press to change other settings. By pressing , in order to visualize information, it is possible to switch between end time and duration. . MY MENU These functions automatically select the best cooking mode, temperature and duration to cook, roast or bake all the dishes available. When required, simply indicate the characteristic of food to obtain an optimal result. WEIGHT / HEIGHT (ROUND-TRAY-LAYERS) KILOGRAMS To set the function correctly, follow the indications on the display, when prompted, and press or to set the required value then press to confirm. DONENESS / BROWNING In some My Menu functions it is possible to adjust the doneness level. DONENESS When prompted, press or to select the desired level between rare (-1) and well done (+1). Press

to confirm and start the function. In the same way, where allowed, in some My Menu functions, it’s possible to adjust the browning level between low (-1) and high (+1).

3. START THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press to activate the function. During the delay phase, by pressing the oven will skip this phase, starting immediately the function. Please note: Once a function has been selected, the display will recommend the most suitable level for each function. At any time you can stop the function that has been activated by pressing

If the oven is hot and the function requires a specific maximum temperature, a message will shown on the display. Press to return to previous screen and select a different function or wait for a complete cooling.

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated. PREHEATING Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature, requiring to “ADD FOOD”. At this point, open the door, place the food in the oven, close the door and start cooking. Please note: Placing the food in the oven before preheating has nished may have an adverse eect on the nal cooking result. Opening the door during the preheating phase will stop pause it. The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using or .

5. PAUSE COOKING / TURN OR CHECK FOOD

By opening the door, the cooking will be temporarily paused through deactivating heating elements. To resume the cooking, close the door. Some My Menu functions will require the food to be turned during cooking. TURN FOOD An audible signal will sound and the display shows the action to be done. Open the door, do the action prompted by the display and close the door, then resume cooking. In the same way, at 10% of time before the end of cooking, the oven prompts you to check the food.

An audible signal will sound and the display shows the action to be done. Check the food, close the door and resume cooking. Please note: Press to skip these actions. Otherwise, if no action is done after a certain time the oven will continue the cooking.6

An audible signal will sound and the display will indicate that cooking is complete. END Press to continue cooking in manual mode (untimed) or press to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained. BROWNING Some functions of the oven enable you to brown the surface of the food by activating the grill once cooking is complete. PRESS v TO BROWN When the display shows the relevant message, if required press to start a five-minute browning cycle. You can stop the function at any time by pressing

switch the oven off. . FAVORITES Once cooking is complete the display will prompt you to save the function in a number between 1 and 10 on your list of favorites. ADD FAVORITE? If you would like to save a function as a favorite and store the current settings for future use, press otherwise, to ignore the request press . Once has been pressed, press the or to select the number position, then press to confirm. Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to conrm overwriting the previous function. To call up the functions you have saved at a later time, press : The display will show your list of favorite functions.

Press or to select the function, confirm by pressing , and then press to activate.

. DIAMON CLEAN FUNCTION

Press to show “Diamond Clean” on the display. DIAMOND CLEAN Press to activate the function: the display will prompt you to do all actions needed to obtain the best cleaning results: Follow the indications and then press when done. Once you have done all steps, when required press to activate the cleaning cycle. Please note: It is reccommended to do not open the oven door during the cleaning cycle to avoid a loss of water vapor that could get an adverse eect on the nal cleaning result. An appropriate message will start flashing on the display once the cycle has finished. Leave the oven to cool and then wipe and dry the interior surfaces with a cloth or sponge. . MINUTEMINDER When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and press or : The icon will flash on the display. Press or to set the length of time you require and then press to activate the timer. MINUTE-MINDER An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time. Please note: The minuteminder does not activate any of the cooking cycles. Press or to change the time set on the timer. Once the minuteminder has been activated, you can also select and activate a function. Press to switch on the oven and then select the function you require. Once the function has started, the timer will continue to count down independently without interfering with the function itself. Please note: During this phase, it isn’t possible to see the minuteminder (only the icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press to stop the function that is currently active. . KEYLOCK To lock the keypad, press and hold for at least five seconds. Do this again to unlock the keypad. KEYLOCK Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched o at any time by pressing

ACCESSORIES Wire shelf Oven tray or cake tin on wire shelf Drip tray / Baking tray or oven tray on wire shelf Drip tray / Baking tray Drip tray with 500 ml of water

LEVEL AND ACCESSORIES

Salty cakes 0.8 - 1.2 kg -

Vegetables-stuffed 0.1 - 0.5 kg each -

Thick pizza round - tray -

Choux pastry 1 tray -

Pork-roasted 0.6 - 2.5 kg -

FUNCTIONS Conventional Forced air Convect bake Grill TurboGrill Maxi Cooking Multiow Menu Eco Forced air COOKING TABLE RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (MIN.) SHELF AND ACCESSORIES Leavened cakes / Sponge cakes Yes 170 30 - 50

Filled cakes (cheesecake, strudel, apple pie) Yes 160 – 200 30 - 85

Small cakes / Muffin Yes 170 20 - 40

Sausages / Kebabs / Spare ribs / Hamburgers — 2 - 3 (Mid - High) 15 - 30 **

Round pizzas Round pizza Yes 210 40 - 60

Stuffed roasting joints — 200 80 - 120 *

Cuts of meat (rabbit, chicken, lamb) — 200 50 - 100 *

• Estimated length of time: dishes can be removed from the oven at dierent times depending on personal preference. ** Turn food halfway through cooking. *** Turn food two thirds of the way through cooking (if necessary).

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook dierent types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably darkcoloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer. ACCESSORIES Wire shelf Oven tray or cake tin on wire shelf Drip tray / Baking tray or oven tray on wire shelf Drip tray / Baking tray Drip tray with 500 ml of water10

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners. Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance. Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work. EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth. INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge.

• Activate the “Diamond Clean” function for optimum cleaning of the internal surfaces. (Only in some models).

• Clean the glass in the door with a suitable liquid detergent.

• The oven door can be removed to facilitate cleaning. ACCESSORIES Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

1. Disconnect the oven from the power supply.

2. Unscrew the cover from the light, replace the bulb

and screw the cover back on the light.

3. Reconnect the oven to the power supply.

Please note: Only use 20-40 W/230 ~ V type G9, T300°C halogen bulbs. The bulb used in the product is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service. - If using halogen bulbs, do not handle them with your bare hands as your ngerprints could cause damage. Do not use the oven until the light cover has been retted.11

1. To remove the door, open it fully and lower the

catches until they are in the unlock position.

Close the door as much as you can. Take a firm hold of the door with both hands – do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.

3. Refit the door by moving it towards the oven,

aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

4. Lower the door and then open it fully. Lower the

catches into their original position: Make sure that you lower them down completely.

Apply gentle pressure to check that the catches are in the correct position.

“CLICK” Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.12 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

The oven is not working. Power cut. Disconnection from the mains. Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists. The display shows the letter “F” followed by a number or letter. Oven failure. Turn off the oven and restart it to see if the problem persists. Try to perform the “FACTORY RESET” from, selectable from “SETTINGS”. Contact you nearest Client After-sales Service Centre and state the number following the letter “F”. The oven does not heat up. When “DEMO” is “On” all commands are active and menus available but the oven doesn’t heat up. DEMO appears on display every 60 seconds. Access “DEMO” from “SETTINGS” and select “Off”. The light switches off. “ECO” mode is “On”. Access “ECO” from “SETTINGS” and select “Off”. The door will not close properly. The safety catches are in the wrong position. Make sure that the safety catches are in the correct position by following the instructions for removing and refitting the door in the “Cleaning and Maintenance” section. The home power goes off. Power setting wrong. Verify if your domestic network has at least a rating of more than 3 kW. If no, decrease the power to 13 Ampere. Access “POWER” from “SETTINGS” and select “LOW”. PRODUCT FICHE WWW The product fiche with energy data of this appliance can be downloaded from Bauknecht website docs . bauknecht . eu HOW TO OBTAIN THE USE AND CARE GUIDE

WWW Download the Use and Care Guide from our website docs . bauknecht . eu (you can use this QR Code), specifying the product’s commercial code. > Alternatively, contact our Client After-sales Service.

CONTACTING OUR AFTER-SALES SERVICE

You can find our contact details in the warranty manual. When contacting our Client After-sales Service, please state the codes provided on your product's identification plate.
