Technical Features	Electric milk frother, 0.5 L capacity, 500 W power, 2 functions (hot and cold froth).
Usage	Ideal for preparing milk froth for cappuccinos, lattes, and other hot or cold drinks.
Maintenance and Repair	Easy to clean, removable parts are dishwasher safe. Regularly check the condition of the power cord.
Safety	Equipped with an overheating protection system, do not immerse the device in water.
General Information	Elegant black design, 2-year warranty, compact dimensions for easy storage.

Frequently Asked Questions - Crema & Choco Black 1665 CASO

How do I use the CASO Crema & Choco Black 1665 milk frother?

To use the frother, pour milk into the container up to the indicated mark, select the froth or heat function, then press the start button.

Why won\u0027t the milk frother start?

Check that the device is properly plugged in and that the container is correctly in place. Also ensure the lid is securely closed.

Can I use lactose-free milk with the milk frother?

Yes, you can use lactose-free milk. However, the froth result may vary depending on the type of milk used.

How do I clean the CASO milk frother?

After each use, remove the container and wash it with warm soapy water. Make sure not to immerse the base of the device in water.

What is the maximum volume of milk I can use?

The maximum recommended volume is 300 ml for froth and 500 ml for hot milk.

Does the milk frother make noise during operation?

Yes, it is normal for the frother to make a slight noise during operation. This is due to the motor turning the whisk.

What is the product warranty?

The CASO Crema & Choco Black 1665 milk frother typically comes with a 2-year warranty. See the manual for more details.

What should I do if the milk doesn\u0027t froth properly?

Make sure to use fresh and cold milk. Avoid low-fat milks as they froth less well.

Can the milk frother be used to make sauces or creams?

No, this frother is designed only for milk. Using it for other liquids may damage the device.

How do I resolve an overheating issue with the device?

If the frother overheats, turn it off immediately and let it cool for about 30 minutes before using it again.

USER MANUAL Crema & Choco Black 1665 CASO

13.1 Information on this manual 25
14 Warning notices 25
15 Safety 26
15.1 Intended use 26
15.2 General Safety information 26
15.3 Danger of burns 27
15.4 Dangers due to electrical power 28
16 Limitation of liability 28
16.1 Copyright protection 29
17 Commissioning 29
17.1 Safety information 29
17.2 Delivery scope and transport inspection 29
17.3 Unpacking 29
17.4 Disposal of the packaging 29
17.5 Setup location requirements 30
17.6 Electrical connection 30
18 Function 31
18.1 Overview 31
18.2 Rating plate 31
19 Operation and Handing 31
19.1 Operation 32
20 Cleaning and Maintenance 34
20.1 Safety information 34
21 Troubleshooting 34
21.1 Security advices 35
21.2 Troubleshooting 35
22 Disposal of the Old Device 35
23 Guarantee 35
24 Technical Data 36
25 Mode d'emploi - Généralités 38
25.1 Informations relatives à ce manuel 38
26 Avertissements de danger 38

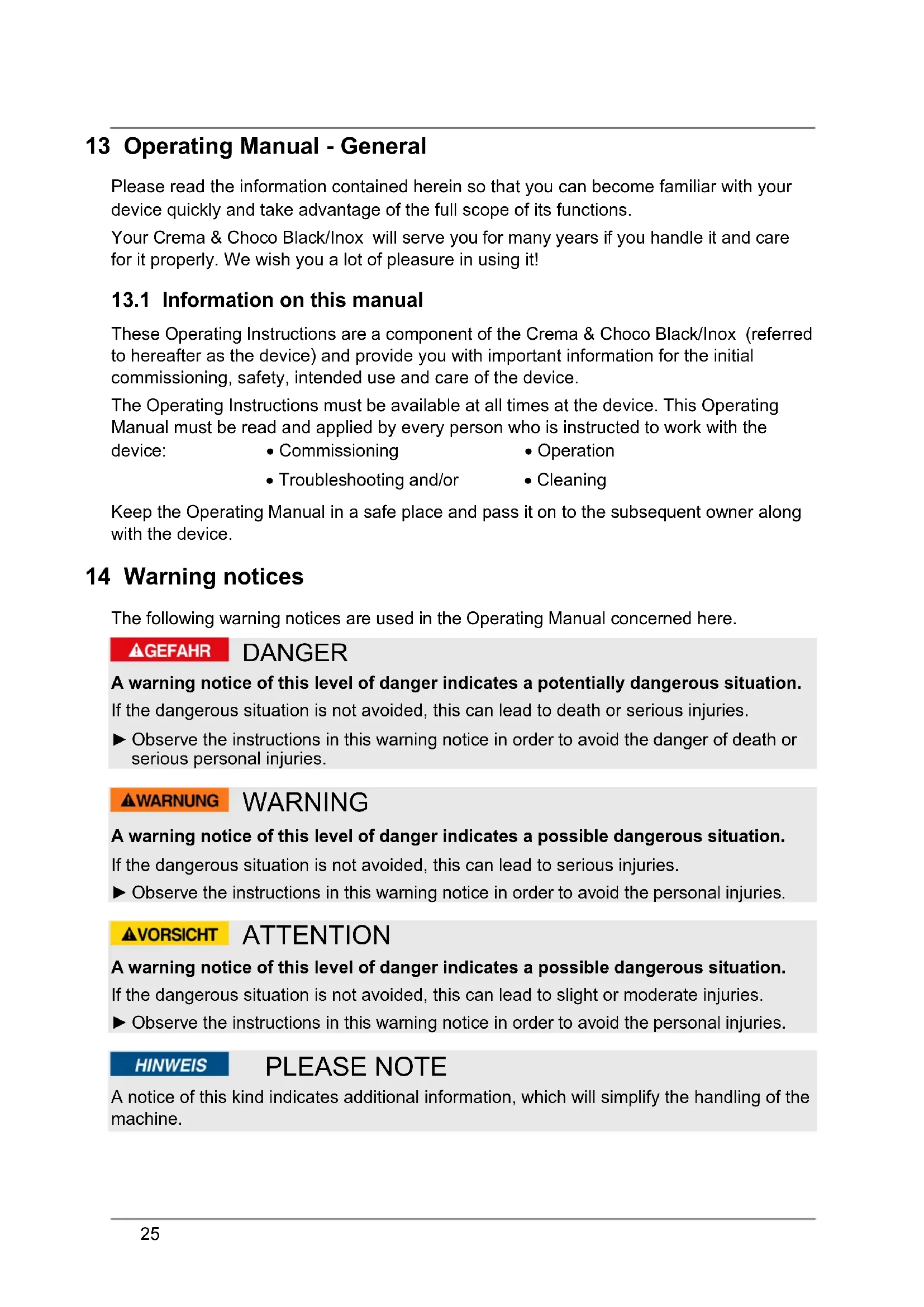

13 Operating Manual - General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Crema & Choco Black/Inox will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

13.1 Information on this manual

These Operating Instructions are a component of the Crema & Choco Black/Inox (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the

device:

Commissioning

Operation

• Troubleshooting and/or

• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

14 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

15 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

15.1 Intended use

This device is only intended for use in households in enclosed spaces for

• making milk foam and heating milk
• melting of little chocolate pieces during heating of milk

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNING WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

15.2 General Safety information

HINWEIS PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

HINWEIS PLEASE NOTE

• Keep the appliance and its cord out of reach of children less than 8 years.
  Do not leave the device unsupervised when it is in operation.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
  Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
  Do not use other liquids than milk.
• Do not use any other liquid than milk or plant-based drinks such as soy drink.
  Do not touch inside of jug during operation.

15.3 Danger of burns

WARNING WARNING

The liquid heated in this device, the heating plate, the foam and the inside of the jug can become very hot.

Observe the following safety instructions and be careful not to burn or scald yourself or others:

Always check the temperature of the liquid / foam before drinking it.
- Keep the lid closed during operation.
- Do not move the device during operation. Hot liquid could splash out.
- Do not touch the heating plate during or immediately after use in order to avoid burns.
The device is hot during and after operation. Only grasp the jug by the handle.

WARNING WARNING

• Do not use jug on a hotplate or cooking device, only use it together with the base supplied.
• Fill the jug only up to the MAX mark. If overfilled, hot liquid can flow out.
• If hot liquid overflows, switch off the device and remove the jug from the base.

15.4 Dangers due to electrical power

GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

• Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
• Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.

16 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a

result of the following:

Non-observation of the manual

Uses for non-intended purposes
- Use of unauthorized spare parts
- Improper repairs
- Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

16.1 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

17 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

17.1 Safety information

▲WARNING WARNING

Packaging materials may not be used for playing. There is a danger of suffocation.

17.2 Delivery scope and transport inspection

As a rule, the Crema & Choco Black/Inox is delivered with the following components:

• jug

• base with heating plate

• insert for milk

• insert for milk foam

• Operating Instructions

HINWEIS PLEASE NOTE

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

17.3 Unpacking

Unpack your device as follows:

• Take out the device from the box and remove the interior and exterior packaging.
• Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)
• Remove protection foil from control panel

17.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS PLEASE NOTE

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

17.5 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

17.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

18 Function

In this chapter, you'll find important information on the function of the device.

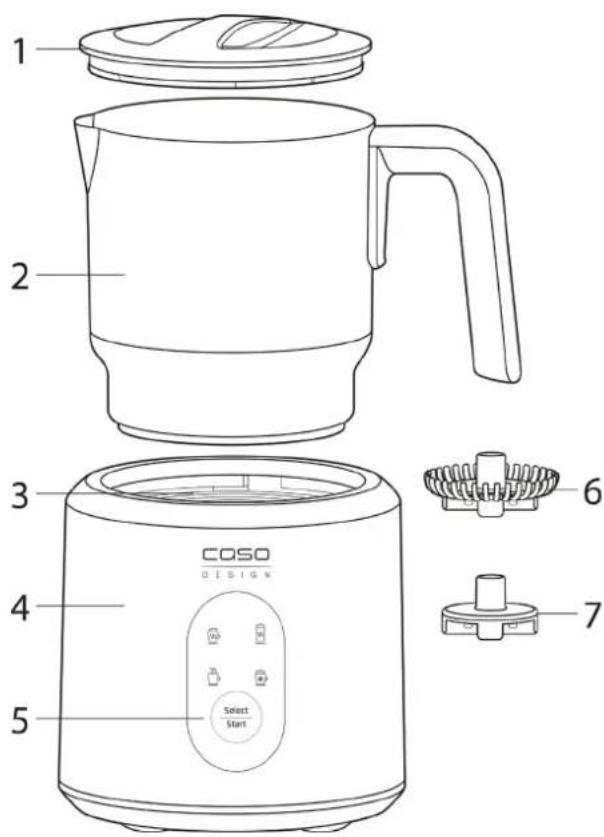

18.1 Overview

1. Lid
2. Jug
3. Heating plate
4. Base
5. Control panel
6. Insert for milk foam
7. Insert for milk

18.2 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

19 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

WARNING WARNING

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

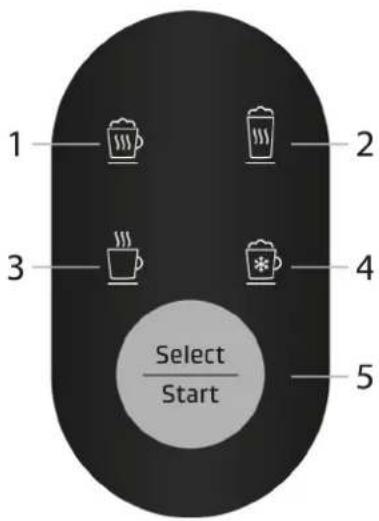

19.1 Operation

1. Cappuccino
2. Latte Macchiato
3. Hot milk / hot chocolate
4. Cold milk foam
5. Selection of the function, Switching the device on / off

function	capacity	time	insert	Beverage e.g.
	100-250ml	Ca. 3-5 min.		Cappuccino
	100-250ml	Ca. 3-5 min.		Latte Macchiato
	100-350ml	Ca. 3-7 min.		Cocoa / hot chocolate
	100-250ml	Ca. 2-3 min.		Iced coffee/frappe

HINWEIS PLEASE NOTE

The reached temperature and required time can vary depending on the starting temperature and the amount of milk as well as on the residual heat of heating pate.
The cappuccino and latte macchiato functions differ in the ratio of milk foam to hot milk.

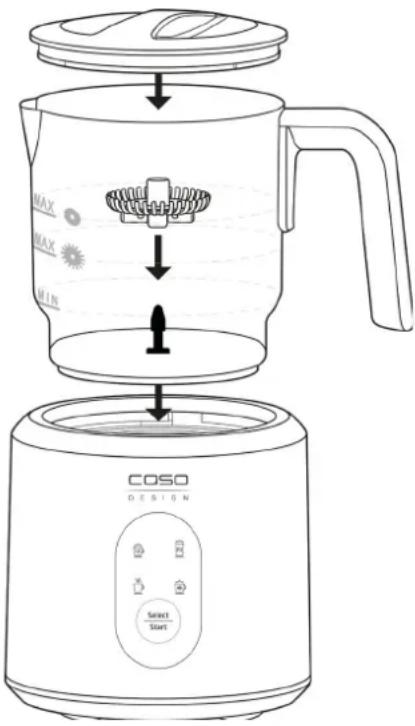

The jug has three markings for the filling of milk

Upper max mark: If you use the mixer for milk, fill in milk up to this mark.

Lower max mark: If you use the insert for milk foam, fill in milk up to this mark.

Min mark: Fill in milk at least up to this mark, otherwise the contents could burn.

Milk foam and hot milk

1. Place the desired insert onto the fixing inside the jug.
2. Pour the milk or the plant-based milk intot the jug.
3. Place the lid.
4. Place the jug on the base and insert the plug.
5. Press the Select/Start button repeatedly until the desired function lights up. As long as the LED of the function is flashing, you can choose between the functions.
6. When the LED of the function lights up constantly, then the device starts the operation. You can cancel prematurely by pressing Select/Start button again.
7. The process ends automatically and you can hear an acoustic signal.

Hot chocolate

1. Place the desired insert onto the fixing inside the jug.
2. Pour the milk or the plant-based milk intot the jug.
3. Add cocoa powder or chocolate in finely chopped pieces to the liquid. Note: Also with cocoa powder or chocolate added the Max mark shall not be exceeded.
4. Place the lid.
5. Place the jug on the base and insert the plug.
6. Press the Select/Start button repeatedly until the function for hot milk lights up. As long as the LED of the function is flashing, you can choose between the functions.
7. When the LED of the function lights up constantly, then the device starts the operation. You can cancel prematurely by pressing Select/Start button again.
8. The process ends automatically and you can hear an acoustic signal.

We recommend you to add a maximum of 40g of chocolate to an amount of 350ml milk. Also note the consumption recommendations on the packaging of the cocoa or chocolate, if available.

▲WARNING WARNING

Do not touch the heating plate during or immediately after use in order to avoid burns.

HINWEIS PLEASE NOTE

The jug may only be filled up to MAX mark.
Do not fall below the MIN mark (100 ml).
Do not operate the device without insert otherwise the contends could burn.
- Only use milk or plant-based drinks such as soy drink. Please note that not all plant drinks are suitable for frothing.
The milk foam consistency varies depending on the temperature, type of milk or fat content.
Test different types of milk and temperatures to find the best result for you.

HINWEIS PLEASE NOTE

Before use, make sure that there is no dirt on the underside of the jug or on the heating plate.
The jar should be cleaned and dried after each use.

20 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

20.1 Safety information

▲VORSICHT ATTENTION

Please observe the safety instructions, before cleaning your device:

Before cleaning take the power plug out of the outlet.
Clean the unit with a soft cloth.
Don't clean the device with inflammable detergents.
Clean the device thoroughly when you want to use it again after a long period of time.
Cleaning and user maintenance shall not be made by children without supervision.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.

Cleaning

The jug should be cleaned inside and outside after each use. You can clean it in the dishwasher or with lukewarm water and a little dishwashing detergent.

You can also use the hot milk function for cleanting. To do this, pur 100 ml water with a drop of dishwashing detergent into the jug with insert which was previously used. Place the lid and start the device. After this rinse the jug with lukewarm water.

The ild and the inserts can be cleaned in the dishwasher or with lukewarm water and a little dishwashing detergent.

Thoroughly dry all components. Use a soft cloth to clean the base.

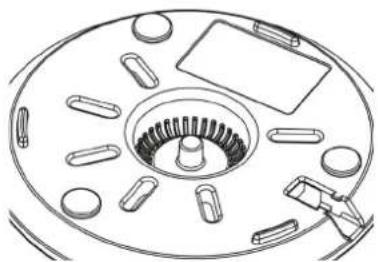

Storage of the inserts

You can stow the insert that is not required in the magnetic recess on the underside of the device.

21 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

21.1 Security advices

AVORSICHT ATTENTION

Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

21.2 Troubleshooting

Error	Possible cause	Problem solving
The device doesn't work.	Mains plug is not connected correctly.	Please check that the mains plug of the applicance is connected correctly.
	Electronic defect.	Please contact customer support.
The milk will burn	No insert is placed	Clean the device and place desired insert onto fixing inside the jug.

HINWEIS PLEASE NOTE

If above mentioned steps don't solve the problem, please contact your customer service.

22 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS PLEASE NOTE

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.

23 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device.

Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

24 Technical Data

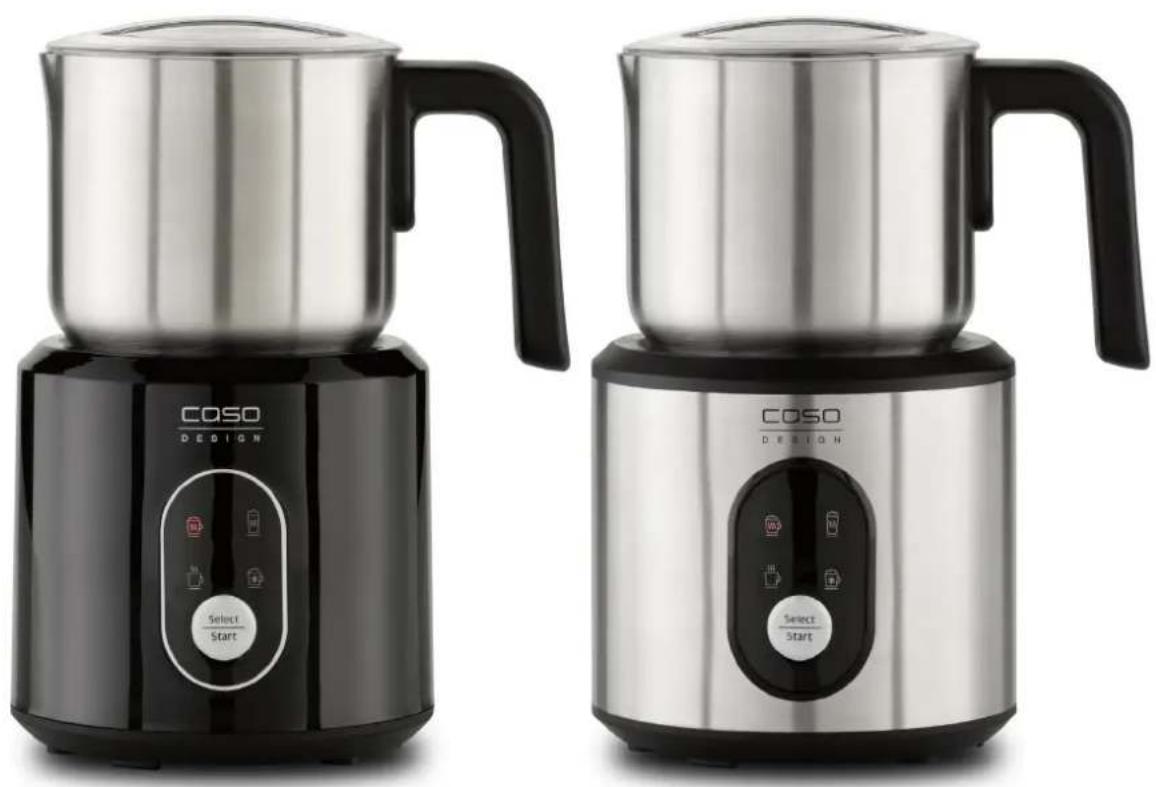

Device Milkfrother
Name	Crema & Choco Black (1665) Crema & Choco Inox (1666)
Mains data	220-240V~ 50/60Hz
Power consumption 500W
Capacity frothing 250 ml
Capacity warming 350 ml
External measurements 16,5 x 22 x 12,5 cm
Net weight 1665: 0,9 kg	1666: 1 kg

Mode d'emploi

Mousseur à lait

Crema & Choco Black (1665)

Crema & Choco Inox (1666)

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

▲WARNING WAARSCHUWING

IpeynpejxdeHne TaKo CTeneHn ONaCHOCTu yKa3bIBaET Ha BO3MOXHyO ONaCHyO cnTyauHIO. HeBO3MOxHOCTb N36eKaTb ONaCHO nCtYaauH N MoKet npNBecTN K noJyehnIO IerKnx NOBpeJxDeHn Hn IOBpeJxDeHn CpeHNe TJAeCTN.

Heo6xOIMOBbIOpHЯTb yka3aHnJaDaHHOro npedynpexKeHnra,HTobI n36eKaTb noJyuHnRAJkeJIbIX NOBpeKdEHN.

HINWEIS PIMMEUAHNE

B yka3aHn oTo6paXeHa dOpOHNtIeNbHa INΦopMaζη, KoTOpa o6IerγaET pa6oTy c obOpydoBaHnem.

87 Be3oNaChocTb
