Technical Specifications	DAIKIN Siesta ADEQ71A7VEB, wall-mounted air conditioner, cooling capacity 7.1 kW, heating capacity 8.0 kW, energy class A++/A+
Device Type	Reversible air conditioner
Dimensions (W x H x D)	800 x 295 x 240 mm
Weight	32 kg
Noise Level	34 dB(A) in silent mode
Usage	Temperature control, dehumidification, eco mode, remote control included
Maintenance	Washable filters, regular cleaning recommended, professional maintenance every 2 years
Safety	Overload protection, frost protection, electrical safety device
General Information	5-year warranty, professional installation recommended, compatible with home automation systems

Frequently Asked Questions - Siesta ADEQ71A7VEB DAIKIN

How can I adjust the temperature of my DAIKIN Siesta ADEQ71A7VEB air conditioner?

To adjust the temperature, use the provided remote control. Press the \"Temperature\" button and use the arrows to increase or decrease the desired temperature.

Why won\u0027t my air conditioner turn on?

First, check that the unit is properly plugged in and that the circuit breaker hasn\u0027t tripped. If everything seems fine, try resetting the device by unplugging the power for a few minutes.

What is the noise level of the indoor unit?

The noise level of the indoor unit is about 22 dB(A) in silent mode, making it a very quiet choice for your comfort.

How do I clean the filter of my air conditioner?

To clean the filter, remove it from the indoor unit, rinse it under lukewarm water to remove dust, and let it dry completely before reinstalling.

My air conditioner is making a strange noise, what should I do?

A strange noise may indicate a problem. Check if any objects are blocking the ventilation. If the noise persists, contact a qualified technician for diagnosis.

What is the energy consumption of the DAIKIN Siesta ADEQ71A7VEB unit?

This unit has an energy class of A++ and consumes about 1.8 kW in cooling mode, making it very energy efficient.

How do I change the operating mode of the device?

To change the mode, use the remote control and press the \"Mode\" button to select between \"Cooling\", \"Heating\", \"Dehumidification\" or \"Ventilation\".

What is the delivery time for the installation of my air conditioner?

The delivery time for installation depends on the retailer, but it is generally 3 to 7 business days after ordering.

Can I use my DAIKIN Siesta ADEQ71A7VEB air conditioner in winter?

Yes, this device is designed to operate in heating mode even in winter, as long as the outside temperature does not drop below -15°C.

How do I program the timer of my air conditioner?

To program the timer, use the remote control. Press the \"Timer\" button, select the desired start and stop time, then confirm.

USER MANUAL Siesta ADEQ71A7VEB DAIKIN

Operating Manual Handset Wireless

English

2) Quantity: 2 pieces

Disposal Requirements

The batteries supplied with the controller are marked with this symbol.

This means that the batteries shall not be mixed with unsorted household waste.

If a chemical symbol is printed beneath the symbol, this chemical symbol means that the battery contains a heavy metal above a certain concentration.

Possible chemical symbols are:

■ Pb: lead (>0,004%)

Waste batteries must be treated at a specialized treatment facility for re-use. By ensuring correct disposal, you will help to prevent potential negative consequences for the environment and human health. Please contact your local authority for more information.

Pile

1)Type:AAA.R03

2) Quantito: 2 pioces

Instructions d'elimination

YTYMNNBMBB BATAPBNDANJHNEPEPABBHTNCA HNCNPAHDMNEPBAHTBAHOUENOHNPOPNNTNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINNINN INNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN NN N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N

P1

1）Tip：AAA.R03

2) Miktar: 2 adet

Be

1) Tümec: AAA.R03
2) NoaTnTa: 2 trayxu

n

000021 000021

Onunatapies nnu uovobouov to xepaonpoippepov auTo oouboAo Auto amaiue 0r as unatapies dev B aovakateurov u daiaekx taikda anoAn.
Avivxynkooupo kiva turtuiovo katne and to oupoote xto auto Toxuokoupo anu atn mpatopane pekp eet pea nna o an opovkuyevpuem.

NaeynkaaOpaalevran

Pb:paep30e（>0.004%）

H enteppoiaotw anpantaw mpatapw npentw yvatent e cieodyepatoa tewayopnwniin. daiapalvntivt aowthmian, foanbokrataomanyu bavov apnykov auvenyiv ia to kipakov kai nty avbupnuyn vyeia. Napakakuk tekovovhote me ty tonki ayiy aipnoepoee rangopoeip.

Bateria

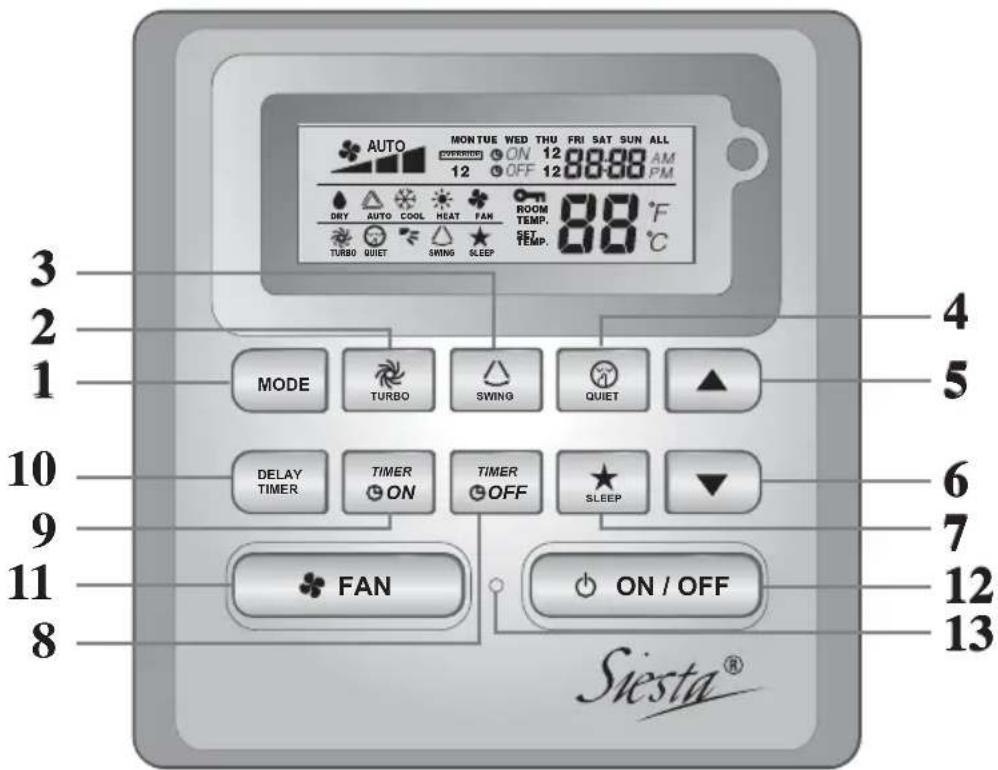

ARCWB Controller Indication

NO	KEY FUNCTION
1.	MODE Select operating Modes control (Cool/Heat/ Auto/ Dry/ Fan)
2.	TURBO Activate/deactivate Turbo function
3.	SWING Activate/deactivate Swing controlHold Key to change Swing Mode
4.	QUIET Activate/deactivate Quiet function
5.	SET TEMP UP Increase set temperature in °C or °F
6.	SET TEMP DOWN Decrease set temperature in °C or °F
7.	SLEEP Activate/deactivate Sleep function
8.	OFF TIMER Enable/disable the Event 1 and 2 OFF TIMER setting mode
9.	ON TIMER Enable/disable the Event 1 and 2 ON TIMER setting mode
10.	DELAY TIMER Activate/deactivate delay timer
11.	FAN	Select Fan speeds control (Auto/ High/ Med/ Low)
12.	ON/OFF	On/Off the unit with overriding all the timer settings
13.	REAL TIME CLOCK (RTC)	Enable/disable the Real Time Clock (RTC) setting mode

NOTE:

Turbo and quiet function are for selected models only.

1.1 MODE Button

Press the MODE button to switch operation from COOL, HEAT^ , AUTO, DRY^ , FAN. Check the display to see in which mode the control is set. HEAT, AUTO and DRY are available for selected models only.

1.2 TURBO Fan Speed

Press the TURBO key once to activate Turbo fan speed. Turbo symbol will be shown. To disable Turbo fan speed and back to previous fan speed, press the Turbo key once again. If user presses the FAN button or QUIET button or turn off the unit, the turbo speed will be disabled. This speed is only valid during COOL and HEAT mode for selected models.

1.3 Automatic air swing

• Press the SWING button to activate the automatic air swing function.
• To distribute the air to a specific direction, press the SWING button and wait until the Louver move to the desired direction and press the button once again.

Swing mode selection method (for cassette E model)

• Press SWING (△) button for 4 seconds to enter field setting mode. While in field setting mode, it will only show SWING MODE (F)
• Press temperature and button to select SWING MODE ( ) rotation from Swing Mode 1 to Swing Mode 3.
• There are 3 different SWING MODE, which are:

Swing mode 1 Swing mode 2 Swing mode 3

SWING MODE will not activate unless SWING is activated.

Swing is indicated by the logo:

• If no mode changes within 4 seconds, unit will operate according to the selected SWING MODE (≤).

1.4 QUIET Fan Speed

Press the QUIET key once to activate Quiet fan speed. QUIET symbol will be shown. To disable Quiet fan speed and back to previous fan speed, press the QUIET key again. If user presses the FAN button or TURBO button or turn off the unit, the quiet speed will be disabled. This speed is only valid during COOL and HEAT mode for selected models.

1.5 “ ” or ” Set Temperature Button

Press the temperature button and set the temperature of your choice by pressing or "▼button once, temperature changes by 1^ or 1^ . The default temperature setting range is from 16^ to 30^ ( 60^ to 86^ ). When the Option 20 - 30^ is set, the temperature range limit is set to 20^ to 30^ ( 68^ to 86^ ). Pressing both keys simultaneously will toggle the temperature setting between ^ and ^ . No temperature setting is allowed during FAN mode (No set temp display). There is no room temperature display.

1.6 SLEEP Function

Press the SLEEP button to activate the sleep mode. SLEEP function is not available in DRY mode and FAN mode.

1.7 “ON TIMER” and “OFF TIMER”

The unit has 2-event timer, namely Timer 1 and Timer 2, each event has an ON TIMER and an OFF TIMER. The key press activity for Timer ON and Timer OFF is shown on Table 1.1

Table 1.1: Timer ON and Timer OFF key press and event sequence.

TIMER ON KEY TIMER OFF		KEY
ON Timer 1 ON	Timer 2 OFF Timer 1 OFF Timer 2
Deactivated Deactivated Deactivated Deactivated
Activated Deactivated Activated Deactivated
Deactivated Activated Deactivated Activated
Activated Activated Activated Activated

All timers are event-triggered timers and can be overridden by the ON/OFF button and Override function.

Set Event 1 and Event 2 Timers

Process for Timer ON and Timer OFF is the same.

1. Press and hold Timer ON/OFF key for 3 seconds to go into timer setting mode.
   (Icon ON 1 or OFF 1 will blink)
2. Press UP or DOWN to select Timer 1 or Timer 2 to set.
   (‘1’ blinking indicate that Timer 1 is currently selected, ‘2’ blinking indicate that Timer 2 is currently selected)
3. Press Timer ON/OFF key again to confirm. (Day will blink next)
4. Press UP or DOWN to select the day.
5. Press Timer ON/OFF key again to confirm the day. (Hour will blink next)
6. Press UP or DOWN to change the hour.
7. Press Timer ON/OFF key again to confirm the hour. (Minute will blink next)
8. Press UP or DOWN to change the minute.
9. Press Timer ON/OFF key again to confirm the minute.

Each timer (Timer 1 ON or Timer 1 OFF or Timer 2 ON or Timer 2 OFF) will only be set separately after all 7 steps, if there is no key operation for 5 seconds during setting the timer, it will automatically exits from setting mode and no changes will be made.

ON/OFF timer will be checked every 1 minute.

It is not advisable to set ON TIMER and OFF TIMER to have same values. Shall these occur, the effective timer will be treated with priority as stated in Table 1.2.

Example:

ON TMR 2 settings: DAY - TUE, TIMER - 5.00pm

OFF TMR 1 settings: DAY - TUE, TIMER - 5.00pm

Outcome when RTC reaches 5.00pm on TUE:

• when unit is on, no respond.
• when unit is off, unit will trigger to on.

Table 1.2: Timer Priority

Priority Timer
1 (Highest) ONTMR2
2 OFFTMR2
3 ONTMR1
4 (Lowest) OFFTMR1

Upon IR reception, IR wireless remote controller will override ON TIMER 2 and OFF TIMER 2 settings.

1.8 DELAY TIMER Function

Press the DELAY TIMER key once will activate the delay timer function for 1 hour. An indicator "OVERRIDE" will show on the LCD. Press the same key again will increase the setting to 2 hours. An indicator "OVERRIDE" will be shown. Subsequent press will deactivate the delay timer function. After the delay timer is completed, the delay timer function is deactivated and the logo is OFF. All other timers will be resumed.

1.9 FAN Speed Function

Fan speed can be changed via pressing the FAN key:

Low > Med > High > Auto >

*FAN speed is not available in DRY mode.

1.10 ON/OFF Button

Starting Operation:

• Press the ON/OFF button, the LCD will show full display and the unit is turned on.

Stopping Operation:

• Press the ON/OFF button, the LCD will show real time clock only and the unit is turn off.

1.11 Power up Settings

The unit will start up with main board's last state setting during power up. If last state information is not available, the unit will use the default settings. The default settings are as below:

Unit: Off

Mode: Cool

Fan Speed: High

RTC: 12:00AM, MONDAY

Swing: Off

Swing Mode: Standard

Timers: Disable

Turbo: Disable

Quiet: Off

Sleep: Off

Override: Disable

1.12 Real-time Clock (RTC) Display

RTC is shown on screen during the unit ON or OFF except for power failure or error code.

Set RTC Setting

1. Press RTC key one time will activate RTC setting mode. (Day will blink)
2. Press UP or DOWN to select the day.
3. Press RTC again to confirm the day. (Hour will blink next)
4. Press UP or DOWN to change the hour.
5. Press RTC again to confirm the hour. (Minute will blink next)
6. Press UP or DOWN to change the minute.
7. Press RTC again to confirm the minute.

RTC will only be set after all 7 steps, if there is no key operation for 5 seconds during setting the RTC, it will automatically exits from setting mode and no changes will be made on the setting.

1.13 Key Lock

These key lock function inhibits any setting change. Press and hold both TURBO and QUIET keys for 5 seconds will activate/deactivate the key lock function; "KEYLOCK" will be shown/disappear on LCD. Upon all the keys are locked, only ON/OFF, TURBO and QUIET (to unlock) can be pressed.

1.14 Battery Backup

Battery backup is used to retain the RTC and 7-days programmable timer settings during power down for a minimum of 1 month continuous for every new set of battery installed. For unit without battery backup, the default setting will be 12:00am on Monday and timer clear during power up.

1.15 Error Indicator

If any abnormal condition detected, an error code will be shown. Error code is displayed by using RTC segments (blink), which mean whenever there is error occur, RTC will not be shown instead of the error code. The format for the error code will be as following:

DX Error Code

Error Description
Room Sensor Open or Short E1
Indoor Coil Sensor Open E2
Outdoor Coil Sensor Open E3
Compressor Overload/Indoor Coil Sensor Short/Outdoor Coil Sensor Short E4
Gas Leak E5
Water Pump Fault E6
Outdoor Coil Sensor Exist (MS model) E7
Hardware Error (Tact Switch Pin Short) E8
Indoor Fan Feedback Error E9
EEPROM Error EE

CW Error Code

Error Description
Room Sensor Open or Short E1
Pipe Water Sensor Open or Short E2
Pipe Water Temperature Poor	E4
Pipe Water Temperature Bad/Fault	E5
Water Pump Error	E6
Hardware Error (Tact Switch Pin Short)	E8
Indoor Fan Feedback Error E9

Fault Diagnosis (for inverter only)

If there is any abnormal condition detected, ARCWB wired controller will blink the error code

ERROR CODE	MEANING
00	NORMAL
A1	INDOOR PCB ERROR
A3	DRAIN PUMP ABNORMAL
A5	ANTIFREEZE (COOLING)/HEAT EXCHANGER OVERHEAT (HEATING)
A6	INDOOR FAN MOTOR ABNORMAL
AH	ELECTRICAL AIR CLEANER ABNORMAL
C4	INDOOR HEAT EXCHANGER (1) THERMISTOR SHORT/OPEN
C5	INDOOR HEAT EXCHANGER (2) THERMISTOR SHORT/OPEN
C7	LOUVER LIMIT SWITCH ERROR
C9	INDOOR ROOM THERMISTOR SHORT/OPEN
E1 OUTDOOR PCB ERROR
E3 HIGH PRESSURE PROTECTION
E4 LOW PRESSURE PROTECTION
E5 COMPRESSOR MOTOR LOCK/COMPRESSOR OVERLOADED
E6 COMPRESSOR START-UP ERROR
E7 OUTDOOR DC FAN MOTOR LOCK
E8 AC INPUT OVER CURRENT
E9 EXV ERROR
EA 4 WAY VALVE ERROR
F3 DISCHARGE PIPE OVERHEAT
F6 HEAT EXCHANGER OVERHEAT
HO COMPRESSOR SENSOR SYSTEM ERROR
H3 HIGH PRESSURE SWITCH ERROR
H6 COMPRESSOR FEEDBACK DETECTION ERROR
H7 FAN MOTOR OVERLOADED/OVERCURRENT/SENSOR ABNORMAL
H8 AC CURRENT SENSOR ERROR
H9 OUTDOOR AIR THERMISTOR SHORT/OPEN
J1 PRESSURE SENSOR ERROR
J3	COMPRESSOR DISCHARGE PIPE THERMISTOR SHORT/OPEN/MISPLACED
J5 SUCTION PIPE THERMISTOR SHORT/OPEN
J6 OUTDOOR HEAT EXCHANGER THERMISTOR SHORT/OPEN
J7 SUBCOOLING HEAT EXCHANGER THERMISTOR SHORT/OPEN
J8 LIQUID PIPE THERMISTOR SHORT/OPEN
J9 GAS PIPE THERMISTOR SHORT/OPEN
L1 INVERTER OUTDOOR PCB ERROR
L3 OUTDOOR CONTROL BOX OVERHEAT
L4 HEAT SINK OVERHEAT
L5 IPM ERROR/IGBT ERROR
L8 INVERTER COMPRESSOR OVERCURRENT
L9 COMPRESSOR OVERCURRENT PREVENTION
LC COMMUNICATION ERROR (OUTDOOR CONTROL PCB AND INVERTER PCB)
P1 OPEN PHASE OR VOLTAGE UNBALANCE
P4 HEAT SINK THERMISTOR SHORT/OPEN
PJ CAPACITY SETTING ERROR
U0 INSUFFICIENT GAS
U2 DC VOLTAGE OUT OF RANGE
U4 COMMUNICATION ERROR
U7 COMMUNICATION ERROR (OUTDOOR CONTROL PCB AND IPM PCB)
UA INSTTALLATION ERROR
UF	PIPING & WIRING INSTALLATION MISMATCH/WRONG WIRING/INSUFFICIENT GAS
UH ANTIFREEZE (OTHER ROOMS)

2.0 HARDWARE SETTING

The unit has 2 jumpers option to control the board function.

Table 2.0: Summary of Hardware Settings

OPTION With Jumper Without Jumper
Set Temp. Range	Set temp. range from 20°C – 30°C	Set temp. range from 16°C – 30°C (Default)
TURBO_quiet	Disable turbo and quiet fan speed (Default)	Enable turbo and quiet fan speed

• Only applicable to model with built in Turbo or Quiet features.

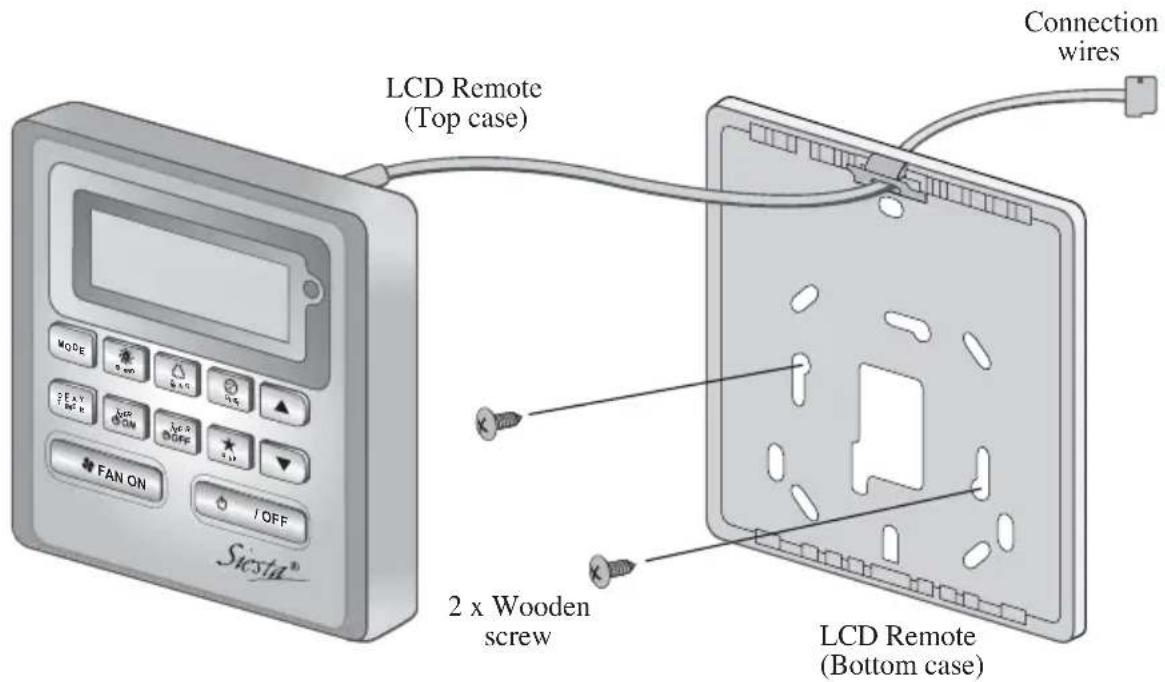

3.0 INSTALLATION

3.1 Accessories

The following accessories are included together with this manual. If any part is missing, contact your dealer immediately.

1. Remote controller
2. Wooden screw (2 pieces) & machine screw (2 pieces)
3. Instruction manual
4. Battery

3.2 Step-by-step guide

I. Open the clip on the top of the controller first follow by the bottom clip. Remove the top case of the controller from the bottom case.
II. Fix the bottom case to the wall with the 2 screw provided. Then insert the connection wire through the slot on the upper center case as shown.
III. Insert back the bottom clip first then snap the upper part shut.

MEMO

1.10 Bouton ON/OFF (MARCHE'/ARRÉT)

Mise en marche :

RTC: 12:00AM, MONDAY

Oscillation: Arrét

Mode d'oscillation: Standard

Minuteries : Désactiver

Turbo : Désactiver

Silence:Arrét

RTC: 12:00AM, MONDAY

Luftschwenken (Swing): Aus

Installingen ON TMR 2: DAY - TUE, TIMER - 5.00pm

Installingen OFF TMR 1: DAY - TUE, TIMER - 5.00pm

RTC: 12:00AM, MONDAY

Zwenken: Uit

RTC: 12:00AM, MONDAY

Oscilación: Apagado

1.5 Khonka YctaHOBKn TemnepaTpybl “" nn "

HaxMnTe KONKy TemnepaTypbI uYCTAHOBITE XeJAAEMyTO TemnepaTypy, HaxIMar KONKU 一 ^ 一 OINH pa3, npu 3OTOM TemnepaTypa 6yJeT MeHrbcra Ha 1^ nnn 1F. Dnaana3OH yCTaHOBKn BapbpyETcra OT 16°C do 30°C (ot 60°F do 86°F). Pnp yCTaHOBKe oncun 20 - 30°C rpaHnca dHaana3OHa TemnepaTypy UCTaHABnBaETcra Ha 20°C n Ha 30°C (ot 68°F do 86°F). OndOBpeMeHHoe HaxKaTne oEbnx KHOIOK NepeKIOUaet HAcTpoKy TemnepaTypbI MExdy C n F. YCTaHOBka TemnepaTypbI BO BpeMpa60TbIB pexime FAN (BEHTNJIARlNA) HeBO3MOXHa (OTcyTCTByeT dncnney UCTaHOBKn TemnepaTypbI). Dincnnei TemnepaTypb I NOMeHIn OTCyTCTByeT.

1.7 "ON TIMER (TAIMEP BKJI.)" n "OFF TIMER (TAIMEP BbIKJI.)"

YcTpoC TBO UMeet TaMep Ha 2 cO6bITn: TaMep 1 n TaMep 2, np3TOM kaxdoe cO6bITne UMeet ON TIMER n OFF TIMER Pe3yIbTaTbI hXkATn KHONKn dJa TaMep BKJI. n TaMep BblKJI. npedctabJeHbB TabJInce 1,1.

Ta6nua 1,1:Haxatne KhoNok TaHmep BKI. n TaHmep BbIKJI. n OncJeObaTeJbHOCTb Co6bITn.

Hactpoyn ON TMR 2:DAY-TUE, TIMER-5.00pm

Hactpoikn OFF TMR 1:DAY-TUE, TIMER-5.00pm

BbIXoD npn doCTnxKeHnn RTC 5.00pm Bo TUE:

-ecn yCTpoiCTBO BKNIOUeHO, HET cpa6aTbIBaHna.
-ecn yctpoCTBO BbIKJIOyeHO,ycTPOCTBO INHUNIPyET BKNIOeHne.

Ta6nua 1,2:PnpOpntTeHocTb TaMepa

RTC: 12:00AM, MONDAY

NoBopOt XaJIIO3N: BbIKn

Pekm noBopoTa: cTaHapTna

TaImepbI: BbIKIOueHbI

Typ60:

BbIKJIOUeHbI

Becwymha:

BbIKI

COH:

BbIKI

OTKJIIOUeHHe:

BbIKJIOUeHbI

1.12 Dusnien Yacob peaIbHoro BpemeHn (RTC)

YPB oTo6paKaIOCTcHa 3KpaHe BO BpeMa ON (BKJIIOUCHEN) IIN OFF (BbIKJIIOUCHEN) ycTpoIcTaBa, 3a NCKJIIOUChENe Cnyaeb Nepe6oB B NOdae 3NeKtpo3Heprnn IIN INDkaCmN KoDa Own6Kn.

YctaHOBKa HacTpOKn RTC

1.ПионокраTHOMнжатин конк RTC BKJIIOuaetcpeхин hactpoikn RTC.(BydET MraTb DeHb HeJeN)
2. HaxmTe UP IN DOWN, TTo6bI BbIpaTb DeHb HeJeIN.
3. HaxmTe RTC eue pa3, TTo6bI nOITBepdntb DeHb HeJeIN. (3aTeM 6yET MIRaTb INDnKaunu Yaca)
4. HaxmTe UP nIN DOWN, yTo6bI n3MeHnTb 3HaueHne yaca.
5.HaKmTe RTc eue pa3, yTo6bI noTBePdntb Yac. (3aTeM 6yDeT MnTaB nHnKaun MNHyT)
6. HaxmTe UP ININ DOWN, yTo6bI n3MeHnTb 3HaueHHe MHyT.
7. HaxmTe RTc eue pa3, YTo6bI NOITBepdntb MNHyTbI.

UPB 6ydyT yctahOBHeHb TOnbKO nocne BblonHeHn BEx 7 7arOB. EcnB BO BpeMa yCTaHOBKn CPB TeueHne 5 cekHyN He 6yDeT BblOJIHeHa Hn Onda OnepaunC KhoIKAm, npOn3oJET aBTOMaTHueckn BbIXoD n3 peKIMa yCTaHOBKn, n3MeHHeHn He 6ydyT npImeHbI.

1.13 Blokupobka

Функциь Stokopobkn Cnyxit ДлпpeodTbpaueHn N3MeHeHn HactpoeK. OndOBpeMeHnoe Haxkatae n ydepXnbAHne KhoNOK TURBO n QUIET B TeueHne 5 cekyHd akTNBnpyet/daekTNBnpyet Φункцию Stokopobahn KhoNOK; Ha XXKD NOBtCn/Hcye3HET INdkaun "KEYLOCK". KordaakTNBnPOBaHa Φункциь StokopobKn, He pa6oTaOT HnKaKne KhoNKn, Kpome KhoNOK ON/OFF, TURBO n QUIET (pa36loKopoBaTb).

1.14 Pe3epBna 6atape

Pe3epBnH 6aTapeN nCnoIb3yETcR dIra TOrO, yTO6bl coXpaHrTB HAcTpoKn YPB n 7-dHeBHoro nporpaMMpyemoro TaImepa npn OTCyTCTBn HAnpJxEHn B 3JeKTPocEtM MHNMym Ha 1 MeCnI dIra KaKdOrO HOBOro KOMnKeTa yCTaHOBLeHHbIX 6aTapeeK. Ira arperaToB, He o6OpydoBaHHbIX pe3epBnH 6aTapeen, YPB nocIe BKIOUeHn 3JeKTPoNTaHn ABTomAtuYeCK noka3bBAiOT 12:00 NoneJeBnHa, a TaImepeblO6HyJIaOTcR.

1.15 HndkaTop own6kn

PnO6HApUxKeHN HIO6oR HeOpMaIbHOrO yCNoBnHa DnCnIe NOBJIReTcK OKn OUn6Kn OTo6paXaTeC nOMOuBcMeHTOB YPB (MraHne),yTO O3NaUaE, yTO npn BO3HKnHOBeHN OUn6Kn BmecTo KOna OUn6Kn He 6dyT OTo6paXaTaBc4 YPB. FOpMaT KOna OUn6Kn 6yDet CneDyUoIm:

KoOOn6Kn DX

RTC: 12:00AM, MONDAY

Salinim: Kapali

Salinim modu: Standart

Zamanlayicilar: Devredi

Turbo: Devredi

Sessiz: Kapali

Uyku: Kapali

Cikis: Devreisi

Hdeltaikaiya to Timer ON kal Timer OFF ivan iia.

1. Patnote kai kpatnote nataevo To koumi Timer ON/OFF yia 3 deutepolenta yia va metaeite o trpoio aeitoupyia
   puoiocxovodiaokotn.
   (To Eikoviio ON 1 n OFF 1 avaaohvei)
2. PatnoTo UP n DOWN yia va eaiEeTe va puthetaTe Tov XpovodiaKoTn 1 n XpovodiaKoTn 2. (Av avoaoohvei to 1' unOdeikvuei ot Ee i EneAeyei O XpvodiaKoTnC 1 kai av avoaoohvei to 2' unOdeikvuei ot Ee i EneAeyei o XpvodiaKoTnC 2)
3. PatnoTe naI to koumi Timer ON/OFF yia eBaeaiwon. (Tn ouvexia avaoobnvei n evdeIeI n tnc npac)
4. PlatnoTe to UP n DOWN yia va eIaEeTe Tny nupea.
5. Pntote nai to koupi Timer ON/OFF yia va eipbaiaoe tnv npepa. (Tn ouvexia avaooohvei n evdeiEtn opa)
6. PnntoTo UP nDOWN yia va aalaaeTe Tny wpa.
7. PatnoTe nai To koupi Timer ON/OFF yia va eIeBaiwote tnv wpa. (Tn ouvexia avaBooBrnvI n evdeiEtn twv λεπτωv)
8. PntnoTe TO UP nDOWN yia va aalaeTe ta eTnA.
9. Patrjote nai to koumi Timer ON/OFF yia va eiiebaioe te aenra.

Puθμiεις ON TMR 2: DAY - TUE, TIMER - 5.00pm

PuθμioειC OFF TMR 1: DAY - TUE, TIMER - 5.00pm

RTC: 12:00AM, MONDAY

Paiivdpounon: Aevepyooinuevn

RTC: 12:00AM, MONDAY

Oscilar: desligado

Modo oscilar:Padrao:
