Product Type	Electric motor for pasta machine
Brand	Marcato
Model	Pastadrive
Power supply	Electric, removable power cord
Power	Not specified
Maximum continuous use	15 minutes without interruption
Functions	Motorization of pasta rolling and cutting
Switch	On/off (I) and pulse (PULSE)
Attachment	Hooking by dowel and 30° tilt
Compatibility	Marcato manual pasta machines
Safety	Do not immerse the motor, unplug before cleaning
Maintenance	Clean with a soft cloth
Cleaning	Unplug before any cleaning
Warranty	2 years against manufacturing defects
Package contents	Pastadrive motor, power cord, instruction manual
Usage	Domestic, do not use outdoors
Electrical repairs	Reserved for qualified personnel
Recycling	Selective sorting at end of life (crossed-out wheelie bin symbol)
Precautions	Do not wear tie, scarf or long necklaces
Environment	Do not place near sources of heat or water

Frequently Asked Questions - Pastadrive MARCATO

How to attach the Pastadrive motor to my Marcato machine?

Tilt the motor upward to about 30° and insert the dowel into the roller hole. Push until it rests on the side, then turn it downward until stable. Consult the instruction manual for details.

What is the maximum continuous use duration?

The device can operate for 15 minutes without interruption. Afterwards, let it cool down.

Can I wash the motor with water?

No, never wash the motor with water or in a dishwasher. Use a soft cloth to clean it.

What to do if the motor does not start?

Check that the power cord is properly plugged in and that the voltage matches that indicated on the motor plate. If the problem persists, contact an authorized service.

Is the Pastadrive compatible with all Marcato machines?

It is designed for Marcato manual pasta machines. Check compatibility in the manual.

How to clean the Pastadrive motor?

Wipe the motor with a soft cloth after unplugging. Do not use water or abrasive products.

What is the warranty for the Pastadrive?

Marcato offers a 2-year warranty against manufacturing defects, excluding non-compliant use.

Can I use the motor with an extension cord?

Use exclusively the supplied cable or extension cords suitable for the current indicated on the motor plate.

What to do if the power cord is damaged?

Do not use the device. Send it to an authorized service center for repair.

Why does the motor stop after a few minutes?

This may be due to overheating after 15 minutes of use. Allow it to cool before using again.

USER MANUAL Pastadrive MARCATO

Motore Pastadrive Pastadrive Motor Moteur Pastadrive Motor Pastadrive Motor Pastadrive Motor de Pastadrive Pastadrive motor Pastadrive-moottori Pastadrive-motor Motor Pastadrive Pastadrive motor Silnik Pastadrive Motor Pastadrive Двигатель Pastadrive Pastadrive Motoru محرك Pastadrive Pastadrive 电机 パスタドライブモーター 제면기 모터 von Pastadrive Мотéр Pastadrive

Line drawing of a sewing machine labeled 'Atlas 100' with hands operating it, showing motion arrows (no text or symbols beyond label)

Line drawing of a portable electronic device with a cable inserted, showing internal components and a directional arrow (no text or symbols)

PULSE OFF ON

Line drawing of a sewing machine with attached cable, showing motion arrows (no text or symbols)

3 ITALIANO

7 ENGLISH

12 FRANÇAIS

18 DEUTSCH

22 ESPAÑOL

26 PORTUGUÊS

30 DANSK

33 SUOMI

36 SVENSKA

40 NEDERLANDS

44 MAGYAR

48 POLSKA

52 ČEŠTINA

56 РУССКИЙ

60 TÜRK

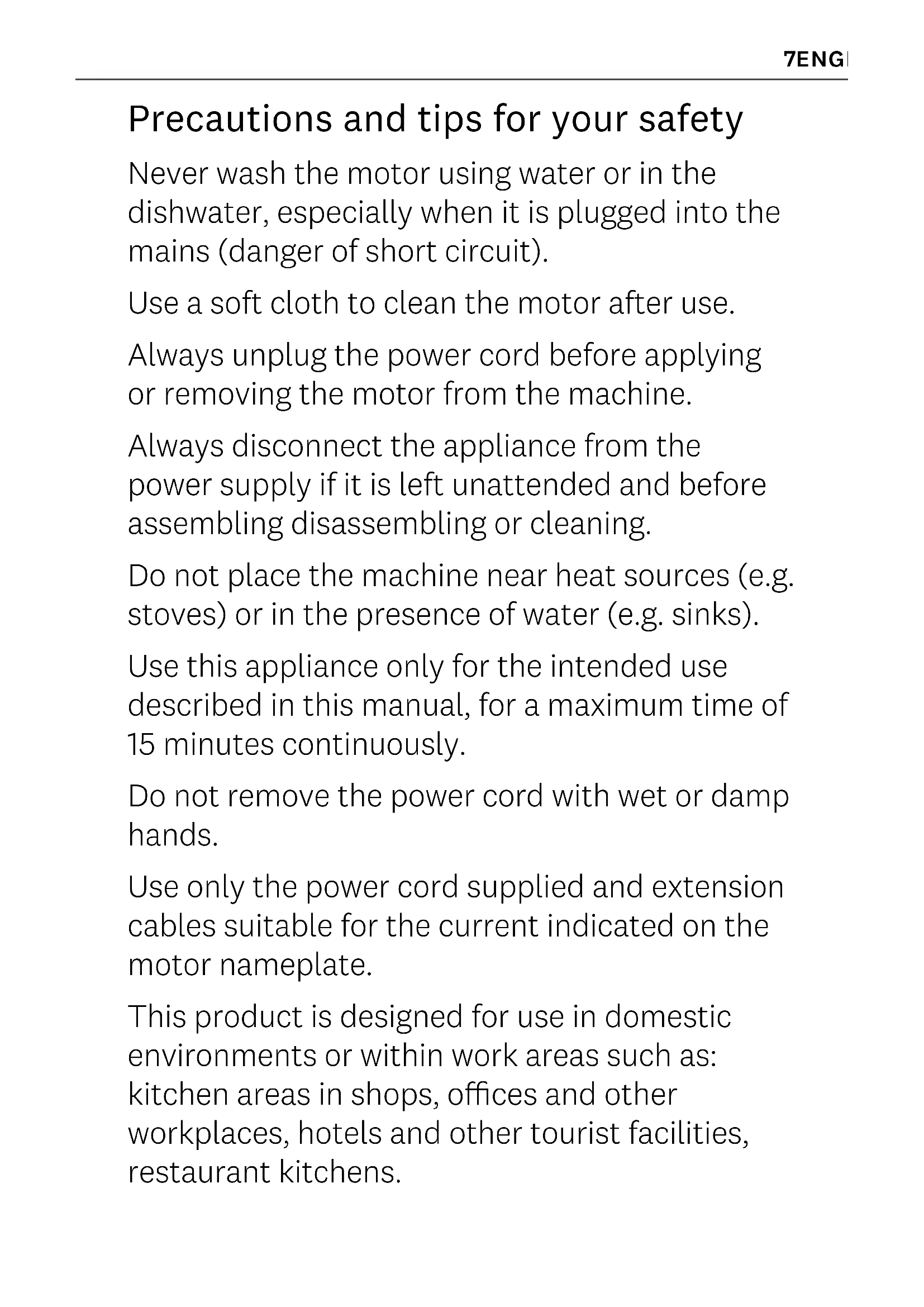

Precautions and tips for your safety

Never wash the motor using water or in the dishwater, especially when it is plugged into the mains (danger of short circuit).

Use a soft cloth to clean the motor after use.

Always unplug the power cord before applying or removing the motor from the machine.

Always disconnect the appliance from the power supply if it is left unattended and before assembling disassembling or cleaning.

Do not place the machine near heat sources (e.g. stoves) or in the presence of water (e.g. sinks).

Use this appliance only for the intended use described in this manual, for a maximum time of 15 minutes continuously.

Do not remove the power cord with wet or damp hands.

Use only the power cord supplied and extension cables suitable for the current indicated on the motor nameplate.

This product is designed for use in domestic environments or within work areas such as: kitchen areas in shops, offices and other workplaces, hotels and other tourist facilities, restaurant kitchens.

When working with machines equipped with motors, avoid wearing ties, scarves or long necklaces. Also remember to pull back your hair.

Cleaning and maintenance cannot be performed by children, unless under close adult supervision.

All repairs involving electrical components must be carried out by qualified personnel. Unauthorised personnel are prohibited from accessing the internal parts of the motor.

The presence of a crossed-off wheelie bin indicates that within the European Union the product is subject to separate collection at the end of its useful life. Do not dispose of these products in unsorted municipal waste.

Important safeguards

When using electrical appliances, basic safety precautions should always be followed including the following:

CUL US LISTED 62HA

1. Read all the instructions.
2. To protect against risk of electrical shock do not put (the machine or the motor) in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts.
6. Never feed food by hand. Always use food pusher.

7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment

8. The use of attachments not recommended

or sold by the manufacturer may cause fire, electric shock or injury.

1. Do not use outdoors.

2. Do not let cord hang over edge of table or counter.

3. CAUTION! This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when appliance is used by or near children. Children should be supervised to ensure that they do not play with this appliance. This appliance is not to be used by children. Keep the appliance and its cable out of reach of children.

Save these instructions

This appliance has a polarized plug (one blade is wide than other). To reduce the risk of electrical shock, the plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

Material included in the box.

• Pastadrive Motor
• Power cord
• Instruction manual

How to couple the motor to Marcato machines

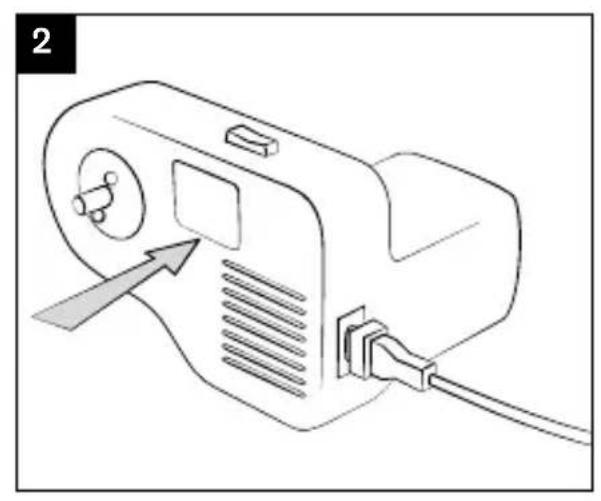

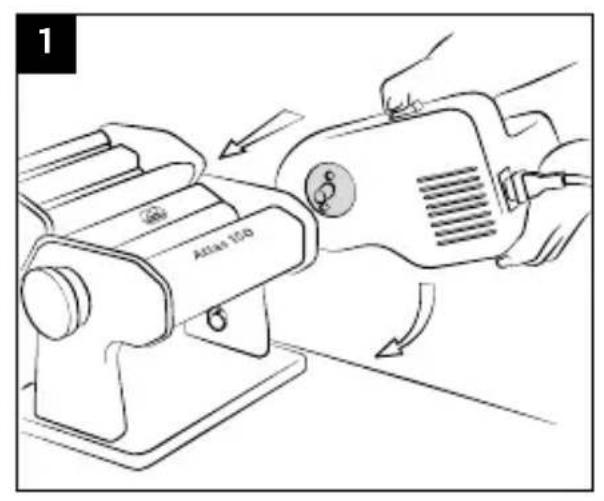

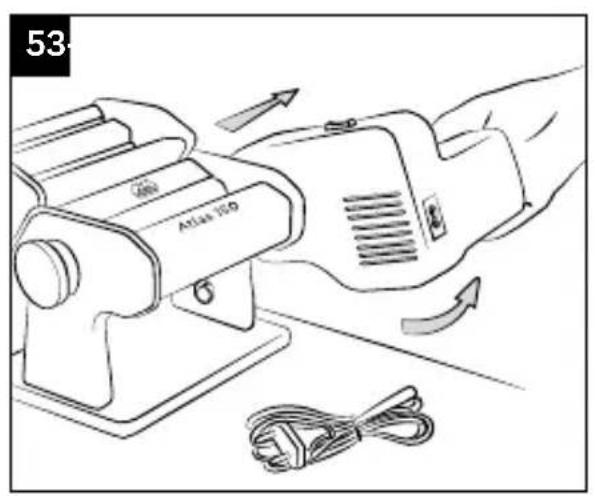

Approach the motor to the machine by tilting it upwards about 30^ and inserting the pin into the hole of the rollers (Fig. 1). Push the motor until it leans against the side. Lastly rotate it downwards about 30^ until it is completely stable. Before connecting the power cord, make sure that the supply voltage matches that indicated on the rating plate of the motor (Fig. 2). To start the motor, press the switch in position I (Fig. 3 - 4). To use the pulse motor, press the button in position II (PULSE). To remove the motor from the

machine, rotate it upwards by about 30^ and pull it outwards (Fig. 5).

Warranty

Marcato products are manufactured with the best materials available and undergo continuous quality checks. For this reason, we guarantee assistance for 2 years against manufacturing defects. However, the warranty does not cover damage caused by improper use or use other than that illustrated in this manual.
