Technical Specifications	SCHNEIDER SMW20VMR microwave oven, 800 W power, 20 L capacity, 5 power levels.
Cooking Functions	Microwave function, defrost, quick cooking.
Dimensions	External dimensions: 44.2 x 34.2 x 25.8 cm.
Weight	Net weight: 12 kg.
Usage	Easy to use with an intuitive control panel and digital display.
Maintenance	Easy cleaning thanks to a stainless steel interior.
Safety	Child safety lock system, overheating protection.
Included Accessories	Turntable, plate support.
General Information	2-year warranty, energy consumption: class A.

Frequently Asked Questions - SMW20VMR SCHNEIDER

Why won\u0027t my SCHNEIDER SMW20VMR microwave oven turn on?

Check that the appliance is properly plugged into a working outlet and that the fuse is not blown. Also ensure the door is properly closed.

How do I adjust the power level on my microwave?

Use the power selection button to choose the desired level. Refer to the user manual for available power levels.

My microwave makes strange noises during use. What should I do?

Unusual noises may be caused by metal objects inside the oven. Remove any unsuitable materials and check that the turntable is properly in place.

How do I clean the inside of my microwave?

Use a mixture of water and white vinegar to clean the interior. Avoid abrasive products that could scratch surfaces.

Why isn\u0027t my microwave heating properly?

This may be due to a problem with the magnetron or incorrect settings. Try resetting the microwave and consult a technician if the problem persists.

How do I unlock the control panel?

If the control panel is locked, press and hold the \"Stop\" button for about 3 seconds to unlock it.

Can I use plastic containers in my microwave?

Make sure plastic containers are labeled as microwave-safe. Avoid unsuitable plastics that may melt.

What is the recommended maximum cooking time?

Cooking time depends on the type of food. Refer to the user manual for specific recommendations by food type.

How do I reset the appliance?

Unplug the microwave for about 5 minutes, then plug it back in to reset it.

Where can I find the user manual for the SCHNEIDER SMW20VMR?

The user manual is usually included in the packaging. You can also download it from Schneider\u0027s website.

USER MANUAL SMW20VMR SCHNEIDER

Specifications techniques

Référence	SMW20VMR / SMW20VMB / SMW20VMBL / SMW20VMP / SMW20VMS / SMW20VCR / SMW20VGA / SMW20VMACA
Tension d'alimentation	220-240V ~ 50 Hz
Puisance absorbée	1150W
Puisance de sortie	700W
Capacité	20 L
Fréquence	2450 MHz

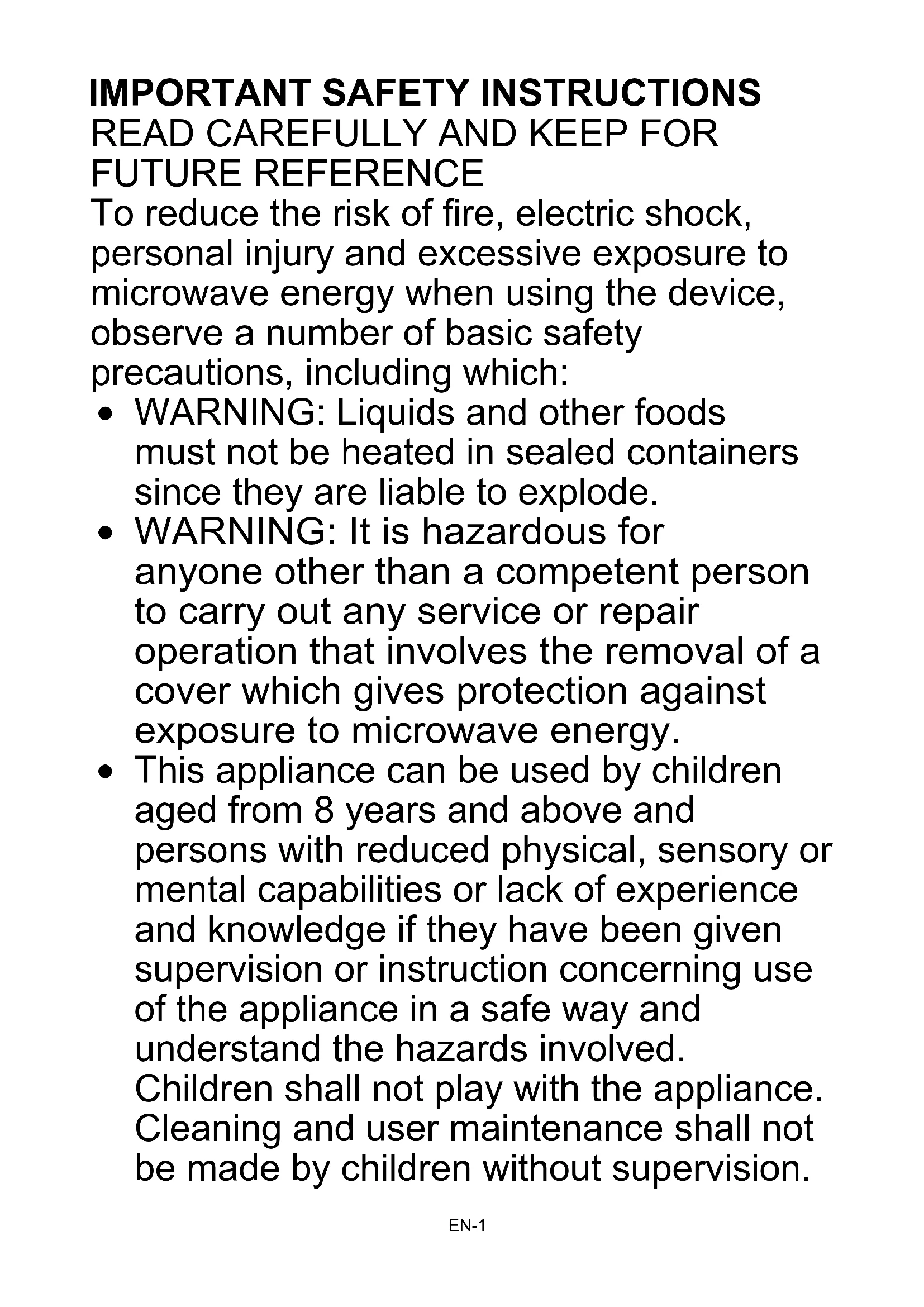

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which:

• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Refer to the section "Instruction for use" on page 14 and paragraph.
• "Cleaning and maintenance" on page 17.
• Make sure the device and the power cable are out of reach of children under 8 years.
• Only use utensils that are suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits removed.
• Please read and follow these instructions: "PRECAUTIONS TO AVOID EXCESSIVE EXPOSURE TO MICROWAVE ENERGY".
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven.
• Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven.
• Install or position the microwave oven in

accordance with the installation instructions provided. The minimum installation height is 85~cm . The back of the device should be placed against a wall. Leave a minimum gap of 30~cm above the oven and 20~cm between the oven and each wall. Refer to the section "Installation" on page 8.

• Eggs in their shell and whole hard- boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• This device is intended solely for domestic use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use and do not store the device outdoors.
• Do not use this oven near a place where there is water, in a wet basement or near a swimming pool.

• Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents.

• Do not leave the cable hanging from a table edge or counter.

• If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.
• To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should be checked before consumption.
• Liquid heated microwave oven may boil suddenly after being baked. Handle containers with care.
• Appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.
• The appliance shall not be cleaned with a steam cleaner.
• The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the oven.
• Only use the temperature probe recommended for this oven (for ovens provided with a facility for using a

temperature sensing probe.)

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching the heating elements.

• Children under 8 must be left-out unless they are supervised at all times.

• The back of the device must be placed against a wall.

• The microwave oven should not be installed in a closet.

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Metallic containers for food and beverages are not allowed during microwave cooking.

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

• This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices

and other working environments;

farm houses;

by clients in hotels, motels and other residential environments;
bed and breakfast type environments.

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities and adjacent parts, refer to the following paragraph of the user manual.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The appliance must not be placed in a cabinet.
• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
• The microwave oven is intended to be used freestanding.

This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation

Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.

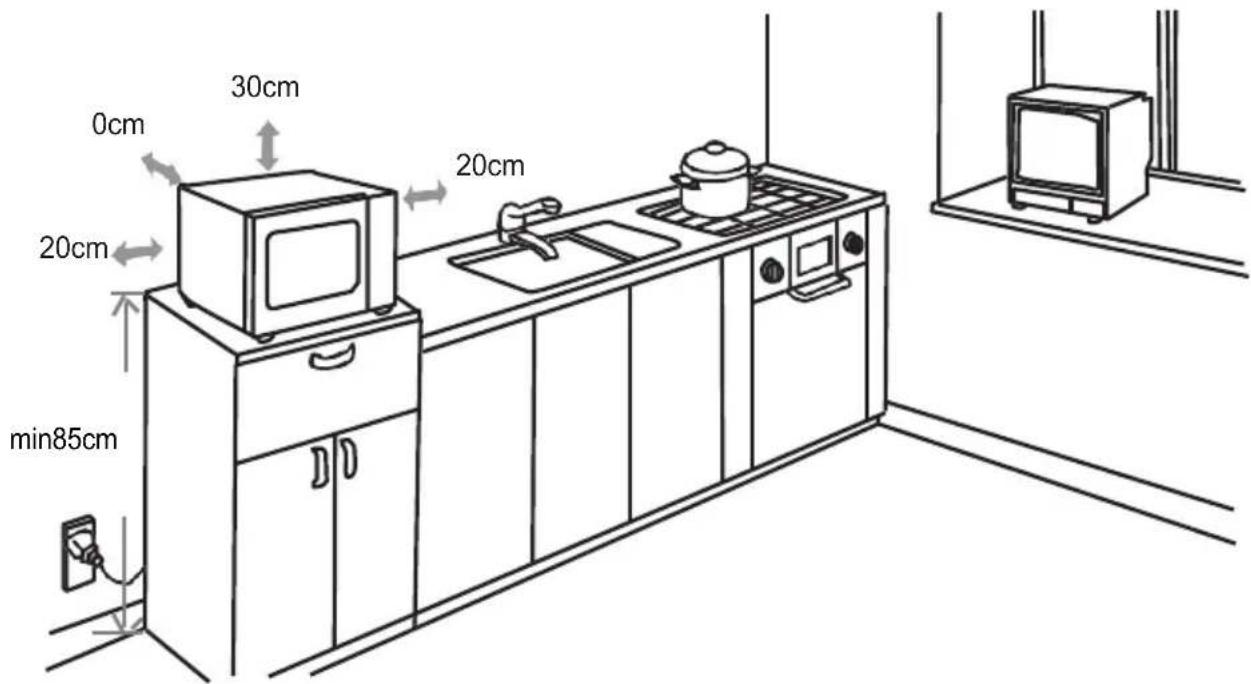

Installation

1. Select a level surface with a sufficient open space for the inlet openings and / or air outlet.

(1) The minimal mounting height is 85 ~cm .
(2) The back of the device must be placed against a wall.

Leave a minimum gap of 30~cm above the oven and 20~cm between the oven and each wall.

(3) Do not remove the feet underneath the microwave oven.
(4) Block the inlet and / or air outlet apertures may damage the oven.

(5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

1. Plug your oven into a wall outlet.

Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit.

WARNING: Do not install oven over a cooktop or other device that produces heat. If the oven is installed near or above a heat source, it may cause damage and void your warranty.

IMPORTANT

It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person.

If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents.

For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard.

Disposal and environmental responsibility

In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information.

Read the instructions carefully before use.

This product complies with the requirements of Directive 2014/35/EU(repealing Directive 73/23/EEC as amended by Directive 93/68/EEC)and 2014/30/EU (repealing Directive 89/336/EEC).

CE

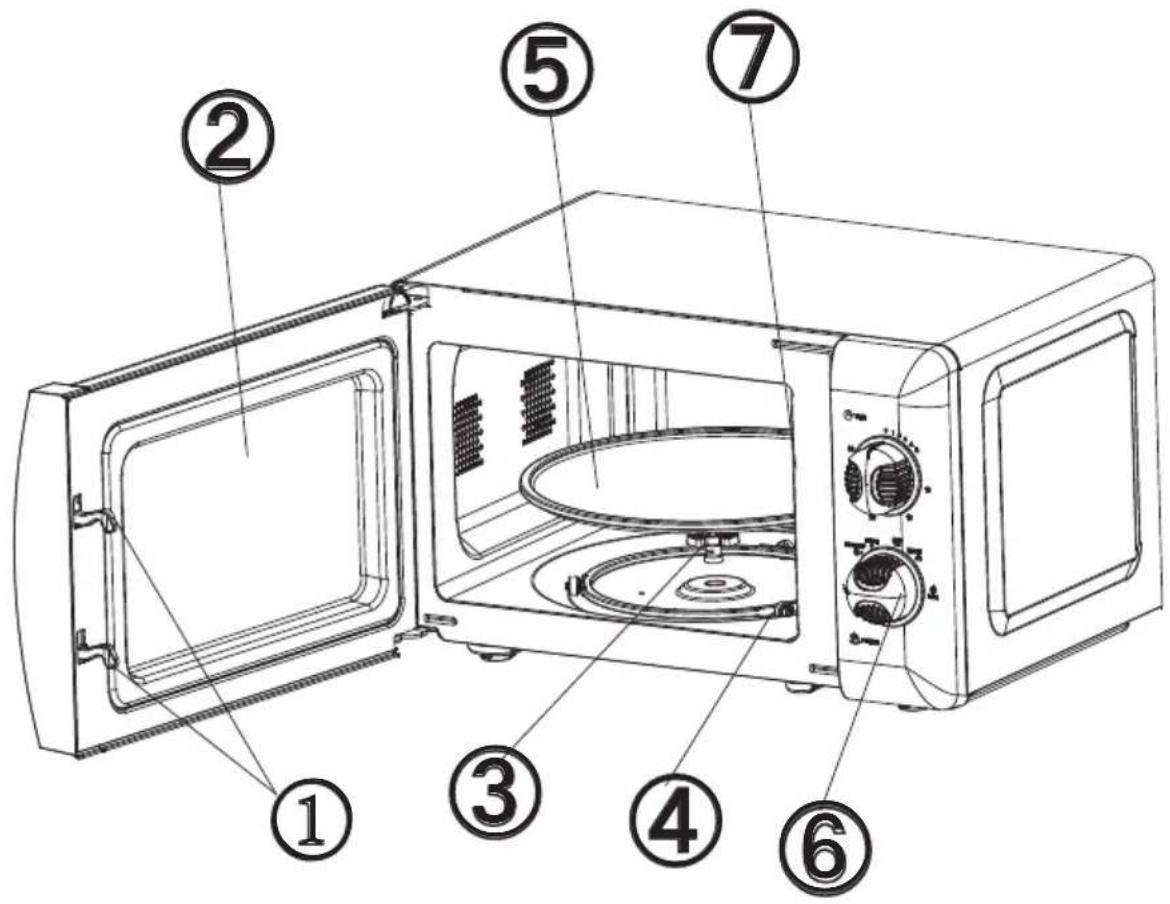

Description of your product

1) Door lock

The microwave oven door must be properly closed for the oven to operate.

2) Door glass

Allows the user to monitor cooking.

3) Rotary axis

The rotating glass plate rests on the axis, the motor under the latter drives the rotation of the plate.

4) Guide ring

The glass turntable rests on the ring wheels which support it and maintain its balance during rotation.

5) Turntable

The food rests on the turntable, the rotation of which promotes uniformity of cooking.

WARNING

• First place the guide ring, then place the rotary table on the rotary axis, ensuring that it is correctly positioned.

6) Control panel

See detailed information below (control panel is subject to change without notice).

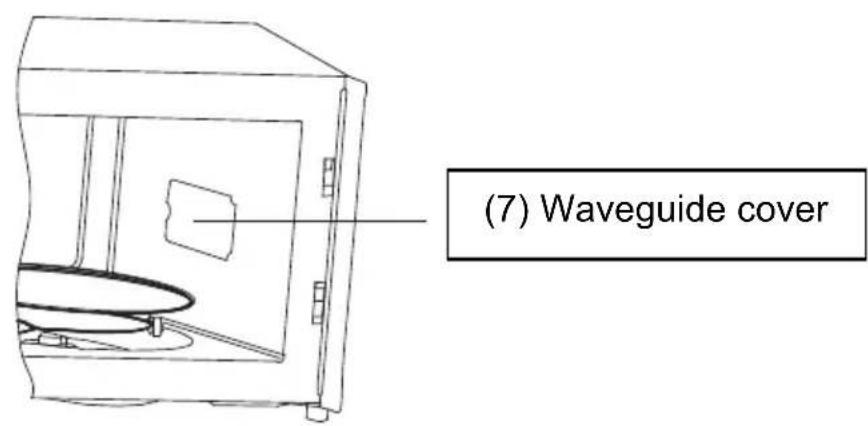

7) Wave protector mica plate

It is located in the microwave oven next to the control panel wall.

WARNING

Never remove the wave protector mica plate.

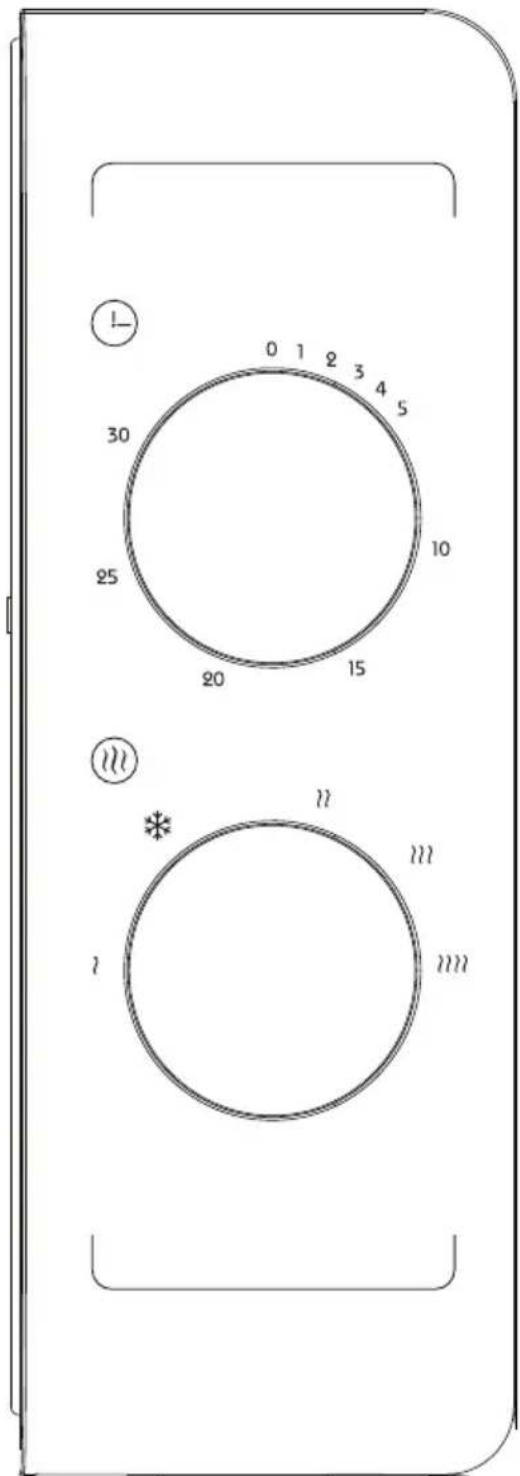

Control panel

1) Timer

• The maximum adjustable cooking time is 30 minutes.

• Each increment corresponds to 1 minute, after 10 minutes. Each increment corresponds to 5 minutes.

-A buzzer sounds when the duration set with the timer has elapsed.

2) Function / Power button

There are 5 power levels:

mM HIGH	Wattage: 700W	(Quick cooking)
mM.HIGH	Wattage: 600W	(Normal cooking)
nMEAN	Wattage: 460W	(Slow cooking)
*DEFROST (M.BASS)	Wattage: 280W	(Defrost)
LOW	Wattage: 120W	(Keep warm)

The following table shows the reference times for defrosting different foods:

	WEIGHT RANGE	DEFROST TIME
Meat	0.1 ~ 1.0 kg	1: 30 ~ 26: 00
Poultry	0.2 ~ 1.0 kg	2: 30 ~ 22: 00
Sea food	0.1 ~ 0.9 kg	1: 30 ~ 14: 00

Instruction for use

1) Plug in the power cord
- Before plugging in the power cord, make sure the timer is set to "0".
- Do not block the ventilation holes.
2) Place the food on the turntable and close the door. Food should be contained in a container.
3) Set the desired power.
4) Set the timer.

• If the desired time is less than 10 minutes, turn the timer knob past the 10 minutes position, then turn it counterclockwise to the desired time.

5) Once the desired time has been set, cooking begins. If cooking needs to be paused before it is finished, simply open the door (at any time), then close it to continue cooking.
6) When the time has elapsed and cooking is complete, the microwave oven will ring and its internal light will automatically turn off.

• If the food is taken out before the end of the set time, it is essential to reposition the timer button to "0" to prevent the microwave oven from running empty.

• It is recommended to wear gloves for removing baked goods. Also be careful not to touch the heating element at the top of the internal compartment.

Utensil Guide

It is strongly recommended to use suitable and safe containers for microwave cooking. In general, heat-resistant plastic, glass or ceramic containers are suitable for microwave cooking. Never use a metal container for microwave or combination cooking, as there is a strong risk of sparking. You can consult the table below for information.

Container material	Microwave	Combined cooking
Heat resistant glass	○	○
Ceramic	○	X
Ordinary glass	X	X
Heat resistant plastic	○	X
Ordinary plastic	X	X
Thin plastic film	○	X
Metal container	X	○

Defrosting tips

Microwaves penetrate about 4cm into most foods. To maximize the efficiency of thawing, it is recommended:

1) For thick and coarse foods, turn them regularly while using the oven so that they are evenly heated.
2) For foods over 0.5kg , it is advisable to turn them at least twice.
3) For thawed foods should be eaten as soon as possible, it is not recommended to put them back in the refrigerator or refreeze them.

Cooking Tips

The following factors can affect the cooking result:

Food position

Place the thicker areas towards the outside of the dish and the thinner parts towards the center of the dish, distributing the food evenly. If possible, do not overlap them.

Cooking times

Start cooking for a short period, evaluate the result at the end of this period and extend it according to the desired result. Overcooking can generate smoke and char the food.

Cook food evenly

Foods such as chicken, ground steaks and ribs should be turned once during cooking.

Depending on the type of food, if applicable, mix them from the outside to the center of the dish once or twice during cooking.

Leave a rest period

Once cooking is complete, let the food sit in the oven for an appropriate amount of time, this allows the cooking cycle to finalize and the food to cool gradually.

Assess whether the food is cooked

The color and hardness of foods help determine if they are cooked, this includes:

• Steam coming out of all parts of food, not just edges.
• The joints of poultry can be moved easily.
• Pork or poultry does not contain traces of blood.
• The fish is opaque and can be easily cut with a fork.

Browning dish

When using a browning pan or self-heating pan, always place it on heat-resistant insulation (eg. porcelain pan) to prevent damage to the turntable and guide ring.

Microwave-compatible plastic wrap

When cooking very fatty foods, take care that the plastic film does not come into contact with the food, as it may melt.

Microwave-compatible plastic cookware

Some microwave-safe plastic utensils may not be suitable for cooking very fatty or very sweet foods. In addition, the preheating time specified in the instructions for use of the dish must not be exceeded.

Maintenance and cleaning

The oven should be cleaned regularly, and any food residue should be systematically removed.

WARNING

1. Unplug the appliance before cleaning it. Never immerse the device in water or any other liquid to clean it.
2. If the oven is not cleaned regularly, the walls may deteriorate; this is potentially dangerous and can shorten the life of the oven.
3. No part of the oven should be cleaned with strong detergents, gasoline, abrasive powder or with a wire brush.
4. The waveguide cover should not be removed.
5. When the microwave oven has been used for a long time, some odors may linger in the oven; here are 3 methods to eliminate them:
   a. Place several lemon slices in a mug, then turn on the oven on high heat for 2-3 minutes.
   b. Place a cup of red tea in the oven, then turn the oven on with high heat.
   c. Put some orange zest in the oven, then turn the oven on with high heat for 1 minute.
6. WARNING: Children should only be allowed to use the oven unsupervised if they have been fully explained to them how it works and if they are fully aware of the risks associated with improper use of the oven.

CLEANING TIPS

It provides instructions for cleaning the door gaskets, interior cavity and adjacent parts.

Exterior:

Wipe the outside of the oven with a slightly damp cloth.

Door:

Clean the door and viewing window by wiping them with a soft, damp cloth.

Scrub the door gaskets and adjacent parts to remove any spills or other dirt.

Wipe the control panel with a slightly damp cloth.

Internal walls:

Wipe the interior walls with a slightly damp cloth.

Wipe off the waveguide cover to remove any splatter marks.

Turntable / rotary ring / axis of rotation:

Wash off with water and mild soap.

Rinse with clean water and dry completely.

Repair

Perform the following checks before contacting a repairer.

1. Place a cup of water (approximately 150ml ) in the oven and close the door completely. The oven light goes out when the door is properly closed. Let the oven run for 1 minute.
2. Does the oven light come on?
3. Is the cooling fan running?

(Place your hand on the rear ventilation openings.)

1. Does the turntable turn?

(The turntable may turn clockwise or counterclockwise. This is normal.)

1. Is the water in the oven hot?

If the answer to any of these questions is no, check your wall outlet and electrical panel fuses.

If the wall outlet and fuses are functioning normally, CONTACT THE NEAREST AUTHORIZED SERVICE CENTER.

Safety instructions for repair

WARNING: MICROWAVE RADIATION

1. The high voltage capacitor remains charged after disconnection. Short the negative terminal of the high voltage capacitor with the oven frame (using a screwdriver) to discharge the capacitor before touching the oven.

2. During repairs where the parts listed below can be removed, this can give access to potentials greater than 250V with respect to earth.

3. Magnetron
   High voltage transformer
   High voltage capacitor
   High voltage diode
   High voltage fuse

4. The following situations may cause excessive microwave exposure during repair.

Incorrect assembly of the magnetron.

Incorrect assembly of door locks, door hinges or door. Incorrect assembly of switch brackets.

The door, door seal, or housing has been damaged.

Technical specifications

Reference	SMW20VMR / SMW20VMB / SMW20VMBL / SMW20VMP / SMW20VMS / SMW20VCR / SMW20VGA / SMW20VMACA
Power supply voltage	220-240V ~ 50 Hz
Absorbed power	1150W
Output power	700W
Capacity	20 liters
Frequency	2450 MHz

We do not accept any liability for faults due to improper use of the device and damage due to repair or maintenance by a third party or due to the installation of unauthorized parts.

If that logo appears on the device, this means that it must be discarded in accordance with Directive 2012/19 / EU on electronic and electrical equipment (WEEE).

All hazardous substances in electrical and electronic equipment can have adverse effects on the environment and human health.

Consequently, when this unit is out of use, it should not be disposed of withunsorted municipal waste.

As an end user, your role is essential for reuse, recycling or any other form of value creation for this device. There are several systems of collection and recovery implemented by your local authority (recycling centers) and distributors.

You have an obligation to use those systems.

GUARANTEE:

The warranty does not cover the wear parts of the product, nor the problems or damages resulting from:

(1) Surface deterioration due to normal wear and tear of the product;
(2) Defects or deterioration due to contact with liquids and corrosion caused by rustor the presence of insects;
(3) Any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) Improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) Any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

In France imported by: SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, France

In Spain imported by: SCHNEIDER CONSUMER IBERIA SL.

Calle Jose Maria Pereda n°55, 39300 Torrelavega – Cantabria

CIF:B02824159

TROUBLESHOOTING

WARNING

In order to prevent any danger, it is imperative, in the event of a problem, to contact the manufacturer's or dealer after-sales service, or a qualified electrician authorized for this type of repair. In all cases, the device must be returned to the appropriate service technician.

Normal
Microwave oven interfering with the reception of your television	Reception of televisions and radios may be interfered with when the microwave oven is in use. This interference is similar to that generated by small electrical devices such as blenders, vacuum cleaners, and vacuum cleaners. electric fans. This is normal.
Low oven light	During low power microwave cooking, the oven light may dim intensity. This is normal.
Steam build-up on the door, hot air escapes from the ventilation openings	During cooking, steam is released from the food. This is mainly evacuated through the ventilation holes but a small amount accumulates on cold surfaces such as the oven door. This is normal.
Oven accidentally used without food inside.	Using the oven empty will not damage it if it is short-lived. But this is not recommended.

Problem	Possible cause	Solution
The oven does not work	(1) The power cord is not properly connected.	Unplug the device, wait 10 seconds, then plug it back in.
	(2) Problem with the electrical outlet.	Try the y socket plugging in other electrical devices.
The oven does not heat up	(3) The door is not closed properly.	Close the door tightly.
Glass turntable makes noise when microwave oven is on	(4) The bearing surface of the pan ring casters and the oven bottom are dirty.	Refer to the paragraph Cleaning your microwave oven. waves to clean dirty surfaces.

This device complies with EC directives for radio interference suppression and low voltage safety and meets current safety requirements.

Subject to technical modifications.

WAARSCHUWING: MAGNETRONSTRALING
