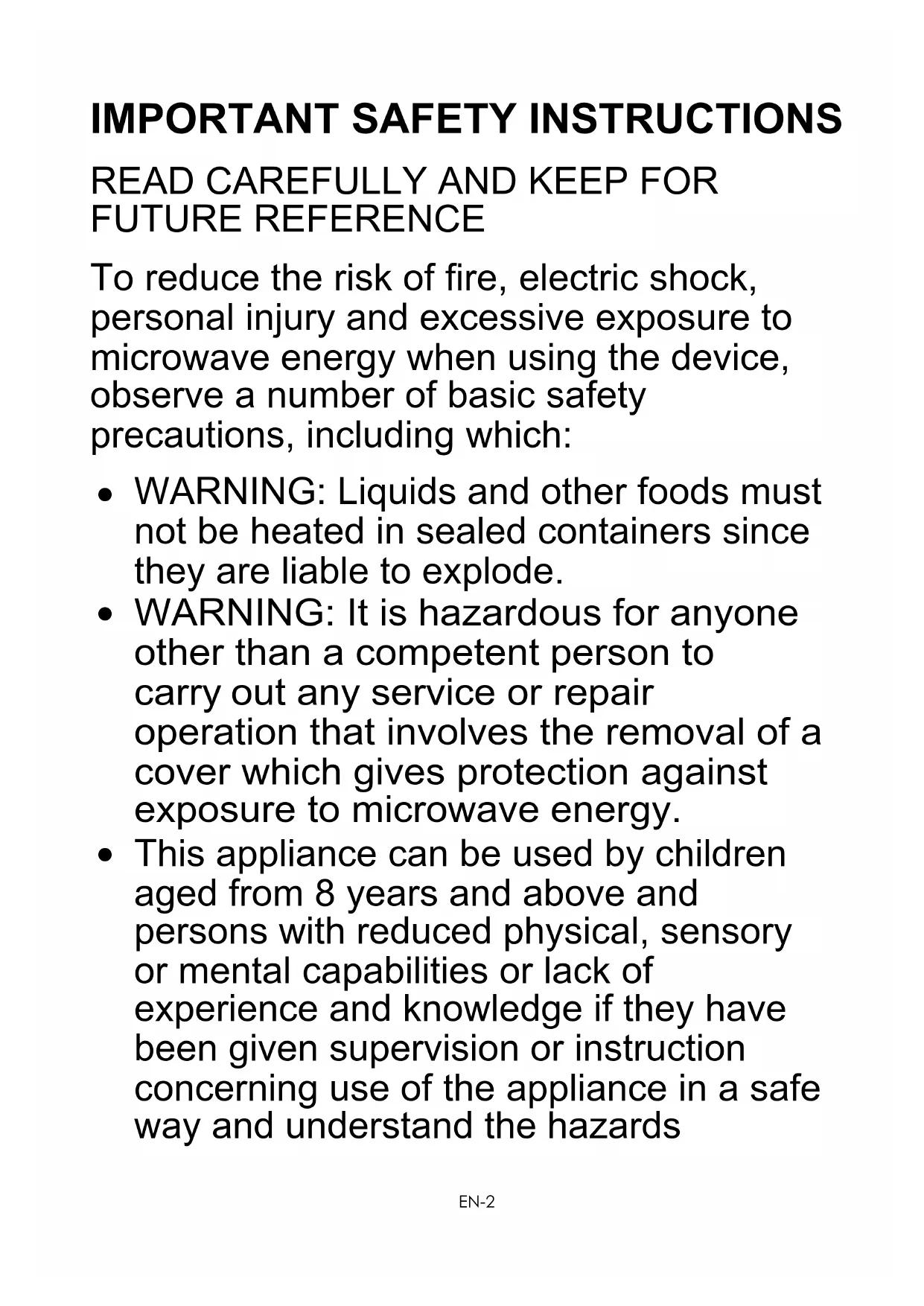

USER MANUAL SCMWN25GDG SCHNEIDER

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which:

WARNING: Liquids and other foods must

not be heated in sealed containers since they are liable to explode.

WARNING: It is hazardous for anyone

other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazardsEN-3 involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Refer to the section "Operations" on page 15 and paragraph "Cleaning and maintenance" on page 25.

Make sure the device and the power cable are out of reach of children under 8 years.

Only use utensils that are suitable for use in microwave ovens.

The microwave should be cleaned regularly and any food deposits removed.

Please read and follow these instructions:

When heating food in plastic or paper containers, keep an eye on the microwave oven due to the possibility of ignition.

If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.EN-4

Do not overcook food.

Do not use the microwave for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven.

Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the microwave.

Install or position the microwave oven in accordance with the installation instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against a wall. Leave a minimum gap of 30 cm above the microwave and 20 cm between the oven and each wall. Refer to the section "Installation" on page 10.

Eggs in their shell and whole hard- boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

This device is intended solely for domestic use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.EN-5

Do not use and do not store the device outdoors.

Do not use this oven near a place where there is water, in a wet basement or near a swimming pool.

Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the microwave vents.

Do not leave the cable hanging from a table edge or counter.

If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.

To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should be checked before consumption.

Liquid heated microwave oven may boil suddenly after being baked. Handle containers with care.EN-6

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.

The appliance shall not be cleaned with a steam cleaner.

The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the microwave.

Only use the temperature probe recommended for this oven (for microwaves provided with a facility for using a temperature sensing probe.)

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must be left-out unless they are supervised at all times.

The back of the device must be placed against a wall.EN-7

The microwave oven should not be installed in a closet.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Metallic containers for food and beverages are not allowed during microwave cooking.

are damaged, the oven must not be operated until it has been repaired by a competent person.

This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

by clients in hotels, motels and other residential environments;

bed and breakfast type environments.

Microwave heating of beverages canEN-8 result in delayed eruptive boiling, therefore care must be taken when handling the

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities and adjacent parts, refer to the following paragraph of the user manual.

Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance must not be placed in a cabinet.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.EN-9

WARNING: When the appliance is

operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

The microwave oven is intended to be used freestanding. This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.EN-10 Installation

Select a level surface with a sufficient open space for the inlet openings and / or air outlet. (1) The minimal mounting height is 85 cm. (2) The back of the device must be placed against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the microwave oven and each wall. (3) Do not remove the feet underneath the microwave oven. (4) Block the inlet and / or air outlet apertures may damage the microwave oven.EN-11 (5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

2. Plug your microwave oven into a wall

outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit.

WARNING: Do not install microwave over a

cooktop or other device that produces heat. If the microwave is installed near or above a heat source, it may cause damage and void your warranty. Caution, hot surface. The sur faces are liable to get hot during use.EN-12 Disposal and environmental responsibility In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information. Read the instructions carefully before use. This product complies with the requirements of Directive 2014/35/ EU (repealing Directive 73/23/EEC as amended by Directive 93/68/ EEC) and 2014/30/EU (repealing Directive 89/336/EEC). IMPORTANT It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person. If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents. For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard.EN-13 Description of your product Waveguide cover

1) Door locking system

The microwave oven door must be properly closed for the microwave to operate.

Allows the user to monitor cooking.

3) Rotary axis of the turntable

The glass turntable rests on the shaft, the motor under the latter drives the turntable

4) Ring of the turntable

The glass turntable rests on the ring wheels, which supports it and maintains its balance during rotation

The food rests on the turntable, the rotation of which promotes uniformity of cooking. Waveguide mica plateEN-14

- Place t he turntable first - Fit the turntable onto the rotating axis and make sure that it is geared in properly

See below in details (the control panel is subject to change without prior notice)

7) Waveguide mica plate

It is inside the microwave oven, next to the wall of control panel. Never remove the waveguide mica plate.

The LED flashes 3 times when plugged in power supply. Then it shows “1:00”, prompting you to input the cooking menu and time.

You can increase or decrease cooking time and weight during operation by turning Time/Weight knob. Note: “ ” is for “Time”, “ ” is for “Weight”.

At the initial or input stage: press once to cancel input programs and resume initial stage. During cooking: press once to stop microwave operation, press twice to cancel cooking programs.

When your preset cooking procedure have finished, the LED display will show END and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door, the beep will be sounded at an interval of 3 minutes.

On the standby status, press Express/Start button, the microwave will start express cook with high power for one minute. You can increase or decrease cooking time by turning Time/Weight knob.

Clock button make it available for you to input current or preset time when “:” flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary.EN-17 Example: to set 12:30 Steps Display 1 After power-up, the colon flashes 1:00 2 Hold Defrost/Clock button for 3 seconds 1:00 3 Turn Time/Weight knob to set exact hours. 12:00 4 Press Defrost/Clock button once again. 12:00 5 Turn Time/Weight knob to set exact minutes. 12:30

Press Defrost/Clock button once again or wait for 5 seconds, and the numbers will go steadily. This but ton is with two functions: set clock and set defrost menu. If you want to set clock, you need to press and hold this button for 3 seconds, and just press this button once to enter defrost state.

7. MICROWAVE COOKING

This function is for cooking and heating food. Pressing Micro Power button, LED cycles to show 100P — 80P — 60P — 40P — 20P. High pow

100% microwave power. Applicable for quick and thorough cooking Medium High power 80% microwave power. Applicable for medium express cooking Medium power 60% microwave power. Applicable for steaming food Medium Low power 40% microwave power. Applicable for defrosting food Low power 20% microwave power. Applicable for keeping warmEN-18

a. The max time which can be set is 60 minutes b. Never operate the microwave oven empty. c. Never use the grill rack during microwave cooking. d. If you turn the food during operation, press the Express/Start button once and the preset cooking procedure will continue. e. If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation of next time use. f. At the maximum microwave power, the mircrowave oven will automatically lower the power after a certain time of cooking to lengthen the service life. Exam ple: To cook at P80 for 10 minutes. Steps Display 1 After power-up, the colon flashes 1:00

Select the desired microwave power by pressing Micro Power button consecutively 80P 3 Set cooking time by turning Time/Weight knob. 10:00

Press Express/Start button to start and LED will count down to show running time.

8. GRILL AND GRILL COMBINATION

This function use for grill food, Press the button LED Display will cycle to show G- C1-C2.

The gri ll heating element is energized during run time. This is applicable for thin rolled meats, pork, sausages and chicken wings, in order to obtain a nice cooking C.1 Combination of grill and microwave cooking. 30% of time microwave output and 70% of time grilling C.2 Combination of grill and microwave cooking. 55% of time microwave output and 45% of time grilling CAUTIONEN-19

In the mode of grill/combi, all of the microwave parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the microwave. Use heavy potholders or microwave mitts to PREVENT BURNS. Example : To grill food with C.2 cook menu for 10 minutes Steps Display

1. After power-up, the colon flashes 1:00

Set cooking time by turning the Time/ Weight knob 10:00

4. Press Express/Start to start cooking

This function use for defrosting food, Press the Defrost/Clock button and the LED display will cycle to show d.1-d.2-d.3. d.1 For defrosting meat, the weight range from 0.1 to 2.0 kg. d.2 For defrosting poultry, the weight range from 0.2 to 3.0kg. d.3 For defrosting seafood, the weight range from 0.1 to 0.9kg. a. It is necessary to turn over the food during operation to obtain uniform effect. b. Usually defrosting will need longer time than that of cooking the food. c. If the food can be cut by knife, the defrosting process can be considered completed. d. Microwave penetrates around 4cm into most food e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again. CAUTION CAUTIONEN-20 Example: To defrost 0.4kg poultry Steps Display 1 After power-up, the colon flashes 1:00

Press Defrost/Clock once button to set the food kind. d.2 3 Turn Time/Weight knob to set the defrost weight 0.4 4 Start cooking by pressing Express/Start

During defrosting 3 beep sound will be heard to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Express/start button again to continue defrosting

The microwave has default cooking menu for simple operation. When the LED flash colon, press the Auto Cooking button and LED will cycle to show A.1, A.2 … A.8 Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced. Display Kind Method A.1 Popcorn Suitable for popping a bag of corn, which is available in the market, weighted 0.1 kg. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1- 2 seconds you should press Pause/Cancel button to stop the popping process A.2 Reheat This setting suitable for reheating 0.2~1.0 kg, which lets you reheat a dinner plate of chilled leftovers with good results.EN-21 A.3 Beverage Heating a cup of 250 or 500 ml liquid. The liquid temperature is about 5-10℃. Use a big mouth cup and do not seal A.4 Pizza Warm 1 or 2 shares pizza A.5 Potato Cooking the potato strips, cut into 5mm width and height, length. Total weight is about 0.45 or 0.65 kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss A.6 Fish Suitable for cooking 0.2~0.7 kg fish. A.7 Rice Suitable for cooking 0.1~0.5kg rice. A.8 Vegetable Suitable for cooking 0.1~0.5kg vegetable. a. The temperat ure of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. b. The temperature, weight and shape of food will largely influence the cooking result. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result. Example: Cook 0.5 kg rice Steps Display 1 After power-up, the colon flashes 1:00

Press Auto Cooking button to set the cooking menu A.7

Set cooking weight by turning Time/Weight knob

Start cooking by pressing Express/Start button and LED will count down to show running time. CAUTIONEN-22

11. AUTOMATIC STARTING (DELAYED FUNCTION)

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps:

1. Setting the current clock;

2. Setting the cooking menu and time.

Exam ple: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20 Steps Display 1 After power-up, the colon flashes 1:00

1.1 Hold Defrost/Clock button for 3 seconds 1:00

1.2 Set hours by turning Time/ Weight knob 12:00

Press Defrost/Clock button again to confirm hours 12:00

1.4 Set minutes by turning Time/ Weight knob 12:30

Press Defrost/Clock button once or waiting for 5 seconds, and the numbers will go steady. 12:30 2 Set the cooking menu and time

Select cooking power by pressing Micro Power button 100P

2.2 Turn Time/Weight button to set cooking time 9:30

Hold Defrost/Clock button for 3 seconds to return to current clock.

Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4

Press Defrost/Clock button to confirm the delayed menu. Now the program has been activated. And the menu will be started at 14:20.EN-23

You may check the preset starting time by pressing Defrost/Clock button.

12. MULTI-SEQUENCE COOKING

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow: Example: Y ou want cook food with 100P microwave for 3 minutes then grill for 9 minutes. This is 2 sequence setting. Steps Display 1 100P microwave for 3min

1.2 Turn Time/Weight knob to set cooking time. 3:00

Press Grill/combi button to select desired power level

2.2 Turn Time/Weight knob to set cooking time. 9:00

3 Start cooking by pressing Express/Start a. When microwave 100 power cooking is finished, microwave oven will begin grilling operation automatically. b. A maximum of 4 sequences can be set at a time, repeat the steps.

13. CHILD LOCK FUNCTION

Use this feature to lock the control panel when you are cleaning or so that children can not use the microwave unsupervised. All the buttons are rendered inoperable in this mode.

CAUTIONEN-24 UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat- resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container Microwave grill Combi Notes Heat-resistant ceramic Yes Yes Yes Never use the ceramics which are decorated with metal rim or glazed Heat-resistant plastic Yes No No Can not be used for long time microwave cooking Heat-resistant glass Yes Yes Yes Plastic film Yes No No It should not be used when cooking meat or chops as the over- temperature may do damage to the film Grill rack No Yes Yes Metal container No No No It should not be used in microwave oven. Lacquer No No No Poor heat-resistant. Can not be used for High-temperature cooking Bamboo wood and paper No No No Poor heat-resistant. Can not be used for High-temperature cookingEN-25 COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking Allow standing time After cooking times out, leave the food in the microwave for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner Whether the food is done Color and hardness of food help to determine if it is done, these include: - Steam coming out from all parts of food, not just the edge - Joints of poultry can be moved easily - Pork or poultry shows no signs of blood - Fish is opaque and can be sliced easily with a fork Browning dish When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded

CLEANING AND MAINTENANCE

SERVICING Please check the following before calling for services.

1. Place one cup of water (approx.150ml) in a glass measure in the oven and closeEN-26

the door securely. Microwave lamp should go off if the door is closed properly. Let the oven work for 1 min.

the microwave lamp light?

3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

4. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

5. Is the water inside the oven hot?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED. SERVICING SAFEGUARDS

gh voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the microwave chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to

potentials above250V to earth. ● Magnetron ● High voltage transformer ● High voltage capacitor ● High voltage diode ● High voltage fuse

3. The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damagedEN-27 This symbol on the product indicates that this device must be disposed of in accordance with Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE). Electrical and electronic equipment contains hazardous substances which may have consequences. on the environment and human health during the reprocessing cycle of the product. This is why when this device is at the end of its life, it should not be disposed of with unsorted municipal waste.As a consumer, you play a crucial role in the cycle of reuse, recycling and other forms of waste. recovery of electrical and electronic equipment. Waste reception centers and collection facilities are available to you by municipalities (recycling facilities) and distributors. It is your responsibility to use the selective waste collection systems at your disposal. The warranty does not cover wearing parts of the product, nor problems or damage resulting from: (1) Surface deterioration due to normal wear and tear of the product; (2) Defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects; (3) Any unauthorized incident, abuse, misuse, modification, disassembly or repair; (4) Any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage. (5) Any use of accessories not supplied or approved by the manufacturer. The warranty will be void if the nameplate and / or serial number of the product is removed.EN-28 TROUBLESHOOTING WARNING Normal Microwave oven interfering with the reception of your television Reception of televisions and radios may be interfered with when the microwave oven is in use. This interference is similar to that generated by small electrical devices such as blenders, vacuum cleaners, and electric fans. This is normal. Low microwave oven light

During low power microwave cooking, the microwave oven light may dim. This is normal. Steam build-up on the door, hot air escapes from the ventilation openings During cooking, steam is released from the food. This is mainly evacuated through the ventilation holes, but a small amount accumulates on cold surfaces such as the microwave oven door. This is normal. Microwave oven accidentally used without food inside. Using the microwave oven empty will not damage it if it is short-lived. But this is not recommended. Problem Possible cause Solution The microwave oven does not work (1) The power cord is not properly connected. Unplug the device, wait 10 seconds, then plug it back in. (3) Problem with the electrical outlet. Try the y socket plugging in other electrical devices.

The microwave oven does not heat up (4) The door is not closed properly. Close the door tightly. Glass turntable makes noise when microwave oven is on (5) The bearing surface of the pan ring casters and the microwave oven bottom are dirty. Refer to the section Cleaning your microwave oven to clean dirty surfaces. This device complies with EC directives for radio interference suppression and low voltage safety and meets current safety requirements. Subject to technical changes. In order to prevent any danger, it is imperative, in the event of a problem, to contact the manufacturer's or dealer after-sales service, or a qualified electrician authorized for this type of repair. In all cases, the device must be returned to the electrician concerned.Imported by: SCHNEIDER CONSUMER GROUP 12 rue Jules Ferry - 93110 Rosny-Sous-Bois, FRANCEDE-2 WICHTIGE SICHERHEITSHINWEISE
