Product Type	Microwave Oven with Grill
Brand	Schneider
Model	SMW 210
Power Consumption	1200W (Microwave), 1000W (Grill)
Microwave Power Output	800W
Grill Power	1000W
Operation Frequency	2450 MHz
Outside Dimensions (HxWxD)	262 x 452 x 395 mm
Cavity Dimensions (HxWxD)	210 x 315 x 314 mm
Oven Capacity	20 Litres
Net Weight	Approx. 12.5 kg
Power Supply	230V ~ 50Hz
Control Panel	Digital display with dial and touch buttons
Cooking Modes	Microwave, Grill, Combination 1, Combination 2
Defrost Functions	Weight Defrost (d1, d2, d3), Jet Defrost (time-based)
Auto Cook Menus	9 pre-set programs (coffee, rice, spaghetti, potato, reheat, fish, chicken, beef/mutton, skewered meat)
Special Features	Express cooking, Preset timer, Multi-stage cooking (up to 3 stages), Child proof lock
Safety Features	Door safety lock system, Automatic shut-off, Child lock
Installation Clearances	20cm above, 10cm back, 5cm sides
Cleaning	Wipe with damp cloth; mild detergent for tough stains; avoid abrasive cleaners
Included Accessories	Glass tray, Roller ring, Metal rack for grilling
Warranty	Refer to manufacturer

Frequently Asked Questions - SMW 210 SCHNEIDER

How do I set the clock on my Schneider SMW 210?

Press the CLOCK button once for 12-hour cycle or twice for 24-hour cycle. Turn the TIME/MENU dial to set the hour, press CLOCK, then turn to set minutes, and press CLOCK to confirm.

What should I do if the microwave does not start?

First, ensure the oven is plugged in securely. Check for a blown fuse or tripped circuit breaker. Verify that the door is fully closed and the control panel is programmed correctly. If the problem persists, contact a qualified technician.

Can I use metal containers in the microwave?

No, metal containers or dishes with metallic trim should not be used in microwave-only mode as they can cause sparks. However, metal trays and racks are allowed in Grill and Combination modes.

How do I defrost food using weight?

Place the food inside. Press WEIGHT DEFROST repeatedly to select the food category (d1 for meat, d2 for poultry, d3 for seafood). Turn the TIME/MENU dial to set the weight (100-1800g). Press START. Turn food over when the oven beeps and press START again.

What is the maximum cooking time for microwave and grill?

The maximum cooking time is 60 minutes for both microwave and grill modes.

How do I clean the microwave cavity?

Turn off and unplug the oven. Wipe the interior with a damp cloth. For tough stains, use a mild detergent. Avoid harsh cleaners. To remove odors, microwave a bowl of water with lemon juice and peel for 5 minutes, then wipe dry.

Can I program multiple cooking stages?

Yes, you can program up to 3 automatic stages. For example, set a Jet Defrost, then a microwave stage, then a grill stage using the MEMORY button. Note that Jet Defrost must be the first stage, and Express/Weight Defrost/Auto Cook cannot be used in multi-stage.

How do I activate the child lock?

Press and hold the CANCEL button for 3 seconds. A beep will sound and an indicator will light up. All buttons will be disabled. To unlock, press and hold CANCEL again for 3 seconds.

What utensils are safe for combination cooking?

For combination (microwave + grill), use heat-resistant glass or heat-resistant ceramics. Do not use plastic dishes or kitchen paper in combination mode.

Why does steam accumulate on the door?

Steam on the door or around the oven is normal when operating under high humidity conditions. Simply wipe it away with a soft cloth.

USER MANUAL SMW 210 SCHNEIDER

Line drawing of a microwave oven with control panel and door (no text or symbols)

Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ....0

IMPORTANT SAFETY INSTRUCTIONS ....1

SPECIFICATIONS*....4

INSTALLATION....4

RADIO INTERFERENCE ....4

GROUNDING INSTRUCTIONS....4

MICROWAVE COOKING PRINCIPLES....4

BEFORE YOU CALL FOR SERVICE ....4

UTENSILS GUIDE ....4

PART NAMES ......6

CONTROL PANEL 6

HOW TO SET THE OVEN CONTROLS....6

SETTING THE CLOCK....6

EXPRESS COOKING....7

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the

following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

7. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition;
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has

to be taken when handling the container.

1. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
2. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
3. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
4. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
5. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
6. Utensils should be checked to ensure that they are suitable for use in microwave oven.
7. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
8. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that

they do not play with the appliance.

SPECIFICATIONS*

Power Consumption:	230V~50Hz, 1200W (Microwave)
	1000W (Grill)
Rated Microwave Power Output:	800W
Operation Frequency:	2450MHz
Outside Dimensions:	262mm(H)×452mm(W)×395mm(D)
Oven Cavity Dimensions:	210mm(H)×315mm(W)×314mm(D)
Oven Capacity:	20Litres
Net Weight:	Approx. 12.5kg

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

grounding or electrical instructions, consult a qualified electrician or service person.

1. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Note:

1. If you have any questions about the

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

another appliance.

1. Check to ensure that the control panel is programmed correctly and the timer is set.
2. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.

2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause

sparks and/or fires.

1. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

2. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave	Grill	Combination
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Container	No	Yes	No

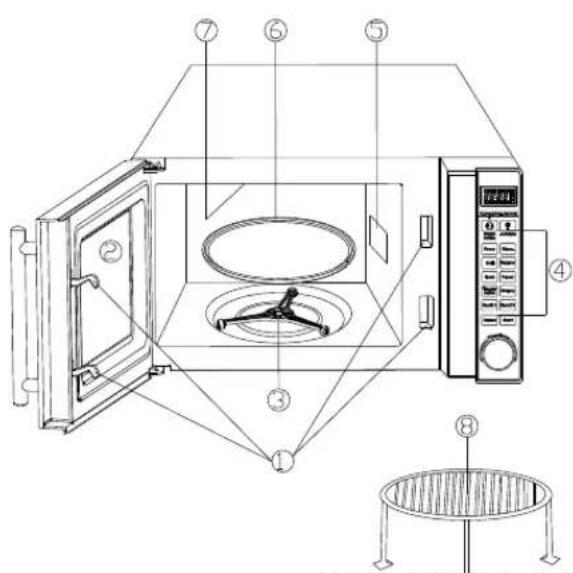

PART NAMES

CONTROL PANEL

1. Door Safety Lock System

2. Oven Window

3. Roller Ring

4. Control Panel

5. Oven Air Vent

6. Glass Tray

7. Grill Heater

8. Metal Rack

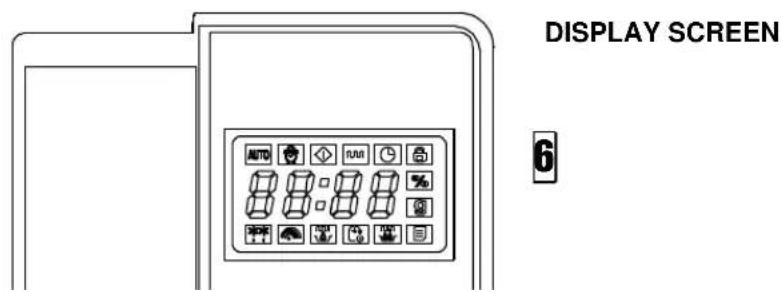

Cooking time, power, indicators and present time are displayed.

WEIGHT DEFROST

Touch to defrost food by weight.

JET DEFROST

Touch to defrost food by time.

POWER

Press to select microwave power level.

MICRO.

Press to select microwave cooking time.

GRILL

Press to set a grill cooking program.

EXPRESS

Touch to start the oven quickly at full power.

CLOCK

Touch to set the oven clock.

PRESET

Used to set a preset program which starts the oven at a specified time.

WEIGHT ADJUST

Press to select the amount of food or number of servings.

MEMORY

Use to set a multistage cooking program.

COMBI.1 / COMBI.2

Press to set a combination cooking program.

CANCEL

Press once to stop a program temporarily or twice to cancel the setting.

START

Touch to start a cooking program.

TIME/MENU (DIAL)

Rotate to set cooking time or select auto-menu.

(Please also see the following pages for more detail)

HOW TO SET THE OVEN CONTROLS

SETTING THE CLOCK

With the oven ready for input, touch the CLOCK

button once or twice to set the digital clock in 12 or 24 hours cycle.

FOR EXAMPLE: Suppose you want to set the

oven clock time to 8:30.

1. Press CLOCK button once or twice
2. Turn TIME/MENU to indicate the hour digit 8.
3. Press CLOCK button.
4. Turn TIME/MENU dial to indicate the minute digits until the screen shows 8:30.
5. Press CLOCK to confirm the setting.
   Note: Press the CLOCK button during the cooking, the current time will display.

EXPRESS COOKING

Use this feature to program the oven to start at 100% power conveniently.

Press EXPRESS button in quick succession to set the cooking time. The oven will auto-start immediately.

After all time has elapsed, the system will sound 4 beeps with END in display. Press CANCEL button or open door to clear END before starting another cooking session.

MICROWAVE COOKING

Microwave cooking allows you to customize cooking power and time. Maximum cooking time is 60 minutes.

Press	Power Level
Once	100% of total
Twice	80%
Thrice	60%
4 times	40%
5 times	20%
6 times	0

Suppose you want to cook for 5 minute at 60% power level.

1. Press MICRO. button.
2. Use the TIME/MENU dial to enter cooking time until the correct cooking time (5:00) is displayed.
3. Press POWER button a number of times till the screen show the intended power.
4. Press START button.

Note:

1. During cooking process, press POWER button to check the current power level.
2. After all time has elapsed, the system will sound 4 beeps with END in display. Press CANCEL button or open door to clear END before starting another cooking session.

GRILL COOKING

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. Maximum cooking time for grill is 60 minutes.

Suppose you want to program grill cooking for 12 minutes.

1. In standby mode, Press GRILL button.
2. Turn the TIME/MENU to 12:00.
3. Press START button to start.

COMBINATION COOKING

This feature allows you to combine grill and microwave cooking on two different settings. The maximum cooking time here is 60 minutes.

COMBINATION 1

30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin.

Suppose you want to set combination 1 cooking for 25 minutes.

1. Press CANCEL button.
2. Press COMBI.1 button.
3. Turn TIME/MENU to 25:00.
4. Press START button to start.

COMBINATION 2

55% time for microwave cooking, 45% for grill cooking. Use for pudding, omelets, baked potatoes and poultry.

Suppose you want to set combination 2 cooking for 12 minutes.

1. Press CANCEL button.
2. Press COMBI.2 button.

3. Turn TIME/MENU to 12:00.

4. Press START button to start.

WEIGHT DEFROST

The oven allows the defrosting of meat, poultry, and seafood on weight. Press WEIGHT DEFROST button repeatedly to choose one of three defrosting mode. The time and the defrosting power are adjusted automatically once the weight is programmed. The range of food weight varies between 100g and 1800g.

FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.

1. Place the shrimp to be defrosted into the oven.
2. Press WEIGHT DEFROST button three times when d3 in dispaly.

Defrost mode/code	Food category
d1	Meat
d2	Poultry
d3	Seafood

1. Turn TIME/MENU dial to choose a weight 600g.
2. Press START button.

Note : Turn food over when oven signals. Touch START button to resume defrosting.

JET DEFROST

The oven can quickly defrost food to the set time you entered. The maximum defrosting time you can enter is 60 minutes.

FOR EXAMPLE : Suppose you want to defrost frozen food for five minutes.

1. Place the food to be defrosted into the oven.
2. Press JET DEFROST button once.
3. Turn TIME/MENU dial to set cooking time.
4. Press START button to start.

Note: Turn food over when oven signals. Touch START button to resume defrosting.

PRESET FUNCTION

Preset function allows the oven to start up in a later time.

FOR EXAMPLE: Suppose now the clock running at 11:10 and you want the oven to start cooking at 11:30.

1. Enter a cooking program.
2. Press PRESET button once.
3. Turn TIME/MENU to set 11hour.
4. Press PRESET button once.
5. Turn TIME/MENU to set 30 min.
6. Press START button.

Note:

1. When it reaches the preset time, the system will start the preset cooking program automatically.
2. After starting the preset function, press CLOCK to check the present time, press CANCEL to cancel the function.

AUTO COOK

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.

1. Rotate TIME/MENU dial to select food code from 1\~9, to specify the food to be cooked.
2. Press WEIGHT ADJUST repeatedly to select food weight or number of servings to be cooked.

3. Press START button to confirm.

Auto Cook Code/Menu

Select food code	Notes
1 Coffee/Soup(each 200ml)	1. The user is required to set weight for the system to determine the time needed to do the job, without entering cooking time by the user who might first at a loss as to how much time is needed for the cooking.2. For spaghetti, add boiling water before cooking.3. For food 7,8,9 (chicken, beef/mutton, skewered meat), beeps can be heard during cooking time to remind user to turn food over for uniform cooking.4. The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
2 Rice(g)
3 Spaghetti(g)
4 Potato(each 230g)
5 Reheat(g)
6 Fish(g)
7 Chicken(g)
8 Beef/Mutton(g)
9 Skewered Meat(g)

MULTI-STAGE COOKING

Your oven can be programmed for up to 3 automatic cooking sequences.

Suppose you want to set the following cooking program.

1. Input a JET Defrost program without depress START.
2. Press MEMORY button.
3. Input a microwave cooking program without depress START.

4. Press MEMORY button.

5. Input a Grill cooking program

6. Press START button to start.

Note : JET DEFROST can be only set before other cooking program, EXPRESS COOKING, WEIGHT DEFROST and AUTO COOK can not set in multi-stage cooking program.

CHILD PROOF LOCK

The childproof lock prevents unsupervised operation by little children.

To set the child proof lock: Press CANCEL button for 3 seconds, then a beep will sound and the indicator light will come on. In the lock state, all buttons are disabled.

To cancel the child proof lock: Press CANCEL button for 3 seconds, then a beep will sound and the indicator light will come off.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
