USER MANUAL SCMWC223SDB SCHNEIDER

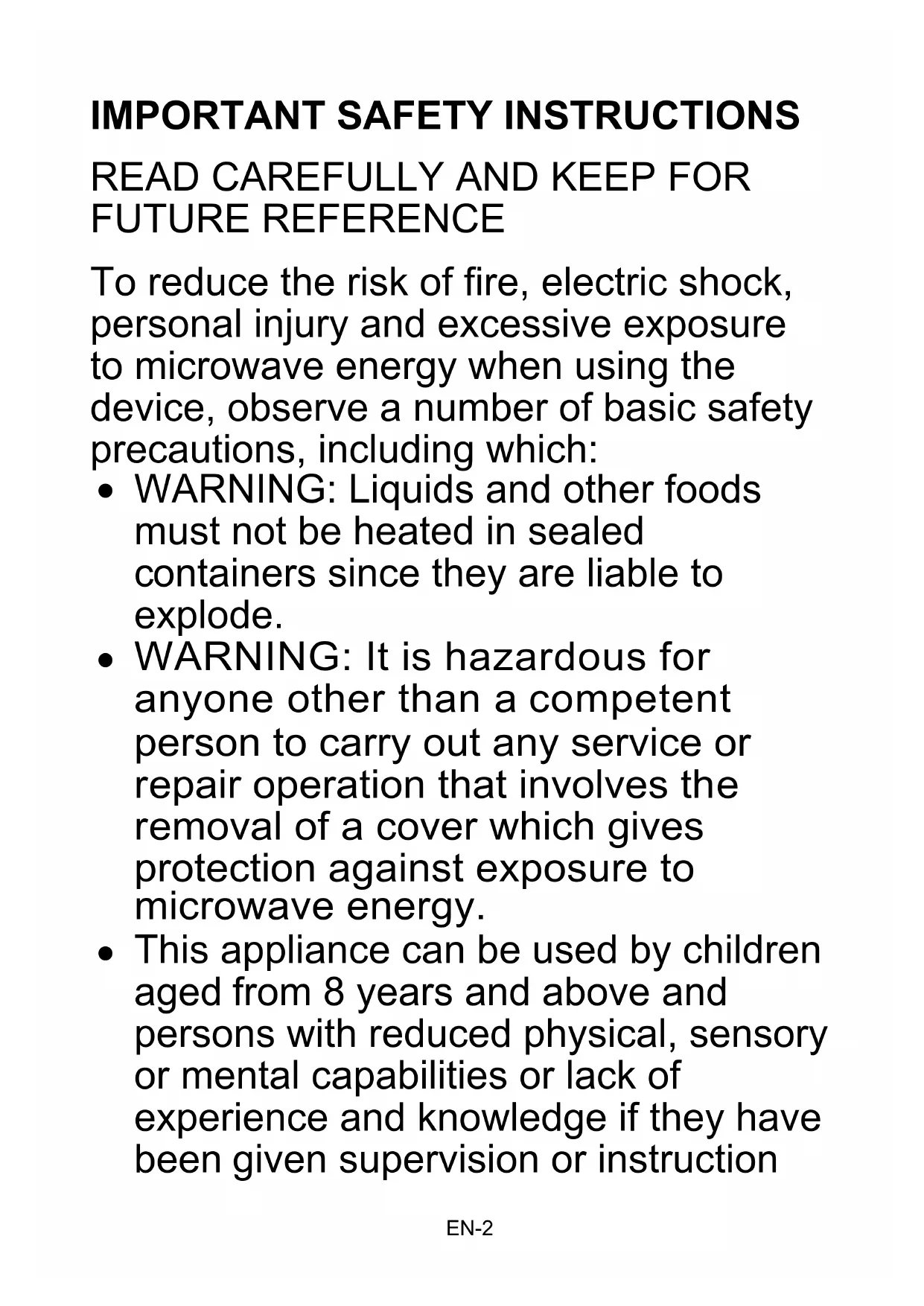

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which:

WARNING: Liquids and other foods

must not be heated in sealed

ontainers since they are liable t

WARNING: It is hazardous for

anyone other than a competent person to carry out any service or

epair operation that involves th

emoval of a cover which gives protection against exposure to microwave energy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory

mental capabilities or lack of experience and knowledge if they have been given supervision or instructionEN-3 concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Refer to the section "Instruction for use" on page 15 and paragraph

"Cleaning and maintenance" on page 22.

Make sure the device and the power cable are out of reach of children under 8 years.

Only use utensils that are suitable for use in microwave ovens.

The oven should be cleaned regularly and any food deposits removed.

Please read and follow these instructions: "PRECAUTIONS TO

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

If smoke is observed, switch off orEN-4 unplug the appliance and keep the door closed in order to stifle any flames.

Do not overcook food.

Do not use the oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven.

Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven.

Install or position the microwave oven

accordance with the installati

instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against

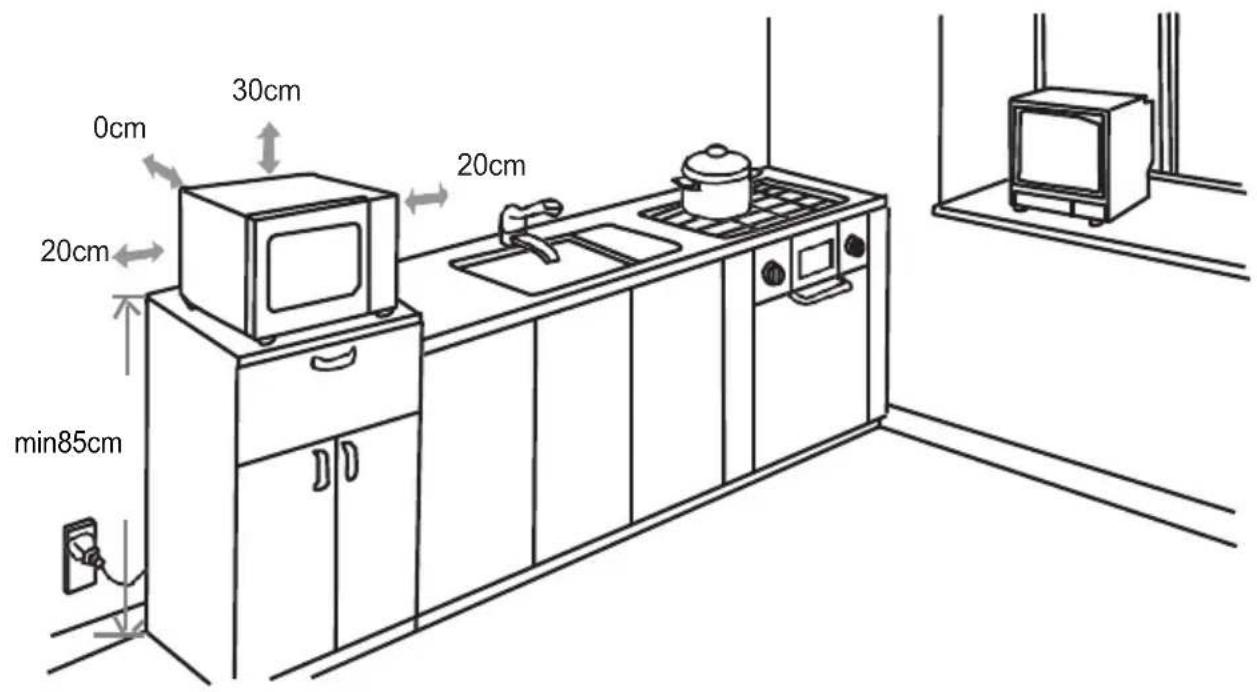

all. Leave a minimum gap of 30 cm above the oven and 20 cm between t

en and each wall. Refer to t

ction "Installation" on page 26.

Eggs in their shell and whole hard- boiled eggs should not be heated i

microwave ovens since they may explode, even after microwave heati

This device is intended solely for domestic use.EN-5

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified per sons in order to avoid a hazard.

Do not use and do not store the device out doors.

Do not use this oven near a place where there is water, in a wet basement or near a swimming pool.

Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during

e. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents.

Do not leave the cable hanging from a table edge or counter.

If the oven is not regularly cleaned, the

lls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.

To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwav

oven, and the contents of the temperature should be checked before consumption.EN-6

Liquid heated microwave oven may boil suddenly after being baked. Handle containers with care.

Appliances are not intended to be oper ated by means of an external timer or separate remote-control system.

Accessible parts may be subjected to high temperatures during operation. The young children must be k ept away.

The appliance shall not be

leaned with a steam cleaner.

The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the oven.

Only use the temperature probe recommended for this oven (for ovens provided with a facility for using a temperature sensing probe.)

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoi

touching the heating elements. Children under 8 must be leftout unlessEN-7 they are supervised at all times.

The back of the device must be placed agai nst a wall.

The microwave oven should not be

nstalled in a closet.

The microwave oven is intended for heating food and beverages. Drying of food or clothing an

heat ing of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition

Metallic containers for food and bev erages are not allowed duri

are damaged, the oven must not be oper ated until it has been repaired by a competent person.

This appliance is intended to be used

n household and similar applications such as:

staff kitchen areas in shops, offices and other worki

by clients in hotels, motels andEN-8 other residential environments;

bed and breakfast type environments.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities and adjacent parts, refer to the following paragr aph

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance must not be placed in a cabinet.

This appliance is not intended for use

persons (including children) wit

reduced physical, sensory or mentalEN-9 capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING: When the appliance is

operated in the combination mode, children should only use the ov

under adult supervision due to t

temperatures generated.

The microwave oven is intended to be used freestanding.

his product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.EN-10 30cm 0cm 20cm 20cm min85cm Installation

Select a level surface with a

ufficient open space for the inlet openings and / or air outlet. (1) The minimal mounting height is 85

(2) The back of the device must be

aced against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the oven and each wall. (3) Do not remove the feet underneath

he microwave oven. (4) Block the inlet and / or air outlet apertures may damage the oven.EN-11

(5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

Plug your oven into a wall outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit.

WARNING: Do not install oven over

a cooktop or other device that produces heat. If the oven is installed near or above a heat source, it may cause damage and void your warranty. Caution, hot surface. The surfaces are liable to get hot during use.EN-12 IMPORTANT It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person. If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents. For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard. Disposal and environmental responsibility In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information. Read the instructions carefully before use. This product complies with the requirements of Directives 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).EN-13

Microwave oven door must be properly closed in order for it to operate.

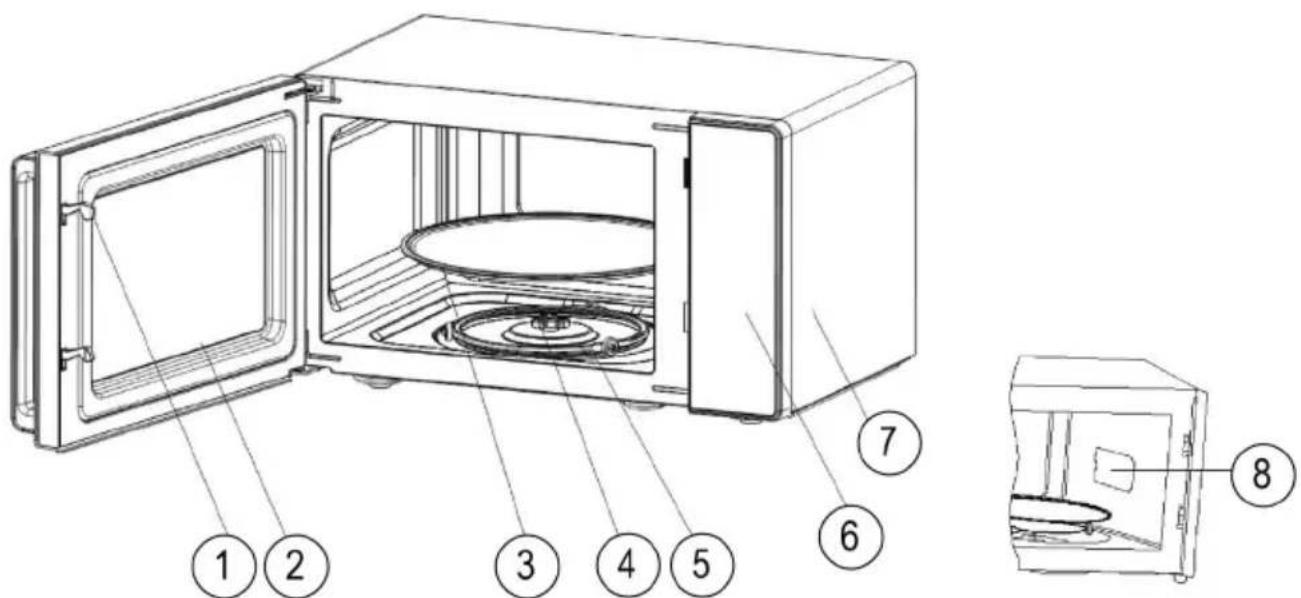

Allow user to see the cooking status

The food sits on the turntable, its rotation during operation helps to cook food evenly

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate.

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating.

• Place the guide ring first

• Place the turntable on the rotary axis making sure that it is correctly positioned.

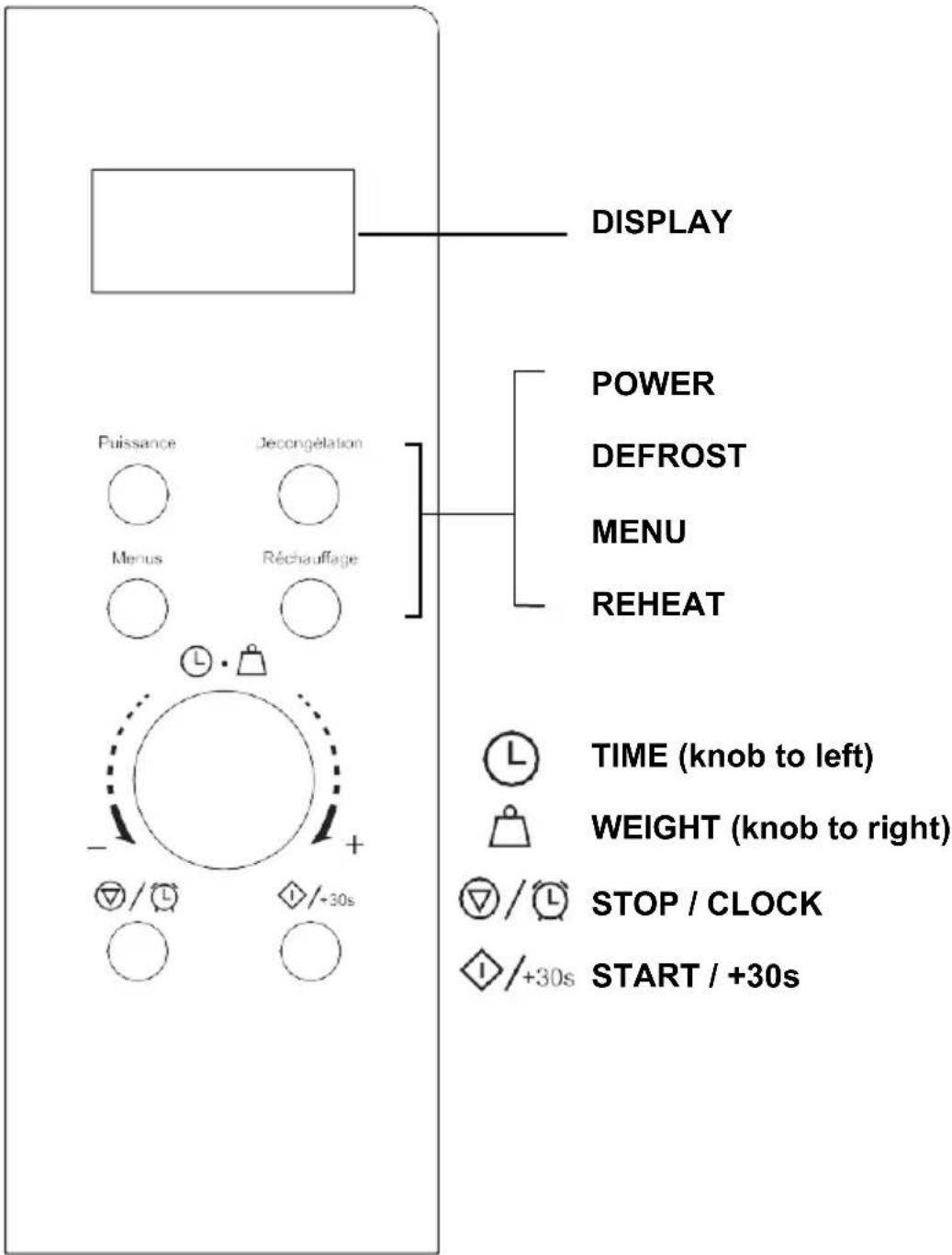

See below in details (the control panel is subject to change without prior notice)

7) External structure

Used for wrapping and protecting the internal structural parts and electrical components of the whole machine

MICROWAVE FUNCTION There are five firepower levels, 100P, 80P, 50P, 30P and 10P, respectively. Press the “Puissance” button continuously and select the desired microwave power. Turn the “Time. Weight” knob to increase or decrease cooking time, can select the time range is 0:10~60:00.After select the time, press “START/+30s” button to start work. An buzzing sound to notify completion of the operation. HIGH 100% power output (Applicable for quick and thorough cooking) M.High 80% power output (Applicable for medium express cooking) Med 50% power output (Applicable for steaming food) M.Low 30% power output (Applicable for defrosting food) LOW 10% power output (Applicable for keeping warm)

The max time which can be set is 60 minutes

Never operate the oven empty.

At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

If you turn the food during operation, press the Start/+30s button once and the preset cooking procedure will continue.

If you intend to remove the food before the preset time, you must press Stop/Clock button once to clear the preset procedure to avoid unintended operation of next time use.

DEFROST There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time. Press “Defrost” button continuously to select the defrost mode then turn the “Time. Weight” knob to chose the food weight or defrost time. dEF1 selectable option range of weight is 100g ~ 1500g. dEF2EN-16 selectable option range is 0:10 ~ 60:00. After selecting, press the “START/+30s” button start to work. An buzzing sound to notify completion of the operation. The dEF1 defrost mode by weight will have a beeping sound to prompt the food to be turned over during defrosting. Below is some food defrosting time advice: dEF1 For defrosting, the weight range from 0.1 to 1.5 kg. dEF2 For defrosting, the time range from 0:10 to 60:00.

It is necessary to turn over the food during operation to obtain uniform effect.

Usually defrosting will need longer time than that of cooking the food.

If the food can be cut by knife, the defrosting process can be considered completed.

Microwave penetrates around 4cm into most food

Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

AUTO COOKING There are eight automatic menus A.1~A.8, Potato, Pasta, Pizza, Popcorn, Vegetable, Beverage, Meat and Fish respectively. Press the “Menu” button continuously to select the desired menu, then turn the “Time. Weight” knob to select the weight of the menu. After selecting the weight and cooking weight, press “START/+30s” button to start work. An buzzing sound to notify completion of the operation. Display Kind Method A.1 Potato Applicable for the weight range from 250, 500g and 750g. A.2 Pasta Applicable for the weight range from 50, 100g and 150g A.3 Pizza Applicable for the weight range from 200 and 400g. A.4 Popcorn Applicable for the weight range from 100gEN-17 A.5 Vegetable Applicable for the weight range from 200g. 400g and 600g A.6 Beverage Applicable for the weight range is 1 cup, 2 cups or 3 cups, each one about 250ml. A.7 Meat Applicable for the weight range from 200g, 400g and 600g A.8 Fish Applicable for the weight range from 200, 400g and 600g

The temperature of food before cooking would be 20-25℃. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.

The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

REHEAT Reheat function is mainly to facilitate users to heat food according to the weight of food, press “Reheat” button continuously, select the appropriate weight of food, the weight range can be selected is 200g,400g, 600g, 800g and 1000g. After select the weight, press “START/+30s” button to start work, An buzzing sound to notify completion of the operation.

STOP In the process of cooking settings, can press “STOP/CLOCK” button to cancel the settings and return to standby status. In the process of microwave oven working, can press “STOP/CLOCK” button to pause. In the standby state, can press “STOP/CLOCK” button again to cancel the function and return to standby status.

CLOCK In standby mode, hold “STOP/CLOCK” button for more than 3 seconds to enter the clock setting interface. At the same time, the display screen blinks, please select the hour of cooking time. The selection of hours can be set by turning the knob. After setting the hour, press the "START/+ 30s" button for a short time to switch to the setting minute mode. The minutes can be set by turning the knob.EN-18 After setting minutes, press the "START/+30s" button again to exit the setting mode.

START/+30s After setting the working mode and cooking time, press the “START/+30s” button to start the microwave oven. In working state, can press “START/+30s” button to increase time, press one time to increase 30 seconds, but the menu mode and weight defrosting mode cannot adjust time. In pause state, can press “START/+30s” button to continue the microwave oven before cooking mode.

Use this feature to lock the control panel when you are cleaning or so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode.

Set lock: In standby mode, press the "STOP" button and "MENUS" button at the same time, the child lock function is locked, and all buttons of the microwave oven cannot be operated.

Cancel lock: In the child lock state, press the "STOP" button and "MENUS" button at the same time to cancel the child lock function. UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat- resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container Microwave Notes Heat-resistant ceramic Yes Never use the ceramics which are decorated with metal rim or glazed Heat-resistant plastic Yes Can not be used for long time microwave cooking Heat-resistant glass Yes Grill rack NoEN-19 Plastic film Yes It should not be used when cooking meat or chops as the over-temperature may do damage to the film COOKING TIPS The following factors may affect the cooking result: Food arrangement Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible. Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.EN-20 Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking Allow standing time After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner Whether the food is done Color and hardness of food help to determine if it is done, these include:

Steam coming out from all parts of food, not just the edge

Joints of poultry can be moved easily

Pork or poultry shows no signs of blood

Fish is opaque and can be sliced easily with a fork Browning dish When using a browning dish or self-heating container, always place a heat- resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.EN-21 TROUBLESHOOTING Before asking for service, please check each item below:

Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.

Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.

Is the oven lamp on?

Does the cooling fan work? (Put your hand over the rear ventilation openings.)

Does the turntable rotate? (The turntable can rotate clockwise or counter clockwise. This is quite normal.)

Is the water inside the oven hot?

Check to ensure the door is securely closed, engaging the door lock system. If the door is not properly closed, the microwave energy will not flow inside. IF NONE OF THE ABOVE RECTIFIES THE

SITUATION, THEN CONTACT A QUALIFIED

Be sure to disconnect the unit from the power supply.

Turn off the oven and unplug the power cord from the wall when cleaning.

Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.

The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner. 5.A steam cleaner is not be used.

Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.

It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.

Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

If the light bulb burns out, please contact customer service to have it replaced. 12.The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.

Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.EN-23 TECHNICAL SPECIFICATIONS

Model SCMWC223SDB Power consumption 230V~ 50Hz 1280W (microwave) Rated output power (Microwave) 800W Operation frequency 2450MHz Oven Cavity Dimensions 240mm(H)×316mm(W)×316mm(D) Oven capacity 23 L Net weight Approximately 11.9 kg

If that logo appears on the device, this means that it must be discarded in accordance with Directive 2012/19 / EU on electronic and electrical equipment (WEEE). All hazardous substances in electrical and electronic equipment can have adverse effects on the environment and human health. Consequently, when this unit is out of use, it should not be disposed of with unsorted municipal waste. As an end user, your role is essential for reuse, recycling or any other form of value creation for this device. There are several systems of collection and recovery implemented by your local authority (recycling centers) and distributors. You have an obligation to use those systems.

GUARANTEE: The warranty does not cover the wear parts of the product, nor the problems or damage resulting from: (1) Surface deterioration due to normal wear and tear of the product; (2) Defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects; (3) Any incident, abuse, misuse, alteration, disassembly or Unauthorizedrepair; (4) Improper maintenance, improper use concerning the product or connection to an incorrect voltage; (5) Any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.Ce produit est importé par / This product is imported by:
