USER MANUAL SCMW2125GDB SCHNEIDER

Début/+30s Début/+30s Début/+30s

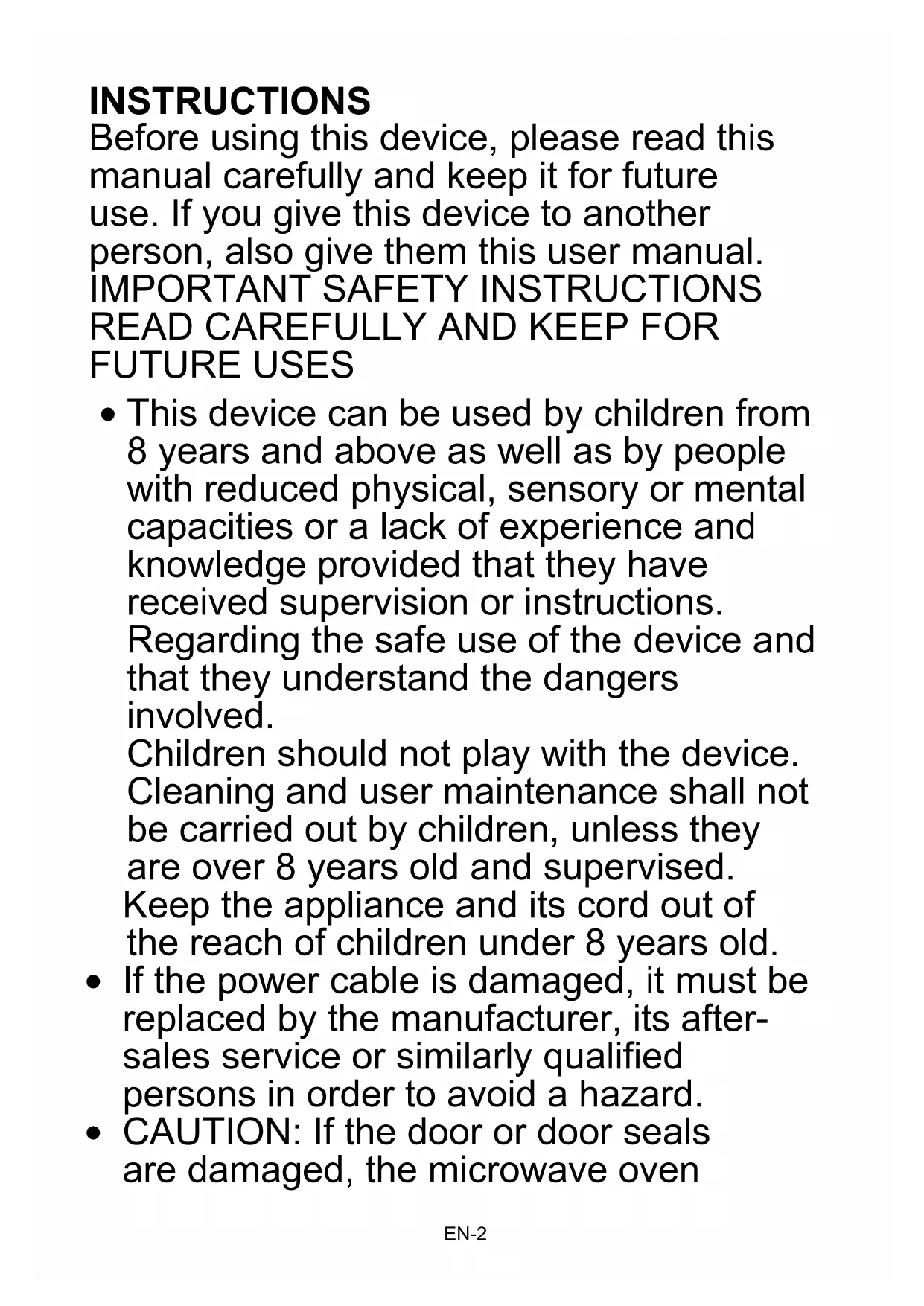

READ CAREFULLY AND KEEP FOR

This device can be used by children from 8 years and above as well as by people with reduced physical, sensory or mental capacities or a lack of experience and knowledge provided that they have received supervision or instructions. Regarding the safe use of the device and that they understand the dangers involved. Children should not play with the device. Cleaning and user maintenance shall not be carried out by children, unless they are over 8 years old and supervised. Keep the appliance and its cord out of the reach of children under 8 years old.

If the power cable is damaged, it must be replaced by the manufacturer, its after- sales service or similarly qualified persons in order to avoid a hazard.

CAUTION: If the door or door seals are damaged, the microwave ovenEN-3 must not be operated until it has been repaired by a competent person.

WARNING: It is dangerous for anyone

other than a competent person to perform maintenance or repairs involving the removal of a cover that protects against exposure to microwave energy.

CAUTION: Liquids and other foodstuffs should not be heated in tightly closed containers as they may explode.

This appliance is intended for use in household and similar applications such as:

Kitchen areas reserved for staff in shops, offices and other professional environments;

Use by customers of hotels, motels and other residential type environments;

Bed and breakfast type environments.

Install or position the microwave oven in strict accordance with the installation instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against a wall. Leave aEN-4 minimum empty space of 30 cm above the oven and 20 cm between the oven and each wall. Refer to the "Installation" paragraph.

Use only utensils suitable for use in microwave ovens.

Metal containers for food and drink are not allowed during microwave cooking.

While heating food in plastic or paper containers, keep an eye on the microwave oven because of the possibility of ignition.

The microwave oven is designed for heating food and drink. Drying foodstuffs or laundry and heating heating pads, wet laundry and other similar items may result in the risk of injury, ignition or fire.

If smoke appears, turn off or unplug the appliance and keep the door closed to smother any flames.

Heating beverages in the microwave can cause boiling liquid to spurt out suddenly. For this reason, care should be taken when handling containers.

• The contents of baby bottles and jars of baby food should be stirred or shaken and the temperature should beEN-5 checked before consumption, so as to avoid burns.

It is not recommended to heat eggs in their shells and whole hard-boiled eggs in a microwave oven as they may explode, even after cooking has finished.

Regarding the instructions relating to cleaning, in particular of door seals, cavities and adjacent parts, refer to the paragraph below in the manual.

It is recommended to clean the oven regularly and to remove any food deposits.

If the device is not kept in a good state of cleanliness, its surface may deteriorate and inexorably affect the life of the device and lead to a dangerous situation.

The appliance must not be steam cleaned.

This microwave oven is intended to be free standing, it must not be placed in a piece of furniture.

This device is a Group 2, Class B device. This appliance belongs to group 2 because it intentionally generates radio frequency energy to heat food or products. This device belongs to classEN-6 B because it is suitable for use in residential environments and in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes.

This appliance is not intended to be operated by means of an external timer or by a separate remote control system.

SHOCK ! Do not immerse the device, cord or power plug in water or any other liquid. Do not use the device with wet hands.

Avoid overcooking food.

Do not use the inside of the appliance to store food or containers. Do not store food (eg bread, biscuits, etc.) in the oven.

Remove all metal twist ties and handles from paper or plastic bags/containers before placing them in the microwave.

Do not use or store the device outdoors.

Do not use this oven near water, in a wet basement, or near a swimming pool.

Accessible surfaces may be heated to high temperatures when the device isEN-7 in operation. Surfaces may become hot during use. Be sure to keep the power cable away from any hot surface. Do not cover any of the microwave oven vents.

Do not let cord hang over edge of table or counter.

Accessible parts can be heated to high temperatures when the device is in operation. Small children should be kept away.

The device is heated to high temperature during operation. Be careful never to touch the heating elements located inside the oven.

Radio interference The use of a microwave oven may cause interference which may affect the reception of your radios, televisions and similar devices. If there is interference, try to reduce or eliminate it by doing the following:

Clean the oven door and sealing surfaces.

Reorient the receiving antenna of the radio or TV.

Change the location of the oven relative to the receiver.

Move the microwave oven awayEN-8 from the receiver.

Plug in the microwave oven into another outlet so that it is not on the same circuit as the receiver. This product is Group 2 Class B ISM equipment. Group 2 includes all ISM (Industrial, Scientific and Medical) equipment in which radio frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the materials processing and spark erosion equipment.EN-9 Facility

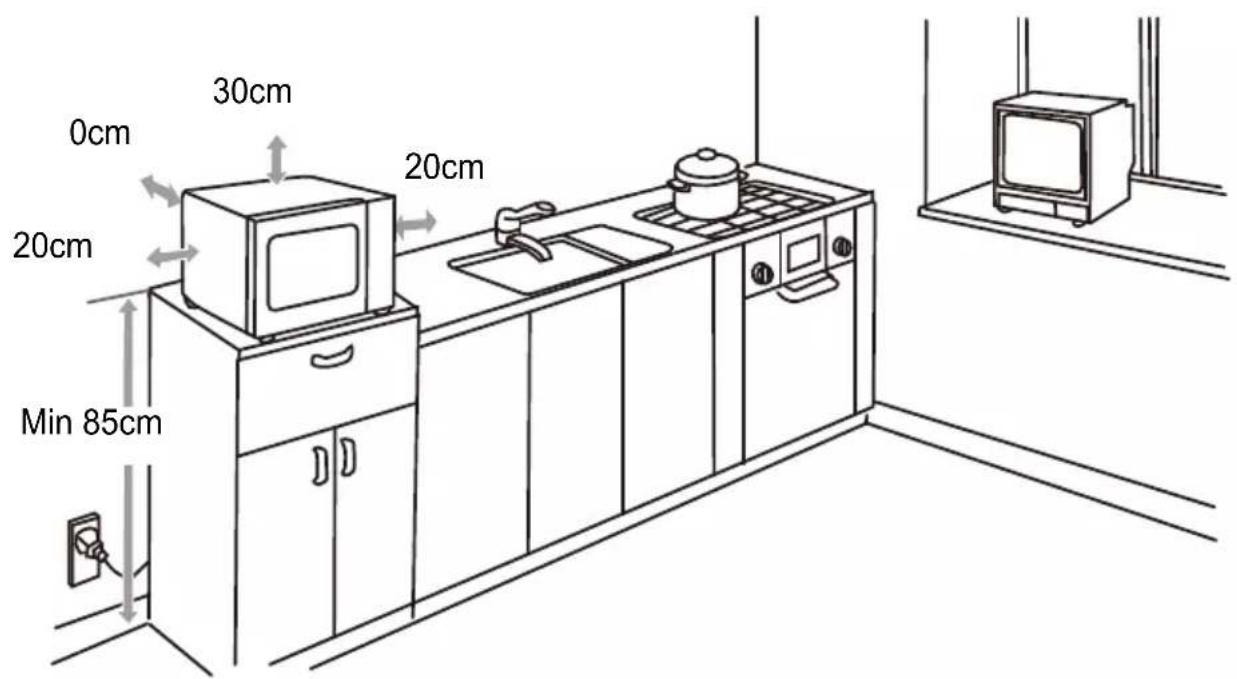

Select a horizontal surface with sufficient open space for the air inlet and/or outlet vents. (1) The minimum installation height is 85 cm. (2) The back of the device should be placed against a wall. Leave a minimum empty space of 30 cm above the oven and 20 cm between the oven and each wall. (3) Do not remove the feet located under the microwave oven. (4) Blocking the air inlet and/or outlet vents may damage the oven. 20cm 30cm 20cm 0cm Min 85cmEN-10 (5) Keep the microwave oven as far away from televisions and radios as possible. The use of a microwave oven may cause interference affecting the reception of your radios or televisions.

Plug your oven into an electrical wall outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the appliance.

WARNING: Do not install the oven above a

cooktop or other heat-producing appliance. If the oven is installed near or above a heat source, it could be damaged and will void its warranty.EN-11 Disposal and environmental responsibility In order to be respectful of the environment, we encourage you to dispose of this device properly. You can contact local authorities or recycling centers for more information. Read the instructions carefully before use This product complies with the requirements of Directive 2014/35/EU (which replaces Directive 73/23/EEC amended by Directive 93/68/EEC) and 2014/30/EU (replaces Directive 89/336/EEC). IMPORTANT It is forbidden to replace the power cable yourself. If damaged, it must be repaired by the local distributor's after-sales service, by the manufacturer or by a qualified person. If the device has been dropped, please consult a qualified technician to check it before using it again. Internal damage could lead to accidents. For any type of problems or repairs, please contact the after-sales service of the local distributor, the manufacturer or a qualified person in order to prevent any risk of danger.EN-12

DESCRIPTION OF YOUR PRODUCT

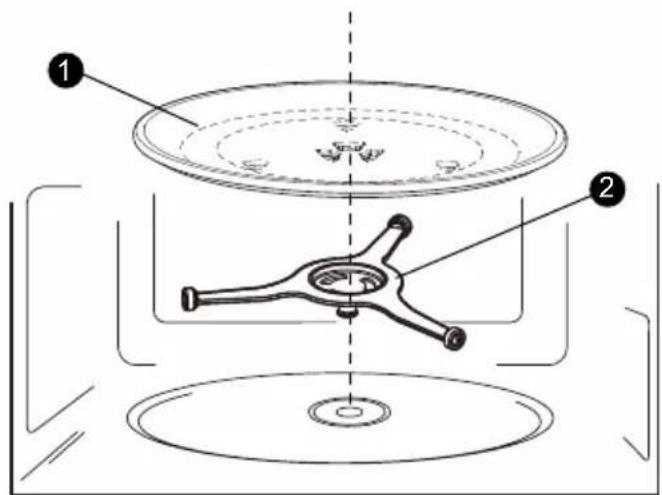

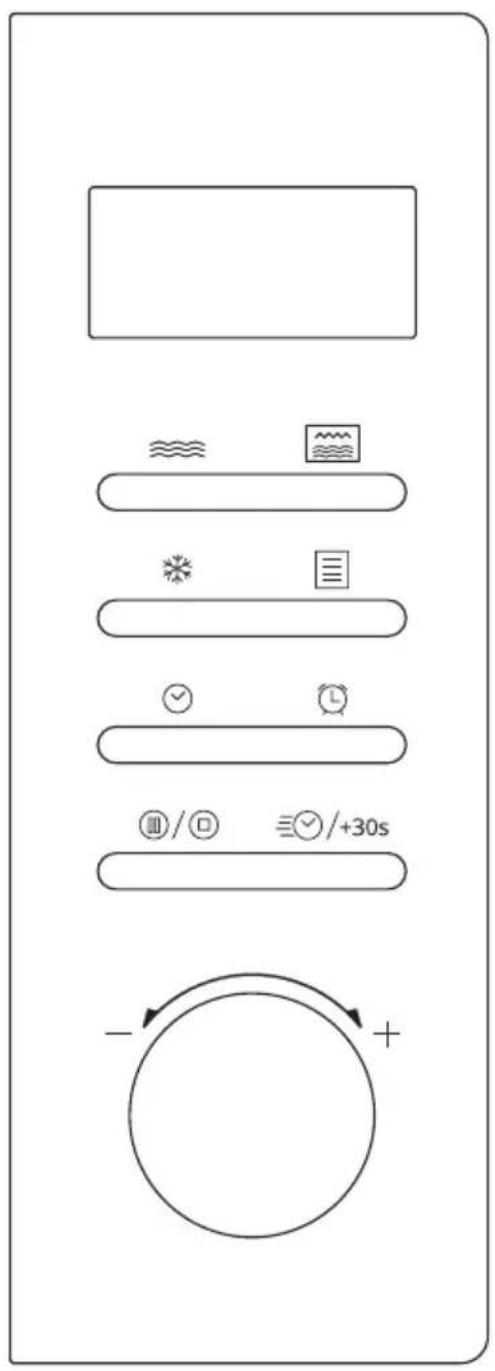

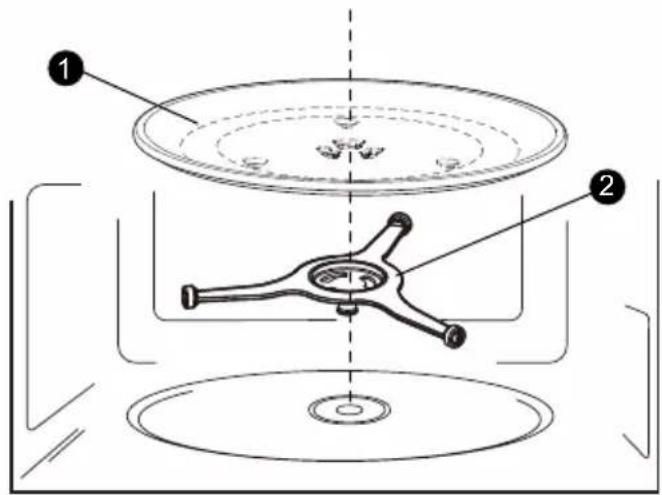

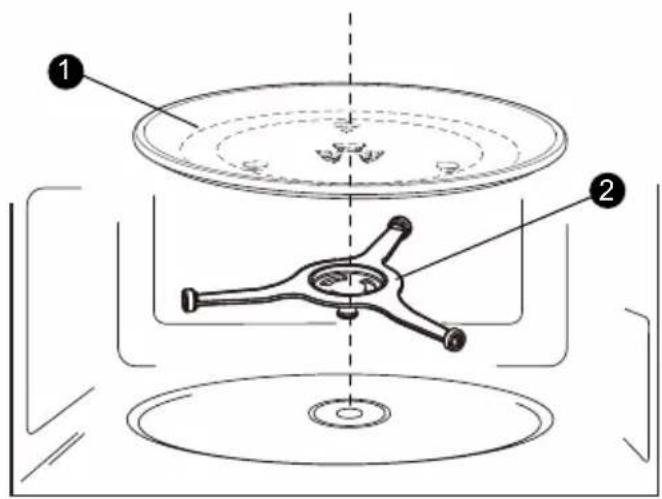

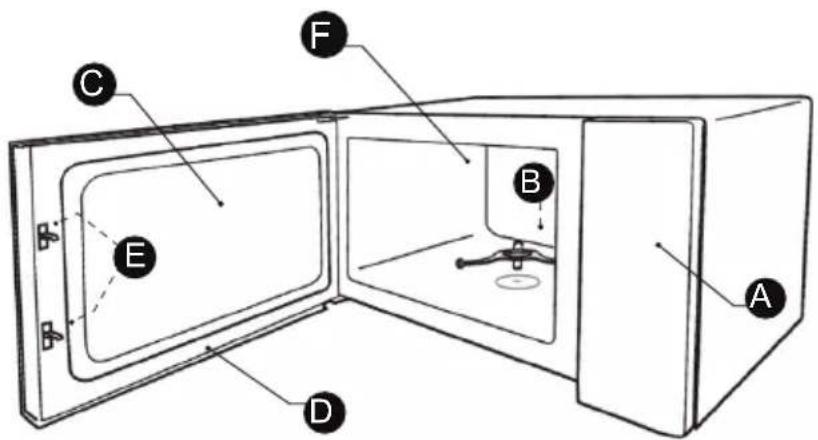

Names of oven parts and accessories Remove the oven and all parts from the box and inside the oven. Your oven comes with the following items: A) Control panel B) Axis of the turntable C) Observation window D) Door E) Safety interlock system F) Microwave oven cavity Glass tray (can be used in microwave function and must be placed on the axis of the turntable) Cooking grid (cannot be used in microwave function and must be placed on the glass tray) Turntable axis 1) Glass top2) Turntable axisa. Never place it upside down onthe glass top.Make sure thatthe rotation of the glass plateis not hindered.b. The glass top and the axis oftheturntable should always beinstalled in the microwaveoven being used.c. Food and food containersshould always be placed on t

ass tray for cooking.d. If the glass turntable cracks orbreaks, contact your nearestauthorized service center.

Remove all accessories and packing materials. Examine the microwave oven and make sure there are no damages such as: broken and dented door. Do not install the oven if it is damaged. Cabinet: Remove any protective film found on the surface of the microwave oven cabinet. Do not remove the light brown mica cover that is attached to the oven cavity to protect the magnetron. CONTROL PANEL Microwave Grill/Combi Defrost Auto menu Timer Clock STOP/cancel Start/+30sEN-14 INSTRUCTIONS

1. Press “Clock” once then “00:00” will be displayed.

2. Turn the knob to adjust the hour digits. The time must be between 0 and

3. Press "Clock" to confirm.

4. Turn the knob to adjust the minute digits. The time must be between 0

5. Press "Clock" to confirm. The clock is set.

1. After step 4, if the “Clock” button is not pressed or there is no operation

for 1 minute, the setting is invalid.

2. To reset the clock, please repeat steps 1-5.

3. If the clock is not set, it will not run when powered.

2. Microwave cooking

2. Press "Microwave" repeatedly or turn the knob to adjust the power level.

3. Press “Start/+30s” to confirm.

4. Turn the knob to adjust the cooking time.

5. Press “ ” to start cooking.

ng the kitchen timer

1. Press "Timer" once, then "00:00" will be displayed.

2. Turn the knob to set the desired time. The maximum time value is

3. Press “Start/+30s” to confirm. The timer starts counting down.

1. Press “Grill/Combi” then “G-1” will be displayed.

2. Press “Start/+30s” to confirm.

3. Turn the knob to set the cooking time. The maximum time value is "95:00".

4. Press “ ” to start cooking.

Start/+30s Start/+30sEN-15

1. Press “Grill/Combi once, then “G-1” will be displayed. Press “Grill/Combi”.

repeatedly to choose the power you want, and "C-1", "C-2" will display in order.

2. Press “ ” to confirm.

3. Turn the knob to set the cooking time. The maximum time value is "95:00".

4. Press to start cooking.

Note: Combination Instructions Function Display Microwave oven Powerful Grill power Combined. 1 C-1 55% 45% Combined. 2 C-2 36% 64%

2. Turn the knob to adjust the food weight. The weight range is from 100 to

3. Press “Start/+30s” to start defrosting.

4. When defrosting is complete, the timer will sound five times.

2. Turn the knob to set the desired defrosting time. The time range is 0:00-

3. Press “Start/+30s” to start defrosting.

4. When defrosting is complete, the timer will sound five times.

ti-stage cooking Remarks:

1. Two cooking stages can be set in multi-stage cooking.

2. If you set the defrost function, it will work automatically in the first stage.

3. Kitchen timer, auto menu and quick cook cannot be set as one of the

4. You can press "Start/+30s" to increase the cooking time during multi-

stage cooking. Examp le: defrost food for 5 minutes, then cook at 80% microwave power for 7 minutes

1. Press “Defrost” twice then the display will show “dEF2”.

2. Turn the knob to set the desired defrosting time of 5 minutes.

3. Press "Microwave", then "P100" will be displayed.

4. Turn the knob to set the power level to P80.

5. Turn the knob to set the cooking time of 7 minutes.

6. Press “Start/+30s” to start cooking.

1. In standby state, press “Start/+30s” to cook food with 100% power

level for 30 seconds. Each press of the same key can increase by 30 seconds, and the maximum time value is 95 minutes.

2. In standby state, turn the knob to the left to set a cooking time

with 100% power. Then press “Start/+30s” to start cooking.

k function for children You ca n use this function to prevent children from accidentally turning on the oven. To activate the lock: In standby state, press and hold “STOP/Cancel” for three seconds. A long beep sounds and the lock icon is displayed. To deactivate the lock: In locked state, press and hold “STOP/Cancel” for three seconds. A long beep will sound.

he clock has been set, the current time will be displayed for three seconds by pressing "Clock" in the cooking state.

2. In microwave cooking, press "Microwave" to request the power level. In

grill and combination cooking, press "Grill/Combi" to request the power level.

s "Auto Menu" once, then "A-1" will be displayed.

2. Press “Auto Menu” repeatedly or turn the knob to choose the menu you

need. 8 automatic menus are available.

3. Press “Start/+30s” to confirm.

4. Turn the knob to adjust the food weight.

5. Press “Start/+30s” to start cooking.EN-17

A-4 Pasta 50g (450g cold water)

A-5 Potato 1 (about 230g)

Utensils Remarks Gratin dish Follow the manufacturer's instructions. The bottom of the gratin dish must be at least 3/16 inch (5 mm) above the turntable. Improper use can cause the turntable to break. Dishes Microwave safe only. It is necessary to follow the manufacturer's instructions because baking can crack or chip the dishes. Glass jars Always remove the cover. Use this type of container to heat food. Glassware Use oven glassware that is heat resistant only. Make sure there is no metal trim. Do not use cracked or chipped dishes. Cooking bags Follow the manufacturer's instructions. Do not close with a metal fastener. Make slits to allow steam to escape. Paper plates and cups Use only for short term cooking/reheating. Do not leave the oven unattended while cooking. Pastry paper Use it to cover food to heat it up and absorb fat. Use with caution for short term cooking only. Parchment paper Use to prevent splattering or for steaming. Plastic Microwave safe only. Follow the manufacturer's instructions. Must be labeled "Microwave Safe". Some plastic containers soften because the food inside becomes hot. Hermetically sealed plastic bags should be slit, punctured or vented according to package instructions. Plastic wrap Microwave safe only. Use it to cover food while cooking to retain moisture. Do not let the plastic wrap touch the food. Thermometers Microwave safe only (meat thermometer and sugar thermometer). Wax paper Use as a blanket to prevent splashing and retain moisture.EN-19 MATERIALS TO AVOID IN THE MICROWAVE OVEN Utensils Remarks Aluminum tray May cause an electric arc. Place food on a microwave-safe plate. Food carton with metal handle May cause an electric arc. Place food on a microwave-safe plate. Metal or metal utensils. The metal protects the food from the power of the microwaves. It can cause an electric arc Metal fasteners May cause electrical arcing and cause a fire in the microwave oven. Paper bags May cause fire in microwave oven. Plastic foam Plastic foam can melt or contaminate the liquid inside when exposed to high temperatures. Wood Wood will dry out when used in the microwave oven and may split or crack.EN-20 TROUBLESHOOTING Normal The microwave oven is causing interference. It is likely that the microwave oven in operation could disturb the reception of your radios and televisions. This is a phenomenon found with other small appliances, such as blenders, vacuum cleaners and fans. Low microwave oven light. In low power mode, it is normal for microwave cooking to be slower. Steam builds up and hot air comes out of the ducts. During cooking, food may give off steam. But steam can accumulate on cold surfaces such as the oven door. The oven was accidentally turned on with no food inside. It is forbidden to operate the oven without food inside. It's very dangerous.EN-21 Problem Possible cause The solution The oven cannot start. (1) The power cable is not properly connected. Wait 10 seconds then plug it back in. (2) Fuse blown or circuit breaker activated. Replace the fuse or turn the circuit breaker back on (repairs should be done by a professional company). (3) There is a problem with the power outlet. Test it with other devices. The oven does not heat up. (4) The door is not closed. Safely close the door.

CLEANING AND MAINTENANCE

Be sure to unplug the device from the power supply.

After use, clean the oven cavity with a damp cloth.

Clean the accessories with soapy water.

The door frame, gasket and faces of the microwave oven should be cleaned thoroughly with a damp cloth when dirty.

Do not use abrasive cleaners or hard metal scrapers to clean the oven glass door, as they will scratch the glass surface and could break it.

Cleaning tip - To make it easier to clean the interior walls of the oven which may come into contact with cooked food: place half a lemon in a bowl, add 300ml of water and heat in the microwave at 100% power for 10 minutes. Wipe the oven with a dry cloth.EN-22 TECHNICAL SPECIFICATIONS Reference: SCMW2125GDB Nominal voltage : 230V~50Hz Rated input power (microwave): 1450W Rated output power (microwave): 900W Rated input power (grill): 1000W Oven capacity: 24.6L Turntable diameter: 288 millimeters External dimensions: 469*377*280mm Net weight : About 12.5kgIf this logo appears on the device, it means that it must be disposed of in accordance with Directive 2012/19/EU on electronic and electrical equipment (WEEE). All hazardous substances contained in electrical and electronic equipment can have adverse effects on the environment and human health. Consequently, when this appliance is out of use, it must not be disposed of with unsorted municipal waste.
