USER MANUAL Pulsar Animal Care TAURUS

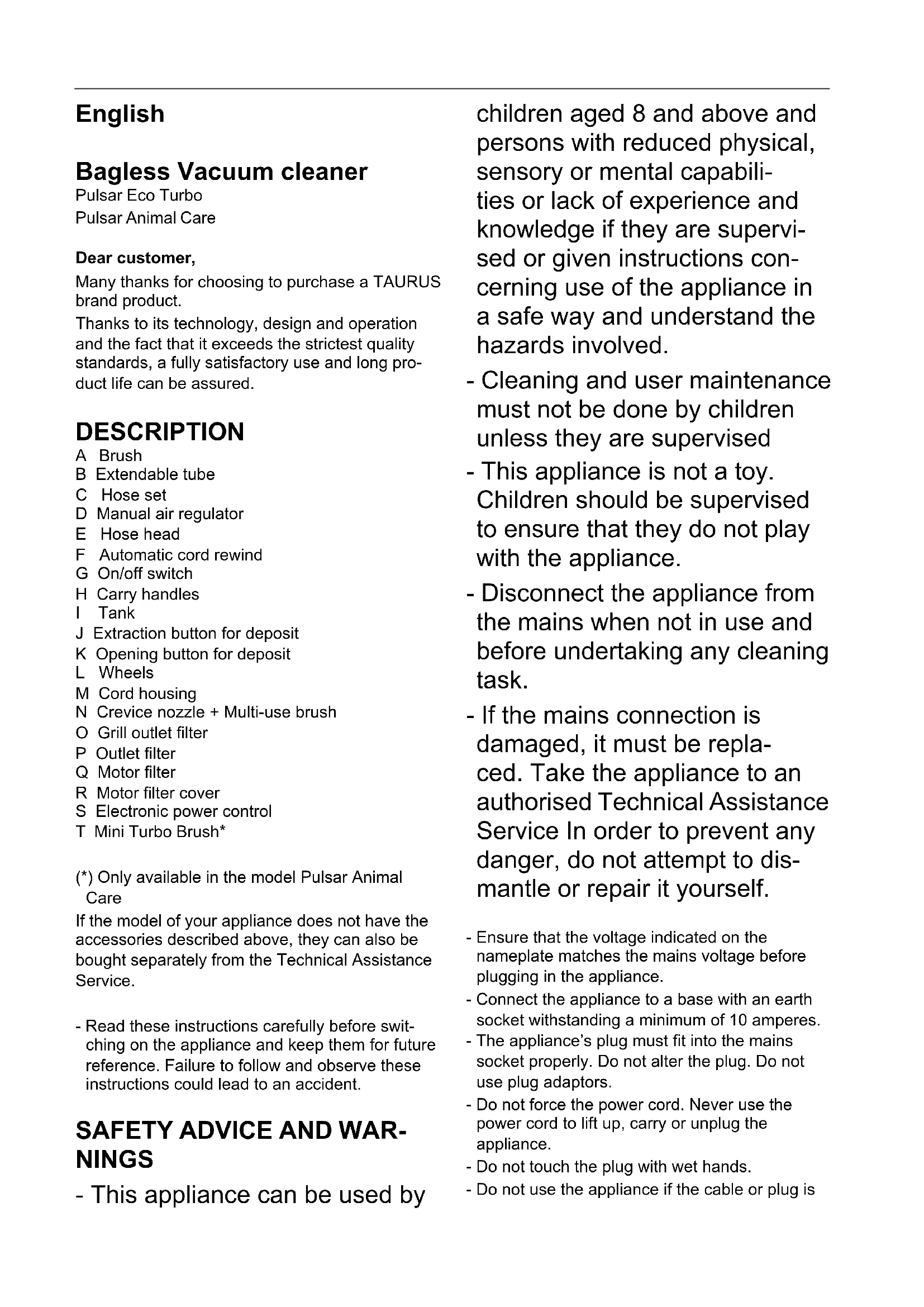

Clase de (re)emisión de polvo C Nivel de potencia acústica 78 dB Potencia nominal de entrada 800 WEnglish Bagless Vacuum cleaner Pulsar Eco Turbo Pulsar Animal Care Dear customer, Many thanks for choosing to purchase a TAURUS brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long pro- duct life can be assured. DESCRIPTION A Brush B Extendable tube C Hose set D Manual air regulator E Hose head F Automatic cord rewind G On/off switch H Carry handles I Tank J Extraction button for deposit K Opening button for deposit L Wheels M Cord housing N Crevice nozzle + Multi-use brush O Grill outlet lter P Outlet lter Q Motor lter R Motor lter cover S Electronic power control T Mini Turbo Brush* (*) Only available in the model Pulsar Animal Care If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service. - Read these instructions carefully before swit- ching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR-

NINGS - This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabili- ties or lack of experience and knowledge if they are supervi- sed or given instructions con- cerning use of the appliance in a safe way and understand the hazards involved. - Cleaning and user maintenance must not be done by children unless they are supervised - This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance. - Disconnect the appliance from the mains when not in use and before undertaking any cleaning task. - If the mains connection is damaged, it must be repla- ced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dis- mantle or repair it yourself. - Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance. - Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes. - The appliance’s plug must t into the mains socket properly. Do not alter the plug. Do not use plug adaptors. - Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance. - Do not touch the plug with wet hands. - Do not use the appliance if the cable or plug isdamaged. - If any of the appliance casings breaks, immedia- tely disconnect the appliance from the mains to prevent the possibility of an electric shock. - Do not use the appliance if it has fallen on the oor, if there are visible signs of damage or if it has a leak. USE AND CARE: Do not use the appliance if its lter(s) are not correctly in place. - Do not use the appliance if its accessories are not properly tted. - Do not use the appliance to vacuum up water or any other type of liquid. - Do not use the appliance if on/off switch doesn’t works - Use the appliance handle/s, to catch it or move it. - This appliance is for household use only, not professional or industrial use. - This appliance should be stored out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfami- liar with its use. - Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance. - Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards. - Do not operate on areas which contain metal objects such as nails and/or screws. - Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.). SERVICE: - Any misuse or failure to follow the instruc- tions for use renders the guarantee and the manufacturer’s liability null and avoid.

INSTRUCTIONS FOR USE

BEFORE USE: - Make sure that all the product’s packaging has been removed. VACUUMING FUNCTION: - Fit the hose unit to the vacuum cleaner’s air intake. (Fig. 1) - To take off the vacuum hose, turn the hose to the left and pull outwards (Fig. 2).

INSERTION OF ACCESSORIES INTO THE

APPLIANCE’S GRIP: - The appliance’s grip is designed in such a way that it allows the insertion of the following acces- sories: (use the combination that best meets your requirements). - Extendable extension tube: Designed to provide access to surfaces which are out of reach and make oor cleaning comfortable, its length can be adjusted by using the adjustment control. - Vacuum cleaner base: Specially designed for cleaning oors (both rugs, carpets and hard oors), its base has a retractable brush that can be adjusted to two heights for greater efciency on these oors. It is advisable to have the brush out for hard oors and the brush in for rugs and carpets. - Crevice nozzle: specially designed for getting into cracks and difcult corners. - Upholstery brush: Especially suitable for clea- ning textile surfaces. - MINI TURBO BRUSH: Connect the mini turbo nozzle to the exible tube and move it across the surfaces. The mini turbo brush can be used on armchairs and sofas, car interiors, etc. ha- ving been specially designed to remove hair and pet hairs thanks to the mechanical implementa- tion of the bristled brush. USE: - Take the length of cable required out of the housing. (M) - Connect the appliance to the mains. - Turn the appliance on, by using the on/off switch (G) ELECTRONIC POWER CONTROL: -The power of the appliance can be regulated by using the power regulator control.(S) This function is very useful, as it makes it possible to adapt the power of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE

APPLIANCE: - Turn the appliance off, using the on/off switch. (G) - Unplug the appliance to the mains. - The cable housing allows the cable to be stored as well as extract the length of cable necessary to operate the device, avoiding risk of accident situations. - Retract the cable by pressing the roller cable button and guide the cable into the appliance. (F)- Clean the appliance. CARRY HANDLE/S: - The device has a handle on the upper part so it can be transported easily and comfortably.(H) PARKING POSITION: - This appliance has one parking position for comfortable and straightforward storage. - To use the horizontal parking position, x the break pad hook to the hook situated on the rear side of the appliance (Fig. 3). CLEANING - Disconnect the appliance from the mains and let it cool before undertaking any cleaning task. - Clean the appliance using a damp cloth with a few drops of detergent and then dry it. - Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. - Do not submerge the appliance in water or any other liquid, or place it under a running tap. EMPTYING THE DUST BOX: - Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential. Disconnect the dust box from the appliance. (Fig. 4) - Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle. (K) - Close the lid of the dust box. (Fig. 5) - Attach the dust box to the appliance. (Fig. 6) - Connect the hose to the vacuum cleaner’s air intake. (Fig 1) CHANGING THE FILTERS: - Motor lter, it is advisable to periodically check the state of the lter, which should be cleaned/ replaced after every 50 hours of use. - HEPA type air outlet lter (high efciency air l- ter which effectively removes spores, ash, dust mites, pollen ...), it is advisable to periodically check the condition of the lter, it should be cleaned/replaced after every 50 hours of use, or if a signicant drop in suction power is noticed. - To remove lters: MOTOR FILTER: Disconnect the dust box from the appliance (Fig.

- Open the cover (R) that contains the lter (Fig.7) - Remove the lter (Q) from its housing. (Fig. 8) - To reassemble the lter, proceed with the above instructions, in reverse order. OUTLET FILTER: - Open the air outlet grate, to access the lter (Fig. 9). - Remove the lter (P) from its housing. (Fig. 8) - To reassemble the lter, proceed with the above instructions, in reverse order. CLEANING THE MINI TURBO NOZZLE:

1) Turn and pull out of the holding clamp.

2) Open the top section and clean the inside of

3) Ret the nozzle by performing the opposite

process. SUPPLIES - Supplies can be acquired from distributors and authorised establishments (such as lters, etc. ) for your appliance model. - Always use original supplies, designed speci- cally for your appliance model. -These supplies are available in specialist shops.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous. FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE

PRODUCT - The materials of which the packaging of this appliance consists are included in a collection, classication and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material. - The product does not contain concentrations of substances that could be considered harmful to the environment. This symbol means that in case you wish to dispose of the product once its workinglife has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE) The following information concerns the energy labelling and the ecological design: Fact sheet Trademark TAURUS Model Pulsar Eco Turbo Pulsar Animal Care Energy efciency class A Annual energy consumption Target annual energy consumption (kWh per year) calculated based on 50 cleaning sessions The real annual energy consumption will de- pend on how the appliance is used 27,8 kWh/year Class of rugs and carpets clea- ning power

Class of hard oors cleaning power
