USER MANUAL OMW 1221 S W OK

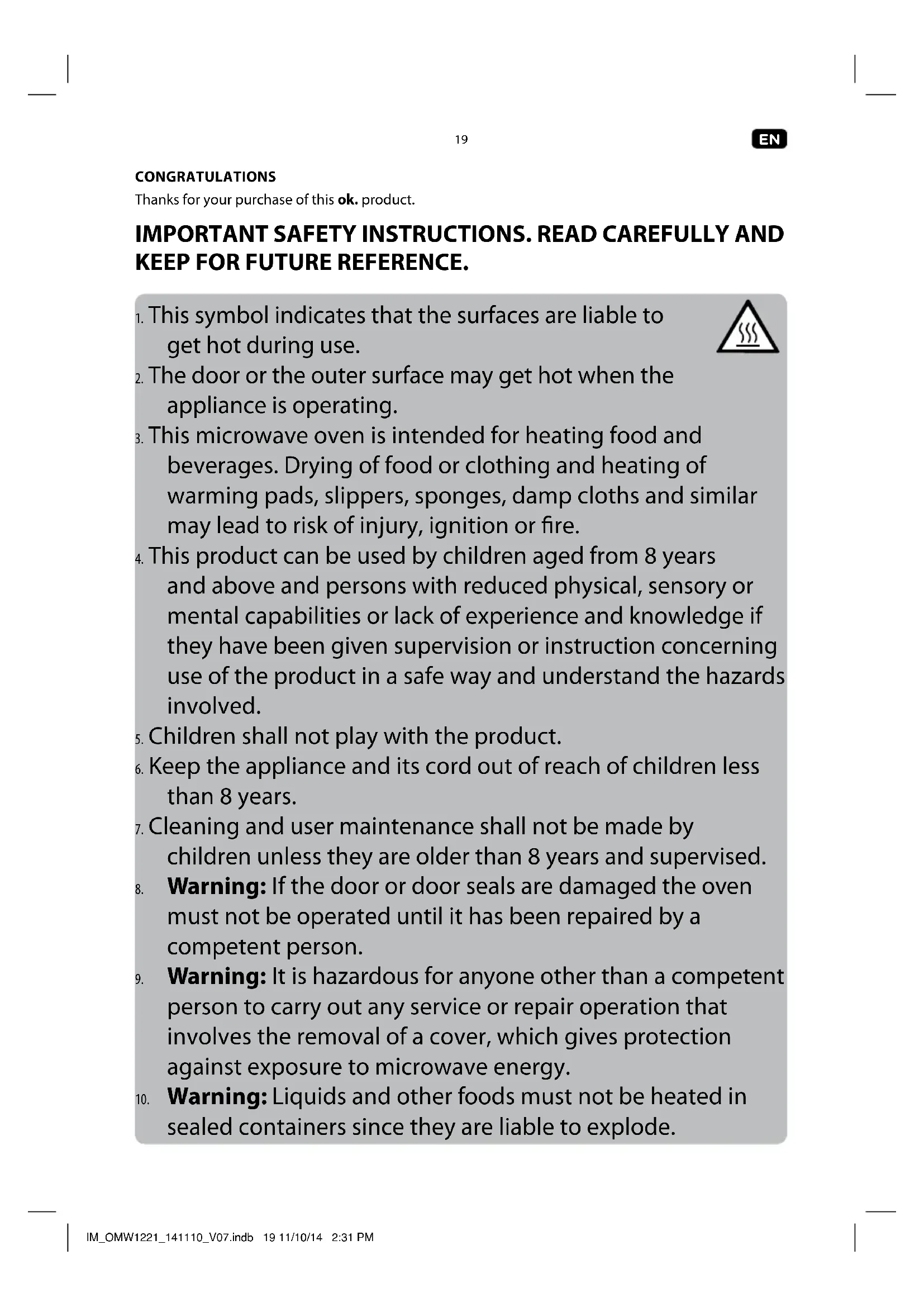

CONGRATULATIONS Thanks for your purchase of this ok. product.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE.

1. This symbol indicates that the surfaces are liable to

2. The door or the outer surface may get hot when the

appliance is operating.

3. This microwave oven is intended for heating food and

beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloths and similar may lead to risk of injury, ignition or re.

4. This product can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

5. Children shall not play with the product.

6. Keep the appliance and its cord out of reach of children less

7. Cleaning and user maintenance shall not be made by

children unless they are older than 8 years and supervised.

8. Warning: If the door or door seals are damaged the oven

must not be operated until it has been repaired by a competent person.

9. Warning: It is hazardous for anyone other than a competent

person to carry out any service or repair operation that involves the removal of a cover, which gives protection against exposure to microwave energy.

10. Warning: Liquids and other foods must not be heated in

sealed containers since they are liable to explode. IM_OMW1221_141110_V07.indb 19 11/10/14 2:31 PM20

11. Warning: Only allow children to use the oven without

supervision when adequate instructions have been given so that they are able to use the oven in a safe way and understand the hazards of improper use.

12. The appliance is intended to be used freestanding. Do not

block any oven vents. The information on adequate space (top/back/sides) for sucient air circulation can be found in the user manual. Do not install in cabinets.

13. Only use utensils suitable for use in microwave ovens. Do

not use containers or cutlery made from or containing metal, aluminium foil, lead crystal glassware, temperature- sensitive plastics, wood, metal clips or wire ties. Do not use bowls with milled rims or plastic pots with the lid only partially removed. Risk of re!

14. When heating food in plastic or paper containers, keep an

eye on the oven due to the risk of ignition.

15. If smoke is emitted, switch o or unplug the appliance and

keep the door closed in order to stie any ames.

16. Microwave heating of beverages can result in delayed

eruptive boiling; therefore care must be taken when handling the container. Danger of burns!

17. The contents of feeding bottles and baby food jars shall

be stirred or shaken and the temperature checked before consumption. Loosen the screw top and teat before heating to avoid burns.

18. Eggs in their shell and whole hard-boiled eggs should not

be heated in microwave ovens since they may explode, even after microwave heating has ended. Eggs may only be cooked in their shell in a specially designed egg-boiling device available from specialist shops. IM_OMW1221_141110_V07.indb 20 11/10/14 2:31 PM21

19. Do not use a steam-cleaning appliance to clean this

appliance. Steam could reach the electrical components and cause a short circuit.

20. The oven should be cleaned regularly and any food

deposits removed (see user manual).

21. Failure to maintain the oven in a clean condition could lead

to deterioration of the surface that could adversely aect the life of the appliance and possibly result in a hazardous situation.

22. Warning: Microwave energy - Do not remove cover.

23. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or similarly qualied persons in order to avoid hazard.

24. The appliance should not be operated by means of an

external timer or separate remote-control system.

25. Do not connect the appliance to the mains supply

by an extension cord or multi-socket unit. Danger of overheating.

26. Never open the casing of the appliance. Tampering with

electrical connections or component and mechanical parts is highly dangerous and can cause operational faults or electric shock.

27. Do not heat up tins in the microwave oven. Pressure can

build up and they may explode, resulting in injury or damage. IM_OMW1221_141110_V07.indb 21 11/10/14 2:31 PM22

28. Do not use the appliance for any other purpose than described in this manual, in order to avoid

hazardous situations.

29. Before connecting the appliance to a socket outlet, make sure the voltage indicated on the

appliance corresponds to your local mains voltage.

30. For safety reasons, this class I appliance is provided with a plug with earth connection. Always

connect this appliance to a mains socket outlet with a protective earthing connection.

31. To check food temperature, rst interrupt the cooking process. Only use a thermo-meter specically

approved for food use. Never use a thermometer containing mercury or liquid, as these are not suitable for use with very high temperatures and can break very easily.

32. Do not use the appliance if the door hinges are loose, and if holes or cracks are visible in the

enclosure, the door or the oven interior.

33. The appliance is not suitable for outdoor use.

34. The appliance is only completely isolated from the mains supply when it is switched o and the

35. Never use the appliance to store or dry items that could ignite easily. Moisture evaporates. Risk of

36. Do not use the appliance to heat up cushions or pads lled with cherry kernels, wheat grains,

lavender or gel. These pads can ignite when heated, even after they have been removed from the appliance.

37. Exercise caution when cooking or reheating food with a high sugar content. If heated for too long,

the sugar may caramelize or ignite.

38. The appliance is not suitable for cleaning or disinfecting items. Items can get extremely hot, and

there is a danger of burning when the item is removed from the appliance.

39. Do not use full power to warm empty dishes or to dry out herbs. Do not use the appliance without

food or when loaded incorrectly.

40. Never heat undiluted alcohol in the appliance as it can easily ignite. Risk of re!

41. If the appliance is equipped with a rack and gourmet plate, do not use the rack and gourmet plate

at the same time. That would damage the gourmet plate, Always place the gourmet plate directly on the turntable.

42. Do not use this appliance to reheat food in heat-retaining bags intended for normal ovens, such as

roasting bags. Such heat-retaining bags usually contain a thin layer of aluminium foil that reects microwaves. This reected energy could, in turn, cause the outer paper covering to become so hot that it ignites.

43. Do not use the appliance for deep frying food. Do not leave it unattended when cooking with oils

and fats as these can be a re hazard if allowed to overheat.

44. Wear oven gloves when taking dishes in and out of the appliance, or when handling dishes or food

in the appliance. Risk of burning!

45. Never place the hot glass tray (or any other hot cooking containers) on a cold surface, such as a

tiled or granite worktop. The glass tray or container could crack or shatter, and the worktop surface could get damaged.

46. Use a suitable heat-resistant mat or pot rest.

47. Do not use the appliance to heat up the room, Due to the high temperatures radiated, objects left

near the appliance could catch re.

48. When using kitchen appliances connected to sockets near the appliance, ensure that the supply

cord cannot get trapped in a hot oven door. The hot oven door could melt the cord insulation and be dangerous. IM_OMW1221_141110_V07.indb 22 11/10/14 2:31 PM23

INTENDED USE This appliance is designed for defrosting, reheating and cooking food. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury. The appliance is intended to be used in household and similar applications such as

• sta kitchen areas in shops, oces and other working environments,

• by clients in hotels, motels and other residential type environments, and bed and breakfast type environments.

BEFORE FIRST TIME USE

• Remove all packaging materials.

• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.

• Clean the appliance ( Cleaning and care). COMPONENTS Fold out front and rear page for product illustrations. A. Door sealing B. Door safety interlocks C. Oven cavity D. Turntable roller E. POWER control F. TIMER control G. Power cord with plug H. Glass tray

• Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the – door (bent), – hinges and latches (broken or loose), – door sealing and its surfaces.

• The microwave should not be adjusted or repaired by anyone except properly qualied service personnel. IM_OMW1221_141110_V07.indb 23 11/10/14 2:31 PM24

Place the microwave on a at, stable surface.

Leave space for sucient airow: minimum installation height above the oven at the back on both sides 85 cm 30 cm 0 cm 20 cm

Do not cover or block any openings on the appliance. Do not remove feet.

Do not operate the microwave without turntable roller on the shaft and glass tray in proper positions.

Connect the appliance to a suitable wall outlet. Unplug when not using for a long time. Notes:

• Remove all packaging materials, including tape, from the door, cavity, switches, and accessories.

• Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.

• Make sure that the supply cord is undamaged and does not run under the oven or over any hot or sharp surface.

• The power plug must be readily accessible so that it can be easily disconnected in an emergency. = Materials you can use in an microwave oven = Materials to be avoided in an microwave oven The list below is a general guide to help you select suitable utensils: Cookware Microwave Heat-resistant glass Non-heat-resistant glass Heat-resistant ceramics Mirowave-safe plastic dishes Kitchen paper Metal tray Metal rack Aluminium foil and containers GROUNDING INSTRUCTIONS

• The supply cord of the oven is equipped with a plug with earth connection, which must be plugged into a properly installed and grounded wall outlet.

• It is recommended that a separate circuit serving only the oven be provided.

• High voltage is dangerous and may result in re or other accidents, causing property damage or injuries.

• Warning: Improper use of the grounding plug can result in a risk of electric shock. IM_OMW1221_141110_V07.indb 24 11/10/14 2:31 PM25

POWER control: Select power level for cooking or defrosting ( Microwave cooking).

TIMER control: Switching oven on or o (0). Selecting cooking duration (minutes): Turn clockwise. Setting short time periods: Turn switch to position 5. Then turn back to the desired lower setting. When cooking duration has elapsed (0), the oven will switch o automatically. You may terminate cooking process at any time by turning the switch manually back to 0 position.

The microwave can be opened any time during the cooking process. It might be necessary, for example, to turn or stir food, or to check the doneness of the food. Notes:

• A short supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

• If an extension cord is used: – The electrical rating should be at least as great as the electrical rating of the appliance. – The extension cord must be a grounding-type 3-wire cord. – The cord should be arranged so that it will not drape over counter tops or table tops, where it can be pulled on by children or tripped over unintentionally.

Warning: Cleaning the microwave oven is a signicant part of the safe operation of the device and will

prevent health hazards.

Prior to each cleaning: Switch o the microwave oven and disconnect the power plug. IM_OMW1221_141110_V07.indb 25 11/10/14 2:31 PM26

• The device must be cleaned periodically, food residue must be removed. If the device is not cleaned regularly, it can cause wear to the surface and severely reduce the service life. Furthermore, it could result in limited safety and functionality of the device.

• If the door sealing no longer closes reliably due to accumulated food residue, microwave radiation may leak and damage your health.

• Clean the device after use to prevent mould, vermin, as well as leaking microwave radiation.

• Do not use steam cleaners to clean the device! The steam is pressurized and can condensate on the electrical components inside the device and cause short-circuits.

• Do not use any abrasive cleaning agents or metal scrapers to clean the door since they could scratch the surface and cause the glass to shatter.

• Clean the casing with a slightly damp cloth. Please be sure that no water enters the appliance.

• Use a damp cloth to regularly and carefully clean the door sealing, cavity and any adjacent components. Use a damp cloth to wipe o any food residue or splashes.

• The control panel and its controls must never get wet. Clean with a soft, damp cloth. Leave the door open when cleaning the control panel in order to prevent accidental operation.

• If steam condensates or forms drops inside the microwave or on the casing, use a soft cloth to wipe it o. Condensation can occur if moist air meets a cold surface. At very high temperatures, oil and grease can also evaporate and deposit as a grease lm after cooling o.

• The glass tray can be removed for cleaning. Clean the tray in warm, soapy water or in the dishwasher.

• The turntable roller and the cavity bottom should be cleaned regularly to prevent excessive noise. Use a mild household cleaner to wipe the surface; allow it to dry. If the turntable roller is removed for cleaning, re-insert it before next use. Regularly clean the door, window and sealing with a damp cloth to remove dirt.

• Odours in the cavity can be neutralized by lling a microwave-suitable cup with water and lemon juice and boiling it in the microwave oven for 5 minutes. Wipe the cavity dry afterwards using a soft cloth.

• In the event that the light bulb inside the cavity must be replaced, please contact qualied service personnel. TECHNICAL DATA Rated voltage: 230 V~, 50 Hz Rated power input: 1050 W (Micro), Rated power output: 700 W Operation frequency: 2450 MHz Outside dimensions (approx.): H: 258 mm W: 439.5 mm D: 356 mm Turntable diameter: Ø: 255 mm Oven capacity: 20 litres Net weight: approx. 10.2 kg DISPOSAL The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. IM_OMW1221_141110_V07.indb 26 11/10/14 2:31 PM27
