301851 - Heating Brandson - Free user manual and instructions

Technical Features	Electric heating, 2000 W power, adjustable thermostat, 3 heat levels.
Usage	Ideal for supplementary heating in living rooms, easy to carry thanks to its light weight.
Maintenance and Repair	Regular cleaning of the ventilation grille, checking power cables to avoid damage.
Safety	Equipped with an overheating protection system, automatic shut-off in case of tipping over.
General Information	2-year warranty, CE compliant, compact dimensions for easy storage.

Frequently Asked Questions - 301851 Brandson

How do I adjust the temperature on the Brandson 301851?

To adjust the temperature, use the thermostat located on the control panel. Turn the knob clockwise to increase the temperature and counterclockwise to decrease it.

The heater does not turn on, what should I do?

Check that the device is properly plugged into a working outlet. Also ensure that the thermostat is set to a temperature higher than the room temperature.

How do I clean the Brandson 301851?

Unplug the device and use a soft, dry cloth to wipe the surface. Avoid using abrasive chemical products.

The fan is making noise, is this normal?

A slight noise can be normal during fan operation. If the noise is unusual or loud, check that no objects are obstructing the fan blades.

Can I use the heater in a bathroom?

The Brandson 301851 is not designed for use in humid environments such as bathrooms. It is recommended to use it in dry spaces.

What is the power of the Brandson 301851?

The power of the Brandson 301851 is 2000 W, making it effective for heating medium-sized spaces.

Is there a built-in safety feature?

Yes, the Brandson 301851 is equipped with a safety system that automatically turns off the device in case of overheating.

How do I store the heater during summer?

Before storing, make sure the device is clean and dry. Store it in a cool, dry place away from moisture.

USER MANUAL 301851 Brandson

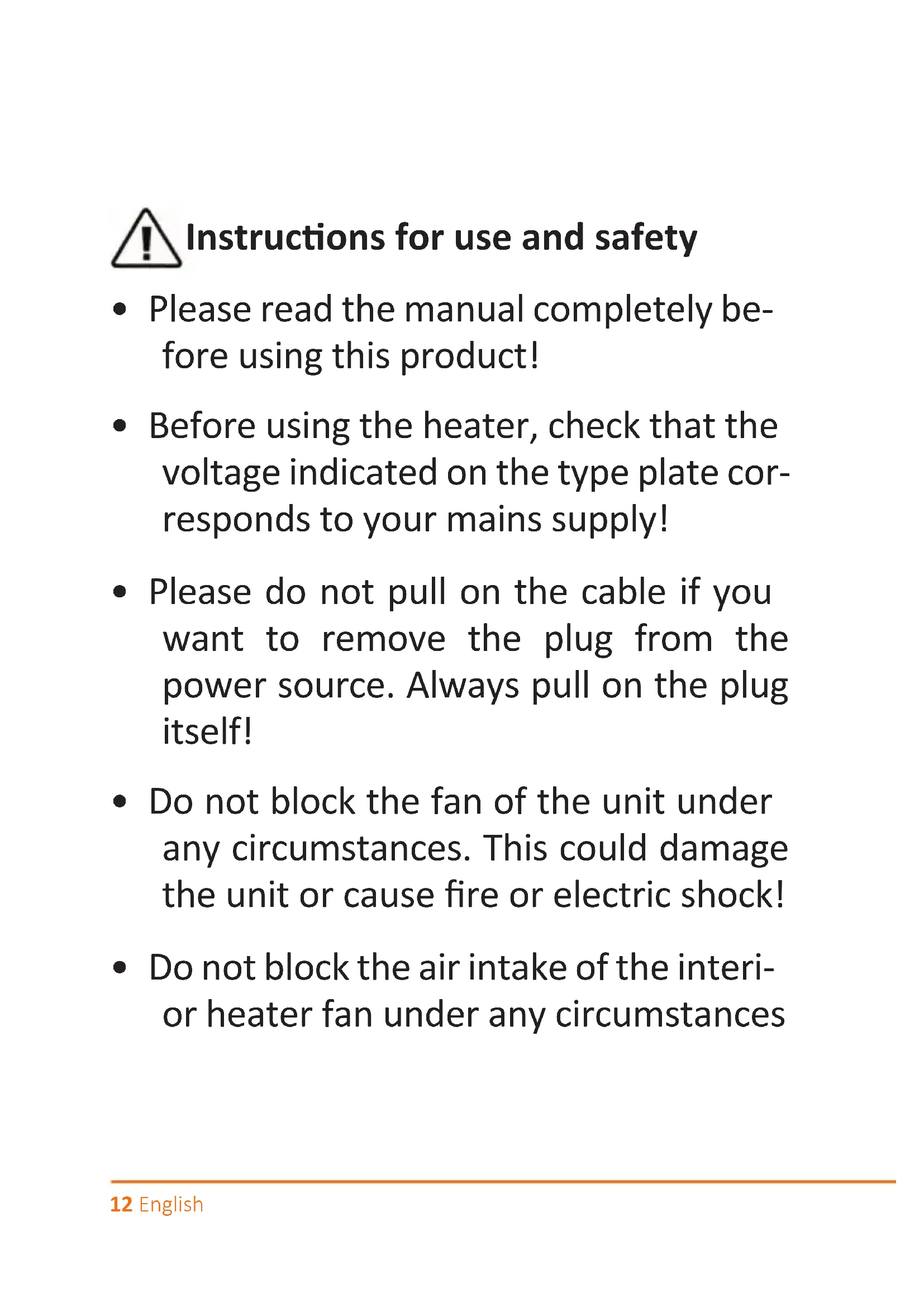

Instructions for use and safety

• Please read the manual completely before using this product!
• Before using the heater, check that the voltage indicated on the type plate corresponds to your mains supply!
• Please do not pull on the cable if you want to remove the plug from the power source. Always pull on the plug itself!
• Do not block the fan of the unit under any circumstances. This could damage the unit or cause fire or electric shock!

• Do not block the air intake of the interior heater fan under any circumstances

• Always disconnect the plug from the power source when the appliance is not in use! Never leave the heater unattended!

• This appliance emits a lot of heat when in operation. Therefore, only touch the controls. If in doubt, use heat-resistant gloves.
• Keep flammable materials such as cushions, papers, clothing, curtains or other easily flammable objects away from the fan heater.
• This unit is intended for private use only!
• Caution! The heater is not intended for use in small rooms if they are occupied by persons who are unable to leave the room, space or vehicle on their own.
• This appliance may be used by children aged 8 years and over, or by persons

with reduced physical, sensory or mental abilities, or lack of experience and knowledge, provided they have been supervised or instructed in the safe use of the appliance and understand the risks involved.

• CAUTION! Some parts of this product can become very hot and cause burns. Special care must be taken when children or infirm persons are present.

• Never immerse it in water for cleaning. Wipe the casing of the unit with a dry cloth.

• ATTENTION: Please do not cover!

• Never cover the product during operation or shortly after operation (e.g. with clothing, a blanket, a curtain, etc.) to prevent the product from overheating. There is also a risk of fire!

DO NOT COVER

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the device for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Interior fan heater
• User manal

2. Technical data

Power supply 230V AC / 50Hz
Power consumption	approx. 1450 W (25°C) approx. 1800 W (-25°C)
Dimensions (H x W x D) approx. 58 mm x 160 mm x 200 mm
Weight approx. 890 g
Plug type Plug type F
Ambient temperature -25°C bis 40°C

3. Function

With the Brandon interior fan heater you have a practical and cost-effective alternative to a conventional parking heater. Warm up your vehicle with the Brandon interior heater, making low temperatures a thing of the past.

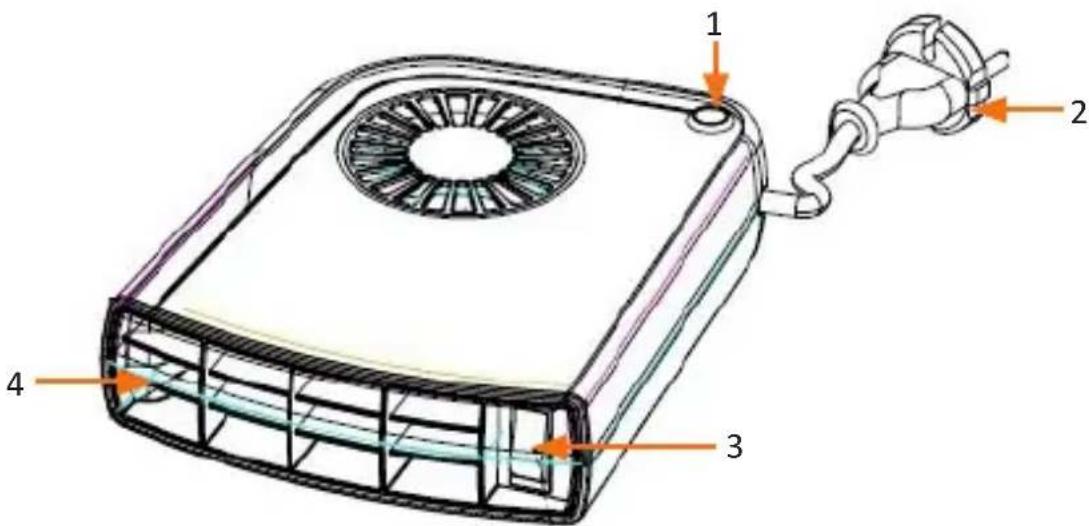

4. Product details

No. Description

1 Status LED

2 Power cable

3 on/off switch

4 Front grille

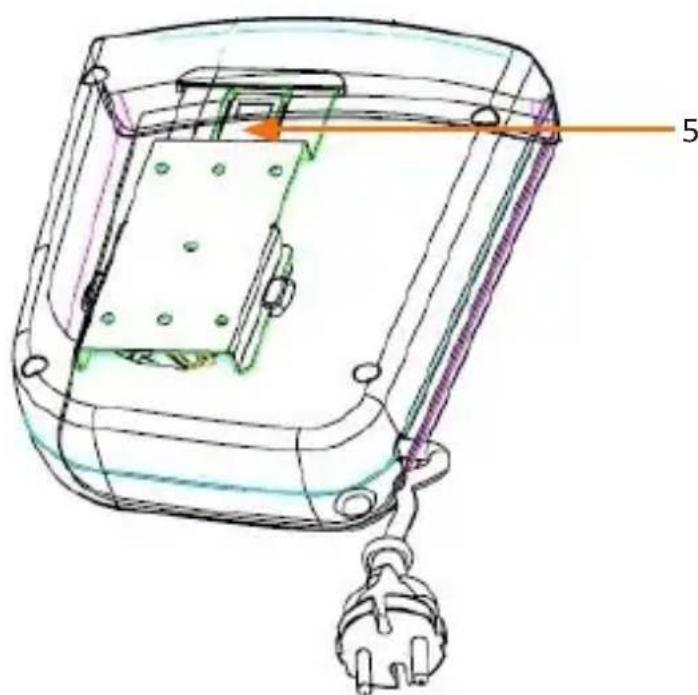

5 Mounting plate

5. Installation

Remove the device from its packaging and remove any packaging material. The interior heater must be fixed in the interior of the desired vehicle. The unit can be mounted, for example, under the glove compartment or alternatively in the centre console.

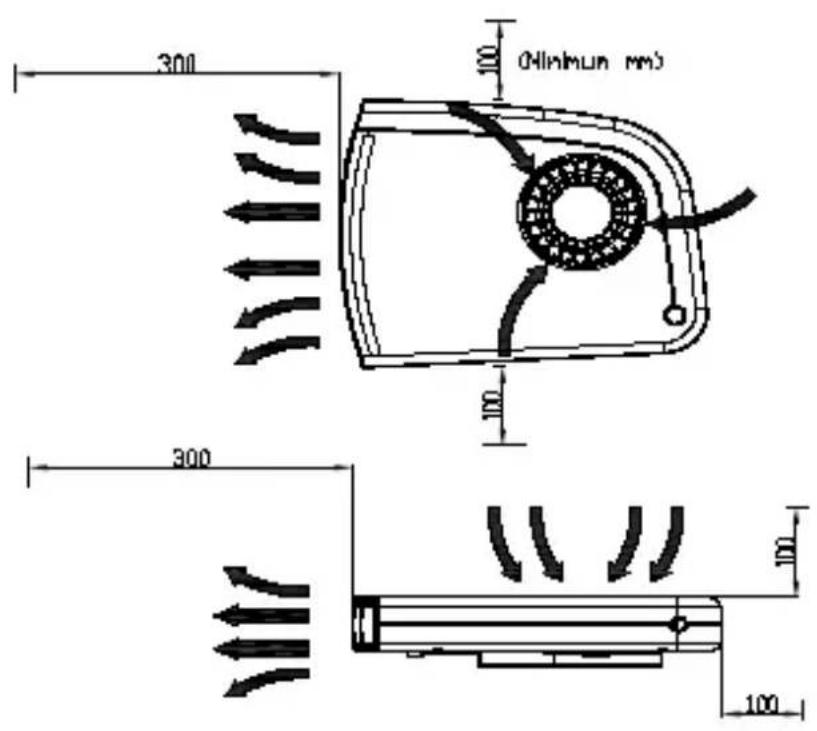

Note: Never point the air outlet downwards. The indoor fan heater must be mounted and installed in accordance with the free space, as shown in the following figure.

Mount the mounting plate (A) in the desired position on your vehicle. Make sure that no power lines or similar objects are damaged during installation!

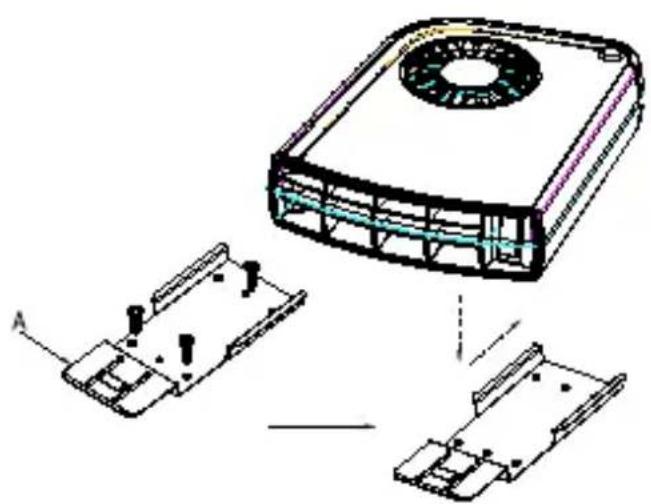

The following figure shows an example of how to install the fan.

As soon as the mounting plate is in place, the fan heater must be pushed into the bracket until it snaps in completely.

6. Start-up

After installing the heater in your car, connect the device to a 230V AC socket. To start it, turn the „on/off switch“ on the front of the unit to position „l“ or position „ll“, depending on the heating level you want to use.

7. Overheating

Normally, overheating only occurs if one of the heater's openings is blocked or clogged. This unit has a non-self-resetting thermal fuse. As soon as the overheating temperature is reached, the heater switches off automatically. Operation of the heater cannot be resumed until the user resets the unit independently. Proceed as follows:

1. Unplug the unit from the power outlet and wait until the unit has cooled down completely.
2. Once the unit has cooled down, you can plug it back into the power outlet. The fan heater will then work as usual.

8. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 67896761

WD Plus GmbH hereby declares that the 301851 is in compliance with the essential requirements and other relevant regulations. A complete declaration of conformity is available at WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
