Product Type	Fan Heater
Brand	Brandson
Model	303124
Power Supply	220-240 V AC / 50 Hz
Power Consumption	2000 W
Dimensions (W x D x H)	410 mm x 170 mm x 130 mm
Weight	2250 g
Display Screen	Yes, with automatic shutdown after 10 min
Oscillation Function	Yes, can be activated/deactivated
Timer Function	Yes, from 0 to 8 hours
Heating Levels	2 levels (automatic or manual)
Remote Control	Yes, with CR2025 3V battery
Tip-over Protection	Yes, automatic shutdown if tipped over
Overheat Protection	Yes, automatic shutdown
Cleaning	Dry soft cloth; removable dust filter
Filter Maintenance	Open the rear flap, remove and clean the filter
Safety Distance (flammable objects)	At least 90 cm
Safety Distance (other objects)	At least 30 cm
Intended Use	Well-insulated rooms, occasional use
Available Spare Parts	Dust filter, remote control

Frequently Asked Questions - 303124 Brandson

How do I turn on the Brandson 303124 heater?

Set the rear switch to "ON" (1), then press the "⏻" button on the control panel or remote control.

How do I adjust the temperature?

Use the "+" and "-" buttons to set the desired temperature. If it is higher than the room temperature, the heater starts.

How do I activate the second heating level?

Press the "" button on the control panel to manually switch to level 2 (two "" symbols displayed).

How do I use the remote control?

Insert a CR2025 3V battery into the remote control. All functions of the control panel are available.

How do I activate oscillation?

Press the "" button on the control panel or remote control to start or stop oscillation.

How do I set the timer?

Press the "⏲" button and choose a duration between 0 and 8 hours.

What should I do in case of overheating?

The device shuts down automatically. Unplug the power cord, wait 30 minutes, then try again. If the problem persists, contact customer service.

How do I clean the device?

Unplug the device. Use a dry soft cloth. For the filter, open the rear flap, remove the filter, clean it, and replace it.

What are the important safety instructions?

Never block the air inlets. Place the device on a flat surface, at least 90 cm away from flammable objects. Do not use it near a bathtub or swimming pool.

How do I dispose of the device at the end of its life?

Do not dispose of the device in household waste. Take it to a WEEE collection point or return it to the retailer. Used batteries must be disposed of separately.

USER MANUAL 303124 Brandson

Line drawing of a portable air purifier with mesh grille and control panel (no text or symbols)

Ceramic Fan Heater

Mod No: 303124, 303834

EN This product is only designed for use inside well insulated rooms or for occasional use

Table of contents

1. Deutsch .... 3
2. English 14
3. Français 25
4. Italiano .... 36
5. Español....53

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Prohibition sign with a diagonal line and document icon, indicating no prohibition or exclusion

DO NOT COVER/ NICHT ABDECKEN

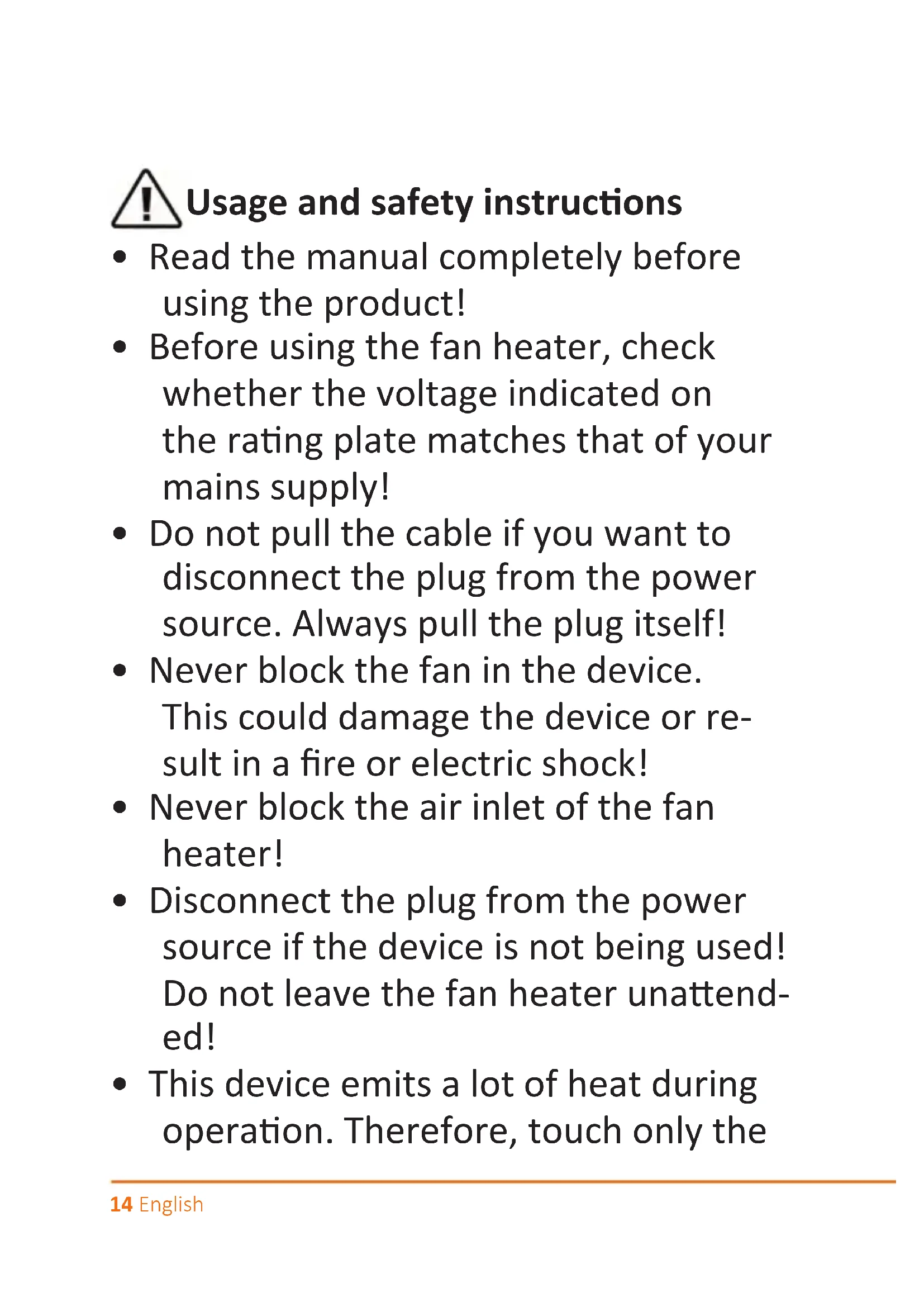

Usage and safety instructions

- Read the manual completely before using the product!

- Before using the fan heater, check whether the voltage indicated on the rating plate matches that of your mains supply!

- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!

- Never block the fan in the device. This could damage the device or result in a fire or electric shock!

- Never block the air inlet of the fan heater!

- Disconnect the plug from the power source if the device is not being used! Do not leave the fan heater unattended!

- This device emits a lot of heat during operation. Therefore, touch only the

operating controls. In case of doubt, use heat-resistant gloves.

- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!

- This device is intended for personal use only!

- Please note! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.

- Cleaning and user maintenance should not be carried out by children without supervision!

- This device can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experi-

ence, if they have been supervised or instructed regarding safe use of the device, and understand the resultant dangers.

• Children should not play with the device!
• CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Place the device at least 30 cm from other objects.
• Use this device only on a flat surface.
• Disconnect the product from the mains when not in use or during cleaning.
• Keep the product at least 90 cm away from flammable materials, such as

furniture, curtains, bedding, clothing or paper.

• Never allow the cable to come in contact with hot or damp surfaces.
• Do not turn on the device if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• This device is suitable only for properly isolated spaces or for occasional use.
• The device should always be placed on a flat, level surface using the tilt protection at the bottom!
• Do not use this heater in the immediate vicinity of a bathtub, a shower or a swimming pool.
• If the mains power cable of this device is damaged, it should be replaced by the manufacturer, his after-sales ser-

vice personnel or by an equally qual- ified person, so as to prevent any risk.

• Children younger than 3 years should be kept away from it, unless they are under constant supervision.
• Children between 3 and 8 years may switch the device on and off only when they are supervised or have been instructed concerning the safe use of the device and have understood the resulting risks, provided that the device is placed or installed in its normal usage position.

- Children between 3 and 8 years should not insert the plug into the socket, should not regulate the device, should not clean the device and/or carry out user maintenance.

- The heater should not be placed immediately below a wall socket.

- Never cover the openings of the device!

- This product is only designed for use inside well insulated rooms or for occasional use.

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

DO NOT COVER

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to be able to get the most from the product you have purchased.

Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of supply

• Fan heater
• Remote control
• User manual

2. Technical data

Power supply 220-240V AC / 50Hz
Power consumption 2000W
Dimensions (H x W x D) approx. 410mm	x 170mm x 130mm
Weight approx. 2250g
Features • Display (auto-off after 10 min.)	• Oscillation option• Timer function

3. Function

The Brandon fan heater is a practical and cost-effective alternative compared to a conventional heater. Warm up the desired area using the fan heater so that low temperatures become a thing of the past.

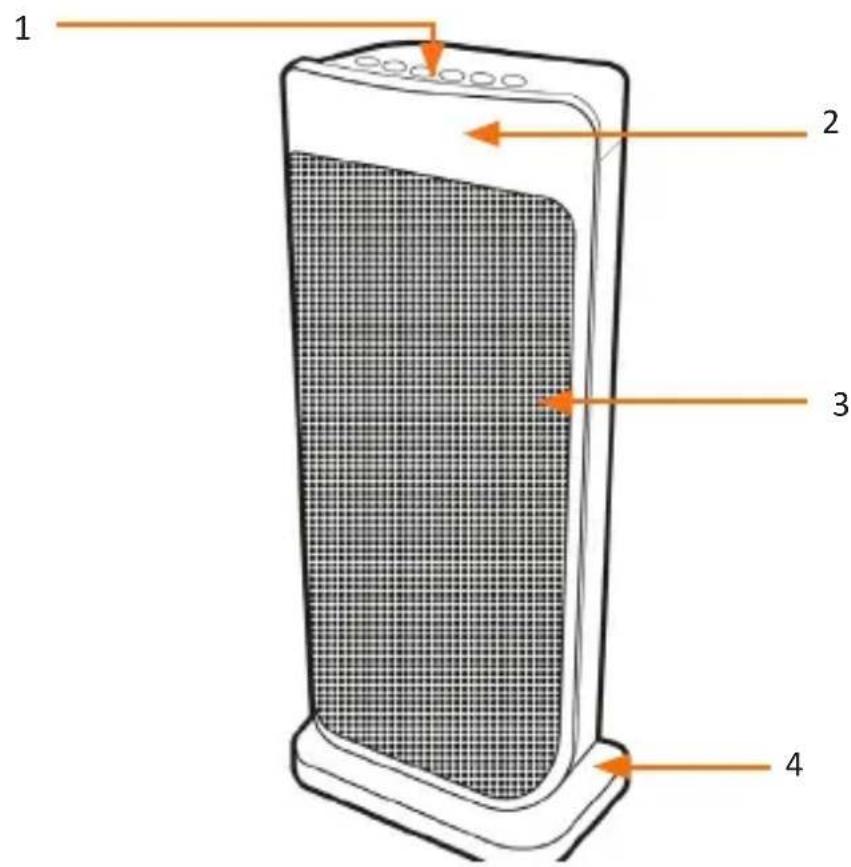

4. Product details

1 2 3 4

No Description

1 Operating controls

2 Display

3 Heating elements

4 Pedestal

5. Initial use

Take the device out of the package and remove all the packaging material. Place the fan heater on a level, flat surface so that the tilt protection at the bottom is not actuated. Put the switch on the rear of the device in "OFF" (0) position and connect the device to a 220-240V AC mains socket. You can then set the on/off switch to "ON" position (1).

To start the device, press the " " button on the control panel or on the remote control. The fan heater now starts to emit cold air. Press the " " and the " " button to adjust the desired temperature. The display shows the temperature. The heater will start heating if the set temperature is higher than the room temperature. The symbol " " is displayed. The fan heater has 2 heat settings. Heat setting 2 is enabled if two " " symbols are displayed.

You can also manually configure if you want to enable heat setting 2 or heat setting 1. To do this, press the " " symbol on the control panel.

6. Remote control

Use a CR2025 3V battery for the remote control. All the functions that can be performed using the remote control have the same function as those on the control panel of the fan.

7. Oscillation

To turn the oscillation on or off, press the "" button on the control panel at the top of the fan or on the remote control.

8. Timer function

You can enable the timer function by pressing the "button. The currently configured timer stage is displayed. You can select between 0 to 8 hours.

9. Tilt protection

Thanks to the tilt protection at the bottom of the device, it switches off automatically if the device tilts over. The fan heater can therefore be placed on even and flat surfaces only.

10. Overheating

WARNING: To avoid overheating, the heater should not be covered.

Overheating generally occurs only if one of the openings of the fan heater is covered, blocked or clogged. This device has overheating protection. The heater switches off automatically once the overheating temperature is reached. If the device is therefore turned off for this reason, disconnect the plug and wait for 30 minutes. You can then attempt to turn on the device once again. If this does not happen, please contact the customer service department.

After you have switched off the device, the fan continues to run during cooling phase until it switches off.

11. Cleaning and maintenance:

Disconnect the product from the power supply before cleaning or maintenance. Do not use any aggressive or chemical cleaning agents. Use a dry, soft cloth.

Ensure that you do not touch the heater elements when cleaning!

You have to open the flap at the back to clean or replace the dust filter. Remove the dust filter, clean it and put the filter back.

12. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

13. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

14. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303124 / 303834 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover. For more information, please visit our website: https://downloads.ganzeinfach.de/

Prohibition sign indicating a vehicle or device without restrictions

NE PAS COUVRIR

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

NON COPRIRE

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

NO CUBRIR

Model identifier(s): WDP-303124, 303834
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,0	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	0	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	P_max,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	0,003	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 - 30179 Hannover
