Frequently Asked Questions - LTW22 Aukey

How can I charge the Aukey LTW22?

To charge the Aukey LTW22, use the supplied USB cable and connect it to a compatible power source, such as a wall adapter or a computer USB port.

What should I do if the Aukey LTW22 does not turn on?

Make sure the device is properly charged. If the device still does not turn on after being charged for at least one hour, try resetting the device or contact customer service.

How do I reset the Aukey LTW22?

To reset the Aukey LTW22, press and hold the reset button for about 10 seconds until the lights flash.

Is the Aukey LTW22 water resistant?

Please refer to the user manual to check the water resistance specifications. Generally, it is recommended not to expose the device to water.

How can I connect the Aukey LTW22 to my device?

To connect the Aukey LTW22, enable Bluetooth on your device, search for available devices, and select the Aukey LTW22 from the list.

What should I do if the Bluetooth connection fails?

Make sure the Aukey LTW22 is in pairing mode. Restart the device and your Bluetooth device, then try reconnecting.

What is the battery life of the Aukey LTW22?

Battery life may vary depending on usage, but generally, the Aukey LTW22 offers several hours of continuous use on a single charge.

How can I clean the Aukey LTW22?

Use a soft, dry cloth to wipe the outside of the device. Avoid using chemical or abrasive cleaners.

Where can I find the user manual for the Aukey LTW22?

The user manual can be downloaded from the official Aukey website or from the support section of their site.

How do I get technical support for the Aukey LTW22?

To get technical support, contact Aukey customer service via their website or by phone.

USER MANUAL LTW22 Aukey

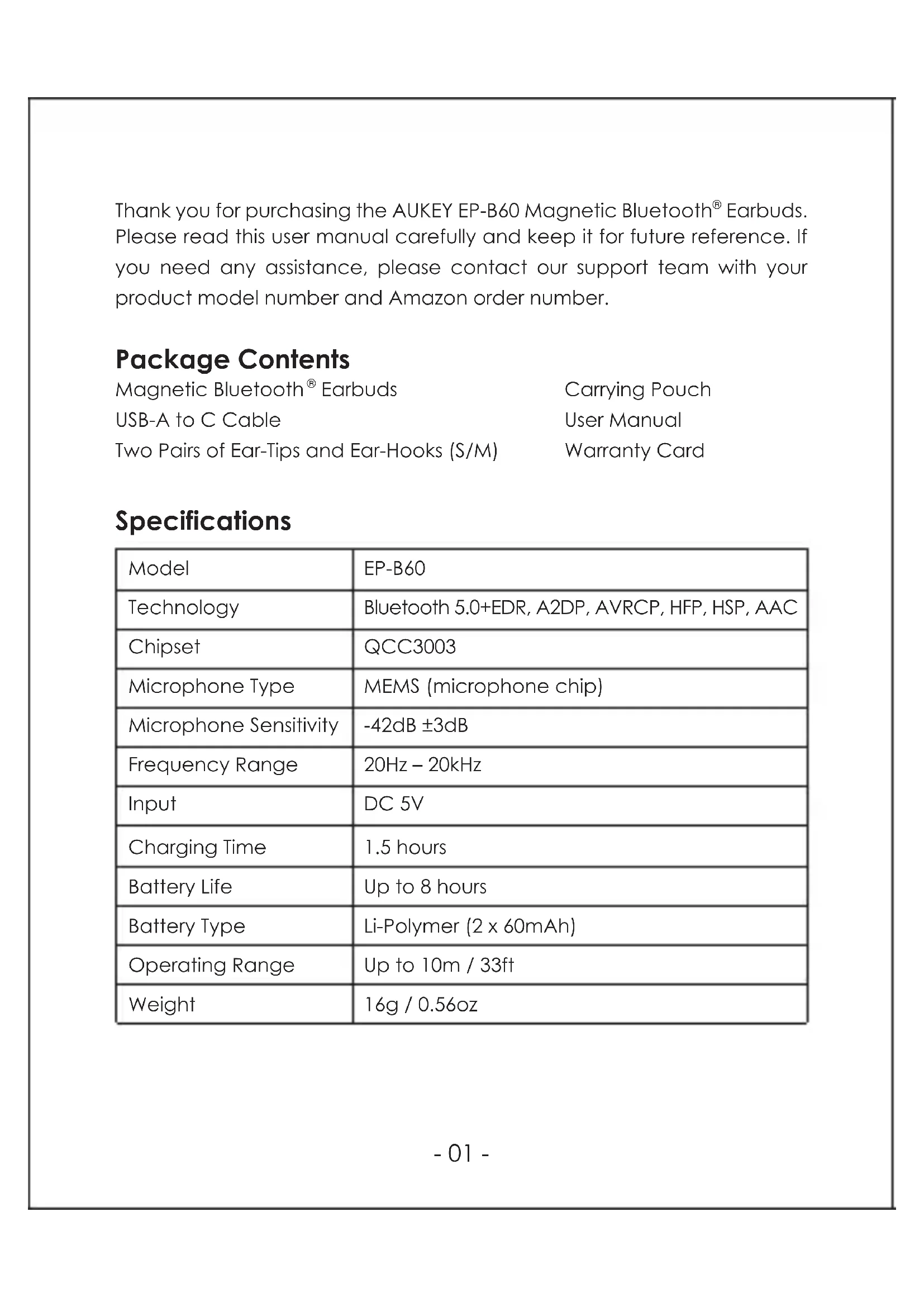

Thank you for purchasing the AUKEY EP-B60 Magnetic Bluetooth® Earbuds. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Magnetic Bluetooth® Earbuds

Carrying Pouch

USB-A to C Cable

User Manual

Two Pairs of Ear-Tips and Ear-Hooks (S/M)

Warranty Card

Specifications

Model	EP-B60
Technology	Bluetooth 5.0+EDR, A2DP, AVRCP, HFP, HSP, AAC
Chipset	QCC3003
Microphone Type	MEMS (microphone chip)
Microphone Sensitivity	-42dB ±3dB
Frequency Range	20Hz – 20kHz
Input	DC 5V
Charging Time	1.5 hours
Battery Life	Up to 8 hours
Battery Type	Li-Polymer (2 x 60mAh)
Operating Range	Up to 10m / 33ft
Weight	16g / 0.56oz

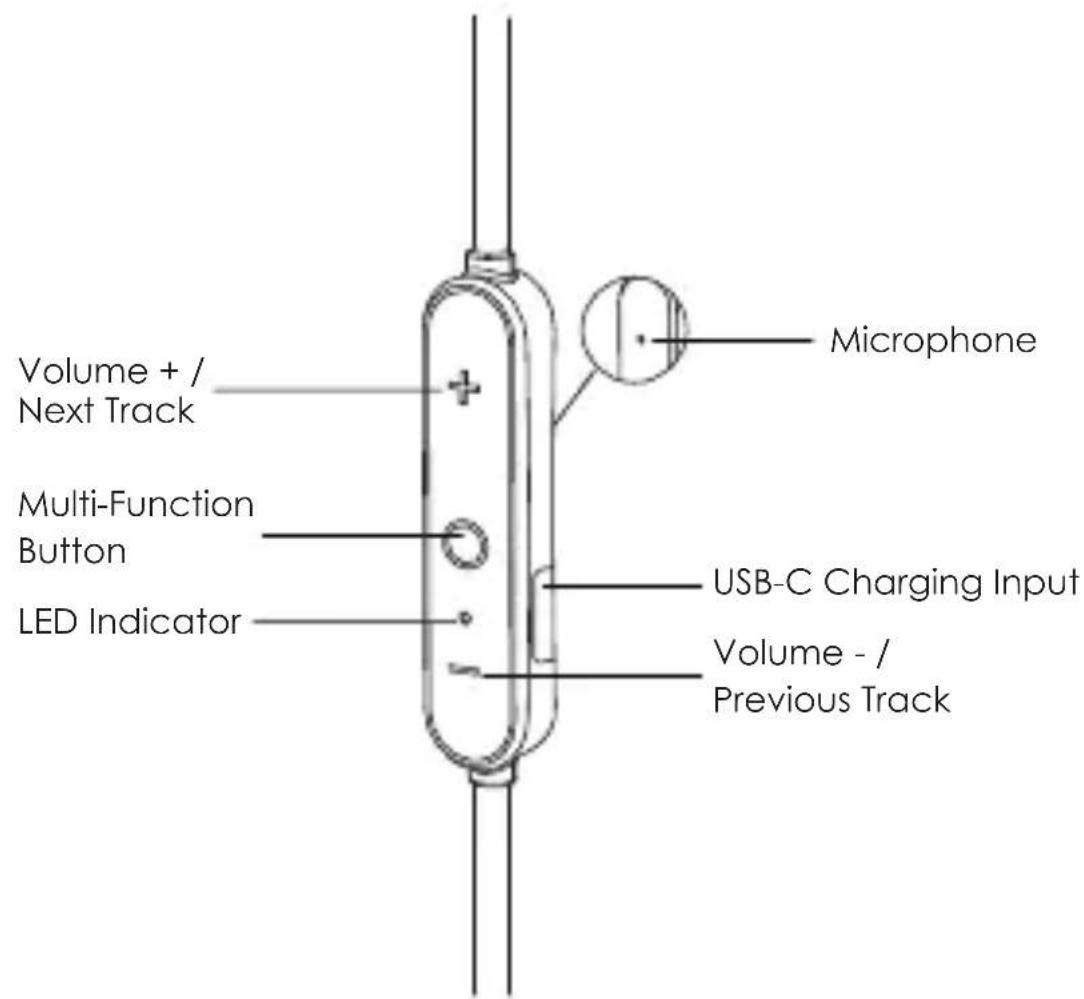

Product Diagram

Getting Started

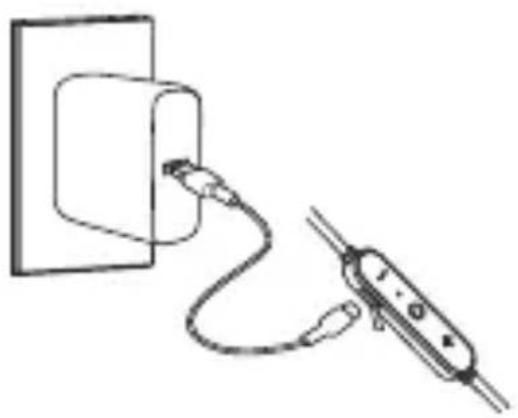

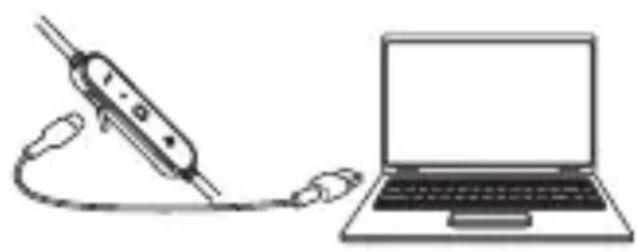

Charging

Fully charge your earbuds before first use. Before charging, make sure the earbuds are turned off. To charge, simply connect one end of the USB-A to C cable to a USB charging port and the other end to the input port on the earbuds. When the green LED indicator light turns off, your earbuds are fully charged and ready for use. Charging takes around 1.5 hours.

Turning On / Off

Turn On	Separate the earbuds. The LED indicator will light up white for 2 seconds and you'll hear an ascending tone
Turn Off	Magnetically connect the earbuds. The LED indicator will light up green for 2 seconds and you'll hear a descending tone

Pairing

Starting with the earbuds magnetically connected:

1. Separate the earbuds. The EP-B60 will turn on and automatically enter pairing mode
2. Turn on Bluetooth on the device you want to pair with the earbuds
3. In the list of available devices, find and select "AUKEY EP-B60"
4. If a code or PIN is required for pairing, enter "0000"

Notes

• To clear the pairing list, power on the earbuds and then hold volume + and volume - simultaneously for 5 seconds until the LED lights up green and white. Once the pairing list is cleared, you will hear a tone and the earbuds will automatically enter pairing mode
• The earbuds will automatically shut down after 5 minutes in pairing mode if no devices are paired
• If your paired device is turned off or manually disconnected, the earbuds LED indicator will flash white twice every 5 seconds and the earbuds will shut down after 5 minutes
• Double-press the multi-function button after turning off Bluetooth on a connected device to enter pairing mode. The LED indicator will flash white and green alternately for 3 minutes. If no devices are paired, the earbuds will enter standby mode
• The maximum wireless operating range is 10m (33ft). If you exceed this range, the earbuds will disconnect from your paired device and you will hear a tone. The connection will be re-established once you re-enter the wireless range within 5 minutes. The earbuds will automatically reconnect to the last-paired device. To connect with other devices, repeat the previous "Pairing" steps

Music and Calls Control

Streaming Audio

Once paired, you can wirelessly stream audio from your device to your earbuds. Music will automatically pause when you receive an incoming phone call, and resume once the call has ended.

Play or pause	Press the multi-function button once
Adjust volume	Press volume + or -
Skip to next or previous track	Press and hold the volume + or - for 2 seconds

Making Calls

Once paired with your smartphone, making and answering calls can be managed via the in-line remote.

Answer or end a call	Press the multi-function button once. If there's a second incoming call, press the multi-function button once to answer the second call and end the first call; or press and hold the multi-function button for 2 seconds to answer the second call and put the first call on hold
Redial last-called number	Double-press the multi-function button when your device is connected (but not playing music)
Reject an incoming call	Double-press the multi-function button
Switch mic	During a call, press and hold the volume + for 2 seconds to switch between the earbuds and your phone for talking
Use Siri or other voice assistants	When your device is connected, press and hold the multi-function button for 2 seconds and you'll hear a tone
LED Indicator	Status
White & green flashing alternately	Pairing mode
White flashing twice every 5 seconds	Standby mode / Disconnected
White flashing once every 5 seconds	Connected / Playing music
White flashing once every second	In call
Green flashing twice every 5 seconds	Low battery
Green	Charging
Green off (after charging)	Fully charged

FAQ

The earbuds are on but not connecting to my device

For the earbuds and your device to establish a connection, you need to put them both in pairing mode. Please follow the instructions in the "Pairing" section of this manual.

I've established a connection with my smartphone but can't hear any sound

Double-check the volume level on your smartphone and the earbuds. Some smartphones require you to set up the earbuds as an audio output device before the audio can be transmitted. If you're using a music player or other device, please make sure it supports the A2DP stereo music profile.

The sound isn't very clear or the caller can't hear my voice clearly

Adjust the volume on your smartphone and the earbuds. Try getting closer to your smartphone to rule out the possibility of interference or wireless range-related issues.

What is the wireless range of the earbuds?

The maximum range is 10m (33ft). However, the actual range will depend on environmental factors. For optimal performance, keep your devices connected with the earbuds within a 15ft-33ft range and make sure that there are no major obstacles (like reinforced steel walls) between the earbuds and your devices.

My earbuds won't turn on

Try charging the earbuds for a while. If the earbuds still won't power on, please contact our support team at the address below.

Product Care & Use

• Keep away from liquids and extreme heat
• Don't use the earbuds at high volume for extended periods, as this may cause permanent hearing damage or loss

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

Amazon AU orders: support.au@au key.com

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Notice for the US

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Rules

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

RF exposure assessment has been performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommendation (1999/519/EC).

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT

TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Excessive sound pressure from earphones and headphones can cause hearing loss.

Shenzhen AUKEY E Business Co., Ltd. declares that the radio equipment type (Bluetooth® Headphones, EP-B60) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.aukey.com.

C E

Notice: This device may be used in each member state of the EU.

Trademark

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Shenzhen AUKEY E Business Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Amazon EU commands: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

RoHS

Made in China

FCC ID: 2AFHP-EPB60

IC:24100-EPB60

R 208-170145
