Product Type	External battery (power bank)
Brand	Aukey
Model	PB-N64 (PBN64)
Battery capacity	10,000 mAh / 37 Wh
Battery type	Lithium Polymer (Li-Po)
Charging technology	AiPower (intelligent current detection)
Lightning input	5 V ⎓ 2 A
Micro-USB input	5 V ⎓ 2 A
USB output 1	5 V ⎓ 2.4 A (max)
USB output 2	5 V ⎓ 2.4 A (max)
Total max output current	5 V ⎓ 3.4 A
Low current charging mode	Yes (for devices < 60 mA)
Battery level indicator	4 LEDs (25%, 50%, 75%, 100%)
Power button	Yes (single press to check, double press for low current mode)
Dimensions	107 x 69 x 24 mm
Weight	182 g
Box contents	External battery, Micro-USB cable, user manual, warranty card
Maintenance	Recharge at least once every 3 months; avoid liquids and extreme heat
Recycling	Dispose of in accordance with local environmental laws
Warranty and support	Contact [e-mail] with Amazon order number

Frequently Asked Questions - PBN64 Aukey

How to recharge the Aukey PBN64 external battery?

Connect the Micro-USB cable (included) or a certified MFi Lightning cable to a USB charger (5V 2A recommended). Plug the other end into the Micro-USB or Lightning input of the battery. The LEDs indicate the charge level. Disconnect once fully charged.

Can I use both inputs (Micro-USB and Lightning) at the same time?

No, simultaneous charging via both inputs is not supported. Use one input at a time.

How to use the low current charging mode?

Press the power button twice quickly to activate low current mode (LEDs flash in sequence). This mode is suitable for devices under 60 mA (wristbands, earphones). To exit, press twice again. After 2 hours, it automatically returns to standard mode.

How long does it take to fully charge the battery?

With a 5V/2A charger, the charging time is about 5 to 6 hours for a 10,000 mAh capacity. Times may vary depending on the charger used.

Can I charge my external battery and my phone at the same time?

It is not recommended to charge your devices while recharging the external battery, as this may reduce charging speed and generate heat. It is better to charge one at a time.

What to do if the battery does not charge my device?

Check the cable and connection. Make sure the power button is pressed to activate the output. If the device is low power, activate low current mode (double press). Try another cable or device to isolate the issue.

How to check the remaining battery level?

Press the power button once. The 4 LEDs indicate the approximate level: 4 LEDs = 100%, 3 = 75%, 2 = 50%, 1 = 25%.

What is the total maximum output power?

The combined total output of the two USB ports is 5V/3.4A (17W). Each port can deliver up to 2.4A individually.

Can I use a Lightning cable to charge the battery?

Yes, the Lightning input accepts 5V/2A charging. Use a certified MFi Lightning cable for safety.

How to maintain the external battery to extend its lifespan?

Recharge it at least once every three months. Avoid extreme temperatures, moisture, and shocks. Do not try to disassemble the device. Follow local recycling guidelines.

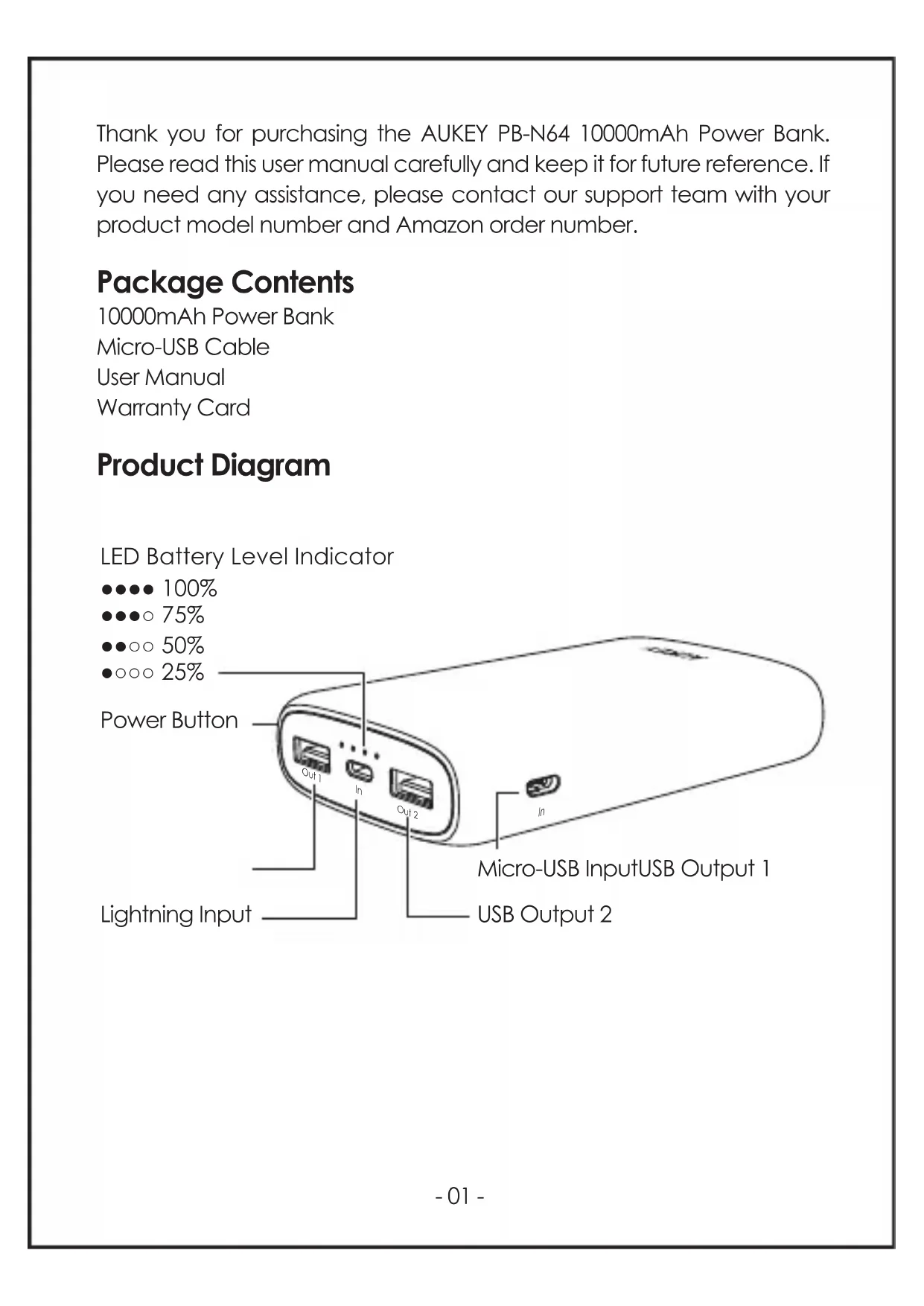

USER MANUAL PBN64 Aukey

Thank you for purchasing the AUKEY PB-N64 10000mAh Power Bank. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

10000mAh Power Bank

Micro-USB Cable

User Manual

Warranty Card

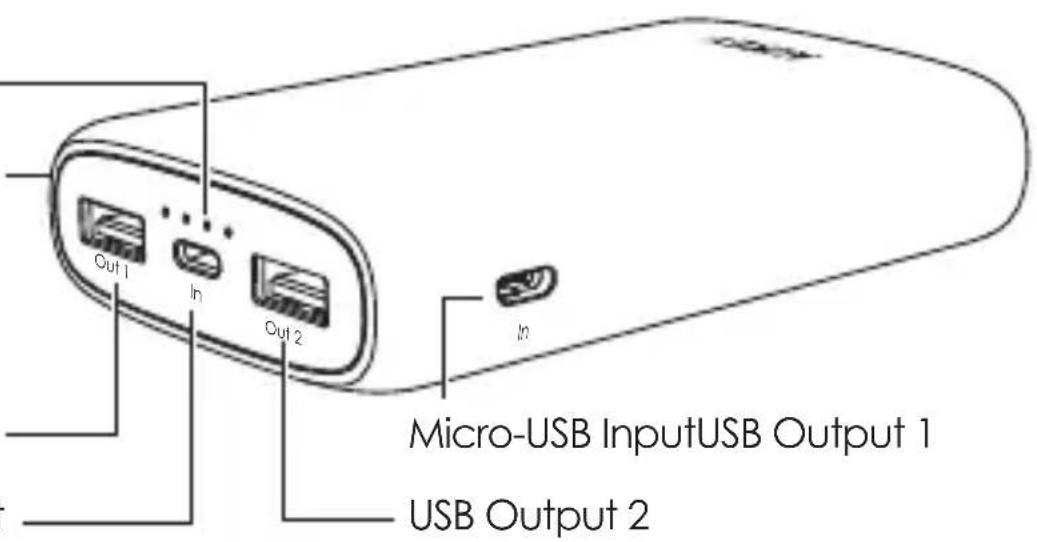

Product Diagram

LED Battery Level Indicator

•••• 100%
●●●○ 75%
●●○○ 50%
•○○○ 25%

Power Button

Lightning Input

Out 1 In Out 2 In Micro-USB InputUSB Output 1 USB Output 2

Specifications

Model	PB-N64
Technology	AiPower
Capacity	10000mAh / 37Wh
Battery Type	Lithium polymer
Lightning Input	DC 5V 2A
Micro-USB Input	DC 5V 2A
USB Output 1 / 2	DC 5V 2.4A (5V 3.4A total)
Dimensions	107 x 69 x 24 mm / 4.22" x 2.71" x 0.93"
Weight	182g / 6.42oz

Getting Started

Charging the Power Bank

Fully charge the power bank before first use.

1. Connect the included micro-USB cable or your own MFi-certified Lightning cable to a USB charger or charging port
2. Connect the other end to the micro-USB / Lightning input port on the power bank
3. Unplug the power bank when fully charged

Note: Recharging using micro-USB and Lightning inputs simultaneously isn't supported

Charging Your Device

1. Connect the charging cable to your device's charging port
2. Connect the other end to a USB output port on PB-N64
3. Unplug your device when fully charged
4. To check the remaining battery level, press the power button

Low-Current Charging Mode

This mode is customized to charge low-current devices (below 60mA). Try switching to this mode if a low-powered device (such as a fitness tracker or wireless headphones) isn't charged in the standard charging mode.

• Double-press the power button to enter or exit low-current charging mode. The LED indicator lights will flash sequentially while charging in this mode and display battery level when exiting it
• After 2 hours of charging in this mode, power bank automatically switches back to standard charging mode and turns off
• To end charging early, exit low-current charging mode. However, extra charging in this mode won't harm your device battery

Product Care & Use

• Keep away from liquids and extreme heat
• Don't charge your devices while recharging the power bank
• Recharge the PB-N64 at least once every 3 months
• Dispose of battery according to local environmental law

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US order: [e-mail]

Amazon EU order: [e-mail]

Amazon CA order: [e-mail]

Amazon JP order: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

100%
●●●○ 75%
●●○○ 50%
•○○○ 25%

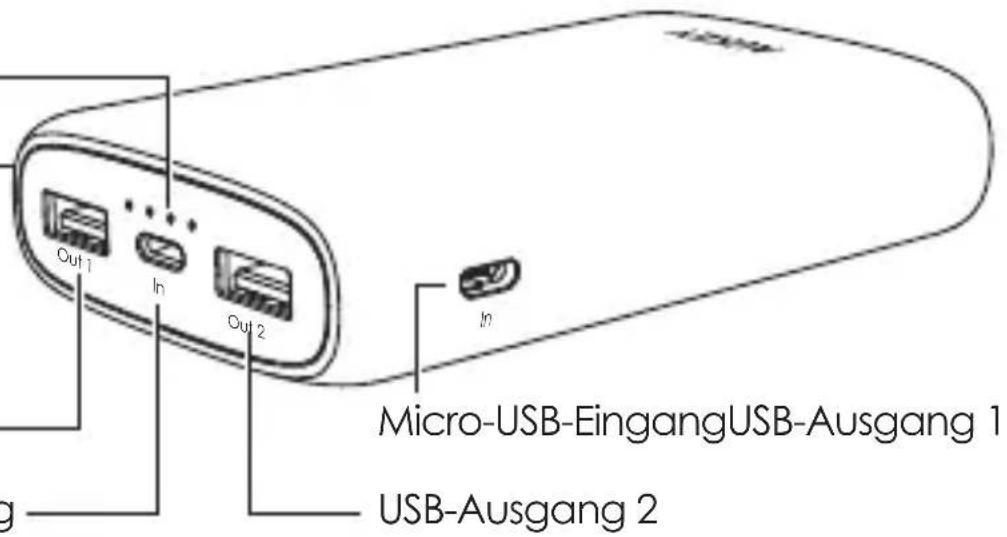

Ein-/Ausschalter

Amazon EU orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

RoHS

Made in China
