Product type	External battery
Brand	Aukey
Model	PBN15
Capacity	10,000 mAh / 37 Wh
Charging technology	Power Delivery 2.0, Quick Charge 3.0, AiPower
Total power output	18 W
Micro-USB input	DC 5 V 2 A
Lightning input	DC 5 V 2 A, 9 V 2 A
USB-C input (PD)	DC 5 V 3 A, 9 V 2 A
USB-C output (PD)	DC 5 V 3 A, 9 V 2 A, 12 V 1.5 A
USB-A output (QC 3.0)	DC 5-6.5 V 3 A, 6.5-9 V 2 A, 9-12 V 1.5 A
Dimensions	107 x 69 x 24 mm
Weight	235 g
Battery type	Lithium polymer
Level indicator	LED indicators (press button)
Low current charging mode	Yes (double press button)
Maintenance	Recharge at least every 3 months
Warranty	Contact [e-mail]

Frequently Asked Questions - PBN15 Aukey

How to charge the Aukey PBN15 external battery for the first time?

Plug the provided USB-A to C cable (or a Lightning/Micro-USB cable) into a USB charger, then connect the other end to the corresponding input port on the battery. Let it charge fully before first use.

Which devices can I charge with the PBN15?

You can charge smartphones, tablets, earphones, smart bands, and other devices compatible with USB-C or USB-A ports. To use fast charging, your device must support Power Delivery (PD) or Quick Charge 3.0.

How to activate low current charging mode?

Press the power button twice quickly. The LED indicators will flash in sequence. This mode is ideal for small devices like smartwatches or earphones. The battery automatically returns to standard mode after 2 hours.

Can I recharge the battery while charging my phone?

No, it is not recommended to charge your devices while recharging the battery itself. First disconnect the charging cable from the battery before connecting your devices.

What does Power Delivery (PD) USB mean?

It is a universal charging standard that dynamically negotiates voltage and current via a USB-C to C cable to quickly and safely charge a wide range of devices, from smartphones to laptops.

What is the maximum output power?

The total power output is 18 W. On USB-A output (QC3.0), it can deliver up to 18 W (9V-2A), and on USB-C output (PD) up to 18 W (12V-1.5A).

How long does it take to recharge the battery?

It depends on the charger used. With a 5V/2A charger, it takes about 5-6 hours for a full charge. With a PD 9V/2A charger, the time is reduced.

Is the PBN15 compatible with Lightning cables?

Yes, the battery has a Lightning input port (5V/2A or 9V/2A) to recharge it with a charger and Lightning cable. It can also provide output via the USB-A port if your device uses a Lightning cable.

How to check the remaining battery level?

Press the power button once. The LED lights up to indicate the level: 4 LEDs = 75-100%, 3 = 50-75%, 2 = 25-50%, 1 = <25%.

Where can I get help or warranty?

For any questions, contact AUKEY support at [e-mail] providing your Amazon order number and product model number. The warranty only applies for direct purchases from AUKEY.

USER MANUAL PBN15 Aukey

10000mAh Universal Power Bank with Power Delivery 2.0 and Qualcomm® Quick Charge™ 3.0

Contents

English 01~05

Deutsch 06~10

Francais 11~15

Espanol 16~20

Italiano 21~25

日本語 26~30

Thank you for purchasing the AUKEY PB-Y22 10000mAh Universal Power Bank with Power Delivery 2.0 and Qualcomm® Quick Charge™ 3.0 Technology. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

10000mAh Universal Power Bank
USB-A to C Cable
User Manual
Warranty Card

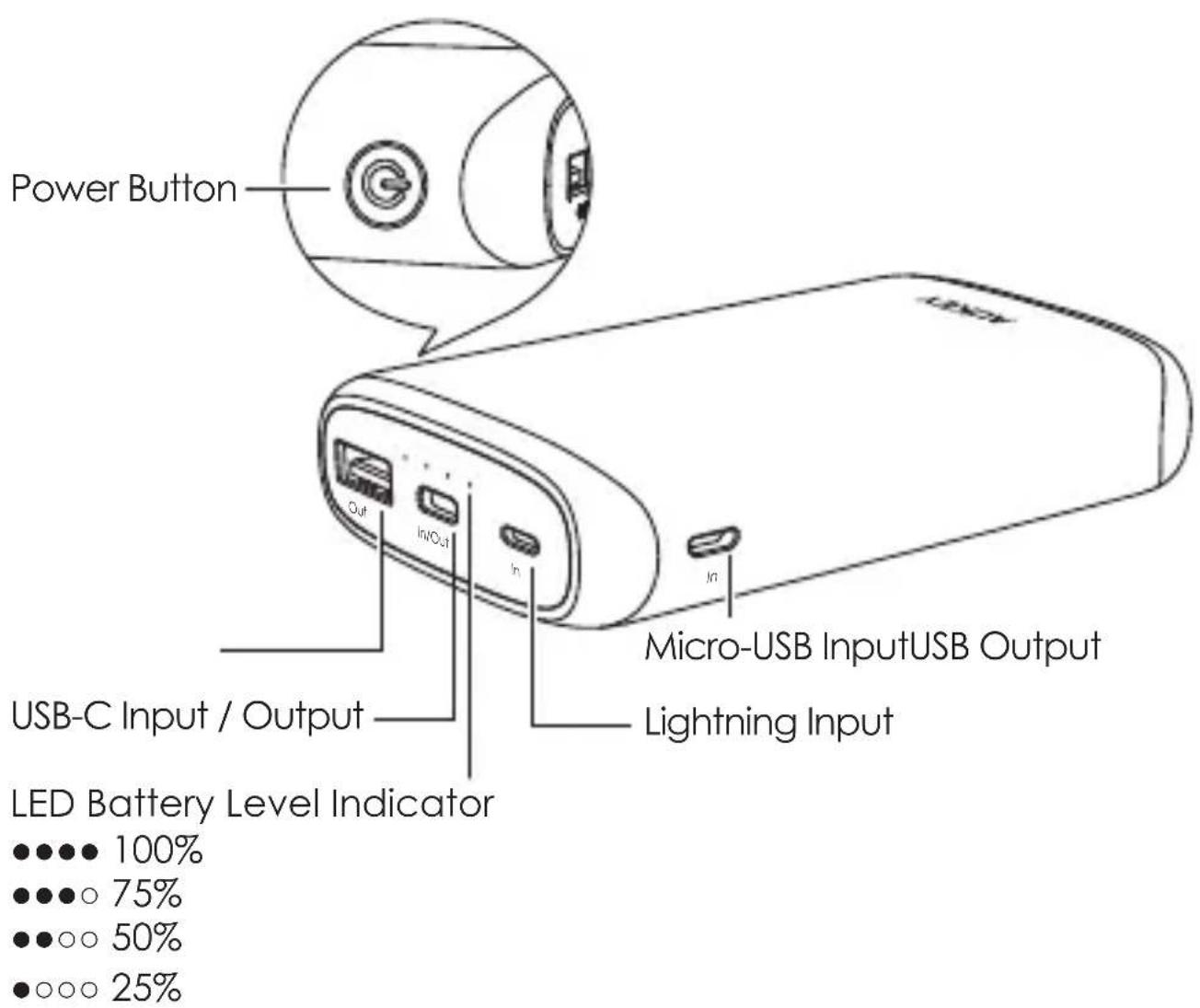

Product Diagram

Specifications

Model PB-Y22
Technology	USB Power Delivery 2.0, Qualcomm® Quick Charge™ 3.0, AiPower
Capacity	10000mAh / 37Wh
Battery Type	Lithium polymer
Micro-USB Input	DC 5V 2A
Lightning Input	DC 5V 2A, 9V 2A
USB-C Input (Power Delivery 2.0)	DC 5V 3A, 9V 2A
USB-C Output (Power Delivery 2.0)	DC 5V 3A, 9V 2A, 12V 1.5A
USB Output (Quick Charge 3.0)	DC 5V-6.5V 3A, 6.5V-9V 2A, 9V-12V 1.5A
Total Power Output	18W
Dimensions	107 x 69 x 24mm / 4.21" x 2.72" x 0.94"
Weight	235g / 8.29oz

What is USB Power Delivery (PD)?

USB Power Delivery is a new, universal multi-voltage charging standard that dynamically negotiates power output over a USB Type-C connection to safely and efficiently recharge a wide range of compatible devices.

To get USB PD, the following are required:

Device (phone, tablet, laptop) that supports USB PD
USB-C charger with USB PD
USB-C to C cable

What is Quick Charge 3.0?

Charge compatible devices up to four times faster than conventional charging. Quick Charge 3.0 is engineered to refuel devices twice as fast as Quick Charge 1.0 and is up to 38% more efficient than Quick Charge 2.0. Backward-compatible with Quick Charge 2.0/1.0 devices.

Getting Started

Charging the Power Bank

Fully charge your power bank before first use.

1. Connect the included USB-A to C cable / a Micro-USB cable / Lightning cable to a USB charger or charging port
2. Connect the other end to the USB-C / Micro-USB / Lightning input port on the power bank
3. Unplug the power bank when fully charged

Charging Your Device

1. Connect the charging cable to your device's charging port
2. Connect the other end to a USB output port on PB-Y22
3. Unplug your device when fully charged
4. To check the remaining battery level, press the power button

Low-Current Charging Mode

This mode is customized to charge low-current devices (below 60mA). Try switching to this mode if a low-powered device (such as a fitness tracker or wireless headphones) isn't charged in the standard charging mode.

• Double-press the power button to enter or exit low-current charging mode. The LED indicator lights will flash sequentially while charging in this mode and display battery level when exiting it
• After 2 hours of charging in this mode, power bank automatically switches back to standard charging mode and turns off
• To end charging early, exit low-current charging mode. However, extra charging in this mode won't harm your device battery

Product Care & Use

• Keep away from liquids and extreme heat
• Don't charge your devices while recharging the power bank
• Recharge the PB-Y22 at least once every 3 months
• Dispose of battery according to local environmental law
• The PB-Y22 doesn't accept simultaneous Micro-USB, Lightning, and USB-C power input

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US order: [e-mail]
Amazon EU order: [e-mail]
Amazon CA order: [e-mail]
Amazon JP order: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Amazon EU orders: [e-mail]
