LCC6 - Wireless Charger Aukey - Free user manual and instructions

Product Type	Wireless Charger
Brand	Aukey
Model	LCC6
Compatibility	Qi, Quick Charge 2.0/3.0
Input	5V 2A / 9V 1.6A
Wireless Output	5V 1A / 9V 1.2A
Max Power	10W
Dimensions	87 x 87 x 12 mm
Weight	58 g
Included Cable Length	1 m (Micro USB)
LED Indicator	Red (standby), Green (charging/charged), Flashing red (error)
Main Functions	10W wireless fast charging, standard Qi charging, foreign object detection, over-voltage and under-voltage protection, automatic restart
Box Contents	Charger, Micro USB cable, user manual, warranty card
Maintenance	Avoid liquids, extreme heat sources, and strong magnetic fields
Safety	Foreign object detection, protection against power supply faults, automatic shutdown in case of anomaly
Repairability	Not user serviceable. Contact customer service for any issues
Warranty	Contact by email according to region (see manual)

Frequently Asked Questions - LCC6 Aukey

Which phones are compatible with the Aukey LCC6 charger?

The Aukey LCC6 charger is compatible with all Qi devices and supports fast charging with phones compatible with Quick Charge 2.0/3.0, such as recent Samsung Galaxy and iPhones.

How to activate wireless fast charging?

To benefit from 10W fast charging, use a Quick Charge 2.0/3.0 power adapter or a compatible fast wireless charger. Connect the LCC6 to this adapter, then place your compatible phone. The indicator turns green.

What does the flashing red indicator mean?

A flashing red indicator indicates a charging error, often due to a metal object between the charger and the phone, or a power issue. Remove any object and check the power supply.

Can I use a protective case while charging?

Yes, but very thick cases or those containing metal elements may interfere. For optimal performance, remove the case if charging is slow or interrupted.

What power adapter should I use?

Use a power adapter with an output of 5V 2A for standard charging, or a Quick Charge 2.0/3.0 adapter for fast charging. The charger is not included.

Does the charger work with non-Qi compatible phones?

You need a wireless charging receiver (not included) for phones without Qi. Plug the receiver into the phone and place it on the charger.

How to maintain the charger?

Keep the charger away from liquids, extreme heat, and strong magnetic fields. Clean it with a soft, dry cloth.

What to do if the charger is not charging?

Check that the cable and adapter are properly connected. Make sure the phone is well centered on the charger. If the indicator flashes red, remove any metal object. Try again with another adapter.

Is the micro USB cable included?

Yes, a 1-meter Micro USB cable is included in the box. You can also use another Micro USB cable.

What is the maximum output power?

The maximum output power is 10W in fast charging (9V 1.2A). In standard Qi charging, it is 5W (5V 1A).

USER MANUAL LCC6 Aukey

Graphite Lite Q 10W Wireless Fast Charger

Contents

English 01~04

Deutsch 05~08

François 09~12

Espanol 13~16

Italiano 17~20

日本語 21~24

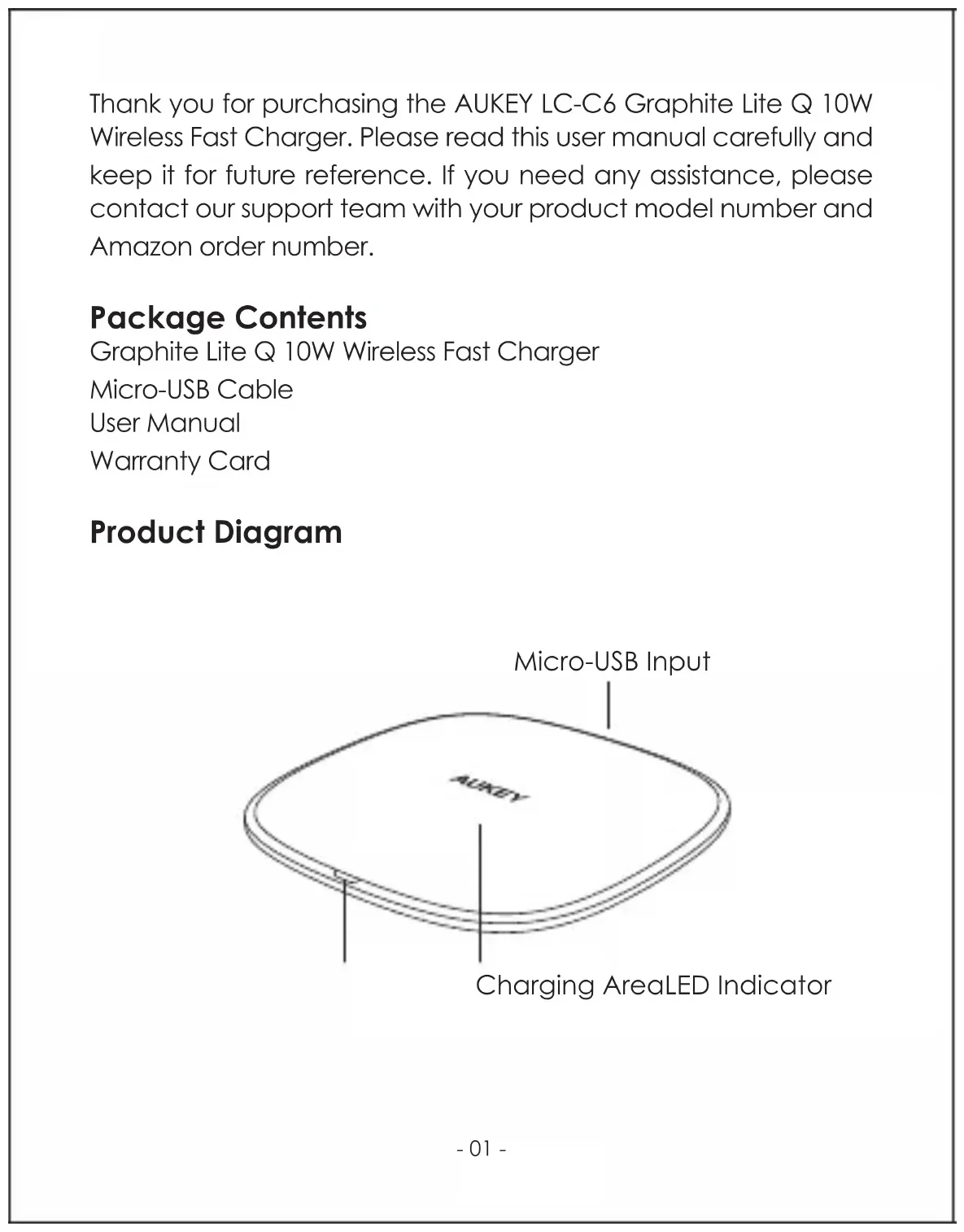

Thank you for purchasing the AUKEY LC-C6 Graphite Lite Q 10W Wireless Fast Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Graphite Lite Q 10W Wireless Fast Charger

Micro-USB Cable

User Manual

Warranty Card

Product Diagram

Charging AreaLED Indicator

Specifications

Model	LC-C6
Technology Compatibility	Qi, Quick Charge 2.0/3.0
Input	5V 2A, 9V 1.6A
Output	5V 1A, 9V 1.2A
Maximum Power Output	10W
Cable Length	1m / 3.3'
Dimensions	87 x 87 x 12mm / 3.43" x 3.43" x 0.47"
Weight	58g / 2.05oz

Getting Started

Wireless Fast Charging

1. Connect the LC-C6 to a wall outlet with a Wireless Fast Charging-compatible power adapter (a Quick Charge 2.0 or 3.0 charger can also be used)
2. Put your Wireless Fast Charging-compatible phone on the LC-C6. The LED indicator will turn green and your phone will Fast Charge wirelessly

Qi Wireless Charging

1. Connect the LC-C6 to a wall outlet with your Qi-compatible phone's original charger
2. Put your Qi-compatible phone on the wireless charger. The LED indicator will turn green and your phone will charge at standard wireless charging speed

Wireless Charging for Non-Wireless-Charging Phones

Wireless charging receiver (not included) required for nonwireless-charging phones.

LED Indicator

Indicator	Status
Red	Standby
Green	Charging / Fully charged
Flashing Red	Charging error

Product Care

• Keep away from liquids, extreme heat, and strong magnetic fields
• A Wireless Fast Charging-compatible power adapter or Quick Charge 2.0/3.0 adapter is required for Wireless Fast Charging speeds on compatible Samsung phones or iPhones
• For safe & effective charging, the LC-C6 detects the interference of metal objects in the charging area and faults like insufficient or excessive power input. Charging will begin or resume automatically once charging conditions are correct

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Fast charge wireless

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN
