CBC74 - Wireless Charger Aukey - Free user manual and instructions

Product Type	Wireless Charger
Brand	Aukey
Model	CBC74 (LC-C6)
Charging Technology	Qi
Maximum Output Power	5 W
Input	5 V, 2 A
Output	5 V, 1 A
Cable Length	1 m
Dimensions	87 x 87 x 12 mm
Weight	58 g
Box Contents	5W Wireless Charger, micro-USB cable, user manual, warranty card
Power Supply	USB wall charger (not included) + included micro-USB cable
Compatibility	Qi-compatible devices; requires wireless receiver for others
LED Indicator - Standby	Red
LED Indicator - Charging / Full charge	Green
LED Indicator - Charging error	Flashing red
Metal object detection	Yes, with automatic shutdown
Care	Keep away from liquids, extreme heat, and strong magnetic fields
Warranty	Customer service via email based on region of purchase

Frequently Asked Questions - CBC74 Aukey

How can I tell if my phone is compatible with the Aukey CBC74 wireless charger?

Check if your phone supports Qi technology. If not, you will need a wireless charging receiver (not included).

What should I do if the LED light stays red and does not turn green?

The red light indicates standby. Make sure the charger is plugged in and your phone is centered on the charging area. If the light flashes red, it indicates an error (metal object, insufficient or excessive power).

Can I use any power adapter with the charger?

Yes, but for optimal charging, use a 5 V, 2 A USB wall adapter. Insufficient power may slow charging or cause an error.

How do I clean the Aukey CBC74 wireless charger?

Unplug the charger before cleaning. Use a soft, dry cloth. Avoid any liquid, as moisture could damage the device.

Does the charger work with a phone case?

Yes, if the case is not metal and does not exceed 3 to 5 mm thickness. Thick or magnetic cases may reduce charging efficiency.

Why is my phone not charging even though the light is green?

A green light indicates the station detects a device. Check that your phone is properly positioned in the center of the charging area. If the problem persists, restart the phone or try with another compatible device.

What should I do if the charger heats up abnormally?

Stop using immediately. Make sure the charging area is well-ventilated and no metal objects are present. Contact customer service if overheating persists.

Can I use the charger with a power bank?

Yes, provided the power bank delivers a USB output of 5 V, 2 A. Insufficient power may prevent charging.

How do I contact Aukey customer service?

Based on your purchase region: US: [e-mail], Europe: [e-mail], Canada: [e-mail], Japan: [e-mail]. Have your Amazon order number and model number (CBC74 or LC-C6) ready.

Can I charge multiple devices at the same time?

No, this wireless charger can only charge one device at a time. For multiple devices, use a multi-charging station.

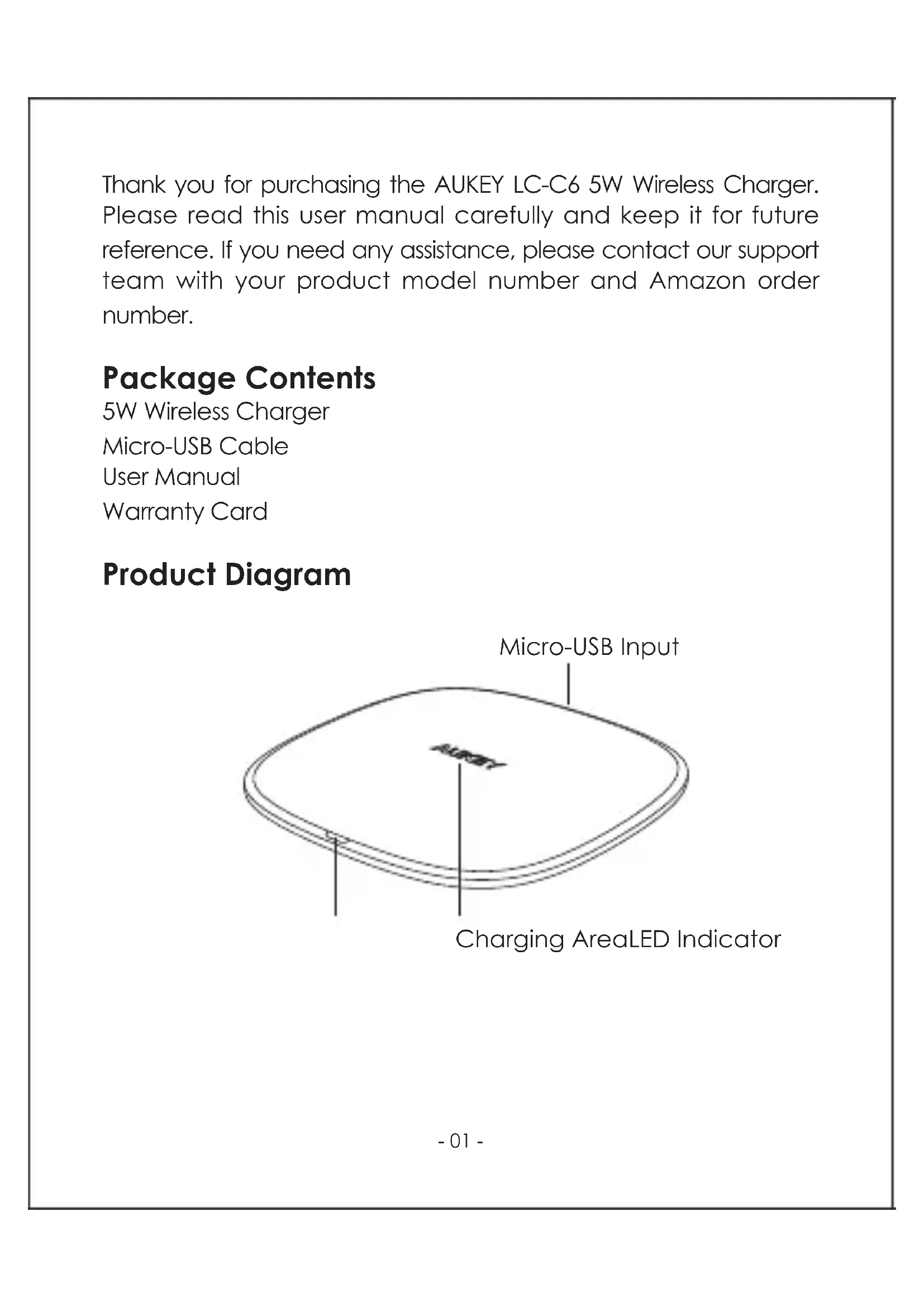

USER MANUAL CBC74 Aukey

Thank you for purchasing the AUKEY LC-C6 5W Wireless Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

5W Wireless Charger

Micro-USB Cable

User Manual

Warranty Card

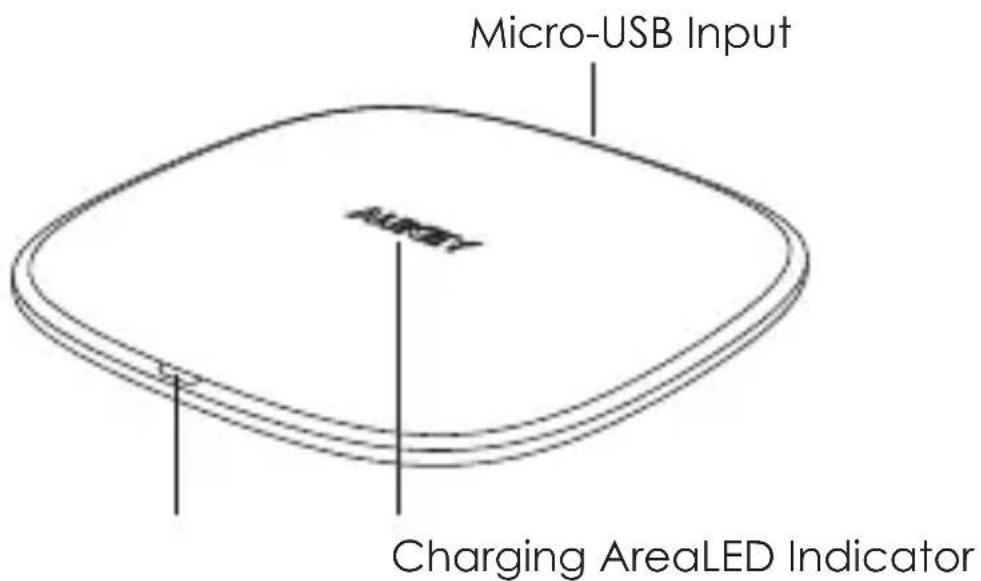

Product Diagram

Specifications

Model	LC-C6
Technology Compatibility	Qi
Input	5V 2A
Output	5V 1A
Maximum Power Output	5W
Cable Length	1m / 3.3'
Dimensions	87 x 87 x 12mm / 3.43" x 3.43" x 0.47"
Weight	58g / 2.05oz

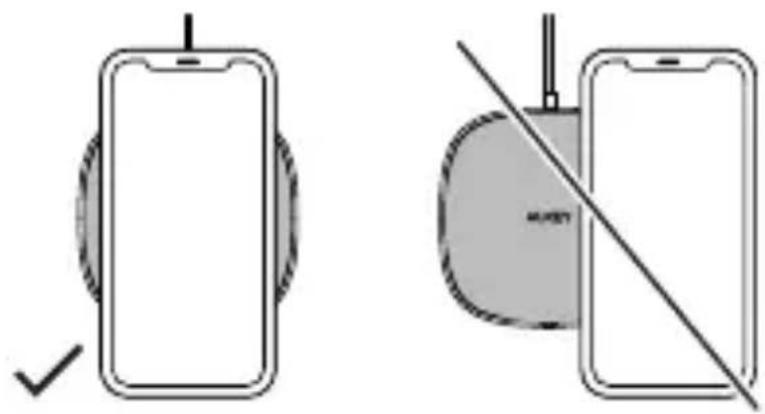

Getting Started

1. Connect the LC-C6 to a wall outlet with a USB wall charger (not included) and the included micro-USB cable. The LED indicator will light up red
2. Put your Qi-compatible phone on the wireless charger. The LED indicator will light up green and your phone will charge at standard wireless charging speed

Wireless Charging for Non-Wireless-Charging Phones

Wireless charging receiver (not included) required for nonwireless-charging phones.

LED Indicator

Indicator	Status
Green	Charging / Fully charged
Red	Standby
Flashing red	Charging error

Product Care

• Keep away from liquids, extreme heat, and strong magnetic fields
• For safe & effective charging, the LC-C6 detects the interference of metal objects in the charging area and faults like insufficient or excessive power input. Charging will begin or resume automatically once charging conditions are correct

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

This is the standard usage of the following words.

八夕一内容

5W ユイヤレス充電器

Micro-USB キープル

取拔説明書

保證力一卜

製品圖

充電工リアインジーナー

製品仕樣

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN
