LTST4 - Wireless Charger Aukey - Free user manual and instructions

Product Type	Wireless Charger
Model	LTST4 (LC-C6)
Brand	Aukey
Technology Compatibility	Qi, Quick Charge 2.0/3.0
Input	5V 2A, 9V 1.6A
Output	5V 1A, 9V 1.2A
Maximum Output Power	10W
Cable Length	1 meter
Dimensions	87 x 87 x 12 mm
Weight	58 g
Package Contents	Wireless Charger, Micro USB Cable, User Manual, Warranty Card
Key Features	Fast wireless charging (10W), standard Qi charging, foreign object detection, overvoltage protection
LED Indicator	Red (standby), Green (charging/charged), Blinking red (error)
Care and Cleaning	Keep away from liquids, extreme heat sources, and strong magnetic fields
Safety	Foreign object detection, protection against insufficient or excessive power
Spare Parts and Repairability	Not applicable (integrated product)
General Information	Requires a Quick Charge 2.0/3.0 compatible power adapter for fast charging

Frequently Asked Questions - LTST4 Aukey

Which phones are compatible with the Aukey LTST4 wireless charger?

The charger is compatible with all Qi devices and supports fast charging for models compatible with Quick Charge 2.0/3.0, such as some Samsung and iPhone devices.

How to activate wireless fast charging?

Use a Quick Charge 2.0/3.0 power adapter (not included) plugged into the charger. Place your fast charging compatible phone on the pad. The LED turns green and fast charging starts.

What does the blinking red LED mean?

A blinking red LED indicates a charging error, often caused by a metal object between the charger and phone, or insufficient/excessive power input.

Can I use my standard wall charger with this charger?

Yes, with a standard 5V 2A charger, it will work in standard Qi charging mode (5W). For fast charging, a Quick Charge adapter is required.

Does it work with a phone case?

Yes, it works with thin cases (less than 5 mm). Metal or thick cases may block charging.

How to clean the charger?

Unplug the charger before cleaning. Use a soft, dry cloth. Avoid liquids and abrasive cleaners.

What if my phone is not charging?

Ensure the phone is centered on the charger, no metal objects are interfering, the power adapter is plugged in, and the LED is green. If the LED blinks red, refer to the manual.

Is the charger compatible with iPhones?

Yes, it is compatible with iPhones from iPhone 8 onwards (models with Qi wireless charging). For fast charging, use a Quick Charge adapter.

Can I use a USB-C cable instead of the included Micro USB?

No, the LTST4 charger has a Micro USB input. Use only the included cable or a compatible Micro USB cable.

How to contact customer service for warranty issues?

Contact support according to your region: [e-mail] (US), [e-mail] (Europe), [e-mail] (Canada), [e-mail] (Japan). Provide the product model number and your Amazon order number.

USER MANUAL LTST4 Aukey

Graphite Lite Q 10W Wireless Fast Charger

Contents

English 01~04

Deutsch 05~08

Francais 09~12

Espanol 13~16

Italiano 17~20

日本語 21~24

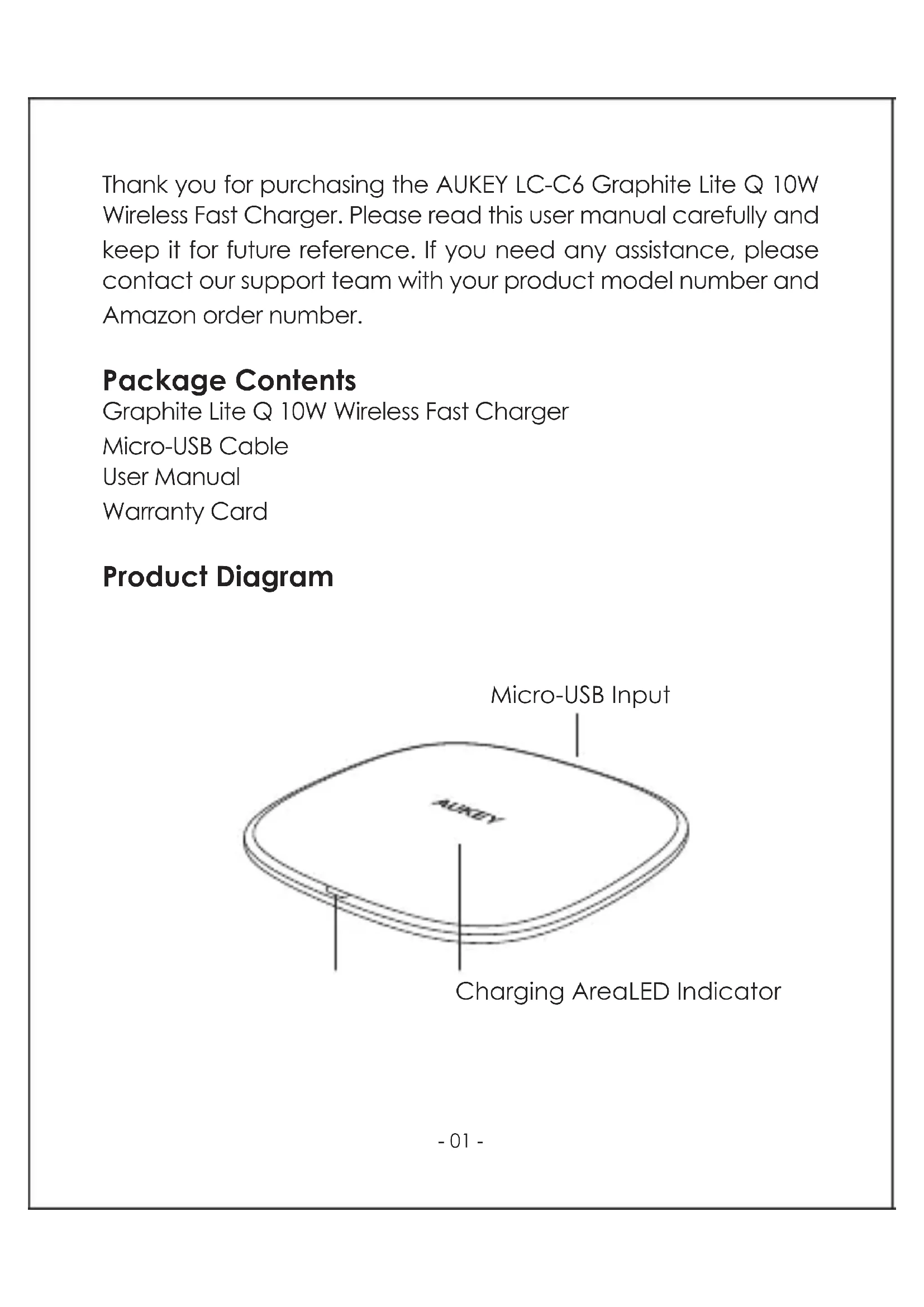

Thank you for purchasing the AUKEY LC-C6 Graphite Lite Q 10W Wireless Fast Charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Graphite Lite Q 10W Wireless Fast Charger

Micro-USB Cable

User Manual

Warranty Card

Product Diagram

Charging AreaLED Indicator

Specifications

Model	LC-C6
Technology Compatibility	Qi, Quick Charge 2.0/3.0
Input	5V 2A, 9V 1.6A
Output	5V 1A, 9V 1.2A
Maximum Power Output	10W
Cable Length	1m / 3.3'
Dimensions	87 x 87 x 12mm / 3.43" x 3.43" x 0.47"
Weight	58g / 2.05oz

Getting Started

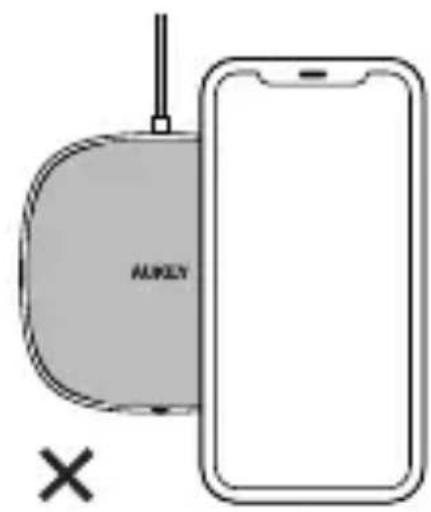

Wireless Fast Charging

1. Connect the LC-C6 to a wall outlet with a Wireless Fast Charging-compatible power adapter (a Quick Charge 2.0 or 3.0 charger can also be used)
2. Put your Wireless Fast Charging-compatible phone on the LC-C6. The LED indicator will turn green and your phone will Fast Charge wirelessly

Qi Wireless Charging

1. Connect the LC-C6 to a wall outlet with your Qi-compatible phone's original charger
2. Put your Qi-compatible phone on the wireless charger. The LED indicator will turn green and your phone will charge at standard wireless charging speed

Wireless Charging for Non-Wireless-Charging Phones

Wireless charging receiver (not included) required for nonwireless-charging phones.

LED Indicator

Indicator	Status
Red	Standby
Green	Charging / Fully charged
Flashing Red	Charging error

Product Care

• Keep away from liquids, extreme heat, and strong magnetic fields
• A Wireless Fast Charging-compatible power adapter or Quick Charge 2.0/3.0 adapter is required for Wireless Fast Charging speeds on compatible Samsung phones or iPhones
• For safe & effective charging, the LC-C6 detects the interference of metal objects in the charging area and faults like insufficient or excessive power input. Charging will begin or resume automatically once charging conditions are correct

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Fast charge wireless

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN
