USER MANUAL GSR 18V90 C Professional BOSCH

äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. Akkus/Batterien: Li-Ion: Bitte beachten Sie die Hinweise im Abschnitt Transport (sie- he „Transport“, Seite14). English Safety Instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. 1 609 92A 91G | (24.08.2023) Bosch Power ToolsEnglish | 15 Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- Bosch Power Tools 1 609 92A 91G | (24.08.2023)16 | English tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Safety information for drills and screwdrivers Safety instructions for all operations u Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. u Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting ac- cessory or fasteners may contact hidden wiring. Cut- ting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Safety instructions when using long drill bits u Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contact- ing the workpiece, resulting in personal injury. u Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contact- ing the workpiece, resulting in personal injury. u Apply pressure only in direct line with the bit and do not apply excessive pressure.Bits can bend causing breakage or loss of control, resulting in personal injury. Additional safety warnings u Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions. u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Switch the power tool off immediately if the applica- tion tool becomes blocked. Be prepared for high torque reactions which cause kickback. The applica- tion tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes over- loaded. u Caution! When using the power tool with Bluetooth®, a fault may occur in other devices and systems, aero- planes and medical devices (e.g. pacemakers, hearing aids). Also, damage to people and animals in the im- mediate vicinity cannot be completely excluded. Do not use the power tool with Bluetooth® in the vicinity of medical devices, petrol stations, chemical plants, areas with a potentially explosive atmosphere or in blasting areas. Do not use the power tool with Bluetooth® in aircraft. Avoid using the product near your body for extended periods. The Bluetooth® word mark and logos are registered trade- marks owned by Bluetooth SIG, Inc. Any use of such 1 609 92A 91G | (24.08.2023) Bosch Power ToolsEnglish | 17 marks byRobertBosch PowerToolsGmbH is under li- cense. WARNING Ensure that the coin cell is kept out of the reach of children. Coin cells are dangerous. u Coin cells must never be swallowed or inserted into any other part of the body. If you suspect that someone has swallowed a coin cell or that a coin cell has entered the body in another way, seek medical at- tention immediately. Swallowing coin cells can result in severe internal burns and death within 2 hours. u Ensure that coin cell replacement is carried out prop- erly. There is a risk of explosion. u Only use the coin cells listed in this operating manual. Do not use any other coin cells or other forms of electrical power supply. u Do not attempt to recharge the coin cell and do not short circuit the coin cell. The coin cell may leak, ex- plode, catch fire and cause personal injury. u Remove and dispose of drained coin cell correctly. Drained coin cell may leak and damage the product or cause personal injury. u Do not overheat the coin cell or throw it into fire. The coin cell may leak, explode, catch fire and cause personal injury. u Do not damage the coin cell and take the coin cell apart. The coin cell may leak, explode, catch fire and cause personal injury. u Do not allow damaged coin cells to come into contact with water. Leaking lithium may mix with water to create hydrogen, which could cause a fire, an explosion, or per- sonal injury. u If you cannot close the cover, stop using the Bluetooth® module, remove the coin cell and have it repaired. Battery is hazardous and is to be kept away from children (whether the battery is new or used). Battery can cause severe or fatal injuries in 2 hours or less if it is swallowed or placed inside any part of the body. Medical attention should be sought immediately if it is suspected the battery has been swallowed or placed in- side any part of the body. Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended use The power tool is intended for driving and loosening screws and for drilling in wood, metal, ceramic and plastic. The GSB is also designed for impact drilling in brick, masonry and stone. With the Bluetooth

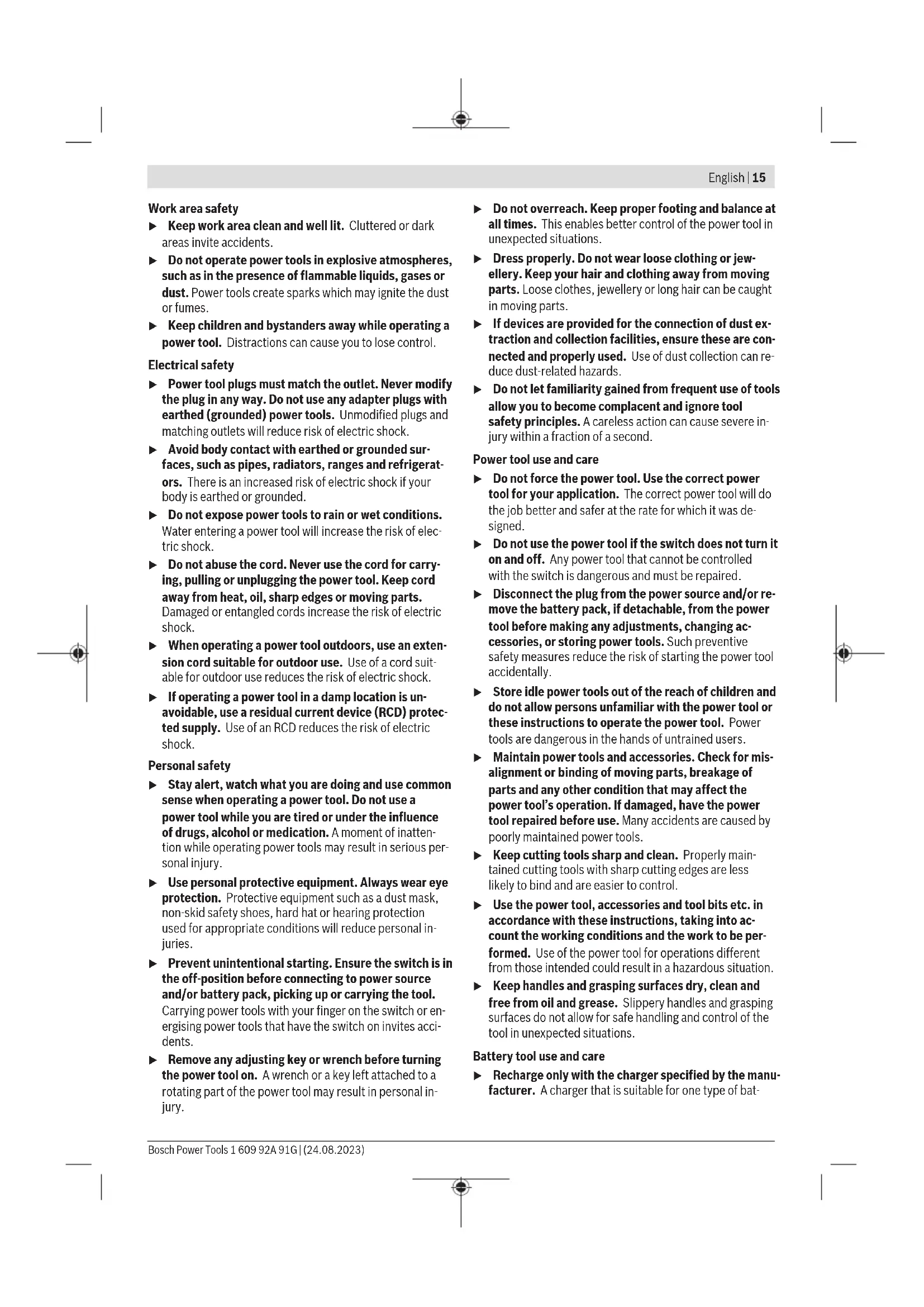

Low Energy Module GCY42 inserted, power tool data and settings can be transferred between the power tool and a mobile device by means of Bluetooth

wire- less technology. Product Features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Tool holder (2) Keyless chuck (3) Torque presetting ring (4) Operating mode presetting ring (GSB 18V-90 C) (5) Gear selector switch (6) Belt clip

(7) Rechargeable battery

(8) Battery release button

(9) User interface (10) Bluetooth® Low Energy Module cover GCY42 (11) Rotational direction switch (12) On/off switch (13) Handle (insulated gripping surface) (14) Bit holder

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Bosch Power Tools 1 609 92A 91G | (24.08.2023)18 | English Technical Data Cordless Drill/Driver GSR 18V-90 C GSB 18V-90 C Article number 3 601 JK6 0.. 3 601 JK6 1.. Rated voltage V= 18 18 No-load speed

0–630 0–630 – Second gear min

– 0–29500 Max. torque (soft)

Nm 64 64 Max. drilling diameter – Wood mm 68 68 – Steel mm 13 13 – Masonry mm − 13 Tool holder mm 1.5–13 1.5–13 Max. screw diameter mm 12 12 Weight according to EPTA-Procedure01:2014

kg 1.45–2.5 1.55–2.55 Recommended ambient temperature during charging °C 0to+35 0to+35 Permitted ambient temperature during operation and during storage °C –20to+50 –20to+50 Recommended rechargeable batteries GBA 18V... ProCORE18V... GBA 18V... ProCORE18V... Recommended chargers GAL 18... GAX 18... GAL 36... GAL 18... GAX 18... GAL 36...

Measured at 20–25°C with rechargeable battery GBA 18V 5.0Ah.

Measured withGBA 18V 1.5Ah andGBA 18V 12.0Ah. Values can vary depending upon the product and are subject to application and environmental conditions. For further information www.bosch-professional.com/wac. Noise/Vibration Information

GSR 18V-90 C GSB 18V-90 C

Noise emission values determined according toEN62841-2-1. The noise level when working can exceed the volume stated. Typically, the A-weighted noise level of the power tool is Sound pressure level Sound power level UncertaintyK Wear hearing protection! dB(A) dB(A)

(triax vector sum) and uncertainty K determined according toEN62841-2-1: Drilling

1 609 92A 91G | (24.08.2023) Bosch Power ToolsEnglish | 19 The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ac- cessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly in- crease the vibration and noise emissions over the total work- ing period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly. Rechargeable battery Bosch sells some cordless power tools without a re- chargeable battery. You can tell whether a rechargeable bat- tery is included with the power tool by looking at the pack- aging. Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: Lithium-ion rechargeable batteries are supplied par- tially charged according to international transport regula- tions. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time. Inserting the Battery Push the charged battery into the battery holder until it clicks into place. Removing the Battery To remove the rechargeable battery, press the battery re- lease button and pull the battery out. Do not use force to do this. The rechargeablebattery has two locking levels to prevent the battery from falling out if the battery releasebutton is pressed unintentionally. The rechargeable battery is held in place by a spring when fitted in the power tool. Battery charge indicator Note: Not all battery types have a battery charge indicator. The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation. Press the button for the battery charge indicator or to show the state of charge. This is also possible when the bat- tery is removed. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. The state of charge of the battery is also displayed on the user interface (see "Status Indications", page21). Battery model GBA 18V... LED Capacity 3× continuous green light 60–100% 2× continuous green light 30–60% 1× continuous green light 5–30% 1× flashing green light 0–5% Battery model ProCORE18V... LED Capacity 5 × continuous green light 80–100% 4 × continuous green light 60–80% 3 × continuous green light 40–60% 2 × continuous green light 20–40% 1 × continuous green light 5–20% 1 × flashing green light 0–5% Recommendations for Optimal Handling of the Battery Protect the battery against moisture and water. Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example. Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry. A significantly reduced operating time after charging indic- ates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal. Assembly u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Bosch Power Tools 1 609 92A 91G | (24.08.2023)20 | English Inserting the Bluetooth® Low Energy Module GCY42 (Accessory) Read the corresponding operating instructions for informa- tion about the Bluetooth® Low Energy ModuleGCY42. Changing the tool (see figure A) u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. The drill spindle is locked when the on/off switch (12) is not pressed. This makes it possible to change the application tool in the drill chuck quickly, conveniently and easily. Open the keyless chuck (2) by turning it in the direction of rotation ➊ until the tool can be inserted. Insert the tool. Firmly tighten the keyless chuck (2) by turning it by hand in the direction of rotation ➋. This will automatically lock the drill chuck. Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered carci- nogenic, especially in connection with wood-treatment ad- ditives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the ma- terials to be worked. u Avoid dust accumulation at the workplace. Dust can easily ignite. Operation Starting Operation Setting the rotational direction (see figure B) The rotational direction switch (11) is used to change the ro- tational direction of the power tool. However, this is not pos- sible while the on/off switch (12) is being pressed. Rotate clockwise: Slide the rotational direction switch (11) on both sides until it stops in the posi- tion. Rotate anti-clockwise: Slide the rotational direction switch (11) on both sides until it stops in the posi- tion. Setting the operating mode Drilling

Set the operating mode presetting ring(4) to the "drilling" symbol. Screwdriving

Set the torque presetting ring(3) to the re- quired torque.

Set the operating mode presetting ring(4) to the "screwdriving" symbol. Set the torque presetting ring(3) to the re- quired torque. Impact drilling

Set the operating mode presetting ring(4) to the "impact drilling" symbol. Switching on/off To start the power tool, press and hold the on/off switch (12). The LED (18) lights up when the on/off switch (12) is lightly or fully pressed, meaning that the work area is illuminated in poor lighting conditions. To switch off the power tool, release the on/off switch (12). Adjusting the speed You can adjust the speed of the power tool when it is on by pressing in the on/off switch (12) to varying extents. A light pressure on the on/off switch (12) results in a low ro- tational speed. Increased pressure on the switch causes an increase in speed. Preselecting torque (applies to screwdriving mode) When the precision clutch is activated, you can pre-set the required torque over 20 increments using the torque pre- setting ring(3). Once the set torque has been reached, the application tool will be stopped. When the precision clutch is deactivated, the clutch will be released and the application tool will not be stopped. Mechanical gear selection u Only operate the gear selector (5) when the power tool is not in use. First gear: Low speed range; for working with a large drilling diameter or for screwdriving. Second gear: High speed range; for working with a small drilling diameter. Temperature-dependent overload protection When used as intended, the power tool cannot be over- loaded. If the power tool is overloaded or not kept within the permitted operating temperature range, the speed is re- duced or the power tool is switched off. The power tool will 1 609 92A 91G | (24.08.2023) Bosch Power ToolsEnglish | 21 not run at full speed again until the permitted operating tem- perature has been reached. Activation of the temperature-controlled overload protector is indicated by the LED (15) on the power tool lighting up red. – To return to within the permitted operating temperature range, run the power tool at no load or wait until the LED(15) lights up green again. When the LED(15) lights up green, the tool has returned to within the permitted operating temperature range. User Interface (seefigureD) The user interface(9) is used to activate and deactivate the precision clutch and for the "KickBack Control" rapid shut- off, as well as for the status indicator of the power tool. Precision Clutch The precision clutch stops overlocking when the set torque is reached, thereby re- ducing clutch wear and the resulting noise. The precision clutch can be deactivated on the user interface(9) with the precision clutch button(19). The current status is shown via the LED for precision clutch(20) on the user interface(9). Rapid Shut-off (KickBack Control) The rapid shut-off function (KickBack Con- trol) gives the user greater control over the power tool and offers them better protec- tion than power tools that do not have Kick- Back Control. The power tool will switch off if it suddenly and unforeseeably rotates around the drilling axis. The rapid shut-off is indicated by the LED(15) flashing red, flashing from the worklight(18) and the LED of the KickBack Control(16) lighting up red on the power tool. To switch the tool back on, release the on/off switch and then press it again. u It will no longer be possible to switch the power tool on if the KickBack Control function is faulty. Have the power tool serviced by a qualified repair person using only original replacement parts. The rapid shut-off function can be deactivated on the user interface(9) with the KickBack Control button(17). If the power tool is not used for longer than 5 minutes or if the re- chargeable battery is removed, the rapid shut-off function automatically switches back on. The current status is shown via the KickBack Control LED(16) on the user interface(9). u Note: The warning light of the LEDs is not visible from all directions! The warning light is difficult to see in bright sunlight. Status Indications Status indicator for power tool Meaning/cause Solution Green Status OK – Yellow Critical temperature has been reached, re- chargeable battery is almost empty, or KickBack Control is switched off Run the power tool at no load and allow it to cool down, replace or charge the rechargeable battery soon, or press the KickBack Control button Illuminated red Power tool has overheated or rechargeable bat- tery is empty Allow the power tool to cool down, or replace or charge the rechargeable battery Flashing red Rapid shut-off is triggered Switch the power tool off and on again Flashing blue Power tool is connected to a mobile device or settings are being transferred

Connectivity functions In conjunction with the Bluetooth® Low Energy Module GCY42, the following connectivity functions are available for the power tool: – Registration and personalisation – Status check, output of warning messages – General information – Management – Switching the worklight on and off – Setting the worklight brightness and afterglow duration – Setting the brightness and backlight duration of the user interface Read the corresponding operating instructions for informa- tion about the Bluetooth® Low Energy ModuleGCY42. Practical advice u The power tool with inserted Bluetooth
