Product type	Built-in gas hob
Brand	Atag
Model	HG4011KF30BE
Dimensions (W x H x D)	580 x 67 x 510 mm
Worktop cut-out	560 x 490 mm
Net weight	Approximately 8 kg
Power supply	230 V ~ 50 Hz, 0.6 VA (electric ignition)
Gas connection	G3/8" (ISO 7/1-RC 3/8)
Compatible gas type	Natural gas or butane/propane (depending on setting)
Number of burners	4
Burner diameters	Rapid: ≥ 24 cm, Semi-rapid: ≥ 20 cm, Auxiliary: ≥ 14 cm
Hob material	Stainless steel or enamel
Burner types	2 rapid, 1 semi-rapid, 1 auxiliary
Main functions	Gas cooking with integrated electric ignition, progressive flame adjustment
Ignition	Electric by push button or rotation
Cleaning and maintenance	Clean with soapy water or special stainless steel cleaner; avoid abrasives
Safety	Ensure ventilation, do not use without a pan, keep children away
Installation	By an approved technician; observe safety distances
Spare parts and repairability	Contact Atag after-sales service for original parts

Frequently Asked Questions - HG4011KF30BE Atag

How to ignite the burners?

For models with electric ignition (HG40..K), press the burner knob and turn it to the left until sparks appear. The burner lights up. For models without ignition, use a match. Adjust the flame by turning the knob from maximum to minimum position.

What are the dimensions of the hob?

The appliance dimensions are 580 mm width, 67 mm height, and 510 mm depth. The required cut-out in the worktop is 560 x 490 mm.

What pan diameters are recommended?

For a rapid burner, use a pan of at least 24 cm diameter. For a semi-rapid burner, at least 20 cm. For an auxiliary burner, at least 14 cm. Using the correct diameter improves energy efficiency.

How to clean the hob?

Clean daily with water and dish soap or a universal cleaner. For stubborn stains on enamel, use a liquid abrasive or a non-abrasive synthetic sponge. On stainless steel, use a special product and follow the grain direction to avoid shiny marks.

What type of gas to use?

Check the rating plate: the appliance is factory-set for a specific gas type (natural gas or butane/propane). If necessary, call an approved technician to convert the appliance to another gas.

Can the installation be done by myself?

No, installation must be carried out by an approved gas technician. The gas and electrical connections must comply with local standards to ensure safety.

What to do if the burner does not ignite?

First check that the burner cap is correctly positioned. If the electric ignition does not work, try several times. If unsuccessful, contact a professional. Never use an open flame to test for gas leaks.

Can I use the hob to heat the room?

No, the appliance is designed only for cooking food. Using it to heat the room increases humidity and can lead to poor ventilation.

How to maintain the enamel pan supports?

Clean them regularly with a soft sponge. Avoid plunging them into cold water when hot, as thermal shock can damage the enamel. Burnt enamel is not covered by the warranty.

What are the important safety precautions?

Never leave children unsupervised near the appliance. Ensure adequate ventilation. Do not place flammable objects in the drawer underneath the hob. In case of problems, cut off the power and gas supply.

USER MANUAL HG4011KF30BE Atag

Instructions for use

mode d'emploi

Gebrauchsanaeisung

HG40..K/G

HG60..K/G

ATAG

Injector diameter and heat Input measured on gross C.V.

HG40.K/HG40.G
In combination with building-in oven With control panel

HG60.K/HG60.G

Introduction

When you have read these instructions for use, you will quickly be aware of all the facilities the appliance can offer you. You can read about safety and how you should look after the appliance. In addition you will find environmental tips and instructions that can help to save energy.

Keep the instructions for use and the installation instructions. Any later user of this appliance could benefit from them.

Enjoy your cooking!

Table of contents

Appliance information 9
Safety 10-11
Before using the appliance 10
Things to watch for 11
Operating the appliance 11
Lighting the burners 11
Use 12
Saucepans 12
Disposal of packaging and appliance 12
Maintenance 12

Cleaning the appliance 12

Installation 13
Building-in 14
Technical specifications 15

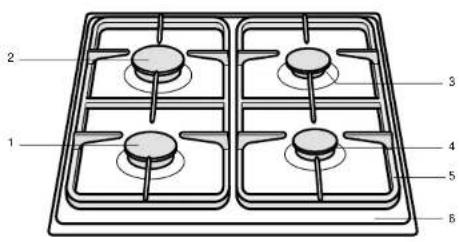

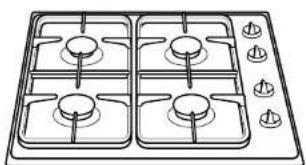

Appliance information HG40.K/HG40.G

1-control knob for rapid burner 1
2-control knob for rapid burner 2
3-control knob for simmer burner 3
4-control knob for semi-rapid burner 4
5-enamelled saucepan supports
6-enamelled or stainless steel drip tray

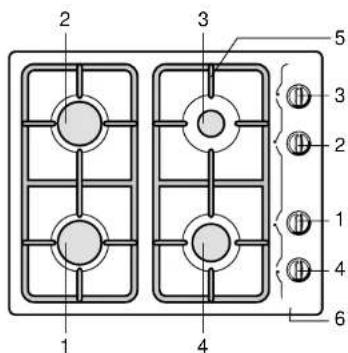

Appliance information HG60.K/HG60.G

1-control knob for rapid burner 1
2-control knob for rapid burner 2
3 - control knob for simmer burner 3
4 - control knob for semi-rapid burner 4
5-enamelled saucepan supports
6-enamelled or stainless steel drip tray

Control knob symbols:

0 off
high
low
spark switch

This appliance complies the regulations concerning

electromagnetic compatibility in directive 89/356/EEC.

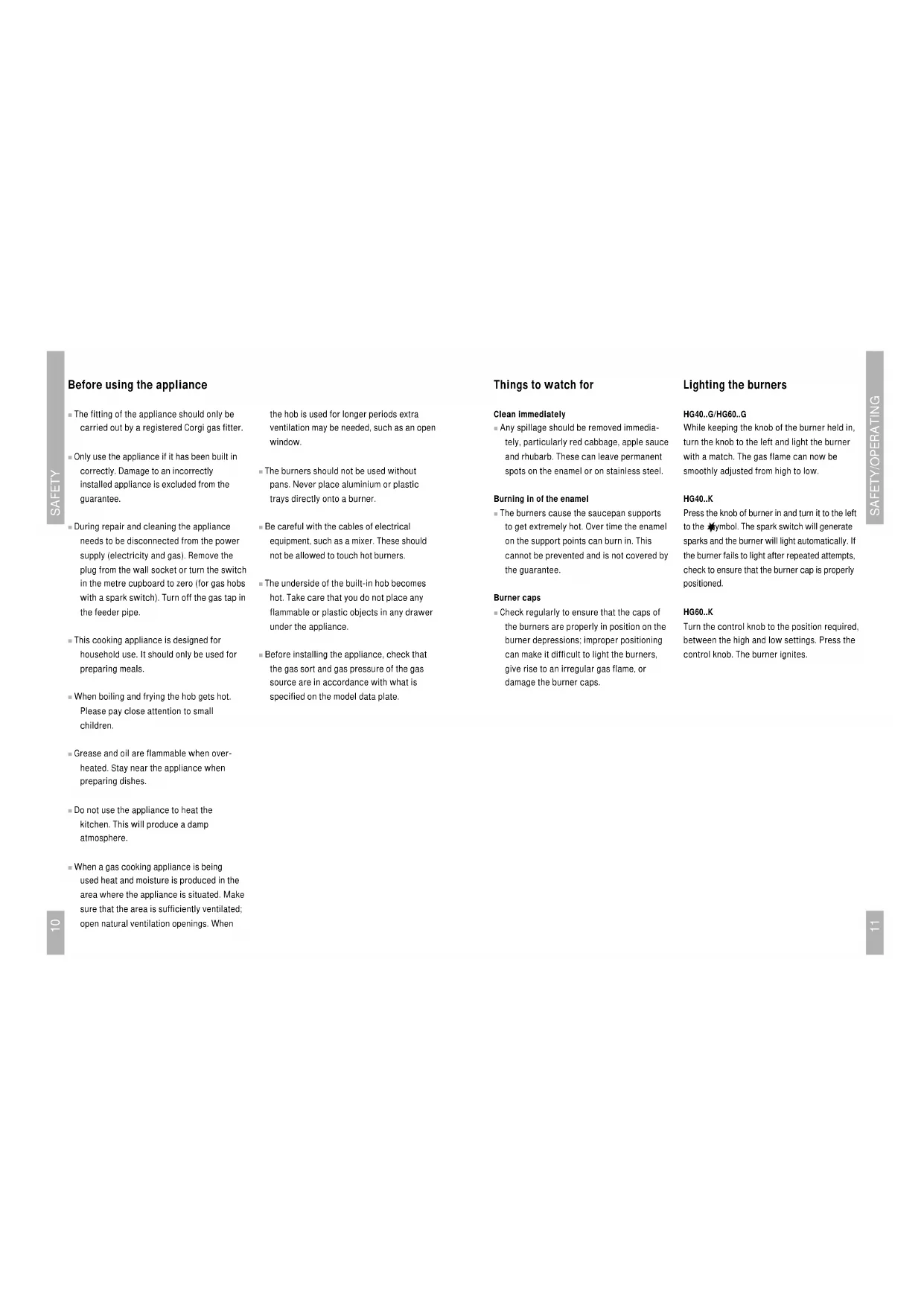

Before using the appliance

The fitting of the appliance should only be carried out by a registered Corgi gas fitter.
Only use the appliance if it has been built in correctly. Damage to an incorrectly installed appliance is excluded from the guarantee.
During repair and cleaning the appliance needs to be disconnected from the power supply (electricity and gas). Remove the plug from the wall socket or turn the switch in the metre cupboard to zero (for gas hobs with a spark switch). Turn off the gas tap in the feeder pipe.
This cooking appliance is designed for household use. It should only be used for preparing meals.
- When boiling and frying the hob gets hot. Please pay close attention to small children.
Grease and oil are flammable when overhealed. Stay near the appliance when preparing dishes.
- Do not use the appliance to heat the kitchen. This will produce a damp atmosphere.
When a gas cooking appliance is being used heat and moisture is produced in the area where the appliance is situated. Make sure that the area is sufficiently ventilated: open natural ventilation openings. When

the hob is used for longer periods extra ventilation may be needed, such as an open window.
The burners should not be used without pans. Never place aluminium or plastic trays directly onto a burner.
- Be careful with the cables of electrical equipment, such as a mixer. These should not be allowed to touch hot burners.
The underside of the built-in hob becomes hot. Take care that you do not place any flammable or plastic objects in any drawer under the appliance.
Before installing the appliance, check that the gas sort and gas pressure of the gas source are in accordance with what is specified on the model data plate.

Things to watch for

Clean immediately

Any spillage should be removed immediately, particularly red cabbage, apple sauce and rhubarb. These can leave permanent spots on the enamel or on stainless steel.

Burning In of the enamel

The burners cause the saucepan supports to get extremely hot. Over time the enamel on the support points can burn in. This cannot be prevented and is not covered by the guarantee.

Burner caps

Check regularly to ensure that the caps of the burners are properly in position on the burner depressions; improper positioning can make it difficult to light the burners, give rise to an irregular gas flame, or damage the burner caps.

Lighting the burners

HG40..G/HG60..G

While keeping the knob of the burner held in turn the knob to the left and light the burner with a match. The gas flame can now be smoothly adjusted from high to low.

HG40..K

Press the knob of burner in and turn it to the left to the symbol. The spark switch will generate sparks and the burner will light automatically. If the burner fails to light after repeated attempts, check to ensure that the burner cap is properly positioned.

HG60..K

Turn the control knob to the position required, between the high and low settings. Press the control knob. The burner ignites.

Saucepans

The recommended saucepan diameters are: rapid burner minimum 24 cm. semi-rapid burner minimum 20 cm. simmer burner minimum 14 cm.

Wrong: A great deal of heat is lost along the sides of the saucepan.

Right: The heat is evenly distributed over the base of the saucepan.

Tip

Cooking with a lid on the pan saves up to 50% on energy.

Clean saucepans absorb heat more efficiently.

Packaging and appliances

The packaging of the appliance is recyclable. It is made up off:

cardboard;
polyethylene;
- CFK free polystyrene (PS rigid foam).

Please dispose of these materials in a responsible way in accordance with the regulations of your local authority.

Your local authority will also be able to give you information about disposing disused household appliances in a responsible way.

Cleaning the appliance

Clean the appliance daily with water and a detergent or all purpose cleaner. Avoid using too much water to prevent it entering the burner or ventilation openings.
- Remove stubborn stains on enamel with a non-abrasive cream or a soft sponge. Never use scouring powders, aggressive cleaning agents, green scours.
Remove stubborn stains on stainless steel with a special stainless-steel cleaning agent. Always polish in the direction of the surface structure of the stainless steel. In this way, you will prevent shiny patches occurring. If stains cannot be removed, clean the hob with the proprietary HG oven & grill cleaner. Always treat the whole drip-tray, to prevent 'colour differences'. Always treat with a stainless-steel polish/care product afterwards.
Scourers contain abrasives that cause scratches on stainless steel. The stainless steel has a surface structure. Scouring or polishing will cause (shiny) patches on the surface. This damage is excluded from the guarantee.

Please note:

Do not drop hot burner caps in cold water. Because of the strong cooling they might get damaged.

Installation

General

The fitting of the appliance should only be carried out by a registered Corgi gas fitter.

Please note:

This appliance is not connected to a flue duct. Take care to ensure that there is sufficient ventilation.

Electrical connection (solely for appliances with a spark switch) 230V - 50Hz

The electrical connection must comply with national and local regulations.
- Wall socket and plug must be accessible at all times.
If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3mm is installed in the supply cable.

Gasconnection RC 3/8" (ISO 7/1-RC 3/8)

The gas connection must comply with national and local regulations.

Amongst other things these regulations instruct that:

only approved materials are to be used
-only a completely metal hose may be used behind a built-in oven and beneath the hob.

Please note:

The type of gas and the country for which the appliance has been designed are indicated on the ratings plate.

We recommend that the hob be connected by means of a fixed pipe. Connection using a specially designed safety hose is also permitted. In all cases the connection tap for the appliance must be positioned such that it is easily accessible, in an adjacent kitchen cupboard, for example.

Please note:

A metal safety hose must not get kinks in it or get trapped and must not come into contact with moving parts of the kitchen furniture.
Before using the appliance for the first time check the connections using water and washing-up liquid to ensure that there are no gas leaks.

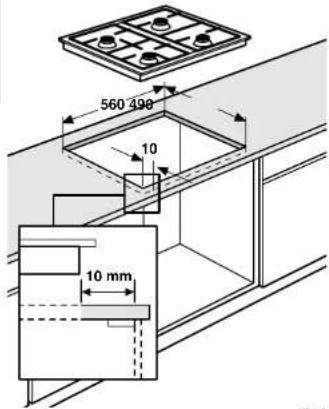

Building-in

1. Make the cut-out in the work surface. Ensure that there is sufficient space allowed at the sides and at the back.

1. Make the gas connection. Check the gas connections with a soap/water mixture (see "Gas Connection").
2. Put the plug in the socket (see "Electrical Connection").
3. Test to check the appliance is operational.

The building in of the hob in combination with a built-in oven is described in the installation guide for the oven.

Please note:

The area to be cut away at the front is measured from 10 mm from the body of the cupboard (cupboard front without door).
2. Make a hole in the side of the kitchen cabinet to enable the gas pipe to be passed through.
3. Place the appliance in the cut-out.
4. Secure the appliance in position.

Attention!

The underside of this built-in hob becomes hot. Take care that you do not place any flammable or plastic objects in any drawer under the appliance.

Technical specifications (also see table on cover)

Type of hob HG40..G HG40..K HG60..G G60..K
Electric:
3-core connection lead
Connection AC 230 V - 50Hz - 0.6 VA
Spark switch integrated in control buttons
Gas:
Connection G3/8"
Dimensions (appliance):
580x67x510 wхhxd in mm
580x45x510 bхhxd in mm
Dimensions (recess):
560x490 wxd in mm
