USER MANUAL PPS 200 B2 PARKSIDE
Translation of the original instructions
NL BE
PENTASCHUURMACHINE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Translation of the original instructions Page 13
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Entsorgung
General power tool safety warnings 15
1.Work area safety. 15
2. Electrical safety 15
3. Personal safety. 15
4. Power tool use and care 16
5. Service 16
Appliance-specific safety instructions 17
Original accessories/auxiliary equipment 17
Operation 18
Switching on and off 18
Fitting the sanding sheet. 18
Extracting dust 18
Work instructions, tips and tricks 19
Maintenance and cleaning. 19
Kompernass Handels GmbH warranty 19
Service 21
Importer 21
Disposal. 21
Translation of the original Conformity Declaration 22

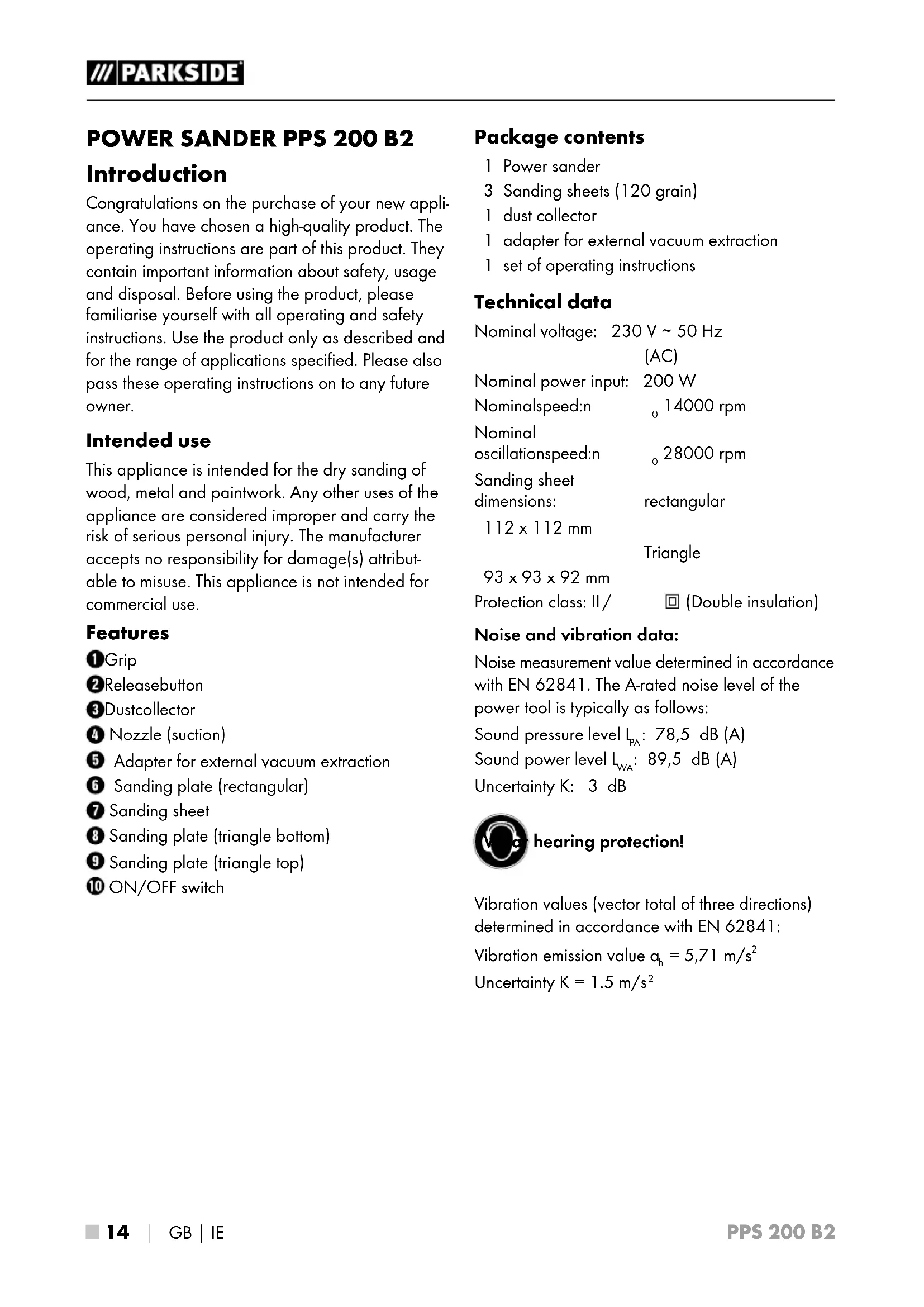

POWER SANDER PPS 200 B2 Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This appliance is intended for the dry sanding of wood, metal and paintwork. Any other uses of the appliance are considered improper and carry the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.
Features
Grip
2Releasebutton
Dustcollector
4 Nozzle (suction)
Adapter for external vacuum extraction
6 Sanding plate (rectangular)
Sanding sheet
Sanding plate (triangle bottom)
Sanding plate (triangle top)
10 ON/OFF switch
Package contents
1 Power sander
3 Sanding sheets (120 grain)
1 dust collector
1 adapter for external vacuum extraction
1 set of operating instructions
Technical data
Nominal voltage: 230V 50Hz (AC)
Nominal power input: 200 W
Nominalspeed:n 14000 rpm
Nominal
oscillationspeed:n 28000 rpm
Sanding sheet
dimensions: rectangular
$$ 1 1 2 \times 1 1 2 m m $$
Triangle
$$ 9 3 \times 9 3 \times 9 2 m m $$
Protection class: II/ (Double insulation)
Noise and vibration data:
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:
Sound pressure level L_PA : 78,5 dB (A)
Sound power level L_WA : 89,5 dB (A)
Uncertainty K: 3 dB
hearing protection!
Vibration values (vector total of three directions) determined in accordance with EN 62841:
Vibration emission value a_n = 5,71m / s^2
Uncertainty K = 1.5m / s^2
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c] Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions
To avoid the risk of injury or fire as well as health risks:
■ RISK OF FIRE DUE TO FLYING SPARKS!
When working outdoors, connect the appliance via a fault current circuit breaker with a maximum tripping current of 30mA .
Use only an extension cable approved for outdoor use.
Secure the workpiece! Use clamps/vice to hold the workpiece firmly in place. This is much safer than simply holding it in your hand.
In case of danger, remove the plug from the socket immediately.
Always route the power cable towards the rear, away from the appliance.
Sanding metal generates sparks. Ensure that nobody can be put at risk and that no combustible materials are located in the immediate vicinity of where you are working.
WARNING! TOXIC DUST!
Dusts from materials such as leaded paint, some types of wood and metal can be harmful to your health.
Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and other people in the vicinity.
WARNING! RISKS DUE TO DUST!
- When working for extended periods of time on wood and, in particular, materials that produce dust which is hazardous to health, connect the appliance to an appropriate external dust extraction appliance. Wear safety goggles and a protective dust mask!
■ Provide sufficient ventilation when working on plastics, paints, lacquers, etc.
Do not soak the materials or the area to be processed with liquids containing solvents.
- Avoid sanding lead paint or other harmful materials.
Materials containing asbestos must not be processed. Asbestos is a known carcinogen.
The device is designed for the dry surface sanding of wood, plastic, metal and plaster and painted surfaces.
Never work on moistened materials or damp surfaces. Water entering a power tool will increase the risk of electric shock.
Always hold the appliance firmly with two hands while working.
Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip.
Always switch the appliance off and allow the sanding sheet to stop oscillating before putting the appliance down.
Always remove the plug from the power socket during work breaks, when adjusting the appliance (e.g. changing the sanding sheet) and when it is no longer in use..
The appliance must always be kept clean, dry and free from oil or grease.
Original accessories/auxiliary equipment
Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
Operation
Switching on and off
Switching on:
Press the ON/OFF switch to position "l".
Switching off:
Press the ON/OFF switch to position "0".
Fitting the sanding sheet
WARNING!
Always remove the plug from the mains power socket before carrying out any work on the appliance.
NOTE
Before fitting a new sanding shee7, remove any dust and dirt from the sanding plate 6 and
- Ensure that the extraction holes on the sanding sheet match up with those on the sander plate.
Position the sanding shee7 flush on one side of the sanding pad 6 d. 9
Then place the sanding shee on the sanding pad 6 and press it firmly into place.
Different materials require different grain sizes. You can find out which grain is suitable for which work in our non-binding recommendations in "Work instructions, tips and tricks".
Extracting dust
Wear a dust mask!
WARNING! RISK OF FIRE!
When working with power tools that are fitted with a dust collector or can be connected to a vacuum cleaner via the vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the dust sack (or in the vacuum cleaner dust bag) can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, do not allow the workpiece to overheat and always empty the dust collector or the dust bag in the vacuum cleaner before taking a break from work.
Dust extraction with dust collector:
Attaching the dust collector:
Push the dust collecto 3 onto the appliance.
Removing the dust collector:
Press the release butto 2 and pull the dust collector 3pwards off the appliance.
NOTE
To ensure optimum extraction, regularly empty and shake out the dust collector 3.
Perforated sanding sheets are required for dust extraction.
Dust extraction using an external extraction device
Connection:
To remove dust using a vacuum cleaner, push the suction hose of a suitable dust extraction device (e.g. a workshop vacuum cleaner) onto the nozzle 4.
NOTE
If necessary, use the adapte by pushing it into the nozzle
Removal:
Pull the hose of the vacuum cleaner off the nozzle 4 or adapter 5
Work instructions, tips and tricks
Move the appliance parallel to the surface and in a flat circular motion or alternatively lengthwise and across the surface.
Do not press the appliance down. The sanding sheets will get clogged and the sanding performance will deteriorate.
Clean the sanding shee every once in a while using a vacuum cleaner.
Never use the same sanding shee for sanding different materials (such as wood and then metal).
In the table below, you will find some recommended values which will help you determine which sanding sheet 7 to use for which job.
| Wood Sanding sheet/grain | |
| Working wood 40-240 | |
| Pre-sanding, e.g. of unfinished, unplaned beams and planks | 40, 60 |
| Surface sanding 80, 100 | 120 |
| Fine sanding of hard-woods | 180, 240 |
| Paint/varnish Sanding sheet/grain | |
| Working of coats of paint/varnish or prim-ers such as filler | 40-320 |
| Removal of paint 40, 60 | |
| Sanding undercoat 80, | 100, 120 |
| Final sanding of prim-ers before painting | 180, 240, 320 |
Maintenance and cleaning
WARNING! RISK OF INJURY!
Always remove the plug from the mains power socket before carrying out any work on the appliance.
Always clean the appliance directly after completion of work.
Do not use any sharp objects to clean the appliance. Do not allow any liquids to get into the appliance.
Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that can damage plastic. A vacuum cleaner is required for thorough cleaning of the appliance.
Ventilation openings must never be obstructed.
Remove any adhering grinding dust with a brush.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.
Service
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 321205_1901
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
The packaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.
t dispose of power tools in your normal household waste!
In accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its integration into national law, used power tools must be disposed of separately and recycled in an environmentally friendly manner.
Your local community or municipal authorities can provide information on how to dispose of the appliance.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
- The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards:
EN 62841-1:2015
EN 62841-2-4:2014
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 50581:2012
Type/appliance designation: Power sander PPS 200 B2
Year of manufacture: 03 - 2019
Serial number: IAN 321205_1901
Bochum, 02.03.2019
C E
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Table des matieres
Introduction. 24
(courant alternative)
Puisance
nominale absorbée:200W
Régime nominal: n 14000 min
Classe de protection: II / [double blindage]
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Mise au rebut
Directive relative aux machines
(2006/42/CE)
WAARSCHUWING! GIFTIGE STOFFEN!
WAARSCHUWING! RISICO DOOR STOF!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! LETSELGEVAARI!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
DUITSLAND
www.kompernass.com
Afvoeren
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NIEMCY
www.kompernass.com
Utylizacja
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NEMECKO
www.kompernass.com
Likvidace
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NEMECKO
www.kompernass.com
Likvidácia
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
