www.braunhousehold.com MultiQuick 5 MQ 537 MQ 505 Instructions 5722113004_MQ505-537_USCA_S1.indd 15722113004_MQ505-537_USCA_S1.indd 1 20.11.17 10:4320.11.17 10:43 Print Spec J 92194885 Stapled booklet, 120 x 170 mm, 24 p (incl. 8 p cover), 1/1c = blackIMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following: READ ALL INSTRUCTIONS.

1. Blades are sharp. Handle carefully when removing, inserting or

cleaning. Always verify that the accessory enclosure is free of cracks or other damages.

2. The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

3. Remove any packaging materials and promotional labels before using the

appliance for the first time.

4. Unplug from outlet when not in use, before putting on or taking off parts,

and before cleaning. To unplug, grasp plug and pull from electrical outlet. Never pull cord.

5. To protect against electrical shock, do not put the motor part, cord or

electrical plug of this hand blender in water or other liquids. Only the detachable blending shaft and other certain parts of this appliance have been designed for immersion into water or other liquids. Never submerge any other part of this unit. If hand blender falls into liquid, unplug first, then remove immediately. Do not reach into the liquid without unplugging the unit first.

6. The use of attachments/accessories not sold or recommended by Braun

may cause fire, electrical shock or risk of injuries to persons.

7. Regularly inspect the power cord, power plug and actual appliance for

any damage. Do not operate if damaged in any way or after the appliance malfunctions. Immediately cease use of the appliance and call Braun Customer Service for examination, repair or adjustment.

8. Avoid any contact with blades or moveable parts.

9. Do not use outdoors or for anything other than its intended purpose.

10. Keep hands and utensils out of the container while blending to prevent the

possibility of severe injury to persons or damage to the unit. A scraper may be used, but must be used only when the unit is not running.

11. Detach blending shaft from the motor part before washing the blades or

12. When mixing liquids, especially hot liquids, use a tall container or make

small quantities at a time to reduce spillage, splattering and possibility of injury from burning.

13. The metal blending shaft and whisk may scratch or mark non-stick

coatings. Do not use in non-stick cookware.

14. Check work bowl for presence of foreign objects before using.

15. Do not let any cord hang over the edge of the table or counter. Do not

let cord contact hot surfaces, including stovetop.

16. Maximum rating is based on the MQ 20 chopper «hc» that draws the

greatest power and other recommended attachments may draw significantly less power.

17. The «hc» chopper is intended for processing small quantities of food for

immediate consumption, and is especially recommended for preparing baby food. The appliance is not intended to prepare large quantities of food at one time.

18. Double-blade knife is sharp. Handle carefully. Use extreme care when

removing or replacing knife blade.

19. Bowl must be in place before replacing knife blades.

20. Do not operate your appliance in an appliance garage or under a wall

21. We suggest you save all packing materials in the event that future

shipping of the machine is needed. Keep all plastic bags away from children.

22. This appliance has a polarized plug (one blade is wider than the other).

To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

SAVE THESE INSTRUCTIONS

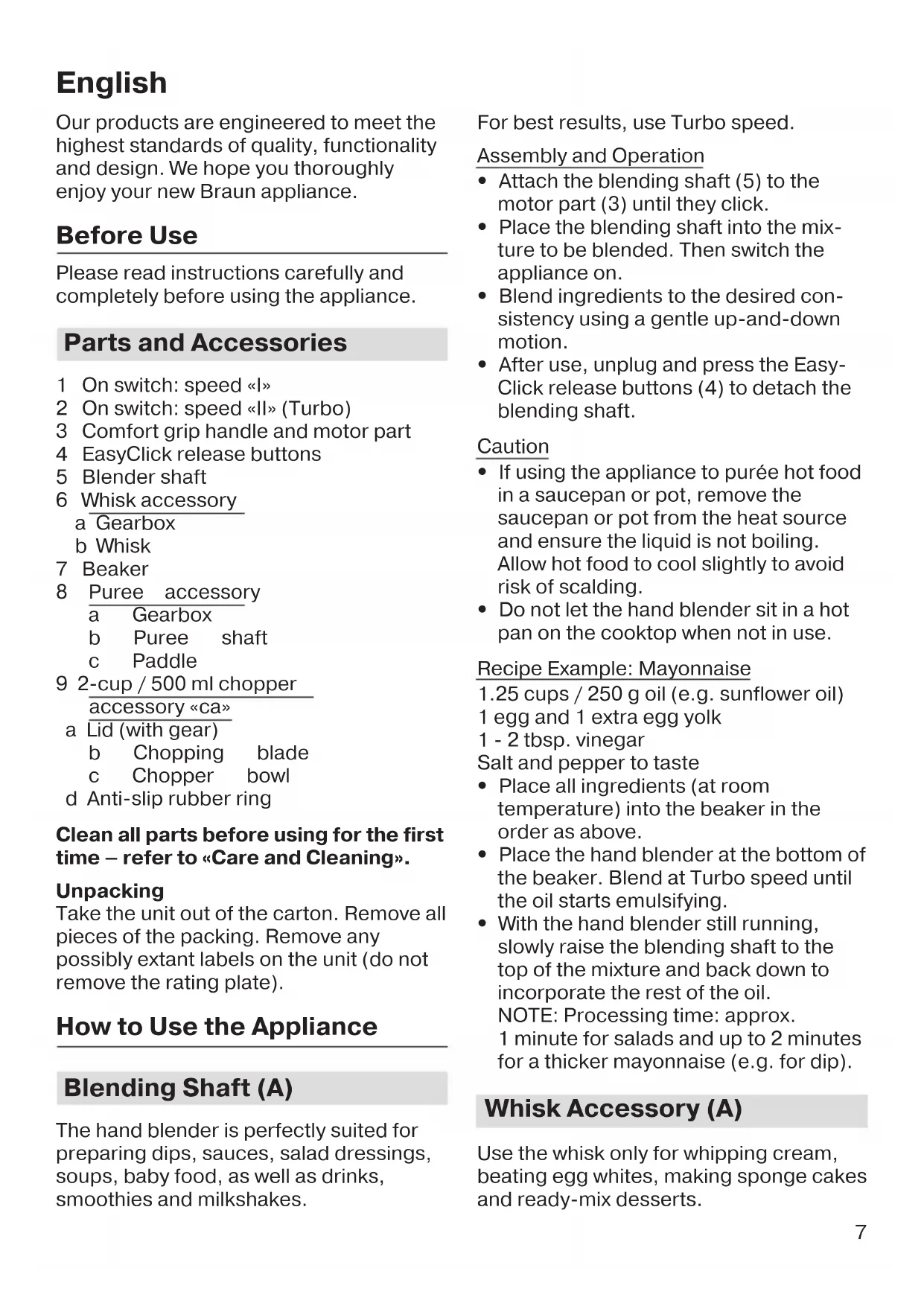

EN/FR/ES 5722113004_MQ505-537_USCA_S6-24.indd 65722113004_MQ505-537_USCA_S6-24.indd 6 07.12.17 10:5807.12.17 10:587 English Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance. Before Use Please read instructions carefully and completely before using the appliance. Parts and Accessories 1 On switch: speed «I» 2 On switch: speed «II» (Turbo) 3 Comfort grip handle and motor part 4 EasyClick release buttons 5 Blender shaft 6 Whisk accessory a Gearbox b Whisk 7 Beaker 8 Puree accessory a Gearbox b Puree shaft c Paddle 9 2-cup / 500 ml chopper accessory «ca» a Lid (with gear) b Chopping blade c Chopper bowl d Anti-slip rubber ring Clean all parts before using for the first time – refer to «Care and Cleaning». Unpacking Take the unit out of the carton. Remove all pieces of the packing. Remove any possibly extant labels on the unit (do not remove the rating plate). How to Use the Appliance Blending Shaft (A) The hand blender is perfectly suited for preparing dips, sauces, salad dressings, soups, baby food, as well as drinks, smoothies and milkshakes. For best results, use Turbo speed. Assembly and Operation

• Attach the blending shaft (5) to the motor part (3) until they click.

• Place the blending shaft into the mix- ture to be blended. Then switch the appliance on.

• Blend ingredients to the desired con- sistency using a gentle up-and-down motion.

• After use, unplug and press the Easy- Click release buttons (4) to detach the blending shaft. Caution

• If using the appliance to purée hot food in a saucepan or pot, remove the saucepan or pot from the heat source and ensure the liquid is not boiling. Allow hot food to cool slightly to avoid risk of scalding.

• Do not let the hand blender sit in a hot pan on the cooktop when not in use. Recipe Example: Mayonnaise

1.25 cups / 250 g oil (e.g. sunflower oil)

1 egg and 1 extra egg yolk

Salt and pepper to taste

• Place all ingredients (at room temperature) into the beaker in the order as above.

• Place the hand blender at the bottom of the beaker. Blend at Turbo speed until the oil starts emulsifying.

• With the hand blender still running, slowly raise the blending shaft to the top of the mixture and back down to incorporate the rest of the oil. NOTE: Processing time: approx. 1 minute for salads and up to 2 minutes for a thicker mayonnaise (e.g. for dip). Whisk Accessory (A) Use the whisk only for whipping cream, beating egg whites, making sponge cakes and ready-mix desserts. 5722113004_MQ505-537_USCA_S6-24.indd 75722113004_MQ505-537_USCA_S6-24.indd 7 07.12.17 10:5807.12.17 10:588 Assembly and Operation

• Attach the whisk (6b) to the gearbox (6a).

• Align the motor part with the assembled whisk attachment and push the pieces together until they click.

• After use, unplug and press the Easy- Click release buttons to detach the motor part. Then pull the whisk out of the gearbox. Tips for Best Results

• Use speed «I» at beginning and increase to speed «II» to operate the whisk.

• Move the whisk clockwise while holding it at a slight incline.

• Place the whisk in a bowl and only then switch the appliance on.

• To prevent splattering, use the whisk accessory in deep containers or pans.

• Always ensure the whisk and mixing bowl are completely clean and free of fat before whisking egg whites. Only whip up to 4 egg whites. Recipe Example: Whipped Cream

1.8 cups / 400 ml chilled cream (min. 30%

fat content, 4 - 8 °C / 39,2 - 46,4 °F)

• Place chilled cream into the beaker.

• Place the hand blender with the whisk attachment at the bottom of the beaker.

• Blend at speed «I» until cream gets whipped.

• Always use fresh chilled cream to achieve greater and more stable volume when whisking. Puree Accessory (B) The puree accessory can be used to mash cooked vegetables and fruits such as potatoes, sweet potatoes, tomatoes, plums and apples. Before Use

• Do not mash hard or uncooked food, as this may damage the unit.

• Peel and remove any stones or hard parts; cook and drain then chop the fruit/vegetable. Assembly and Operation

• Fit the gearbox (8a) to the shaft (8b) by turning in a clockwise direction until it locks into place.

• Turn the puree accessory upside down and fit the paddle (8c) over the central hub and turn counter- clockwise to locate. (If the gearbox is not fitted prop- erly, then the paddle will not secure in place).

• Align the assembled puree accessory with the motor part and click the two parts together. Plug in.

• Dip the puree accessory into the ingre- dients and switch on the appliance.

• Using a gentle up and down motion, move the puree accessory through the ingredients until the desired texture is achieved.

• Release the On switch and ensure the puree accessory has completely stopped turning before removing it from the food.

• After use, unplug the appliance. Remove the paddle (8c) by turning clockwise.

• Press the EasyClick release buttons to detach the puree accessory from the motor part. Separate the gearbox from the shaft by turning counter-clockwise. Caution

• Never use the puree accessory in a saucepan over direct heat.

• Always remove the saucepan from the heat and allow to cool slightly.

• Sit the saucepan or bowl on a stable, flat surface, and support it with your free hand.

• Do not tap the puree accessory on the side of the cooking vessel during or after use. Use a spatula to scrape excess food away. 5722113004_MQ505-537_USCA_S6-24.indd 85722113004_MQ505-537_USCA_S6-24.indd 8 07.12.17 10:5807.12.17 10:589

• For best results when mashing, never fill a saucepan or bowl more than half full with food.

• Do not process more than one batch without interruption.

• Let the appliance cool down for 4 minutes before you continue processing. Recipe Example: Mashed Potatoes

2.2 lbs / 1 kg cooked potatoes

7 fl. oz. / 200 ml warm milk

• Place the potatoes in a bowl and mash for 20 - 30 seconds (3/4 way on the Smart Speed switch)

• Add the milk. Resume mashing for another 20 - 30 seconds. Chopper Accessory (C) The «ca» chopper (9) is perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, vegetables, bread, crackers and nuts. For best results of hard food processing fill the bowl of «ca» chopper (9) with max.

10.5 oz / 300 g. Not suitable for liquids.

Refer to the Processing Guide C for maxi- mum quantities and recommended speeds. Before Use

• Pre-cut foods into small pieces for easier chopping.

• Remove any bones, tendons and gristle from meat to help prevent damage to the blades.

• Make sure the anti-slip rubber ring (9d) is attached to the bottom of the chopper bowl. Assembly and Operation

• Carefully remove the plastic cover from the blade.

• The blade (9b) is very sharp! Always hold it by the upper plastic part and handle it carefully.

• Place the blade on the center pin of the chopper bowl (9c). Press it down and give it a turn so that it locks into place.

• Fill the chopper with food and put on the lid (9a).

• Align the chopper with the motor part (3) and click together.

• To operate the chopper, switch on the appliance. During processing, hold the motor part with one hand and the chop- per bowl with the other.

• Always chop harder foods (e.g. parme- san cheese) at full speed.

• When chopping is complete, unplug and press the EasyClick release buttons to detach the motor part.

• Lift the lid up. Carefully take out the blade before pouring out the contents of the bowl. To remove the blade, slightly turn it then pull it off. Caution

• Do not use the chopper accessory to process extremely hard foods, such as unshelled nuts, ice cubes, coffee beans, grains, or hard spices e.g. nutmeg. Processing these foods could damage the blades.

• If using the appliance to purée hot food, allow hot food to cool slightly to avoid risk of scalding.

• Never place the chopper bowl in the microwave oven. Care and Cleaning (D)

• Always clean the hand blender thor- oughly after use.

• Unplug hand blender before cleaning.

• Do not immerse the motor part (3) or the gearbox (6a, 8a) in water or any other liquid. Clean with a damp cloth only.

• The lid (9a) can be rinsed under run- ning water. Do not immerse in water, nor place in a dishwasher.

• All other parts can be cleaned in a dish- washer. Do not use abrasive cleaners 5722113004_MQ505-537_USCA_S6-24.indd 95722113004_MQ505-537_USCA_S6-24.indd 9 07.12.17 10:5807.12.17 10:5810 that could scratch the surface.

• You may remove the anti-slip rubber rings from the bottom of the bowls for an extra thorough clean.

• When processing foods with high pig- ment content (e.g. carrots), the acces- sories may become discolored. Wipe these parts with vegetable oil before cleaning them. Both the design specifications and these user instructions are subject to change without notice. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at appropriate collection points provided in your country. 5722113004_MQ505-537_USCA_S6-24.indd 105722113004_MQ505-537_USCA_S6-24.indd 10 07.12.17 10:5807.12.17 10:5811
