Product type	Washer-dryer
Brand	Grundig
Model	GTN 38252 HGP
Washing capacity	8 kg
Drying capacity	5 kg
Energy class	A+++
Maximum spin speed	1400 rpm
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	72 kg
Power supply	220-240 V, 50 Hz
Wash programs	Cotton, Synthetics, Delicates, Wool, Quick 30 min, etc.
Special functions	Delay start, Child safety, Overflow protection, Drum cleaning
Perfume system	Integrated perfume capsule (accessory included)
Maintenance and cleaning	Regular cleaning of the lint filter and drum
Repairability	Repairability index: 7.5/10
Country of manufacture	Turkey

Frequently Asked Questions - GTN 38252 HGP GRUNDIG

How to properly install my Grundig GTN 38252 HGP washing machine?

Place the machine on a stable and level floor. Remove the transport screws at the back. Connect the water inlet and drain hoses. Plug into 220-240 V power supply. Refer to the manual for detailed diagrams.

Which detergent to use for washing?

Use a detergent suitable for your fabric type and water hardness. Follow the recommended dosages. Avoid overdosing to protect the machine and the environment.

How to use the perfume system with capsules?

Insert the perfume capsule into the provided case, then place the assembly under the lint filter after removing it. Ensure the capsule orientation (colored side visible). Close the filter. The capsule lasts approximately 30 cycles.

What to do if the machine does not turn on?

Check that the plug is connected and the circuit breaker has not tripped. Make sure the door is properly closed. If the problem persists, contact customer service.

How to clean the lint filter?

Open the filter cover (usually bottom right). Remove the filter, remove lint by hand or with a soft cloth. Rinse it with warm water if necessary. Reinsert it correctly before using the machine again.

Which program to choose for delicate laundry?

Select the 'Delicates' or 'Wool' program at low temperature (30°C max) and reduced spin speed (400-600 rpm). Use a laundry net if necessary.

How to activate child safety?

Press the 'Delay start' and 'Spin' buttons simultaneously for 3 seconds. A lock symbol appears on the screen. To deactivate, repeat the same operation.

What does error code E01 mean?

Error code E01 indicates a door lock problem. Check that the door is properly closed and no object is blocking the lock. If the problem persists, a technician must intervene.

How to maintain the drum to avoid bad odors?

Run a drum cleaning program regularly with a descaling product or white vinegar. Leave the door slightly open after each cycle to air out.

Can I use non-Grundig perfume capsules?

No, only use perfume capsules provided by an authorized Grundig service. Using non-compliant capsules may damage the system and void the warranty.

USER MANUAL GTN 38252 HGP GRUNDIG

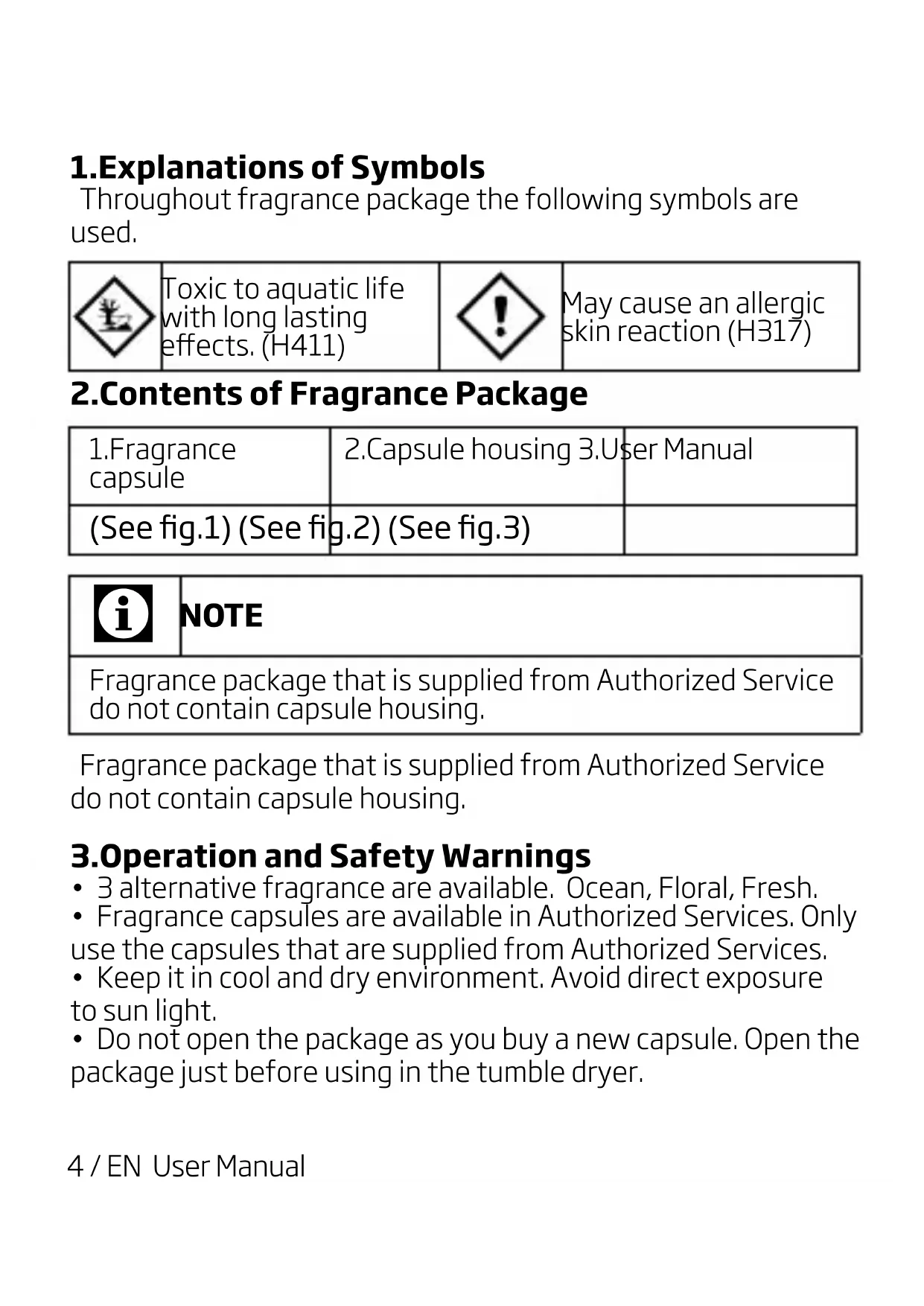

1.Explanations of Symbols

Throughout fragrance package the following symbols are used.

Toxic to aquatic life with long lasting effects. (H411)

May cause an allergic skin reaction (H317)

2.Contents of Fragrance Package

1.Fragrance capsule	2.Capsule housing 3.User Manual
(See fig.1) (See fig.2) (See fig.3)

i	NOTE
Fragrance package that is supplied from Authorized Service do not contain capsule housing.

Fragrance package that is supplied from Authorized Service do not contain capsule housing.

3. Operation and SafetyWarnings

• 3 alternative fragrance are available. Ocean, Floral, Fresh.
• Fragrance capsules are available in Authorized Services. Only use the capsules that are supplied from Authorized Services.
• Keep it in cool and dry environment. Avoid direct exposure to sun light.

• Do not open the package as you buy a new capsule. Open the package just before using in the tumble dryer.

• Do not throw away the capsule housing in order to use with the new fragrance capsules. (See fig.4-5)

• Capsules can only be used in dedicated slot. Do not use capsules directly in the drum. Capsules are not suitable for drum usage. It may harm drum and laundry in case of contact.
  Life cycle of the fragrance capsules is 30 cycles. (in declaration program, half load, normal wet laundry condition)
• In case of lint accumulation over the capsule, wipe the lints by a soft damp cloth or by hand. Do not flush fragrance capsule or housing with water.
• Do not use damped capsule or housing.
• Do not fill the fragrance capsule with foreign substances due to the safety risks.
• In case of spilling of fragrance substances from the capsule, collect carefully the content and throw away according to the instructions given in the packaging. Clean the surface of machine which contact with the substance by damp cloth.
• In case of contact with skin, flush immediately with water and soap. In case of contact with mouth and eyes, flush immediately with water for at least 20 minutes. In case of swallowing consult a physician.
• Do not throw away fragrance manual and keep it with your dryer user manual.

4.Installing the Fragrance Capsule

• Capsule package is in the user manual package.
• Unpackage the fragrance group. (See fig.6)
• Remove the capsule bag. (See fig.7)

i	NOTE
Fragrance capsule group contains capsule and housing.

警告!	WARNING!
Do not use pair of scissors, knife etc. to remove the bag. It may harm the capsule.
Never use the fragrance capsule without removing the bag.

• Place the fragrance capsule as the colored side (perforated surface) will be on the visible side while the white side will be on the backward. (See fig.8)
• If the odor application is undesirable, place the white side of the fragrance capsule (unperforated surface) as visible. (See fig.9)
• Remove the lint filter by pulling it up or heat exchanger cover by rotating the cover locks. (See fig.10/A or 10/B)
• Place the fragrance group to the dedicated slot that is below the filter by using protrusion in the housing. (See fig.11)
• Place the lint filter back into its housing.
• Operate your dryer with odor application.

i	NOTE
You can use odor application with all the programmes. The effectiveness of the odor application increase with the wet laundry and long programme durations. Distribution of odor may not be sufficient with the refresh programme. Odor may be smelt in the room during operation of the dryer.

5. After Drying Operation

• After drying operation remove the lint filter and clean. (see user manual of the dryer)
• Remove capsule group in its place.
• Place the white side of the fragrance capsule (unperforated surface) as visible.
• Place the fragrance group to the dedicated slot that is below the filter by using protrusion in the housing. Place the lint filter back into its housing.

i	NOTE
If the dryer is not operated or if the odor application is undesirable, place the white side of the fragrance capsule (unperforated surface) as visible, upward to the capsule housing. It is recommended for prolonged the life cycle of the fragrance capsule.
Small amount of odor may spread while the capsule is closed.
If there is no odor desired in the dryer, keep the fragrance capsule outside from dryer with sealed bag.
