USER MANUAL GEBM19300BMP GRUNDIG

FREN / 2 Welcome! Dear Customer, Thank you for choosing the Grundig product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product. Keep in mind all the information and warnings stated in the user’s manual. This way, you will protect yourself and your product against the dangers that may occur. Keep the user’s manual. If you give the product to someone else, give the manual with it. The warranty conditions, usage and troubleshooting methods for your product are provided in this manual. The symbols and their descriptions in the user’s manual: Hazard that may result in death or injury. Important information or useful usage tips. Read the user’s manual. Hot surface warning. NOTICE Hazard that may result in material damage to the product or its environment.EN / 3 Table of Contents 1 Safety Instructions......................... 4

1.10 Maintenance and Cleaning Safety 10

1.11 High temperature self-cleaning

2.1.1 Compliance with the WEEE Dir-

2.3 Recommendations for Energy

3.2.2 Introduction of the oven control

5.2 Operation of the Oven Control

6.1 General Warnings About Baking

6.1.1 Pastries and oven food.............. 24

7 Maintenance and Cleaning............. 30

7.4 Cleaning the inside of the oven

7.6 High temperature self-cleaning .... 33

7.7 Cleaning the Oven Door................. 35

7.8 Removing the Inner Glass of The

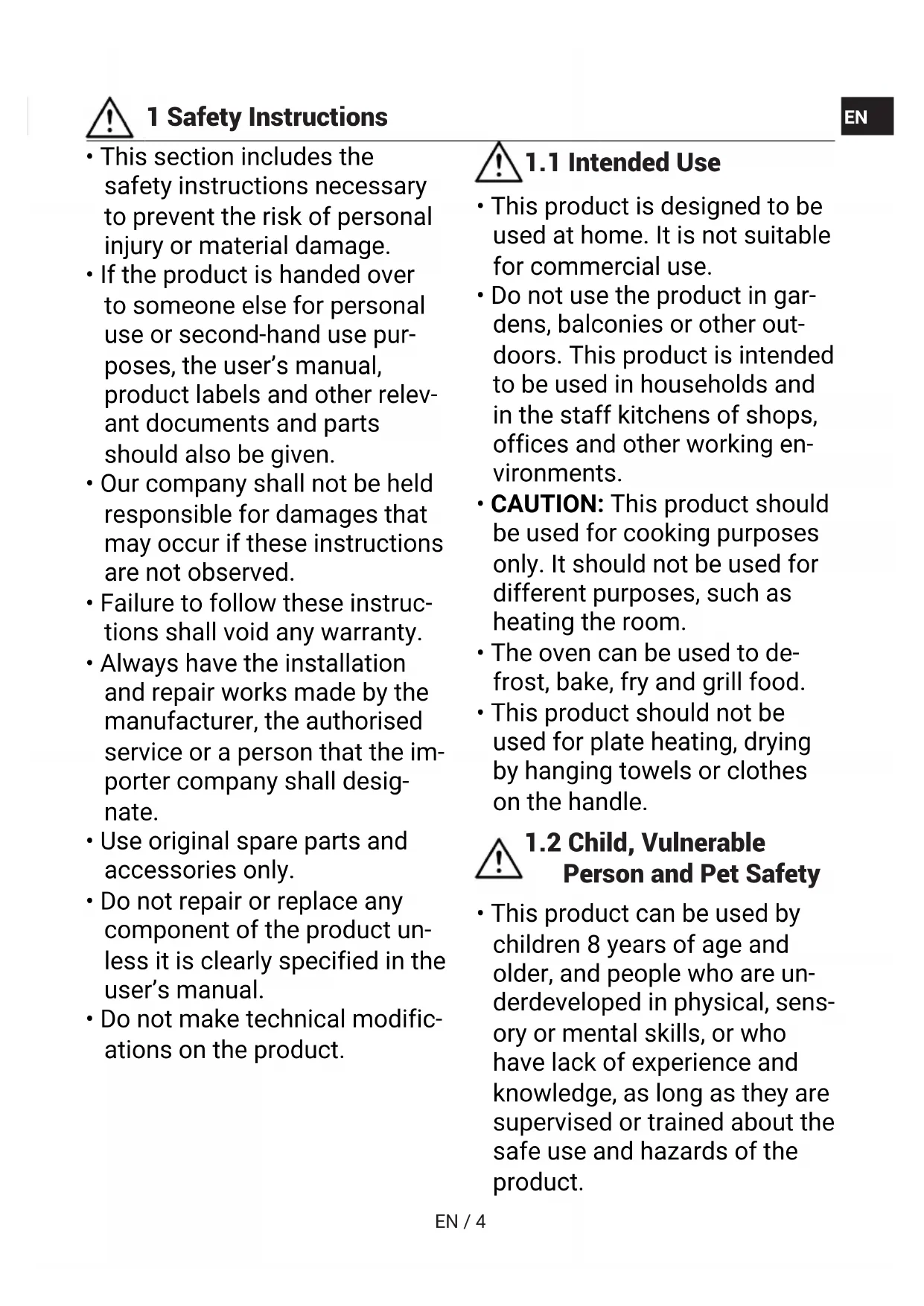

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.

• If the product is handed over to someone else for personal use or second-hand use pur- poses, the user’s manual, product labels and other relev- ant documents and parts should also be given.

• Our company shall not be held responsible for damages that may occur if these instructions are not observed.

• Failure to follow these instruc- tions shall void any warranty.

• Always have the installation and repair works made by the manufacturer, the authorised service or a person that the im- porter company shall desig- nate.

• Use original spare parts and accessories only.

• Do not repair or replace any component of the product un- less it is clearly specified in the user’s manual.

• Do not make technical modific- ations on the product.

• This product is designed to be used at home. It is not suitable for commercial use.

• Do not use the product in gar- dens, balconies or other out- doors. This product is intended to be used in households and in the staff kitchens of shops, offices and other working en- vironments.

• CAUTION: This product should be used for cooking purposes only. It should not be used for different purposes, such as heating the room.

• The oven can be used to de- frost, bake, fry and grill food.

• This product should not be used for plate heating, drying by hanging towels or clothes on the handle.

1.2 Child, Vulnerable

Person and Pet Safety

• This product can be used by children 8 years of age and older, and people who are un- derdeveloped in physical, sens- ory or mental skills, or who have lack of experience and knowledge, as long as they are supervised or trained about the safe use and hazards of the product.

• Children should not play with the product. Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.

• This product should not be used by people with limited physical, sensory or mental ca- pacity (including children), un- less they are kept under super- vision or receive the necessary instructions.

• Children should be supervised to ensure that they do not play with the product.

• Electrical products are danger- ous for children and pets. Chil- dren and pets must not play with, climb on, or enter the product.

• Do not put objects that chil- dren may reach on the product.

• CAUTION: During use, the ac- cessible surfaces of the product are hot. Keep children away from the product.

• Keep the packaging materials out of the reach of children. There is a hazard of injury and suffocation.

• When the door is open, do not put any heavy objects on it or allow children to sit on it. You may cause the oven to tip over or damage the door hinges.

• Before discarding worn out and useless products:

1. Unplug the power plug and

remove it from the socket.

2. Cut off the power cable and

disconnect it with the plug from the product.

3. Take precautions to prevent

children from entering the product.

4. Do not allow children to play

with product when it is in idle mode.

1.3 Electrical Safety

• Plug the product into a groun- ded outlet protected by a fuse that matches the current rat- ings indicated on the type la- bel. Have the grounding install- ation made by a qualified elec- trician. Do not use the product without grounding in accord- ance with local / national regu- lations.

• The plug or the electrical con- nection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to which the product is connec- ted, in compliance with the electrical regulations and sep- arating all poles from the net- work.

• Unplug the product or switch off the fuse before repair, maintenance and cleaning.

• Plug the product into an outlet that meets the voltage and fre- quency values specified on the type label.

• (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.

• Do not jam the power cable un- der and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.

• Make sure that the power cable is not jammed while put- ting the product to its place after assembly or cleaning.

• The rear surface of the oven gets hot when it is in use. The power cables must not touch the rear surface of the product. Otherwise it might get dam- aged.

• Do not jam the electric cables into the oven door and do not pass them over hot surfaces. Otherwise, cable insulation may melt and cause fire as a result of short circuit.

• Use original cable only. Do not use cut or damaged cables.

• Do not use an extension cord or multi-plug to operate your product.

• Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is ne- cessary.

• Contact the importer or the au- thorized service centre if the length of the power line is in- adequate.

• Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.

• If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be spe- cified by the importer company in order to prevent possible dangers.

• CAUTION: Before replacing the oven lamp, be sure to discon- nect the product from the mains supply to avoid the risk of electric shock. Unplug the product or turn off the fuse from the fuse box. If your product has a power cable and plug:

• Never put the product plug into a broken, loose, or out-of- socket plug. Make sure the plug is fully inserted into the socket. Otherwise the connec- tions may overheat and cause a fire.

• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to water (such as those near a worktop where water may escape). Oth- erwise there is a risk of short circuit and electrocution.

• Never touch the plug with wet hands!

• Pull the plug out of the socket using the plug's body rather than the cord itself.

• Disconnect the product from the mains before transporting the product.

• The product is heavy, carry the product with at least two people.

• Do not use the door and / or handle to transport or move the product.

• Do not place items on the ap- pliance. Carry the appliance vertically.

• When you need to transport the product, wrap it with bubble wrap packaging mater- ial or thick cardboard and tape it tightly. Secure the moving parts of the product firmly to prevent damage.

• Before the product is installed, check the product for any dam- age after transport. Contact the importer or the authorized service centre if damaged.

1.5 Installation Safety

• Before beginning the installa- tion, de-energize the power line to which the product will be connected by turning off the fuse.

• Always wear protective gloves during transport and installa- tion. Otherwise there is a risk of injury from sharp edges!

• Before the product is installed, check the product for any dam- age. Do not have it installed if the product is damaged.

• Avoid using any heat-insulating materials to cover the interior of the furniture that will be in- stalled.

• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.

• Keep the surroundings of all ventilation ducts of the product open.

• To avoid overheating, product installation should not be car- ried out behind decorative cov- ers.

• In cases where a gas hose/ pipe or plastic water pipe is situated behind the designated installation area for the product, it is imperative to guarantee that there is no con- tact between the product and these utility lines. Otherwise the hose/pipe may be crushed.

• If there is a socket behind the place where the product will be installed, it must be ensured that the product does not come into contact with the socket nor with the plug plugged into the socket.

• Ensure that the appliance is switched off after every use.

• If you will not use the product for a long time, unplug it or turn off the power from the fuse box.

• Don't use the product if it breaks down or gets damaged while being used. Disconnect the product from the electri- city. Contact the importer or the authorized service centre.

• Do not use the product if the front door glass is removed or cracked. Otherwise there is a risk of injury and environ- mental damage.

• Do not step on the appliance for any reason.

• Never use the product when your judgement or coordina- tion is impaired by the use of alcohol and/or drugs.

• Flammable objects must not be kept in and around the cooking area. Otherwise, these may lead to fire.

• The oven handle is not a towel dryer. When using the product, do not hang towels, gloves or similar textiles on the handle.

• The hinges of the product door move when opening and clos- ing the door and might jam. When opening / closing the door, do not hold the part with the hinges.

• CAUTION: When the product is in use, the product and its ac- cessible parts will be hot. Care should be taken to avoid touching the product and heat- ing elements. Children under 8 years of age should be kept away from the product unless constantly supervised.

• Do not place flammable / ex- plosive materials near the product, as the surfaces will be hot while it is operating.

• Keep your distance when opening the oven door during or at the end of cooking. The steam may burn your hand, face and/or eyes.

• During operation the product is hot. Care should be taken to avoid touching hot parts, in- side of the oven and heating elements.

• Always wear heat-resistant oven gloves when handling the product.

• It is important that the wire grill and tray are placed prop- erly on the wire shelves. For detailed information, refer to the section "Usage of ac- cessories".

• Close the oven door after pushing the accessories com- pletely into the cooking space, otherwise they may hit the door glass and damage it.

• Be careful when using alco- holic drinks in your dishes. Al- cohol evaporates at high tem- peratures and may cause fire since it can ignite when it comes into contact with hot surfaces.

• Food residues in the cooking area., such as oil, can ignite. Clean these residues before cooking.

• Food Poisoning Hazard: Do not let food sit in oven for more than 1 hour before or after cooking. Otherwise it may cause food poisoning or dis- eases.

• Do not heat closed tins and glass jars in the oven. The pressure that would build-up in the tin/jar may cause it to burst.

• Do not place baking trays, dishes or aluminium foil dir- ectly onto the bottom of the oven. The accumulated heat might damage the bottom of the oven. Be mindful of the following pre- cautions when using greasy parchment paper or similar ma- terials:

• Place the greaseproof paper in a cookware or on the oven ac- cessory (tray, wire grill, etc.) with food and place it in the preheated oven.

• To prevent the risk of touching the oven heating elements and obstructing the flow of hot air, remove any excess parts of

FREN / 10 greaseproof paper that hang from accessories or contain- ers. Do not use greaseproof paper at oven temperatures higher than the maximum us- age temperature specified by the manufacturer. Never place greaseproof paper on the oven base.

• Do not place it on top of ac- cessories during preheating.

• Always press down with a plate or similar object to pre- vent the material from flying around due to the air circula- tion inside the oven.

• Only cover the necessary sur- face inside the tray.

• After each use, the tray should be cleaned, and any greaseproof paper or similar materials used in the tray should be replaced. Otherwise, liquids dripping onto the tray can cause smoking or even ig- nite flames.

• An air flow is generated when the product lid is opened. Greaseproof paper can come into contact with heating ele- ments and ignite.

• When using a grilling rack for frying, a tray should be placed on the lower rack. Otherwise, the food oil and other compon- ents that drip onto the oven bottom can create heavy smoke and lead to flames.

• Close the oven door during grilling. Hot surfaces may cause burns!

• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.

1.10 Maintenance and

• Wait for the product to cool be- fore cleaning the product. Hot surfaces may cause burns!

• Never wash the product by spraying or pouring water on it! There is the risk of electric shock!

• Do not use steam cleaners to clean the product as this may cause an electric shock.

• Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven front door glass. These materials can cause glass surfaces to be scratched and broken.

1.11 High temperature

self-cleaning (Pyro- lysis)

• During self-cleaning, the sur- faces become hotter than in standard use. Keep children away.

• Hot surfaces cause burns! Do not touch the product during self-cleaning and keep children away from the product. Wait at least 30 minutes before remov- ing the residue.

• During self-cleaning, smoke will be released due to the burning of food residues. Vent- ilate your kitchen well during the cleaning process.

• Before starting the cleaning, clean the outer surfaces of the oven and the food residues in- side the oven with soapy cloth. Remove all accessories and cooking utensils from the oven. If your product has a pyro proof accessory (resist- ant to high temperature self- cleaning), you do not need to remove these accessories from the oven.

• If there is a hob over your oven, do not operate the hob during prolysis. 2 Environmental Instructions

2.1.1 Compliance with the WEEE Dir-

ective and Disposing of the Waste Product This product complies with EU WEEE Dir- ective (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manu- factured with high quality parts and materials which can be re- used and are suitable for recyc- ling. Therefore, do not dispose of the waste product with nor- mal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and elec- tronic equipment. You can ask your local administration about these collection points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health. Compliance with RoHS Directive: The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the pack- aging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

2.3 Recommendations for Energy

Saving According to EU 66/2014, information on energy efficiency can be found on the product receipt supplied with the product. The following suggestions will help you use your product in an ecological and energy-ef- ficient way:

• Defrost frozen food before baking.

• In the oven, use dark or enamelled con- tainers that transmit heat better.

• If specified in the recipe or user’s manual, always preheat. Do not open the oven door frequently during baking.

• Turn off the product 5 to 10 minutes be- fore the end time of baking in prolonged bakings. You can save up to 20% electri- city by using residual heat.

• Try to cook more than one dish at a time in the oven. You may cook at the same time by placing two cookers on the wire rack. In addition, if you cook your meals one after the other, it will save energy be- cause the oven will not lose its heat.

• Do not open the oven door when baking in the “Eco fan heating” operating func- tion. If the door is not opened, the in- ternal temperature is optimized to save energy in the “Eco fan heating” operating function, and this temperature may differ from what is shown on the display.

FREN / 13 3 Your product

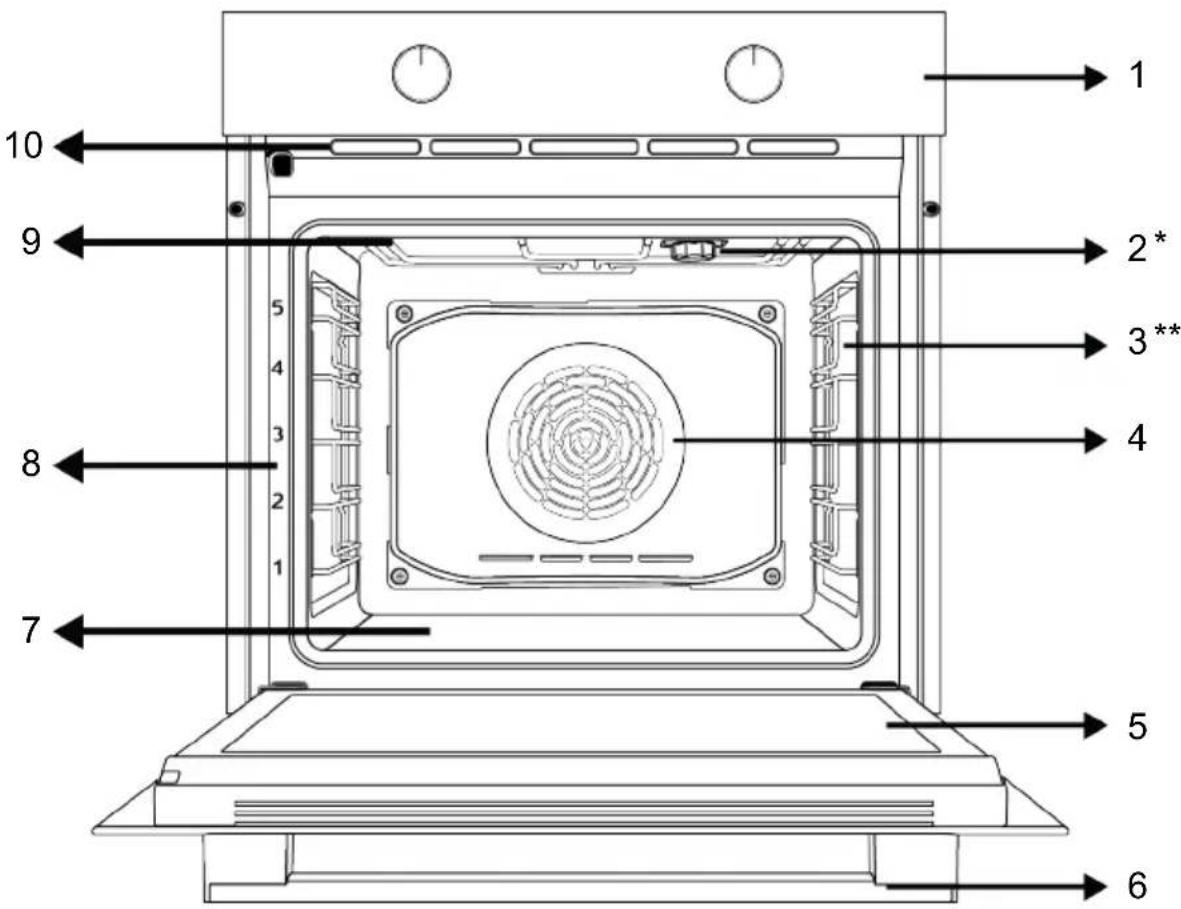

Varies depending on the model. Your productmay not be equipped with a lamp, or the type andlocation of the lamp may differ from the illustra-tion. Varies depending on the model. Your productmay not be equipped with a wire rack. In the im-age, a product with wire rack is shown as an ex-ample.

3.2 Product Control Panel Introduc-

tion and Usage In this section, you can find the overview and basic uses of the product's control panel. There may be differences in images and some features depending on the type of product.

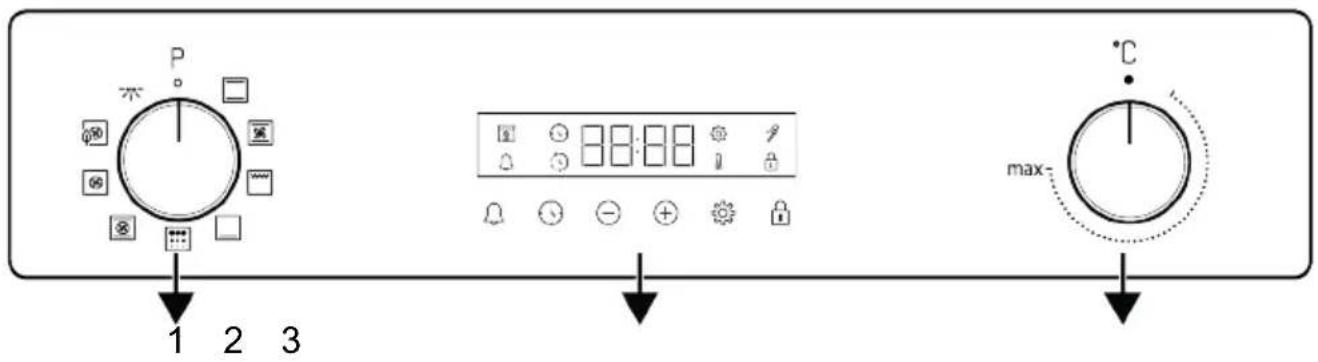

1 Function selection knob 2 Timer 3 Temperature knob If there are knob(s) controlling your product, in some models this/these knob(s) may be so that they come out when pushed (buried knobs). For settings to be made with these knobs, first push the relevant knob in and pull out the knob. After making your adjustment, push it in again and re- place the knob.

3.2.2 Introduction of the oven control

panel Function selection knob You can select the oven operating func- tions with the function selection knob. Turn left / right from closed (top) position to se- lect. Temperature knob You can select the temperature you want to cook with the temperature knob. Turn clockwise from the closed (top) position to select. Oven inner temperature indicator You can see the interior temperature of the oven on the timer display. The oven heats up until it reaches the set temperature and maintains this temperature and the 3-line heating animation flashes to the far right. When the oven temperature reaches the set value, this animation stops and the “C” symbol appears constantly next to the set temperature value. Timer 1 Alarm key 2 Time setting key 3 Decrease key 4 Increase key 5 Settings key 6 Key lock key Display symbols : Baking time symbol : Baking end time symbol * : Alarm symbol : Meat probe symbol * : Key lock symbol : Temperature symbol : Settings symbol : Door lock symbol *

• It varies depending on the product model. It may not be available on your product.

3.3 Oven operating functions

On the function table, the operating func- tions you can use in your oven and the highest and lowest temperatures that can be set for these functions are shown. The

FREN / 15 order of the operating modes shown here may differ from the arrangement on your product. Function symbol Function description Temperature range (°C) Description and use Oven lamp - No heater works in the oven. Only the oven lamp lights up. Top and bottom heat- ing 40-280 Food is heated from above and below at the same time. Suit- able for cakes, pastries or cakes and stews in baking moulds. Cooking is done with a single tray. Bottom heating 40-220 Only lower heating is on. It is suitable for foods that need browning on the bottom. This function should also be used for easy steam cleaning. Fan assisted bottom/ top heating 40-280 The hot air heated by the upper and lower heaters is distributed equally and rapidly throughout the oven with the fan. Cooking is done with a single tray. Fan Heating 40-280 The hot air heated by the fan heater is distributed equally and rapidly throughout the oven with the fan. It is suitable for multi- tray cooking at different shelf levels. Eco fan heating 160-220 In order to save energy, you can use this function instead of us- ing “Fan Heating” in the range of 160-220°C. But; cooking time will be slightly longer. "3D" function 40-280 Upper heating, lower heating and fan heating functions oper- ate. Each side of the product to be cooked is cooked equally and quickly. Cooking is done with a single tray. Full grill 40-280 The large grill on the oven ceiling works. It is suitable for grilling in large amounts. Pyrolysis - It is used for self-cleaning of the oven at high temperature. Look at the specifications in the maintenance and cleaning section for this function.

3.4 Product Accessories

There are various accessories in your product. In this section, the description of the accessories and the descriptions of the correct usage are available. Depending on the product model, the supplied accessory varies. All accessories described in the user’s manual may not be available in your product. The trays inside your appliance may be deformed with the effect of the heat. This has no effect on the functionality. Deformation disap- pears when the tray is cooled. Standard tray It is used for pastries, frozen foods and fry- ing large pieces.

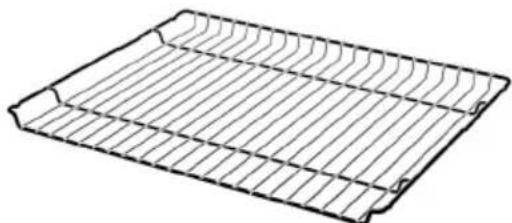

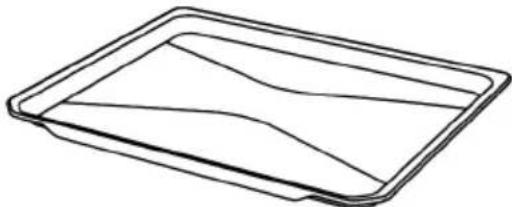

FREN / 16 Pastry tray It is used for pastries such as cookies and biscuits. Wire grill It is used for frying or placing the food to be baked, fried and stewed on the desired shelf. On models with wire shelves : On models without wire shelves :

3.5 Use of Product Accessories

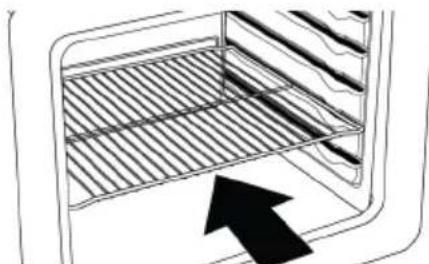

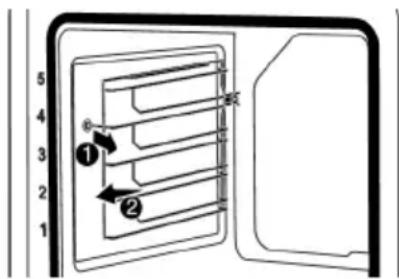

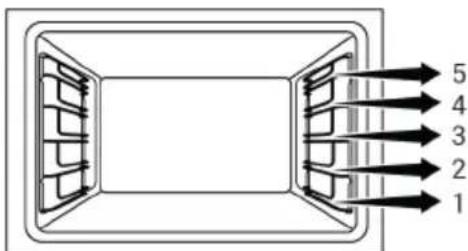

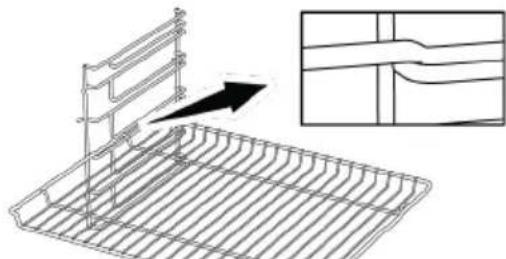

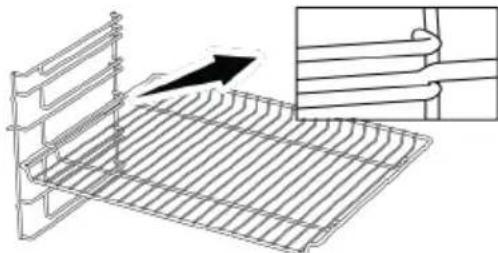

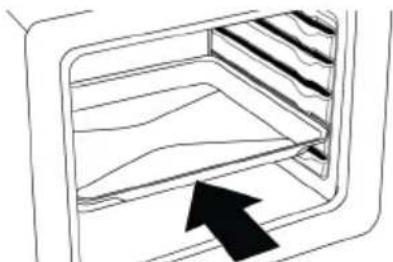

Cooking shelves There are 5 levels of shelf position in the cooking area. You can also see the order of the shelves in the numbers on the front frame of the oven. On models with wire shelves : On models without wire shelves : Placing the wire grill on the cooking shelves On models with wire shelves : It is crucial to place the wire grill on the wire side shelves properly. While placing the wire grill on the desired shelf, the open section must be on the front. For better cooking, the wire grill must be secured on the wire shelf’s stopping point. It must not pass over the stopping point to contact with the rear wall of the oven. On models without wire shelves : It is crucial to place the wire grill on the side shelves properly. The wire grill has one direction when placing it on the shelf. While placing the wire grill on the desired shelf, the open section must be on the front. Placing the tray on the cooking shelves On models with wire shelves : It is also crucial to place the trays on the wire side shelves properly. While placing the tray on the desired shelf, its side de- signed for holding must be on the front. For better cooking, the tray must be secured on

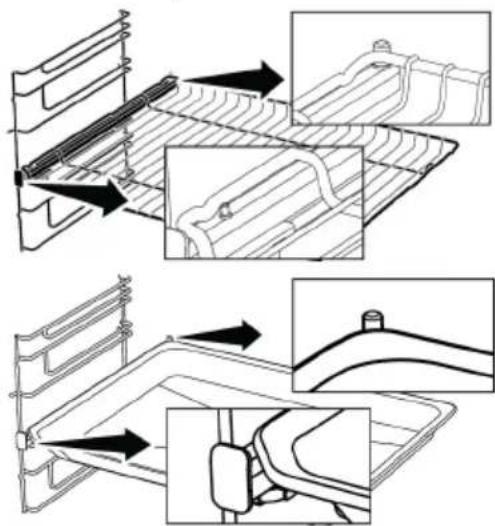

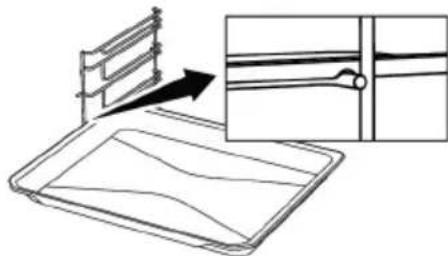

FREN / 17 the stopping socket on the wire shelf. It must not pass over the stopping socket to contact with the rear wall of the oven. On models without wire shelves : It is also crucial to place the trays on the side shelves properly. The tray has one dir- ection when placing it on the shelf. While placing the tray on the desired shelf, its side designed for holding must be on the front. Stopping function of the wire grill There is a stopping function to prevent the wire grill from tipping out of the wire shelf. With this function, you can easily and safely take out your food. While removing the wire grill, you can pull it forward until it reaches the stopping point. You must pass over this point to remove it completely. On models with wire shelves : On models without wire shelves : Tray stopping function - On models with wire shelves There is also a stopping function to prevent the tray from tipping out of the wire shelf. While removing the tray, release it from the rear stopping socket and pull it towards yourself until it reaches the front side. You must pass over this stopping socket to re- move it completely. Proper placement of the wire grill and tray on the telescopic rails-On models with wire shelves and telescopic models Thanks to telescopic rails, trays or the wire grill can be easily installed and removed. When using trays and wire grills with the telescopic rail, care should be taken that the pins on the front and back of the tele- scopic rails, rest against the edges of the grill and the tray (shown in the figure).

Voltage/Frequency 220-240 V ~; 50 Hz Cable type and section used/suitable for use in the product min. H05VV-FG 3 x 1,5 mm2 Total power consumption (kW) 3,3 Oven type Multifunction oven Basics: Information on the energy label of home type electrical ovens is given in accordance with the EN 60350-1 / IEC 60350-1 standard. The values are determined in Top and bottom heating or (if present) Fan assisted bottom/top heating functions with the standard load. Energy efficiency class is determined in accordance with the following prioritization depending on whether the relev- ant functions exist on the product or not. 1-Eco fan heating , 2-Fan Heating , 3-Fan assisted low grill , 4-Top and bot- tom heating. Technical specifications may be changed without prior notice to improve the qual- ity of the product. Figures in this manual are schematic and may not exactly match your product. Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depend- ing on operational and environmental conditions of the product, these values may vary.EN / 19 4 First Use Before you start using your product, it is re- commended to do the following stated in the following sections respectively.

4.1 First Timer Setting

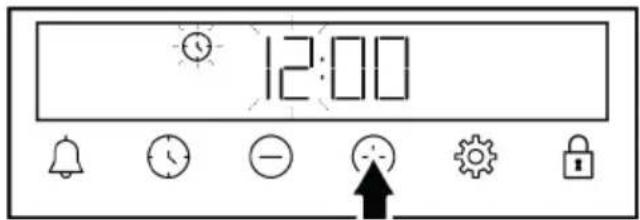

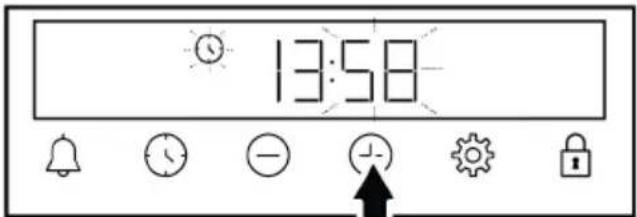

Always set the time of day before using your oven. If you do not set it, you cannot cook in some oven models.

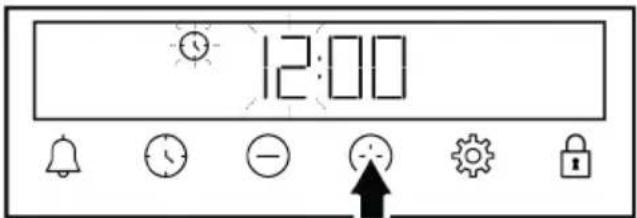

1. When the oven is first started, "12:00"

and symbol will flash on the display.

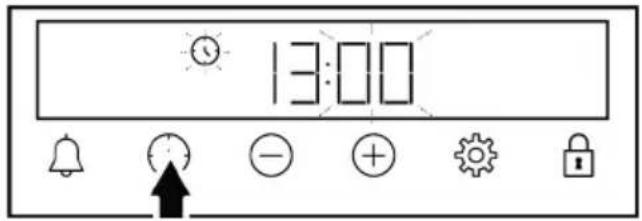

2. Set the time of day by touching the /

3. Touch or key to activate the

4. Touch the / keys to set the minute.

5. Confirm the setting by touching the

key. ð The time of day is set and the sym- bol disappears on the display. If the first timer is not set, “12:00” and symbol continue to flash and your oven will not start. For your oven to function, you must confirm the time of day by setting the time of day or touching the key when it is at "12:00". You can change the time of day setting later as described in the “Settings” sec- tion. In the event of a power outage, the time of day settings are cancelled. It should be set again.

4.2 Initial Cleaning

1. Remove all packaging materials.

2. Remove all accessories from the oven

provided with the product.

3. Operate the product for 30 minutes and

then, turn it off. This way, residues and layers that may have remained in the oven during production are burned and cleaned.

4. When operating the product, select the

highest temperature and the operating function that all the heaters in your product operate. See “Oven operating functions [}14]”. You can learn how to operate the oven in the following sec- tion.

5. Wait for the oven to cool.

6. Wipe the surfaces of the product with a

wet cloth or sponge and dry with a cloth. Before using the accessories: Clean the accessories you remove from the oven with detergent water and a soft clean- ing sponge. NOTICE: Some detergents or cleaning agents may cause damage to the surface. Do not use abrasive detergents, cleaning powders, cleaning creams or sharp objects during cleaning.

FREN / 20 NOTICE: During the first use, smoke and odour may come up for several hours. This is normal and you just need good ventila- tion to remove it. Avoid directly inhaling the smoke and odours that form. 5 Using the Oven

5.1 General Information on Using the

Oven Cooling fan ( It varies depending on the product model. It may not be available on your product. ) Your product has a cooling fan. The cooling fan is activated automatically when neces- sary and cools both the front of the product and the furniture. It is automatically deac- tivated when the cooling process is fin- ished. Hot air comes out over the oven door. Do not cover these ventilation open- ings with anything. Otherwise, the oven may overheat. The cooling fan continues to operate during oven operation or after the oven is turned off (approximately 20-30 minutes). If you cook by programming the oven timer, at the end of the baking time, the cooling fan turns off with all functions. The cooling fan running time cannot be de- termined by the user. It turns on and off automatically. This is not an error. Oven lighting The oven lighting is turned on when the oven starts baking. In some models, the lighting is on during baking, while in some models it turns off after a certain time. In some baking functions the lamp never turns on to save energy. If you wish the oven lamp to be on incess- antly, select the “Oven lamp” operating status with the function selection knob.

5.2 Operation of the Oven Control

Unit General warnings for the oven control unit

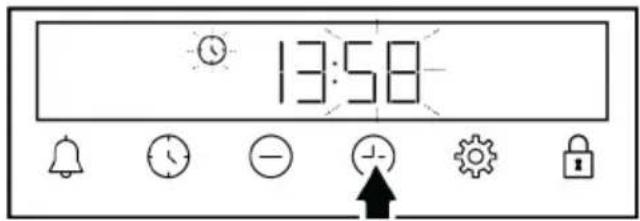

• The maximum time that can be set for the baking process is 5 hours 59 minutes. In case of a power failure, the program is canceled. You will need to re- program.

• While making any adjustments, the relev- ant symbols flash on the display. A short time should be waited for the settings to be saved.

• If any baking setting has been made, the time of day cannot be adjusted.

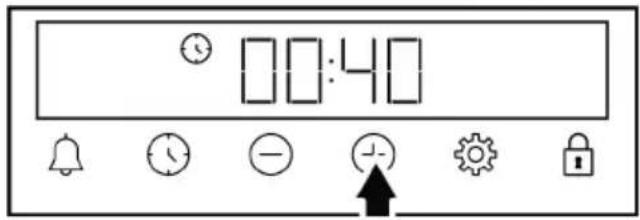

• If baking time is set when baking starts, the remaining time is shown on the dis- play.

• In cases where baking time or baking end time is set; you can cancel automatically by touching the key for a long time. Timer 1 Alarm key 2 Time setting key 3 Decrease key 4 Increase key 5 Settings key 6 Key lock key Display symbols : Baking time symbol : Baking end time symbol * : Alarm symbol : Meat probe symbol *

• It varies depending on the product model. It may not be available on your product. Turning on the oven When you select a operating function you want to cook with the function selection knob and set a certain temperature with the temperature knob, the oven starts operat- ing. Turning off the oven You can turn the oven off by turning the function selection knob and temperature knob to the off (up) position. Manual baking to select temperature and oven operating function You can cook by making a manual control (at your own control) without setting the baking time by selecting the temperature and operating function specific to your food.

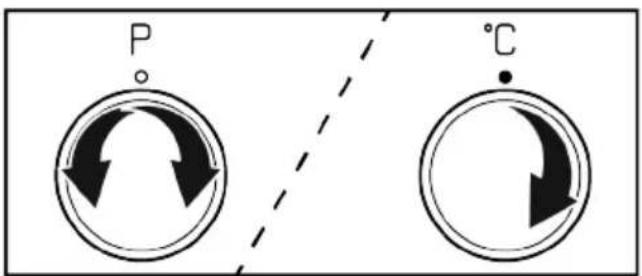

1. Select the operating function you want

to cook with the function selection knob.

2. Set the temperature you want to cook

with the temperature knob. ð Your oven will start operating immedi- ately at the selected function and tem- perature and will appear on the dis- play. The set temperature value and 3- line animation appear on the display. Afterwards, the time elapsed since the start of baking is displayed in order. When the temperature inside the oven reaches the set temperature the symbol disappears and it gives you an audible warning. The 3-line animation appearing on the display stops and the C symbol appears fixed next to the temperature value. The oven does not switch off automatically since manual baking is done without setting the bak- ing time. You have to control baking and turn it off yourself. When your bak- ing is completed, turn off the oven by turning the function selection knob and the temperature knob to the off (up) position. Baking by setting the baking time: You can have the oven turn off automatic- ally at the end of the time by selecting the temperature and operating function spe- cific to your food and setting the baking time on the timer.

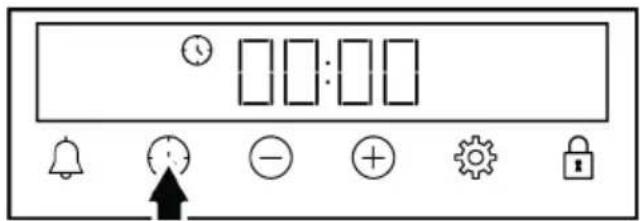

1. Select the operating function for baking.

2. Touch the key until the symbol ap-

pears on the display for the baking time. To quickly set the baking time, you can touch the key to set the bak- ing time to 30 minutes after setting the baking function and temperat- ure then use / keys to change the time.

3. Set the baking time with the / keys.

The baking time increases by 1 minute in the first 15 minutes and by 5 minutes after 15 minutes.

4. Put your food in the oven and set the

temperature with the temperature knob.

FREN / 22 ð Your oven will start operating im- mediately at the selected function and temperature. The set baking time starts counting down and appears on the display. The baking time counting down and the set temperature value and the 3-line animation next to them are dis- played in order. When the temper- ature inside the oven reaches the set temperature the symbol dis- appears and it gives you an audible warning. The 3-line animation ap- pearing on the display stops and the C symbol appears fixed next to the temperature value.

5. When the baking time set has expired,

the "End" message is shown on the dis- play, the symbol flashes and the timer gives an audible warning.

6. The warning sounds for two minutes.

Touch any key to stop the audible warn- ing. The warning stops and the time of day appears on the display. If any key is pushed at the end of the audible warning, the oven will start operating again. To prevent the oven from operating again at the end of the warning, turn off the oven by turning the temperature knob and function knob to the “0” (off) position.

Activating the key lock By using the key lock feature, you can safe- guard the timer from interference.

1. Touch the key until the symbol ap-

pears on the display. ð The symbol is shown on the display and the 3-2-1 count down starts. The key lock activates when the countdown ends. When any key is touched after the key lock is set, the timer sounds an audible signal and the symbol flashes. If you release the key before the end of the countdown, the key lock does not activate. Timer keys cannot be used when the key lock is on. The key lock will not be cancelled in case of power failure. Deactivating the key lock

1. Touch the key until the symbol dis-

appears from the display. ð The symbol disappears from the dis- play and the key lock is disabled. Setting the alarm You can also use the timer of the product for any warning or reminder other than bak- ing. The alarm clock has no effect on the oven operating functions. It is used for warning purposes. For example, you can use the alarm clock when you want to turn the food in the oven at a certain time. As soon as the time you set has expired, the timer gives you an audible warning. The maximum alarm time may be 23 hours 59 minutes.

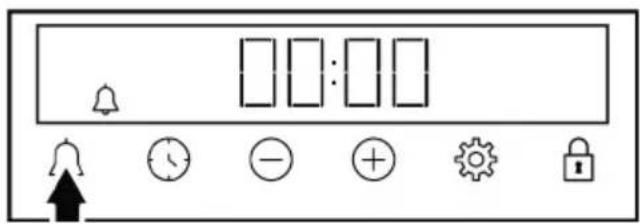

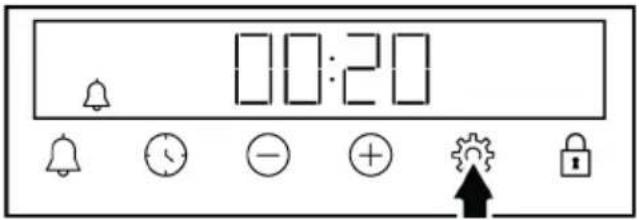

1. Touch the key until the symbol ap-

pears on the display.

2. Set the alarm time with the / keys.

ð After setting the alarm time, the symbol remains lit and the alarm time starts to countdown on the display. If the alarm time and bak- ing time are set at the same time, the shorter time is shown on the display.

3. After the alarm time is completed, the

symbol starts flashing and gives you an audible warning. Turning off the alarm

1. At the end of the alarm period, the warn-

ing sounds for two minutes. Touch any key to stop the audible warning. ð The warning stops and the time of day appears on the display. If you want to cancel the alarm;

1. Touch the key until the symbol ap-

pears on the display to reset the alarm time. Touch the key until the “00:00” symbol appears on the display.

2. You can also cancel the alarm by press-

ing the key for a long time. Adjusting the volume

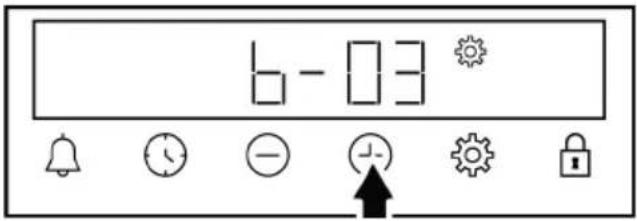

1. Touch the key until one of the values

b-01-b-02-b-03 and the symbol ap- pear on the display.

2. Set the desired level with the / keys.

(b-01-b-02-b-03) ð Touch the key for confirmation or wait without touching any key. The volume set becomes active after a while. Setting the display brightness

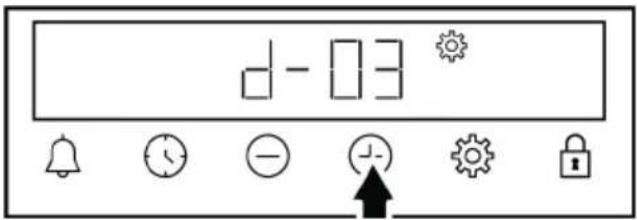

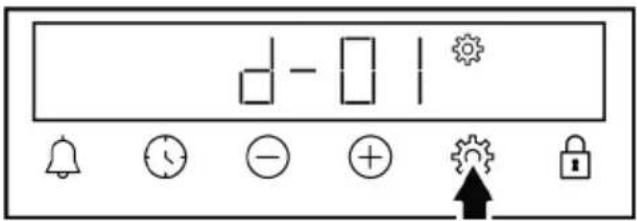

1. Touch the key until one of the values

d-01-d-02-d-03 and the symbol ap- pear on the display.

2. Set the desired brightness with the /

keys. (d-01-d-02-d-03) ð Touch the key for confirmation or wait without touching any key. The brightness set becomes active after a while. Changing the time of day On your oven to change the time of day that you have previously set:

1. Touch the key until the symbol ap-

pears on the display.

2. Set the time of day by touching the /

3. Touch or key to activate the

4. Touch the / keys to set the minute.

5. Confirm the setting by touching the

key. ð The time of day is set and the symbol disappears on the display. 6 General Information About Baking You can find tips on preparing and cooking your food in this section. Plus, this section describes some of the foods tested as producers and the most appropriate settings for these foods. Ap- propriate oven settings and accessories for these foods are also indicated.

6.1 General Warnings About Baking in

• While opening the oven door during or after baking, hot-burning steam may emerge. The steam may burn your hand, face and/or eyes. When opening the oven door, stay away.

• Intense steam generated during baking may form condensed water drops on the interior and exterior of the oven and on the upper parts of the furniture due to the temperature difference. This is a normal and physical occurrence.

• The cooking temperature and time values given for foods may vary depending on the recipe and amount. For this reason, these values are given as ranges.

• Always remove unused accessories from the oven before you start cooking. Ac- cessories that will remain in the oven may prevent your food from being cooked at the correct values.

• For foods that you will cook according to your own recipe, you can reference sim- ilar foods given in the cooking tables.

• Using the supplied accessories ensures you get the best cooking performance. Always observe the warnings and inform- ation provided by the manufacturer for the external cookware you will use.

• Cut the greaseproof paper you will use in your cooking in suitable sizes to the con- tainer you will cook. Greaseproof papers that are overflowing from the container can create a risk of burns and affect the quality of your baking. Use the greaseproof paper you will use in the temperature range specified.

• For good baking performance, place your food on the recommended correct shelf. Do not change the shelf position during baking.

6.1.1 Pastries and oven food

• We recommend using the accessories of the product for a good cooking perform- ance. If you will use an external cook- ware, prefer dark, non-sticking and heat resistant ware.

• If preheating is recommended in the cooking table, be sure to put your food in the oven after preheating.

• If you will cook by using cookware on the wire grill, place it in the middle of the wire grill, not near the back wall.

• All materials used in making pastry should be fresh and at room temperat- ure.

• The cooking status of the foods may vary depending on the amount of food and the size of the cookware.

• Metal, ceramic and glass moulds extend the cooking time and the bottom sur- faces of pastry foods do not brown evenly.

• If you are using baking paper, a small browning can be observed on the bottom surface of the food. In this situation, you may have to extend your cooking period by approximately 10 minutes.

• The values specified in the cooking tables are determined as a result of the tests carried out in our laboratories. Val- ues suitable for you may differ from these values.

• Place your food on the appropriate shelf recommended in the cooking table. Refer to the bottom shelf of the oven as shelf

Tips for baking cakes

• If the cake is too dry, increase the tem- perature by 10°C and shorten the baking time.

• If the cake is moist, use a small amount of liquid or reduce the temperature by 10°C.

• If the top of the cake is burnt, put it on the lower shelf, lower the temperature and increase the baking time.

• If the inside of the cake is cooked well, but outside is sticky, use less liquid, de- crease the temperature and increase the cooking time. Hints for pastry

• If the pastry is too dry, increase the tem- perature by 10 °C and shorten the cook- ing time. Wet the dough sheets with a sauce consisting of milk, oil, egg and yoghurt mixture.

• If the pastry is getting cooked slowly, make sure that the thickness of the pastry you have prepared does not over- flow the tray.

• If the pastry is browned on the surface but the bottom is not cooked, make sure that the amount of sauce you will use for the pastry is not too much at the bottom of the pastry. For an even browning, try to spread the sauce evenly between the dough sheets and the pastry.

• Bake your pastry in the position and tem- perature appropriate to the cooking table. If the bottom is still not browned enough, place it on a bottom shelf for the next cooking. Cooking table for pastries and oven foods Suggestions for baking with a single tray Food Accessory to be used Operating func- tion Shelf position Temperature (°C) Baking time (min) (approx.) Cake on the tray Standard tray * Top and bottom heating 3 180 30 … 45 Cake in the mould Cake mould on wire grill** ** Fan Heating 2 180 30 … 40 Small cakes Standard tray * Top and bottom heating 3 160 25 … 35 Small cakes Standard tray * Fan Heating On models with wire shelves : 3 On models without wire shelves : 2 150 25 … 35 Sponge cake Round springform pan, 26 cm in dia- meter on wire grill

Top and bottom heating 2 or 3 200 30 … 45 Apple pie Round black metal mould, 20 cm in diameter on wire grill ** Top and bottom heating 2 180 50 … 70 Apple pie Round black metal mould, 20 cm in diameter on wire grill ** Fan Heating 3 170 50 … 65 Pizza Standard tray * Top and bottom heating 2 200 … 220 10 … 20 Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories.

FREN / 27 Suggestions for cooking with two trays Food Accessory to be used Operating func- tion Shelf position Temperature (°C) Baking time (min) (approx.) Small cakes 2-Standard tray * 4-Pastry tray * Fan Heating 2 - 4 On models with wire shelves :150 On models without wire shelves :140 On models with wire shelves : 25 … 40 On models without wire shelves : 30 … 45 Cookie 2-Standard tray * 4-Pastry tray * Fan Heating 2 - 4 170 25 … 35 Rich pastry 1-Standard tray * 4-Pastry tray * Fan Heating 1 - 4 180 35 … 45 Dough pastry 2-Standard tray * 4-Pastry tray * Fan Heating 2 - 4 180 20 … 30 Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories. Cooking table with operating function “Eco fan heating”

• Do not change the temperature setting after starting cooking in the operating function “Eco fan heating”.

• Do not open the oven door when cooking in the “Eco fan heating” operating func- tion. If the door does not open, the in- ternal temperature is optimized to save energy, and this temperature may differ from what is shown on the display.

• Do not preheat in the “Eco fan heating” operating function. Food Accessory to be used Shelf position Temperature (°C) Baking time (min) (approx.) Small cakes Standard tray * 3 180 30 … 40 Cookie Standard tray * 3 200 30 … 40 Rich pastry Standard tray * 3 220 40 … 50 Dough pastry Standard tray * 3 200 30 … 40 *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories.

6.1.2 Meat, Fish and Poultry

The key points on grilling

• Seasoning it with lemon juice and pepper before cooking whole chicken, turkey and large pieces of meat will increase cook- ing performance.

• It takes 15 to 30 minutes more to cook boned meat than fillet by frying.

• You should calculate about 4 to 5 minutes of cooking time per centimetre of the meat thickness.

• After the cooking time is expired, keep the meat in the oven for approximately 10 minutes. The juice of the meat is bet- ter distributed to the fried meat and does not come out when the meat is cut.

• Fish should be placed on the medium or low level shelf in a heat resistant plate.

• Cook the recommended dishes in the cooking table with a single tray.

60 … 80 Lamb's shank (1,5-2 kg) Standard tray * Fan assisted bot- tom/top heating 3 170 85 … 110 Fried chicken (1,8-2 kg) Wire grill * Place one tray on a lower shelf Fan assisted bot- tom/top heating

150 … 210 Fish Wire grill * Place one tray on a lower shelf Fan assisted bot- tom/top heating 3 200 20 … 30 Fish Wire grill * Place one tray on a lower shelf "3D" function 3 200 20 … 30 Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories.

Red meat, fish and poultry meat quickly turns brown when grilled, holds a beautiful crust and does not dry out. Fillet meats, skewer meats, sausages as well as juicy vegetables (tomatoes, onions, etc.) are par- ticularly suitable for grilling. General warnings

• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Also, do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.

• When the preheating time is 5 minutes in the grill mode, skip the preheating, do not wait for the entire preheating time to pass.

• Close the oven door during grilling. Never grill with the oven door open. Hot surfaces may cause burns! The key points of the grill

• Prepare foods of similar thickness and weight as much as possible for the grill.

• Place the pieces to be grilled on the wire grill or wire grill tray by distributing them without exceeding the dimensions of the heater.

• Depending on the thickness of the pieces to be grilled, the cooking times given in the table may vary.

• Slide the wire grill or the wire grill tray to the desired level in the oven. If you are cooking on the wire grill, slide the oven tray to the lower shelf to collect the oils. The oven tray you will slide should be sized to cover the entire grill area. This

• Foods in this cooking table are prepared according to the EN 60350-1 standard to facilitate testing of the product for con- trol institutes. Cooking table for test meals Suggestions for baking with a single tray Food Accessory to be used Operating func- tion Shelf position Temperature (°C) Baking time (min) (approx.) Shortbread (sweet cookie) Standard tray * Top and bottom heating 3 140 20 … 30 Shortbread (sweet cookie) Standard tray * Fan Heating On models with wire shelves :3 On models without wire shelves :2

Small cakes Standard tray * Top and bottom heating 3 160 25 … 35 Small cakes Standard tray * Fan Heating On models with wire shelves : 3 On models without wire shelves : 2 150 25 … 35 Sponge cake Round springform pan, 26 cm in dia- meter on wire grill

Fan Heating 2 155 30 … 40 Apple pie Round black metal mould, 20 cm in diameter on wire grill ** Top and bottom heating 2 180 50 … 70 Apple pie Round black metal mould, 20 cm in diameter on wire grill ** Fan Heating 3 170 50 … 65 Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories. Suggestions for cooking with two trays Food Accessory to be used Operating func- tion Shelf position Temperature (°C) Baking time (min) (approx.) Small cakes 2-Standard tray * 4-Pastry tray * Fan Heating 2 - 4 On models with wire shelves :150 On models without wire shelves :140 On models with wire shelves : 25 … 40 On models without wire shelves : 30 … 45 Shortbread (sweet cookie) 2-Standard tray * 4-Pastry tray * Fan Heating 2 - 4 140 15 … 25 Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories. Grill Food Accessory to be used Shelf position Temperature (°C) Baking time (min) (approx.) Meatball (veal) - 12 amount Wire grill 4 250 20 … 30 Toast bread Wire grill 4 250 1 … 3 It is recommended to preheat for 5 minutes for all grilled food. Turn pieces of food after 1/2 of the total grilling time. 7 Maintenance and Cleaning

• Wait for the product to cool before clean- ing the product. Hot surfaces may cause burns!

• Do not apply the detergents directly on the hot surfaces. This may cause per- manent stains.

• The product should be thoroughly cleaned and dried after each operation. Thus, food residues shall be easily cleaned and these residues shall be pre-

FREN / 31 vented from burning when the product is used again later. Thus, the service life of the appliance extends and frequently faced problems are decreased.

• Do not use steam cleaning products for cleaning.

• Some detergents or cleaning agents cause damage to the surface. Unsuitable cleaning agents are: bleach, cleaning products containing ammonia, acid or chloride, steam cleaning products, de- scaling agents, stain and rust removers, abrasive cleaning products (cream clean- ers, scouring powder, scouring cream, abrasive and scratching scrubber, wire, sponges, cleaning cloths containing dirt and detergent residues).

• No special cleaning material is needed in the cleaning made after each use. Clean the appliance using dishwashing deter- gent, warm water and a soft cloth or sponge and dry it with a dry cloth.

• Be sure to completely wipe off any re- maining liquid after cleaning and immedi- ately clean any food splashing around during cooking.

• Do not wash any component of your ap- pliance in a dishwasher unless otherwise stated in the user’s manual. Inox - stainless surfaces

• Do not use acid or chlorine-containing cleaning agents to clean stainless-inox surfaces and handles.

• Stainless-inox surface may change col- our in time. This is normal. After each op- eration, clean with a detergent suitable for the stainless or inox surface.

• Clean with a soft soapy cloth and liquid (non-scratching) detergent suitable for inox surfaces, taking care to wipe in one direction.

• Remove lime, oil, starch, milk and protein stains on the glass and inox surfaces im- mediately without waiting. Stains may rust under long periods of time.

• Cleaners sprayed/applied to the surface should be cleaned immediately. Abrasive cleaners left on the surface cause the surface to turn white. Enamelled surfaces

• The oven must cool down before clean- ing the cooking area. Cleaning on hot sur- faces shall create both fire hazard and damage the enamel surface.

• After each use, clean the enamel sur- faces using dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth.

• If your product has an easy steam clean- ing function, you can make easy steam cleaning for light non-permanent dirt. (See “Easy Steam Cleaning [}32]”.)

• For difficult stains, an oven and grill cleaner recommended on the website of your product brand and a non-scratching scouring pad can be used. Do not use an external oven cleaner. Catalytic surfaces

• The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model.

• The catalytic walls have a light matte and porous surface. The catalytic walls of the oven should not be cleaned.

• Catalytic surfaces absorb oil thanks to its porous structure and start to shine when the surface is saturated with oil, in this case it is recommended to replace the parts. Glass surfaces

• When cleaning glass surfaces, do not use hard metal scrapers and abrasive clean- ing materials. They can damage the glass surface.

• Clean the appliance using dishwashing detergent, warm water and a microfiber cloth specific for glass surfaces and dry it with a dry microfiber cloth.

• If there is residual detergent after clean- ing, wipe it with cold water and dry with a clean and dry microfiber cloth. Residual detergent may damage the glass surface next time.

• Under no circumstances should the dried-up residue on the glass surface be cleaned off with serrated knives, wire wool or similar scratching tools.

• You can remove the calcium stains (yel- low stains) on the glass surface with the commercially available descaling agent, with a descaling agent such as vinegar or lemon juice.

• If the surface is heavily soiled, apply the cleaning agent on the stain with a sponge and wait a long time for it to work prop- erly. Then clean the glass surface with a wet cloth.

• Discolorations and stains on the glass surface are normal and not defects. Plastic parts and painted surfaces

• Clean plastic parts and painted surfaces using dishwashing detergent, warm wa- ter and a soft cloth or sponge and dry them with a dry cloth.

• Do not use hard metal scrapers and ab- rasive cleaners. They may damage the surfaces.

• Ensure that the joints of the components of the product are not left damp and with detergent. Otherwise, corrosion may oc- cur on these joints.

7.2 Cleaning Accessories

Do not put the product accessories in a dishwasher unless otherwise stated in the user’s manual.

7.3 Cleaning the Control Panel

• When cleaning the panels with knob-con- trol, wipe the panel and knobs with a damp soft cloth and dry with a dry cloth. Do not remove the knobs and gaskets un- derneath to clean the panel. The control panel and knobs may be damaged.

• While cleaning the inox panels with knob control, do not use inox cleaning agents around the knob. The indicators around the knob can be erased.

• Clean the touch control panels with a damp soft cloth and dry with a dry cloth. If your product has a key lock feature, set the key lock before performing control panel cleaning. Otherwise, incorrect de- tection may occur on the keys.

7.4 Cleaning the inside of the oven

(cooking area) Follow the cleaning steps described in the "General Cleaning Information" section ac- cording to the surface types in your oven. Cleaning the side walls of the oven The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model. If there is a catalytic wall, refer to the “Catalytic surfaces” section for information. If your product is a wire shelf model, re- move the wire shelves before cleaning the side walls. Then complete the cleaning as described in the "General Cleaning Informa- tion" section according to the side wall sur- face type. To remove the side wire shelves:

1. Remove the front of the wire shelf by

pulling it on the side wall in the opposite direction.

2. Pull the wire shelf towards you to re-

3. To reattach the shelves, the procedures

applied when removing them must be repeated from the end to the beginning, respectively.

7.5 Easy Steam Cleaning

This allows cleaning of the dirt (not remain- ing for a long time) that is softened by the steam inside the oven and by the water droplets condensed in the internal surfaces of the oven easily.

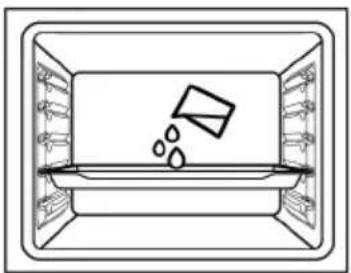

1. Remove all accessories inside the oven.

2. Add 500 ml water into the tray and place

it on the 2nd shelf of the oven.

FREN / 33 Do not use distilled or filtered wa- ter. Use ready-made waters only. Do not use flammable, alcoholic or solid particulate solutions instead of water.

3. Set the oven to the easy steam cleaning

operating mode and operate it at 100°C for 15 minutes. Immediately open the door and wipe the oven interiors with a wet sponge or cloth. Steam will be released when opening the door. This may pose a risk of burns. Be careful when opening the door. For stubborn dirt, clean the product using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth. In the easy steam cleaning func- tion, it is expected that the added water evaporates and condenses on the inside of the oven and the oven door in order to soften the light dirt formed in your oven. Con- densation formed on the oven door may drip around when the oven door is opened. As soon as you open the oven door, wipe off the condensation. (It varies depending on the product model. It may not be available on your product.) After the condensation inside the oven, puddle or moisture may occur in the pool channel under the oven. Wipe this pool channel with a damp cloth after use and dry it.

7.6 High temperature self-cleaning

The oven is equipped with a pyrolysis fea- ture. The oven heats up to a temperature of approximately 420-480 °C and burns until the existing dirt turns to ash. A strong smoke may be generated. Provide good ventilation. High-temperature cleaning should be performed after approximately every 10 uses of the oven. General warnings Hot surfaces cause burns! Do not touch the product during self-cleaning and keep children away from the product. Wait at least 30 minutes before removing the residue.

• Before using the pyrolysis function, re- move all accessories, the telescopic shelf and the side shelves (if any). If not removed, the accessories and side wire shelves will be damaged.

• If your product has a pyro proof access- ory (resistant to high temperature self- cleaning), you do not need to remove these accessories from the oven. Whether your accessories are pyro-proof or not is specified in the accessories sec- tion. If not specified, your accessories are not resistant to high temperatures. It must be removed from the oven before cleaning to avoid damage.

• Do not clean the door seal. The glass fiber seal is very delicate and easily dam- aged. If the door seal is damaged, re- place it with a new one from an author- ized service. To start the pyrolysis function:

1. Remove all accessories inside the oven.

In the models with wire shelves, remem- ber to remove the wire shelf.

2. Before starting the cleaning, clean the

outer surfaces of the oven and the food residues inside the oven with soapy cloth.

3. Select the “pyrolysis” (Pyrolysis) func-

tion. ð The “P2:00” flashes on the display. If your appliance is equipped with the Eco pyrolysis function, the “Pro” message is displayed on the display for 2 seconds first, and then the P2:00 message starts to flash. If the “Pro” and then the “ECO” messages are not shown on the display, your appliance is not equipped with the Eco pyrolysis function.

4. Turn the temperature knob to the

highest "max" (maximum) temperature.

5. When the pyrolysis function starts,

“P2:00” lights up and starts counting down. The pyrolysis time (2 hours) is shown on the display. This time is un- changeable.

6. When the oven reaches a certain tem-

perature after the pyrolysis process starts, the symbol appears on the timer display and the oven door cannot be opened. Do not force the handle to unlock the door until the cleaning pro- cess is finished and the lock symbol dis- appears from the display.

7. When the cleaning process is finished,

"End" appears on the display.

8. After "End" appears on the display, turn

the function and temperature knobs to 0 (off) position to end the process.

9. When the symbol disappears on the

display, remove the remaining deposits with vinegar water. 10.Touch any key to stop the audible warn- ing. After the pyrolysis function is com- pleted, the door lock will be active until the oven cools to the appropri- ate temperature. If you want to cook at this time, "H” will appear on the display and cooking will not be possible. Self cleaning function with high temperat- ure – Eco pyrolysis (It varies depending on the product model. It may not be available on your product.) ü If your oven is not very dirty, we recom- mend using the "Pyrolysis - economy mode" function. "Pyrolysis - economy mode" function takes less time than the Pyrolysis" function. If the oven is very dirty, the "Pyrolysis - economy mode" function may not be sufficient. In this case, clean it by the "Pyrolysis" function.

1. Remove all accessories inside the oven.

In the models with wire shelves, remem- ber to remove the wire shelf.

2. Before starting the cleaning, clean the

outer surfaces of the oven and the food residues inside the oven with soapy cloth.

3. Select the “pyrolysis” (Pyrolysis) func-

tion. ð The “P2:00” and “Pro” message is shown on the display for approx. 2 seconds and then the P2:00 mes- sage starts to flash.

ð The “ECO” message is shown on the display for approx. 2 seconds and then the P1:30 message starts to flash.

5. Turn the temperature knob to the

highest "max" (maximum) temperature.

6. When the pyrolysis function is started,

P1:30 lights up and starts counting down. The pyrolysis time (1.5 hours) is shown on the display. This time is un- changeable.

perature after the pyrolysis process starts, the symbol appears on the timer display and the oven door cannot be opened. Do not force the handle to unlock the door until the cleaning pro- cess is finished and the lock symbol dis- appears from the display.

8. When the cleaning process is finished,

"End" appears on the display.

9. After "End" appears on the display, turn

the function and temperature knobs to 0 (off) position to end the process. 10.When the symbol disappears on the display, remove the remaining deposits with vinegar water. 11.Touch any key to stop the audible warn- ing. After the pyrolysis function is com- pleted, the door lock will be active until the oven cools to the appropri- ate temperature. If you want to cook at this time, "H” will appear on the display and cooking will not be possible.

7.7 Cleaning the Oven Door

You can remove your oven door and door glasses to clean them. How to remove the doors and windows is explained in the sec- tions "Removing the oven door” and "Re- moving the inner glasses of the door". After removing the door inner glasses, clean them using a dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth. For lime residue that may form on the oven glass, wipe the glass with vinegar and rinse. Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven door and glass. Removing the oven door

1. Open the oven door.

2. Open the clips in the front door hinge

socket on the right and left by pushing them downwards as shown in the fig- ure.

3. Hinge types vary as (A), (B), (C) types

according to the product model. The fol- lowing figures show how to open each type of hinge.

4. (A) type hinge is available in normal

5. (B) type hinge is available in soft closing

6. (C) type hinge is available in soft open-

ing/closing door types.

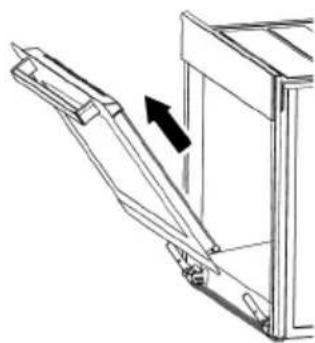

7. Get the oven door to a half-open posi-

8. Pull the removed door upwards to re-

lease it from the right and left hinges and remove it. To reattach the door, the proced- ures applied when removing it must be repeated from the end to the be- ginning, respectively. When in- stalling the door, be sure to close the clips on the hinge socket.

7.8 Removing the Inner Glass of The

Oven Door Inner glass of the product's front door may be removed for cleaning.

1. Open the oven door.

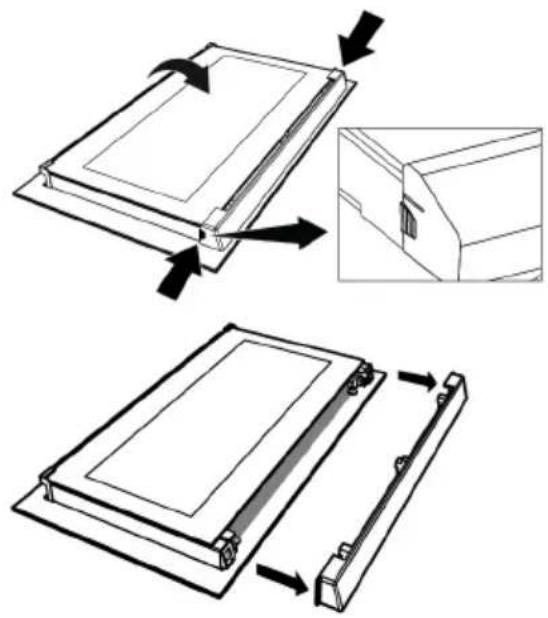

2. Pull the plastic component, attached on

the upper section of the front door, to- wards yourself by simultaneously push- ing on the pressure points on both sides of the component and remove it.

3. As shown in the figure, gently lift the in-

nermost glass (1) towards “A” and then, remove it by pulling towards “B”. 1 Innermost glass 2* Inner glass (it may not be available for your product)

4. If your product has an inner glass (2), re-

peat the same process to detach it (2).

5. The first step of regrouping the door is

to reassemble the inner glass (2). Place the bevelled edge of the glass to meet the bevelled edge of the plastic slot. (If your product has an inner glass). Inner glass (2) must be attached to the plastic slot closest to the innermost glass (1).

6. While reassembling the innermost glass

(1), pay attention to place the printed side of the glass on the inner glass. It is crucial to place the lower corners of the innermost glass (1) to meet the lower plastic slots.

7. Push the plastic component towards the

frame until a "click” sound is heard.

7.9 Cleaning the Oven Lamp

In the event that the glass door of the oven lamp in the cooking area becomes dirty; clean using dishwashing detergent, warm water and a soft cloth or sponge and dry with a dry cloth. In case of oven lamp fail- ure, you can replace the oven lamp by fol- lowing the sections that follow. Replacing the oven lamp General Warnings

• To avoid the risk of electric shock before replacing the oven lamp, disconnect the product and wait for the oven to cool. Hot surfaces may cause burns!

• This oven is powered by an incandescent lamp with less than 40 W, less than 60 mm in height, less than 30 mm in dia- meter, or a halogen lamp with G9 sockets with less than 60 W power. Lamps are

FREN / 37 suitable for operation at temperatures above 300 °C. Oven lamps are available from Authorised Services or licensed technicians. This product contains a G energy class lamp.

• The position of the lamp may differ from that is shown in the figure.

• The lamp used in this product is not suit- able for use in the lighting of home rooms. The purpose of this lamp is to help the user see food products.

• The lamps used in this product must withstand extreme physical conditions such as temperatures above 50 °C. If your oven has a round lamp,

1. Disconnect the product from the electri-

2. Remove the glass cover by turning it

3. If your oven lamp is type (A) shown in

the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and re- place it with a new one.

4. Refit the glass cover.

If your oven has a square lamp,

1. Disconnect the product from the electri-

2. Remove the wire shelves according to

3. Lift the lamp's protective glass cover

with a screwdriver. Remove the screw first, if there is a screw on the square lamp in your product.

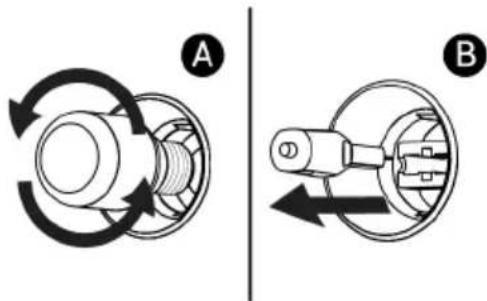

4. If your oven lamp is type (A) shown in

the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and re- place it with a new one.

5. Refit the glass cover and wire shelves.

8 Troubleshooting If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself. Steam is emanated while the oven is work- ing.

• It is normal to see vapour during opera- tion. >>> This is not an error.

FREN / 38 Water droplets appear while cooking

• The steam generated during cooking condenses when it comes into contact with cold surfaces outside the product and may form water droplets. >>> This is not an error. Metal sounds are heard while the product is warming and cooling.

• Metal parts may expand and make sounds when heated. >>> This is not an error. The product does not work.

• Fuse may be faulty or blown. >>> Check the fuses in the fuse box. Change them if necessary or reactivate them.

• The appliance may not be plugged to the (grounded) outlet. >>> Check if the appli- ance is plugged in to the outlet.

• (If there is timer on your appliance) Keys on the control panel do not work. >>> If your product has a key lock, the key lock may be enabled, disable the key lock. Oven light is not on.

• Oven lamp may be faulty. >>> Replace oven's lamp.

• No electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them. Oven is not heating.

• The oven may not be set to a specific cooking function and/or temperature. >>> Set the oven to a specific cooking function and/or temperature.

• The oven door may be open. >>> Make sure the oven door is closed. If the oven door remains open for more than 5 minutes, the time setting made for cook- ing is cancelled and heaters do not work.

• For the models with timer, the time is not set. >>> Set the time.

• No electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

• The oven door may be open. >>> Make sure the oven door is closed. If the oven door remains open for more than 5 minutes, the time setting made for cook- ing is cancelled, heaters will not work and the lamp will not switch on. (For models with timer) The timer display flashes or the timer symbol is left open.

• There has been a power outage before. >>> Set the time / Turn off the product function knobs and again switch it to the desired position. Error codes/reasons and possible solutions Error codes Error reasons Possible solutions Er 5 Meat probe communication er- ror Contact the authorized service to be able to cook again with the meat probe. Remove the meat probe and set the function selection knob to off (0) to be able to cook normally without the meat probe in the oven. You may then continue cooking without the meat probe. Er 1 - Er 7 Communication errors Consult an authorized service for the error to be re- solved. Er 8 - Er 27 Sensor errors Consult an authorized service for the error to be re- solved. Er 28 - Er 31 Meat probe errors Consult an authorized service for the error to be re- solved. Er 32 - Er 41 Oven heating errors Consult an authorized service for the error to be re- solved. Er 42 - Er 58 Oven component errors Consult an authorized service for the error to be re- solved. Er 59 - Er 64 Oven lid errors Consult an authorized service for the error to be re- solved.

FREN / 39 Error codes Error reasons Possible solutions Er 65 - Er 71 Errors related to the steam (in ovens with steam feature) Consult an authorized service for the error to be re- solved. Er 72 - Er 80 Hardware related errors Consult an authorized service for the error to be re- solved. Er 81 - Er 85 Oven security errors Consult an authorized service for the error to be re- solved. Er 86 - Er 88 Internet connection errors (in ovens with Homewhiz feature) Consult an authorized service for the error to be re- solved. Er 89 - Er 92 Microwave errors (in ovens with microwave feature) Consult an authorized service for the error to be re- solved. Er 93 - Er 99 Card and timer errors Consult an authorized service for the error to be re- solved. Arcelik A.S. Karaağaç Caddesi No:2-6 Sütlüce, 34445, Turkey Made in TURKEY Importer in Russia: «BEKO LLC» Address: Selskaya street, 49, Fedorovskoe village, Pershinskoe rural settlement, Kirzhach district, Vladimir region, Russian Federation 601021 The manufacture date is included in the serial number of a product specified on rating label, which is located on a product, namely: first two figures of serial number indicate the year of manufacture, and last two – the month. For example, ”10- 100001-05» indicates that the product was produced in May, 2010. You can ask for certification number from our Call Center 8-800-200-23-56 The manufacturer reserves the right for making changes in modification, design and specification of an electric device.
