AP 8030 - Vacuum Cleaner Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	AP 8030
Product type	Bagless canister vacuum cleaner
Power supply	Mains, 220-240 V
Nominal input power	800 W
Annual energy consumption	25,7 kWh/year
Carpet cleaning performance	83,2
Hard floor cleaning performance	113,7
Dust re-emission	0,13
Sound power level	78,9 dB
Vacuum cleaner type	General use
Dust container	Transparent container, easy emptying
Filtration system	Washable exhaust air filter
Included accessories	Floor nozzle, 2-in-1 crevice nozzle, upholstery brush
Additional features	Chrome telescopic tube, manual vacuum control, automatic cord rewinder, suction power selector
Safety	Do not vacuum liquids, child protection (supervision required)
Maintenance	Clean filter with plain water, do not use detergent

Frequently Asked Questions - AP 8030 Orbegozo

How to assemble the AP 8030 vacuum cleaner?

Insert the hose into the vacuum cleaner opening until it clicks into place. Next, place the telescopic tube onto the handle and adjust to the desired length. Attach the floor nozzle to the tube. To disassemble, press the hose flanges and pull.

How to adjust the suction power?

Use the suction power selector on the appliance. For minimum power (curtains, delicate fabrics), medium (mattresses, carpets) or maximum (hard floors). You can also use the manual vacuum control on the handle: open to reduce suction, close to increase it.

How to empty the dust container?

Turn off and unplug the vacuum cleaner. Press the dust container release button to remove it. Carry it to the trash, open the bottom cover and empty the dust. Replace the container by clipping it into place.

How to clean the exhaust filter?

Unplug the vacuum cleaner. Turn the exhaust grille counterclockwise and remove it. Turn the filter counterclockwise to take it out. Rinse it with clear water (no soap or detergent) and let it dry naturally. Reassemble in reverse order.

Which accessories are included and what are they used for?

Three accessories are included: floor nozzle for large surfaces (with carpet/hard floor adjustment), 2-in-1 crevice nozzle for cracks and corners, and upholstery brush for upholstery, curtains and delicate surfaces.

What to do in case of weak suction?

Check that the secondary valve is closed, the hose and accessories are not blocked, and the filters are properly installed and clean. If the problem persists, contact technical support.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry dust and dirt. Never vacuum water or any other liquid, as this could damage the appliance and pose a risk of electric shock.

What is the noise level of this vacuum cleaner?

The sound power level is 78.9 dB, which corresponds to moderate noise for a domestic vacuum cleaner.

How to rewind the power cord?

Hold the plug and press the automatic rewinding button. Do not let the plug whip during winding. Do not exceed the yellow mark on the cord when unwinding.

How to maintain the wheels and floor nozzle?

Regularly remove accumulated hair and fluff from the wheels and nozzle. Clean with a damp cloth if necessary. Do not use lubricant as it would attract dust. Make sure all parts are dry before plugging back in.

USER MANUAL AP 8030 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

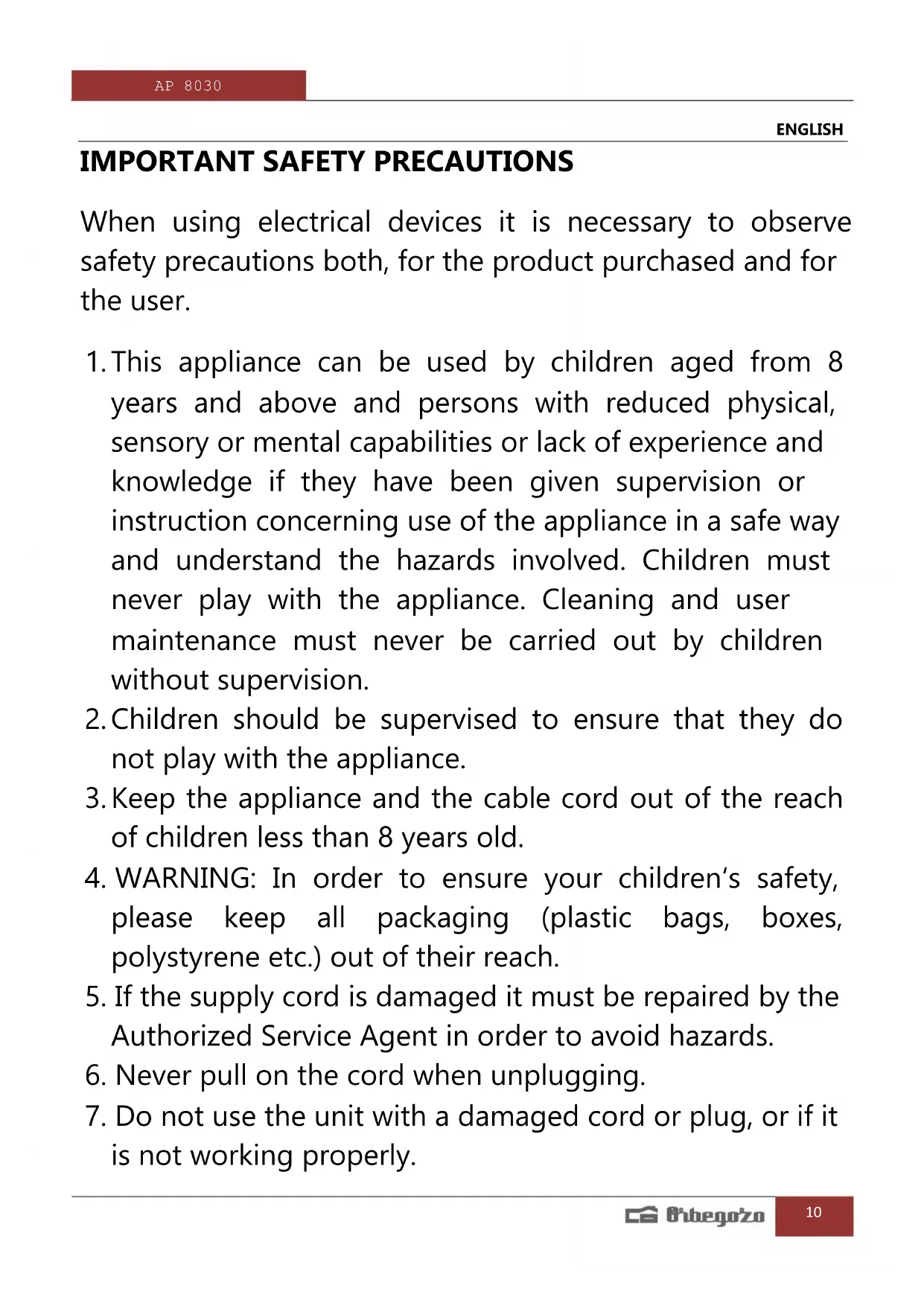

IMPORTANT SAFETY PRECAUTIONS

When using electrical devices it is necessary to observe safety precautions both, for the product purchased and for the user.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not use to vacuum water.

16. It is recommended that before starting the motor, you adjust the power to the minimum position and increase it to the desired power setting once the motor is in operation.
17. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
18. This appliance must be used only for domestic cleaning, to vacuum dust and dry dirt from floors, carpets, rugs and other fabrics, as described in these instructions. Any other use is considered inappropriate and dangerous.

19. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.

20. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

21. Use extra care when cleaning on stairs.
22. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
23. Unplug before connecting the hose
24. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

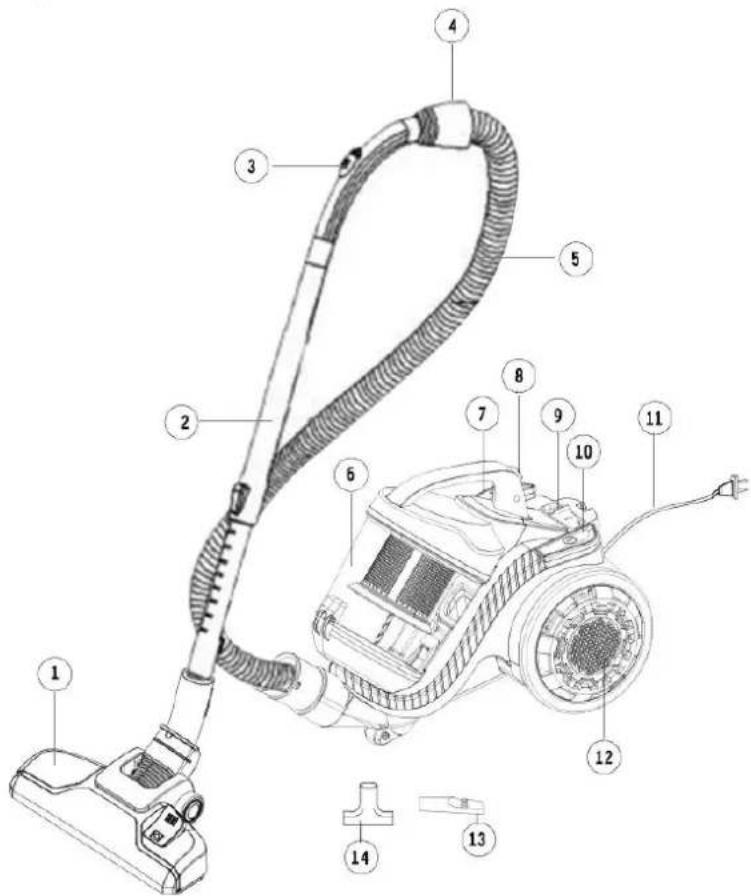

PARTS & EQUIPMENT

1. Floor nozzle.
2. Chromed telescopic tube.
3. Manual vacuum control.
4. Hose handle.
5. Flexible hose.
6. Dust container.
7. Auto-rewind cord button.
8. Dust container release button.
9. Suction power selector
10. ON/OFF button.
11. Power cord.
12. Exhaust air filter cover.
13. 2-in-1 crevice nozzle & brush.
14. Sofa brush

ACCESSIONS

You will receive your vacuum cleaner with 3 accessories for different applications. Each accessory can be fit onto the handle or onto telescopic tube, as required.

Floor nozzle

Probably it is the accessory which you will use most frequently. It's suitable for cleaning wide areas. This accessory has a 360^ joint, so it ensures you can reach any corner easily.

• Clean carpet and carpet floor without using frontal brush. Place nozzle switch in carpet symbol and brush will rise.
• Smooth floors as PVC, parquet or tiles are better cleaned and cared using frontal brush. To use them push the switch to set smooth floor position and brush will

for carpet floors
for smooth floors
222222

come out.

Upholstery nozzle

You can use this nozzle to clean dust from upholstery as sofa or chairs, also for delicate surfaces as books, pictures frames, cushions, mattresses, curtains, etc.

2-in-1 crevice nozzle & brush

This accessory is suitable for cleaning dust of folds in cloths, joint cracks and corners that cannot be reached with floor nozzle.

ASSEMBLY

Caution!

Before assembly or disassembly the accessories always ensure that vacuum cleaner is unplugged from mains.

1. Turning on your vacuum cleaner:
   Assembly: insert the hose into vacuum opening. Press the tube until it blocks in its place.

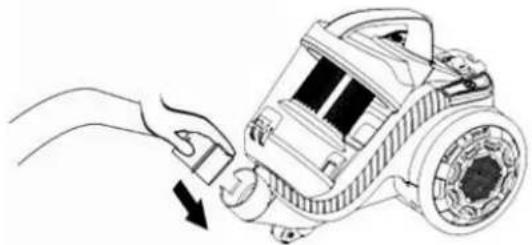

2. Disassembly: remove the hose from vacuum opening pressing its flanges to release it of anchorage.

1. Assembly of telescopic tube and accessories.

Put in telescopic tube onto handle.	Adjust telescopic tube to desired length. Push the flange and pull of tube to lengthen it and push to shorten it.
Fit in the floor nozzle onto telescopic tube.	Move the nozzle flange according floor to vacuum.

USING

Vacuuming

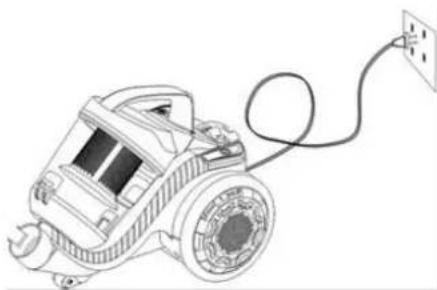

Before using the appliance unroll the desired length of power cord and plug it to the mains. The yellow mark on the cord means it has reached the maximum length, do not exceed it. To turn on the vacuum cleaner press ON/OFF button Pull of vacuum cleaner behind you as a sled when you are using it.

Important: In a few cases there may be a whistling sound at the start. It is not a fault and the sound goes away after a time. Do not suck up toner, plaster, cement, stone dust or drill dust. The materials would block the filter.

Regulating of suction power

You can adjust the suction power in vacuum cleaner depending on you require with power regulator. We recommend using minimum suction power with delicate materials. Select medium suction power for mattresses, upholstered furniture and carpets. Select maximum suction power for tiled, wood and other robust floors.

Manual vacuum control

Manual vacuum control is in handle.

• Open: pull upwards
• Close: push downwards.

You can adjust the suction power using manual vacuum control. The wider you open it, the less suction power and vice-versa.

Open this valve to avoid than curtains and similar objects are sucked in.

Choose:

• Minimum suction power for curtains and delicate materials.
• Medium suction power for upholsterycushions, mattresses and carpet floors.
  Maximum suction power for tiled, wooden and robust floor surfaces with heavy soiling.

Emptying dust container

You can easily see with the transparent dust container when it must be emptied. Switch off the vacuum cleaner and disconnect the plug from the mains. To do it always pull on the plug and not on the cable.

You can press the release button of the dust container to take out dust container, carry dust container to the waste bin, then open the dust container bottom cover to empty the dust.

VACUUM CLEANER FILTERS

Cleaning the filter system

The filter system should be cleaned regularly, cleaning is best done when emptying the dust container. To do it follow the instructions in the emptying dust container section.

Caution!

The filter material is soft and sensitive, so cleaning the filter must be gentle. Only ever clean the filter with clean water and do not use soap or detergent, they would destroy the filter.

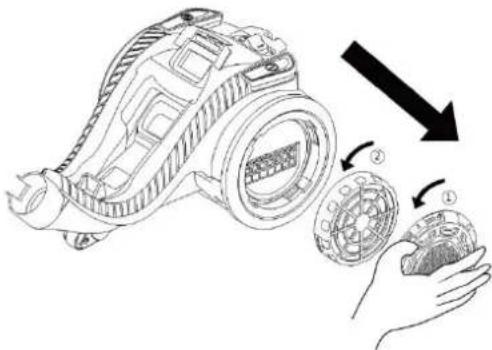

Cleaning the exhaust air filter

The exhaust air filter cleans the air at the end before it leaves the vacuum cleaner. You can clean this exhaust filter following below instructions:

1. Turn off and unplug the vacuum cleaner. Remember pull on the plug and not on the cord.
2. Turn exhaust air grill to anti-clockwise and remove it.
3. Then, turn the filter to anti-clockwise and you can already remove it.
4. You can take out the filter from its holder and to clean it rinse the filter with cold water for a while and after that let it dry.

Caution!

1. Always clean the filter with clear water and don't use soap or detergent. It would damage the filter.
2. Clean filter with clear water and dry it naturally. Do not dry with heat, it could deform.

CARE AND MAINTENANCE

Cleaning of vacuum cleaner

To clean the housing of device, disconnect and unplug it.

Danger! Never expose the vacuum cleaner to the effects of weather (rain, wind, etc.). No parts may be cleaned by dish washer.

The housing, inner tank and rear outlet can be wiped with a damp cloth, always taking care that no liquids get inside vacuum cleaner. Do not use strong products to clean the device because it could corrode the plastic surface. Before to plug again vacuum cleaner ensure that all parts are thoroughly dry.

Hair and fluff may gather on the running wheels and on the floor nozzle of the vacuum cleaner in time. You should remove there to ensure that handling of the vacuum cleaner is always easy.

Note: we do not recommend using lubricant or oil on wheels because it will cause dirt and fluff to even better.

TROUBLE-SHOOTING

Faults can occur on all electrical equipment. This must not necessarily be due to a defect in the device itself. So check first with table if the fault can be dealt with.

PROBLEM	POSSIBLE CAUSES	SOLUTIONS/TIPS
Weak suction.	The secondary valve is open.	Close secondary valve.
	An object is blocking the suction pipe.	Check the suction tube, the handle area, suction pipe and the nozzle in use for blockages.
	Filters are not fitted properly or are blocked.	Fit filter well.
Device does not work.	Device is not properly plugged into the mains.	Check that the mains plug has been inserted properly. Also check whether the power socket is in order (e.g. use an electric torch). Check the fuses, automatic fuse in the fuse box.

Danger! Never try to repair a defective device, or a device you believe to be defective by yourself. You can put both yourself and future users in danger. Repairs may only be carried out by authorized specialists.

Commercial Brand	ORBEGOZO
Model	AP 8030
Annual consumption (kWh/year)	25,7
Power of cleaning in carpets	83,2
Power of cleaning in hard floors	113,7
Dust re-emission	0,13
Acoustic power level (dB)	78,9
Type of vacuum cleaner	General purposes
Nominal input power (W)	800

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
