APS 1400 - Vacuum Cleaner Orbegozo - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Orbegozo
Model	APS 1400
Use	Solids and liquids
Rated Power	1400 W
Supply Voltage	220-240 V ~ 50 Hz
Tank Capacity	Approximately 20 L
Filter Type	Washable HEPA Filter
Dust Bag	Disposable Paper Bag
Flexible Hose	Yes
Rigid Tube	Yes, in two sections
Included Accessories	Brush, floor brush, adjustable carpet brush, XXL narrow nozzle
Blowing Function	Yes
Wheels	Yes
Cable Length	Approximately 5 m
Weight	Approximately 5 kg
Protection Type	Automatic float stop for liquids
Maintenance	Cleaning the HEPA filter, emptying the bag
Warranty	Legal in accordance with current legislation
Certifications	Low Voltage Directive 2014/35/EU, EMC 2014/30/EU

Frequently Asked Questions - APS 1400 Orbegozo

How to assemble the APS 1400 vacuum cleaner?

To assemble the vacuum cleaner, mount the wheels in the tank holes, place the paper bag by inserting the hose connector into the bag's hole, check that the HEPA filter is properly locked, attach the head to the tank with the metal clamps, then connect the flexible hose and the desired accessory.

How to use the vacuum cleaner to pick up liquids?

Remove the paper bag and the HEPA filter, then install the liquid filter and close the latch. The safety float automatically stops suction when the tank is full. Empty the tank to continue.

How to clean the HEPA filter?

Open the dust container, remove the HEPA filter, shake it into a trash can to remove dust. If necessary, wash it with clean water, then dry it thoroughly before putting it back.

What to do if the motor does not start?

Check that the power cord is properly plugged in and that the outlet works. If the problem persists, the motor may be defective; contact the Orbegozo technical service.

Why is the suction power weak?

This may be due to a blocked tube (clean it), a dirty HEPA filter (clean it), a poorly placed dust container (check the closures), or a full paper bag (replace it).

How to use the blowing function?

Set the hose to position 2 (blowing). Make sure the vacuum cleaner is properly assembled and turn it on. Use the appropriate accessories to blow dust.

Can the vacuum cleaner pick up hot or burning objects?

No, never pick up anything that burns or smokes, such as cigarettes, matches, or hot ashes. This could damage the appliance or cause a fire.

What accessories are included with the APS 1400?

The provided accessories are: a brush, a floor brush, an adjustable carpet brush, an XXL narrow nozzle, a flexible hose, and a rigid tube in two sections.

How to change the dust bag?

Open the dust container, remove the full paper bag, discard it, then insert a new bag by aligning the bag's hole with the hose connector. Close the container and secure the latches.

Where can I find Orbegozo technical service?

Check the website https://orbegozo.com/asistencia-technica/ to find the nearest service. You can also contact support via https://orbegozo.com/contacto/ for any questions.

USER MANUAL APS 1400 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

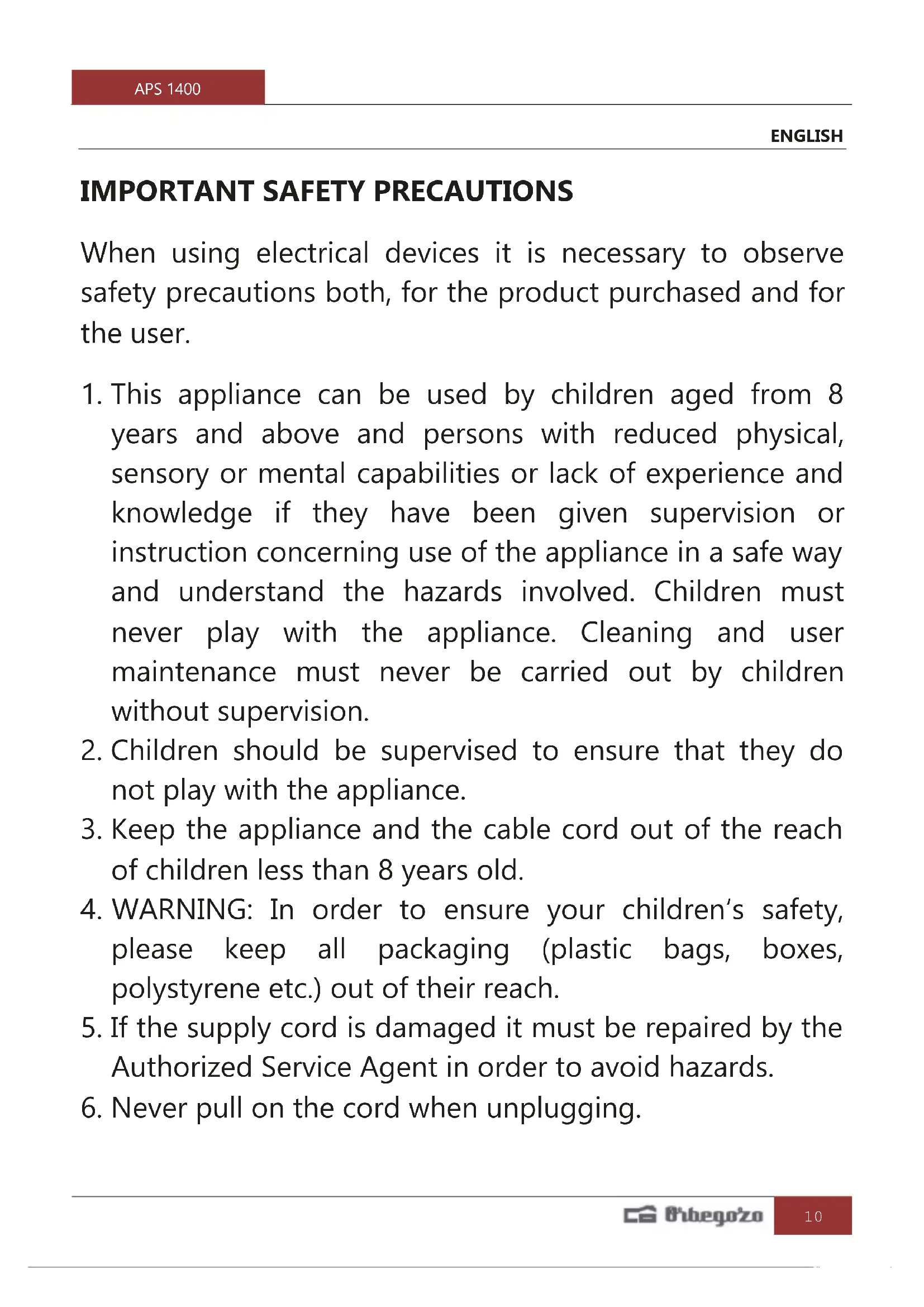

IMPORTANT SAFETY PRECAUTIONS

When using electrical devices it is necessary to observe safety precautions both, for the product purchased and for the user.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not leave the vacuum cleaner unattended when it is plugged in. Unplug it from the outlet whenever it is not in use and before carrying out any type of maintenance.

16. Connect the device only if the installation and the connection point have a capacity of 16A. It is recommended that before starting the engine, adjust the power to the minimum position and increase it to the desired power once the engine is running.

17. Use this vacuum cleaner as described in this manual. Use only parts recommended by the manufacturer.

18. Do not insert any type of object into the openings of the vacuum cleaner. Do not use the vacuum cleaner if any

opening is blocked. Keep the appliance free of dust, lint, hair, or anything that may reduce airflow.

• Keep hair, clothing, fingers and any part of the body away from openings and moving parts.
• Be very careful when cleaning stairs.
• Do not use vacuum to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

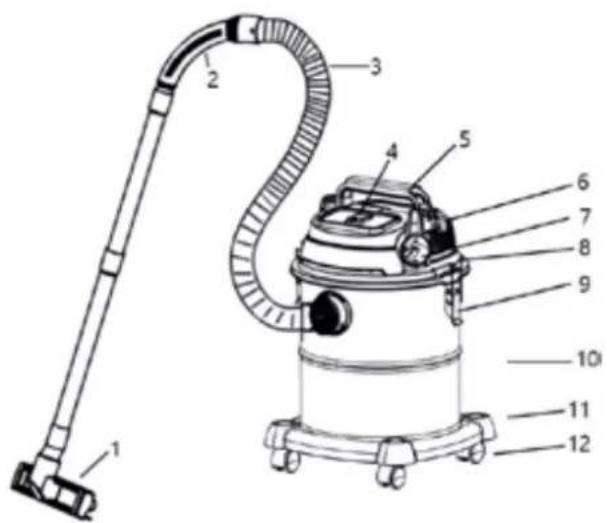

VACUUM PARTS

1.Brush
2. Handle
3. Flexible hose
4. Power switch
5. Handle
6. Air outlet
7. Blower connector
8. Lid
9. Closing
10. Deposit
11. Accessories support
12.Wheels

ACCESSIONS

1

4

6

9

2

5

7

3
8

1. HEPA filter
2. Floor brush
   3.Wheels
3. Filter for liquids
4. Adjustable carpet brush
5. Paper bag
6. Flexible hose
7. Rigid tube in two sections
8. Narrow XXL nozzle

ASSEMBLY TO VACUUM SOLIDS

Fit the wheels into the holes in the base of the tank

Place the bag in the tank carefully. To do this, insert the inner part of the hose connector into the hole in the bag.

Before switching on the appliance, make sure that the HEPA filter is locked in place and secured with the latch.

Secure the head to the reservoir with the metal clasps.

To use the flexible hose, insert the end of the hose into the suction port. Make sure it is snapped into position.

Choose the desired accessory (brush or nozzle) and connect it to the suction hole.

OPERATION

Before starting the appliance, make sure that the paper filter is in place.

Before starting the appliance, make sure the hose assembly is in place and the machine is in good condition.

Set the hose to position 1 for the dust extraction function. Set the hose to position 2 for the air blow function.

Unwind the power cord.

Plug in the appliance and turn it on.

Unplug the appliance after use.

Attach the desired accessories to the vacuum.

ASSEMBLY TO LIQUIDS SUCTION

Remove the paper bag if it was inserted, otherwise it will be damaged.

Remove the HEPA filter and put in its place the filter for liquids, put the closure in place for the good operation of the buoy.

Secure the head to the reservoir with the metal clasps.

To use the flexible hose, insert the end of the hose into the suction port. Make sure it is snapped into position.

NOTE: When the maximum capacity has been reached, the buoy blocks the water inlet to protect the motor. Empty the tank to continue vacuuming.

CLEANING AND MAINTENANCE

Open the dust container

Remove the bag

Discard the paper bag

Put a new one.

Put on the lid and fasten with the metal clasps

HEPA FILTER CLEANING

Open the dust container

Take out the HEPA filter

Clean the HEPA filter by shaking it in a trash can to remove accumulated dust

If necessary, wash the filter with clean water

Dry the HEPA filter thoroughly before putting it back in the vacuum

Assemble the vacuum cleaner

TROUBLESHOOTING

Problem	Possible reason	Tip
The motor does not start	- The power cord is not properly plugged into the power outlet.	- Connect the unit firmly.
	- The socket is damaged.	- Check the socket or try another.
	- Faulty motor	- Take the appliance to the technical service
Suction power is weaker	- Clogged tube	- Remove the blockage
	- The HEPA filter needs cleaning	- Clean the filter (previous section)
	- The dust container is not in its position.	- Check that it is well placed and fastened with the closures
	- Full paper bag	- Place a new bag

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
