AP 1500 - Vacuum Cleaner Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	AP 1500
Device type	Cordless stick vacuum
Usage	Domestic
Power supply	Rechargeable battery, power adapter supplied (230 V, 50 Hz)
Charging time (first use)	Approximately 16 hours
Charging time (subsequent uses)	Approximately 8 hours
Accessories included	Crevice nozzle, water suction accessory
Main functions	Vacuuming dust and small crumbs, liquid pickup (with dedicated accessory)
Filter maintenance	Washable with water, drying required before reassembly
Emptying the tank	Removable dust compartment via release button
Safety	Do not vacuum sharp objects, hot ashes, or liquids without the appropriate accessory
Child safety	Keep unit and cord out of reach of children under 8 years
Standards	Compliant with directives 2014/35/EU (Low Voltage) and 2014/30/EU (EMC)
Warranty	Legal warranty according to applicable legislation, upon presentation of the receipt

Frequently Asked Questions - AP 1500 Orbegozo

How to charge the vacuum for the first time?

The first charge must last approximately 16 hours. Plug the charger into a 230V outlet, place the vacuum in the wall mount and press until it is securely attached.

What types of waste can I vacuum?

This vacuum is designed to vacuum dust and small crumbs. Never vacuum sharp objects or hot ashes.

Can I vacuum liquids?

Yes, but only with the supplied water suction accessory. Install it correctly before use.

How to clean the filter?

First unplug the unit. Remove the dust compartment, then turn the filter counterclockwise (OPEN position). Shake it to dust it off. You can wash it with water, then let it dry before reassembling.

How long does the charge last after the first use?

Subsequent charges last approximately 8 hours.

What to do if the power cord is damaged?

Do not use the unit. Contact an authorized technical service to replace it to avoid any danger.

Can children use this vacuum?

This appliance can be used by children aged 8 years and over under supervision. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

How to benefit from the warranty?

Keep your receipt as proof of purchase. For any claim, contact technical service via the site https://orbegozo.com/assistencia-technica/.

How to dispose of the vacuum at end of life?

Do not throw it away with household waste. In accordance with the WEEE directive (2012/19/EU), take it to a collection point for recycling of electrical appliances.

Where can I find the original manual?

You can download the manual in PDF format for free from the site notice-facile.com or request a copy from Orbegozo via www.orbegozo.com.

USER MANUAL AP 1500 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

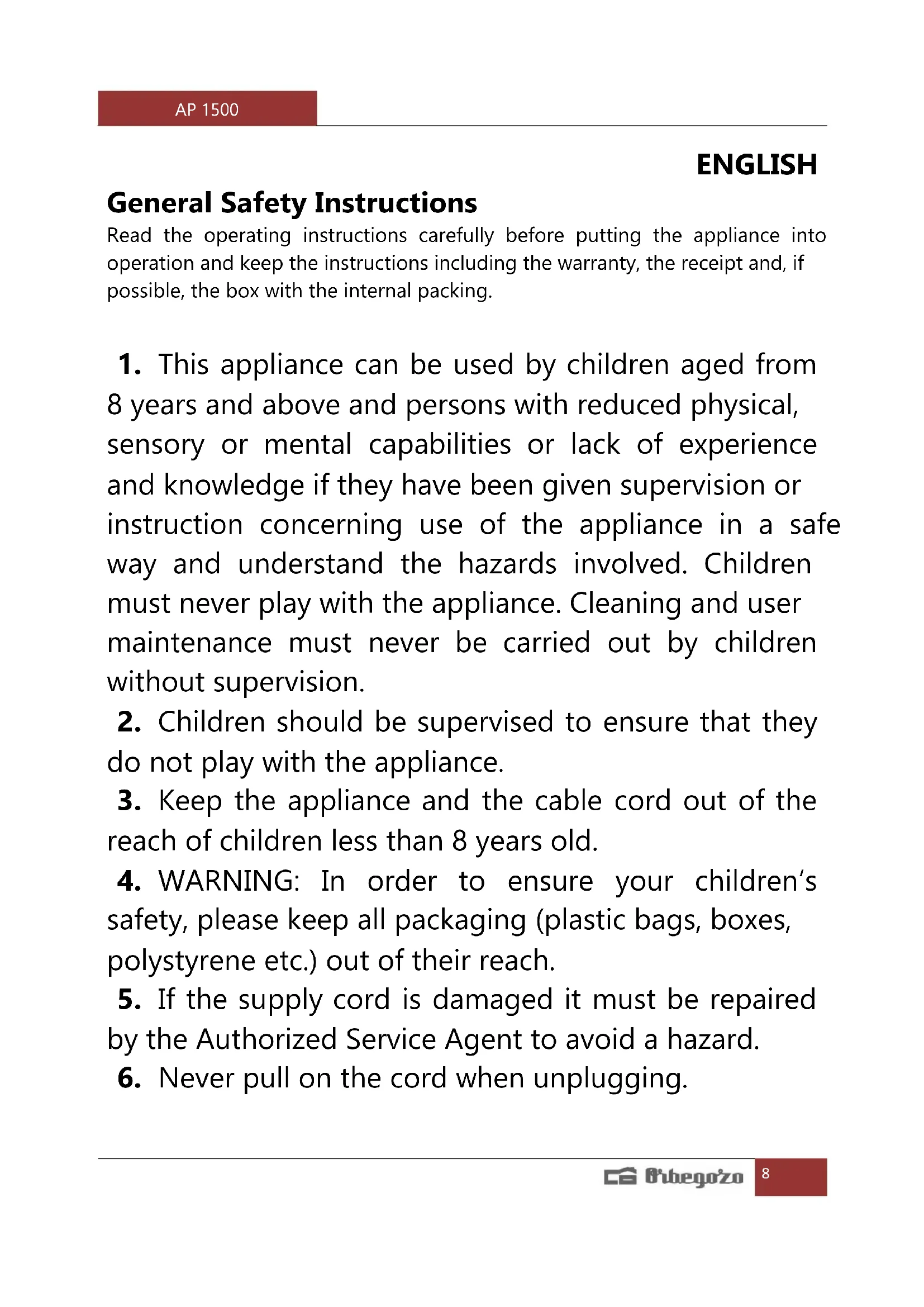

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid a hazard.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask find it in our website: www.orbegozo.com
14. WARNING: In case of misuse, there is a risk of possible injury.

Information for this unit

• Vacuum only dust and small crumbs. Do not vacuum sharp objects or hot ashes.
• This appliance is only intended for household use and for this end has been manufactured.
• Please always use the attachmentfor wet vacuuming.
• The appliance is to be used with the power supply unit supplied with the unit.

- The appliance must be supplied at very low voltage corresponding to that marked on the appliance.

CHARGING THE BATTERIES

After mounting the wall holder:

• Insert the AC adapter in a duly installed 230V/50Hz protective contact socket. The charging
• LED lights up.
• If you want to charge the batteries, first remove the nozzle attachments and then insert the device first into the upper bracket of the wall mounting.
• Then press the handle lightly until the device locks in place.
  The charging time is approximately 16 hours the first time, and then approximately 8 hours.
• Once the charging is over, unplug the AC adapter.

USING THE DEVICE

• Unplug the device and fit on the desired nozzle.
  In order to start vacuuming you have to press the ON/OFF switch and keep it pressed.
• Once you have finished or when the batteries are down, connect the vacuum to the charger as described in "Charging the Batteries".
• Make sure that the plug is inserted.

NOZZLES

• Crevice nozzle: ideal for vacuuming corners and crevices, etc.
• Use for wet vacuuming: Please ensure that you always use the attachment when vacuuming up liquids (insert the extension of the attachment into the device until the nozzle is flush).

CLEANING

Always unplug the device before cleaning!
- Clean the casing with a dry cloth.
- The dust container can be released with the release knob and then pulled off from the top downwards.
- Remove the dust filter (10) by turning the insert anticlockwise and tapping it out.
After emptying the container several times, it can also be cleaned in water. Dry well once you have finished.
- Please reassemble the device in the reverse order.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
